Part Details

Torque-Converter » Chrysler » 310mm Lockup, A-618, 47RH, 48RE » Bushing

TB-18-4XReference Part#: CH-B-2X

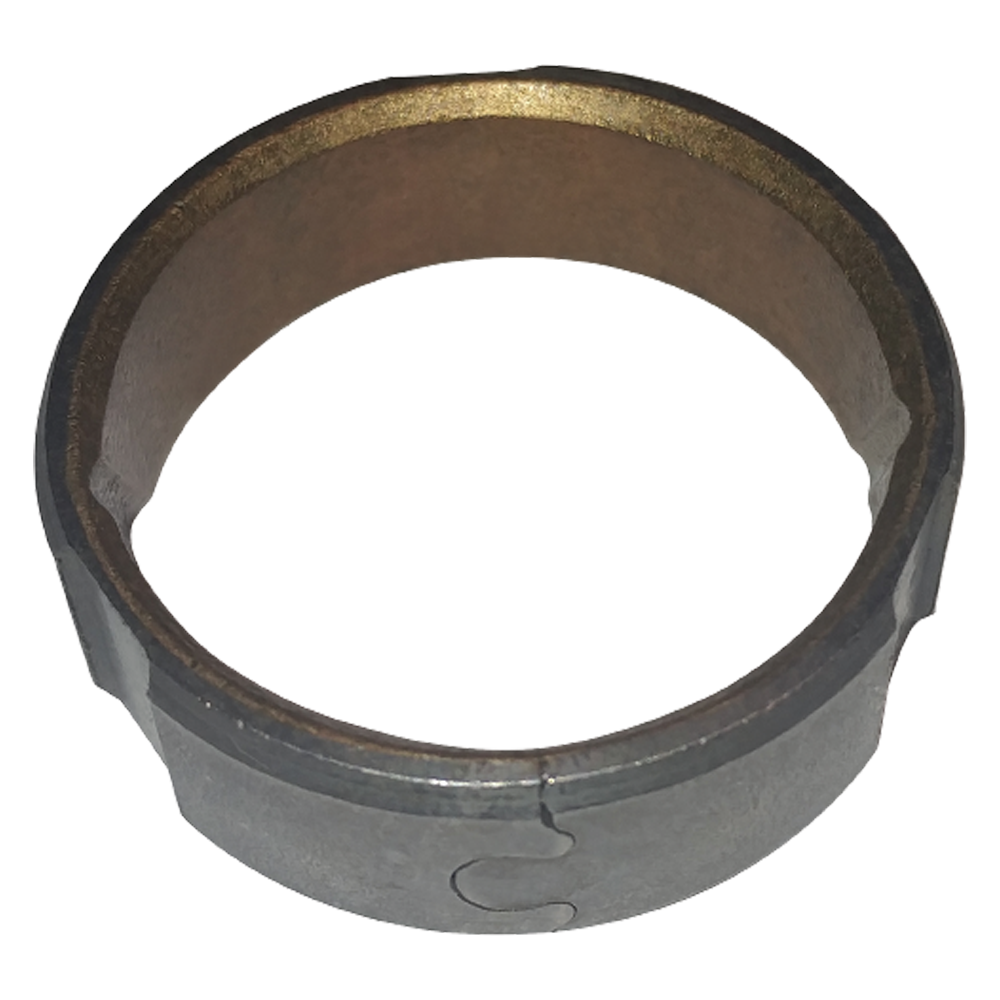

Bushing

  • Outer Dia: 1.615
  • Inner Dia: 1.3680
  • Width: 0.503
  • housing bore dia: 1.611
  • Shaft Dia: 1.385
  • Material: Bronze
  • Oversized

Similar Parts:

Image Part ID Description Specification
TB-18-4 Bushing , With External Grooves
  • Outer Dia: 1.613
  • Inner Dia: 1.3910
  • Width: 0.503
  • housing bore dia: 1.611
  • Shaft Dia: 1.385
  • Material: Bronze
TB-18-4B Bushing
  • Outer Dia: 1.611
  • Inner Dia: 1.3735
  • Width: 0.5
  • housing bore dia: 1.611
  • Shaft Dia: 1.385
  • Material: Iron/Bronze

Applications:

Related Products:

SO-23-33

O-Ring

SO-23-33X

O-Ring

SW-2-12

Bearing

SW-2-23

Washer , On Special! Only $5.24. Use promo code: 21300

SX-23-35

Lining (Friction Ring,Wafer)

SX-23-38

Lining (Friction Ring,Wafer)

SX-23-49

Lining (Friction Ring,Wafer)

TB-18-4

Bushing

WX-22-1

Front Cover

Spanish Description: buje
