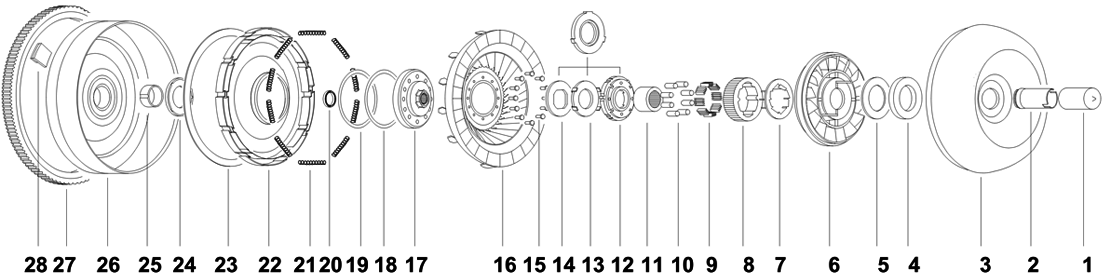

Torque Converter | Chrysler | 10-3/4" Lockup, Late, A-500, A-518, RWD

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Turbine Washer
  • Outer Dia: 2.56"
  • Inner Dia: 1.39"
  • Thickness: .160"
  • Material: Vulcanized Fiber.
  • Replaces Bearing TW-9-8
 TW-9-21

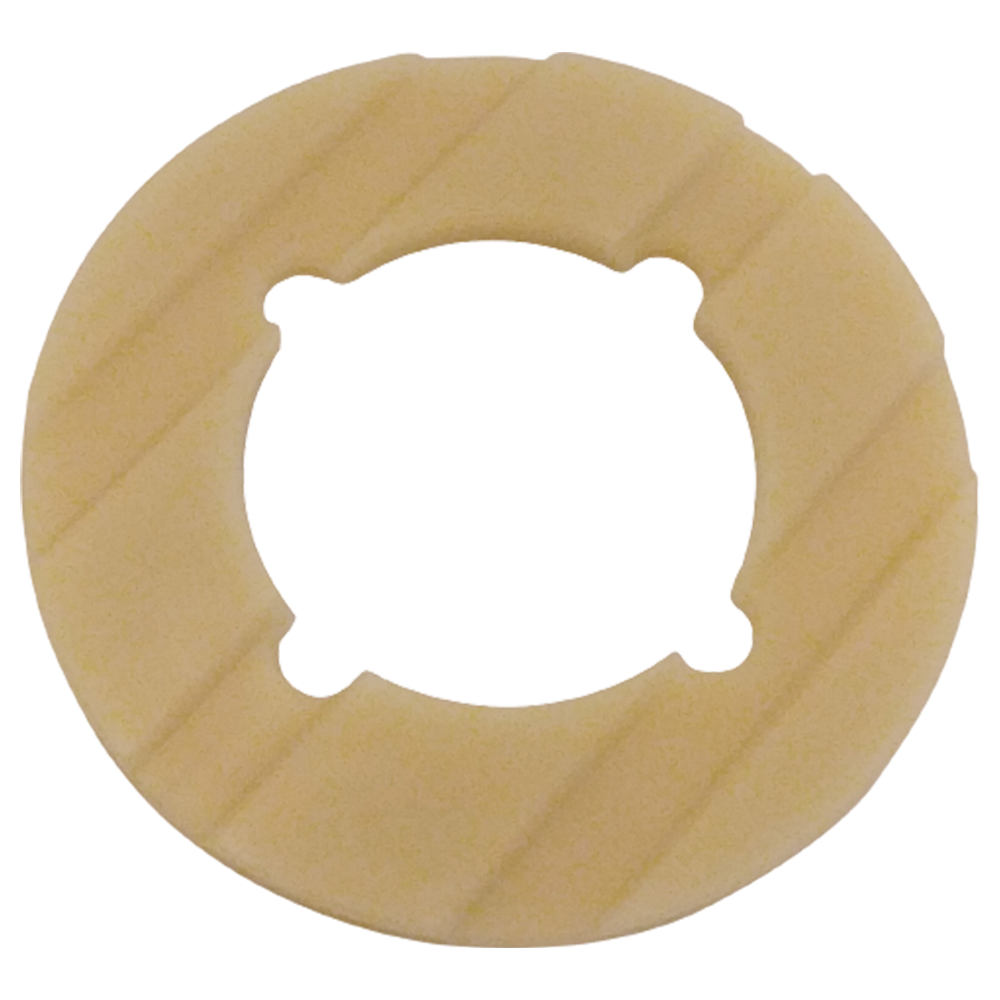

0 Turbine Washer Heavy-Duty
  • Outer Dia: 2.56"
  • Inner Dia: 1.39"
  • Material: Molded Polyamid
 TW-9-21HD
0 Turbine Washer
  • Outer Dia: 2.56"
  • Inner Dia: 1.39"
  • Thickness: .130"
  • Material: Fiber
  • Replaces Bearing TW-9-8
 TW-9-25
0 Turbine Washer
  • Outer Dia: 2.560"
  • Inner Dia: 1.390"
  • Thickness: 0.140"
  • Material: Fiber
  • Replaces Bearing TW-9-8
 TW-9-26
0 Lining (Friction Ring,Wafer)
  • Outer Dia: 10.75
  • Inner Dia: 9.125
  • Thickness: 0.045"
  • Material: Red
 TX-23-32
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-YA
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
2 Impeller Hub
  • Journal Dia: 1.500"
  • Height: 1.980"
  • Hub Mount: Butt
  • Pump Drive Type: flats
 TH-1-18G

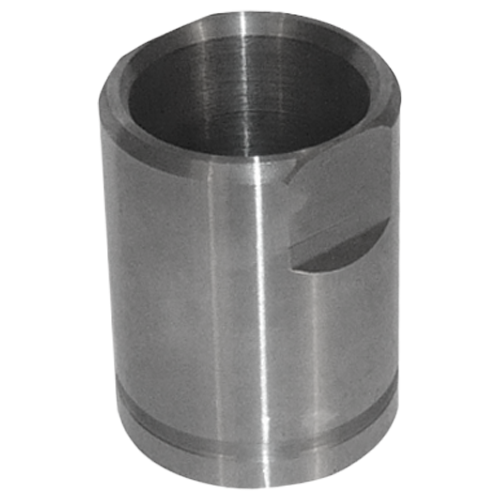

2 Impeller Hub
  • Journal Dia: 1.500"
  • Height: 1.980"
  • Hub Mount: Butt
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
 TH-1-18GRC
2 Impeller Hub
  • Journal Dia: 1.500"
  • Height: 2.10"
  • Hub Mount: Butt
  • Pump Drive Type: flats
 TH-1-19G

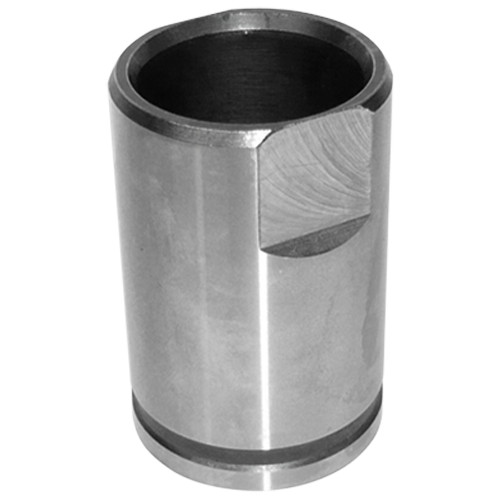

2 Impeller Hub A-500
  • Journal Dia: 1.500"
  • Height: 2.10"
  • Hub Mount: Butt
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
 TH-1-19GRC
2 Impeller Hub
  • Journal Dia: 1.500"
  • Height: 2.55"
  • Hub Mount: Butt
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
  • A-500
 TH-1-40GRC
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 2.140"
  • Hub Mount: Thru
  • Pump Drive Type: flats
  • A-500
 TH-1-17G

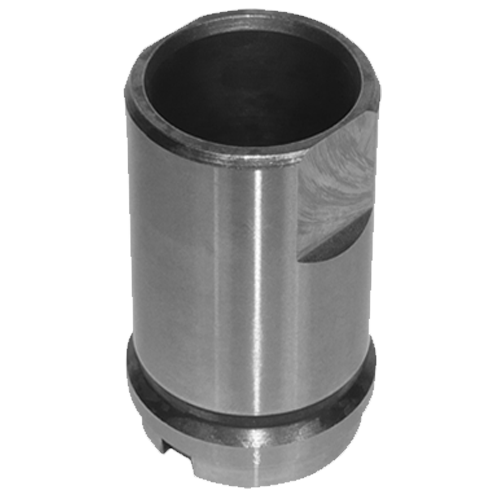

2 Impeller Hub A-904 Retrofit Fits A500
  • Journal Dia: 1.500"
  • Installed Height: 2.140"
  • Hub Mount: Thru
  • Pump Drive Type: flats
 TH-1-17GRC
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 2.065"
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
  • A-500
 TH-1-24GRC
2 Impeller Hub
  • Journal Dia: 1.875"
  • Installed Height: 2.265"
  • Pump Drive Type: slots (.61" x .40")
 TH-1-3G
2 Impeller Hub A-518
  • Journal Dia: 1.875"
  • Installed Height: 2.265"
  • Pump Drive Type: slots (.61" x .40")
  • Hardness: Rc 32-36
 TH-1-3GRC
2 Impeller Hub TH-1-32TG

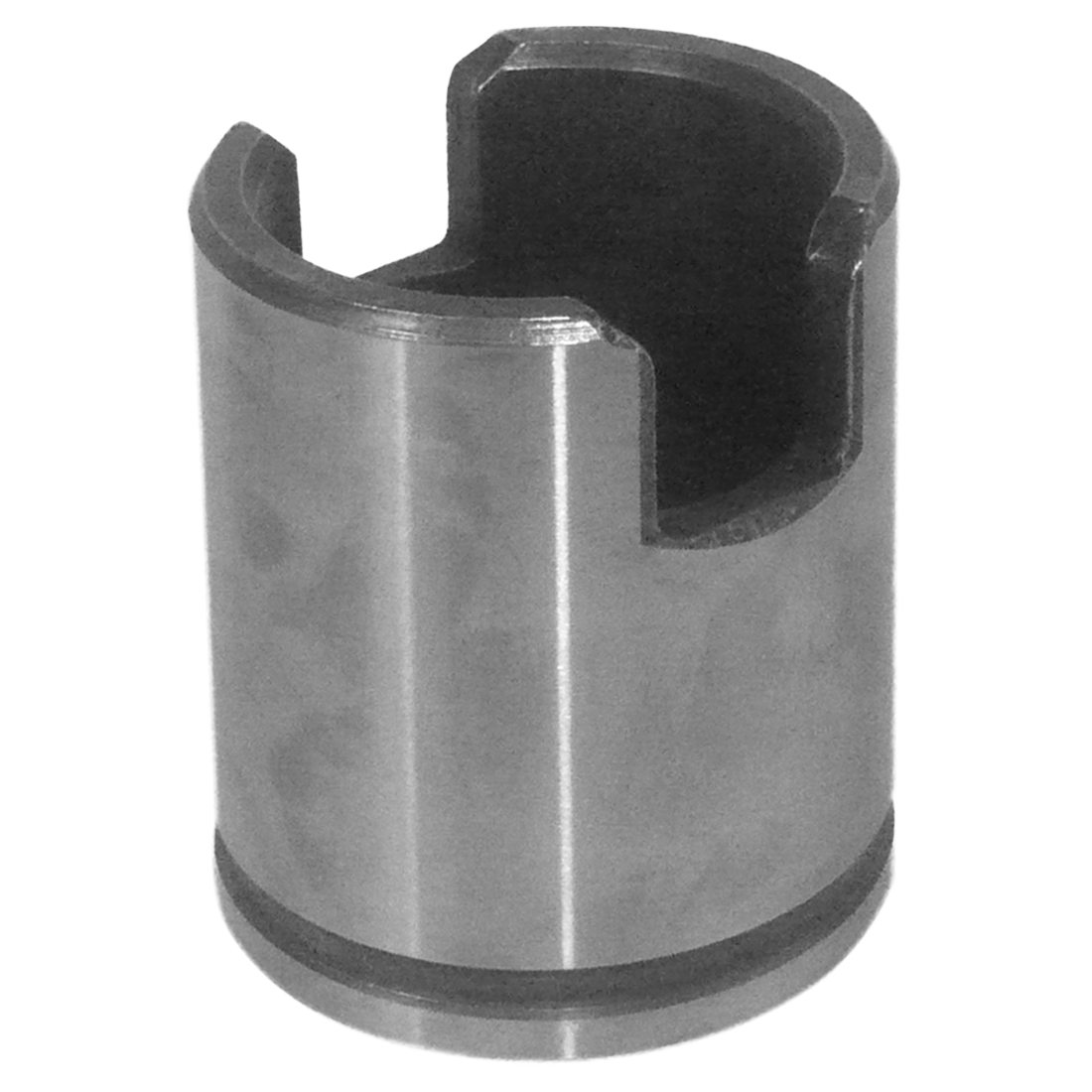

2 Impeller Hub A-518
  • Journal Dia: 1.875"
  • Height: 2.188"
  • Hub Mount: Butt
  • Pump Drive Type: slots (.67" x .60")
  • Hardness: Rc 32-36
 TH-1-32TGRC
2 Impeller Hub
  • Journal Dia: 1.875"
  • Installed Height: 2.187"
  • Pump Drive Type: slots
 TH-1-15G
2 Impeller Hub A-518
  • Journal Dia: 1.875"
  • Installed Height: 2.187"
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
 TH-1-15GRC
2 Impeller Hub TH-1-15TGRC

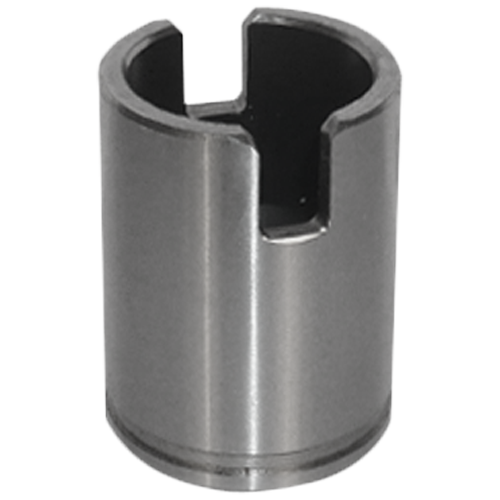

2 Impeller Hub A-518
  • Journal Dia: 1.875"
  • Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: slots
 TH-1-5TSG

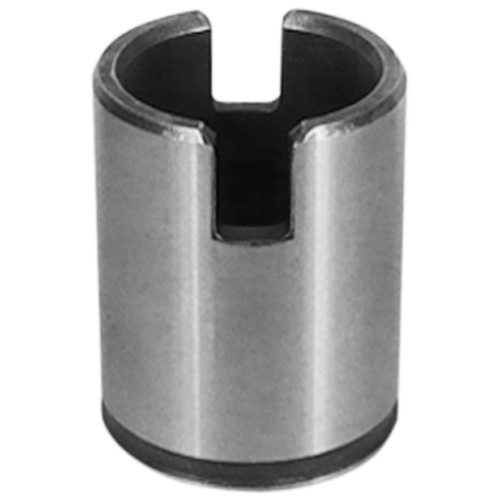

2 Impeller Hub A-518
  • Journal Dia: 1.875"
  • Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
 TH-1-5TSGRC

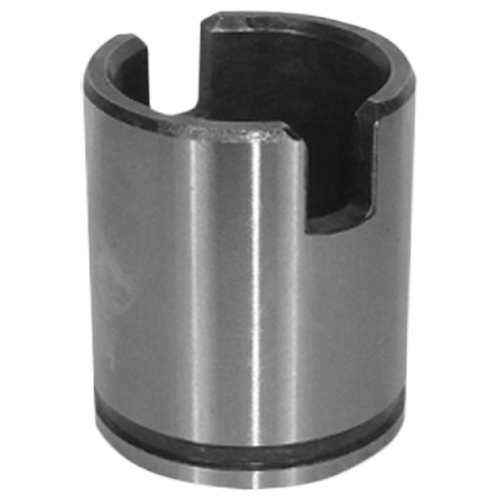

2 Impeller Hub A-518
  • Hub Mount: Butt
  • Pump Drive Type: slots
 TH-1-5TSGRCJ
2 Impeller Hub A-518
  • Journal Dia: 1.875"
  • Installed Height: 2.250"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.67" x .60")
 TH-1-32G

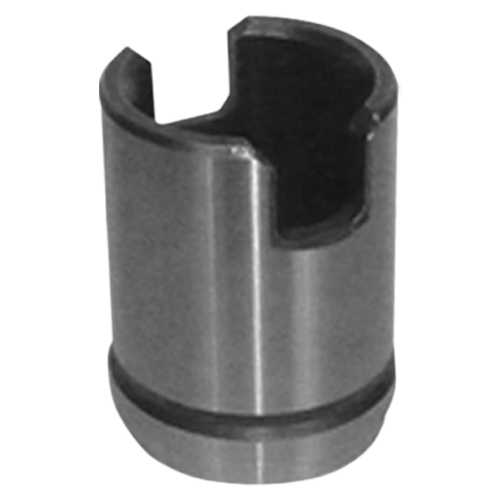

2 Impeller Hub A-518, A727
  • Journal Dia: 1.875"
  • Installed Height: 2.250"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.67" x .60")
  • Hardness: Rc 32-36
 TH-1-32GRC
3 Impeller NPN-3-20-3
4 Bearing Enclosed
  • Outer Dia: 2.82
  • Inner Dia: 1.898
  • Thickness: 0.181
  • Outer Dia Metric: 71.63
  • Inner Dia metric: 48.21
  • Thickness metric: 4.6
  • Bearing type: Enclosed
 TW-2-4
4 Bearing
  • Outer Dia: 2.82"
  • Inner Dia: 1.9"
  • Thickness: 0.181"
  • Bearing type: Enclosed
 TW-2-4NA

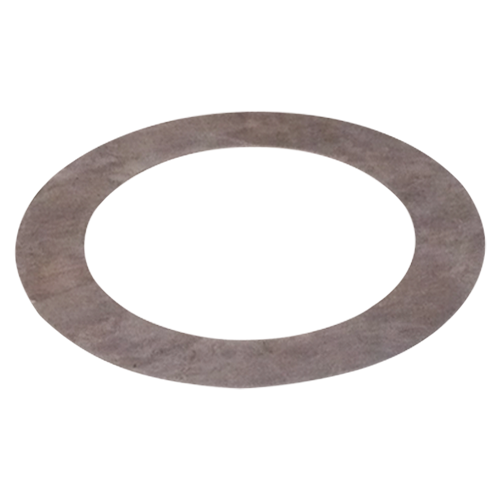

5 Shim Use Under Bearing TW-2-4
  • Outer Dia: 2.82"
  • Inner Dia: 1.975"
  • Thickness: .010"
 TW-2-110

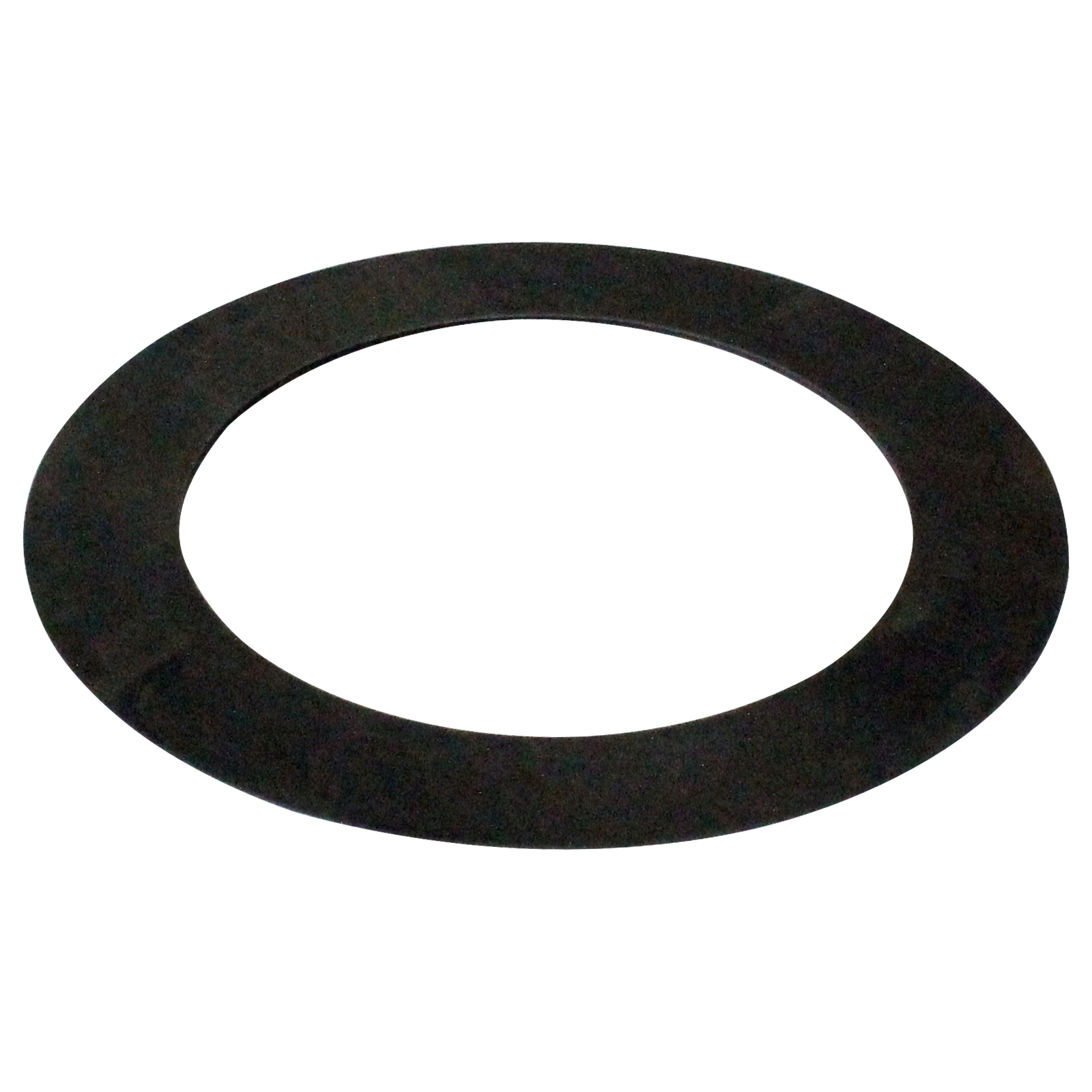

5 Shim
  • Outer Dia: 2.82"
  • Inner Dia: 1.975"
 TW-2-110A
5 Shim
  • Outer Dia: 2.82"
  • Inner Dia: 1.975"
  • Thickness: 0.02"

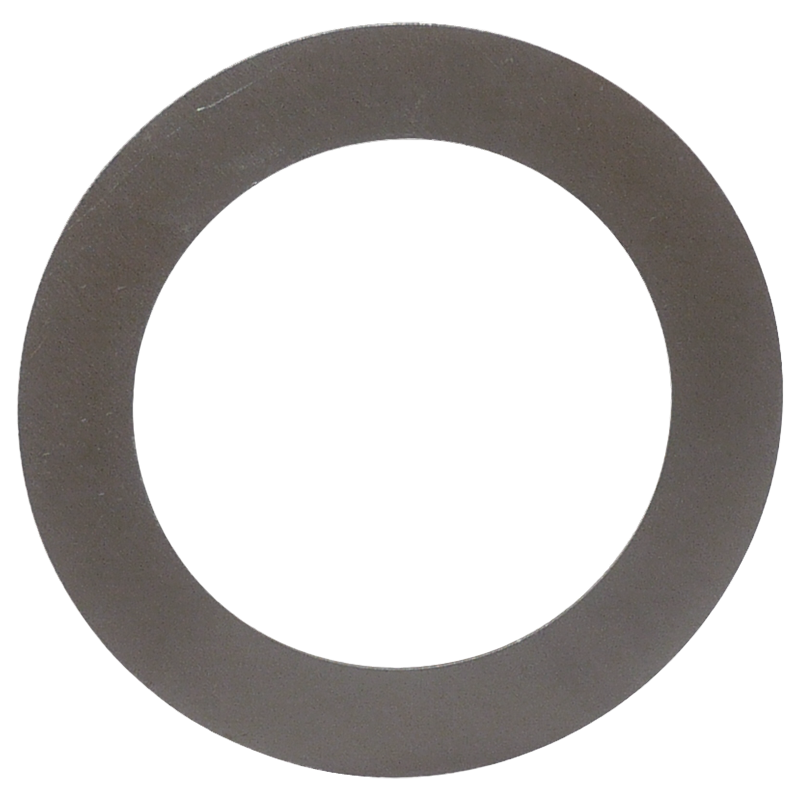

 TW-2-120
5 Shim
  • Outer Dia: 2.82"
  • Inner Dia: 1.975"
 TW-2-120A

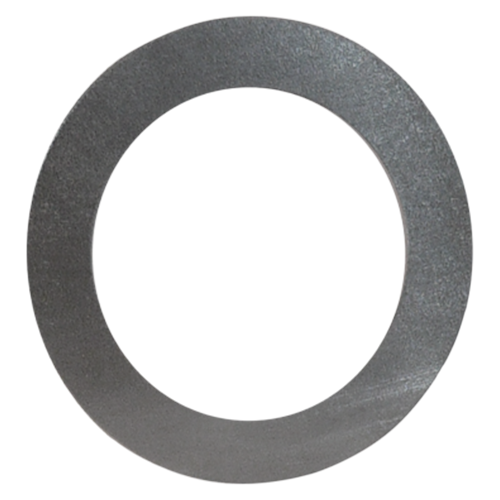

5 Shim
  • Outer Dia: 2.82"
  • Inner Dia: 1.975"
  • Thickness: .03"
 TW-2-130
6 Stator With Cam, High Stall, Bearing Type TX-5-518
7 Spring Retainer Stator
  • Height: .57"
  • Outer Dia: 3.08"
  • Inner Dia: 2.02"
 TX-15-4

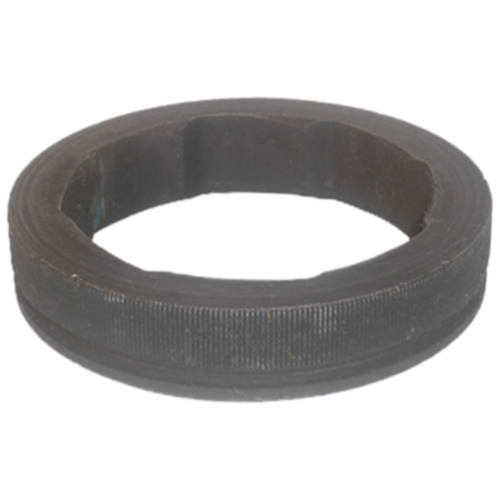

8 Outer Race (Cam) Stator
  • Late Outer Race, Many Uses, Very Strong
 TX-15-5
9 Accordion Spring 1942187
9 Accordion Spring
  • Height: 0.28"
  • Width: 0.565"
  • Folds: 3
 FS-6-10
9 Accordion Spring 8 Pieces Required.
  • Height: .312"
  • Width: 0.6"
  • Folds: 4
 TS-6
10 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
10 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
11 Inner Race Stator A-500
  • Height: 1.040"
  • Outer Dia: 1.939"
  • Inner Dia: 1.100"
  • Internal Teeth: 27
 TX-14-5
11 Inner Race Stator A-518
  • Height: 1.040"
  • Outer Dia: 1.939"
  • Internal Teeth: 27
 TX-14-6

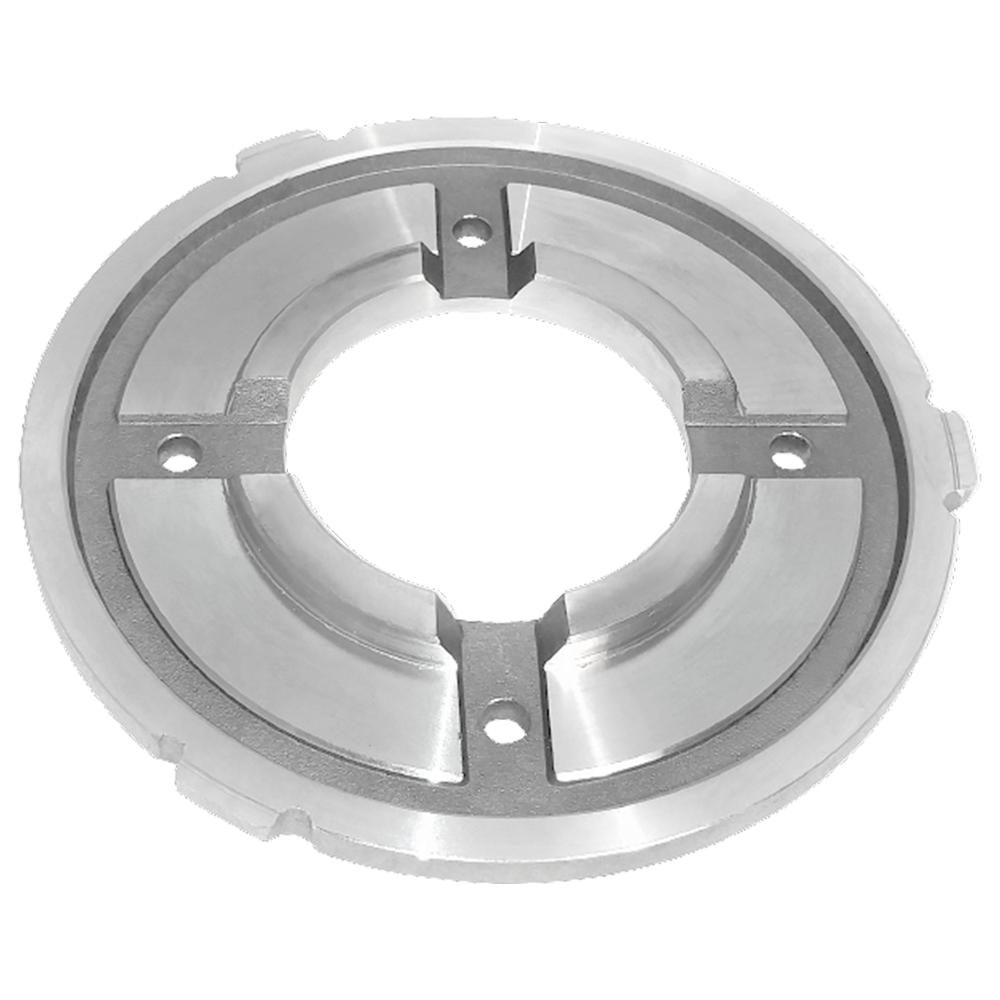

11.1 Stator Cap Bearing Adaptor Use with bearing TW-2-4
  • Outer Dia: 3.375"
  • Inner Dia: 1.500"
  • Thickness: 0.280"
  • Material: Aluminum
  • Functional Thickness: 0.163"
 TW-4-17
12 Stator Cap Phenolic *Note: Parts Can Be Replaced by Phenolic Washer TW-4-16 or by TW-4-17 With TW-2-4 Bearing
  • Outer Dia: 3.38"
  • Inner Dia: 1.48"
  • Thickness: .36"
 TW-4-16

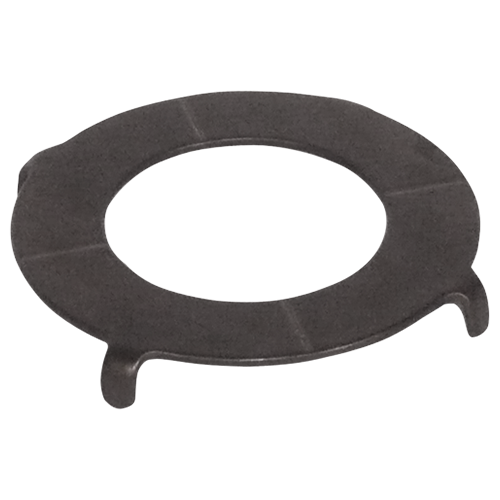

13 Washer Early-Type. *Note: Parts Can Be Replaced by Phenolic Washer TW-4-16 or by TW-4-17 With TW-2-4 Bearing
  • Outer Dia: 2.41"
  • Inner Dia: 1.44"
  • Thickness: .060"
  • Material: Bronze
  • 4 Tabs, 0.188" wide
 TW-3-7
13 Washer
  • Outer Dia: 2.41"
  • Inner Dia: 1.44"
  • Thickness: .080"
  • Material: Bronze
  • 4 Tabs, 0.188" wide
 TW-3-7A

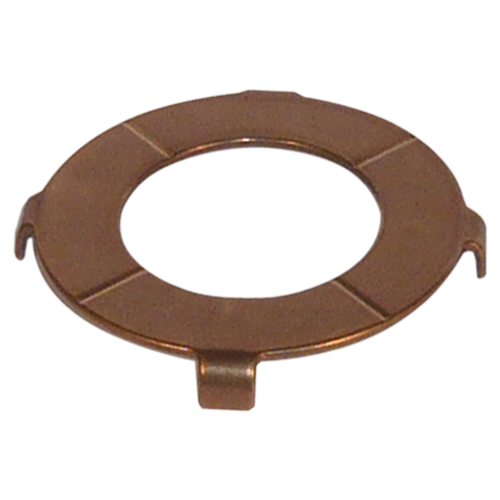

13 Washer Wide Tang, Heavy Duty Late-style, *Note: Parts Can Be Replaced by Phenolic Washer TW-4-16 or by TW-4-17 With TW-2-4 Bearing
  • Outer Dia: 2.41"
  • Inner Dia: 1.43"
  • Thickness: 0.080"
  • Material: Bronze
  • 4 Tabs, 0.312" wide
 TW-3-9

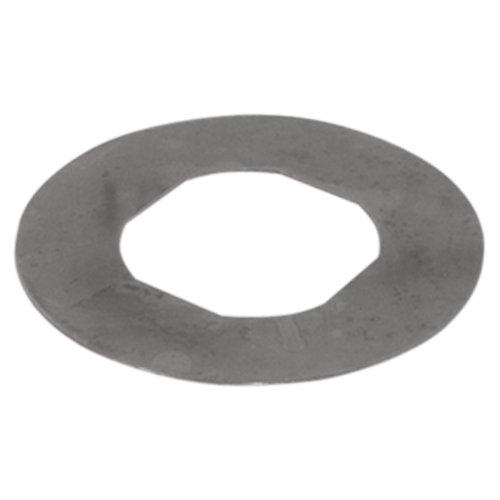

14 Washer Wear Plate, Square Hole *Note: Parts Can Be Replaced by Phenolic Washer TW-4-16 or by TW-4-17 With TW-2-4 Bearing
  • Outer Dia: 2.490"
  • Inner Dia: 1.374"
  • Thickness: .025"
 TW-4-11
14 Turbine Hub
  • Outer Dia: 2.490"
  • Inner Dia: 1.374"
  • Internal Teeth: 23
 TX-13-7
14 Turbine Hub
  • Outer Dia: 2.490"
  • Inner Dia: 1.374"
  • Internal Teeth: 23
 TX-13-7S

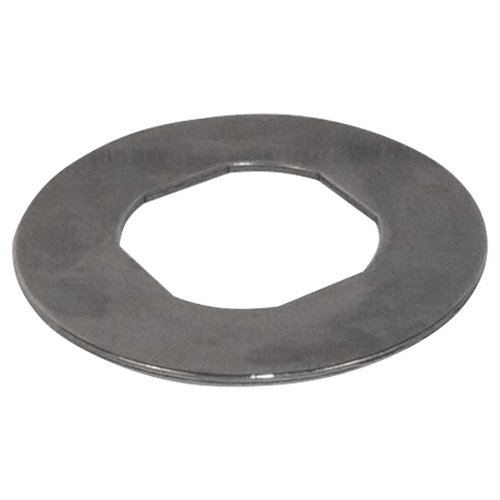

14 Washer Wear Plate, Square Hole *Note: Parts Can Be Replaced by Phenolic Washer TW-4-16 or by TW-4-17 With TW-2-4 Bearing
  • Outer Dia: 2.490"
  • Inner Dia: 1.374"
  • Thickness: 0.058"
  • Material: Steel
 TW-4-11A
15 Rivet 12 Pieces Required.
  • Length: 0.476"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.250"
  • Rivet head dia: 0.475"
  • Rivet head Type: Flat
 TX-12-2
16 Turbine
  • Outer Dia: 10-3/4"
 NPN-3-20-16
17 Turbine Hub
  • Internal Teeth: 26
 TX-13-29

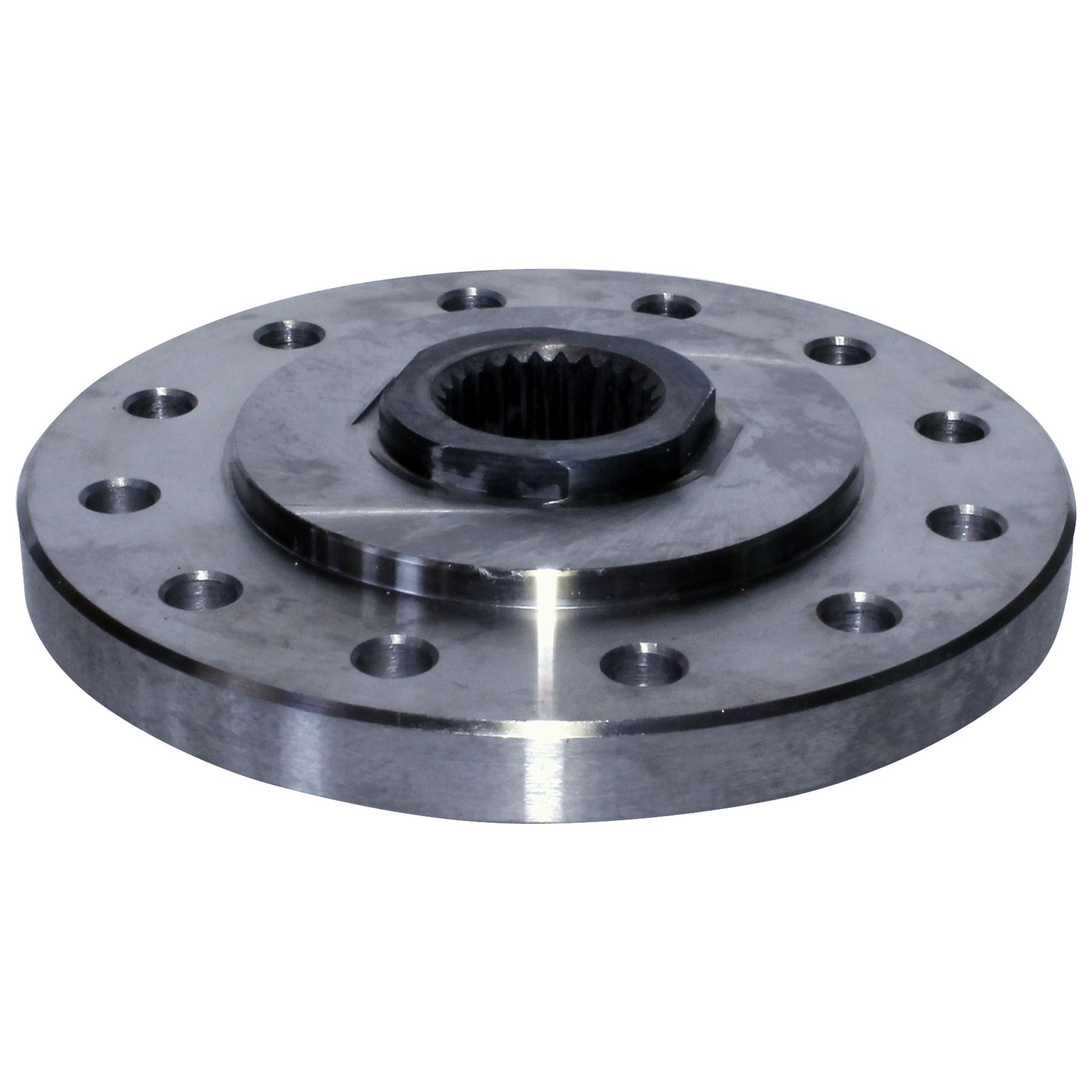

17 Turbine Hub With Square Washer Boss A500, 40RH/42RH
  • Internal Teeth: 26
  • Hardness: Heat Treated
 TX-13-29HT
17 Turbine Hub
  • Height: 1.34"
  • Outer Dia: 2.490"
  • Inner Dia: 1.374"
  • Internal Teeth: 23
 TX-13-28

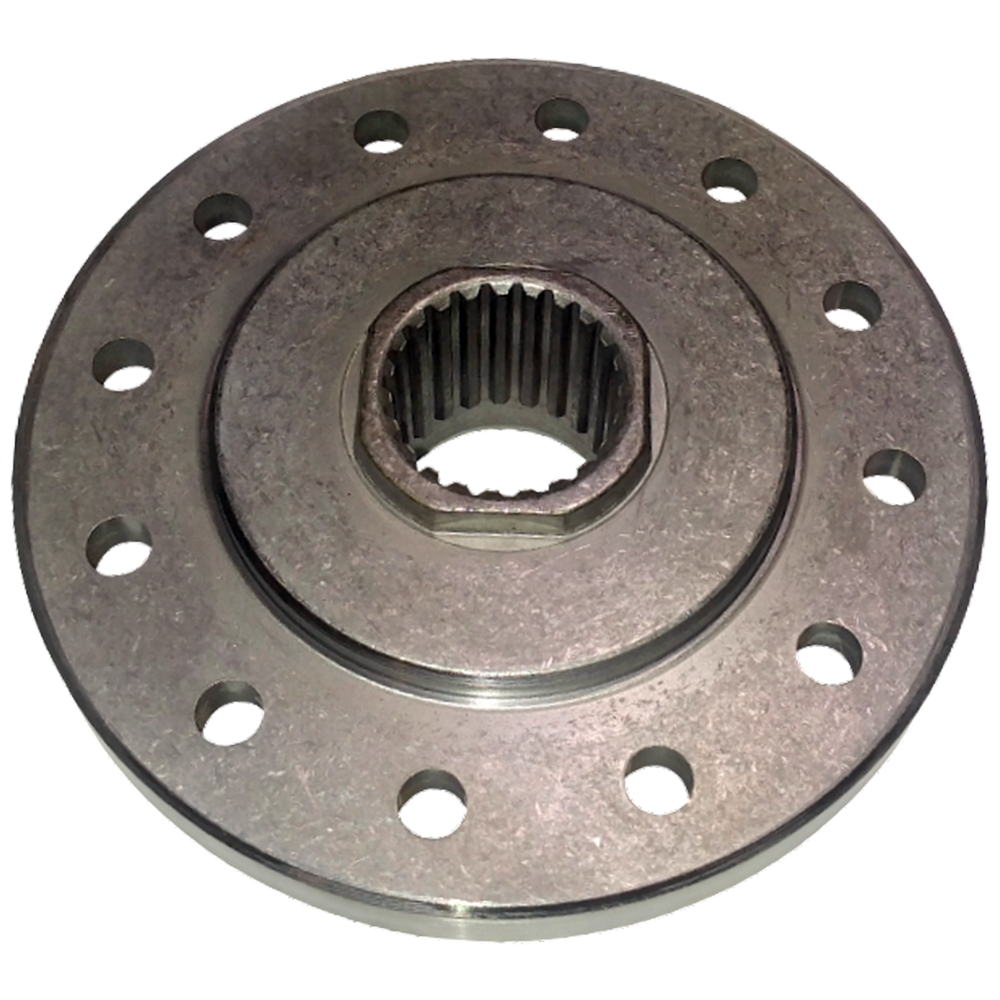

17 Turbine Hub With Square Washer Boss A-518, 46RH/46RE
  • Height: 1.34"
  • Outer Dia: 2.490"
  • Inner Dia: 1.374"
  • Internal Teeth: 23
  • Hardness: Heat Treated
  • A-518
 TX-13-28HT
18 O-Ring
  • Inner Dia: 4.237
  • Thickness: 0.103
  • Inner Dia metric: 107.6198
  • Thickness metric: 2.62mm
  • Material: Fluorocarbon
 TO-25-3V
19 Seal Ring Back-Up
  • Height: 0.09
  • Outer Dia: 4.428
  • Width: 0.033"
  • Outer Dia Metric: 112.4712
  • Material: PTFE
  • Height Metric: 2.286
 TO-25-2
20 Metal Clad Seal
  • housing bore dia: 1.066
  • housing bore dia metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
 TO-25-1

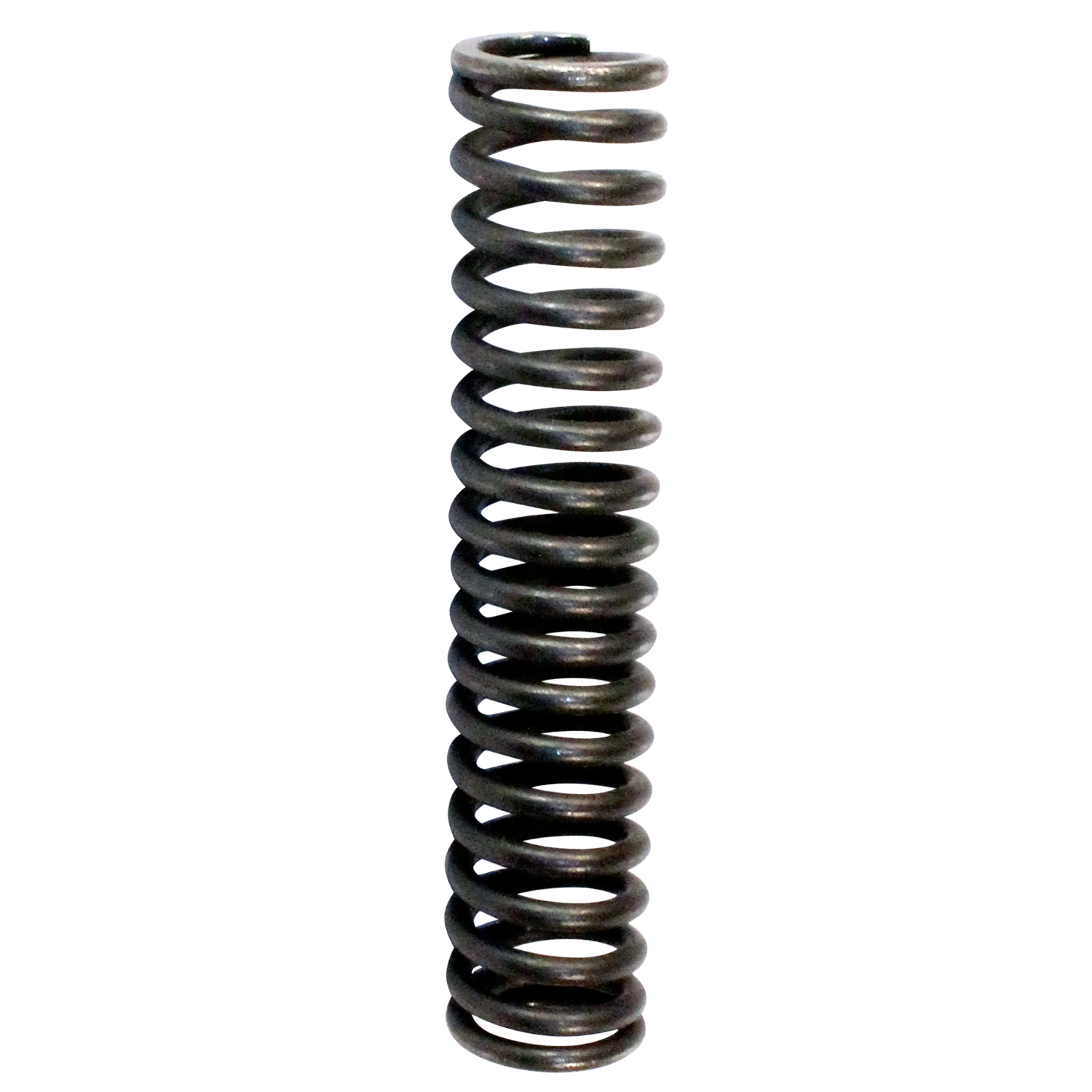

21 Damper Spring Blue, 225 Engines 225 Engines 10 Pieces Required. TX-24B
21 Damper Spring Red 360 Engines 10 Pieces Required. TX-24R
21 Damper Spring White V6, 318 Engines 10 Pieces Required.
  • Outer Dia: 0.492"
  • Length: 2.665"
 TX-24W

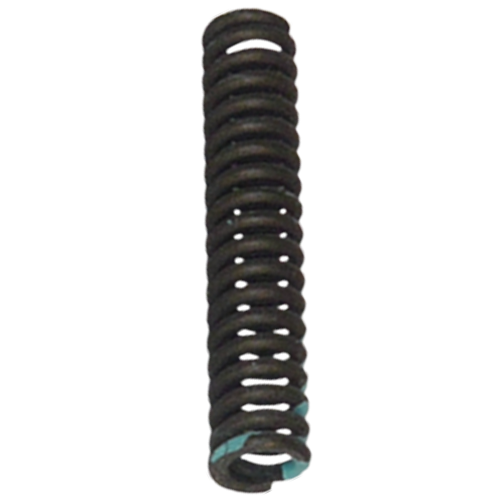

21 Damper Spring Green, A-518 A-518, 360 Engines 10 Pieces Required.
  • Outer Dia: 0.518"
  • Length: 2.665"
 TX-24G
22 Clutch Plate Assembly Non-Lined
  • (Lined Piston, TX-26-2)
 TX-26-1
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 10.563"
  • Inner Dia: 9.25"
  • Thickness: 0.045"
  • Material: Red
 TX-22X
23 Floating Ring
  • Outer Dia: 10.750
  • Inner Dia: 9.250
  • Thickness: .070"
 TX-26-4

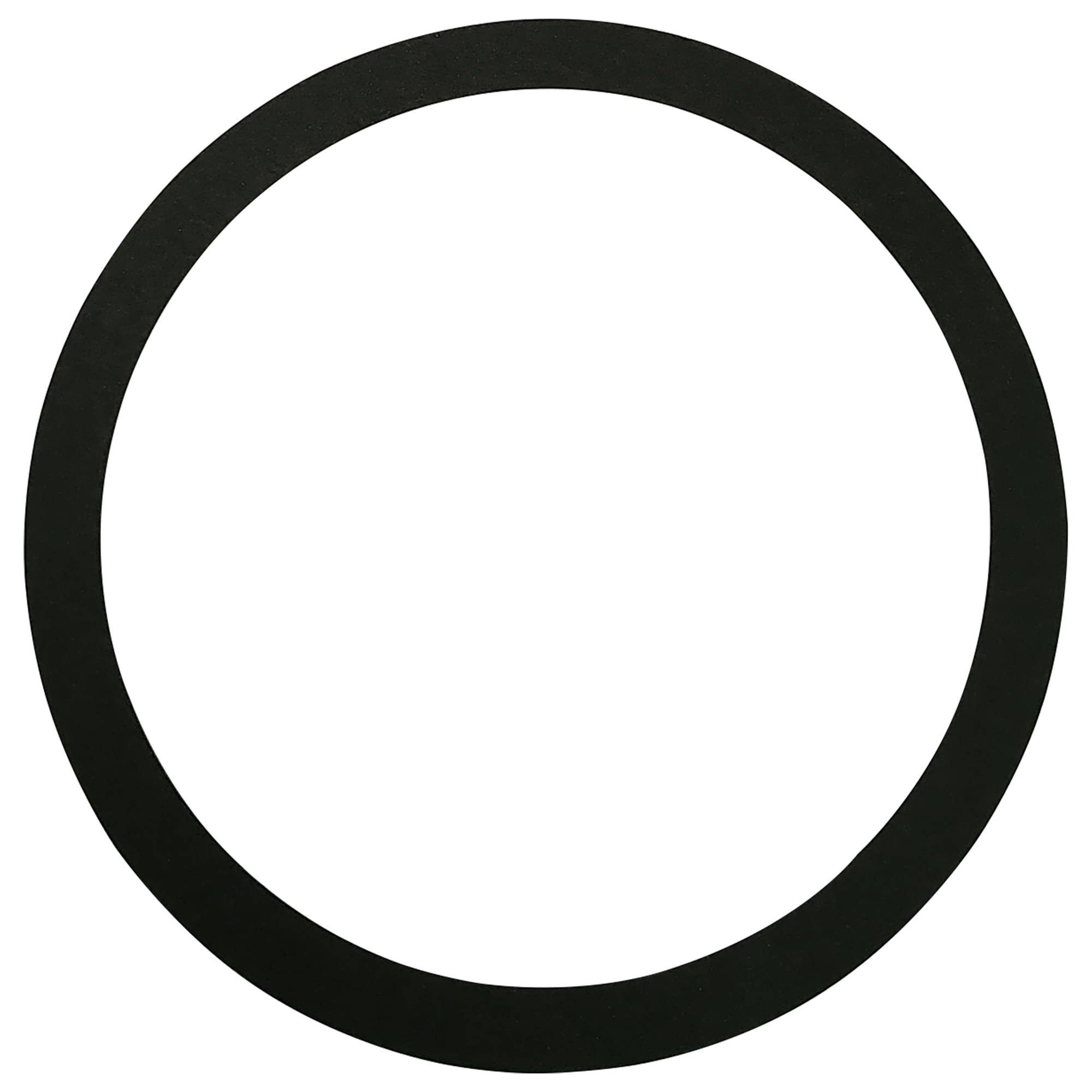

23 Floating Ring Carbon
  • Outer Dia: 10.750
  • Inner Dia: 9.250
  • Material: Carbon
 TX-26-4C

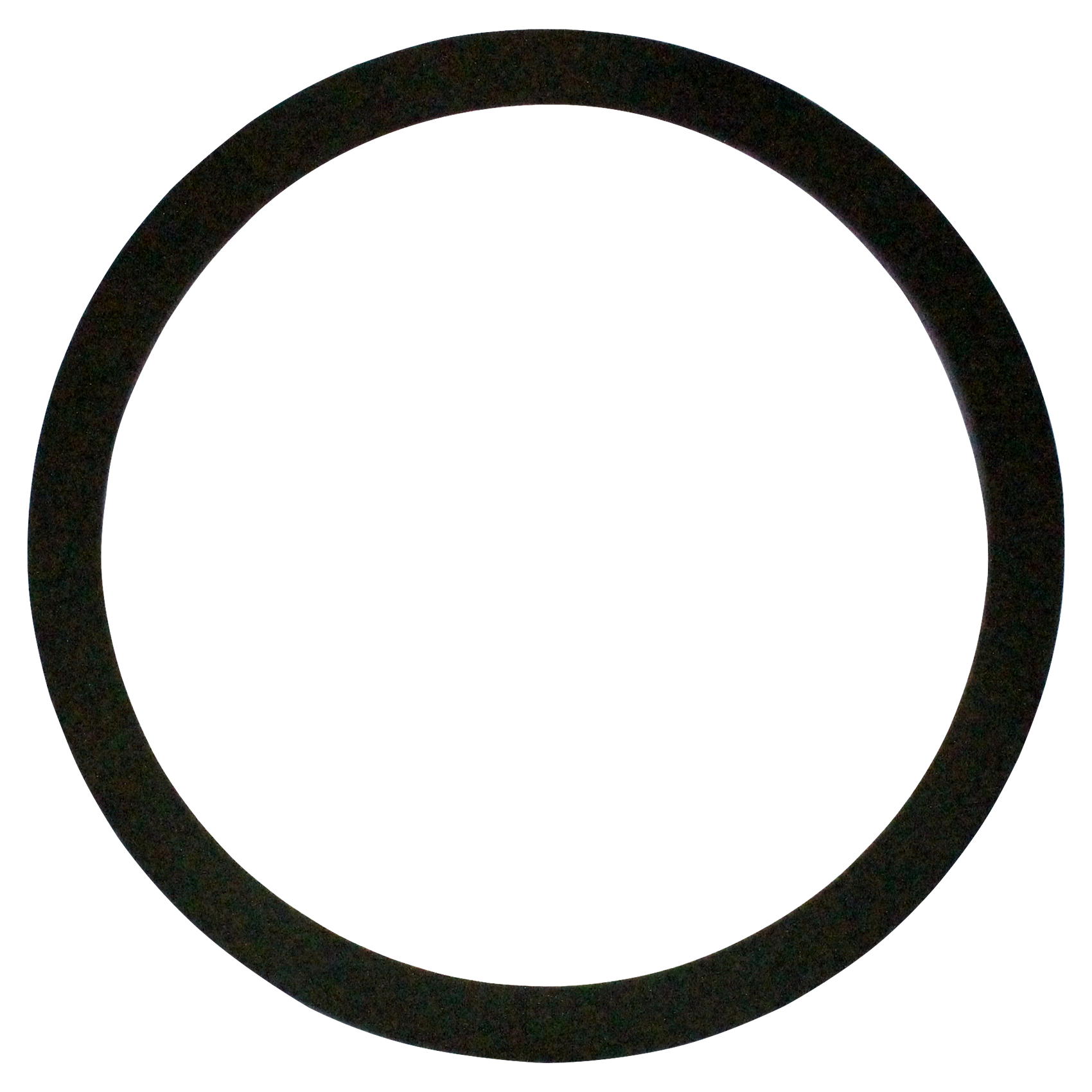

23 Floating Ring Kevlar®
  • Outer Dia: 10.750
  • Inner Dia: 9.250
  • Thickness: .070"
  • Material: Kevlar®™
 TX-26-4K
23 Floating Ring Raybestos
  • Outer Dia: 10.750
  • Inner Dia: 9.250
  • Thickness: .070"
 TX-26-4RB
23 Lining (Friction Ring,Wafer)
  • Outer Dia: 10.75
  • Inner Dia: 9
  • Thickness: 0.045"
  • Material: Red
 TX-23-14
23 Lining (Friction Ring,Wafer)
  • Outer Dia: 10.75
  • Inner Dia: 9.25
  • Thickness: 0.045"
  • Material: Red
 TX-23-4
24 Bearing Replaced By Bronze Washer TW-9-18
  • Outer Dia: 2.6
  • Inner Dia: 1.4
  • Thickness: 0.17
  • Outer Dia Metric: 66.04
  • Inner Dia metric: 35.56
  • Thickness metric: 4.32
  • Bearing type: Enclosed
 TW-9-8

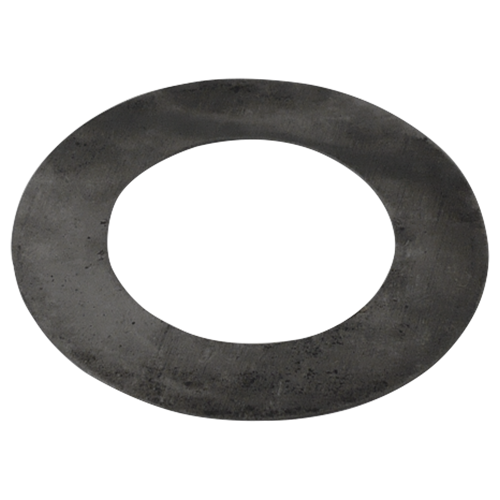

24_N.I. Shim Use Under Bearing TW-9-8
  • Outer Dia: 2.40"
  • Inner Dia: 1.45"
  • Thickness: .010"
 TW-9-010
24_N.I. Shim
  • Outer Dia: 2.4"
  • Inner Dia: 1.45"
  • Thickness: 0.012"
 TW-9-9
24_N.I. Shim
  • Outer Dia: 2.38"
  • Inner Dia: 1.35"
  • Thickness: .010"
 VW-9-2
24_N.I. Shim Fits TW-9-8 bearing
  • Outer Dia: 2.40"
  • Inner Dia: 1.45"
  • Thickness: .020"
 TW-9-020

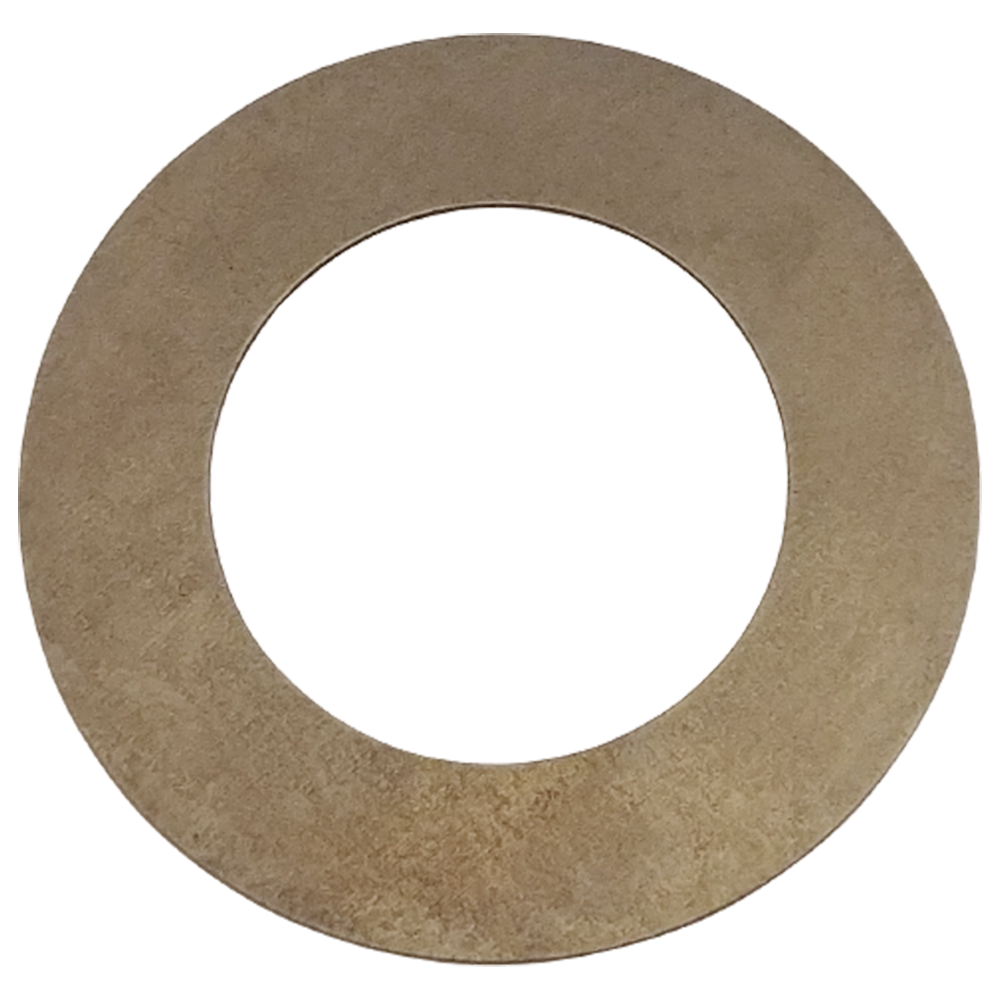

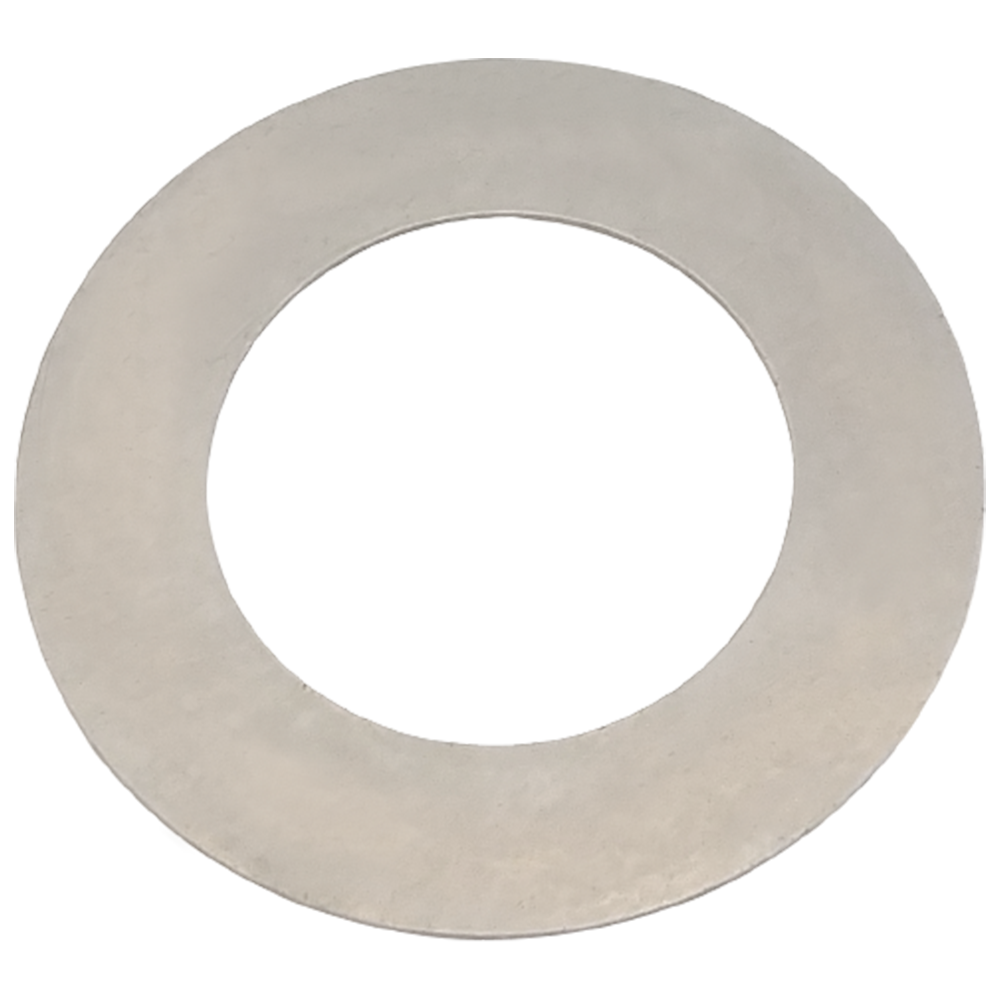

24_N.I. Shim Fits TW-9-8 bearing
  • Outer Dia: 2.40"
  • Inner Dia: 1.45"
  • Thickness: .030"
 TW-9-030
25 Bushing With External Grooves
  • Outer Dia: 1.613
  • Inner Dia: 1.3910
  • Width: 0.503
  • housing bore dia: 1.611
  • Shaft Dia: 1.385
  • Material: Bronze
 TB-18-4
25 Bushing
  • Outer Dia: 1.611
  • Inner Dia: 1.3735
  • Width: 0.5
  • housing bore dia: 1.611
  • Shaft Dia: 1.385
  • Material: Iron/Bronze
 TB-18-4B

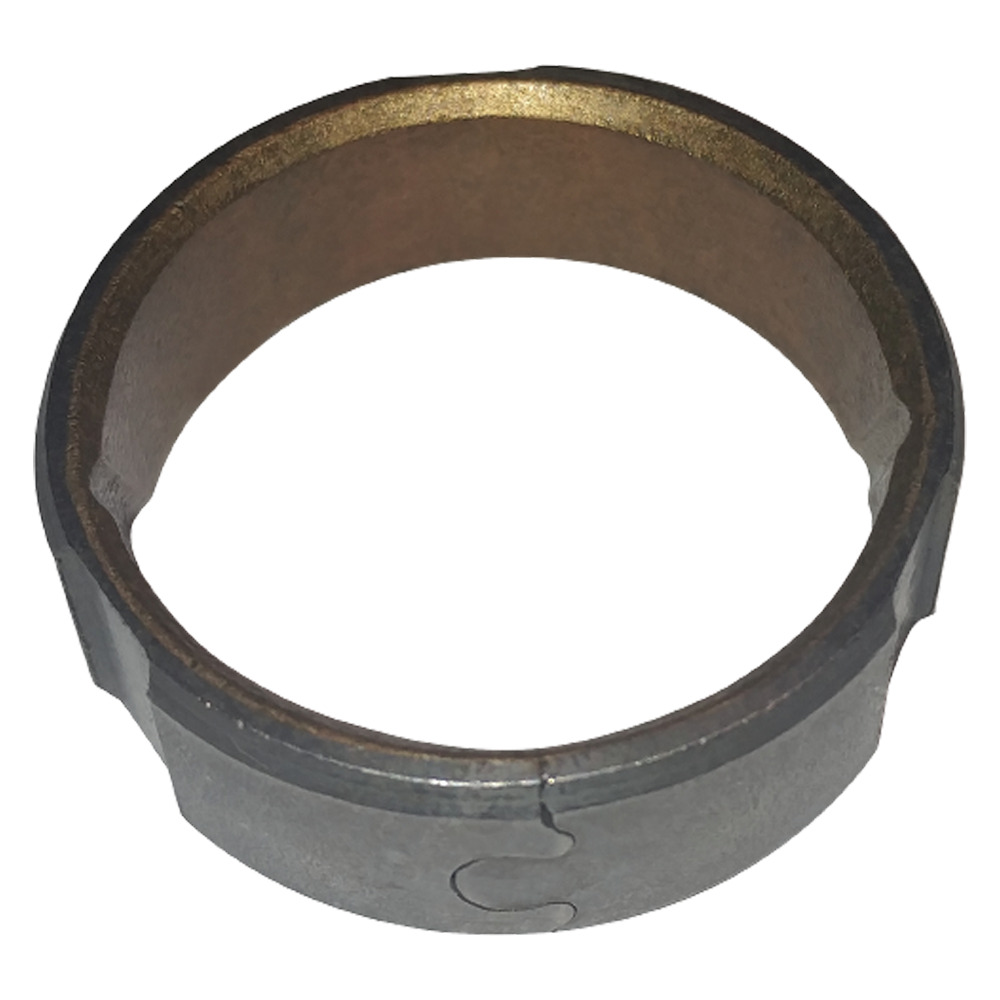

25 Bushing
  • Outer Dia: 1.615
  • Inner Dia: 1.3680
  • Width: 0.503
  • housing bore dia: 1.611
  • Shaft Dia: 1.385
  • Material: Bronze
  • Oversized
 TB-18-4X
26 Front Cover With 131 Tooth Ring Gear (Use with TX-26-4 Drop-In Lining) TX-22-131
27 Ring Gear
  • Outer Dia: 12.29"
  • Inner Dia: 11.19"
  • Thickness: 0.345"
 RG-122

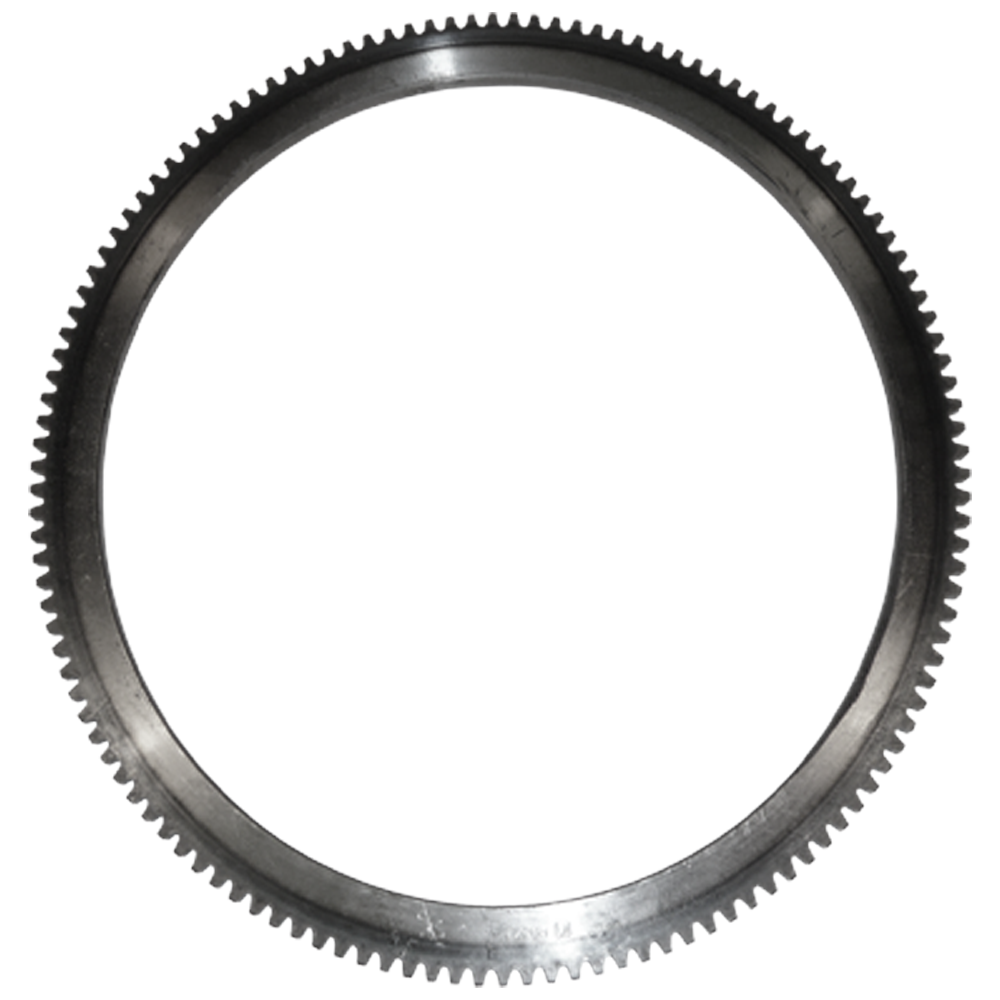

27 Ring Gear
  • Outer Dia: 13.2"
  • Inner Dia: 11.19"
  • Width: 0.33"
  • External teeth: 131
 RG-130H
27_N.I. Salvage Ring™
  • Outer Dia: 11.25"
  • Width: 0.375"
 TX-22-8907
27_N.I. Salvage Ring™
  • Outer Dia: 11.25"
  • Width: 0.250"
 TX-22-8907NR
27_N.I. Salvage Ring™ Core Saver™, Standard
  • Outer Dia: 12.60"
  • Width: 0.375"
 TX-22-985
27_N.I. Salvage Ring™
  • Outer Dia: 12.60"
  • Width: 0.250"
 TX-22-985NR
27_N.I. Salvage Ring™
  • Outer Dia: 11.25"
  • Width: 0.375"
 TX-22-878
27_N.I. Salvage Ring™ Coresaver™
  • Outer Dia: 11.25"
  • Width: 0.250"
 TX-22-878NR
27_N.I. Salvage Ring™
  • Outer Dia: 11.25"
  • Width: 0.750"
 TX-22-878W
27_N.I. Mounting Pad Threaded, 5/16-24 4 Pieces Required. TX-10-4
27_N.I. Bolt 4 Pieces Required.
  • Dimensions: 5/16" x 24
  • Length: 7/16"
 B-61
28 Balance Weight
  • Dimensions: 3.42" x 1.16"
  • Weight: 100gm
 TX-22WA

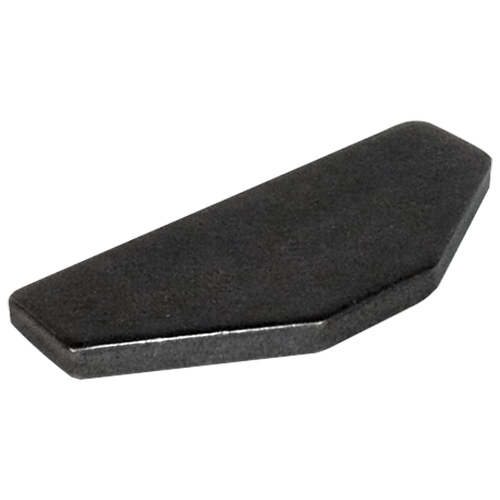

28 Balance Weight
  • Dimensions: 3.42" x 1.50"
  • Weight: 132gm
 TX-22WB
28 Balance Weight Rectangular, 2 Piece A518, 360 application
  • Dimensions: 2.13" x 2.18"
  • Weight: 90gm
 TX-22WC

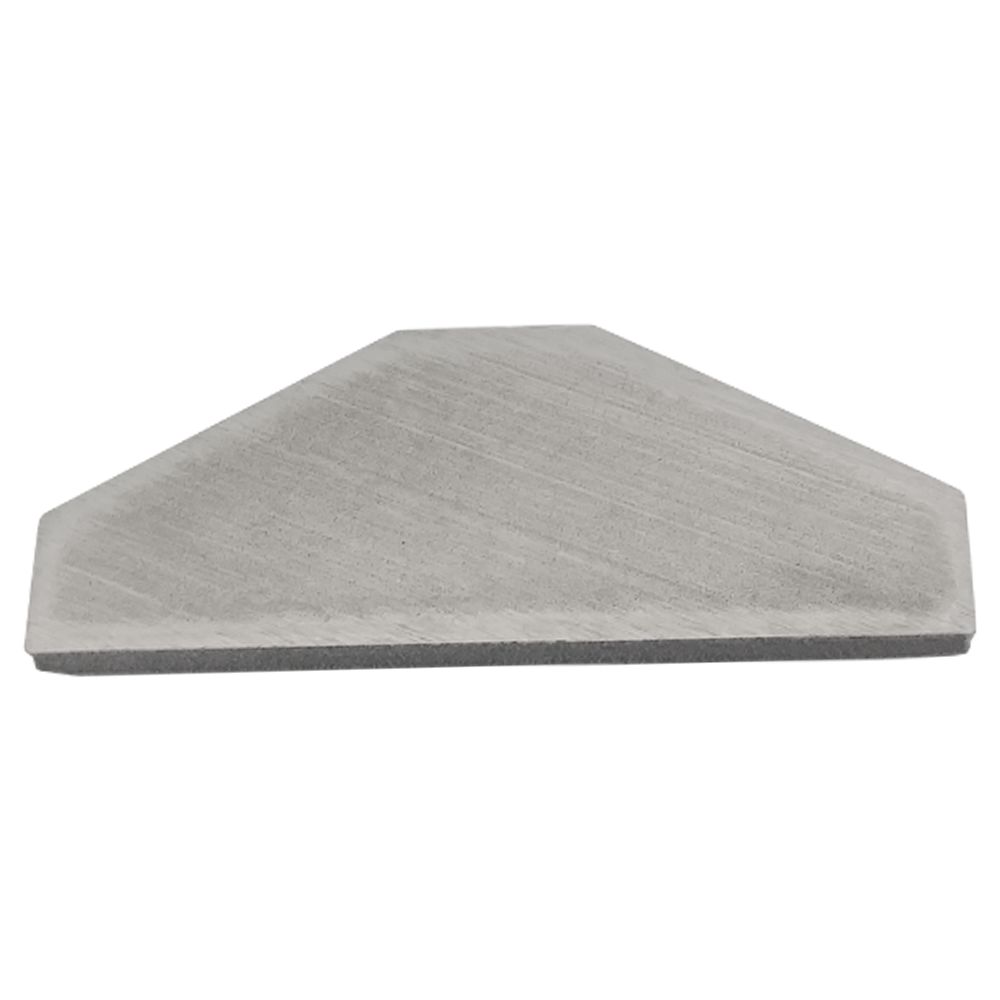

28 Balance Weight
  • Dimensions: 3.42" x 1.30"
  • Weight: 120gm
 TX-22WD
28 Balance Weight
  • Dimensions: 0.88" x .70"
  • Weight: 14gm
 TX-22WG

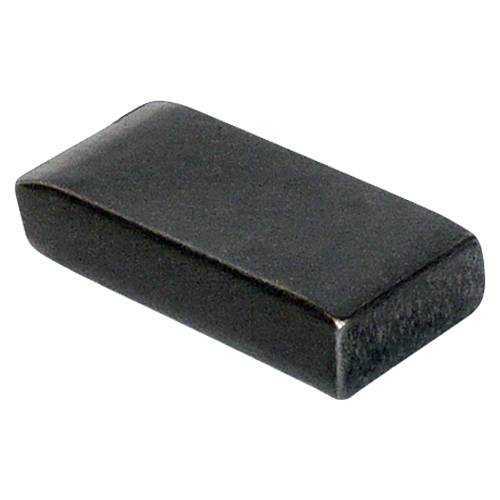

28 Balance Weight
  • Dimensions: 1.60" x .75"
  • Weight: 56gm
 TX-22WL
28 Balance Weight
  • Dimensions: 1.50" x .75"
  • Weight: 32gm
 TX-22WM
28 Balance Weight
  • Dimensions: 1.12" x .50"
  • Weight: 12gm
 TX-22WS
