0 |
|
Shim |
|
- Outer Dia: 2.943"
- Inner Dia: 1.885"
- Thickness: 0.010"
- Material: Steel
|
MW-2-10
|
0 |
|
Shim |
|
- Outer Dia: 2.938"
- Inner Dia: 1.875"
- Thickness: 0.02
|
MW-2-20
|
0 |
|
Shim |
|
- Outer Dia: 2.938"
- Inner Dia: 1.875"
- Thickness: .030"
|
MW-2-30
|
0 |
|
Shim |
|
- Outer Dia: 2.938"
- Inner Dia: 1.875"
- Thickness: .050
|
MW-2-50
|
0 |
|
Washer |
Wear-Plate
TF-8
|
- Outer Dia: 2.960"
- Inner Dia: 1.805"
- Thickness: 0.069"
- Material: Steel
|
TW-2-2
|
0 |
|
Shim |
Early Type
|
- Outer Dia: 2.95"
- Inner Dia: 2.16"
- Thickness: .020"
|
TW-2-20
|
0 |
|
Washer |
|
- Outer Dia: 2.960"
- Inner Dia: 1.805"
|
TW-2-2A
|
1 |
|
Hubcap |
Fits 1-1/2" (38.1mm). Length: 1-1/2"
|
- Color: Green
- Fits 1-1/2" (38.1mm)
|
MHC-G
|
1 |
|
Hubcap |
Fits 1-7/8" (47.6mm). Length: 1"
|
|
MHC-YB
|
1 |
|
Hubcap |
Fits 1-7/8" (47.6mm). Length: 1-3/4"
|
- Color: Yellow
- Fits 1-7/8" (47.6mm)
|
MHC-Y
|
2 |
|
Impeller Hub |
For TF-6/A-904
|
- Journal Dia: 1.498"
- Installed Height: 2.143"
- Hub Mount: Thru
- Pump Drive Type: slots (.43" wide)
- Hardness: Rc 32-36
|
TH-1-2GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.498"
- Height: 2.190"
- Hub Mount: Butt
- Pump Drive Type: Slots
|
TH-1TG
|
2 |
|
Impeller Hub |
For TF-6/A-904
|
- Journal Dia: 1.498"
- Installed Height: 2.143"
- Hub Mount: Thru
- Pump Drive Type: slots (.43" wide)
|
TH-1-2G
|
2 |
|
Impeller Hub |
For TF-6/A-904
|
- Journal Dia: 1.498"
- Height: 2.188"
- Hub Mount: Butt
- Pump Drive Type: Slots
- Hardness: Rc 32-36
|
TH-1TGRC
|
2 |
|
Impeller Hub |
For TF-6/A-904
|
- Journal Dia: 1.498"
- Installed Height: 2.150"
- Hub Mount: Thru
- Pump Drive Type: slots (.58" wide)
- Hardness: Rc 32-36
|
TH-1-29GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.498"
- Installed Height: 2.250"
- Pump Drive Type: Slots
|
TH-1G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.498"
- Installed Height: 2.250"
- Pump Drive Type: Slots
- Hardness: Rc 32-36
- TF-6
|
TH-1GRC
|
2 |
|
Impeller Hub |
Fits A904
|
- Journal Dia: 1.498"
- Installed Height: 2.250"
- Hub Mount: Thru
- Pump Drive Type: Slots
- Hardness: Rc 32-36
- TF-6
|
TH-1-1GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.874"
- Height: 2.312"
- Hub Mount: Butt
- Pump Drive Type: slots (.61" x .40" Slot Width)
- Hardness: Rc 32-36
|
TH-1-5TGRCJ
|
2 |
|
Impeller Hub |
For TF-8/A-727
|
- Journal Dia: 1.875"
- Height: 2.312"
- Hub Mount: Butt
- Pump Drive Type: slots (.67" x .60")
- Hardness: Rc 32-36
|
TH-1-33TGRC
|
2 |
|
Impeller Hub |
For TF-8/A-727
|
- Journal Dia: 1.875"
- Installed Height: 2.375"
- Hub Mount: Thru
- Pump Drive Type: slots (.67" x .60")
- Hardness: Rc 32-36
- Replaces TH-1-8GRC
|
TH-1-33GRC
|
2 |
|
Impeller Hub |
TF-8
|
- Journal Dia: 1.875"
- Installed Height: 2.375"
- Hub Mount: Thru
- Pump Drive Type: slots (.67" x .60")
|
TH-1-30G
|
2 |
|
Impeller Hub |
TF-8
|
- Journal Dia: 1.875"
- Installed Height: 2.375"
- Hub Mount: Thru
- Pump Drive Type: slots (.67" x .60")
- Hardness: Rc 32-36
|
TH-1-30GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.875"
- Installed Height: 2.375"
- Hub Mount: Thru
- Pump Drive Type: slots (.67" x .60")
|
TH-1-33G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.875"
- Height: 2.312"
- Hub Mount: Butt
- Pump Drive Type: slots (.61" x .40" Slot Width)
- Hardness: Rc 32-36
|
TH-1-5TGRC
|
3 |
|
Impeller |
|
|
NPN-3-10-3
|
4 |
|
Washer |
Wear-Plate
TF-6
|
- Outer Dia: 2.970"
- Inner Dia: 1.471"
- Thickness: 0.069"
- Material: Steel
- 2 Lugs. 0.22" Wide Lugs
|
TW-2
|
4 |
|
Washer |
Wear-Plate
|
- Material: Steel
- .43" Wide Lugs
|
TW-2-1
|
5 |
|
Washer |
|
- Outer Dia: 2.8"
- Inner Dia: 1.6"
- Material: Bronze
- 3 Lugs
|
TW-3
|
5 |
|
Washer |
|
- Outer Dia: 2.94"
- Inner Dia: 1.96"
- Material: Bronze
|
TW-3-3AT
|
5 |
|
Washer |
|
- Outer Dia: 2.94"
- Inner Dia: 1.96"
|
TW-3-3E
|
5 |
|
Washer |
|
- Outer Dia: 2.94"
- Inner Dia: 1.96"
- Thickness: .06"
- Material: Bronze
- 4 Lugs
|
TW-3-3
|
6 |
|
Shim |
Early
|
- Outer Dia: 2.95"
- Inner Dia: 2.16"
- Thickness: .010"
- Minimize Race Rubbing
|
TW-2-10
|
6 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
- Thickness: 0.010"
- Material: Steel
|
TW-2X10
|
6 |
|
Shim |
|
- Outer Dia: 2.36"
- Inner Dia: 1.482"
- Thickness: .010"
- (Replaced by TW-2X10)
|
FW-2-010
|
6 |
|
Shim |
|
- Outer Dia: 2.36"
- Inner Dia: 1.482"
- Thickness: .020"
- (Replaced by TW-2X)
|
FW-2-020
|
6 |
|
Shim |
|
- Outer Dia: 2.36"
- Inner Dia: 1.482"
- Thickness: .030"
- (Replaced by TW-2X30)
|
FW-2-030
|
6 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
- Thickness: .020"
|
TW-2X
|
6 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
- Thickness: .03"
|
TW-2X30
|
6 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
|
TW-2X-30
|
7 |
|
Stator |
|
|
NPN-3-10-7
|
8 |
|
Spring Retainer |
Stator
|
- Height: .57"
- Outer Dia: 2.94"
- Inner Dia: 1.90"
|
TX-15
|
8 |
|
Spring Retainer |
Stator
'76-Up
|
- Height: .57"
- Outer Dia: 3.08"
- Inner Dia: 2.02"
|
TX-15-4
|
9 |
|
Outer Race (Cam) |
Stator
To 1975
|
|
TX-15-2
|
9 |
|
Outer Race (Cam) |
Stator
'76-Up
|
- Late Outer Race, Many Uses, Very Strong
|
TX-15-5
|
10 |
|
Accordion Spring |
8 Pieces Required.
|
|
1942187
|
10 |
|
Accordion Spring |
8 Pieces Required.
|
- Height: 0.28"
- Width: 0.565"
- Folds: 3
|
FS-6-10
|
10 |
|
Accordion Spring |
8 Pieces Required.
|
- Height: .312"
- Width: 0.6"
- Folds: 4
|
TS-6
|
11 |
|
Roller |
8 Pieces Required.
|
- Dia: 0.316"
- Length: 0.623"
|
TR-7
|
11 |
|
Roller |
8 Pieces Required.
|
- Dia: 0.316"
- Length: 0.623"
|
TR-7-2
|
12 |
|
Inner Race |
Stator
To 1975, TF-6
|
- Height: 1.040"
- Outer Dia: 1.819"
- Internal Teeth: 27
|
TX-14
|
12 |
|
Inner Race |
Stator
To 1975, TF-8, A727
|
- Height: 1.040"
- Outer Dia: 1.819"
- Inner Dia: 1.312"
- Internal Teeth: 27
- Stock, Inner Race to 1975
|
TX-14-4
|
12 |
|
Inner Race |
Stator
'76-Up, TF-6
|
- Height: 1.040"
- Outer Dia: 1.939"
- Inner Dia: 1.100"
- Internal Teeth: 27
|
TX-14-5
|
12 |
|
Inner Race |
Stator
'76-Up, TF-8
|
- Height: 1.040"
- Outer Dia: 1.939"
- Internal Teeth: 27
|
TX-14-6
|
13 |
|
Misc |
|
|
NPN-SPL
|
13 |
|
Stator Cap |
4 Lugs
To 1975
|
- Outer Dia: 3.24"
- Inner Dia: 1.38"
- Thickness: 0.33"
- Material: Phenolic
|
TW-4
|
13 |
|
Washer |
|
- Outer Dia: 3.22"
- Inner Dia: 1.88"
- Material: Aluminum
|
TW-4A
|
13 |
|
Stator Cap |
3 Lugs
1976 - Up
|
- Outer Dia: 3.38"
- Inner Dia: 1.48"
- Thickness: 0.28"
- Material: Aluminum
|
TW-4-2
|
13 |
|
Washer |
'76-Up
|
- Outer Dia: 3.38"
- Inner Dia: 1.48"
|
TW-4-2A
|
14 |
|
Snap Ring |
Until '75
|
|
TX-20
|
14 |
|
Snap Ring |
'76-Up
|
|
TX-20-2
|
15 |
|
Rivet |
12 Pieces Required.
|
|
TX-12S
|
15 |
|
Rivet |
Turbine shaft to turbine. Use 6.
12 Pieces Required.
|
- Length: .44"
- Rivet Shank Dia: .25"
|
TX-12L
|
15 |
|
Rivet |
12 Pieces Required.
|
- Length: 0.476"
- Rivet solid or tubular: Tubular
- Rivet Shank Dia: 0.250"
- Rivet head dia: 0.475"
- Rivet head Type: Flat
|
TX-12-2
|
16 |
|
Turbine |
'68 Up
|
|
TX-8-1
|
17 |
|
Turbine Hub |
|
|
TX-13-1
|
17 |
|
Turbine Hub |
'68-'76, TF-6
|
- Internal Teeth: 27
- Material: Solid Steel
|
TX-13-1S
|
17 |
|
Turbine Hub |
'68-'76, TF-8
|
- Height: 1.230
- Outer Dia: 3.96"
- Internal Teeth: 24
- Material: Solid Steel
|
TX-13-3S
|
17 |
|
Turbine Hub |
Requires bushing TB-18-4
|
|
TX-13-4S
|
17 |
|
Kit |
Turbine Hub
Requires bushing TB-18-4
|
|
TX-13-5K
|
17 |
|
Turbine Hub |
TF8, A727 late. , Requires bushing TB-18-4
|
- Height: 1.402"
- Outer Dia: 3.96"
- Internal Teeth: 24
|
TX-13-5S
|
18 |
|
Turbine Washer |
'62-'67
|
- Outer Dia: 2.26"
- Inner Dia: 1.51"
- Material: Bimetal
|
TW-9-3
|
18 |
|
Turbine Washer |
'68-'74
|
- Outer Dia: 2.76"
- Inner Dia: 1.55"
- Thickness: .070".
- Material: Bronze
|
TW-9-4
|
18 |
|
Turbine Washer |
'75-Up
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: .063"
- Material: Plastic
|
TW-9-5A
|
18 |
|
Turbine Washer |
'75-Up
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .063"
- Material: Fiber
|
TW-9-5AF
|
18 |
|
Turbine Washer |
'75-Up
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: .083"
- Material: Plastic
|
TW-9-5B
|
18 |
|
Turbine Washer |
'75-Up
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .094"
- Material: Fiber
|
TW-9-5BF
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.74"
- Inner Dia: 1.45"
- Thickness: .12"
- Material: Fiber
|
PW-9-1
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: .118"
- Material: Plastic
|
SW-9
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: .132"
- Material: Plastic
|
SW-9-1
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: 0.125"
- Material: Nylon
|
SW-9-1F
|
18 |
|
Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .160"
|
SW-9-3
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: 0.160"
- Material: Fiber
|
SW-9-3F
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: 0.118"
- Material: Fiber
|
SW-9F
|
18 |
|
Turbine Washer |
'75-Up
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .130"
- Material: Plastic
|
TW-9-5C
|
18 |
|
Turbine Washer |
'75-Up
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Material: Fiber
|
TW-9-5CF
|
18 |
|
Turbine Washer |
'60-'61
|
- Outer Dia: 2.13"
- Inner Dia: 1.25"
- Thickness: .063"
- Material: Fiber
|
WW-9-7A
|

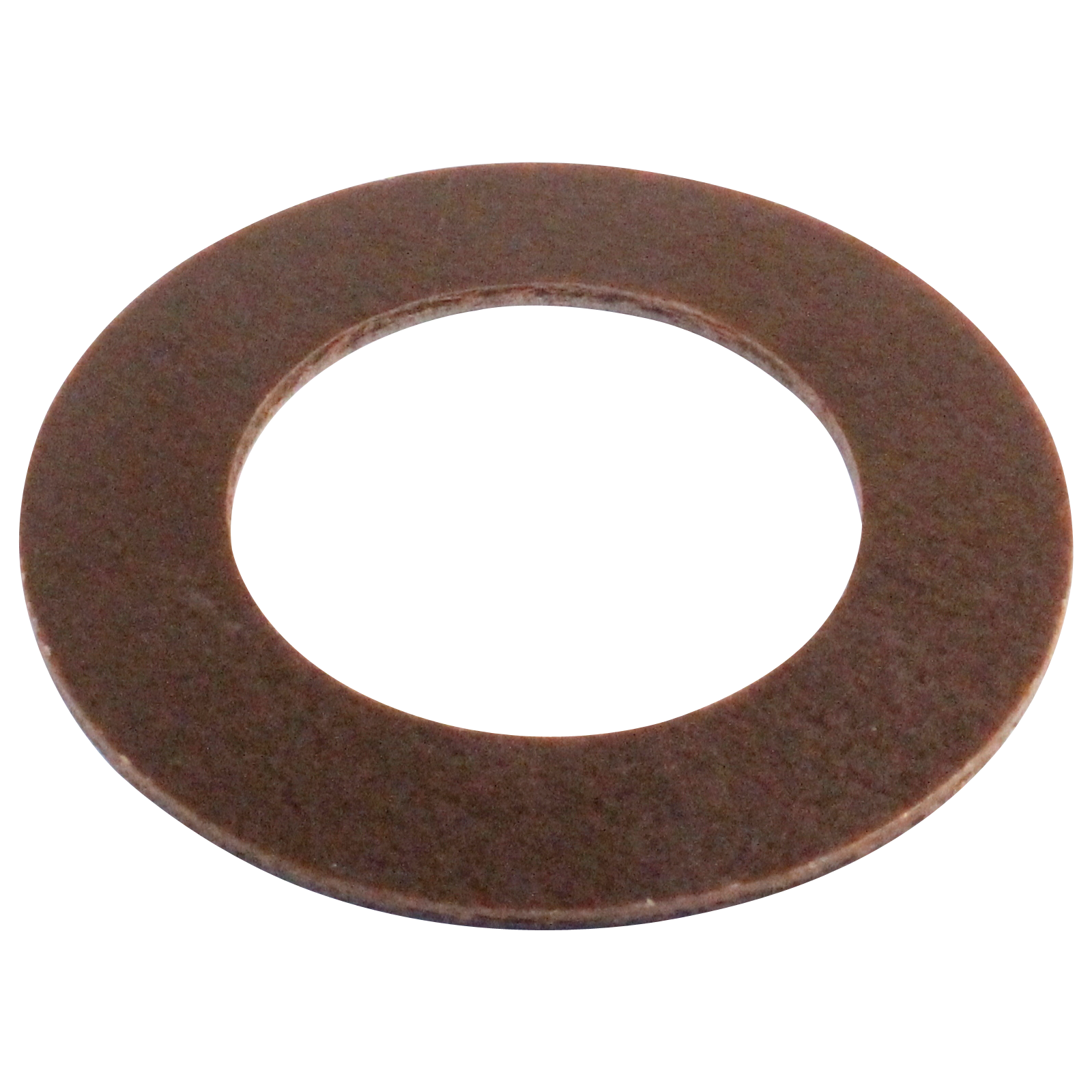

18 |
|
Turbine Washer |
|
- Outer Dia: 2.13"
- Inner Dia: 1.25"
- Thickness: 0.094"
- Material: Fiber
|
WW-9-7B
|

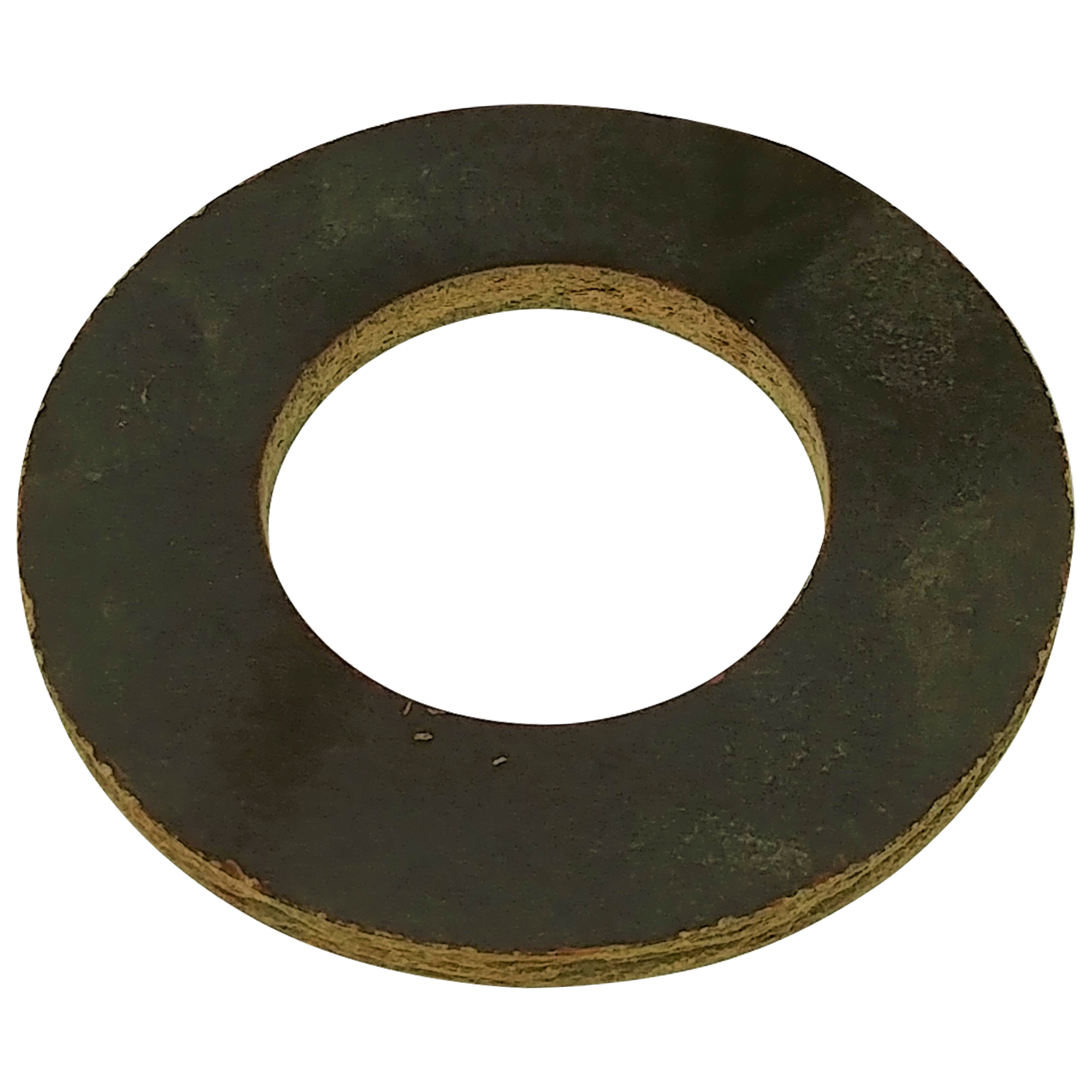

18 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .185"
|
SW-9-4
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: 0.185"
- Material: Fiber
|
SW-9-4F
|
18 |
|
Turbine Washer |
|
- Outer Dia: 2.74"
- Inner Dia: 1.4"
- Thickness: 0.13"
- Material: Fiber
|
TW-9-12
|
19 |
|
Bushing |
'60-'67
|
- Outer Dia: 1.329
- Inner Dia: 1.2120
- Width: 0.5
- housing bore dia: 1.329
- Shaft Dia: 1.206
- Material: Bronze
|
TB-18
|

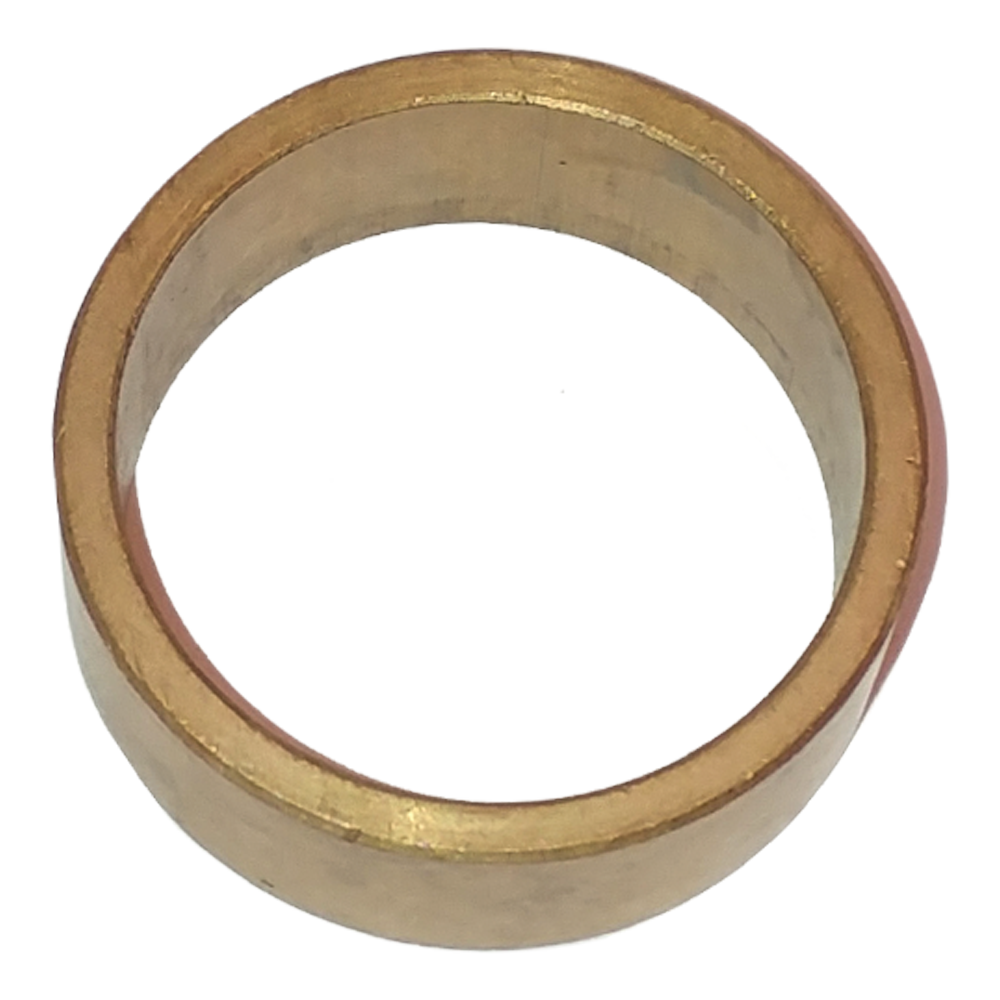

19 |
|
Bushing |
'60-'67
|
- Outer Dia: 1.329
- Inner Dia: 1.2120
|
TB-18A
|
19 |
|
Bushing |
Precision
'68-'77
|
- Outer Dia: 1.573
- Inner Dia: 1.4520
- Width: 0.5
- housing bore dia: 1.569
- Shaft Dia: 1.447"
- Material: Bronze
|
TB-18-1
|
19 |
|
Bushing |
Unfinished (Oversized)
'68-'77
|
- Outer Dia: 1.573
- Inner Dia: 1.4520
- Width: 0.5
- housing bore dia: 1.610"
- Shaft Dia: 1.405"
- Material: Bi-metal
|
TB-18-1P
|
19 |
|
Bushing |
‘77-Up
|
- Outer Dia: 1.573
- Inner Dia: 1.4520
- Width: 0.375
- housing bore dia: 1.573
- Shaft Dia: 1.448
- Material: Bronze
|
TB-18-3
|
19 |
|
Bushing |
With External Grooves, Precision
|
- Width: 0.503
- housing bore dia: 1.610
- Shaft Dia: 1.385
- Material: Bronze
|
TB-18-4
|
19 |
|
Bushing |
|
- Width: 0.5
- housing bore dia: 1.611
- Shaft Dia: 1.385
- Material: Iron/Bronze
|
TB-18-4B
|
19 |
|
Bushing |
Unfinished, undersized I.D.
|
- Width: 0.503
- housing bore dia: 1.610
- Shaft Dia: 1.364
- Material: Bronze
- Oversized
|
TB-18-4X
|
20 |
|
Front Cover |
|
|
NPN-3-10-20
|

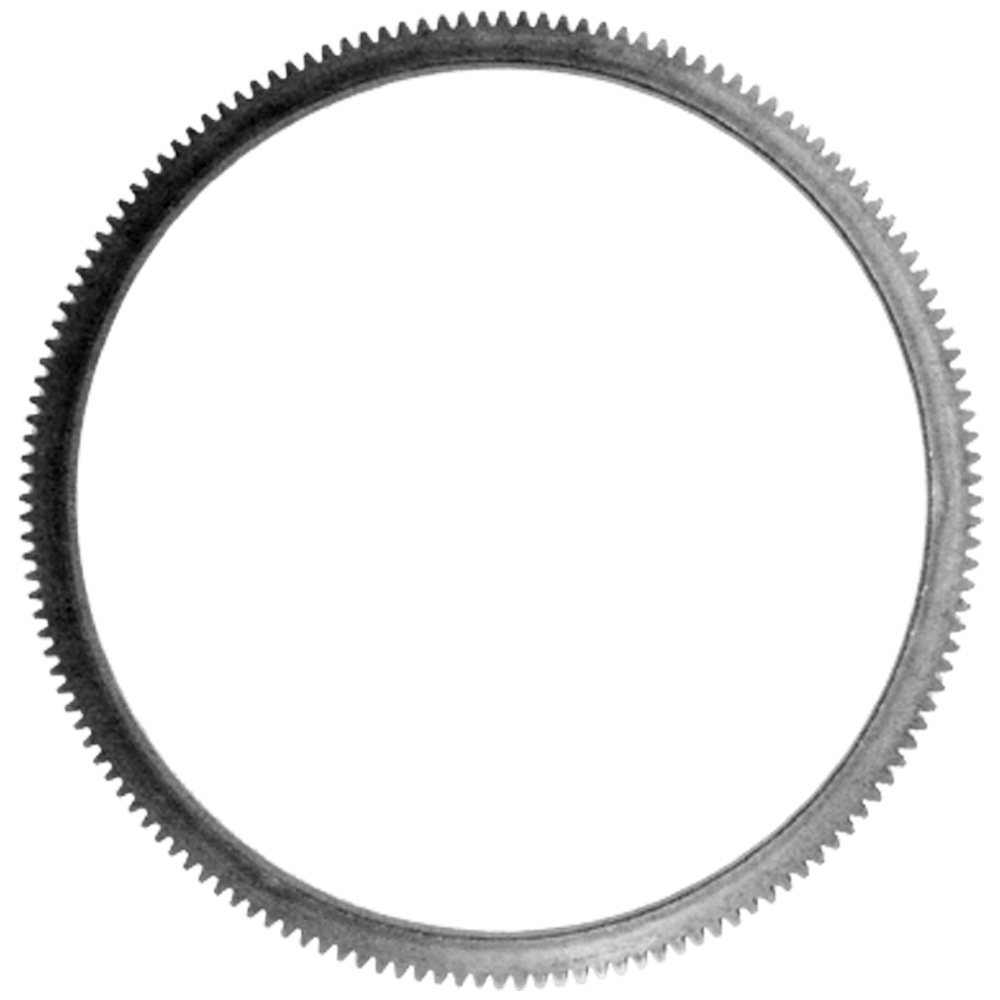

21 |
|
Ring Gear |
'60-'61, TF-6
|
- Outer Dia: 12.52"
- Inner Dia: 11.19"
- External teeth: 148
|
RG-148
|
21 |
|
Ring Gear |
10-3/4" (LU & NLU) TF-6/904, A500 1962 - Up
|
- Outer Dia: 12.29"
- Inner Dia: 11.19"
- Thickness: 0.345"
- External teeth: 122
|
RG-122
|
21 |
|
Ring Gear |
TF-8
|
- Outer Dia: 13.2"
- Inner Dia: 11.19"
- Thickness: 0.33"
- External teeth: 131
|
RG-130H
|
21.1 |
|
Salvage Ring™ |
|
- Outer Dia: 11.25"
- Width: 0.375"
|
TX-22-8907
|
21.1 |
|
Salvage Ring™ |
|
- Outer Dia: 11.25"
- Width: 0.250"
|
TX-22-8907NR
|
22 |
|
Balance Weight |
|
- Dimensions: 0.88" x 0.70"
- Weight: 14gm
|
TX-22WG
|
22 |
|
Balance Weight |
|
- Dimensions: 1.50" x .75"
- Weight: 32gm
|
TX-22WM
|
22 |
|
Balance Weight |
|
- Dimensions: 1.60" x .75"
- Weight: 56gm
|
TX-22WL
|
22 |
|
Balance Weight |
|
- Dimensions: 3.42" x 1.16"
- Weight: 100gm
|
TX-22WA
|
22 |
|
Balance Weight |
Rectangular, 2 Piece
A518
|
- Dimensions: 2.13" x 2.18"
- Weight: 90gm
|
TX-22WC
|
22 |
|
Balance Weight |
|
- Dimensions: 1.12" x .50"
- Weight: 12gm
|
TX-22WS
|
22 |
|
Balance Weight |
|
- Dimensions: 3.42" x 1.30"
- Weight: 120gm
|
TX-22WD
|
22 |
|
Balance Weight |
|
- Dimensions: 3.42" x 1.50"
- Weight: 132gm
|
TX-22WB
|
23 |
|
Drain Plug |
1/8-27 NPT, PTFE, Wrap
|
|
FX-11A
|
23 |
|
Drain Plug |
|
- Allen socket drain plug for use with drilled converters.
|
FX-11B
|
23 |
|
Drain Plug |
|
- Material: Steel
- 1/8-27 NPT
|
FX-11
|
23 |
|
Drain Plug |
1/16 Npt
|
- 1/16 - 27 NPT, Chrysler, Ford
|
TX-11
|
24 |
|
Bolt |
4 Pieces Required.
|
- Dimensions: 5/16" x 24
- Length: 7/16"
|
B-61
|
24_N.I. |
|
Mounting Pad |
Threaded 5/16-24
TF-8 To '75. 4 Pieces Required.
|
|
TX-10-2
|
24_N.I. |
|
Mounting Pad |
Threaded
High Performance, To '75. 4 Pieces Required.
|
|
TX-10-3
|
24_N.I. |
|
Mounting Pad |
Threaded, 5/16-24
'76-Up. 4 Pieces Required.
|
|
TX-10-4
|
24_N.I. |
|
Pilot |
Sleeve
|
- Adapts 1.550" Pilot To 1.810"
|
TX-17
|
24_N.I. |
|
Pilot |
'68 Up
|
- TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
|
TX-23-1
|
