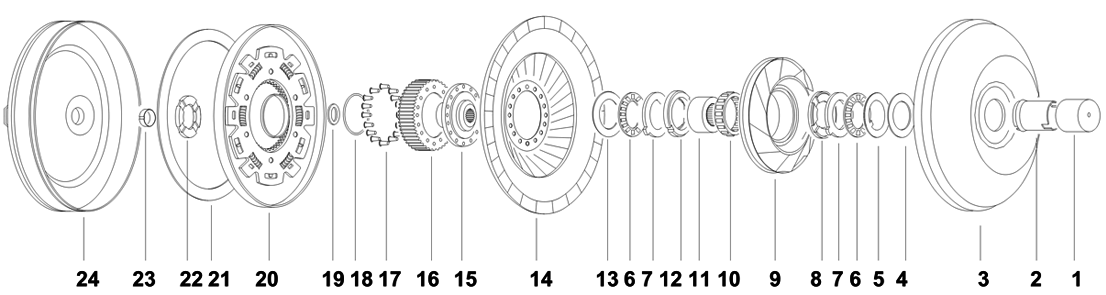

Torque Converter | ZF | ZF4HP22 & Chrysler Jeep A999

Ill.# Image Description Specification Part #
Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G

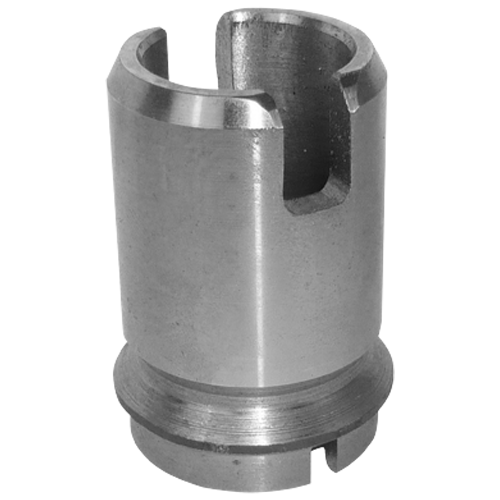

2 Impeller Hub Unfinished (Journal Diameter must be machined) Chrysler A999
  • Journal Dia: 1.498"
  • Installed Height: 1.990"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 TH-1-14

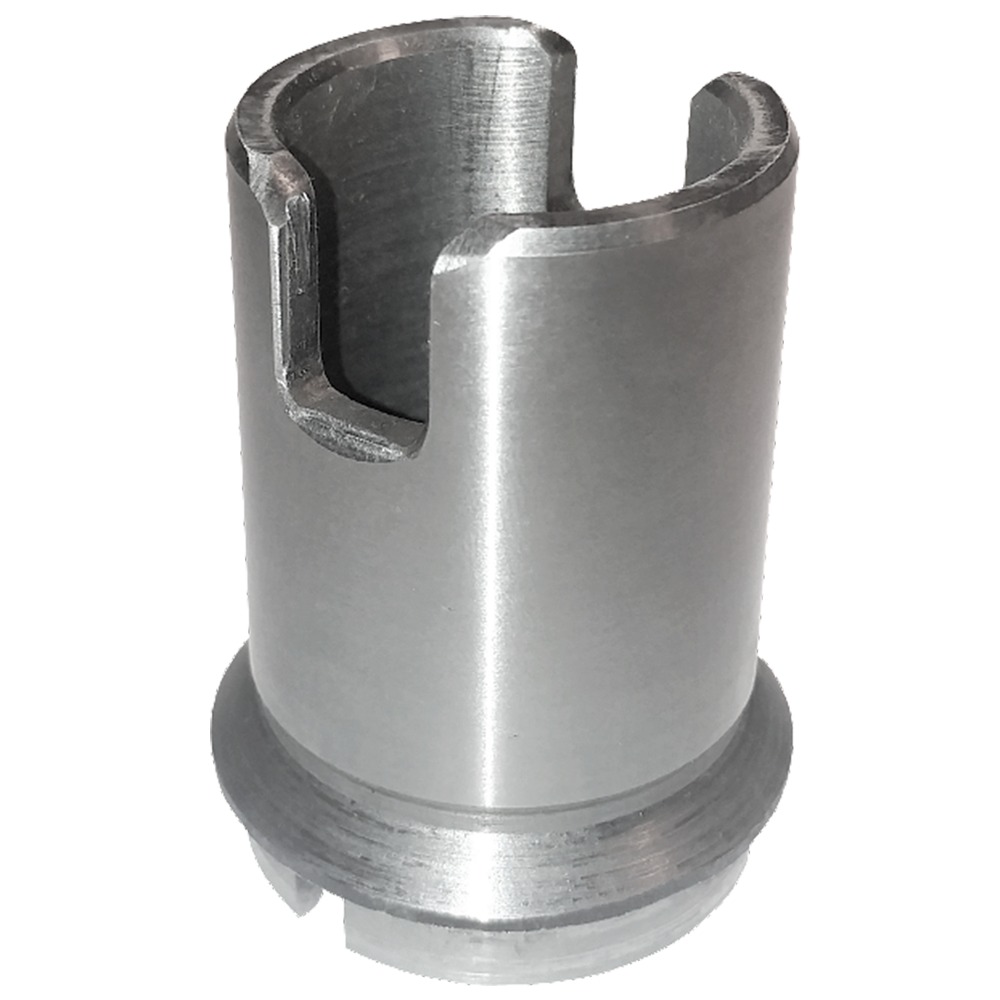

2 Impeller Hub Chrysler A999
  • Journal Dia: 1.498"
  • Installed Height: 1.990"
  • Pump Drive Type: Slots
 TH-1-14G

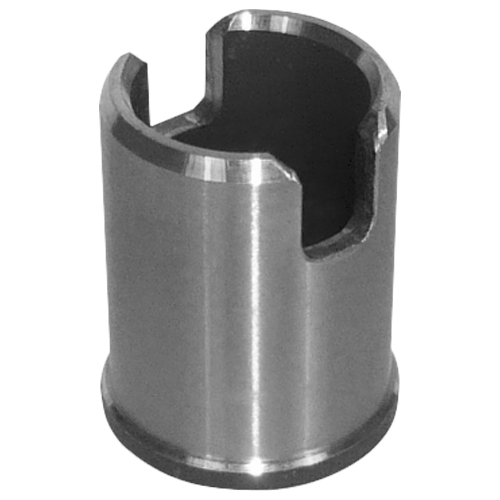

2 Impeller Hub Heat Treated, Ground Chrysler A999
  • Journal Dia: 1.498"
  • Height: 2.010"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-14TGRC
2 Impeller Hub Chrysler A999
  • Journal Dia: 1.498"
  • Height: 2.010"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 TH-1-14TG
2 Impeller Hub ZF-4HP22
  • Journal Dia: 1.574"
  • Installed Height: 1.760"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-6GRC
2 Impeller Hub ZF-4HP22
  • Journal Dia: 1.574"
  • Installed Height: 1.600"
  • Pump Drive Type: Slots
 PH-1-6TG
3 Impeller NPN-4-10-3
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
4 Shim
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
4 Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30
5 Bearing Race
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4
5 Bearing Race
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4P
6 Bearing 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
6 Bearing 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
7 Bearing Race 2 Pieces Required.
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
8 Stator Cap
  • Thickness: .33"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.43"
 PW-4-6
8 Stator Cap
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
 PW-4-1
8 Stator Cap
  • Thickness: .28"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.67"
 PW-4-3

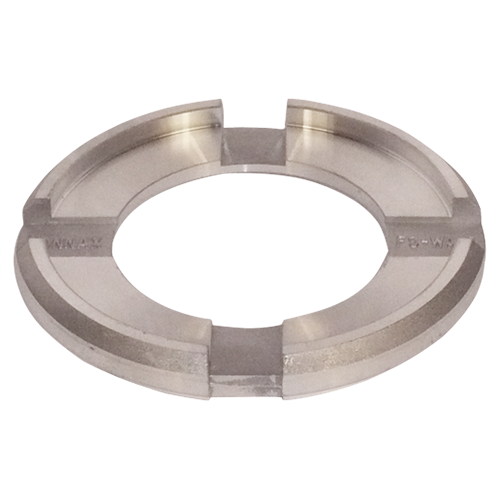

8 Stator Cap
  • Thickness: .320"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.665"
 PW-4-5
9 Stator NPN-4-10-9
10 Cam (Sprag Element) For VC-6-1 F-315
10 Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
10 Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
10 Cam Kit (Sprag Element) Sprag, 22 Cams MF-295-22K
11 Inner Race Stator
  • Height: 0.960"
  • Internal Teeth: 27
  • Outside Dia: 1.957"
 PX-14
11 Inner Race Stator
  • Height: 0.705"
  • Internal Teeth: 38 (12 removed)
  • Outside Dia: 1.957"
 PX-14-1

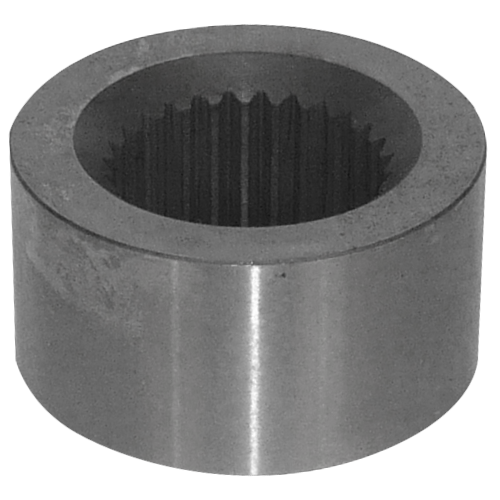

11 Inner Race Stator
  • Height: 1.020"
  • Internal Teeth: 27
  • Outside Dia: 1.952"
 PX-14-2
11 Inner Race Stator
  • Height: 0.785"
  • Internal Teeth: 38 (12 removed)
  • Outside Dia: 1.957"
 PX-14-3

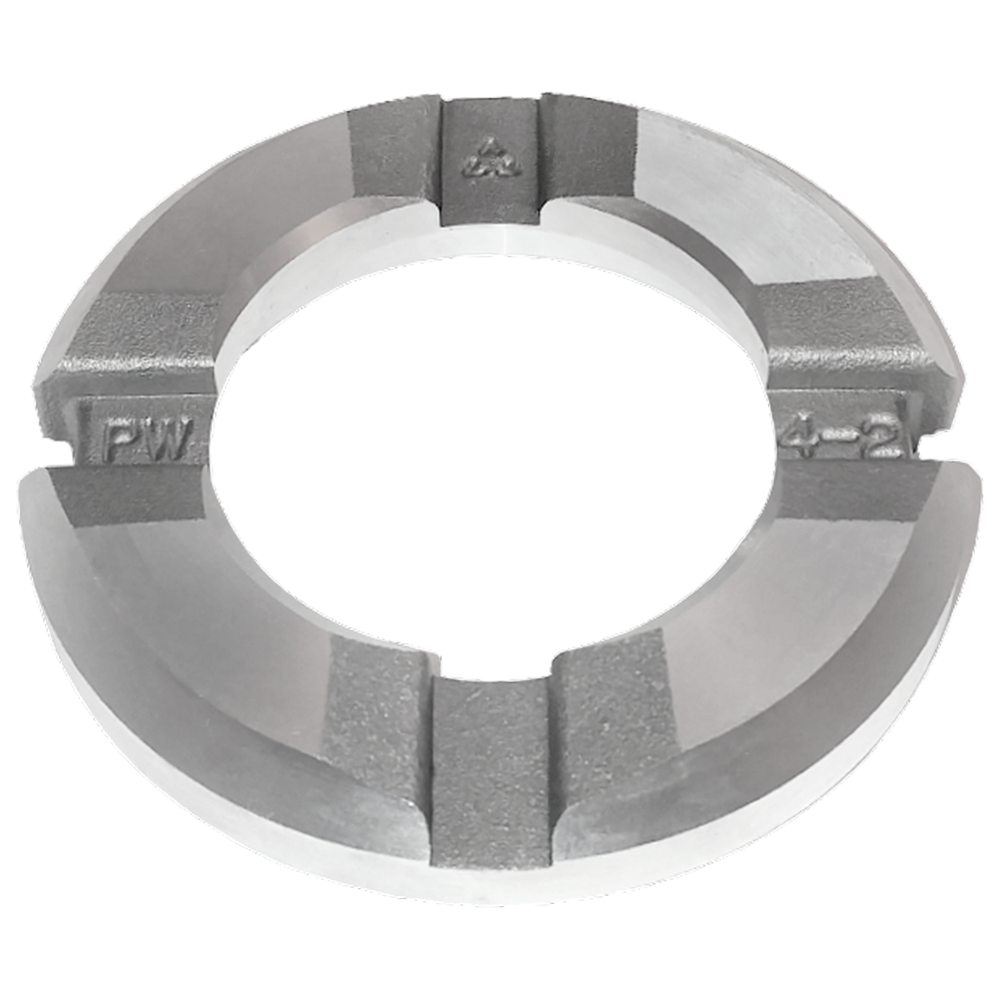

12 Stator Cap Front
  • Thickness: .52"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.67"
 PW-4-2

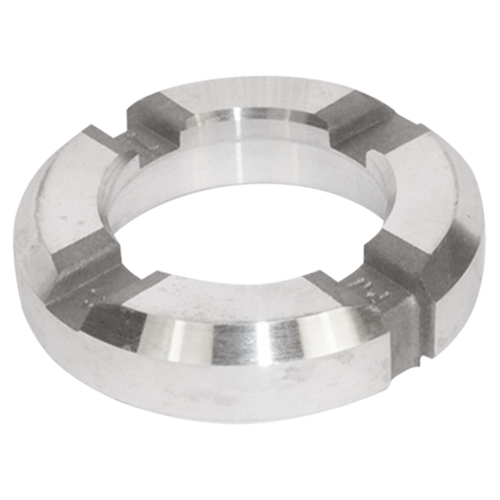

12 Stator Cap A999
  • Thickness: .62"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.67"
 PW-4-4
13 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
13 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
14 Turbine NPN-4-10-14
15 Insert Jeep A999
  • Height: 0.950
  • Internal Teeth: 26
  • Outside Dia: 1.31"
 PX-13-26
15 Insert Ez-Weld™ ZF-4HP22
  • Height: 1.380
  • Internal Teeth: 27
  • Outside Dia: 1.258"
  • With Seal Bore
 PX-13-27L
15 Turbine Hub Chrysler Jeep, A999
  • Internal Teeth: 26
  • Outside Dia: 3.5"
 PX-13
15 Turbine Hub Chrysler Jeep, A999
  • Height: 1.475"
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.500"
 PX-13HT
15 Turbine Hub Chrysler Jeep, A999
  • Installed Height: 0.74"
  • Internal Teeth: 27
  • Outside Dia: 3.5"
 PX-13-6

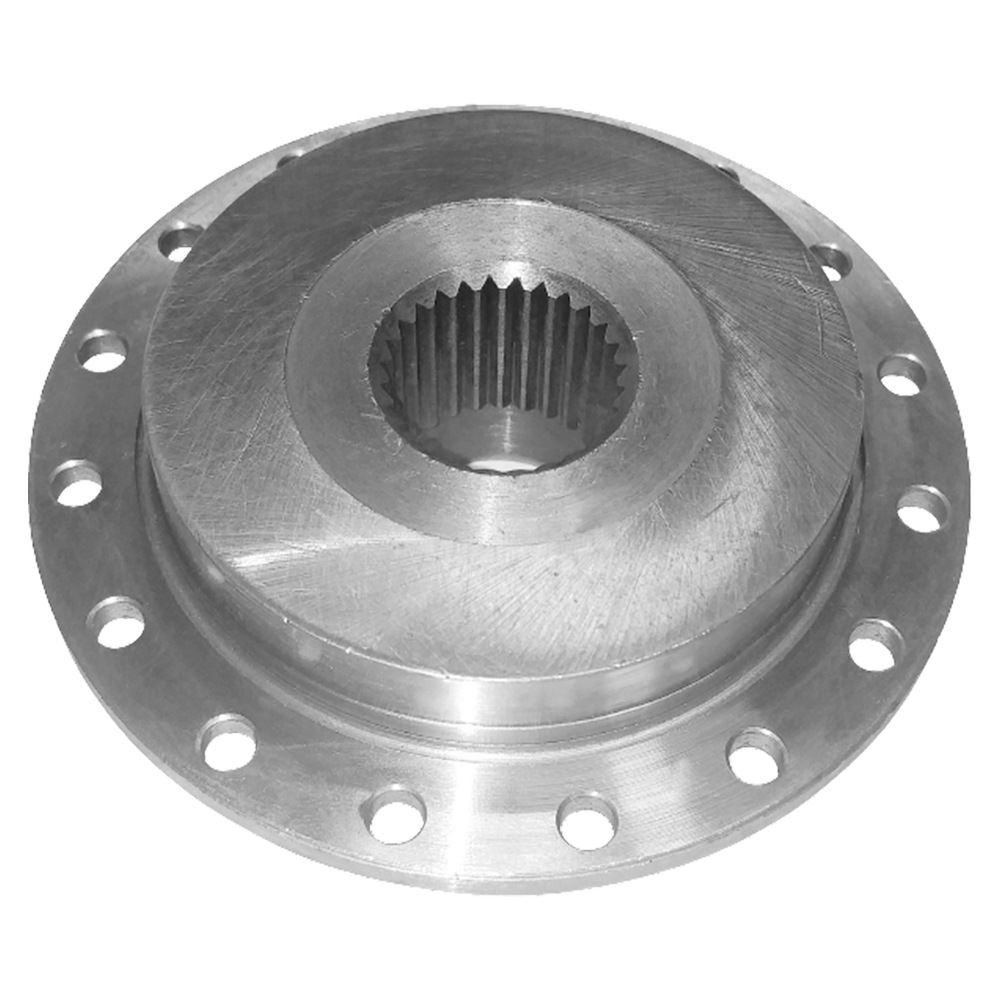

15 Turbine Hub ZF-4HP22
  • Internal Teeth: 27
  • Outside Dia: 3.5"
 PX-13-1
15 Turbine Hub ZF-4HP22
  • Height: 1.06"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.50"
 PX-13-1HT
15 Turbine Hub
  • Installed Height: 0.91"
  • Internal Teeth: 27
  • Outside Dia: 3.5"
 PX-13-4
15 Turbine Hub ZF-4HP22
  • Installed Height: 0.91"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.5"
 PX-13-4HT
15 Turbine Hub ZF-4HP22
  • Installed Height: 0.84"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.34"
 PX-13-5HT
15 Turbine Hub ZF-4HP22
  • Installed Height: 1.345"x`
  • Internal Teeth: 27
  • Outside Dia: 3.5"
 PX-13-7

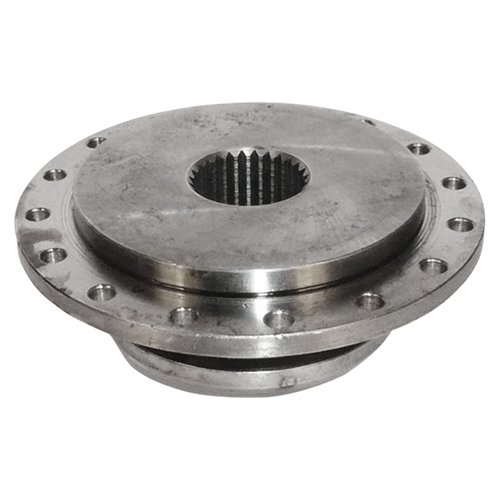

15 Turbine Hub ZF-4HP22
  • Installed Height: 1.345"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.5"
 PX-13-7HT

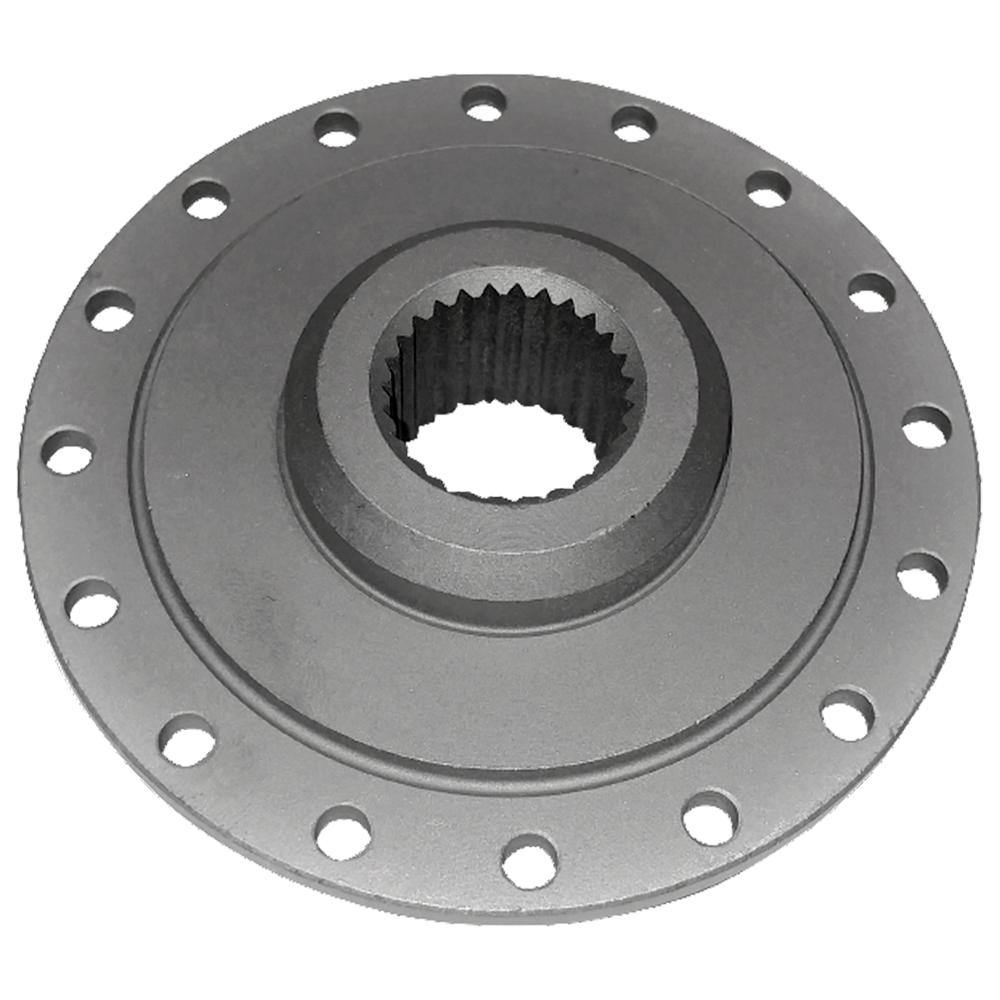

15 Turbine Hub ZF-4HP22
  • Installed Height: 0.72"
  • Height: 1.375"
  • Internal Teeth: 27
  • Outside Dia: 3.5"
 PX-13-8

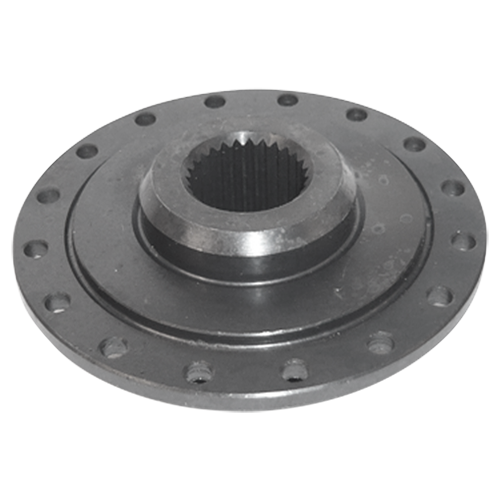

15 Turbine Hub ZF-4HP22
  • Installed Height: 0.72"
  • Height: 1.375"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.5"
 PX-13-8HT
15 Turbine Hub
  • Installed Height: 0.72"
  • Internal Teeth: 27
  • Outside Dia: 3.89"
 PX-13-9

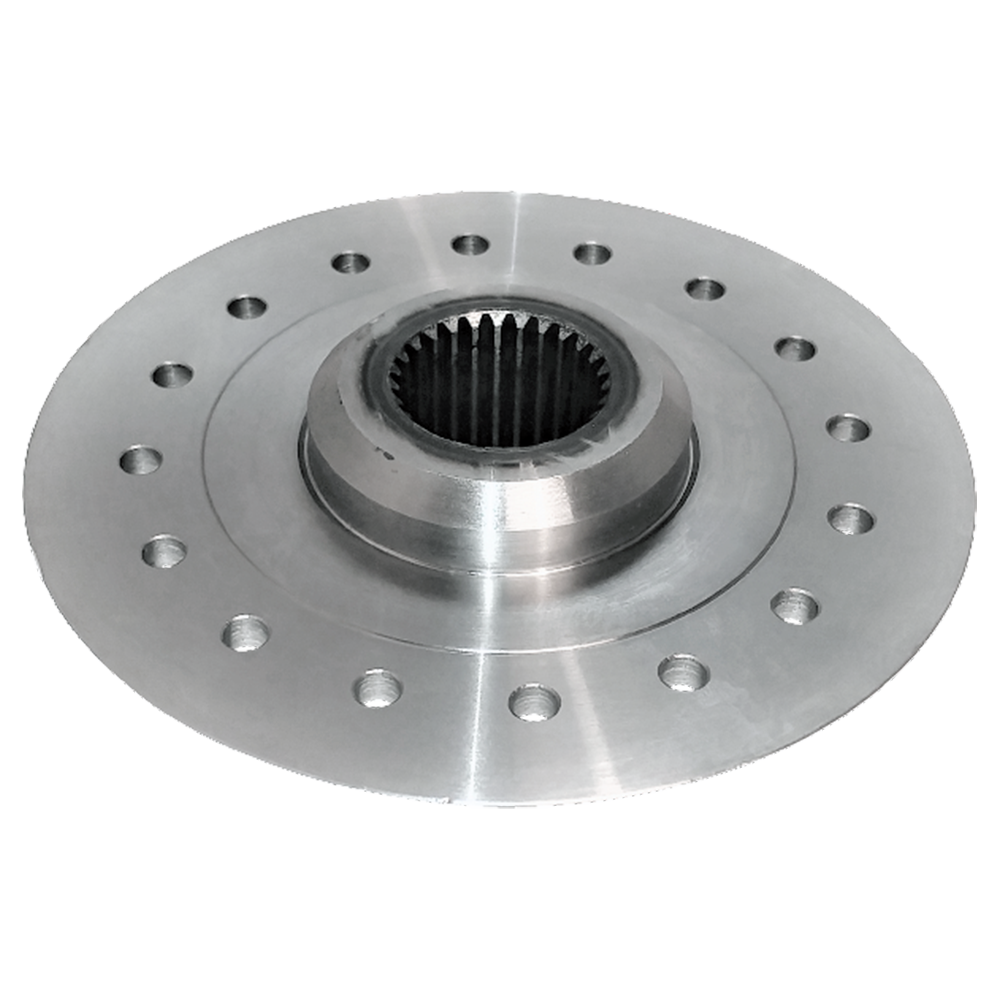

15 Turbine Hub ZF-4HP22
  • Installed Height: 0.72"
  • Height: 1.360"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.89"
 PX-13-9HT

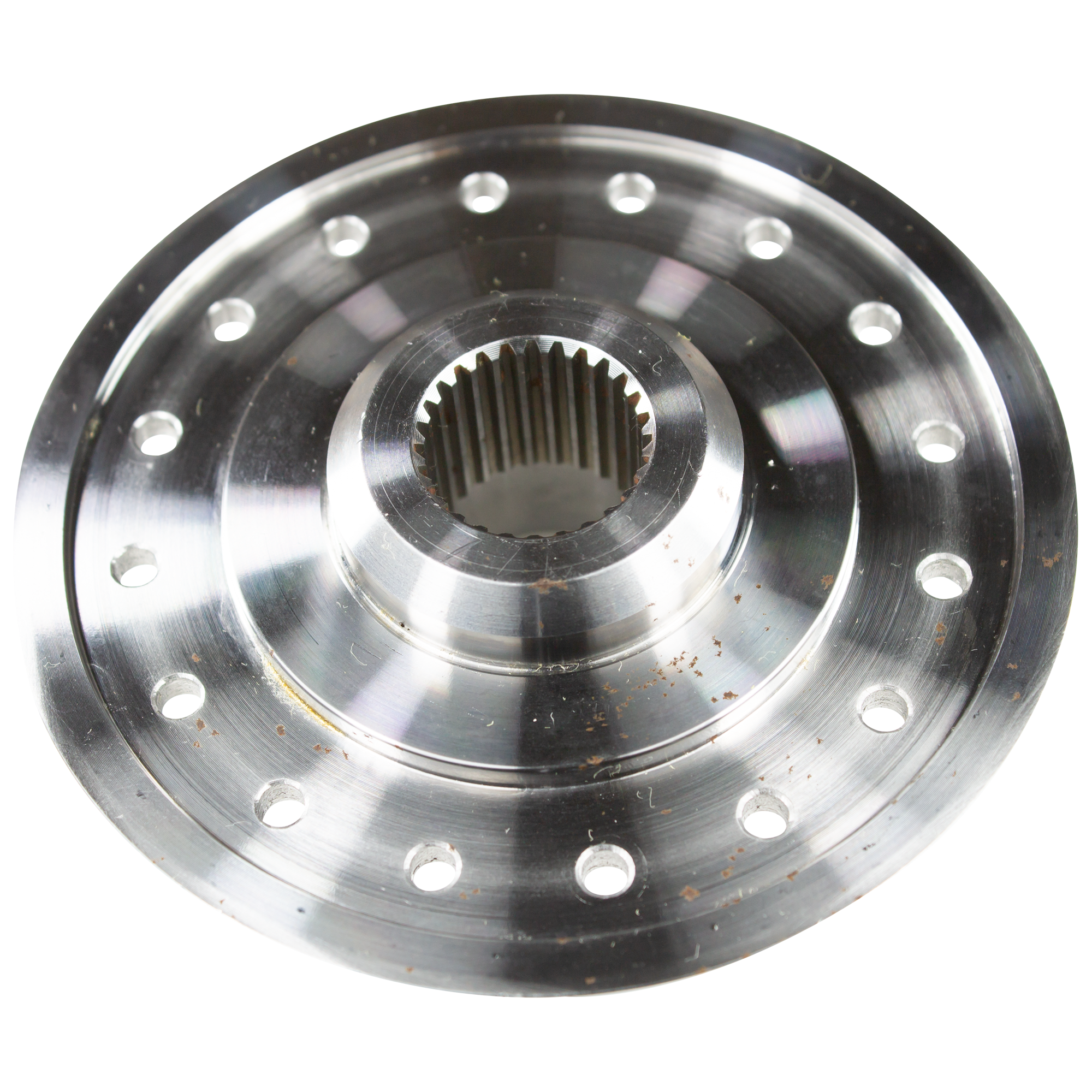

15 Turbine Hub ZF-4HP22
  • Installed Height: 0.834"
  • Height: 1.477"
  • Internal Teeth: 27
  • Outside Dia: 4.14"
 PX-13-10
15 Turbine Hub ZF-4HP22
  • Installed Height: 0.834"
  • Height: 1.477
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.14"
 PX-13-10HT
16 Gear Cup
  • External Teeth: 48
 PX-8
17 Rivet 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
17 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
17 Rivet 10 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
17 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
17 Rivet 16 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12L
18 Seal Ring Square-Cut with Groove O.E. Replacement
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
 PO-25
18 Seal Ring Square-Cut, Oversized, To Salvage Clutch Plates
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
 PO-25X
18 Seal Ring Replacement, Scarf Cut, Square-Cut, with Groove
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
 PO-25T
19 Metal Clad Seal Chrysler Jeep A999
  • Housing Bore Dia: 1.066
  • Housing Bore Dia Metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
 TO-25-1
19 Metal Clad Seal ZF-4HP22
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
20 Misc NPN-SPL

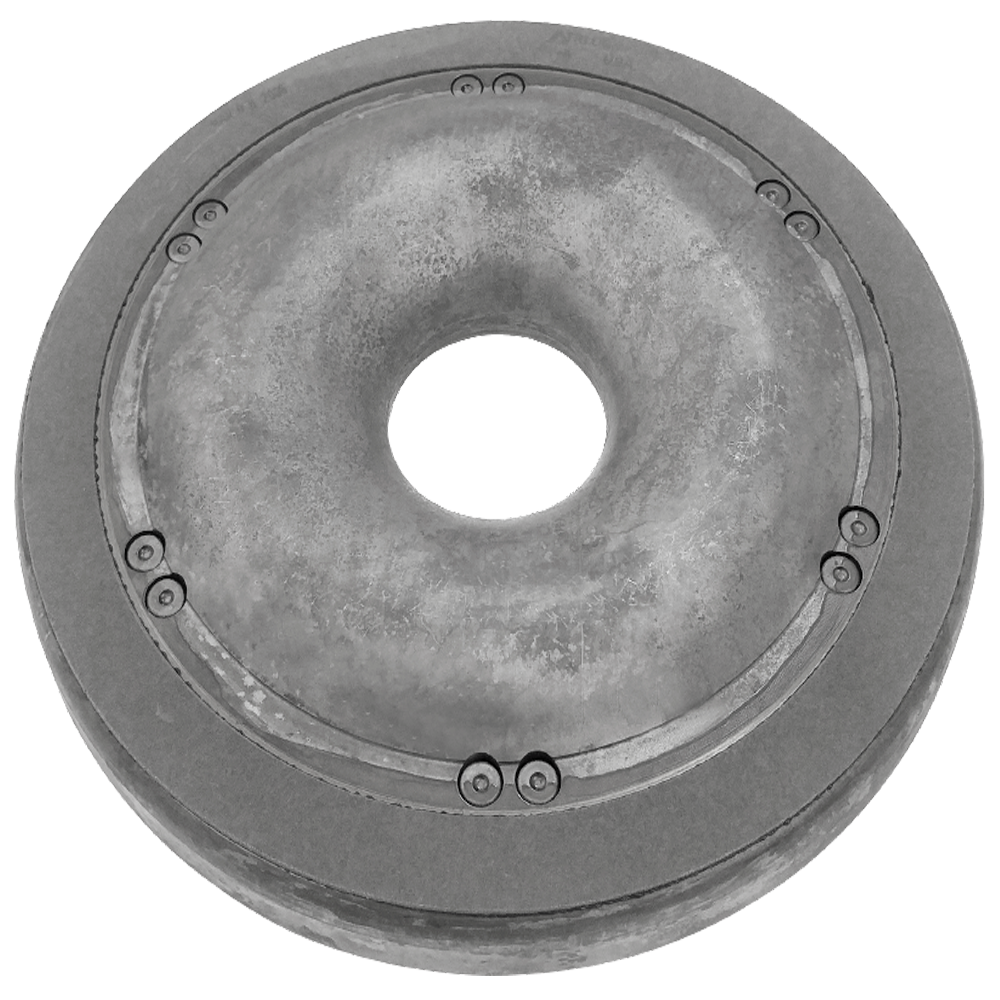

20 Clutch Plate Assembly Lined
  • Outside Dia: 10.039
  • Outside Dia Metric: 255mm
 PX-26

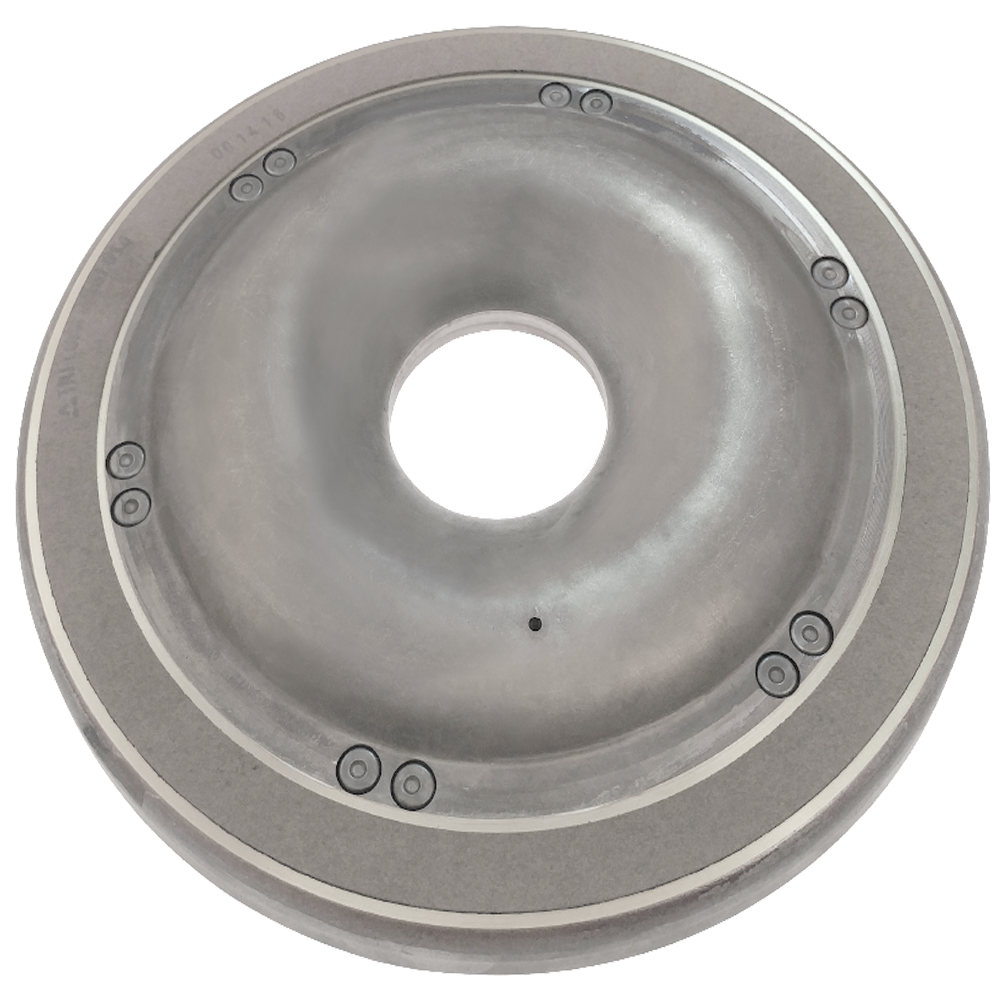

20 Lockup Clutch Lined
  • Outside Dia: 10.433
  • Outside Dia Metric: 265mm
 PX-26-1
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
 PX-23-9
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.938"
  • Inside Dia: 9"
 JX-23-10
22 Turbine Washer Chrysler Jeep A999
  • Thickness: .225"
  • Material: Plastic
  • Outside Dia: 2.3"
  • Inside Dia: 1.4"
 PW-9-2D
22 Turbine Washer Chrysler Jeep A999
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.3"
  • Inside Dia: 1.4"
 PW-9-2E
22 Turbine Washer Chrysler Jeep A999
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.3"
  • Inside Dia: 1.4"
 PW-9-2F
22 Washer Bronze Chrysler Jeep A999
  • Outside Dia: 2.3"
  • Inside Dia: 1.4"
 PW-9-2FB
22 Turbine Washer ZF-4HP22
  • Thickness: 0.225"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3D
22 Turbine Washer ZF-4HP22
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3E
22 Turbine Washer ZF-4HP22
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3F
22 Washer Bronze ZF-4HP22
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3FB
23 Bushing ZF-4HP22
  • Thickness: 0.393"
  • Housing Bore Dia: 0.67"
  • Shaft Dia: 0.55"
  • Material: Bronze
 PB-18
23 Bushing With External Grooves Chrysler Jeep A999
  • Thickness: 0.503"
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Type: Precision
 TB-18-4
23 Bushing
  • Thickness: 0.5
  • Housing Bore Dia: 1.611
  • Shaft Dia: 1.385
  • Material: Iron/Bronze
 TB-18-4B
23 Bushing A999
  • Thickness: 0.503"
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Type: Undersized I.D. (Unfinished)
 TB-18-4X
24 Front Cover NPN-4-10-24
