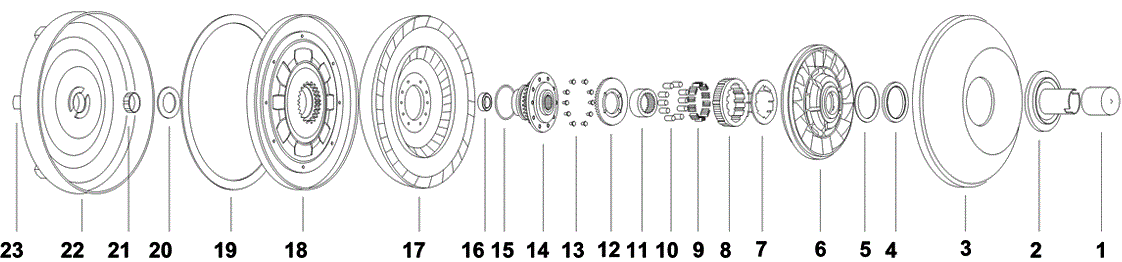

Torque Converter | Chrysler | 310mm Lockup, A-618, 47RH, 48RE

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Shim Support
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
 SW-2-44

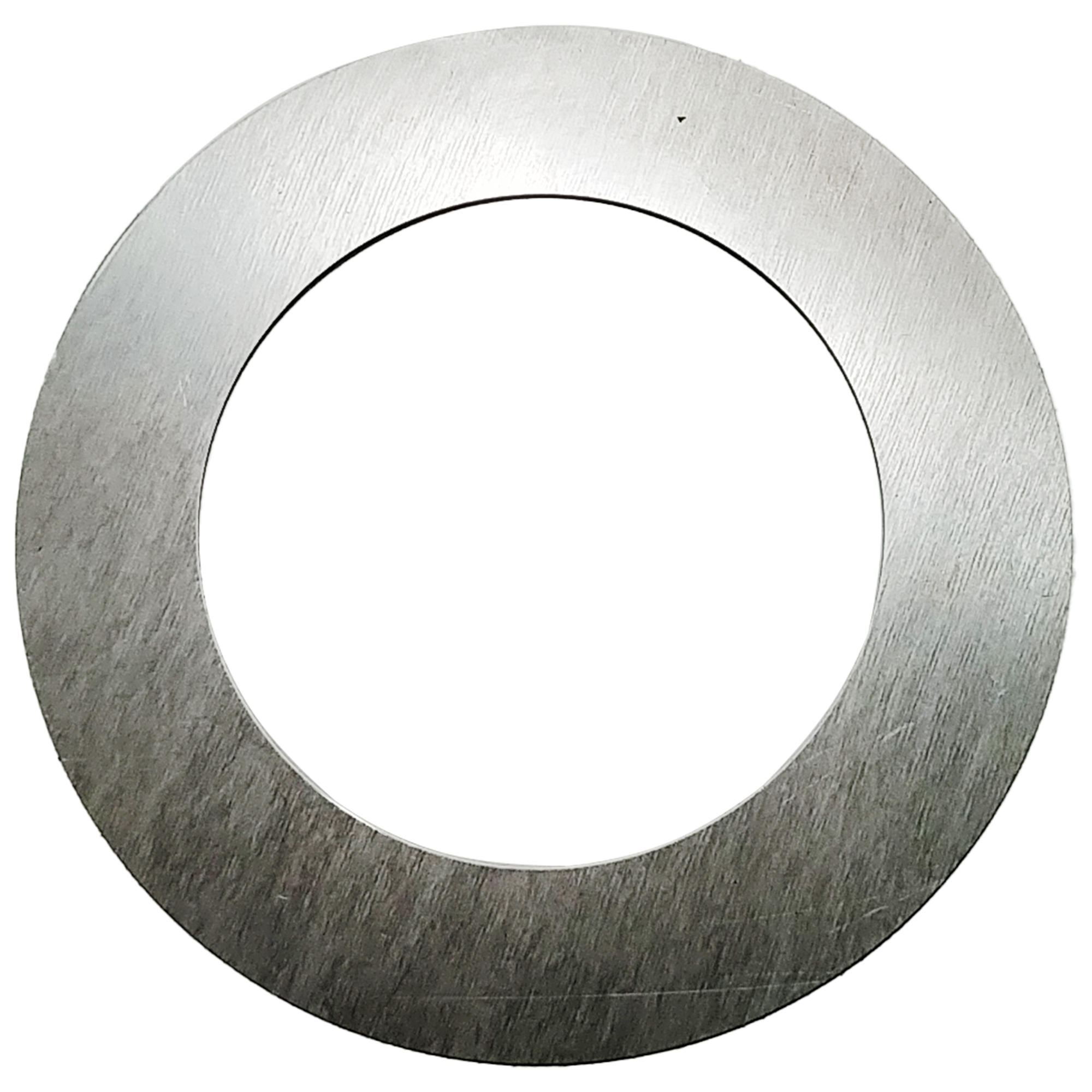

Shim SW-2-44
Support &
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 Impeller Hub
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-14GRCMA
Impeller Hub SH-1-14GRCMA
&
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
2 Impeller Hub Only 47RH & 47RE
  • Journal Dia: 1.874"
  • Installed Height: 2.440"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-3GRC

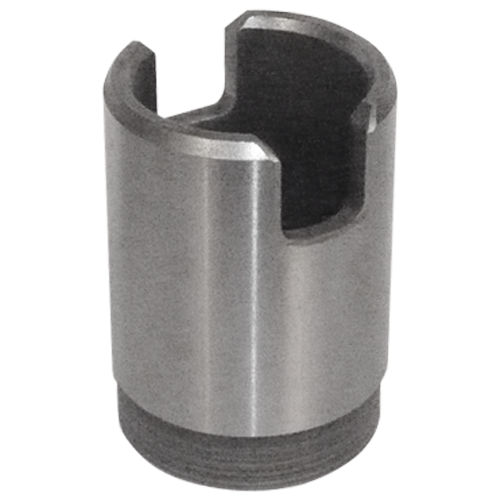

Impeller Hub SH-1-3GRC
& Only 47RH & 47RE
  • Journal Dia: 1.874"
  • Installed Height: 2.440"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub Only 48RE
  • Journal Dia: 1.874"
  • Installed Height: 1.950"
  • Height: 2.25
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.12"
  • Hardness: Rc 32-36
  • Inside Dia: 4.12"
 SH-1-55GRC
Impeller Hub SH-1-55GRC
& Only 48RE
  • Journal Dia: 1.874"
  • Installed Height: 1.950"
  • Height: 2.25
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.12"
  • Hardness: Rc 32-36
  • Inside Dia: 4.12"
2 Impeller Hub Only 47RH & 47RE
  • Journal Dia: 1.874"
  • Installed Height: 1.950"
  • Height: 2.25
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.15"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-23GRC

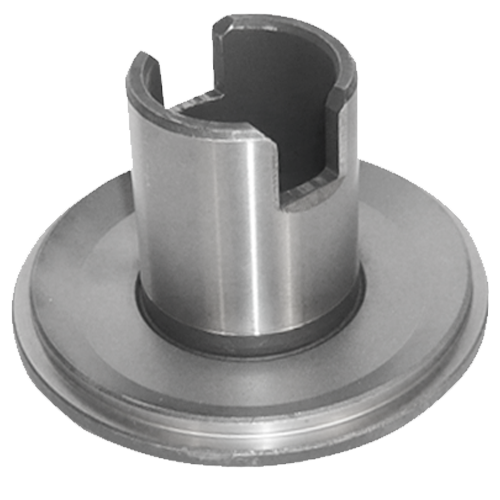

Impeller Hub SH-1-23GRC
& Only 47RH & 47RE
  • Journal Dia: 1.874"
  • Installed Height: 1.950"
  • Height: 2.25
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.15"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.060"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 60-62
  • Inside Dia: 4.15"
  • Use Bearing SW-2-14, AT-540
 SH-1-14GRC

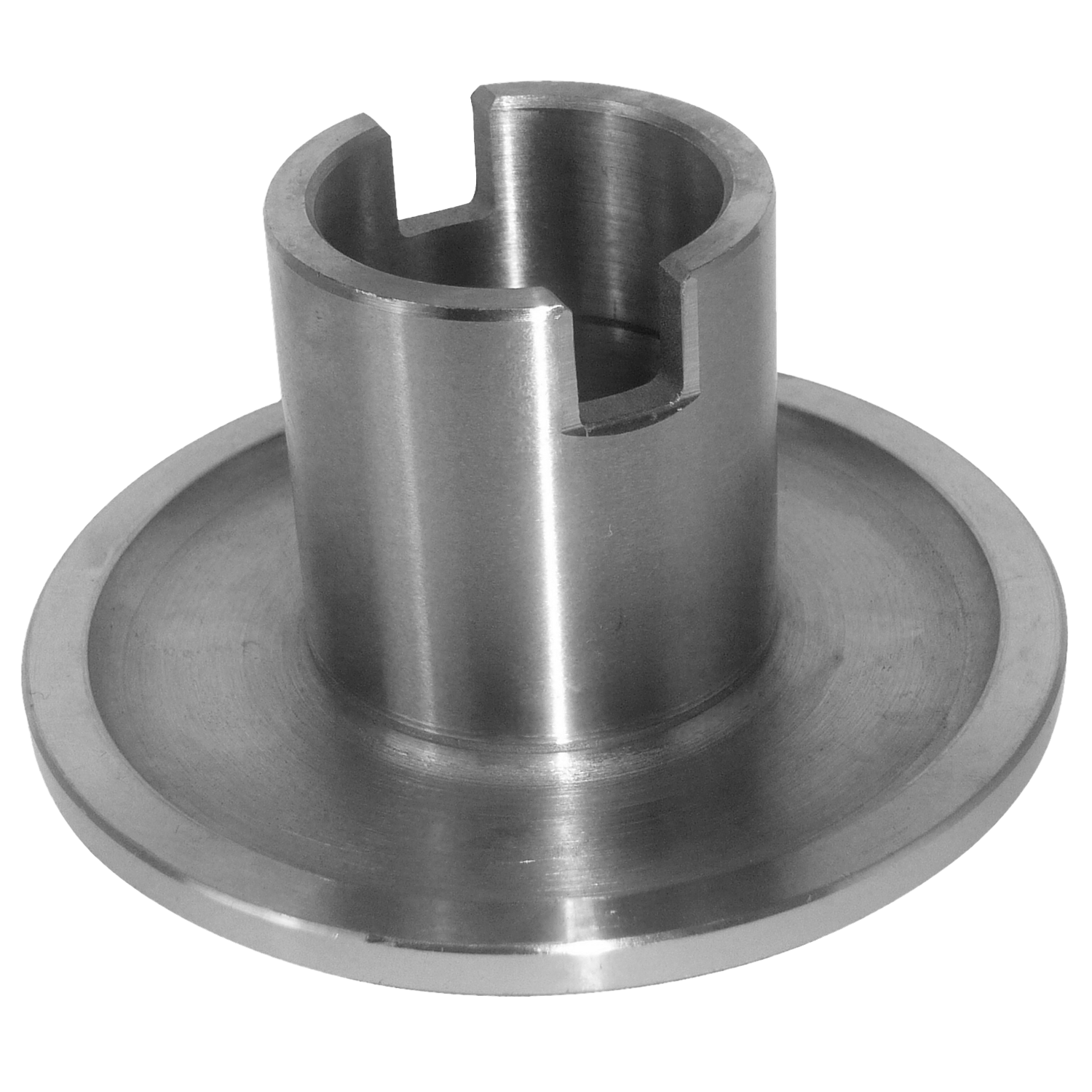

Impeller Hub SH-1-14GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.060"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 60-62
  • Inside Dia: 4.15"
  • Use Bearing SW-2-14, AT-540
2 Impeller Hub O.E. Replacement
  • Journal Dia: 1.874"
  • Installed Height: 2.070"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-10GRC

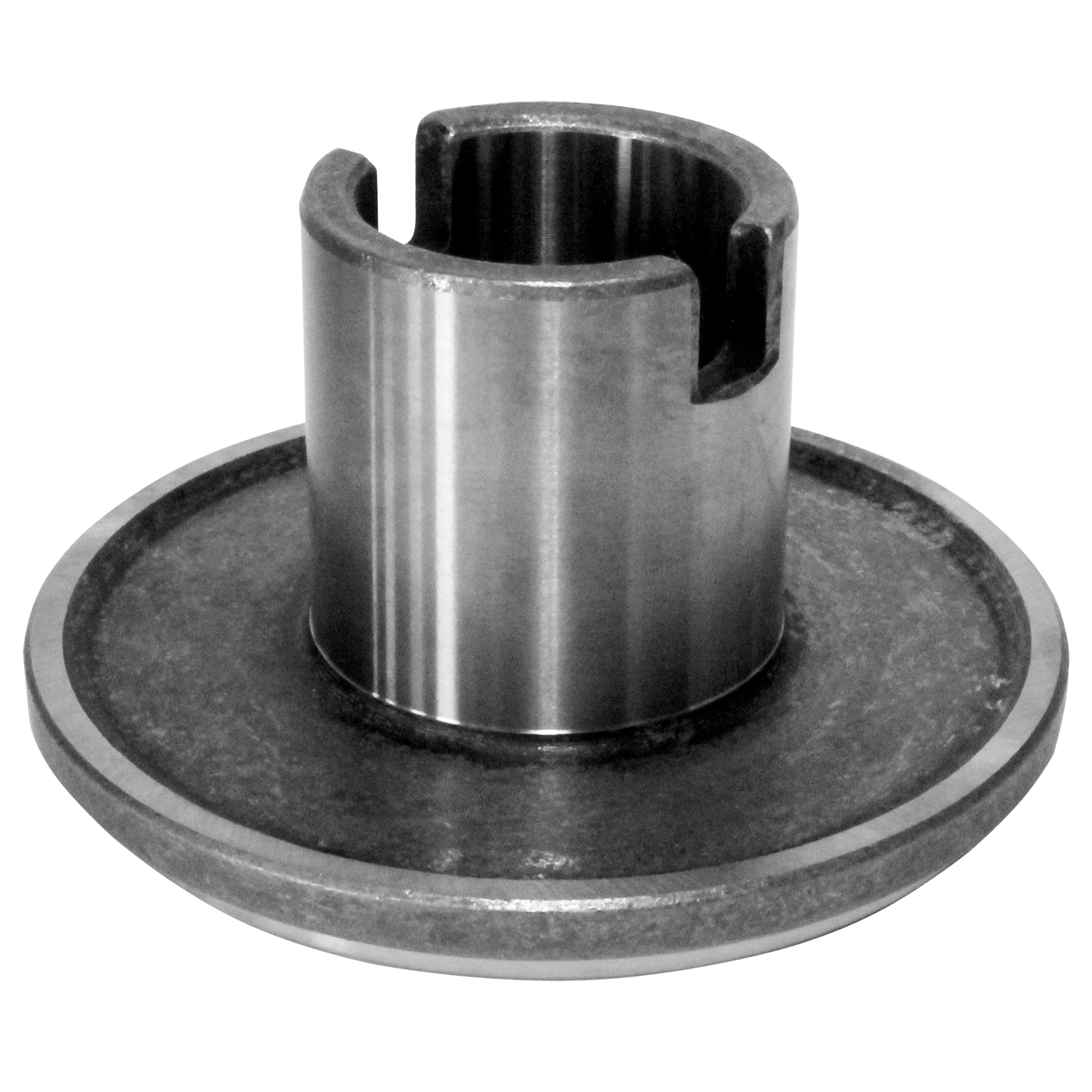

Impeller Hub SH-1-10GRC
O.E. Replacement &
  • Journal Dia: 1.874"
  • Installed Height: 2.070"
  • Height: 2.281
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.120"
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.280"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Inside Dia: 4.15"
 SH-1-14G
Impeller Hub SH-1-14G
&
  • Journal Dia: 1.874"
  • Installed Height: 2.280"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Inside Dia: 4.15"
2 Impeller Hub Flanged
  • Journal Dia: 1.874"
  • Installed Height: 2.28"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
 SH-1-14GRCM

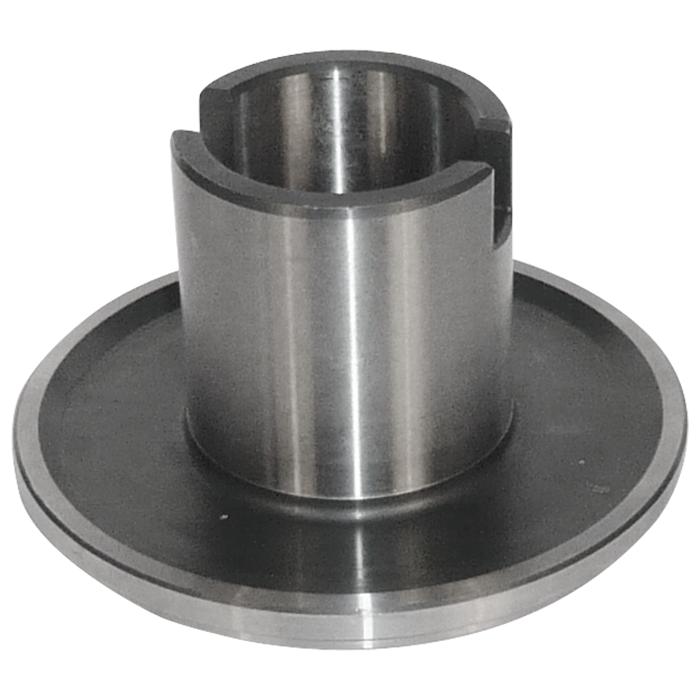

Impeller Hub SH-1-14GRCM
Flanged &
  • Journal Dia: 1.874"
  • Installed Height: 2.28"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 4.15"
3 Impeller NPN-3-24-3
Impeller NPN-3-24-3
&
4 Bearing
  • Thickness: 0.255
  • Thickness metric: 6.48
  • Bearing type: Enclosed
  • Outside Dia: 3.28
  • Inside Dia: 2.388
  • Outside Dia Metric: 83.31
  • Inside Dia metric: 60.66
 SW-2-12
Bearing SW-2-12
&
  • Thickness: 0.255
  • Thickness metric: 6.48
  • Bearing type: Enclosed
  • Outside Dia: 3.28
  • Inside Dia: 2.388
  • Outside Dia Metric: 83.31
  • Inside Dia metric: 60.66
4 Bearing Timken
  • Thickness: 0.25"
  • Bearing type: Enclosed
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
 SW-2-12T

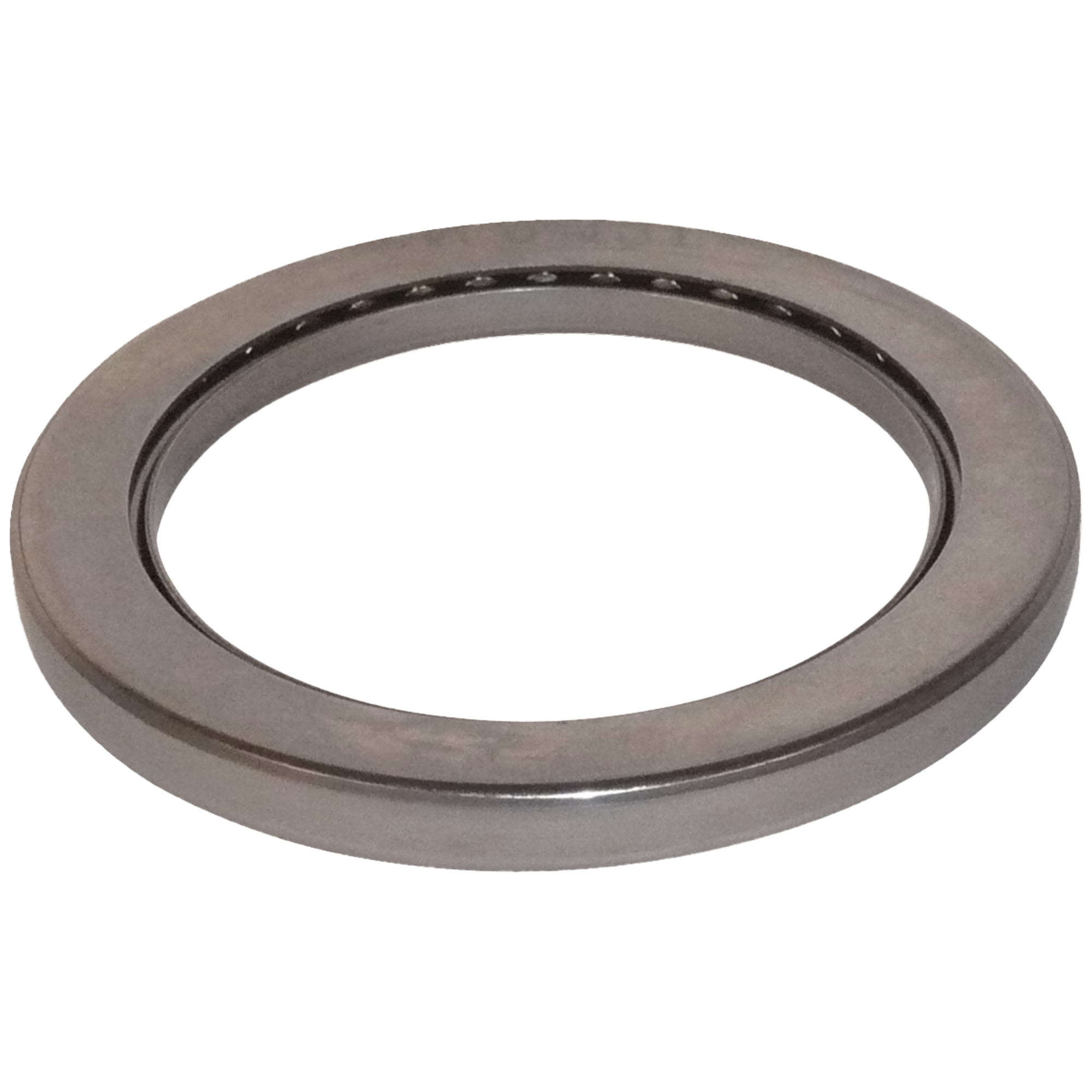

Bearing SW-2-12T
Timken &
  • Thickness: 0.25"
  • Bearing type: Enclosed
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
5 Stator Low stall
  • Material: Aluminum
 SX-5-11
Stator SX-5-11
Low stall &
  • Material: Aluminum
5 Shim
  • Thickness: .02"
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
 SW-2-17
Shim SW-2-17
&
  • Thickness: .02"
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
5 Shim Use Under SW-2-12
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
 SW-2-210
Shim SW-2-210
& Use Under SW-2-12
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
5 Washer Hub Bearing Adapter
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
  • Use With SH-1-26GRC to Accept SW-2-14 Bearing
 SW-2-23
Washer SW-2-23
Hub Bearing Adapter &
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
  • Use With SH-1-26GRC to Accept SW-2-14 Bearing
5 Shim
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
 SW-2-220

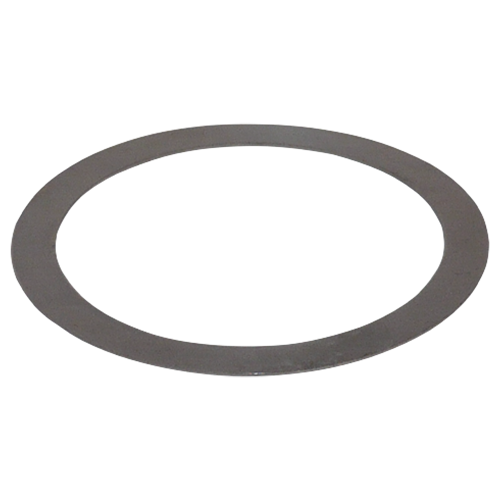

Shim SW-2-220
&
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
5 Shim
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
 SW-2-230

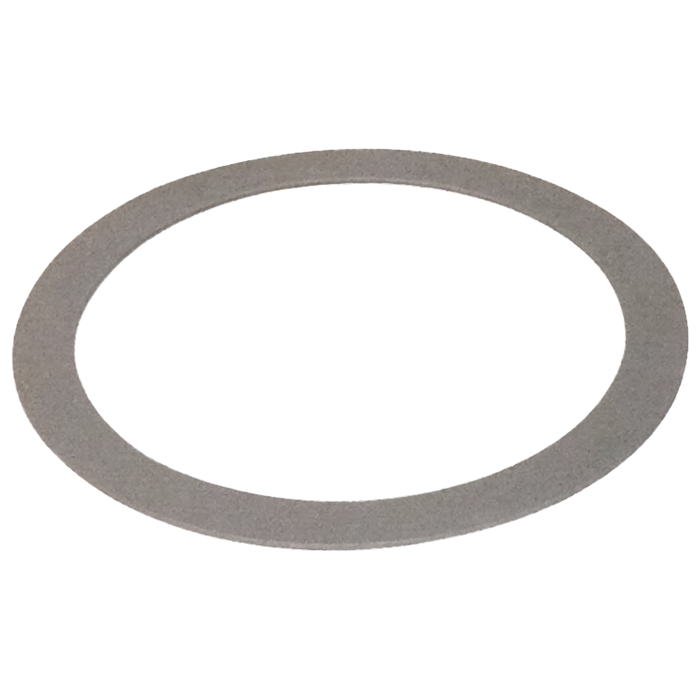

Shim SW-2-230
&
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
6 Stator NPN-3-24-6
Stator NPN-3-24-6
&
7 Spring Retainer Stator, HD SX-15-5
Spring Retainer SX-15-5
Stator, HD &
7 Spring Retainer Stator
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
 SX-15B

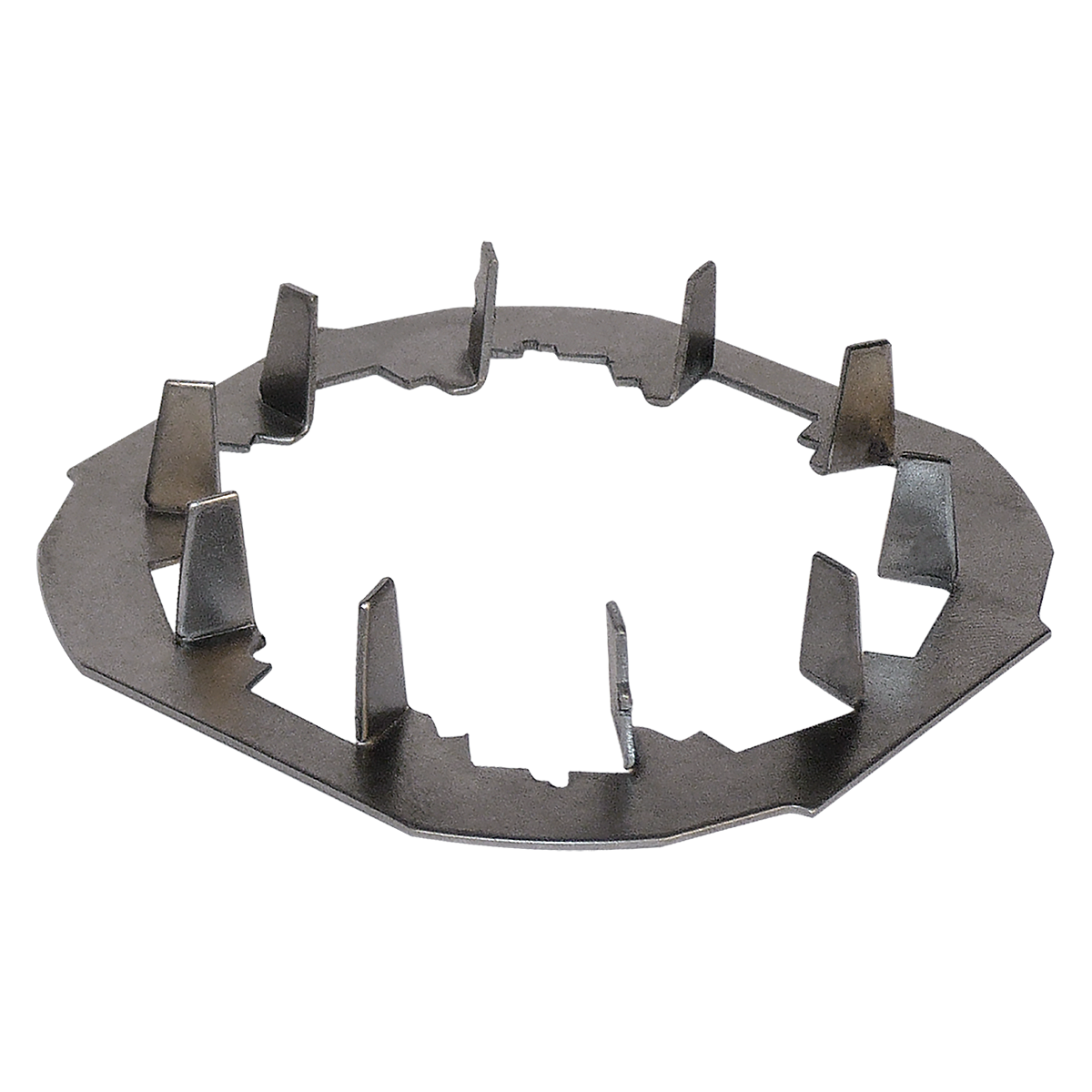

Spring Retainer SX-15B
Stator &
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
8 Outer Race (Cam) Stator, 10 Pocket Used with 0.58" Long Rollers.
  • Length: 0.591"
  • Outside Dia: 3.602"
 SX-15A
Outer Race (Cam) SX-15A
Stator, 10 Pocket & Used with 0.58" Long Rollers.
  • Length: 0.591"
  • Outside Dia: 3.602"
8.1 Shim Conversion Spacer converts BW 310mm LU (A618), GM 400 (3L80), AT-540 & Buick 350 to upgrade OE stator clutch assembly. Used with Outer-Race SX-15A
  • Thickness: 0.039"
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
 SW-2-45
Shim SW-2-45
Conversion Spacer & converts BW 310mm LU (A618), GM 400 (3L80), AT-540 & Buick 350 to upgrade OE stator clutch assembly. Used with Outer-Race SX-15A
  • Thickness: 0.039"
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
9 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
9 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6

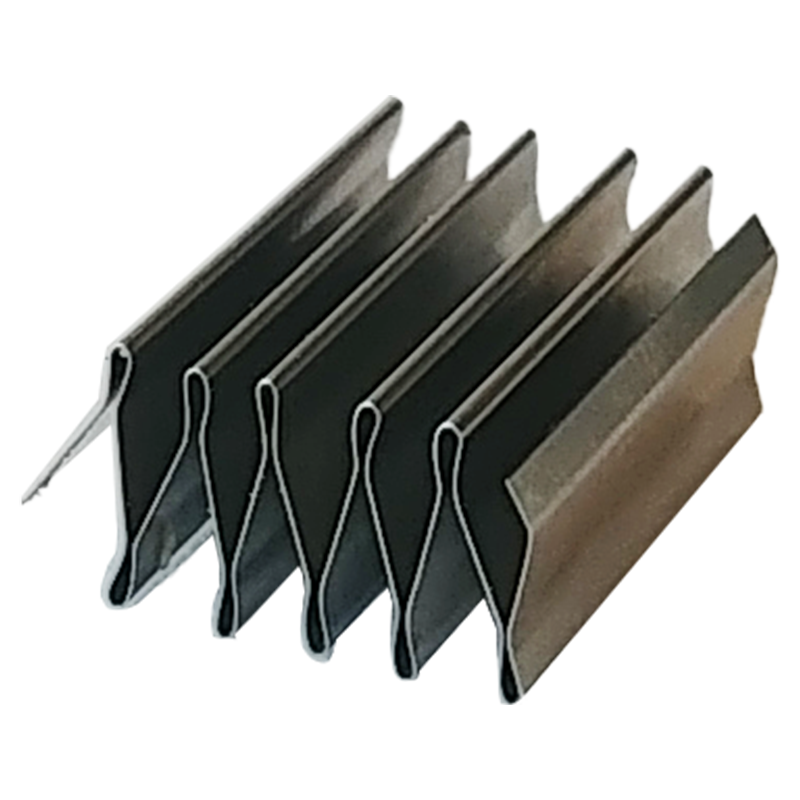

Accordion Spring SS-6-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
10 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
11 Inner Race Stator
  • Height: 1.040"
  • External Teeth: 27
  • Outside Dia: 2.156"
 SX-14
Inner Race SX-14
Stator &
  • Height: 1.040"
  • External Teeth: 27
  • Outside Dia: 2.156"
11 Inner Race Stator TX-14-3
Inner Race TX-14-3
Stator &
12 Stator Cap
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10174, OE Design
 SW-4-19
Stator Cap SW-4-19
&
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10174, OE Design
12 Stator Cap 5 Lug Design
  • Thickness: 0.490"
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • (Alternate SW-4-19 w/o Lugs, SW-4-19B w/Lugs and TW-3-3 Bronze Washer)
 SW-4-19A
Stator Cap SW-4-19A
5 Lug Design &
  • Thickness: 0.490"
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • (Alternate SW-4-19 w/o Lugs, SW-4-19B w/Lugs and TW-3-3 Bronze Washer)
12 Stator Cap Use With TW-3-3 Washer
  • Material: Phenolic
  • Lug Count: 5
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10097
 SW-4-19B
Stator Cap SW-4-19B
& Use With TW-3-3 Washer
  • Material: Phenolic
  • Lug Count: 5
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10097
12 Stator Cap Bearing Adapter, Use With Bearing SW-2-12 Alternate, Use With Bearing SW-2-12
  • Thickness: 0.470"
  • Material: Aluminum
  • Outside Dia: 3.750"
  • Inside Dia: 1.710"
 WW-4-8

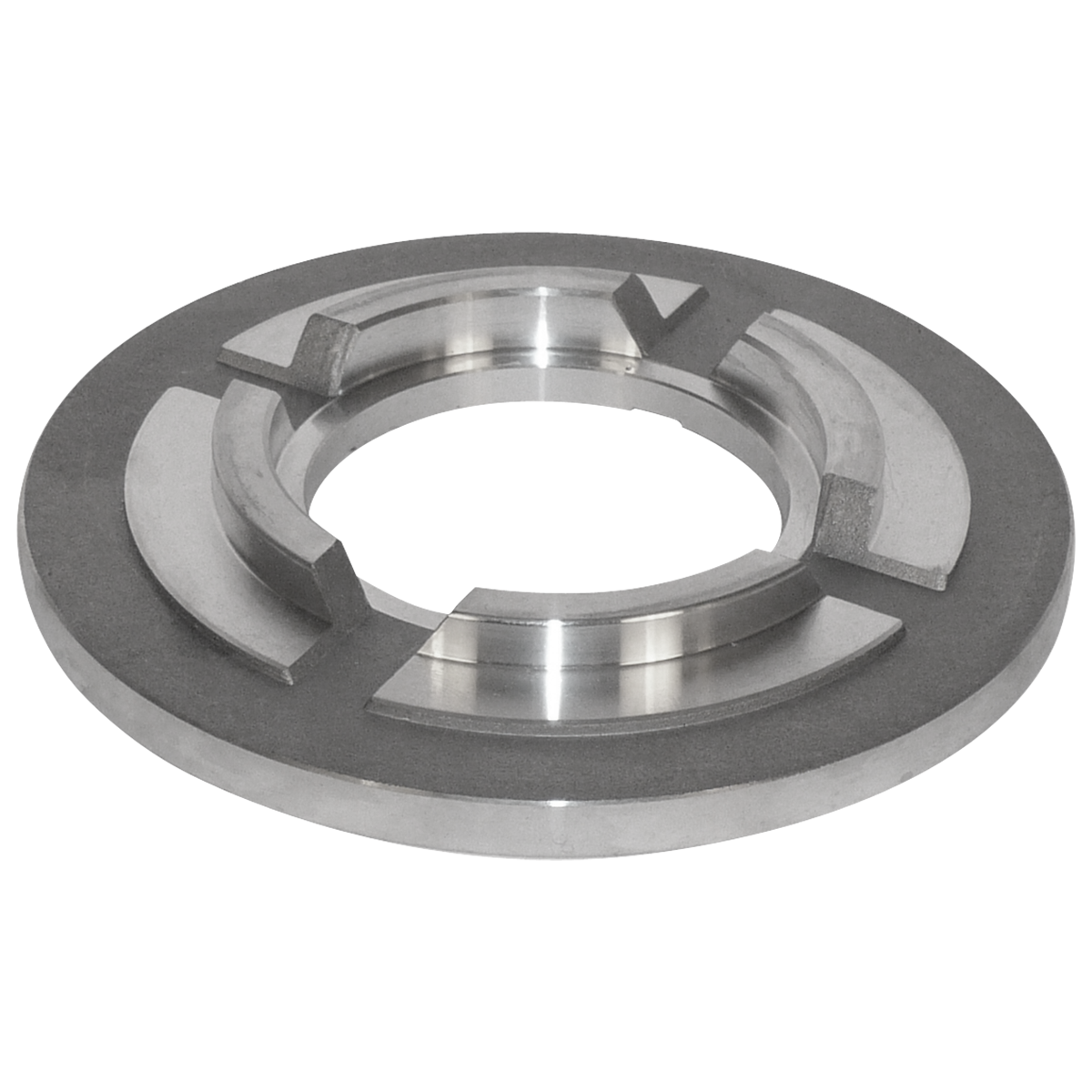

Stator Cap WW-4-8
Bearing Adapter, Use With Bearing SW-2-12 & Alternate, Use With Bearing SW-2-12
  • Thickness: 0.470"
  • Material: Aluminum
  • Outside Dia: 3.750"
  • Inside Dia: 1.710"
12.1 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3

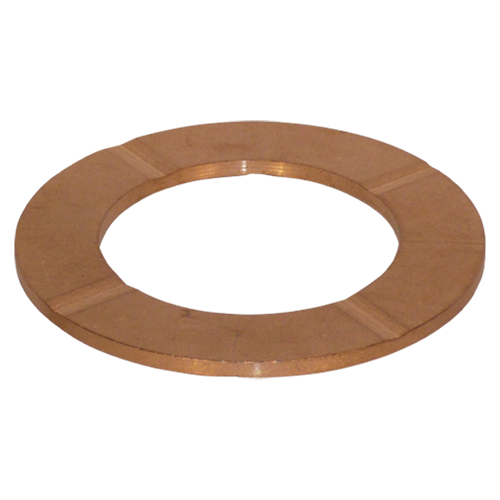

Washer TW-3
&
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
12.1 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3
Washer TW-3-3
&
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
12.1 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3AT
Washer TW-3-3AT
&
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
12.1 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
Washer TW-3-3E
&
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
13 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
14 Turbine Hub
  • Height: 2.650"
  • Internal Teeth: 23
  • External Teeth: 34
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.27"
 SX-13-14HT
Turbine Hub SX-13-14HT
&
  • Height: 2.650"
  • Internal Teeth: 23
  • External Teeth: 34
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.27"
14 Rivet 10 Pieces Required.
  • Length: 0.438"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.218"
  • Rivet Head Dia: 0.438"
  • Rivet Head: Flat
 SX-12-17
Rivet SX-12-17
& 10 Pieces Required.
  • Length: 0.438"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.218"
  • Rivet Head Dia: 0.438"
  • Rivet Head: Flat
15 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.05
  • Inside Dia metric: 52.07
 SO-23-33
O-Ring SO-23-33
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.05
  • Inside Dia metric: 52.07
15 O-Ring
  • Thickness: 0.108
  • Thickness metric: 2.7432
  • Material: Fluorocarbon
  • Inside Dia: 2.05
  • Inside Dia metric: 52.07
 SO-23-33X
O-Ring SO-23-33X
&
  • Thickness: 0.108
  • Thickness metric: 2.7432
  • Material: Fluorocarbon
  • Inside Dia: 2.05
  • Inside Dia metric: 52.07

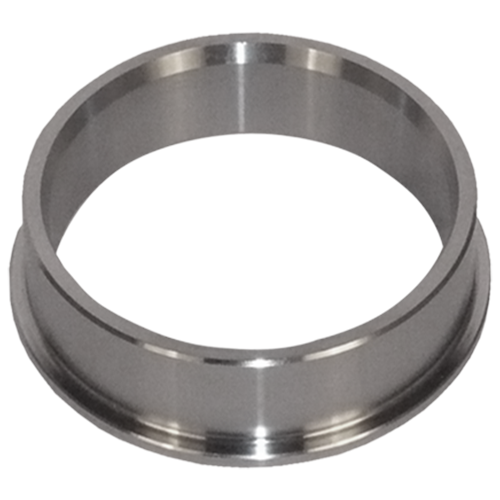

15.1 Insert Sleeve Chrysler 310mm Disassembly not required. Machining & welding is required SX-23-60
Insert Sleeve SX-23-60
Chrysler 310mm & Disassembly not required. Machining & welding is required
16 Metal Clad Seal
  • Housing Bore Dia: 1.066
  • Housing Bore Dia Metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
 TO-25-1
Metal Clad Seal TO-25-1
&
  • Housing Bore Dia: 1.066
  • Housing Bore Dia Metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
17 Turbine NPN-3-24-17
Turbine NPN-3-24-17
&
18_N.I. Insert Sleeve Flanged, Weld In To Repair Clutch O-Ring Bore
  • Hardness: Rc 32-36
 SX-23-34FLG
Insert Sleeve SX-23-34FLG
Flanged, Weld In To Repair Clutch O-Ring Bore &
  • Hardness: Rc 32-36
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 12.625"
  • Inside Dia: 10.688"
 SX-23-35
Lining (Friction Ring,Wafer) SX-23-35
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 12.625"
  • Inside Dia: 10.688"
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 12.5"
  • Inside Dia: 10.750"
 SX-23-49
Lining (Friction Ring,Wafer) SX-23-49
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 12.5"
  • Inside Dia: 10.750"
19 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 13
  • Inside Dia: 10.375
 SX-23-38
Lining (Friction Ring,Wafer) SX-23-38
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 13
  • Inside Dia: 10.375
20 Turbine Washer O.E. Replacement
  • Thickness: .06"
  • Material: Vespel®
  • Outside Dia: 2.190"
  • Inside Dia: 1.400"
 SW-9-16
Turbine Washer SW-9-16
& O.E. Replacement
  • Thickness: .06"
  • Material: Vespel®
  • Outside Dia: 2.190"
  • Inside Dia: 1.400"
20 Turbine Washer
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.190"
  • Inside Dia: 1.400"
 SW-9-16B
Turbine Washer SW-9-16B
&
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.190"
  • Inside Dia: 1.400"
21 Bushing With External Grooves
  • Thickness: 0.503"
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Type: Precision
 TB-18-4
Bushing TB-18-4
With External Grooves &
  • Thickness: 0.503"
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Type: Precision
21 Bushing
  • Thickness: 0.5
  • Housing Bore Dia: 1.611
  • Shaft Dia: 1.385
  • Material: Iron/Bronze
 TB-18-4B
Bushing TB-18-4B
&
  • Thickness: 0.5
  • Housing Bore Dia: 1.611
  • Shaft Dia: 1.385
  • Material: Iron/Bronze
21 Bushing
  • Thickness: 0.503"
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Type: Undersized I.D. (Unfinished)
 TB-18-4X
Bushing TB-18-4X
&
  • Thickness: 0.503"
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Type: Undersized I.D. (Unfinished)
22 Front Cover Diesel applications
  • Billet, Diesel
 WX-22-1
Front Cover WX-22-1
& Diesel applications
  • Billet, Diesel
23 Mounting Pad
  • Dimensions: 3/8"-24
 NPN-3-24-23
Mounting Pad NPN-3-24-23
&
  • Dimensions: 3/8"-24
23_N.I. Bolt
  • Dimensions: 3/8"-24
 NPN-3-24-23_N.I.
Bolt NPN-3-24-23_N.I.
&
  • Dimensions: 3/8"-24
