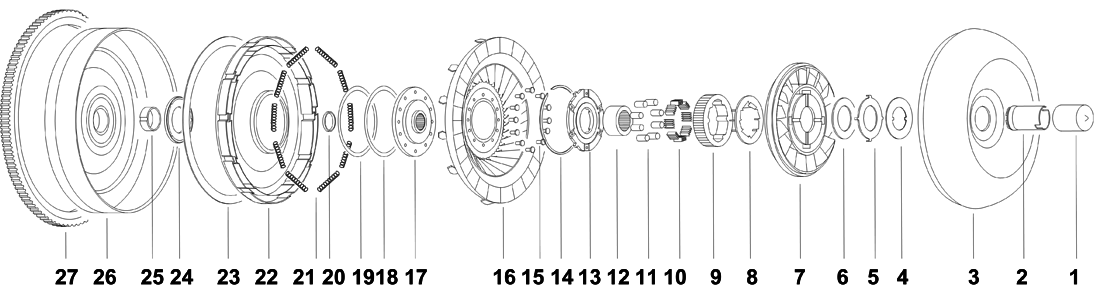

Torque Converter | Chrysler | 10-3/4" Lockup, Early, TF-6 A-904 & TF-8 A-727, RWD

Ill.# Image Description Specification Part #
0 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.625"
  • Inside Dia: 9.75"
 FX-23-15
0 Misc NPN-SPL

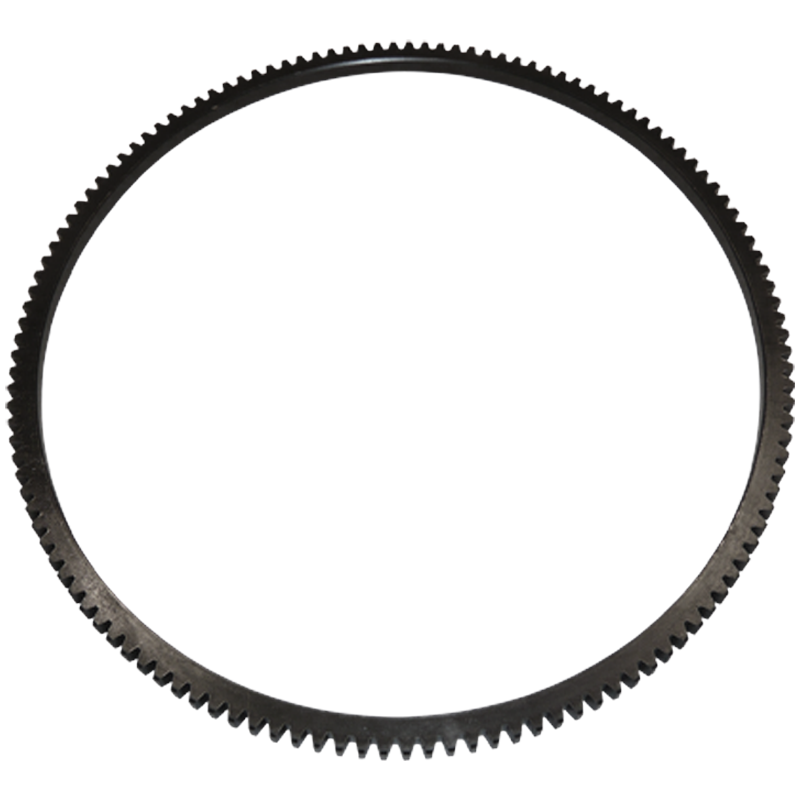

0 Ring Gear
  • Thickness: 0.375"
  • External teeth: 130
  • Outside Dia: 13.17"
  • Inside Dia: 12.15"
 RG-130
0 Ring Gear
  • Thickness: 0.33"
  • External teeth: 131
  • Outside Dia: 13.2"
  • Inside Dia: 11.19"
 RG-130H
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G

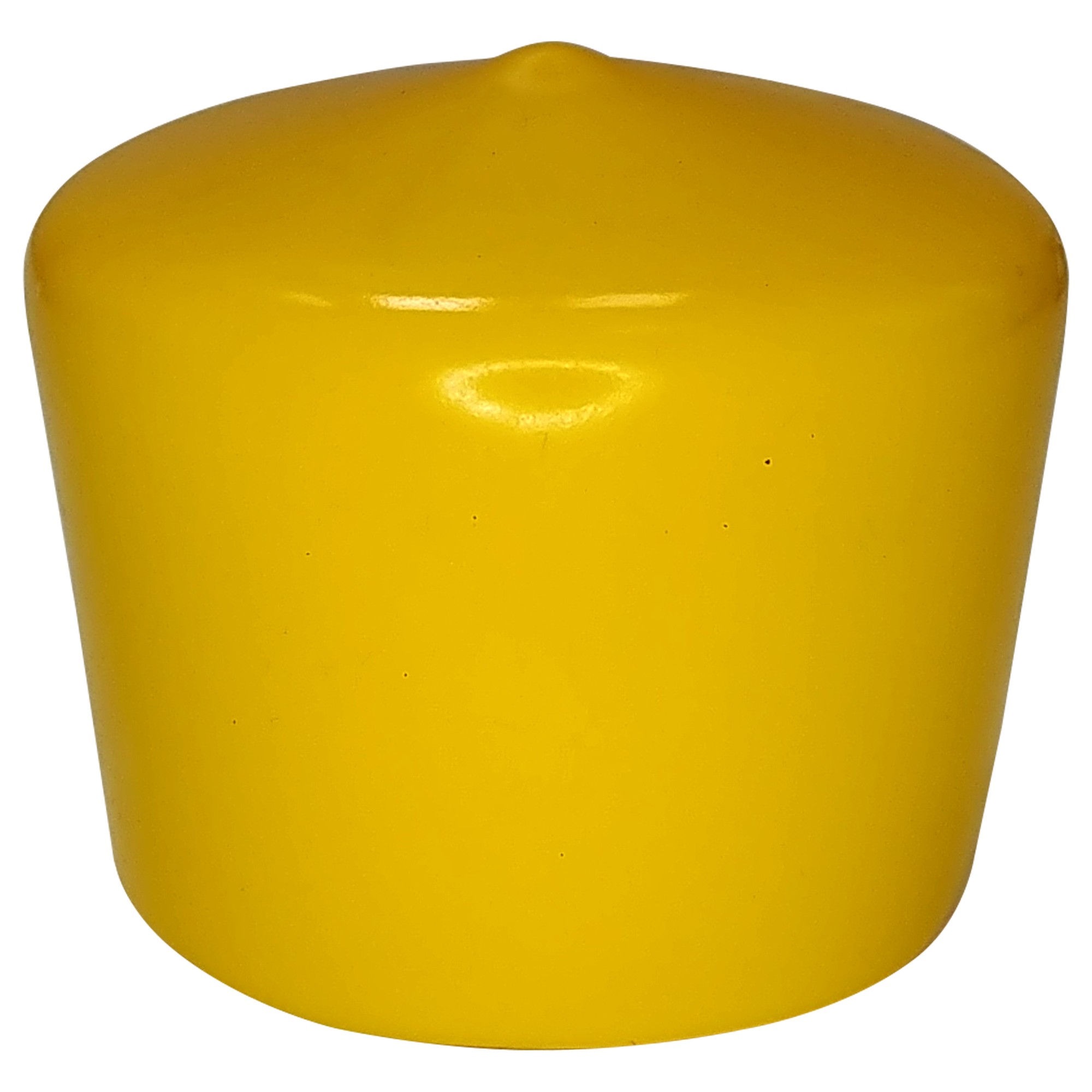

1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y

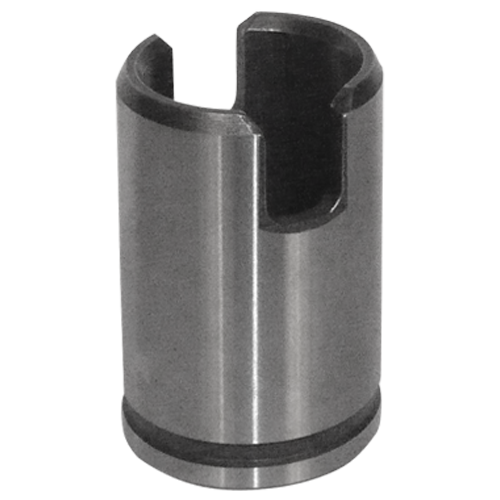

2 Impeller Hub For TF-6/A-904
  • Journal Dia: 1.498"
  • Height: 2.100"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1TSGRC

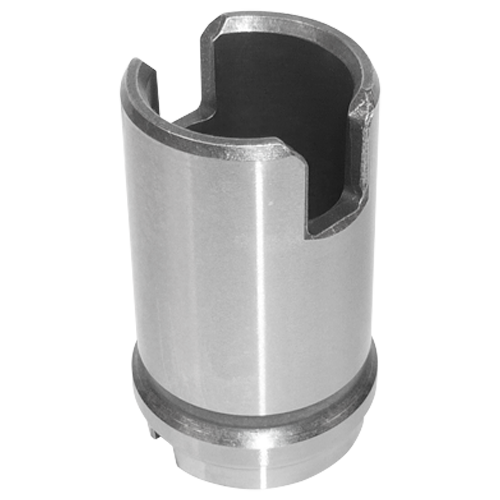

2 Impeller Hub For TF-6/A-904
  • Journal Dia: 1.498"
  • Installed Height: 2.143"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.43" wide)
  • Hardness: Rc 32-36
 TH-1-2GRC
2 Impeller Hub
  • Hardness: Rc 32-36
 TH-1-15TGRC
2 Impeller Hub For TF-8/A-727
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-5TSGRCJ

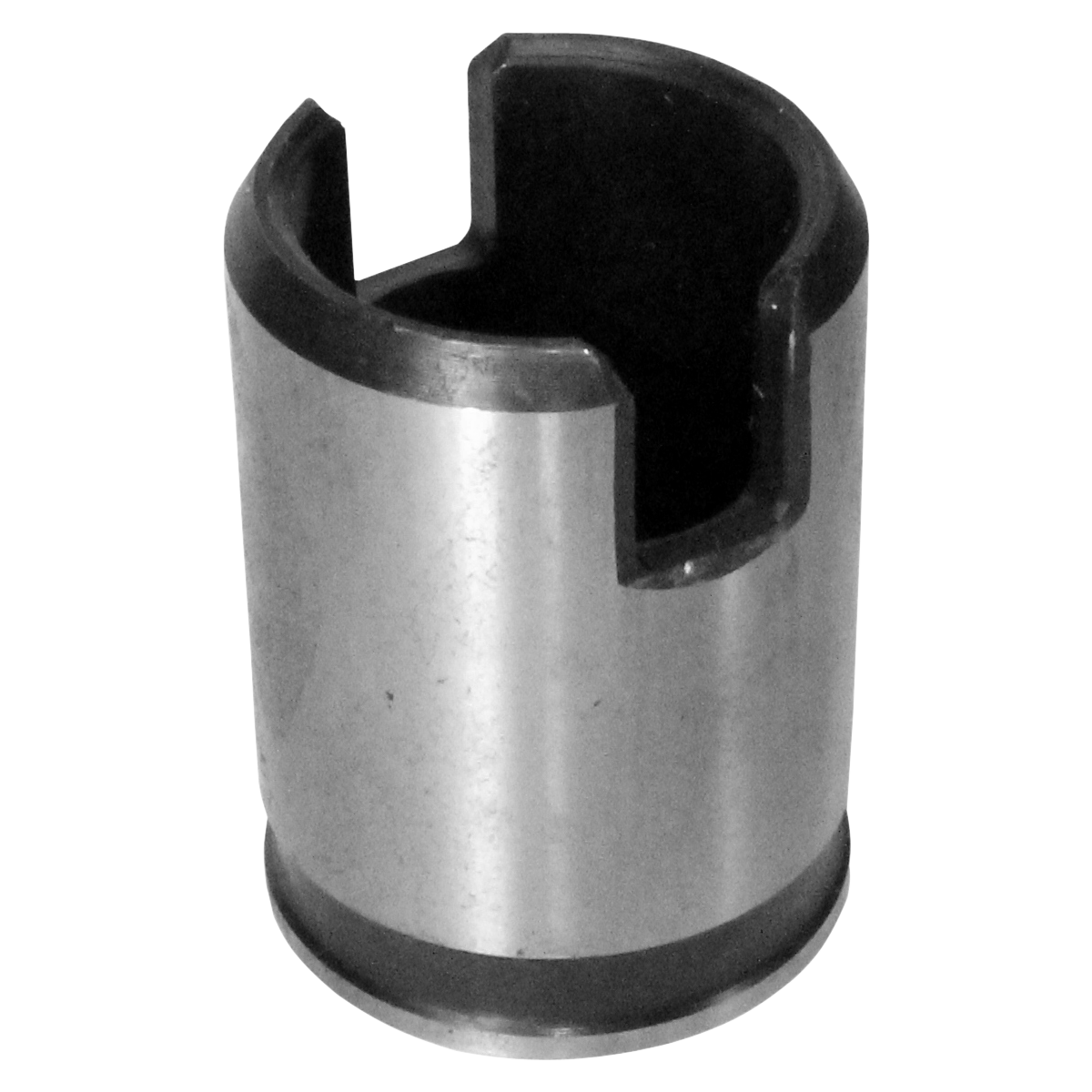

2 Impeller Hub For TF-6/A-904
  • Journal Dia: 1.498"
  • Height: 2.062"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1TBGRC

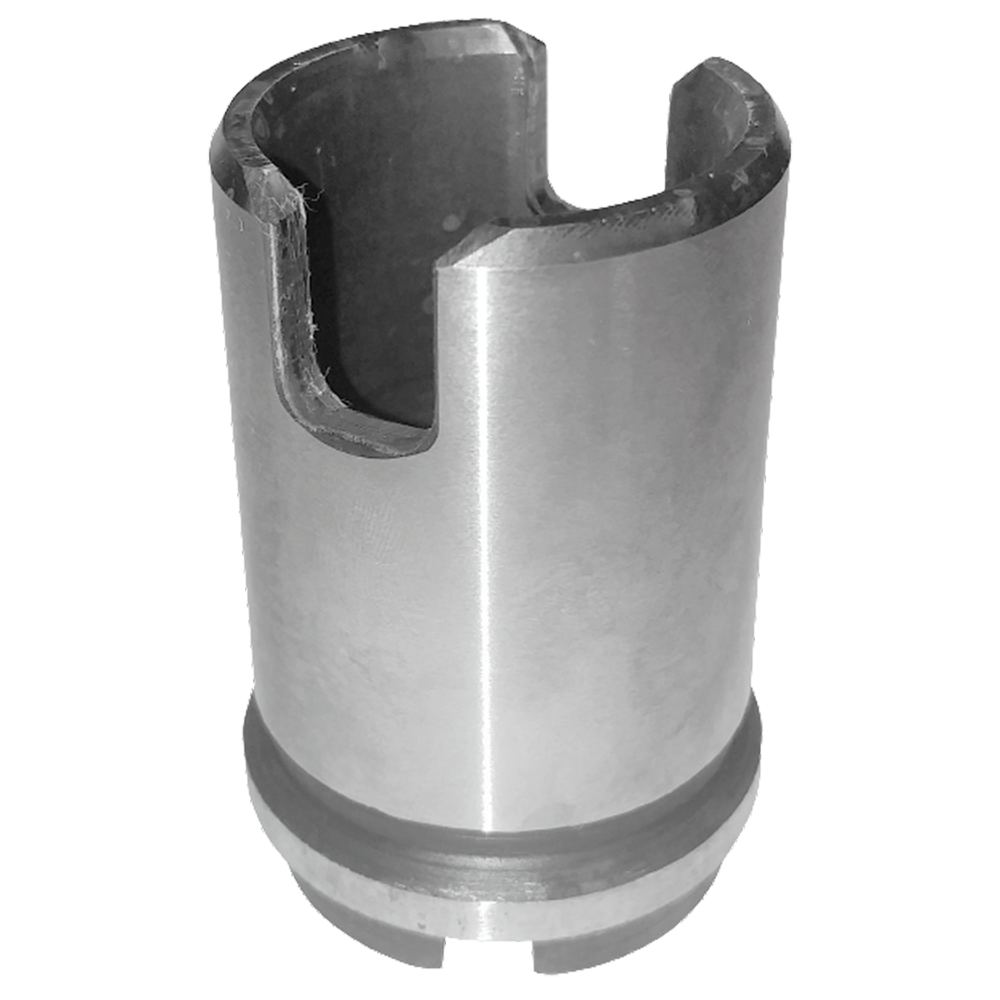

2 Impeller Hub For TF-6/A-904
  • Journal Dia: 1.498"
  • Installed Height: 2.143"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.43" wide)
 TH-1-2G

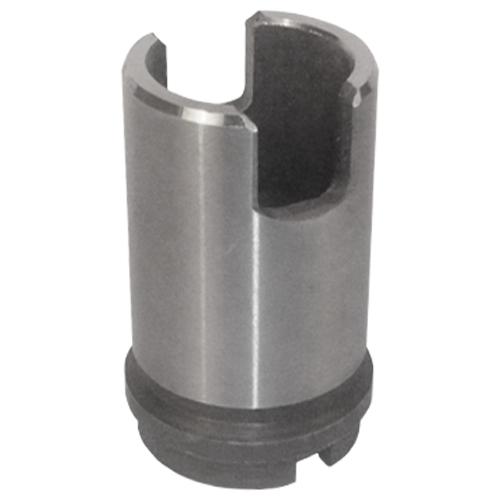

2 Impeller Hub For TF-6/A-904
  • Journal Dia: 1.498"
  • Installed Height: 2.150"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.58" wide)
  • Hardness: Rc 32-36
 TH-1-29GRC
2 Impeller Hub TH-1-32TG
2 Impeller Hub For TF-8/A-727
  • Journal Dia: 1.875"
  • Installed Height: 2.250"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.67" x .60")
  • Hardness: Rc 32-36
 TH-1-32GRC
2 Impeller Hub For TF-8/A-727
  • Journal Dia: 1.875"
  • Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-5TSGRC
2 Impeller Hub For TF-8/A-727
  • Journal Dia: 1.875"
  • Height: 2.188"
  • Hub Mount: Butt
  • Pump Drive Type: slots (.67" x .60")
  • Hardness: Rc 32-36
 TH-1-32TGRC
2 Impeller Hub For TF-8/A-727
  • Journal Dia: 1.875"
  • Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 TH-1-5TSG
2 Impeller Hub For TF-8/A-727
  • Journal Dia: 1.875"
  • Installed Height: 2.250"
  • Hub Mount: Thru
  • Pump Drive Type: slots (.67" x .60")
 TH-1-32G
2 Impeller Hub
  • Journal Dia: 1.875"
  • Installed Height: 2.187"
  • Pump Drive Type: Slots
 TH-1-15G
3 Impeller NPN-3-16-3

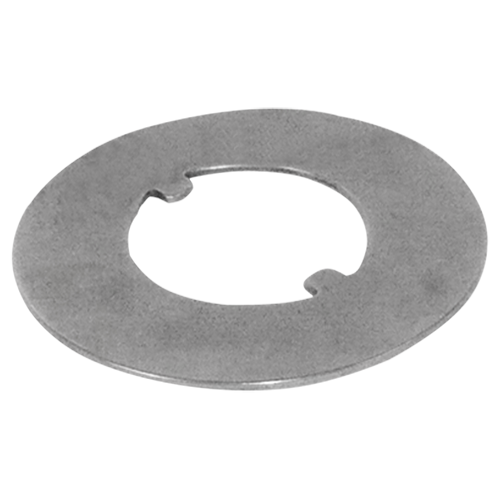

4 Washer Wear-Plate TF-6
  • Thickness: 0.069"
  • Material: Steel
  • Lug Count: 2
  • Lug Width: 0.22"
  • Outside Dia: 2.970"
  • Inside Dia: 1.471"
 TW-2

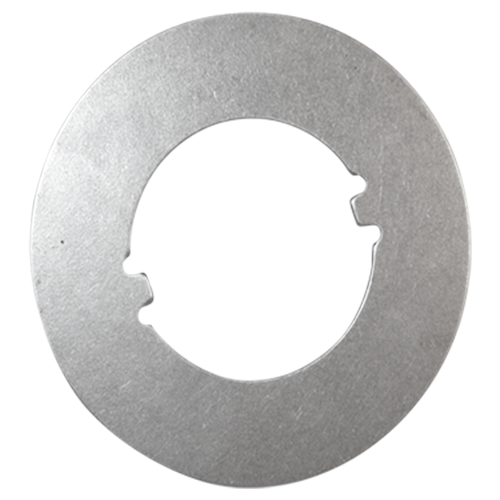

4 Washer Wear-Plate TF-8
  • Thickness: 0.069"
  • Material: Steel
  • Outside Dia: 2.960"
  • Inside Dia: 1.805"
 TW-2-2
4 Washer
  • Outside Dia: 2.960"
  • Inside Dia: 1.805"
 TW-2-2A
5 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3
5 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3
5 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3AT
5 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
6 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10

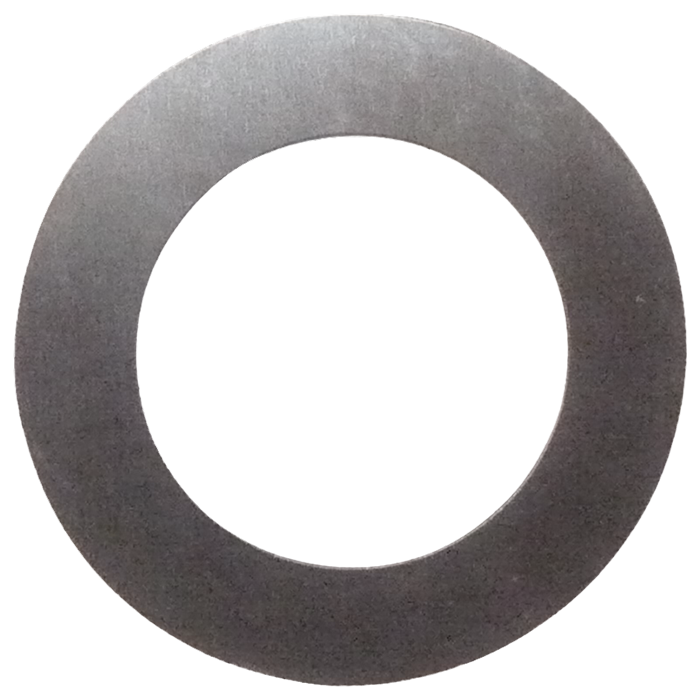

6 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20

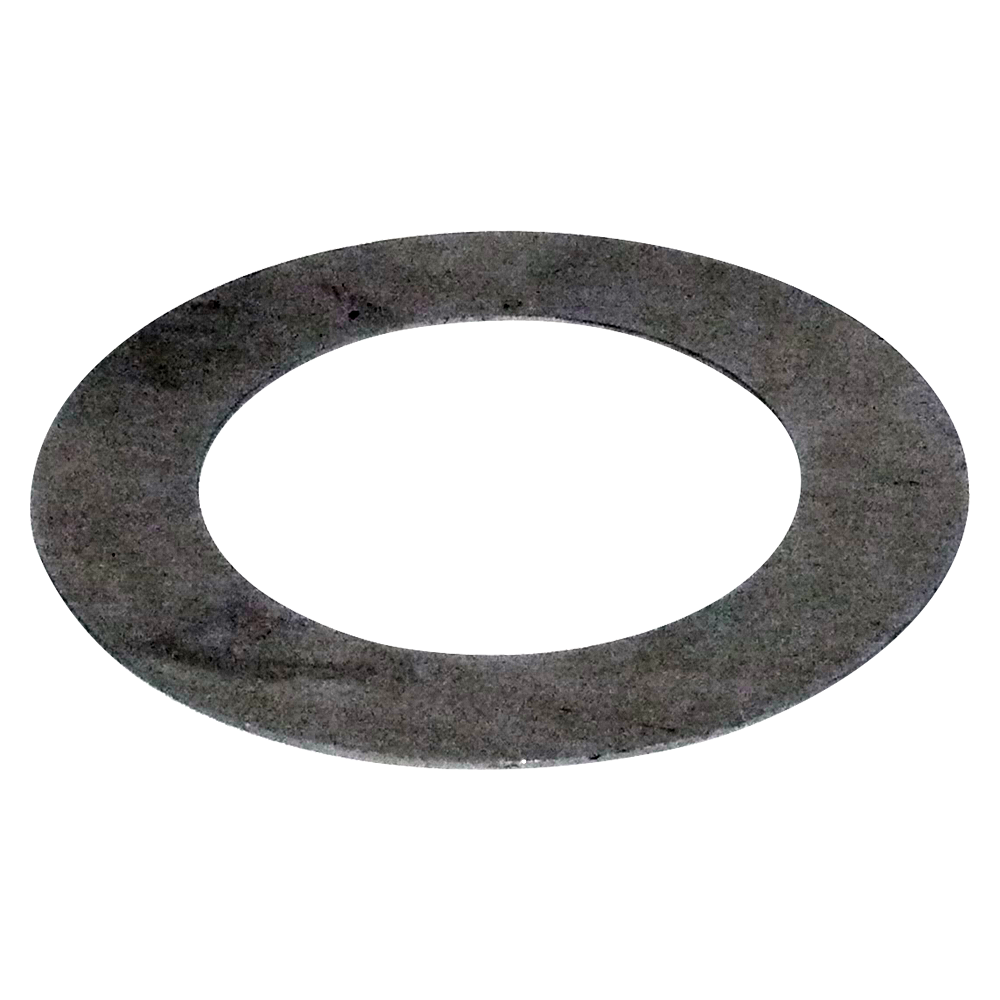

6 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30

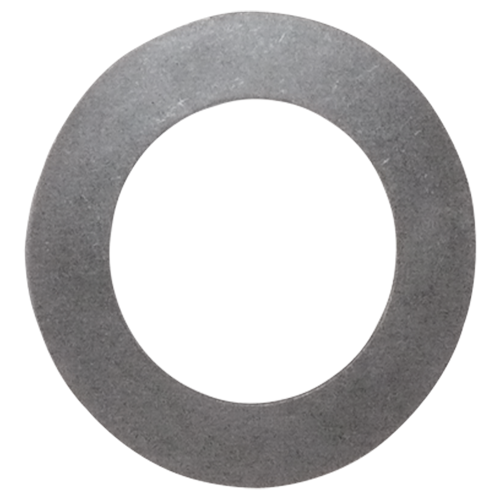

6 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
6 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
6 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
6 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
6 Shim Early
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10

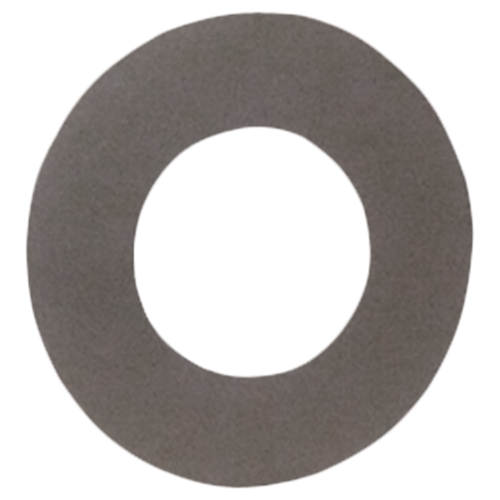

6 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
6 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
6 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
6 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30

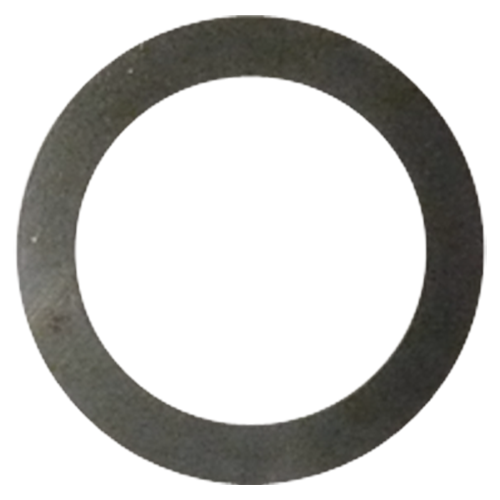

6 Shim Early
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-20

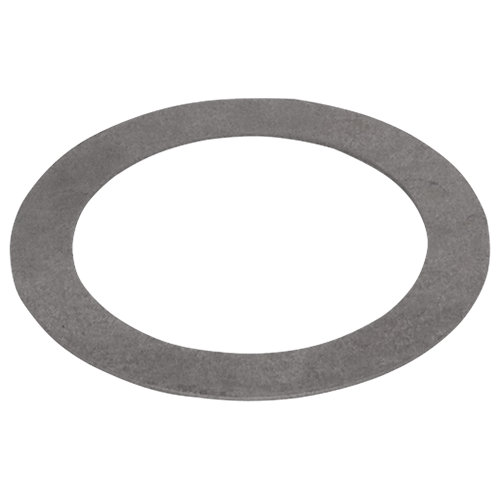

6 Shim Early
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-30

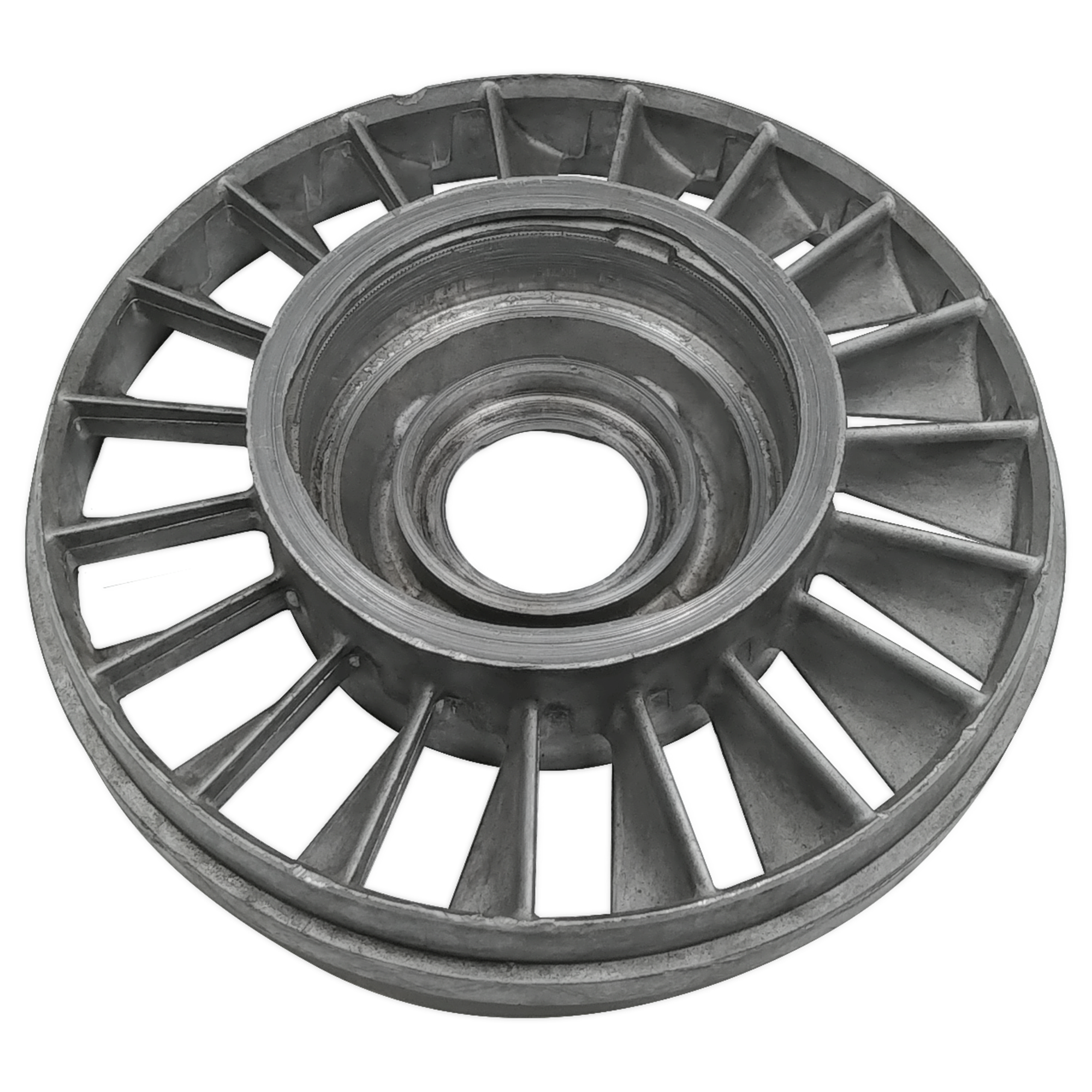

7 Stator Casting, Bare, Low Stall, Casting #4028347 Add Suffix "A" For Stator With Cam & Retainer Assembled TX-5-5
7 Stator High Stall Add Suffix "A" For Stator With Cam & Retainer Assembled
  • OE# 4028375
 TX-5-6
7 Stator TX-5-6A

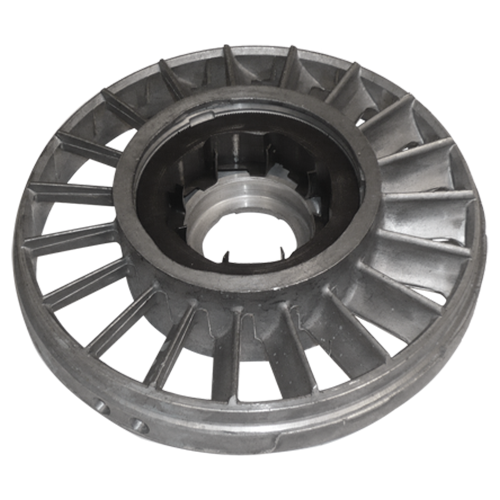

7 Stator TF-6 Low Stall. Add Suffix "A" For Stator With Cam & Retainer Assembled
  • Complete With Rollers #4028347
 TX-5-55
8 Spring Retainer Stator
  • Height: .57"
  • Outside Dia: 3.08"
  • Inside Dia: 2.02"
 TX-15-4
9 Outer Race (Cam) Stator
  • Late Outer Race, Many Uses, Very Strong
 TX-15-5

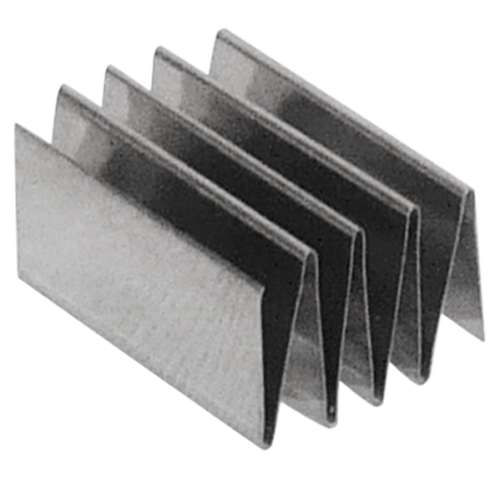

10 Accordion Spring 8 Pieces Required. 1942187
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.565"
  • Folds: 3
 FS-6-10

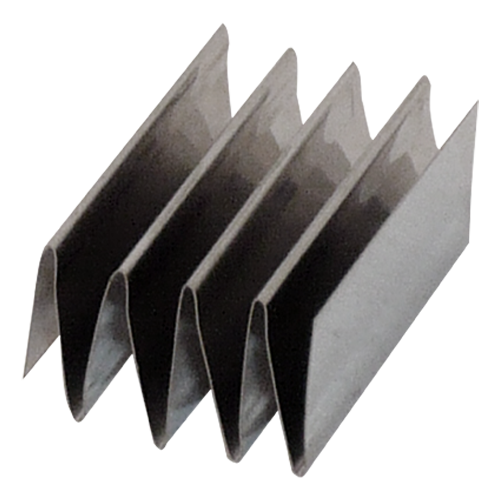

10 Accordion Spring 8 Pieces Required.
  • Height: .312"
  • Width: 0.6"
  • Folds: 4
 TS-6
11 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
11 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
12 Inner Race Stator TF-6
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.939"
  • Inside Dia: 1.100"
 TX-14-5
12 Inner Race Stator For TF-8/A-727
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.939"
 TX-14-6

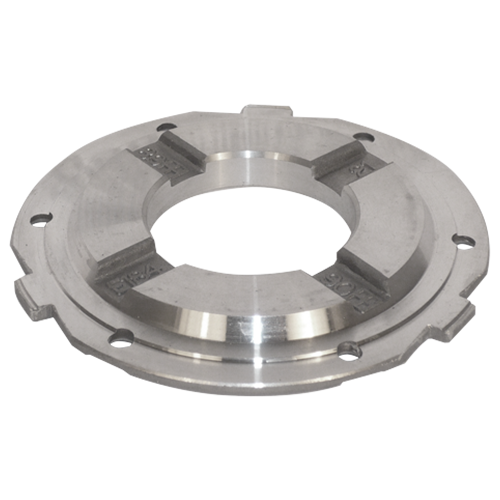

13 Stator Cap 3 Lugs O.E. Replacement
  • Thickness: 0.28"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.48"
 TW-4-2
13 Washer
  • Outside Dia: 3.38"
  • Inside Dia: 1.48"
 TW-4-2A
14 Snap Ring TX-20-2
15 Rivet 12 Pieces Required.
  • Length: 0.476"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.250"
  • Rivet head dia: 0.475"
  • Rivet Head: Flat
 TX-12-2
16 Turbine TX-8-4
17 Turbine Hub A-904, Use With TW-9-8 & TB-18-4, Alternate TX-13-29HT+ TW-4-11 Washer
  • Internal Teeth: 26
  • Outside Dia: 4.26"
 TX-13-6
17 Turbine Hub A-904, Use With TW-9-8 & TB-18-4, Alternate TX-13-29HT+ TW-4-11 Washer
  • Internal Teeth: 26
  • Outside Dia: 4.26"
 TX-13-6S

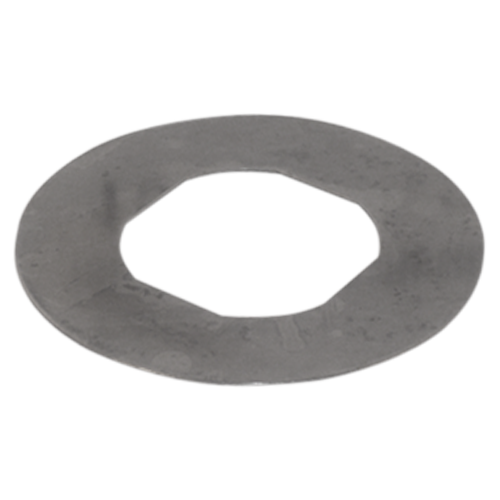

17 Washer Wear Plate, Square Hole
  • Thickness: .025"
  • Outside Dia: 2.490"
  • Inside Dia: 1.374"
 TW-4-11

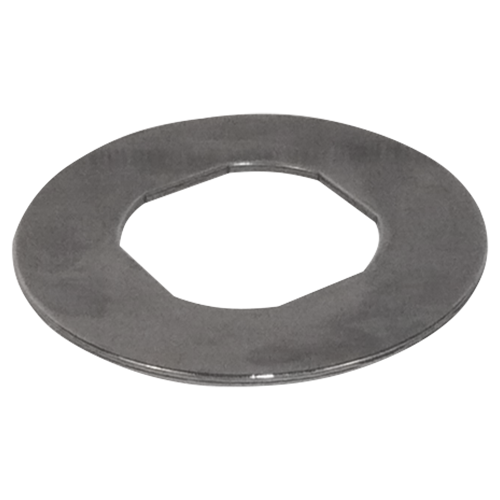

17 Washer Wear Plate, Square Hole
  • Thickness: 0.058"
  • Material: Steel
  • Outside Dia: 2.490"
  • Inside Dia: 1.374"
 TW-4-11A
17 Turbine Hub
  • Height: 1.34"
  • Internal Teeth: 23
  • Outside Dia: 2.490"
  • Inside Dia: 1.374"
 TX-13-28
17 Turbine Hub With Square Washer Boss
  • Height: 1.34"
  • Internal Teeth: 23
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 2.490"
  • Inside Dia: 1.374"
  • A-518
 TX-13-28HT
17 Turbine Hub A-727, Use With TW-9-8 & TB-18-4, Alternate TX-13-28HT+ TW-4-11 Washer
  • Internal Teeth: 23
  • Outside Dia: 2.490"
  • Inside Dia: 1.374"
 TX-13-7S

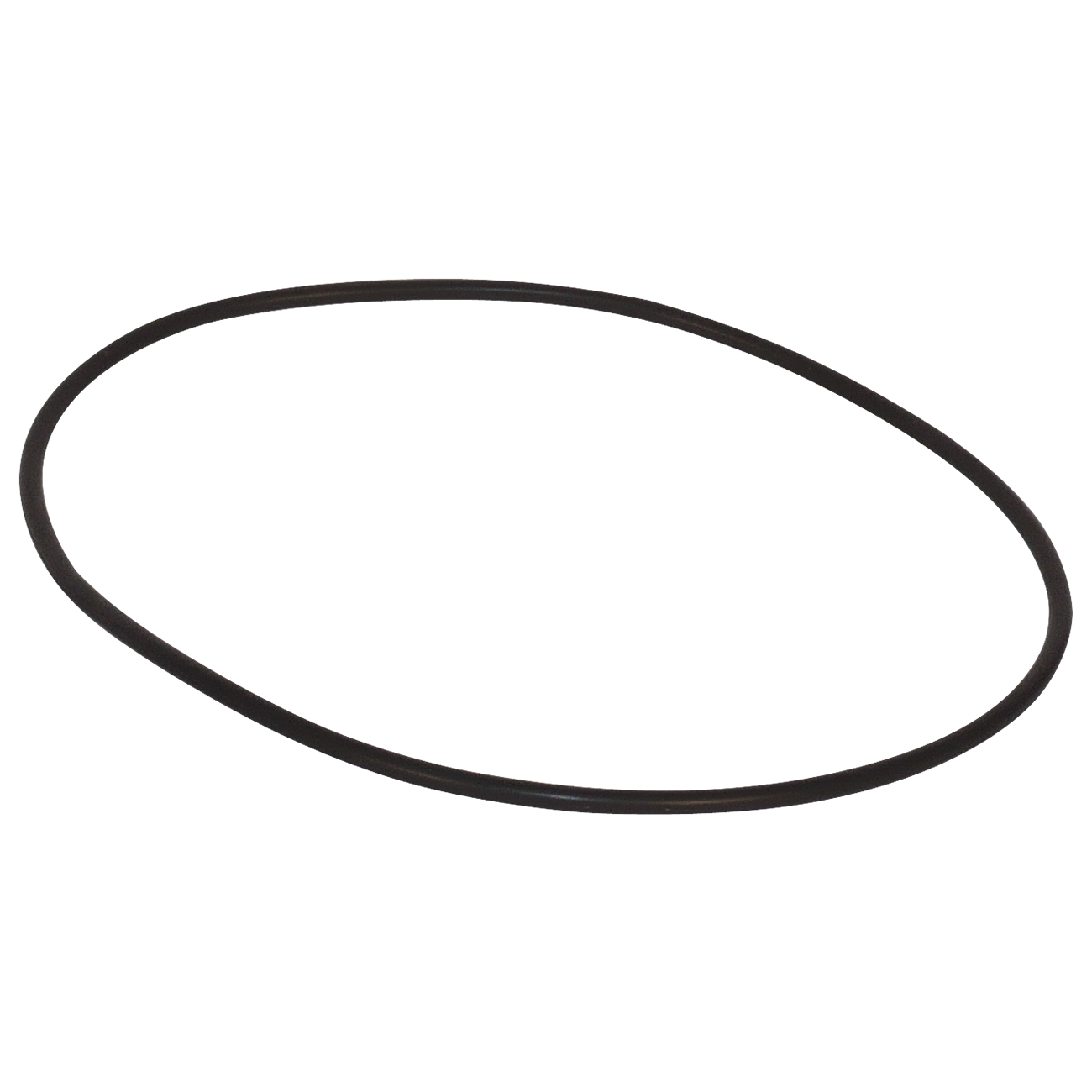

18 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.62mm
  • Material: Fluorocarbon
  • Inside Dia: 4.237
  • Inside Dia metric: 107.6198
 TO-25-3V

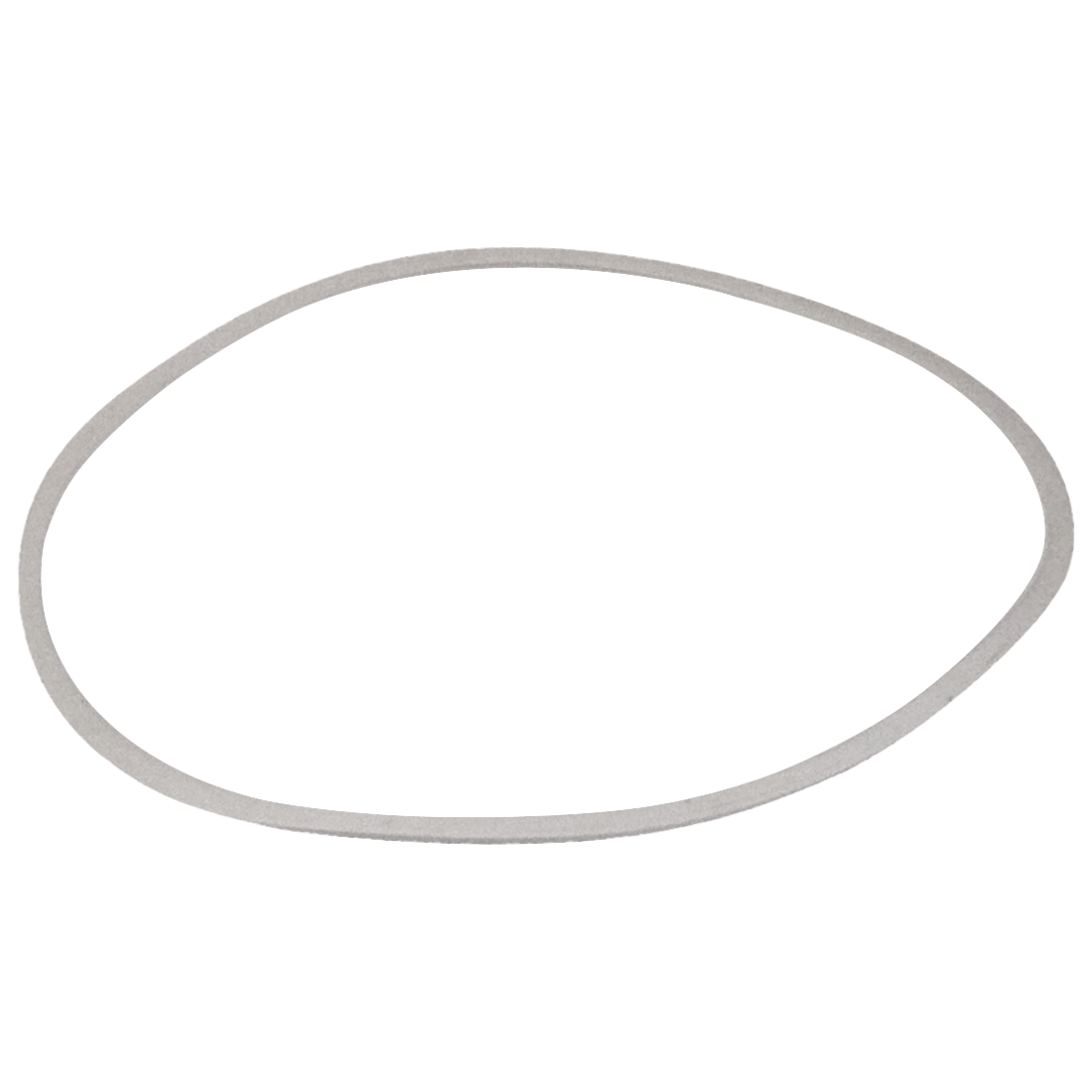

19 Seal Ring Back-Up
  • Height: 0.09
  • Width: 0.033"
  • Material: PTFE
  • Height Metric: 2.286
  • Seal Type: Solid
  • Outside Dia: 4.428
  • Outside Dia Metric: 112.4712
 TO-25-2

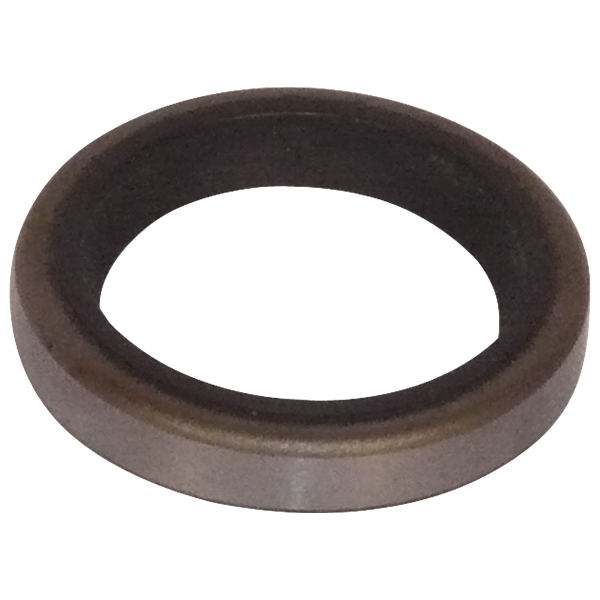

20 Metal Clad Seal
  • Housing Bore Dia: 1.066
  • Housing Bore Dia Metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
 TO-25-1

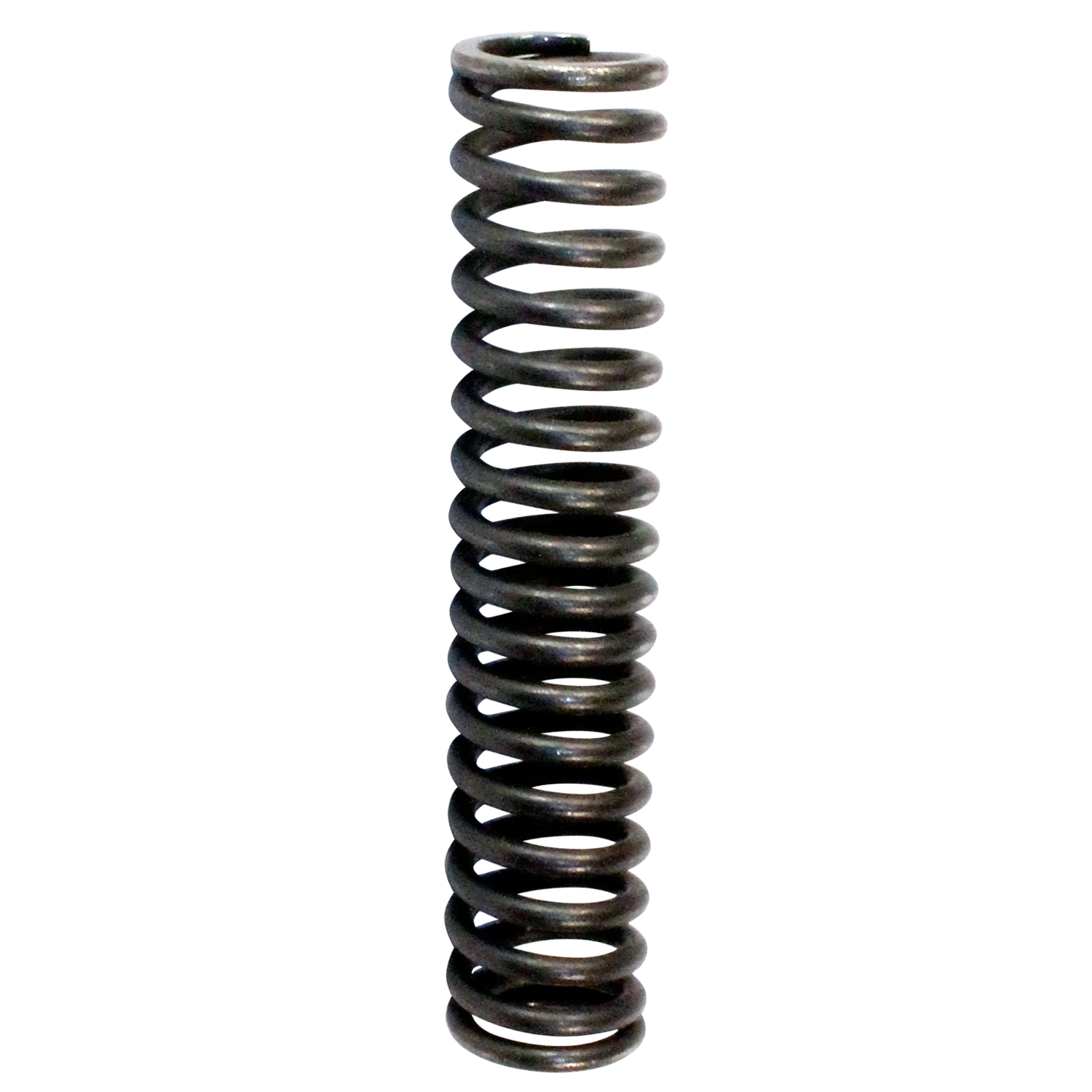

21 Damper Spring Blue, 225 Engines 225 Engines 10 Pieces Required. TX-24B

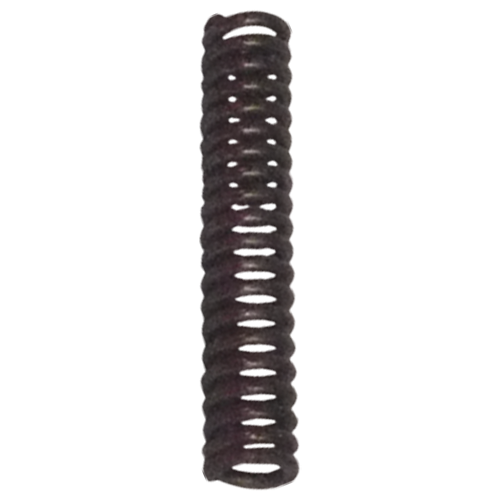

21 Damper Spring Red 360 Engines 10 Pieces Required. TX-24R

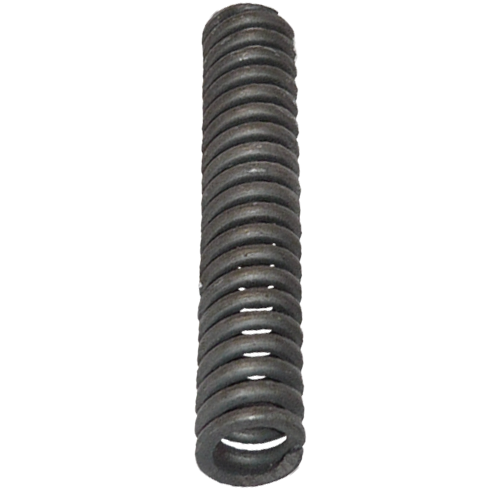

21 Damper Spring White 318 Engines 10 Pieces Required.
  • Length: 2.665"
  • Outside Dia: 0.492"
 TX-24W

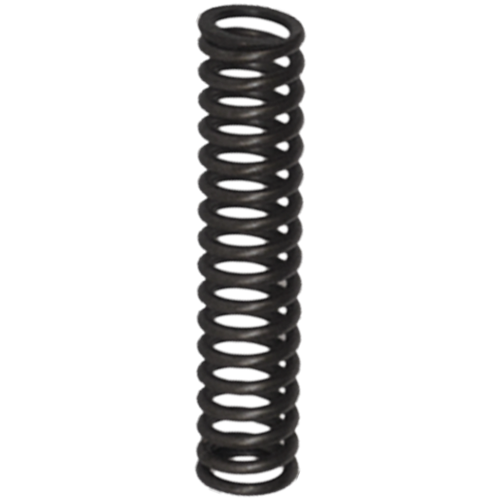

21 Damper Spring 10 Pieces Required.
  • Length: 60.3mm Free Length
  • Color: Yellow (Replaces Orange)
  • Outside Dia: 0.48
  • Outside Dia Metric: 12.2mm
 TX-24-1
21 Damper Spring 10 Pieces Required.
  • Length: 2.42"
  • Outside Dia: 0.432"
 TX-24Y

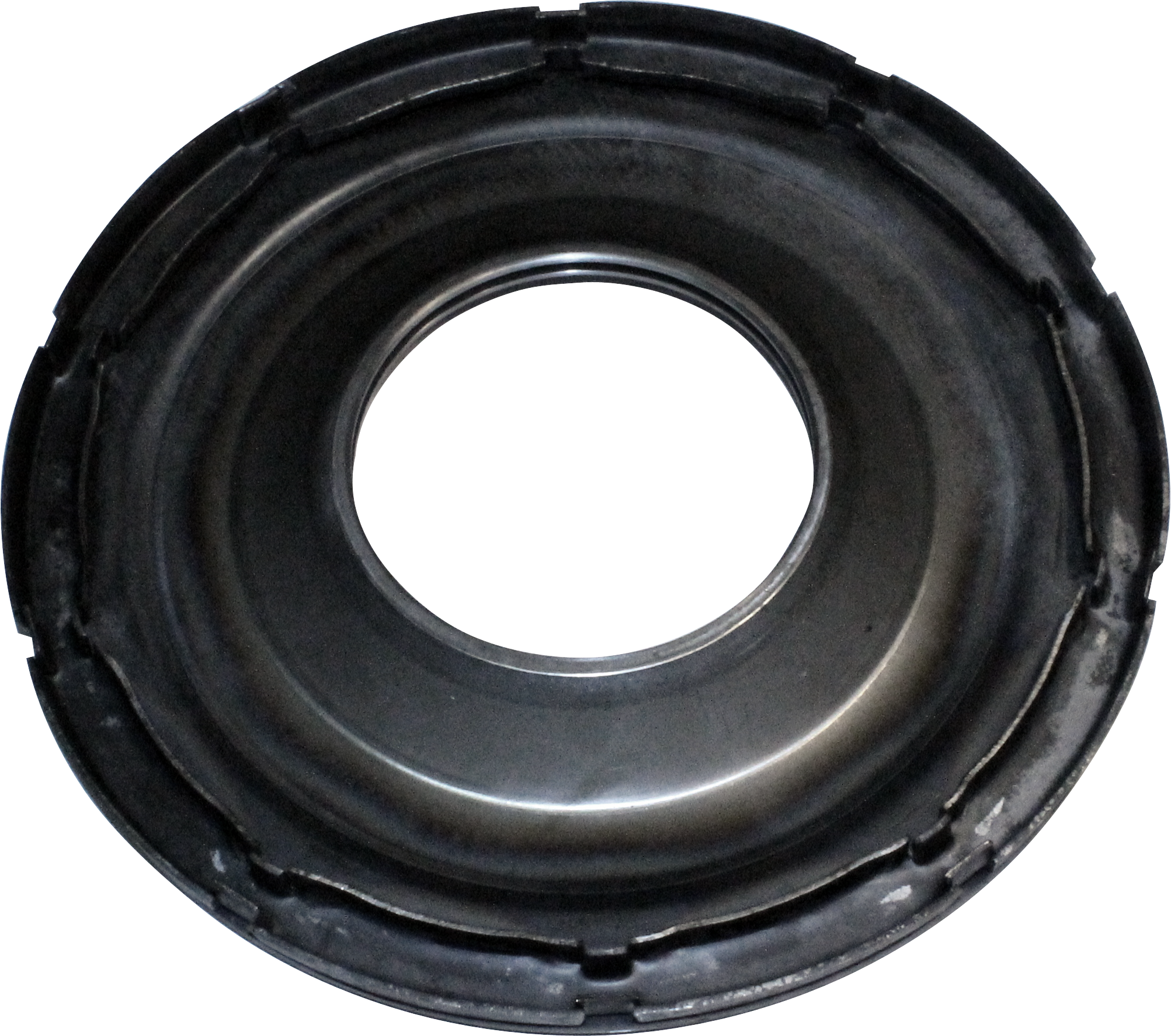

22 Clutch Plate Assembly TX-26-2
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.563"
  • Inside Dia: 9.25"
 TX-22X
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5"
  • Inside Dia: 9.125"
 TX-23X
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.921"
  • Inside Dia: 7.921"
 TX-23-25
23 Floating Ring
  • Thickness: .070"
  • Outside Dia: 10.750
  • Inside Dia: 9.250
 TX-26-4

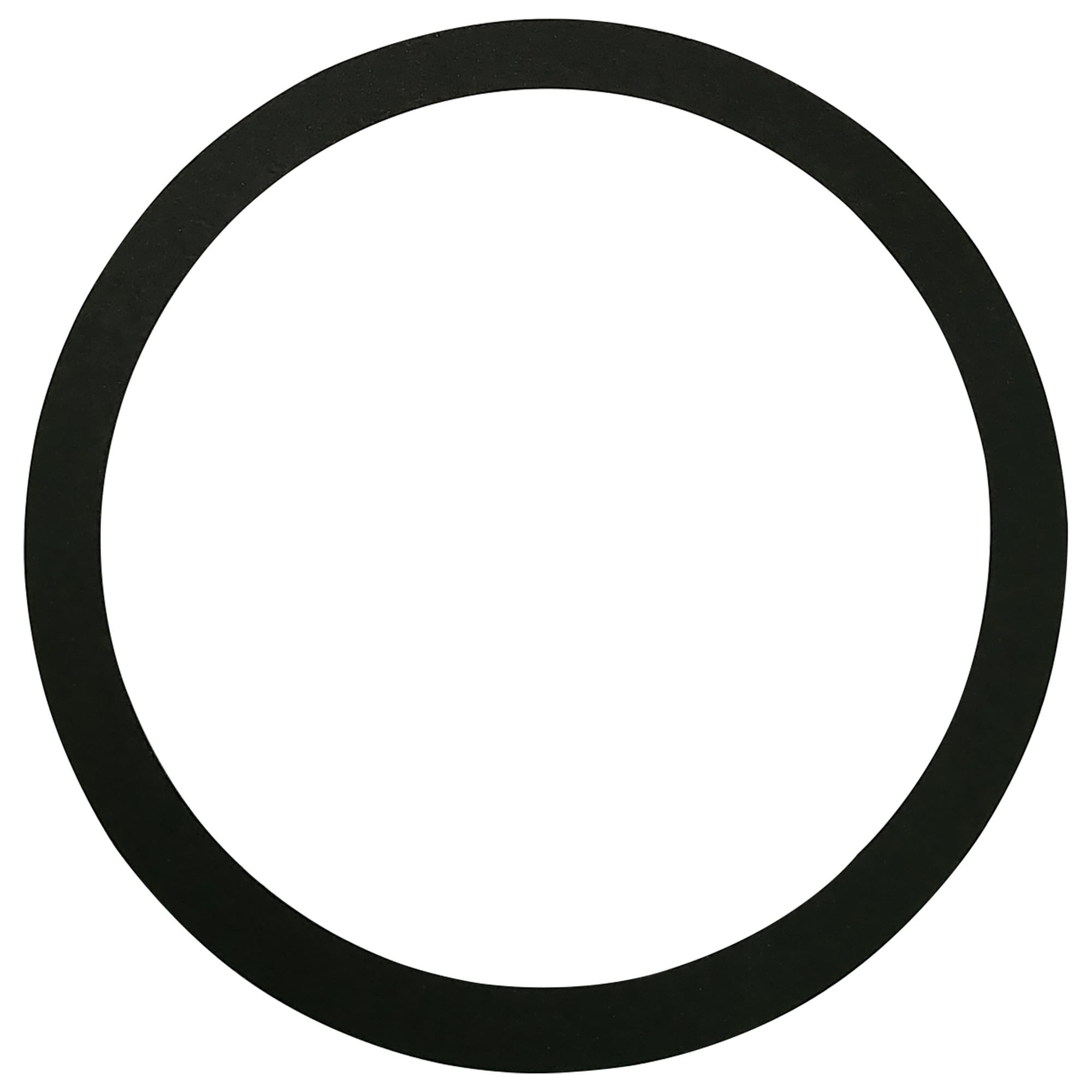

23 Floating Ring Carbon
  • Material: Carbon
  • Outside Dia: 10.750
  • Inside Dia: 9.250
 TX-26-4C
23 Floating Ring Kevlar® Kevlar® TX-26-4K
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75
  • Inside Dia: 9.125
 TX-23-32
23 Floating Ring Raybestos
  • Thickness: .070"
  • Outside Dia: 10.750
  • Inside Dia: 9.250
 TX-26-4RB
23 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75
  • Inside Dia: 9
 TX-23-14
23 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75
  • Inside Dia: 9.25
 TX-23-4

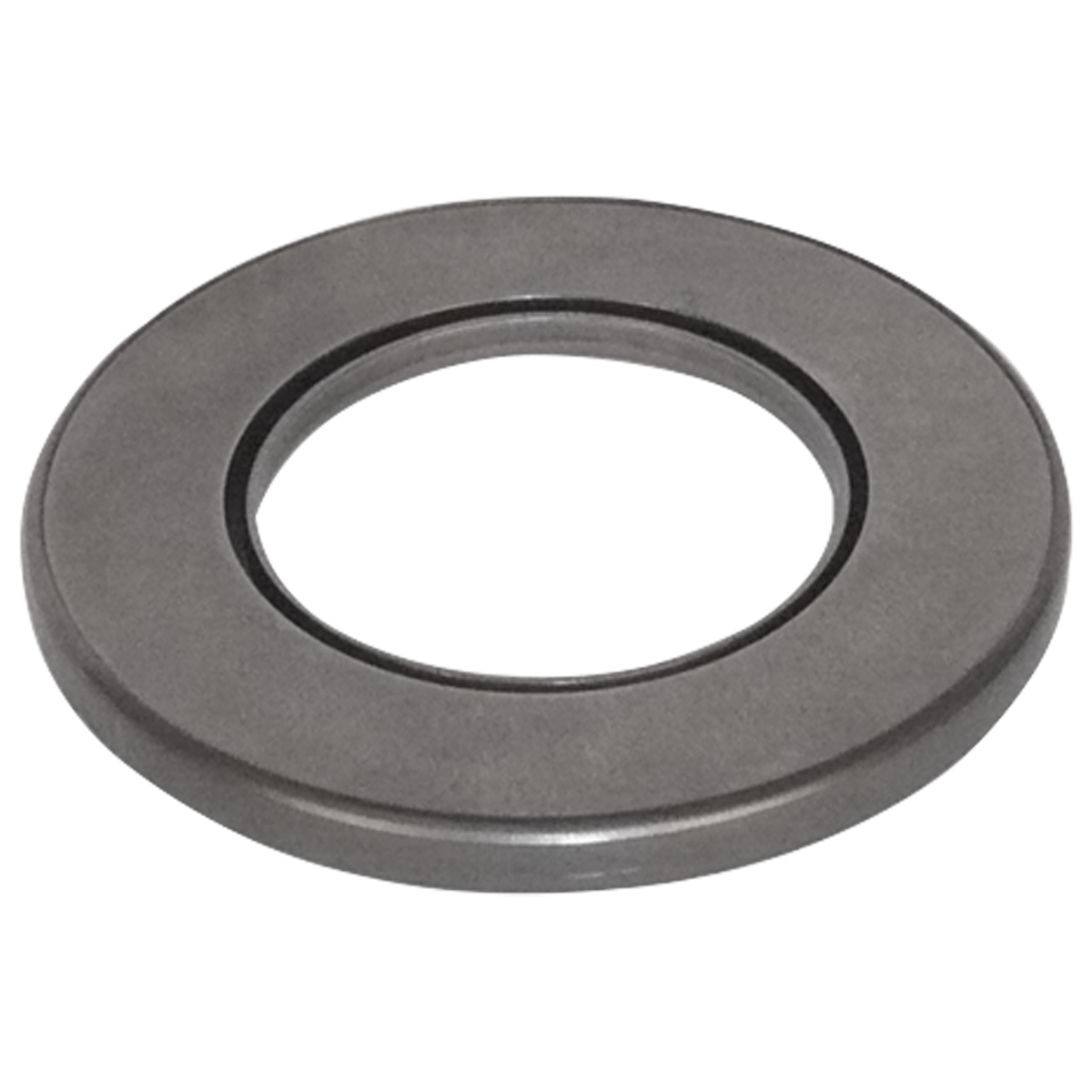

24 Bearing
  • Thickness: 0.17
  • Thickness metric: 4.32
  • Bearing type: Enclosed
  • Outside Dia: 2.6
  • Inside Dia: 1.455
  • Outside Dia Metric: 66.04
  • Inside Dia metric: 36.96
 TW-9-6
24 Bearing
  • Thickness: 0.17
  • Thickness metric: 4.32
  • Bearing type: Enclosed
  • Outside Dia: 2.6
  • Inside Dia: 1.4
  • Outside Dia Metric: 66.04
  • Inside Dia metric: 35.56
 TW-9-8

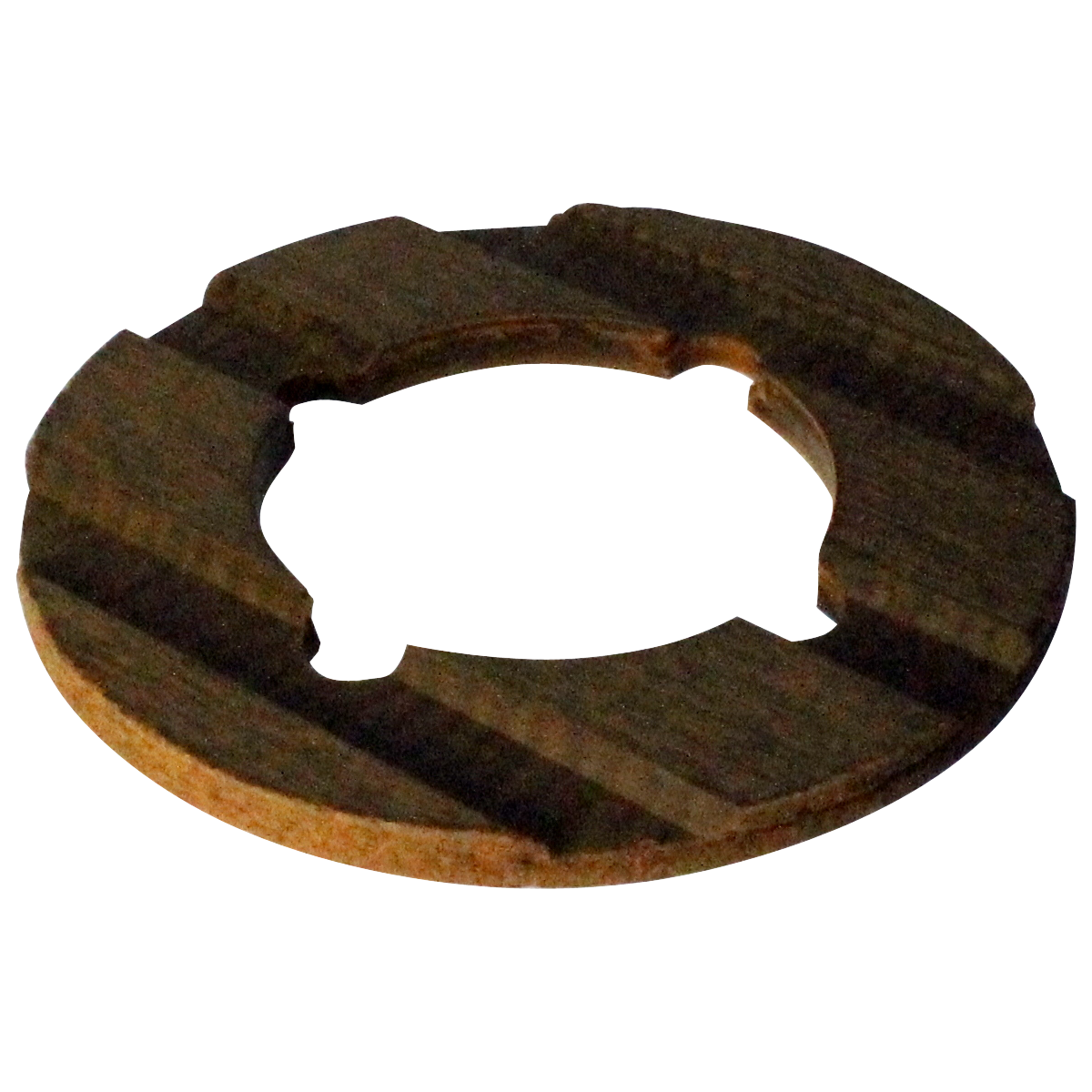

24 Turbine Washer
  • Thickness: 0.140"
  • Material: Fiber
  • Outside Dia: 2.560"
  • Inside Dia: 1.390"
  • Replaces Bearing TW-9-8
 TW-9-26

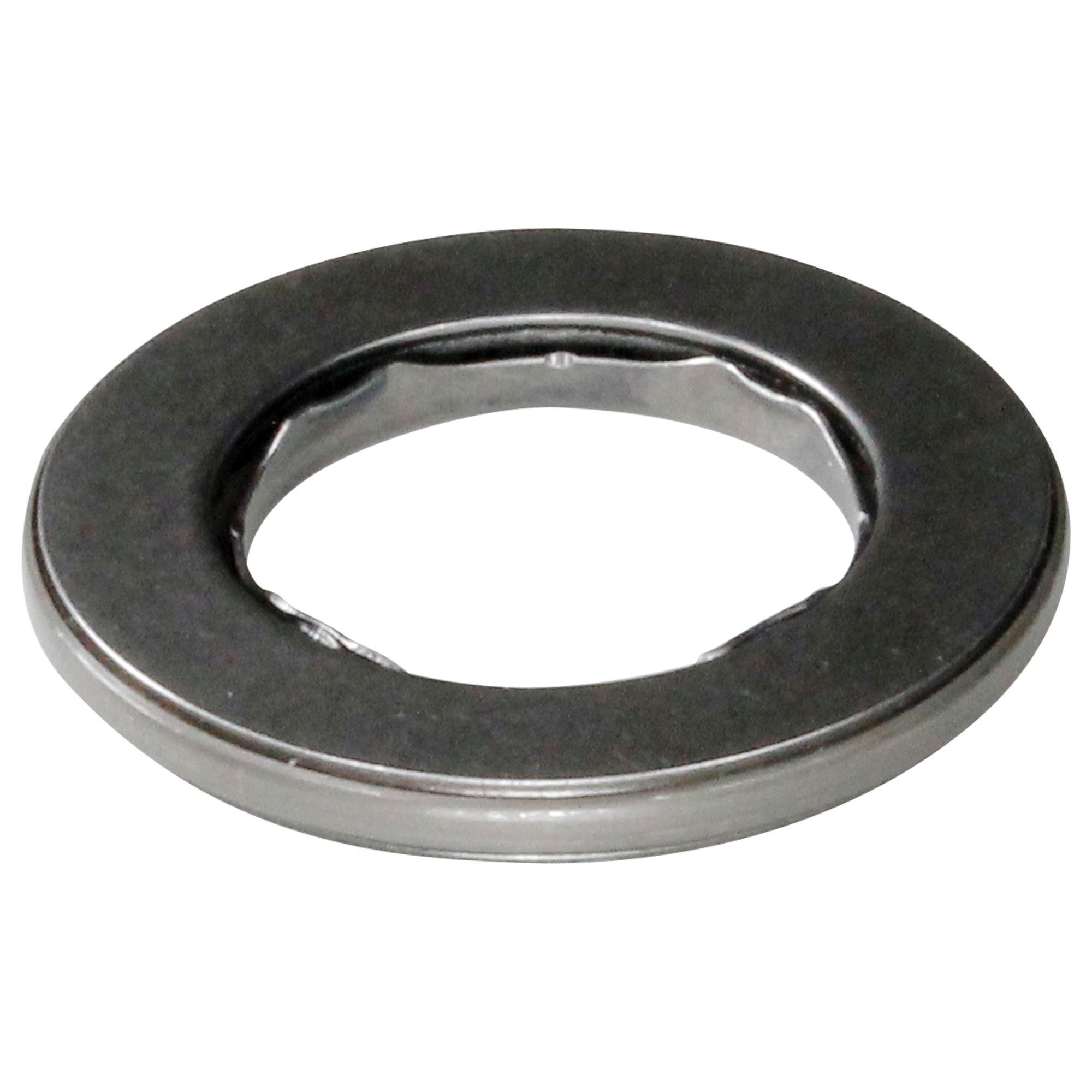

24_N.I. Turbine Washer Replaces thrust bearing, .010" thinner than OE bearing
  • Thickness: .130"
  • Material: Fiber
  • Outside Dia: 2.56"
  • Inside Dia: 1.39"
  • Replaces Bearing TW-9-8
 TW-9-25

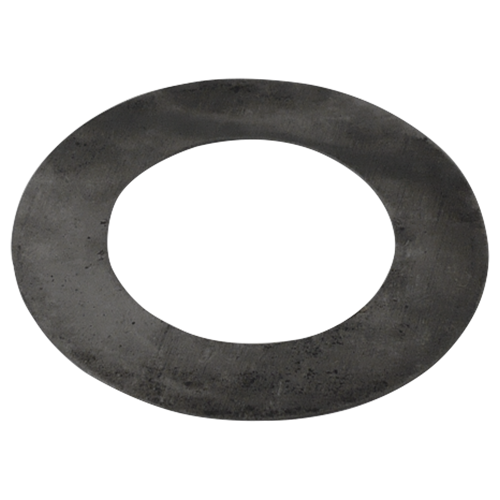

24_N.I. Shim Use Under Bearing TW-9-8
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-010

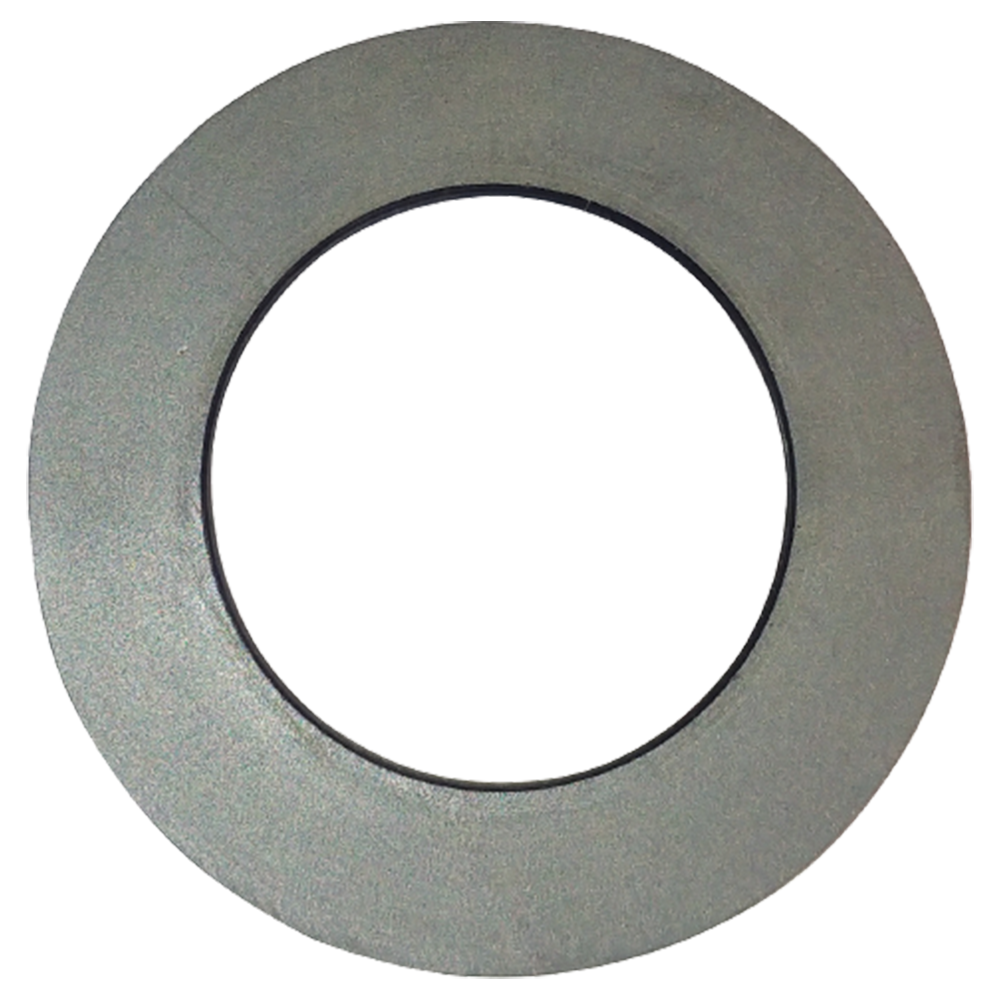

24_N.I. Turbine Washer To Replace Bearing TW-9-8
  • Outside Dia: 2.35
  • Inside Dia: 1.40"
 TW-9-19P

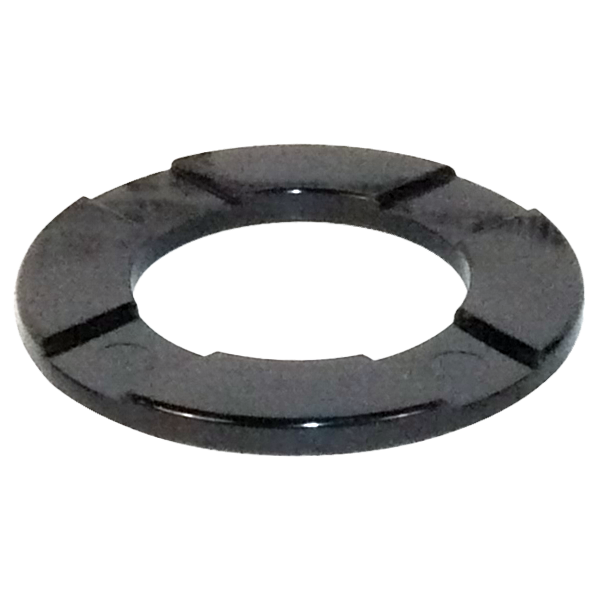

24_N.I. Turbine Washer
  • Thickness: .17"
  • Material: Plastic
  • Outside Dia: 2.35
  • Inside Dia: 1.40"
  • Replaces Bearing TW-9-8
 TW-9-20
24_N.I. Shim
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
 TW-9-9
24_N.I. Shim
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"
 VW-9-2
24_N.I. Shim Fits TW-9-8 bearing
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-020
24_N.I. Turbine Washer
  • Thickness: .160"
  • Material: Vulcanized Fiber.
  • Outside Dia: 2.56"
  • Inside Dia: 1.39"
  • Replaces Bearing TW-9-8
 TW-9-21
24_N.I. Turbine Washer Heavy-Duty
  • Material: Molded Polyamid
  • Outside Dia: 2.56"
  • Inside Dia: 1.39"
 TW-9-21HD
24_N.I. Turbine Washer Early
  • Thickness: 0.185"
  • Material: Phenolic
  • Outside Dia: 2.350"
  • Inside Dia: 1.538"
  • Replaces Bearing TW-9-8
 TW-9-22

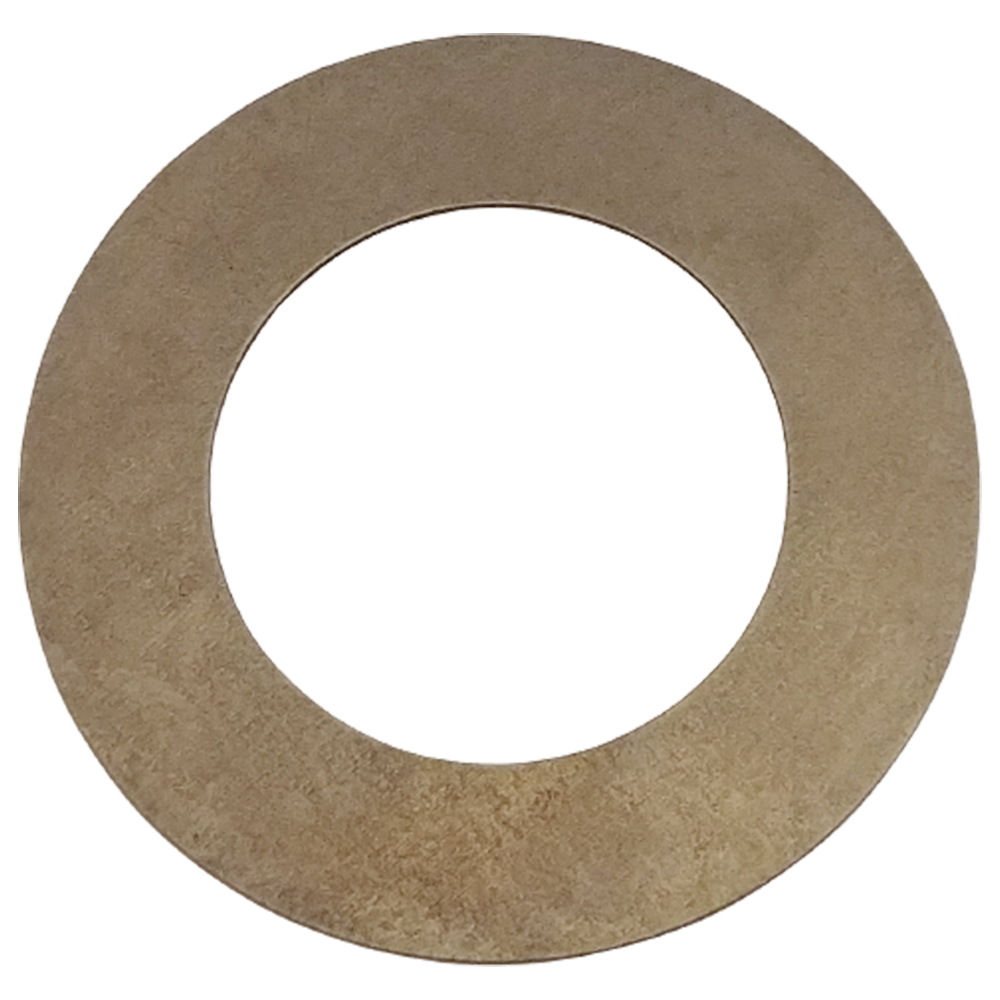

24_N.I. Shim Fits TW-9-8 bearing
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-030

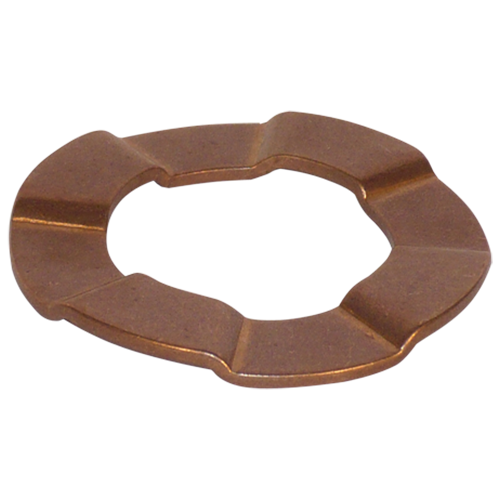

24_N.I. Turbine Washer
  • Thickness: .17"
  • Material: Bronze
  • Outside Dia: 2.38"
  • Inside Dia: 1.42"
  • Replaces Bearing TW-9-8
 TW-9-18
25 Bushing Unfinished (Oversized) For Early Application
  • Width: 0.5
  • Housing Bore Dia: 1.610"
  • Shaft Dia: 1.405"
  • Material: Bi-metal
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
 TB-18-1P
25 Bushing For Early Application
  • Thickness: 0.375"
  • Width: 0.375
  • Housing Bore Dia: 1.569"
  • Shaft Dia: 1.448"
  • Material: Bronze
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
 TB-18-3
25 Bushing Precision For Early Application
  • Thickness: 0.5"
  • Width: 0.5
  • Housing Bore Dia: 1.569"
  • Shaft Dia: 1.445"
  • Material: Bronze
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
 TB-18-1
25 Bushing Unfinished (Oversized)
  • Thickness: 0.5"
  • Width: 0.5
  • Housing Bore Dia: 1.607"
  • Shaft Dia: 1.4"
  • Material: Bronze
  • Oversized
 TB-18-1A
25 Bushing Precision
  • Width: 0.5
  • Housing Bore Dia: 1.574"
  • Shaft Dia: 1.447"
 TB-18-1S
25 Bushing Oversized, Unfinished
  • Width: 0.5
 TB-18-1X
25 Bushing With External Grooves, Precision
  • Thickness: 0.503"
  • Width: 0.503
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
 TB-18-4
25 Bushing
  • Width: 0.5
  • Housing Bore Dia: 1.611
  • Shaft Dia: 1.385
  • Material: Iron/Bronze
 TB-18-4B
25 Bushing Unfinished, undersized I.D.
  • Thickness: 0.503"
  • Width: 0.503
  • Housing Bore Dia: 1.61"
  • Shaft Dia: 1.385"
  • Material: Bronze
  • Oversized
 TB-18-4X
26 Front Cover With 122 Tooth Ring Gear TX-22-122
26 Front Cover With 131 Tooth Ring Gear TX-22-131
27 Ring Gear
  • Thickness: 0.345"
  • External teeth: 122
  • Outside Dia: 12.29"
  • Inside Dia: 11.19"
 RG-122

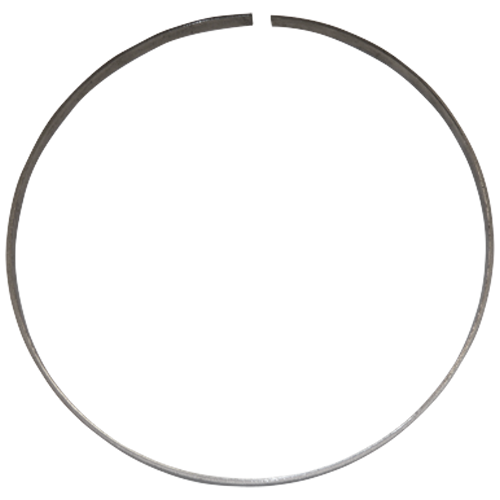

27_N.I. Salvage Ring&Trade TX-22-8907

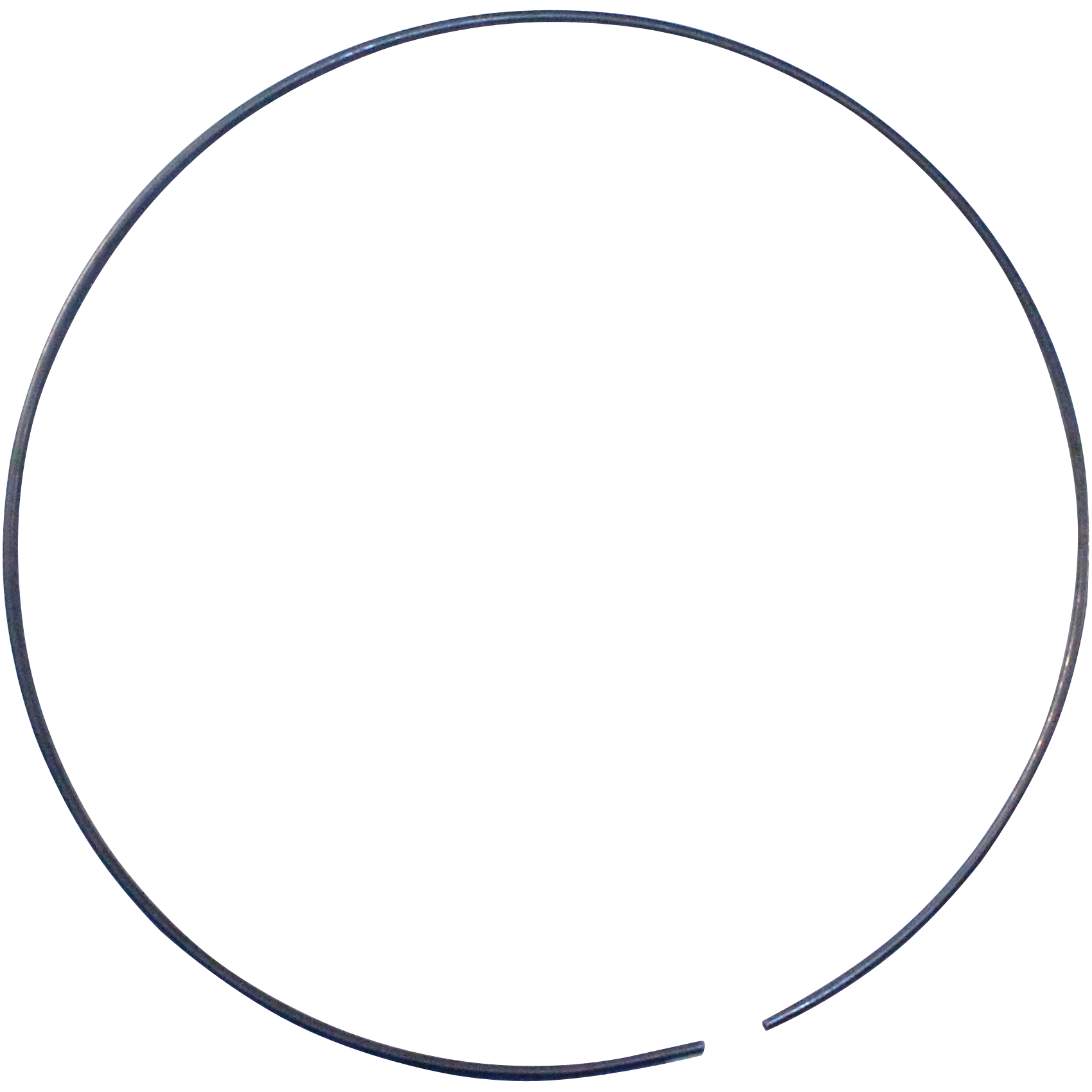

27_N.I. Salvage Ring&Trade TX-22-8907NR

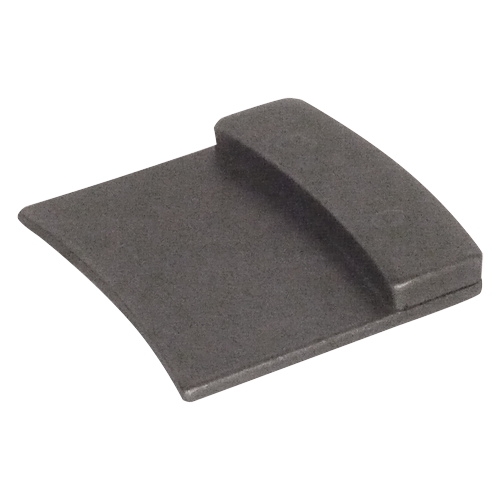

27_N.I. Balance Weight
  • Dimensions: 3.42" x 1.16"
  • Weight: 100gm
 TX-22WA

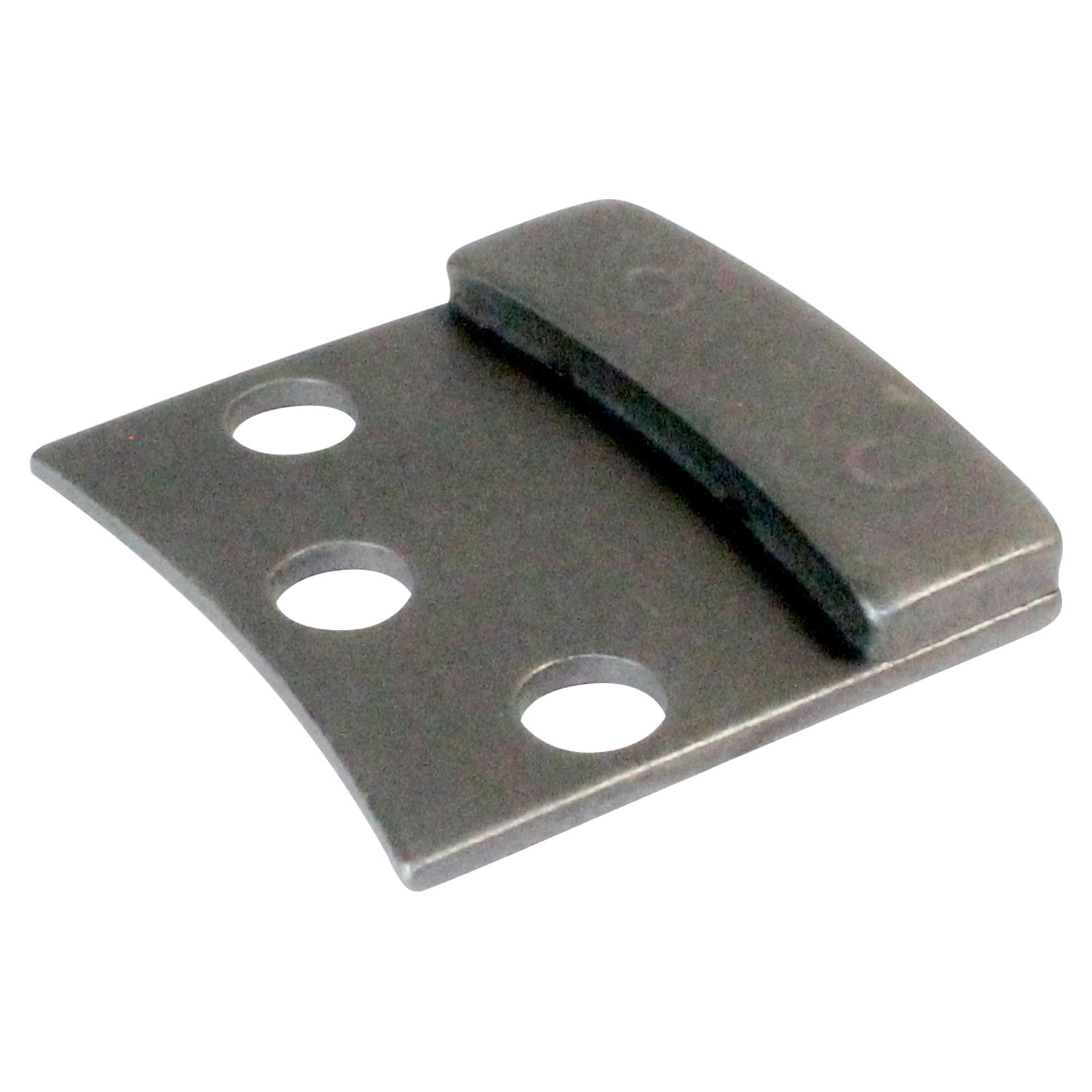

27_N.I. Balance Weight Rectangular, 2 Piece A518
  • Dimensions: 2.13" x 2.18"
  • Weight: 90gm
 TX-22WC

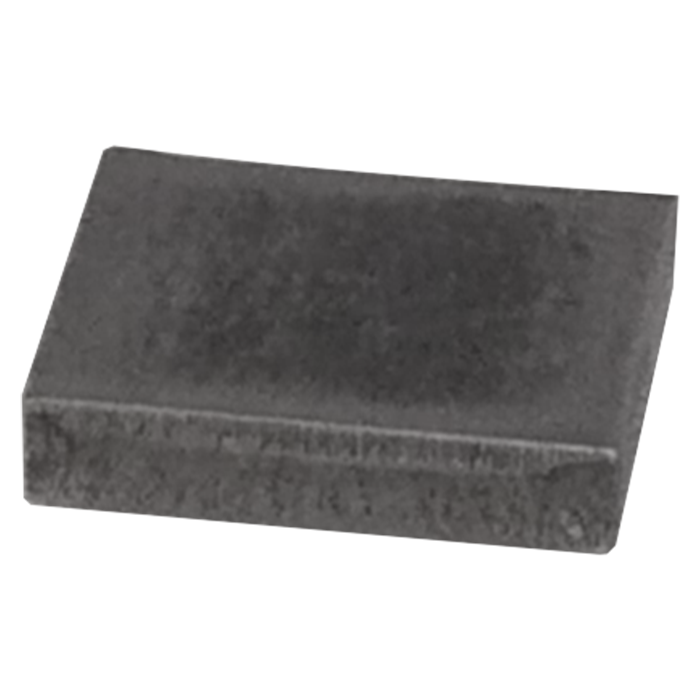

27_N.I. Balance Weight
  • Dimensions: 0.88" x 0.70"
  • Weight: 14gm
 TX-22WG

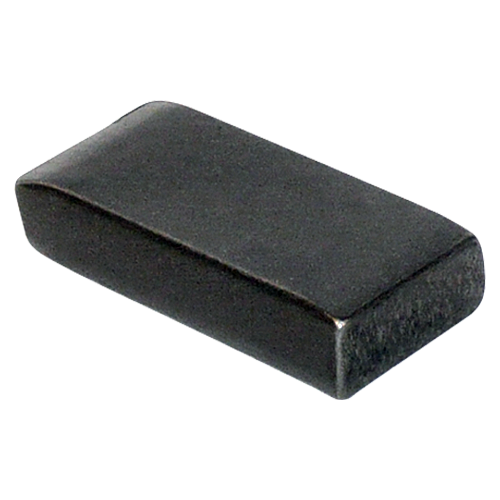

27_N.I. Balance Weight
  • Dimensions: 1.60" x .75"
  • Weight: 56gm
 TX-22WL

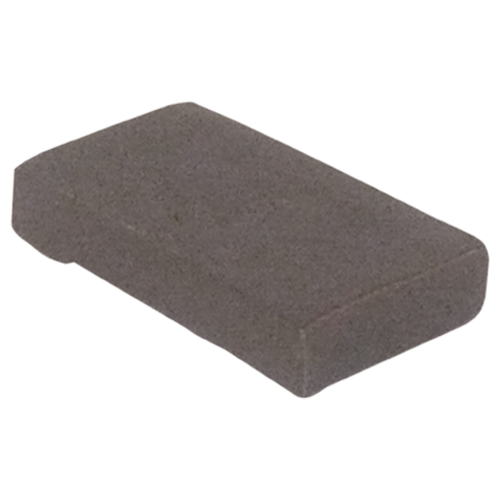

27_N.I. Balance Weight
  • Dimensions: 1.50" x .75"
  • Weight: 32gm
 TX-22WM

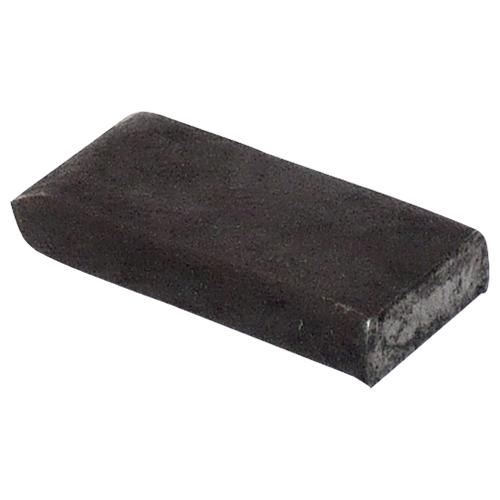

27_N.I. Balance Weight
  • Dimensions: 1.12" x .50"
  • Weight: 12gm
 TX-22WS

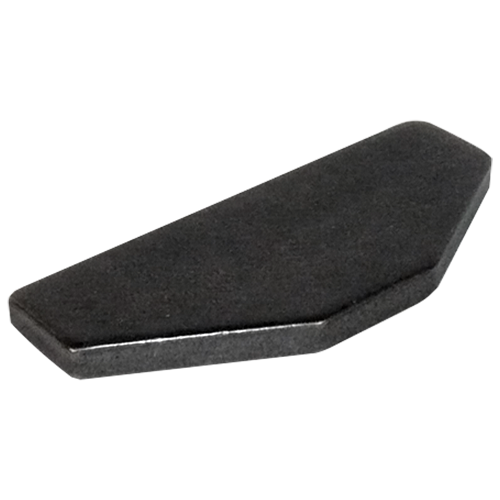

27_N.I. Balance Weight
  • Dimensions: 3.42" x 1.50"
  • Weight: 132gm
 TX-22WB

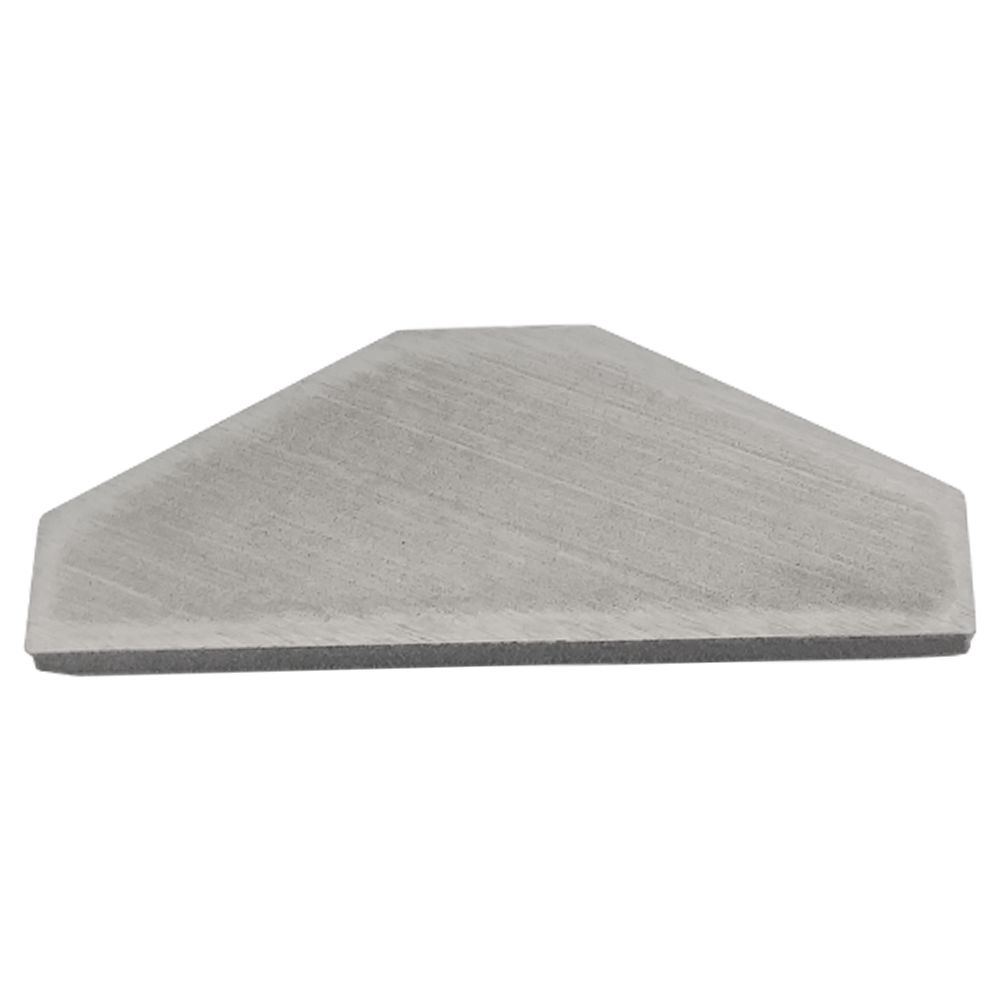

27_N.I. Balance Weight
  • Dimensions: 3.42" x 1.30"
  • Weight: 120gm
 TX-22WD
27_N.I. Bolt
  • Dimensions: 5/16" x 24
  • Length: 7/16"
 B-61
27_N.I. Mounting Pad Threaded, 5/16-24 TX-10-4

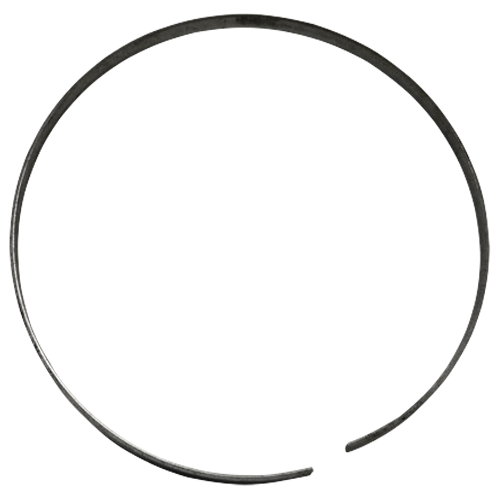

27_N.I. Salvage Ring&Trade TX-22-878

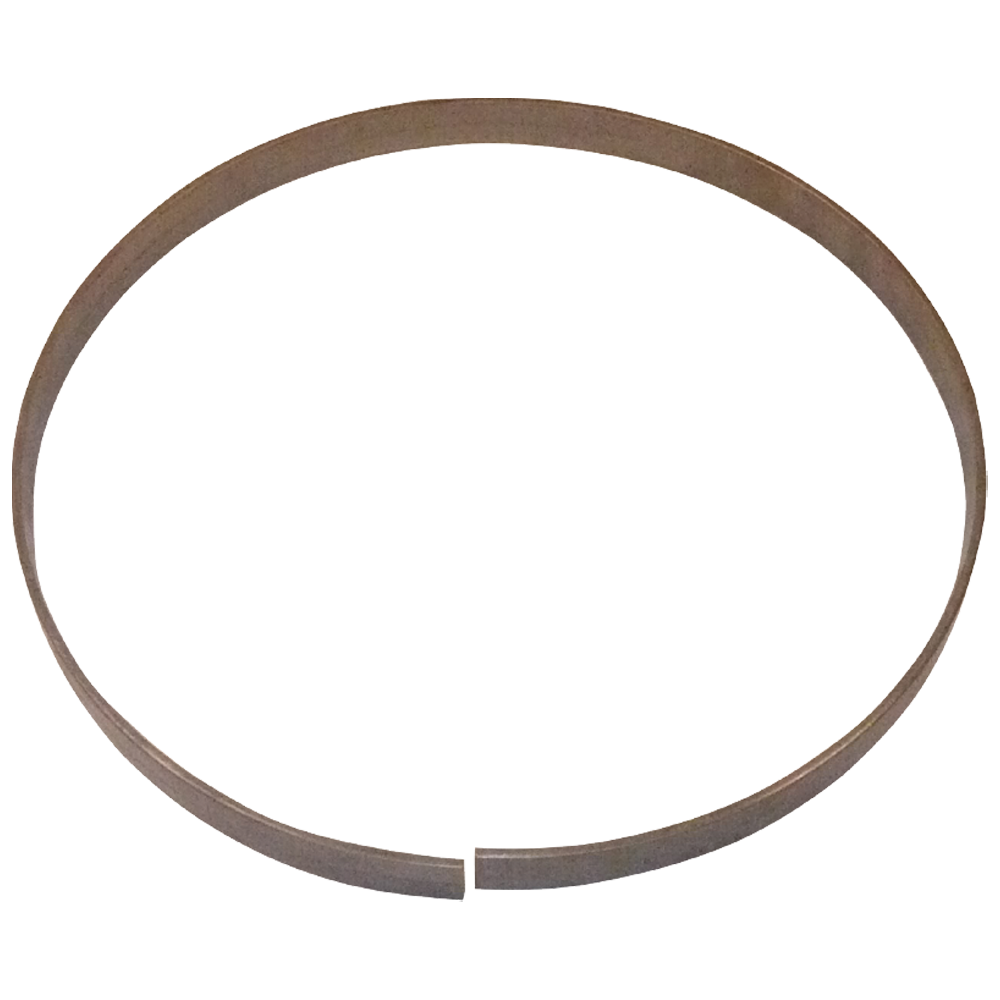

27_N.I. Salvage Ring&Trade TX-22-878W

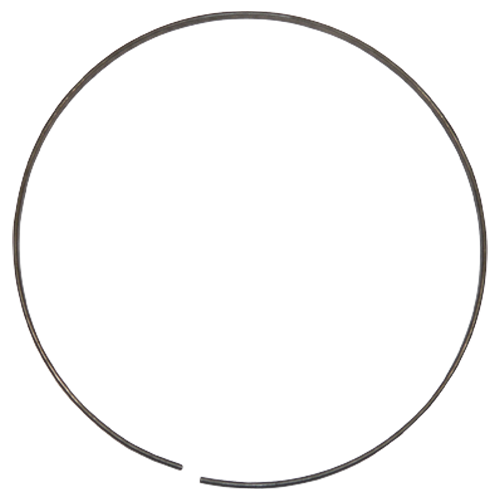

27_N.I. Salvage Ring&Trade TX-22-878NR
