Part Details

Torque-Converter » ZF » ZF4HP24 » Seal Ring

PO-25XReference Part#:

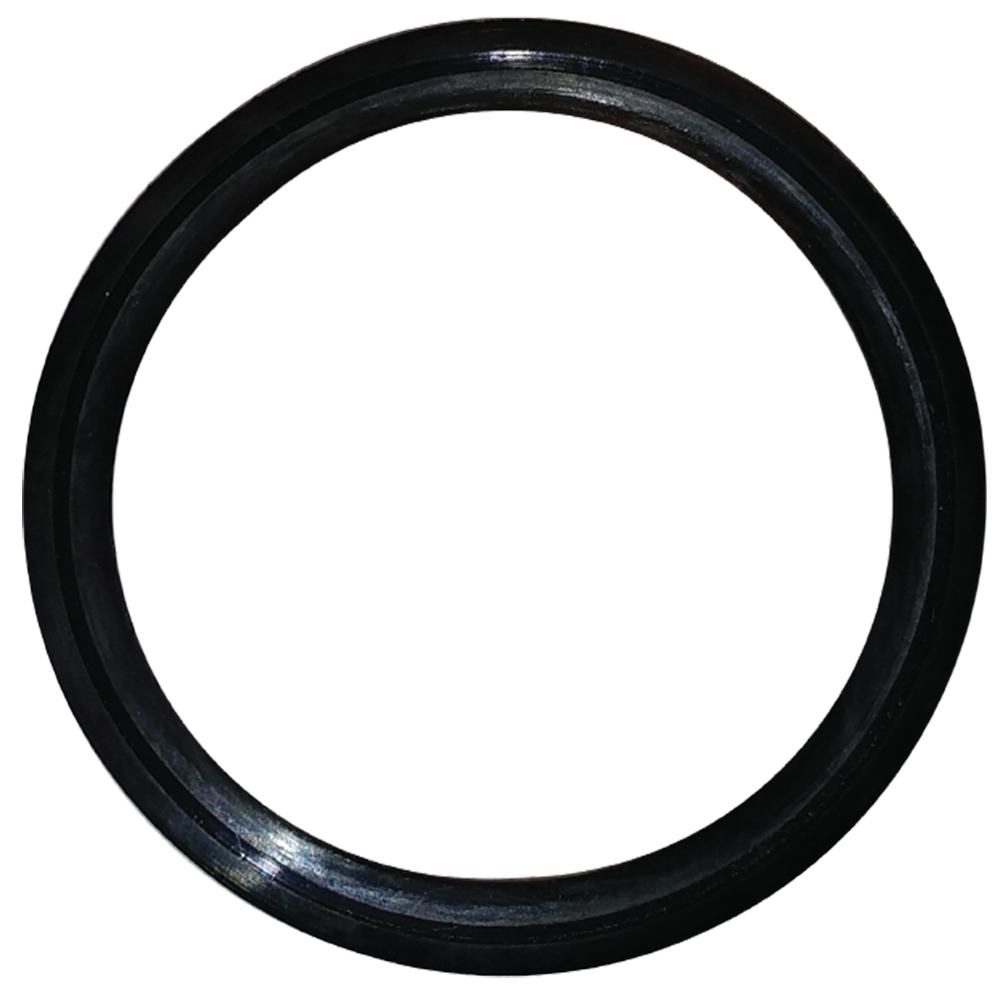

Seal Ring

Square-Cut, Oversized, To Salvage Clutch Plates

  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
  • To Salvage Clutch Plates

Similar Parts:

Image Part ID Description Specification
PO-25 Seal Ring , Square-Cut with Groove
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
PO-25T Seal Ring , Replacement, Scarf Cut, Square-Cut, with Groove
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218

Applications:
