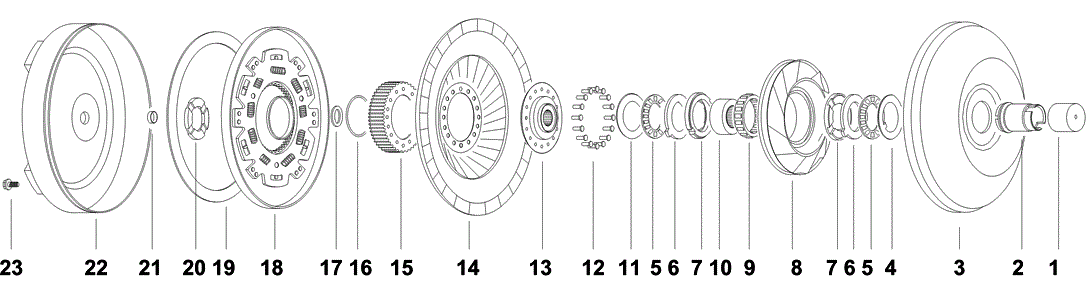

Torque Converter | ZF | ZF4HP24

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)

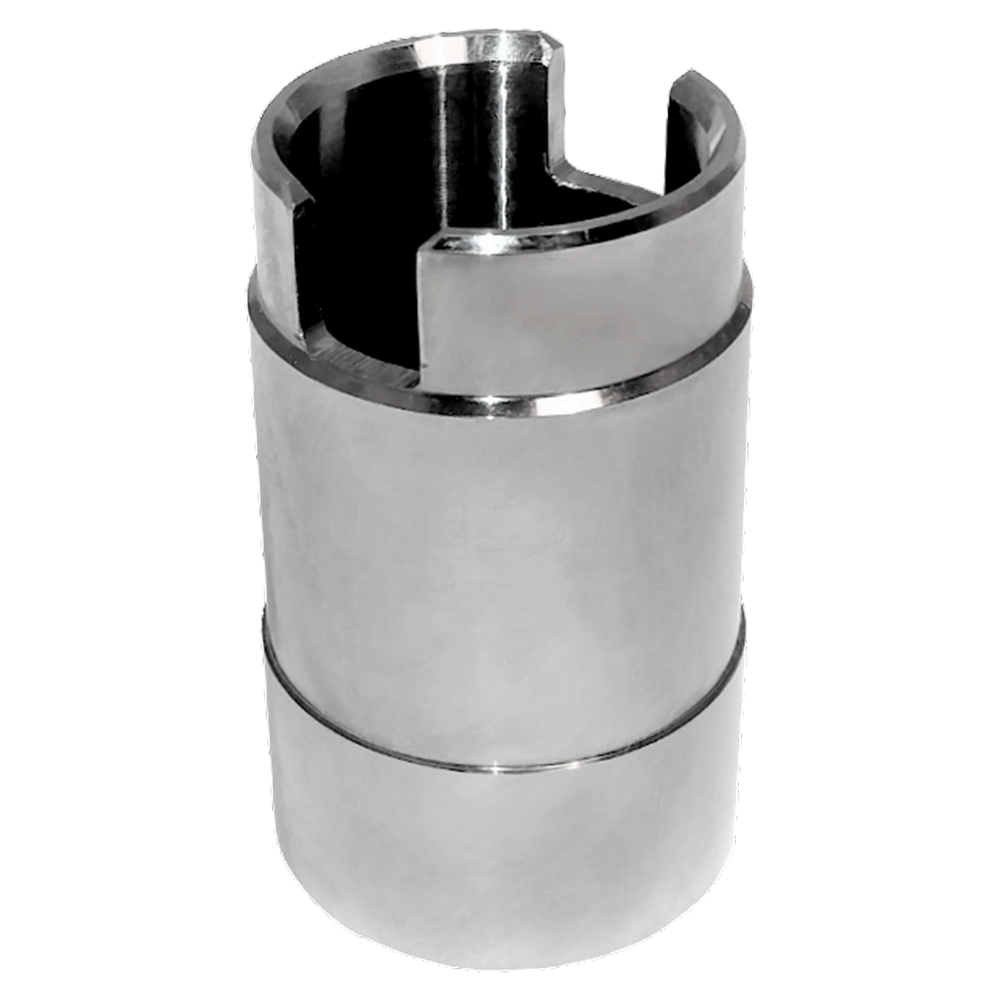

2 Impeller Hub Audi Quattro
  • Journal Dia: 1.574"
  • Height: 2.64"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-15GRC
Impeller Hub PH-1-15GRC
& Audi Quattro
  • Journal Dia: 1.574"
  • Height: 2.64"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub Hardened
  • Journal Dia: 1.574"
  • Installed Height: 2.08"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-9GRC
Impeller Hub PH-1-9GRC
Hardened &
  • Journal Dia: 1.574"
  • Installed Height: 2.08"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
3 Impeller NPN-4-16-3
Impeller NPN-4-16-3
&
4 Bearing Race
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4
Bearing Race PW-2-4
&
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
4 Bearing Race
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4P
Bearing Race PW-2-4P
&
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
5 Bearing 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
& 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5 Bearing Optional. 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
& Optional. 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
6 Bearing Race 2 Pieces Required.
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
Bearing Race PW-2-3
& 2 Pieces Required.
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"

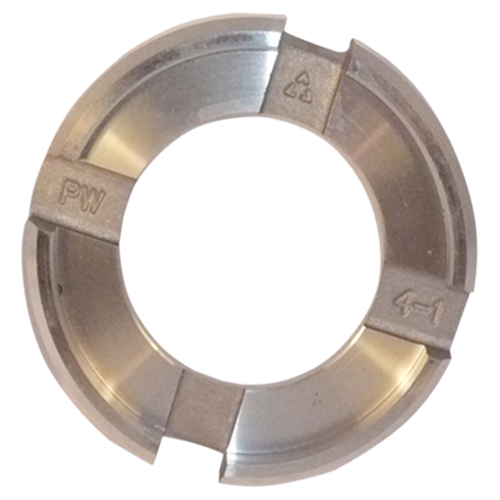

7 Stator Cap 2 Pieces Required.
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
 PW-4-1
Stator Cap PW-4-1
& 2 Pieces Required.
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
8 Stator NPN-4-16-8
Stator NPN-4-16-8
&
9 Cam (Sprag Element) For FC-6-10 F-395
Cam (Sprag Element) F-395
& For FC-6-10
9 Cam (Sprag Element) For FC-6-10 F-407
Cam (Sprag Element) F-407
& For FC-6-10
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
 FC-6
Sprag FC-6
&
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
Sprag FC-6-1
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
9 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
 FC-6-10
Sprag FC-6-10
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
Sprag FC-6-3
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
9 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
Sprag FC-6-4
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
Sprag FC-6-9
&
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
9 Sprag Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
 PC-6
Sprag PC-6
& Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
10 Inner Race Stator
  • Height: 0.860"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.160"
 PX-14-7
Inner Race PX-14-7
Stator &
  • Height: 0.860"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.160"
11 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
11 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
12 Rivet 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
12 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
12 Rivet 16 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12L
Rivet PX-12L
& 16 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
12 Rivet 10 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 10 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
12 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat

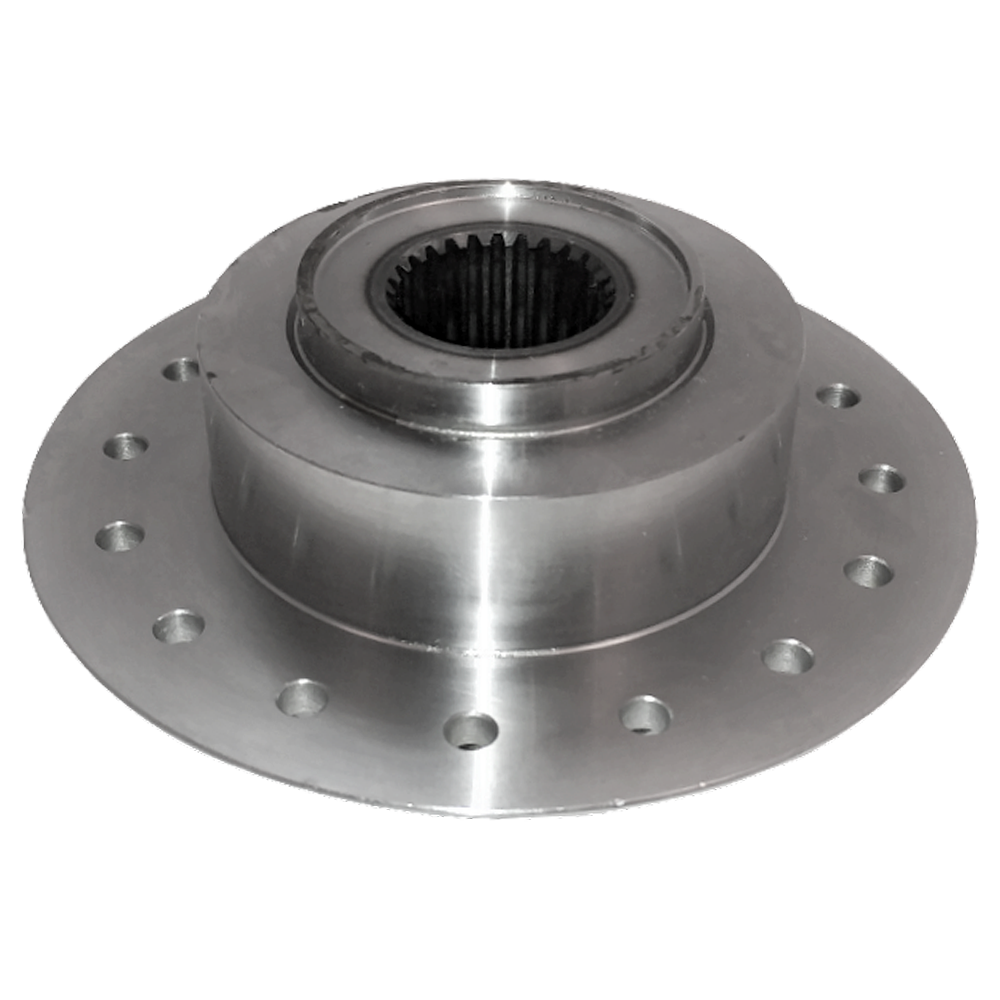

13 Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 3.89"
 PX-13-12
Turbine Hub PX-13-12
&
  • Internal Teeth: 27
  • Outside Dia: 3.89"
13 Turbine Hub
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.89"
 PX-13-12HT
Turbine Hub PX-13-12HT
&
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.89"
14 Turbine NPN-4-16-14
Turbine NPN-4-16-14
&
15 Gear Cup
  • External Teeth: 48
 PX-8
Gear PX-8
Cup &
  • External Teeth: 48
16 Seal Ring Square-Cut with Groove O.E. Replacement
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
 PO-25
Seal Ring PO-25
Square-Cut with Groove & O.E. Replacement
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
16 Seal Ring Square-Cut, Oversized, To Salvage Clutch Plates
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
 PO-25X
Seal Ring PO-25X
Square-Cut, Oversized, To Salvage Clutch Plates &
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
16 Seal Ring Replacement, Scarf Cut, Square-Cut, with Groove
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
 PO-25T
Seal Ring PO-25T
Replacement, Scarf Cut, Square-Cut, with Groove &
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
17 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
18 Lockup Clutch NPN-4-16-18
Lockup Clutch NPN-4-16-18
&
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125"
  • Inside Dia: 10"
 SX-23-4
Lining (Friction Ring,Wafer) SX-23-4
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125"
  • Inside Dia: 10"

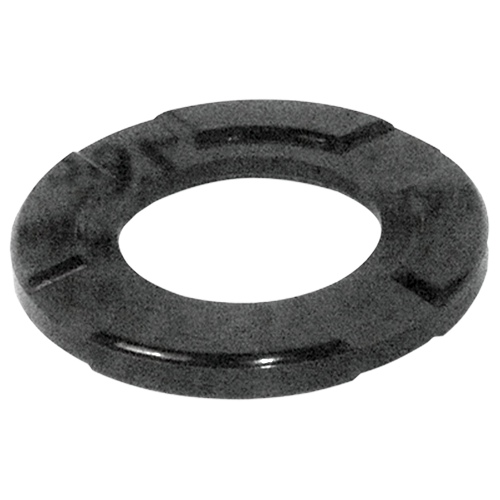

20 Turbine Washer
  • Thickness: 0.225"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3D
Turbine Washer PW-9-3D
&
  • Thickness: 0.225"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
20 Turbine Washer
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3E
Turbine Washer PW-9-3E
&
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
20 Turbine Washer
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3F
Turbine Washer PW-9-3F
&
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
20 Washer Bronze
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3FB
Washer PW-9-3FB
Bronze &
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
21 Bushing
  • Thickness: 0.393"
  • Housing Bore Dia: 0.67"
  • Shaft Dia: 0.55"
  • Material: Bronze
 PB-18
Bushing PB-18
&
  • Thickness: 0.393"
  • Housing Bore Dia: 0.67"
  • Shaft Dia: 0.55"
  • Material: Bronze
22 Front Cover NPN-4-16-22
Front Cover NPN-4-16-22
&
23 Bolt
  • Dimensions: M8x1.25
 NPN-4-16-23
Bolt NPN-4-16-23
&
  • Dimensions: M8x1.25
