Torque Converter | ZF | ZF4HP22, BM-25, BMW & BM-27, '90 Jaguar | BM-25

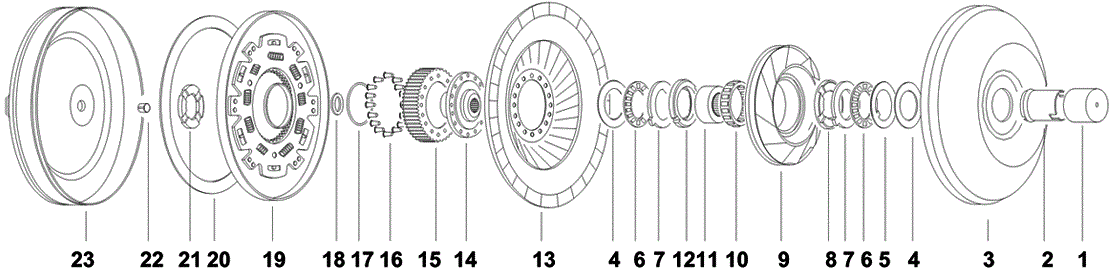

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
2 Impeller Hub Hardened
  • Journal Dia: 1.574"
  • Installed Height: 2.08"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-9GRC
3 Impeller NPN-4-14-3
4 Bearing Race 2 Pieces Required.
  • Outer Dia: 2.345"
  • Inner Dia: 1.585"
  • Thickness: 0.04"
 JW-2-5T
4 Bearing Race 2 Pieces Required.
  • Outer Dia: 2.345"
  • Inner Dia: 1.585"
  • Thickness: .03"
 JW-2-5TT
5 Bearing Race
  • Outer Dia: 2.35"
  • Inner Dia: 1.59"
  • Thickness: 0.04"
  • 1 Lug
 PW-2-4
5 Bearing Race
  • Outer Dia: 2.35"
  • Inner Dia: 1.59"
 PW-2-4P
6 Bearing 2 Pieces Required.
  • Outer Dia: 2.362
  • Inner Dia: 1.574
  • Thickness: 0.118
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3
  • Bearing type: Exposed
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
6 Bearing 2 Pieces Required.
  • Outer Dia: 2.36
  • Inner Dia: 1.57
  • Thickness: 0.125
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
7 Bearing Race 2 Pieces Required.
  • Outer Dia: 2.42"
  • Inner Dia: 1.7"
  • Thickness: 0.08"
  • 1 Lug
 PW-2-3
8 Stator Cap Rear
  • Outer Dia: 2.97"
  • Inner Dia: 1.67"
  • Thickness: .42"
  • Material: Aluminum
  • 4 Slots
 PW-4-11
9 Stator NPN-4-14-9
10 Cam (Sprag Element) For FC-6-10 F-395
10 Cam (Sprag Element) For FC-6-10 F-407
10 Sprag
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Standard Duty, 14 Cams
 FC-6
10 Sprag 20 cam
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 20 Cams (part-ID F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
10 Sprag Heavy Duty
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 24 Cams (part-ID F-395), 12 Outside Clips, 3 Inside Strips
 FC-6-10
10 Sprag
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 20 Cams (F-395), 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
10 Sprag Heavy Duty
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 20 Cams (F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
10 Sprag
  • Outer Dia: 2.812
  • Inner Dia: 2.156
  • Thickness: 0.625"
  • 22/24 Cams (F-407), 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
11 Inner Race Stator
  • Height: 0.860"
  • Outer Dia: 2.160"
  • Internal Teeth: 38 (12 Removed)
 PX-14-7
12 Stator Cap Front, Aluminum, 4 Slots NPN-4-14-12
13 Turbine NPN-4-14-13
14 Turbine Hub
  • Outer Dia: 3.89"
  • Internal Teeth: 27
 PX-13-12
14 Turbine Hub
  • Outer Dia: 3.89"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
 PX-13-12HT
15 Gear Cup
  • External teeth: 48
 PX-8
16 Rivet 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet head dia: 0.3"
 PX-12
16 Rivet 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
16 Rivet 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet head dia: 0.283"
 RX-12
16 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet head dia: 0.325"
  • Rivet head Type: Flat
 TX-12-7
17 Seal Ring Square-Cut with Groove
  • Height: 0.214"
  • Outer Dia: 2.150"
  • Thickness: 0.213"
  • Width: 0.095"
  • Outer Dia Metric: 54.6mm
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
 PO-25
17 Seal Ring Square-Cut, Oversized, To Salvage Clutch Plates
  • Outer Dia: 2.362
  • Width: 0.095"
  • Material: Polyacrylic Rubber
 PO-25X
17 Seal Ring Replacement, Scarf Cut, Square-Cut, with Groove
  • Height: 0.196
  • Outer Dia: 2.367
  • Width: 0.086
  • Outer Dia Metric: 60.1218
  • Material: PTFE
  • Height Metric: 4.9784
 PO-25T
18 Metal Clad Seal
  • housing bore dia: 0.945
  • housing bore dia metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
19 Lockup Clutch NPN-4-14-19
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 11.125"
  • Inner Dia: 10"
  • Thickness: 0.045"
  • Material: Red
 SX-23-4

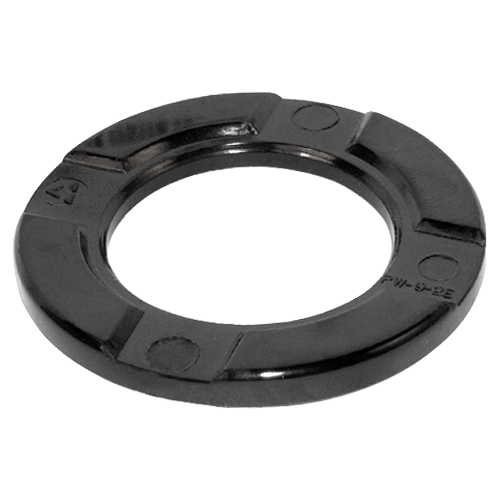

21 Turbine Washer
  • Outer Dia: 2.3"
  • Inner Dia: 1.4"
  • Thickness: .225"
  • Material: Plastic
 PW-9-2D
21 Turbine Washer
  • Outer Dia: 2.3"
  • Inner Dia: 1.4"
  • Thickness: .236"
  • Material: Plastic
 PW-9-2E

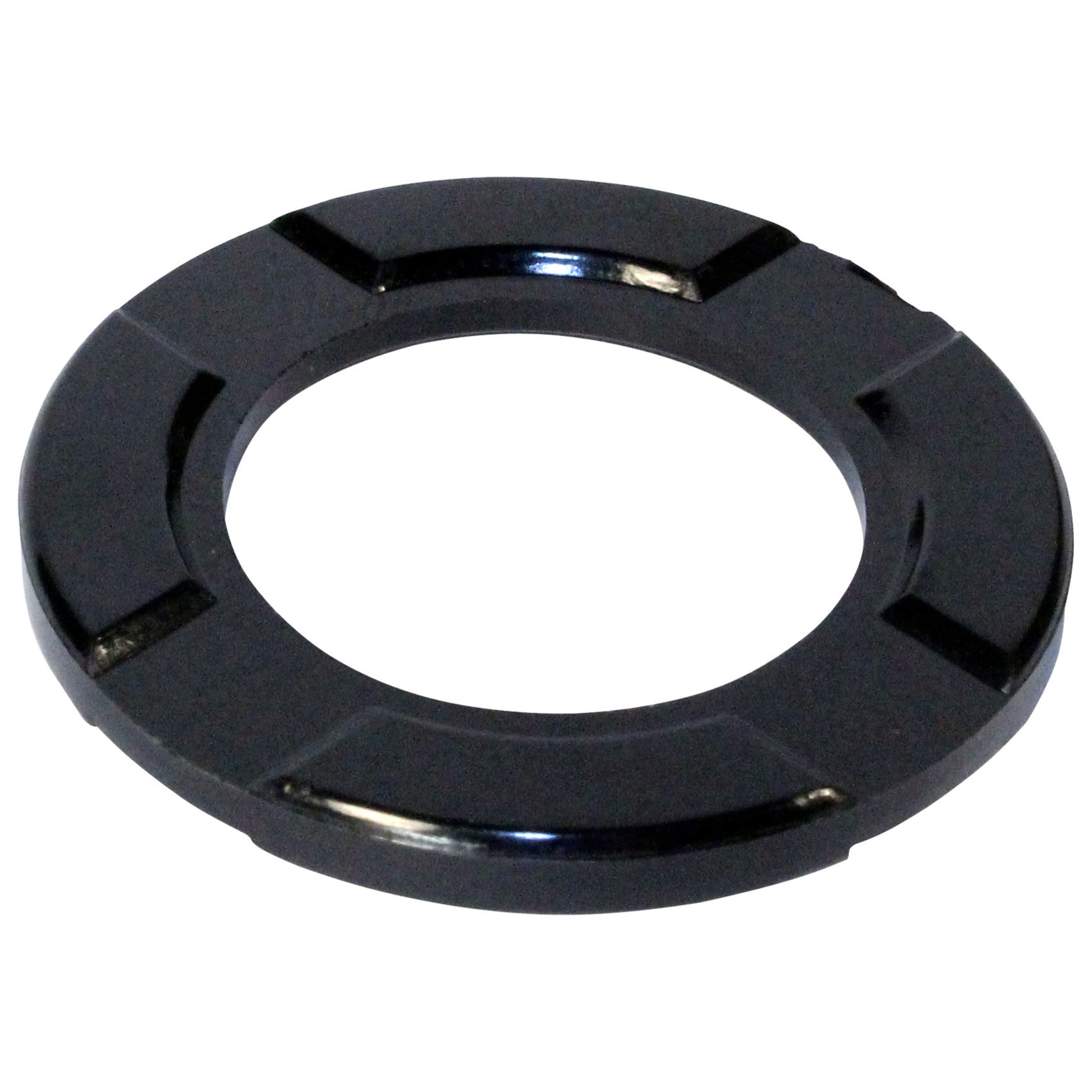

21 Turbine Washer
  • Outer Dia: 2.3"
  • Inner Dia: 1.4"
  • Thickness: .248"
  • Material: Plastic
 PW-9-2F

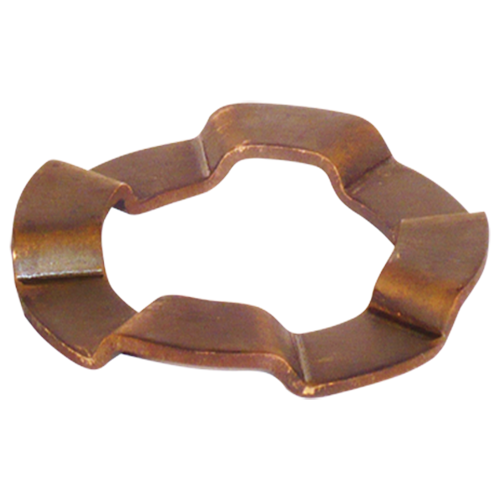

21 Washer Bronze
  • Outer Dia: 2.3"
  • Inner Dia: 1.4"
 PW-9-2FB
22 Bushing
  • Outer Dia: 0.674
  • Inner Dia: 0.5570
  • Width: 0.393
  • Material: Bronze
 PB-18
23 Front Cover NPN-4-14-23
