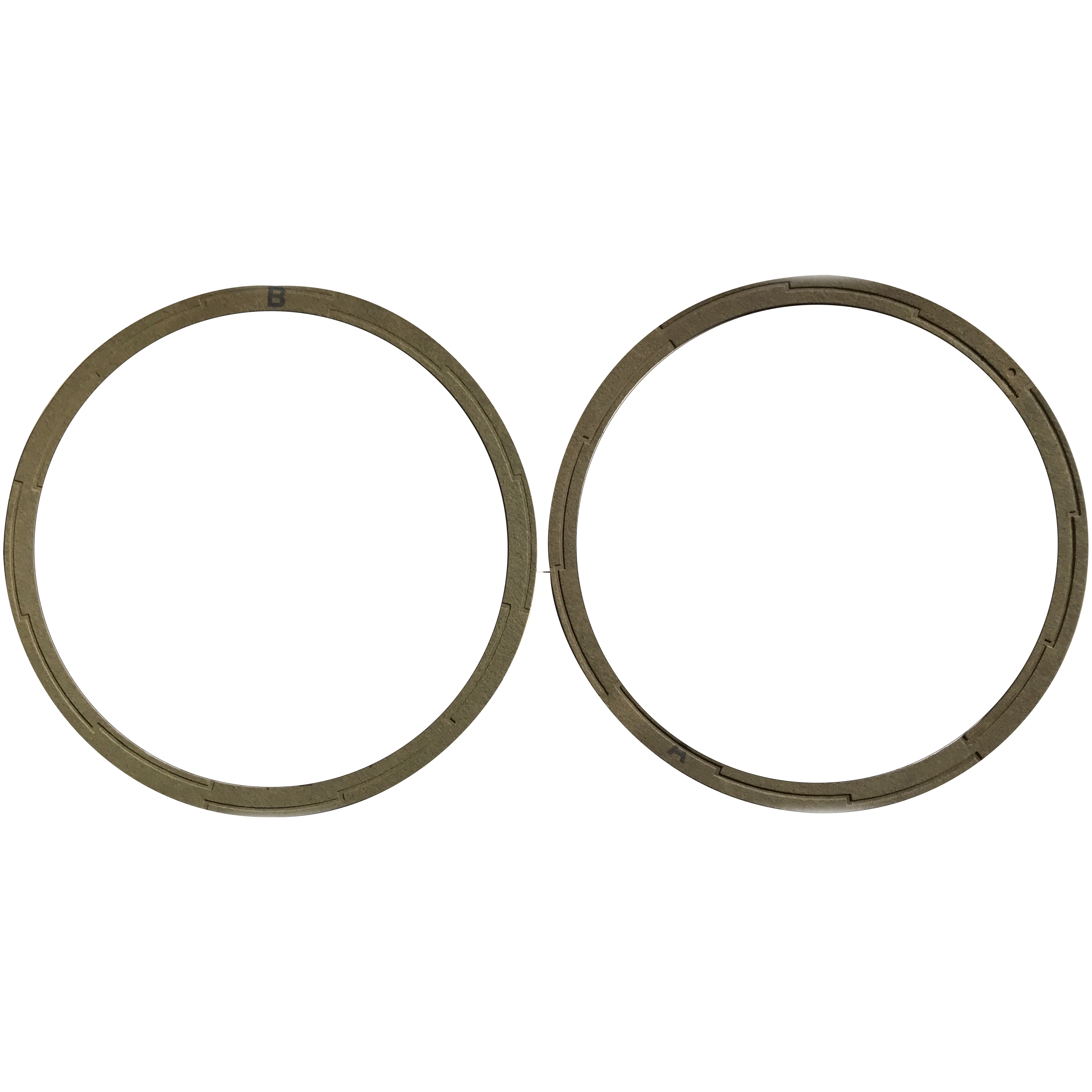

RX-23-2KKReference Part#:

Lining Kit

2 Pieces (Contains: RX-23-2AMK and RX-23-2BMK)

Outer Dia: 7.93"
Inner Dia: 7.1"
Thickness: 0.045"
Material: Kevlar®™
Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.

Similar Parts:

Part ID	Description	Specification
RX-23-2	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Red Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2A	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Red for RX-26-2
RX-23-2AM	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated), Red for RX-26-2
RX-23-2AMC	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated),Carbon for RX-26-2
RX-23-2AMHC	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated),High Carbon for RX-26-2

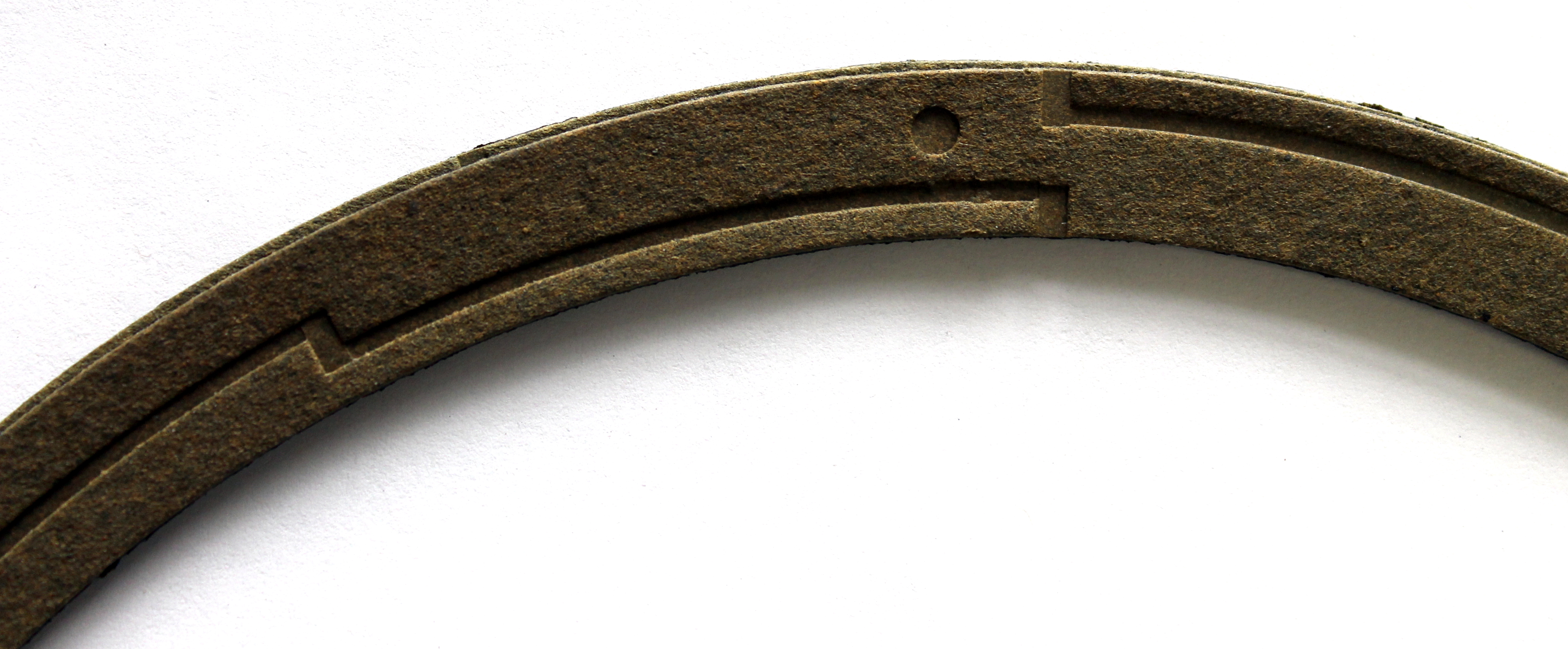

RX-23-2AMK	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated),Kevlar® for RX-26-2
RX-23-2AX70MK	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.070" Material: Grooved (Modulated),Kevlar® for RX-26-2
RX-23-2AX70MT	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.070" Material: Grooved (Modulated),Tan
RX-23-2B	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Red for RX-26-2
RX-23-2BM	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated), Red for RX-26-2
RX-23-2BMC	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated),Carbon for RX-26-2
RX-23-2BMHC	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated),High Carbon for RX-26-2
RX-23-2BMK	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Grooved (Modulated),Kevlar® for RX-26-2
RX-23-2BX70MK	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.070" Material: Grooved (Modulated),Kevlar® for RX-26-2
RX-23-2BX70MT	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.070" Material: Grooved (Modulated),Tan
RX-23-2HC	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: High Carbon
RX-23-2K	Lining (Friction Ring,Wafer)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Kevlar®™ Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2KHC	Lining Kit , 2 Pieces (Contains: RX-23-2AMHC and RX-23-2BMHC)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: High Carbon Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMHC and RX-23-2BMHC) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2KK	Lining Kit , 2 Pieces (Contains: RX-23-2AMK and RX-23-2BMK)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Material: Kevlar®™ Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2KT	Lining Kit , 2 Pieces (Contains: RX-23-2AMT and RX-23-2BMT)	Outer Dia: 7.93" Inner Dia: 7.1" Thickness: 0.045" Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMT and RX-23-2BMT) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
