Part Details

Torque-Converter » Renault, Peugeot » Renault (DPO), Peugeot (AL4), Late » Lining Kit

RX-23-2KHCReference Part#:

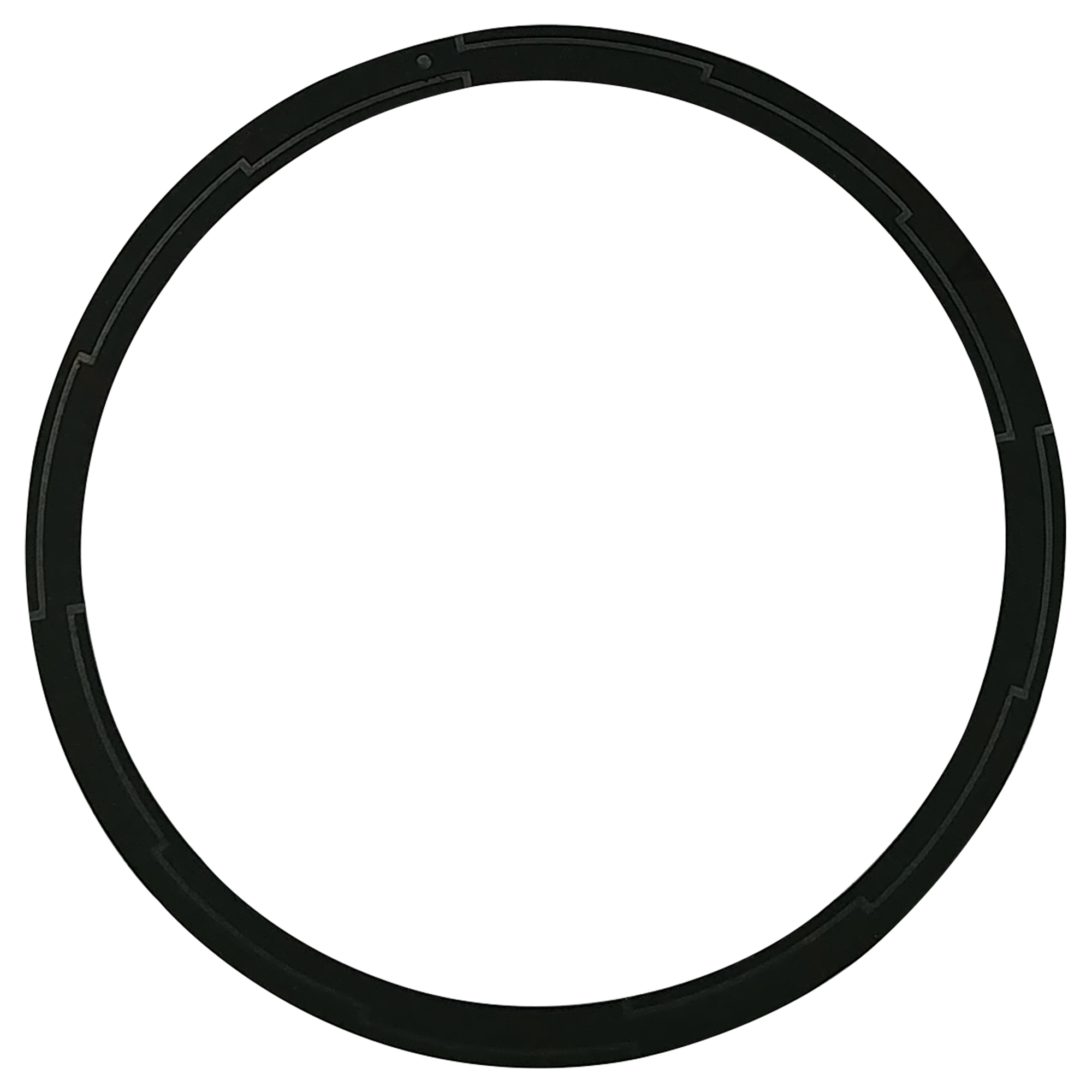

Lining Kit

2 Pieces (Contains: RX-23-2AMHC and RX-23-2BMHC)

  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: High Carbon
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMHC and RX-23-2BMHC) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.

Similar Parts:

Image Part ID Description Specification
RX-23-2 Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Red
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2A Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Red
  • for RX-26-2
RX-23-2AM Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated), Red
  • for RX-26-2
RX-23-2AMC Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated),Carbon
  • for RX-26-2
RX-23-2AMHC Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated),High Carbon
  • for RX-26-2
RX-23-2AMK Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated),Kevlar®
  • for RX-26-2
RX-23-2AX70MK Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.070"
  • Material: Grooved (Modulated),Kevlar®
  • for RX-26-2
RX-23-2AX70MT Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.070"
  • Material: Grooved (Modulated),Tan
RX-23-2B Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Red
  • for RX-26-2
RX-23-2BM Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated), Red
  • for RX-26-2
RX-23-2BMC Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated),Carbon
  • for RX-26-2
RX-23-2BMHC Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated),High Carbon
  • for RX-26-2
RX-23-2BMK Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Grooved (Modulated),Kevlar®
  • for RX-26-2
RX-23-2BX70MK Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.070"
  • Material: Grooved (Modulated),Kevlar®
  • for RX-26-2
RX-23-2BX70MT Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.070"
  • Material: Grooved (Modulated),Tan
RX-23-2HC Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: High Carbon
RX-23-2K Lining (Friction Ring,Wafer)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Kevlar®™
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2KHC Lining Kit , 2 Pieces (Contains: RX-23-2AMHC and RX-23-2BMHC)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: High Carbon
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMHC and RX-23-2BMHC) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2KK Lining Kit , 2 Pieces (Contains: RX-23-2AMK and RX-23-2BMK)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Material: Kevlar®™
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
RX-23-2KT Lining Kit , 2 Pieces (Contains: RX-23-2AMT and RX-23-2BMT)
  • Outer Dia: 7.93"
  • Inner Dia: 7.1"
  • Thickness: 0.045"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMT and RX-23-2BMT) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
