Part Details

Torque-Converter » Ford » 5R110W » Drive Plate

FX-23-46HCReference Part#:

Drive Plate

Friction, High-Carbon

  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Uses 1 Lining Part ID: FX-23-49HC

Similar Parts:

Image Part ID Description Specification
FX-23-46 Drive Plate
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Lining Part-ID: FX-23-49K
FX-23-46X Drive Plate , Unlined
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"

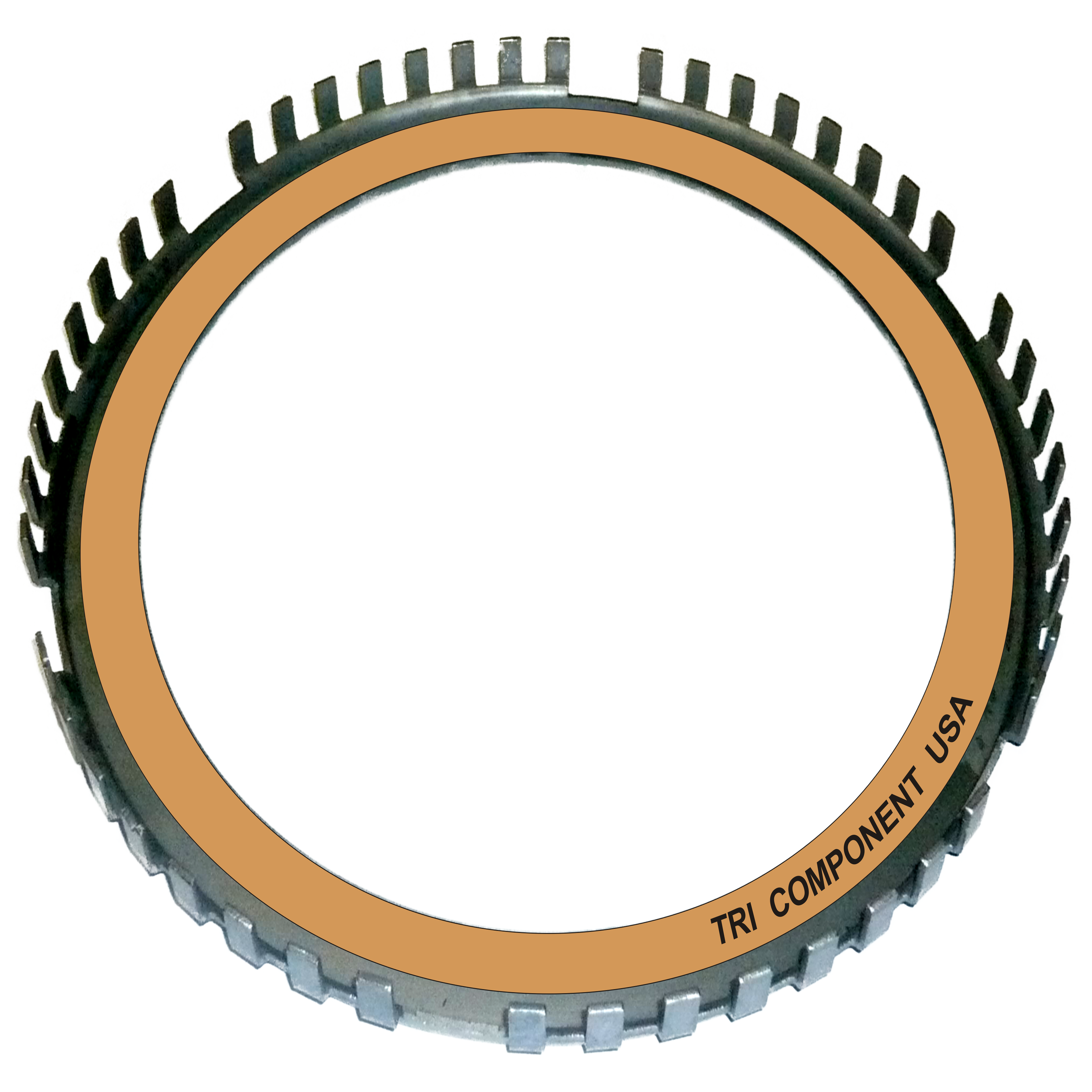

FX-23-78 Drive Plate
  • Height: 0.895"
  • Thickness: 0.895"
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • NOT FOR DIESEL (GASOLINE ONLY). Lining Part-ID: FX-23-49T.
FX-23-78X Drive Ring , Unbonded, 4R100
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
