Torque Converter | Ford | 5R110W

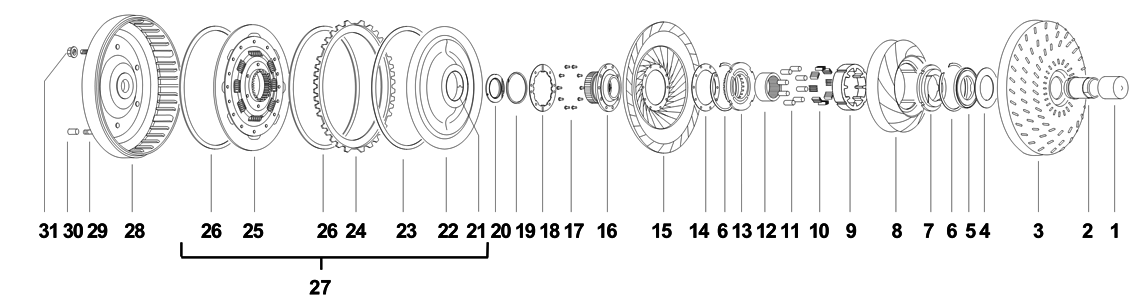

Ill.# Image Description Specification Part #
0 Drain Plug 6-Stud
  • Material: Steel
  • 1/8-27 NPT
 FX-11
0 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
0 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
0 Misc NPN-SPL
0 Impeller Hub Flanged 6-Stud
  • Journal Dia: 1.997"
  • Installed Height: 2.375"
  • Height: 2.750"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.500"
 FH-1-43FLG
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
2 Impeller Hub
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRCD
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-6F
2 Impeller Hub Heat Treated
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-3107GRC
2 Impeller Hub
  • Inside Dia: 1.688
 FH-1-CB6
2 Impeller Hub 6-Stud
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB5GRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
 FH-1-CB6G
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB6GRC
2 Impeller Hub Flanged, AOD, C-6, C-4
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
 FH-1-25FLG
2 Impeller Hub 6-Stud
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-6FGRC
2 Impeller Hub 8-Stud
  • Journal Dia: 2.000"
  • Installed Height: 2.375"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-45GRC
3 Impeller NPN-2-52-3
4 Shim 6-Stud, Early-type
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
4 Shim 6-Stud, Early-type
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
4 Shim 6-Stud, Early-type
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
4 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50

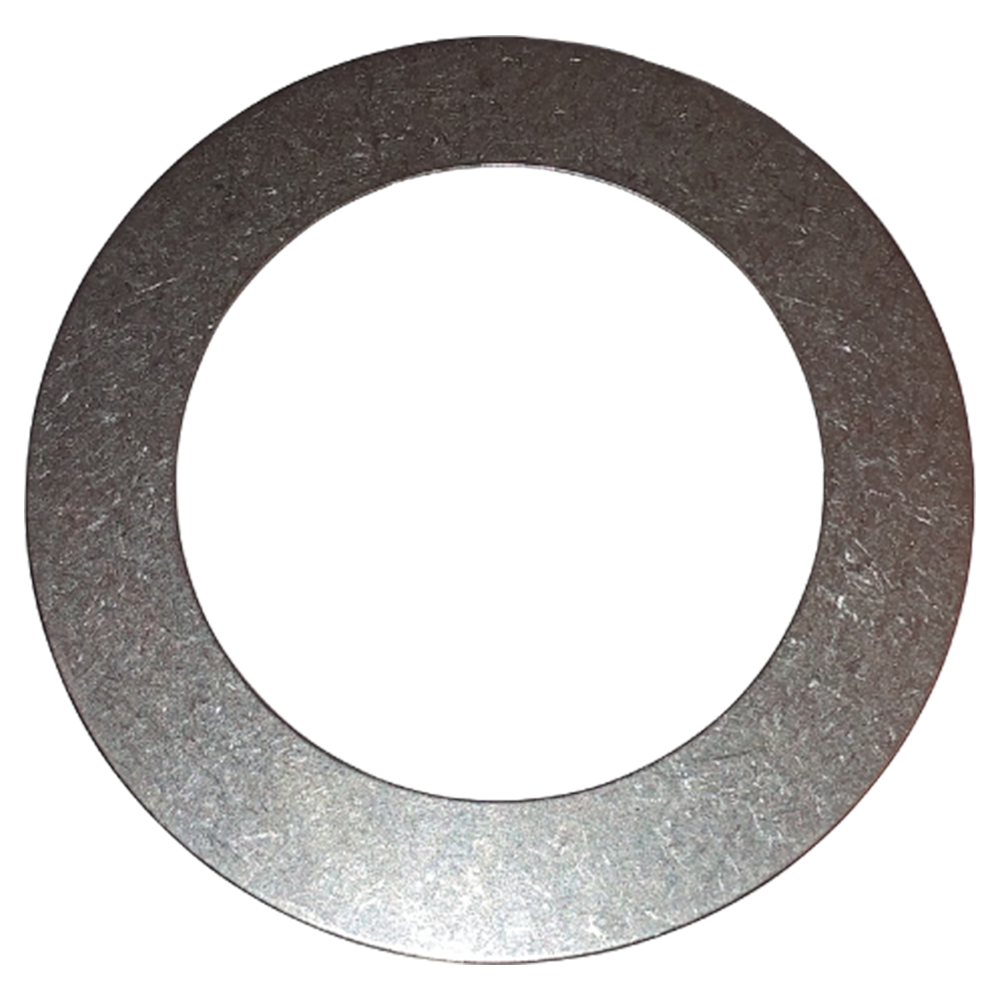

5 Bearing Race
  • Thickness: 0.107"
  • Outside Dia: 2.839"
  • Inside Dia: 1.939"
 FW-2-15
5 Bearing Early 5R110W, 6-Stud. Only use with OE stator cap.
  • Thickness: 0.206
  • Thickness metric: 5.23
  • Bearing type: Enclosed
  • Outside Dia: 3.12
  • Inside Dia: 1.879
  • Outside Dia Metric: 79.25
  • Inside Dia metric: 47.73
 FW-2-10
5 Shim 5R110W Early
  • Thickness: 0.050"
  • Outside Dia: 2.7"
  • Inside Dia: 1.88"
 FW-2-17
5 Bearing Late
  • Thickness: 0.179
  • Thickness metric: 4.55
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.126
  • Inside Dia: 1.939
  • Outside Dia Metric: 79.4
  • Inside Dia metric: 49.25
  • Race: FW-2-15
 FW-2-11
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.600"
 FX-20-11
7 Stator Cap
  • Material: Steel
  • To Adapt TW-2-4 Bearing
 FW-4-34
8 Stator
  • OE #E0AP-7934AA
 FX-5L
9 Outer Race (Cam) Stator
  • Height: .90"
  • Outside Dia: 3.60"
 FX-15-4
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.93"
  • Folds: 4
 FS-6-2
11 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
12 Stator Cap Bearing Adapter
  • Material: Aluminum
  • Functional Thickness: 0.407"
  • Lug Count: 4 Outer Lugs
  • Outside Dia: 3.590"
  • Inside Dia: 1.930"
 FW-4-35
12 Inner Race Stator
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-1
13 Stator Cap
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
13 Stator Cap
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
 FW-4-15
13 Stator Cap Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
 FW-4-3
13 Stator Cap
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
13 Washer
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
 FW-4-8
14 Plate Reinforcement 6-Stud
  • Thickness: 0.065"
  • Material: Steel
  • Outside Dia: 4.055"
  • Inside Dia: 3.010"
 FX-8-13
15 Turbine NPN-2-52-15
16 Turbine Hub 6-Stud
  • Internal Teeth: 31
  • External teeth: 68
 FX-13-43HT
16 Turbine Hub With Seal Groove Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Internal Teeth: 31
  • External teeth: 68
  • Outside Dia: 4.05"
 FX-13-34
16 Turbine Hub Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Height: 2.00"
  • Internal Teeth: 31
  • External teeth: 68
  • Outside Dia: 4.05"
  • Used with 35402B bearing
 FX-13-34A
16 Turbine Hub Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Internal Teeth: 31
  • External teeth: 68
  • Outside Dia: 4.05"
 FX-13-34HT
16 Turbine Hub Without Seal Groove
  • Height: 2.00"
  • Internal Teeth: 31
  • External teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.05"
 FX-13-35HT
16 Turbine Hub With Lube Holes, 4R100 E4OD
  • Height: 2.00"
 FX-13-35SHT
16 Turbine Hub Clutch and to be Used w/FX-23-11N, FX-23-43 Clutches and FO-25-5 O-Ring
  • Internal Teeth: 31
  • External teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.05"
  • To Convert to Single Plate Clutch and to be Used with Clutches (FX-23-11N, FX-23-43) and O-Ring (FO-25-5)
 FX-13-37HT

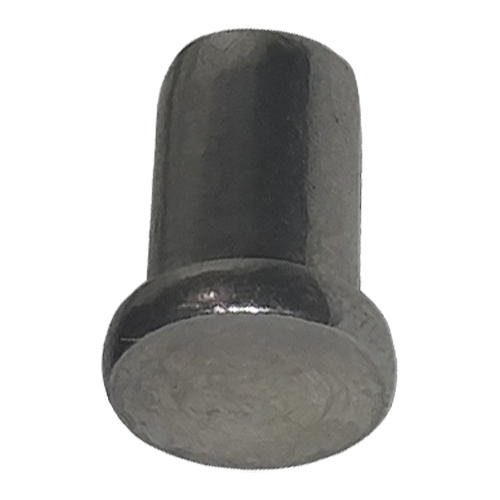

17 Rivet Late
  • Length: 0.432"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.283"
  • Rivet head dia: 0.378"
  • Rivet Head: Flat
 FX-12-10
17 Rivet Early 10 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet head dia: 0.315"
 FX-12-6
17 Rivet 6-Stud, not used with the washer FX-8-13 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12LS
18 Turbine Washer 6-Stud
  • Thickness: .06"
  • Internal Teeth: 12
  • Material: Plastic
  • Outside Dia: 3.99"
  • Inside Dia: 2.71"
 FW-9-19
19 Seal Ring For Turbine Hub FX-13-34HT
  • Height: 0.097"
  • Width: 0.098"
  • Color: Blue With Red Speckles
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.758
  • Outside Dia Metric: 70.0532
 FO-25-12
19 O-Ring 8 Studs 8-Stud
  • Thickness: 0.107
  • Thickness metric: 2.7178
  • Material: Fluorocarbon
  • Inside Dia: 2.224
  • Inside Dia metric: 56.4896
 FO-25-20
20 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 2.35
  • Inside Dia: 1.56
  • Outside Dia Metric: 59.69
  • Inside Dia metric: 39.62
 FW-2-6
20 Bearing With Lip
  • Thickness: 0.143
  • Thickness metric: 3.63
  • Bearing type: Enclosed
  • Outside Dia: 2.29
  • Inside Dia: 1.540
  • Outside Dia Metric: 58.17
  • Inside Dia metric: 39.12
 FW-2-8
21 Bushing Precision 6-Stud, Fits FX-23-45
  • Thickness: 0.366"
  • Width: 0.368
  • Housing Bore Dia: 2.835"
  • Shaft Dia: 2.708"
  • Material: Bi-metal
 FB-18-7
22 Piston Plate With FB-18-7 Bushing FX-23-37
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.85
  • Inside Dia: 9.8
  • For Drive Ring
 FX-23-49
24 Drive Plate
  • Height: 0.395"
  • Thickness: 0.104"
  • External teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Lining Part-ID: FX-23-49K
 FX-23-46
24 Drive Plate Friction, High-Carbon
  • Height: 0.395"
  • Thickness: 0.104"
  • External teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Uses 1 Lining Part ID: FX-23-49HC
 FX-23-46HC
24 Drive Plate Unlined
  • Height: 0.395"
  • Thickness: 0.104"
  • External teeth: 54 (6 removed)
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
 FX-23-46X
24 Clutch Plate Kit Includes: FX-23-37, FX-23-78 & FX-23-42
  • NOT FOR DIESEL (GASOLINE ONLY)
 FX-23-72
24 Drive Plate
  • Height: 0.895"
  • Thickness: 0.895"
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • NOT FOR DIESEL (GASOLINE ONLY). Lining Part-ID: FX-23-49T.
 FX-23-78
24 Drive Ring Unbonded, 4R100
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
 FX-23-78X
25 Clutch Plate Assembly 8 Springs, Late Design, 54 Teeth (6 Missing)
  • Replaces LAD 116
 FX-23-42
26 Lining (Friction Ring,Wafer) For Damper 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125
  • Inside Dia: 9.813
 FX-23-52
26 Lining (Friction Ring,Wafer) 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.200"
  • Inside Dia: 8.960"
 FX-23-70
27 Clutch Plate Assembly Multi Plate With Bushing 6-Stud. For PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35
  • Multi Plate with Bushing, for PTO. Includes Items #21, 22, 23, 24, 25, 26. Use With FX-13-35HT Turbine Hub
 FX-23-45
27 Clutch Plate Assembly Bulk Packed, 4 Pieces. for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35 FX-23-45-4
27 Clutch Plate Assembly 3 Pieces for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35 FX-23-45A
27 Clutch Plate Assembly 3 Pieces, 4R100 FX-23-45AT
27 Clutch Plate Assembly Unlined for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35 FX-23-45AX

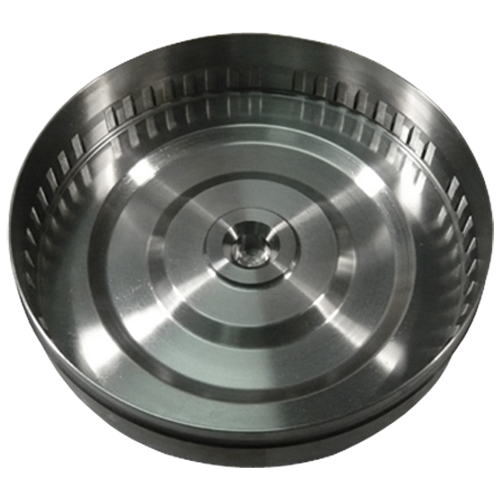

28 Front Cover Billet FX-22-37
28 Front Cover 8 Stud Adapts the early-type 6-stud, 5R110W with late-type, 8-stud converter FX-22-38
29 Stud T-Head 6 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
29 Stud 6 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
30 Studcap Plastic Stud Protector 6 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
30 Studcap 6 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
31 Nut Converter 6 Pieces Required. 26761
31 Nut Special Locking 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
31 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
31 Nut Hex 6 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
