Torque Converter | Ford | 4R100 4 Speed, RWD / 4 × 4

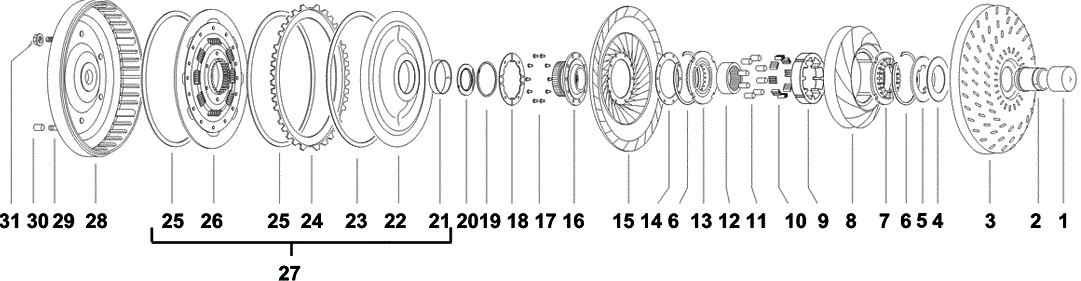

Ill.# Image Description Specification Part #
Rivet Fits with FX-8-13 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& Fits with FX-8-13 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Misc NPN-SPL
Misc NPN-SPL
&
Impeller Hub Flanged
  • Journal Dia: 1.997"
  • Installed Height: 2.175"
  • Height: 2.753"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.810"
 FH-1-55FLG
Impeller Hub FH-1-55FLG
Flanged &
  • Journal Dia: 1.997"
  • Installed Height: 2.175"
  • Height: 2.753"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.810"
Impeller Hub Flanged
  • Journal Dia: 1.997"
  • Installed Height: 2.375"
  • Height: 2.750"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.500"
 FH-1-43FLG
Impeller Hub FH-1-43FLG
Flanged &
  • Journal Dia: 1.997"
  • Installed Height: 2.375"
  • Height: 2.750"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.500"
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
Impeller Hub FH-1-2312GRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRCD
Impeller Hub FH-1-5FGRCD
&
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-6F
Impeller Hub FH-1-6F
&
  • Inside Dia: 1.75
2 Impeller Hub Heat Treated
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-3107GRC
Impeller Hub FH-1-3107GRC
Heat Treated &
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Inside Dia: 1.688
 FH-1-CB6
Impeller Hub FH-1-CB6
&
  • Inside Dia: 1.688
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB5GRC
Impeller Hub FH-1-CB5GRC
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
 FH-1-CB6G
Impeller Hub FH-1-CB6G
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB6GRC
Impeller Hub FH-1-CB6GRC
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
2 Impeller Hub Flanged, AOD, C-6, C-4
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
 FH-1-25FLG
Impeller Hub FH-1-25FLG
Flanged, AOD, C-6, C-4 &
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRC
Impeller Hub FH-1-5FGRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-6FGRC
Impeller Hub FH-1-6FGRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
3 Impeller NPN-2-50-3
Impeller NPN-2-50-3
&
4 Shim used with FW-2-10 bearing
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
& used with FW-2-10 bearing
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
&
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4.1 Bearing Late. Use with FW-4-15 stator-cap
  • Thickness: 0.206
  • Thickness metric: 5.23
  • Bearing type: Enclosed
  • Outside Dia: 3.12
  • Inside Dia: 1.879
  • Outside Dia Metric: 79.25
  • Inside Dia metric: 47.73
 FW-2-10
Bearing FW-2-10
& Late. Use with FW-4-15 stator-cap
  • Thickness: 0.206
  • Thickness metric: 5.23
  • Bearing type: Enclosed
  • Outside Dia: 3.12
  • Inside Dia: 1.879
  • Outside Dia Metric: 79.25
  • Inside Dia metric: 47.73
4.1 Shim 5R110W Late
  • Thickness: 0.050"
  • Outside Dia: 2.7"
  • Inside Dia: 1.88"

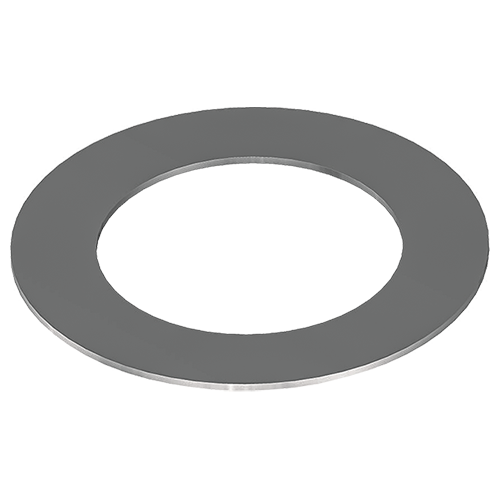

 FW-2-17
Shim FW-2-17
5R110W & Late
  • Thickness: 0.050"
  • Outside Dia: 2.7"
  • Inside Dia: 1.88"
5 Washer Standard Early Type
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
 FW-2-1
Washer FW-2-1
Standard & Early Type
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
5 Washer Oversized Early Type
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
 FW-2-1A
Washer FW-2-1A
Oversized & Early Type
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.600"
 FX-20-11
Snap Ring FX-20-11
& 2 Pieces Required.
  • Inside Dia: 3.600"
7 Stator Cap Bearing Adapter Turbine side only. Use with bearing TW-2-4
  • Material: Aluminum
  • Functional Thickness: 0.407"
  • Lug Count: 4 Outer Lugs
  • Outside Dia: 3.590"
  • Inside Dia: 1.930"
 FW-4-35
Stator Cap FW-4-35
Bearing Adapter & Turbine side only. Use with bearing TW-2-4
  • Material: Aluminum
  • Functional Thickness: 0.407"
  • Lug Count: 4 Outer Lugs
  • Outside Dia: 3.590"
  • Inside Dia: 1.930"
7 Stator Cap Bearing Adapter
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18
Stator Cap FW-4-18
Bearing Adapter &
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
8 Stator
  • OE #E0AP-7934AA
 FX-5L
Stator FX-5L
&
  • OE #E0AP-7934AA
9 Outer Race (Cam) Stator
  • Height: .90"
  • Outside Dia: 3.60"
 FX-15-4
Outer Race (Cam) FX-15-4
Stator &
  • Height: .90"
  • Outside Dia: 3.60"
10 Accordion Spring 8 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-2
Accordion Spring FS-6-2
& 8 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
11 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
Roller FR-7
& 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
12 Inner Race Stator
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-1
Inner Race FX-14-1
Stator &
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
13 Stator Cap 2 Pieces Required.
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
Stator Cap FW-4-13
& 2 Pieces Required.
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
13 Stator Cap 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
 FW-4-15
Stator Cap FW-4-15
& 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
13 Stator Cap Plastic 2 Pieces Required.
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
 FW-4-3
Stator Cap FW-4-3
Plastic & 2 Pieces Required.
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
13 Stator Cap 2 Pieces Required.
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
Stator Cap FW-4-3A
& 2 Pieces Required.
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
13 Washer 2 Pieces Required.
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
 FW-4-8
Washer FW-4-8
& 2 Pieces Required.
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
13 Stator Cap
  • Material: Aluminum
  • AdaptS TO TW-2-4 Bearing
 FW-4-31
Stator Cap FW-4-31
&
  • Material: Aluminum
  • AdaptS TO TW-2-4 Bearing
14 Plate Reinforcement
  • Thickness: 0.065"
  • Material: Steel
  • Outside Dia: 4.055"
  • Inside Dia: 3.010"

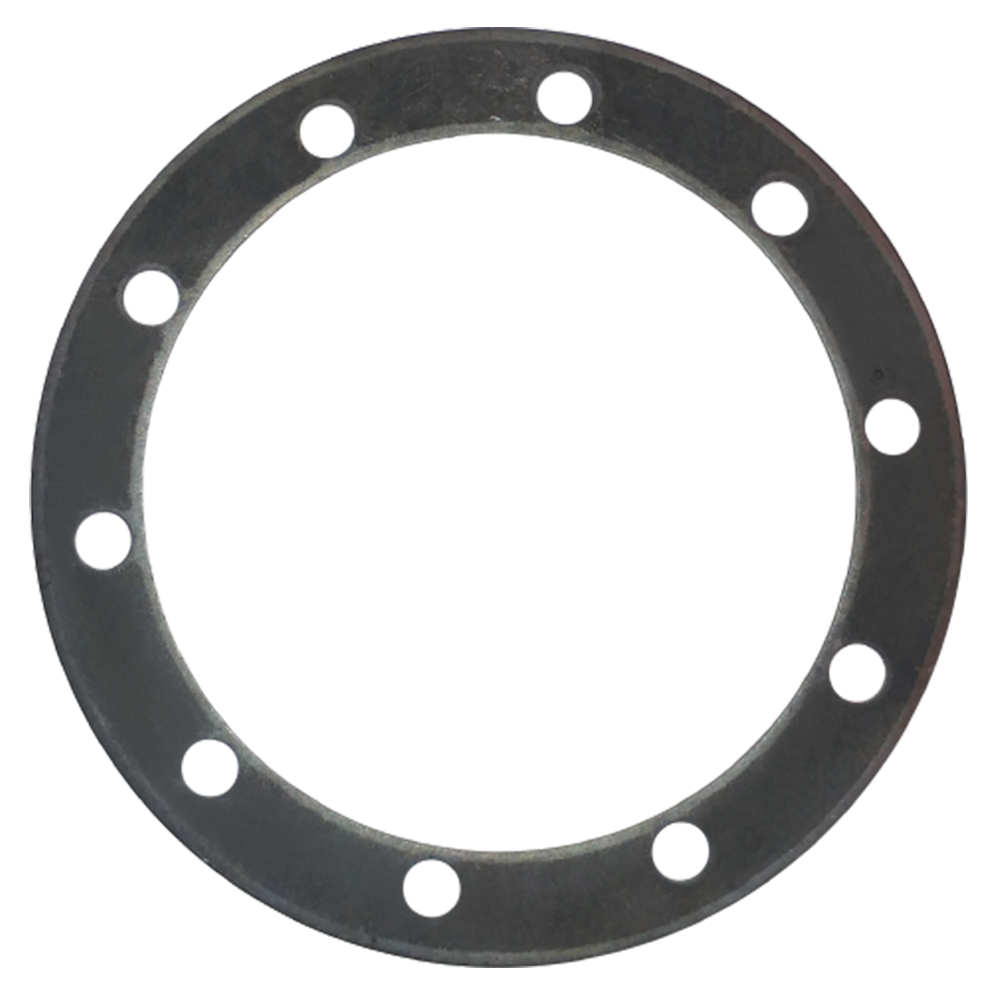

 FX-8-13
Plate FX-8-13
Reinforcement &
  • Thickness: 0.065"
  • Material: Steel
  • Outside Dia: 4.055"
  • Inside Dia: 3.010"
14 Reinforcement Ring
  • Thickness: .0060"
  • Outside Dia: 3.95"
  • Inside Dia: 3.01"
  • 10 holes
 FX-8-15
Reinforcement Ring FX-8-15
&
  • Thickness: .0060"
  • Outside Dia: 3.95"
  • Inside Dia: 3.01"
  • 10 holes
15 Turbine NPN-2-50-15
Turbine NPN-2-50-15
&
16 Turbine Hub With Seal Groove Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Internal Teeth: 31
  • External Teeth: 68
  • Outside Dia: 4.05"

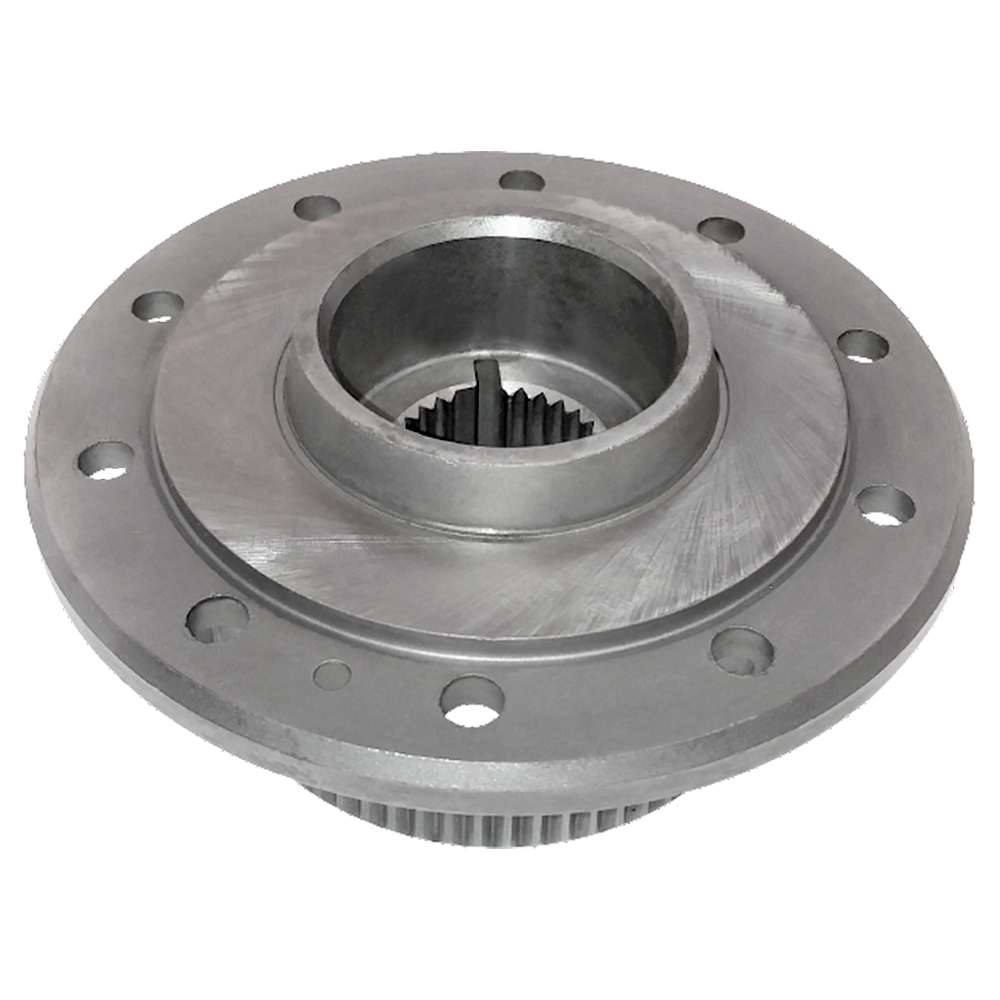

 FX-13-34
Turbine Hub FX-13-34
With Seal Groove & Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Internal Teeth: 31
  • External Teeth: 68
  • Outside Dia: 4.05"
16 Turbine Hub Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Height: 2.00"
  • Internal Teeth: 31
  • External Teeth: 68
  • Outside Dia: 4.05"
  • Used with 35402B bearing

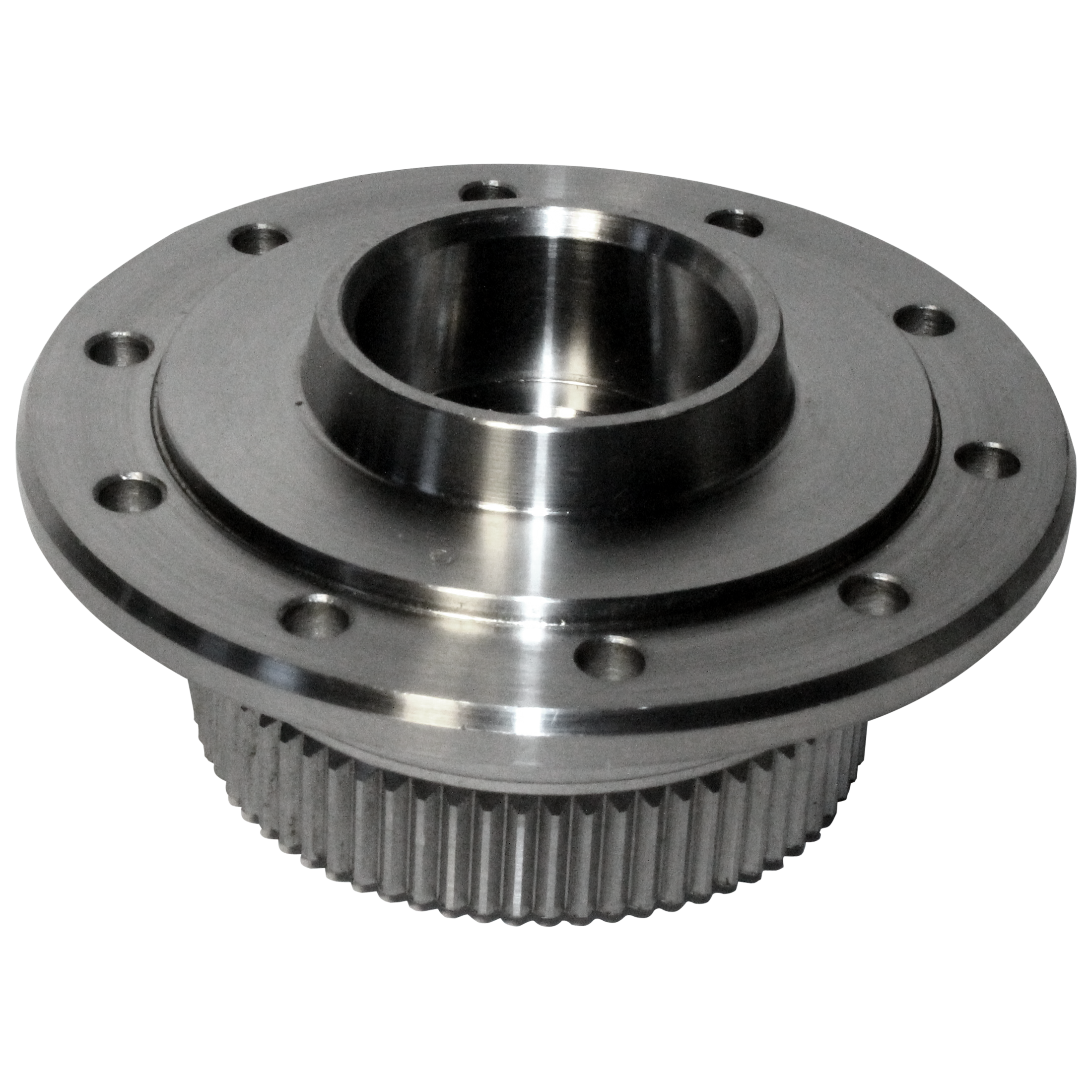

 FX-13-34A
Turbine Hub FX-13-34A
& Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Height: 2.00"
  • Internal Teeth: 31
  • External Teeth: 68
  • Outside Dia: 4.05"
  • Used with 35402B bearing
16 Turbine Hub Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Internal Teeth: 31
  • External Teeth: 68
  • Outside Dia: 4.05"
 FX-13-34HT
Turbine Hub FX-13-34HT
& Use With FW-2-6 or 35402B Bearing, With Seal Groove
  • Internal Teeth: 31
  • External Teeth: 68
  • Outside Dia: 4.05"
16 Turbine Hub
  • Height: 2.00"
  • Outside Dia: 4.050"
 FX-13-45HT
Turbine Hub FX-13-45HT
&
  • Height: 2.00"
  • Outside Dia: 4.050"
16 Turbine Hub Conversion Kit Converts a Ford C5, C6, AOD and E4OD turbine to fit a Ford 4R100 multi-plate clutch.
  • Height: 4.000
  • Internal Teeth: 31
  • External Teeth: 68
  • Material: Steel
  • Adapts Ford C5, C6, AOD and E4OD turbine to 4R100 multi-plate clutch-assembly.
 FX-13-45HTK
Turbine Hub Conversion Kit FX-13-45HTK
& Converts a Ford C5, C6, AOD and E4OD turbine to fit a Ford 4R100 multi-plate clutch.
  • Height: 4.000
  • Internal Teeth: 31
  • External Teeth: 68
  • Material: Steel
  • Adapts Ford C5, C6, AOD and E4OD turbine to 4R100 multi-plate clutch-assembly.
16 Turbine Hub Without Seal Groove Adapts the Ford C5, C6, AOD and E4OD turbine to the 4R100 multiplate clutch assembly.
  • Height: 2.00"
  • Internal Teeth: 31
  • External Teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.05"
 FX-13-35HT
Turbine Hub FX-13-35HT
Without Seal Groove & Adapts the Ford C5, C6, AOD and E4OD turbine to the 4R100 multiplate clutch assembly.
  • Height: 2.00"
  • Internal Teeth: 31
  • External Teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.05"
16 Turbine Hub With Lube Holes, 4R100 E4OD Adapts the Ford C5, C6, AOD and E4OD turbine to the 4R100 multiplate clutch assembly.
  • Height: 2.00"
 FX-13-35SHT

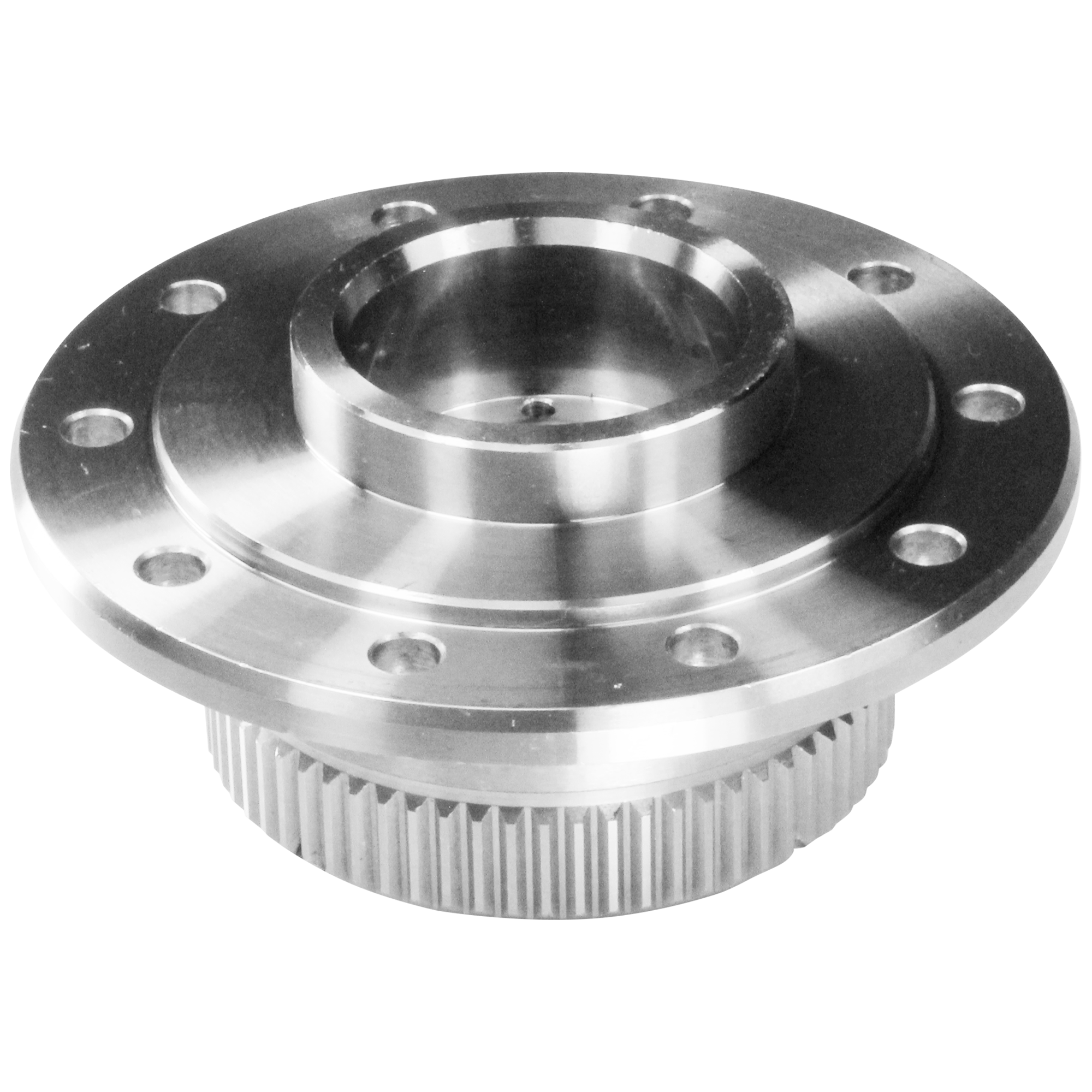

Turbine Hub FX-13-35SHT
With Lube Holes, 4R100 E4OD & Adapts the Ford C5, C6, AOD and E4OD turbine to the 4R100 multiplate clutch assembly.
  • Height: 2.00"
16 Turbine Hub Clutch and to be Used with FX-23-11N, FX-23-43 Clutches and FO-25-5 O-Ring
  • Internal Teeth: 31
  • External Teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.05"
  • To Convert to Single Plate Clutch and to be Used with Clutches (FX-23-11N, FX-23-43) and O-Ring (FO-25-5)
 FX-13-37HT
Turbine Hub FX-13-37HT
& Clutch and to be Used with FX-23-11N, FX-23-43 Clutches and FO-25-5 O-Ring
  • Internal Teeth: 31
  • External Teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.05"
  • To Convert to Single Plate Clutch and to be Used with Clutches (FX-23-11N, FX-23-43) and O-Ring (FO-25-5)
17 Rivet 10 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
 FX-12-6
Rivet FX-12-6
& 10 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
17 Rivet Fits FX-13-45HTK turbine hub
  • Length: 0.445"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.328"
 SX-12-10
Rivet SX-12-10
& Fits FX-13-45HTK turbine hub
  • Length: 0.445"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.328"
18 Turbine Washer
  • Thickness: .06"
  • Internal Teeth: 12
  • Material: Plastic
  • Outside Dia: 3.99"
  • Inside Dia: 2.71"
 FW-9-19
Turbine Washer FW-9-19
&
  • Thickness: .06"
  • Internal Teeth: 12
  • Material: Plastic
  • Outside Dia: 3.99"
  • Inside Dia: 2.71"
19 Seal Ring Fits early-type turbine hubs,with seal grooves
  • Height: 0.097"
  • Width: 0.098"
  • Color: Blue With Red Speckles
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.758
  • Outside Dia Metric: 70.0532
 FO-25-12
Seal Ring FO-25-12
& Fits early-type turbine hubs,with seal grooves
  • Height: 0.097"
  • Width: 0.098"
  • Color: Blue With Red Speckles
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.758
  • Outside Dia Metric: 70.0532
20 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 2.35
  • Inside Dia: 1.56
  • Outside Dia Metric: 59.69
  • Inside Dia metric: 39.62
 FW-2-6
Bearing FW-2-6
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 2.35
  • Inside Dia: 1.56
  • Outside Dia Metric: 59.69
  • Inside Dia metric: 39.62
20 Bearing With Lip Late
  • Thickness: 0.143
  • Thickness metric: 3.63
  • Bearing type: Enclosed
  • Outside Dia: 2.29
  • Inside Dia: 1.540
  • Outside Dia Metric: 58.17
  • Inside Dia metric: 39.12
 FW-2-8
Bearing FW-2-8
With Lip & Late
  • Thickness: 0.143
  • Thickness metric: 3.63
  • Bearing type: Enclosed
  • Outside Dia: 2.29
  • Inside Dia: 1.540
  • Outside Dia Metric: 58.17
  • Inside Dia metric: 39.12
21 Bushing for FX-23-45
  • Thickness: 0.366"
  • Housing Bore Dia: 2.835"
  • Shaft Dia: 2.708"
  • Material: Bi-metal
  • Type: Precision
 FB-18-7
Bushing FB-18-7
& for FX-23-45
  • Thickness: 0.366"
  • Housing Bore Dia: 2.835"
  • Shaft Dia: 2.708"
  • Material: Bi-metal
  • Type: Precision
22 Piston Plate With FB-18-7 Bushing FX-23-37

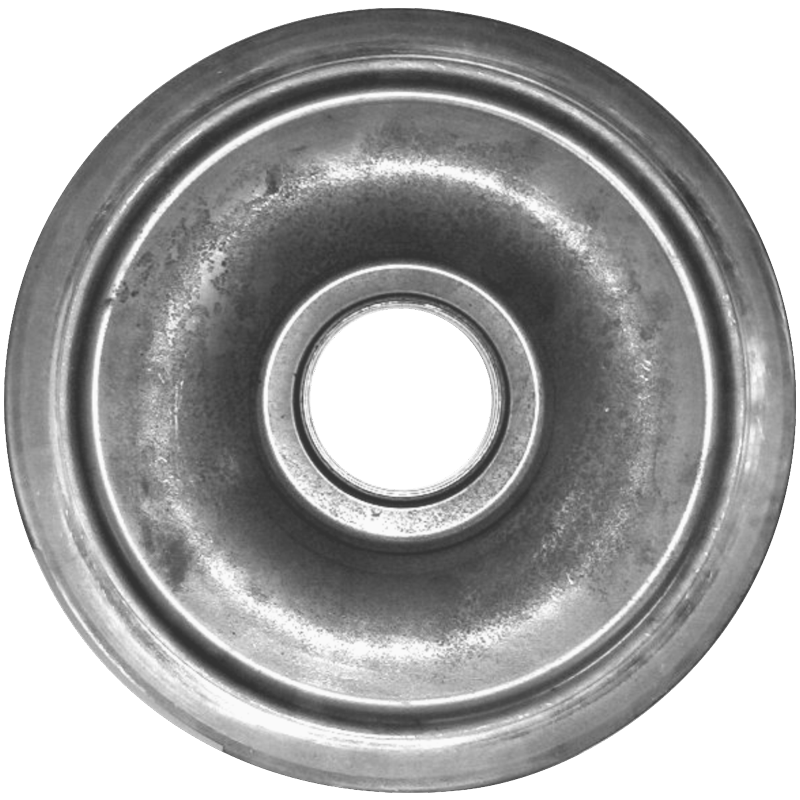

Piston Plate FX-23-37
With FB-18-7 Bushing &
22 Clutch Plate Intermediate, 36 teeth I.D. Early design FX-23-39

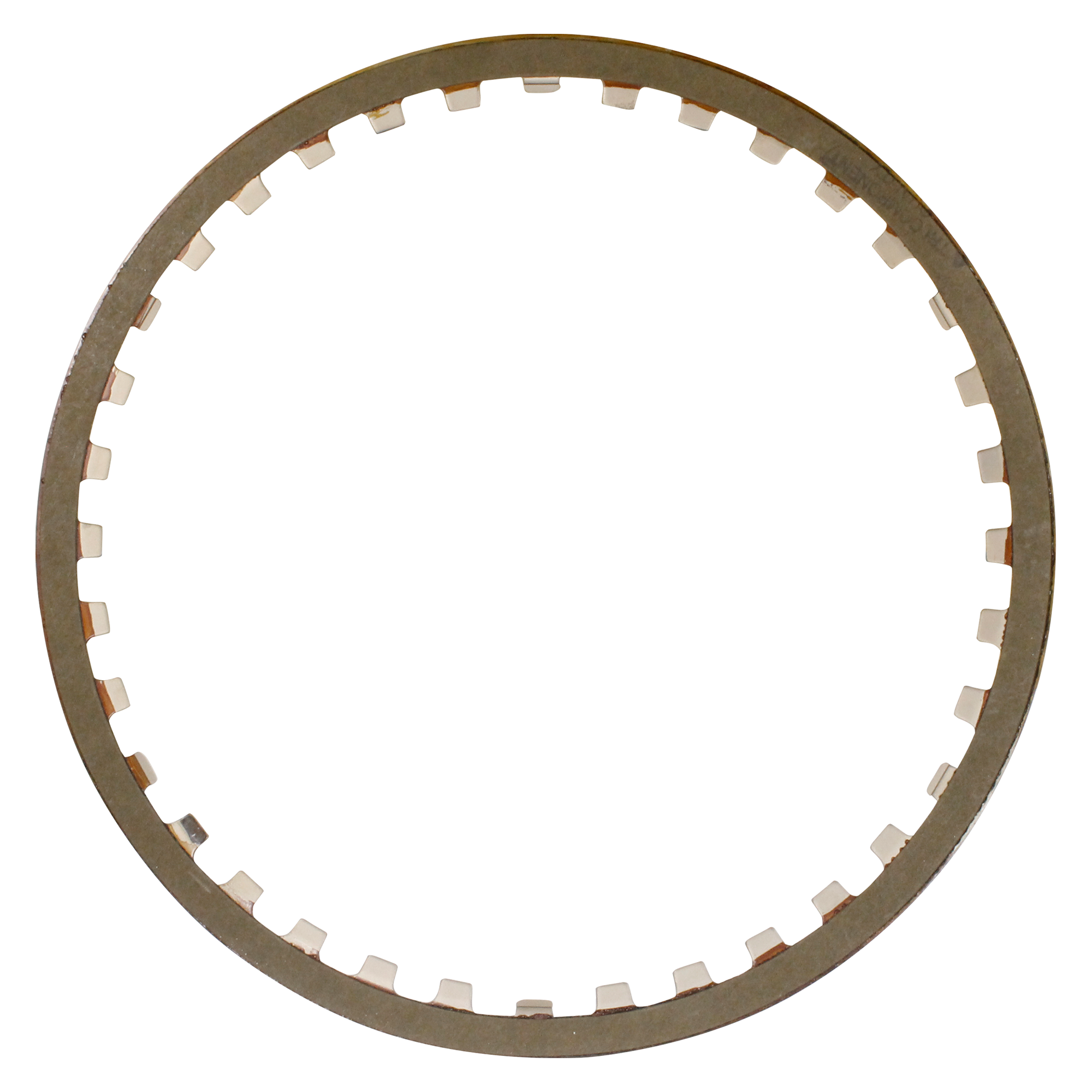

Clutch Plate FX-23-39
Intermediate, 36 teeth I.D. & Early design
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.85
  • Inside Dia: 9.8
  • For Drive Ring
 FX-23-49
Lining (Friction Ring,Wafer) FX-23-49
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.85
  • Inside Dia: 9.8
  • For Drive Ring
24 Drive Plate
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Lining Part-ID: FX-23-49K
 FX-23-46

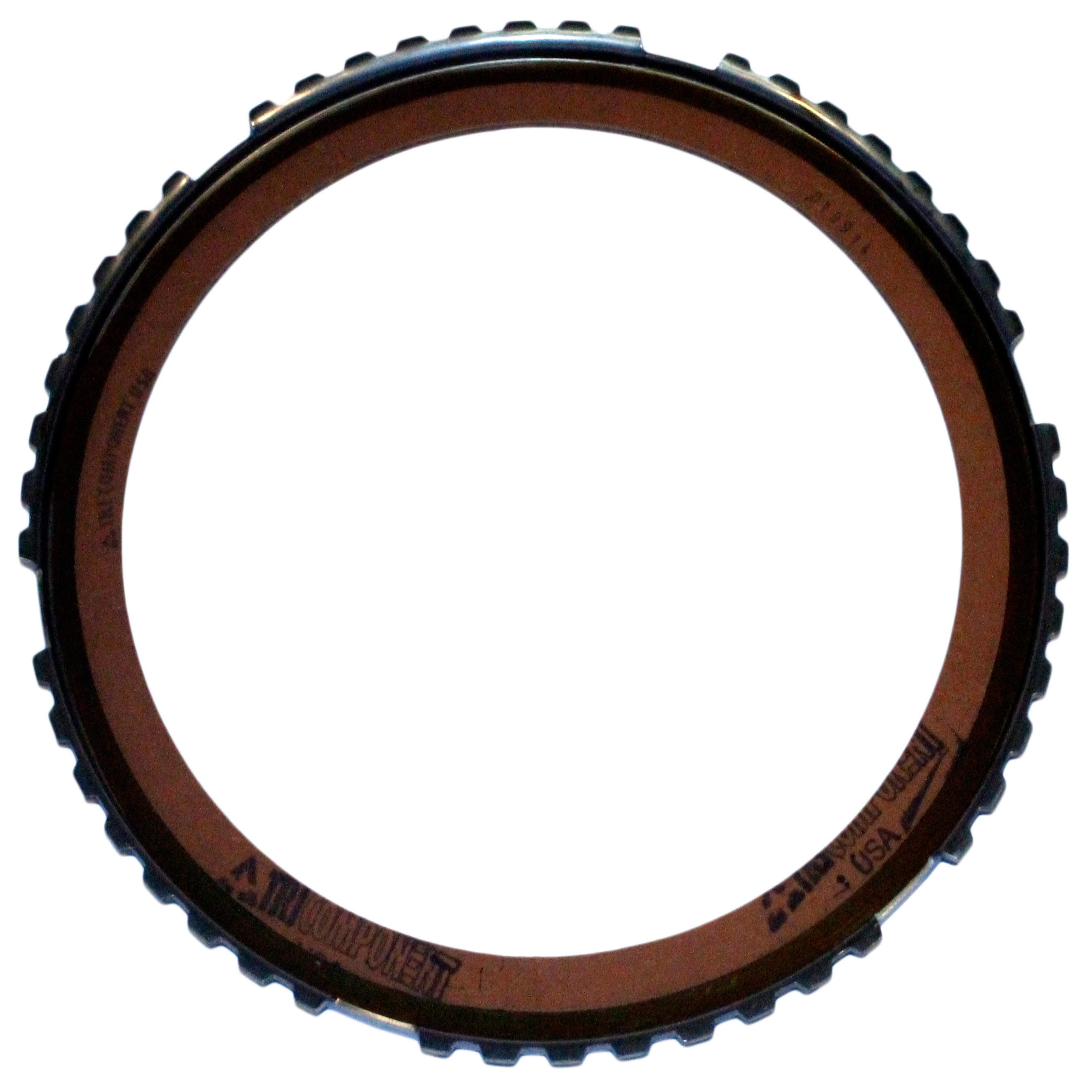

Drive Plate FX-23-46
&
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Lining Part-ID: FX-23-49K
24 Drive Plate Friction, High-Carbon
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Uses 1 Lining Part ID: FX-23-49HC
 FX-23-46HC
Drive Plate FX-23-46HC
Friction, High-Carbon &
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • Uses 1 Lining Part ID: FX-23-49HC
24 Drive Plate Unlined
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
 FX-23-46X

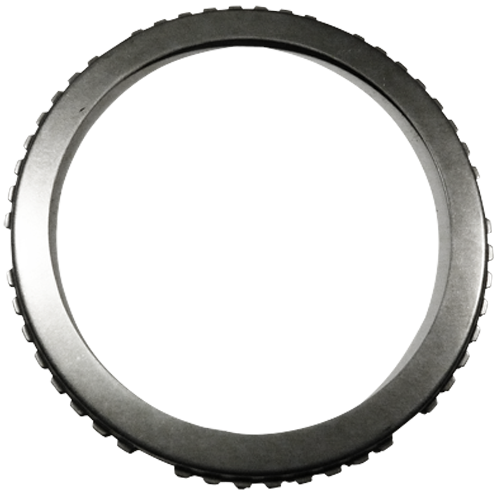

Drive Plate FX-23-46X
Unlined &
  • Height: 0.395"
  • Thickness: 0.104"
  • External Teeth: 54 (6 removed)
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
24 Clutch Plate Kit Includes: FX-23-37, FX-23-78 & FX-23-42
  • NOT FOR DIESEL (GASOLINE ONLY)
 FX-23-72
Clutch Plate Kit FX-23-72
Includes: FX-23-37, FX-23-78 & FX-23-42 &
  • NOT FOR DIESEL (GASOLINE ONLY)
24 Drive Plate
  • Height: 0.895"
  • Thickness: 0.895"
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • NOT FOR DIESEL (GASOLINE ONLY). Lining Part-ID: FX-23-49T.

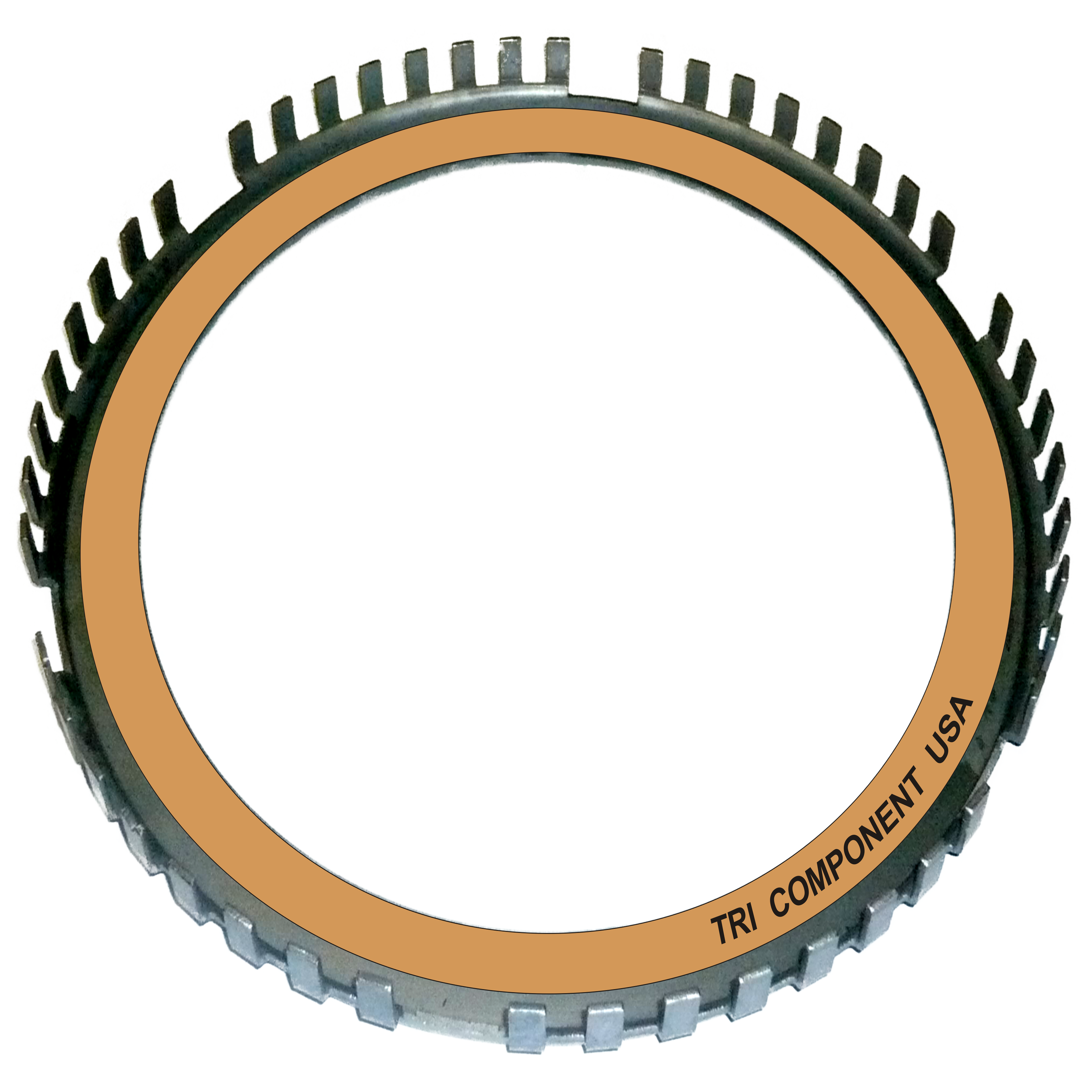

 FX-23-78
Drive Plate FX-23-78
&
  • Height: 0.895"
  • Thickness: 0.895"
  • Lining Count: 1
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
  • NOT FOR DIESEL (GASOLINE ONLY). Lining Part-ID: FX-23-49T.
24 Drive Ring Unbonded, 4R100
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
 FX-23-78X
Drive Ring FX-23-78X
Unbonded, 4R100 &
  • Outside Dia: 12.144"
  • Inside Dia: 9.800"
25 Lining (Friction Ring,Wafer) For Damper 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125
  • Inside Dia: 9.813
 FX-23-52
Lining (Friction Ring,Wafer) FX-23-52
& For Damper 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125
  • Inside Dia: 9.813
25 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125"
  • Inside Dia: 10"
 SX-23-4
Lining (Friction Ring,Wafer) SX-23-4
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125"
  • Inside Dia: 10"
25.1 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
&
  • Material: Steel
  • 1/8-27 NPT
25.1 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap &
25.1 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
&
  • Allen socket drain plug for use with drilled converters.
26 Clutch Plate Assembly 8 Springs, Late Design, 54 Teeth (6 Missing)
  • Replaces LAD 116
 FX-23-42
Clutch Plate Assembly FX-23-42
8 Springs, Late Design, 54 Teeth (6 Missing) &
  • Replaces LAD 116
27 Clutch Plate Assembly Multi Plate With Bushing for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35
  • Multi Plate with Bushing, for PTO. Includes Items #21, 22, 23, 24, 25, 26. Use With FX-13-35HT Turbine Hub
 FX-23-45
Clutch Plate Assembly FX-23-45
Multi Plate With Bushing & for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35
  • Multi Plate with Bushing, for PTO. Includes Items #21, 22, 23, 24, 25, 26. Use With FX-13-35HT Turbine Hub
27 Clutch Plate Assembly Bulk Packed, 4 Pieces. for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35 FX-23-45-4

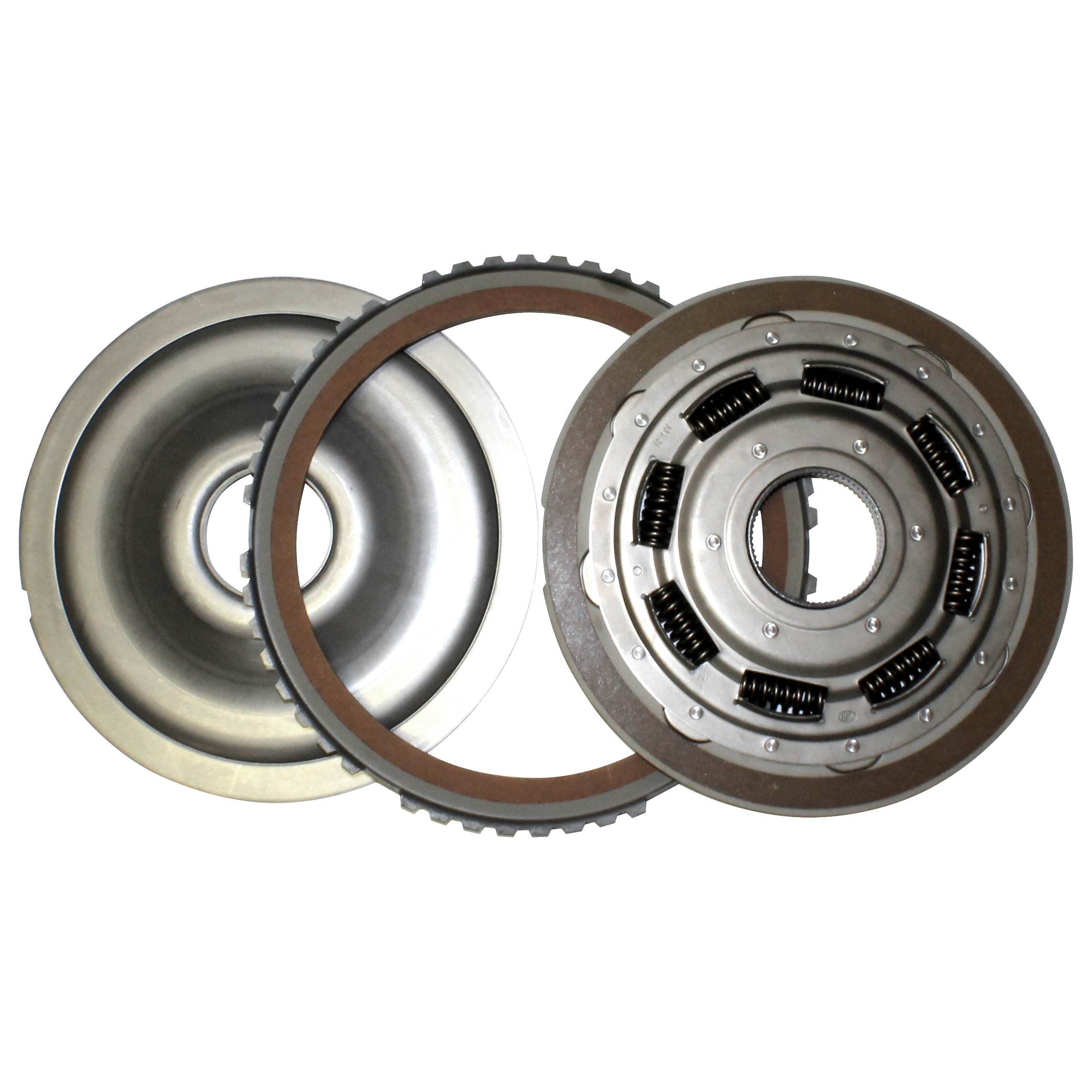

Clutch Plate Assembly FX-23-45-4
Bulk Packed, 4 Pieces. & for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35
27 Clutch Plate Assembly 3 Pieces for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35 FX-23-45A

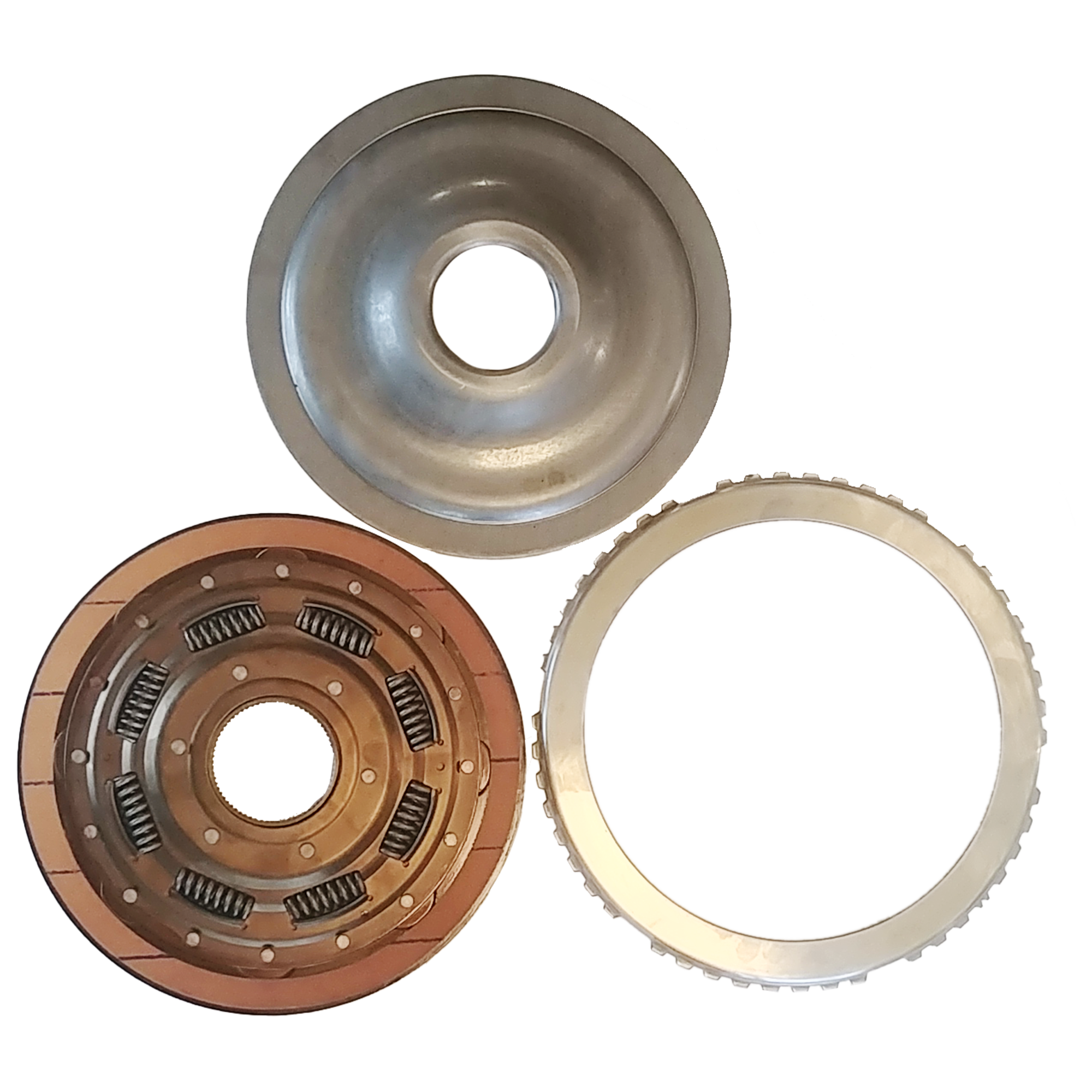

Clutch Plate Assembly FX-23-45A
3 Pieces & for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35
27 Clutch Plate Assembly 3 Pieces, 4R100 FX-23-45AT
Clutch Plate Assembly FX-23-45AT
3 Pieces, 4R100 &
27 Clutch Plate Assembly Unlined for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35 FX-23-45AX
Clutch Plate Assembly FX-23-45AX
Unlined & for PTO, Contains Items #21, 22, 23, 24, 25, 26. Use With Turbine Hub FX-13-35
28 Front Cover
  • 6 Studs, Grob Design, OE, Stamped
 FX-22-27
Front Cover FX-22-27
&
  • 6 Studs, Grob Design, OE, Stamped
28 Front Cover
  • 6 Short Studs, Billet, Grob Design, Gas and Diesel
 FX-22-29

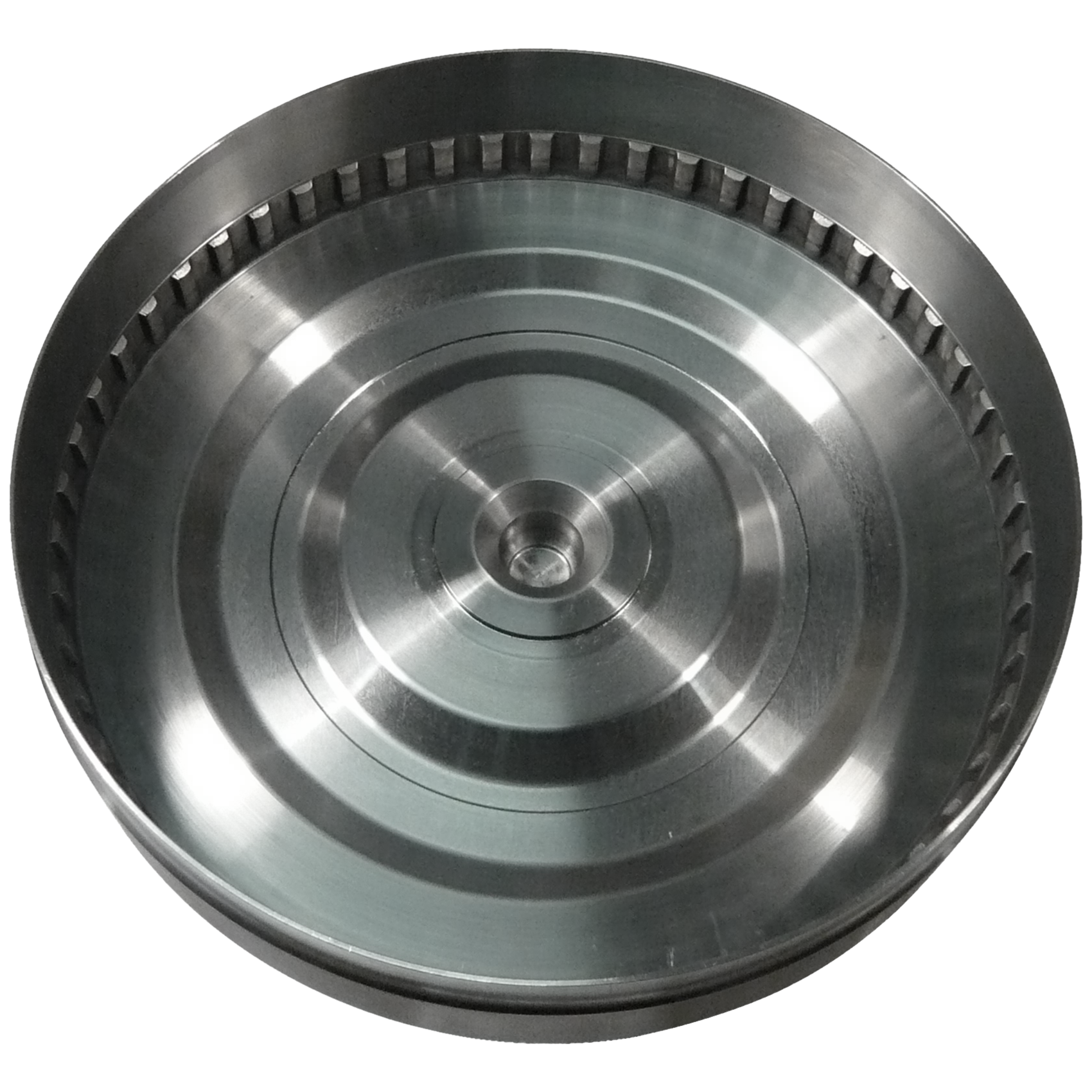

Front Cover FX-22-29
&
  • 6 Short Studs, Billet, Grob Design, Gas and Diesel
28 Front Cover Heavy Duty
  • 4 Long Studs, Billet, Grob Design, Gas Only
 FX-22-36
Front Cover FX-22-36
Heavy Duty &
  • 4 Long Studs, Billet, Grob Design, Gas Only
29 Stud T-Head 6 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
Stud FX-10-14
T-Head & 6 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
29 Stud 6 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
Stud FX-10-3
& 6 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
30 Studcap Plastic Stud Protector 6 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 6 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
30 Studcap 6 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 6 Pieces Required.
  • Inside Dia: 0.375
31 Nut Converter 6 Pieces Required. 26761
Nut 26761
Converter & 6 Pieces Required.
31 Nut Special Locking 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
Nut FX-10-7
Special Locking & 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
31 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
Nut & Studcap Kit FX-10-7K4STD
4 Pieces Each &
31 Nut Hex 6 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
Nut N-63
Hex & 6 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
