The Tri torque converter sprags contain sprag elements "cams" made from hardened heavy-duty alloy steel, special temper spring components and hardened cages all designed to extend the life of the rebuilt torque converter.
| Part ID | Outer-Race ID (inch) | Inner-Race OD (inch) | Thick (inch) | Cams |
|---|---|---|---|---|
| 8GMMD-HP | ||||
| AC-6 | 3.775 | |||

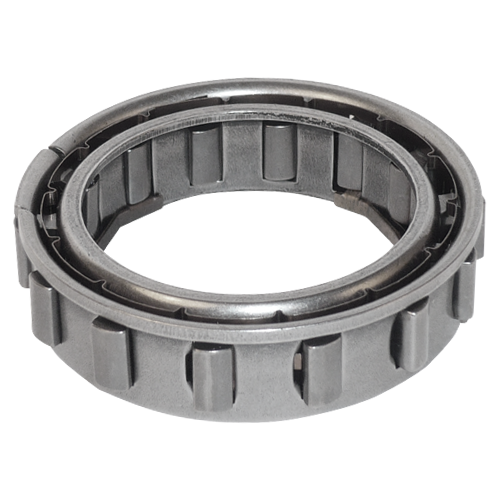

BC-6
|
2.281 | 1.625 | 0.530 | 14 |

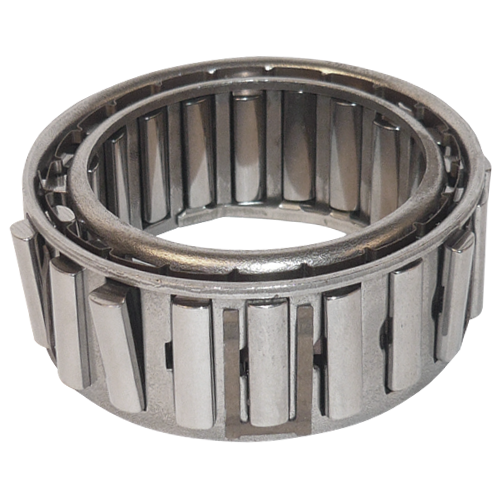

BC-6HD
|
2.406 | 1.750 | 0.875 | 20 |

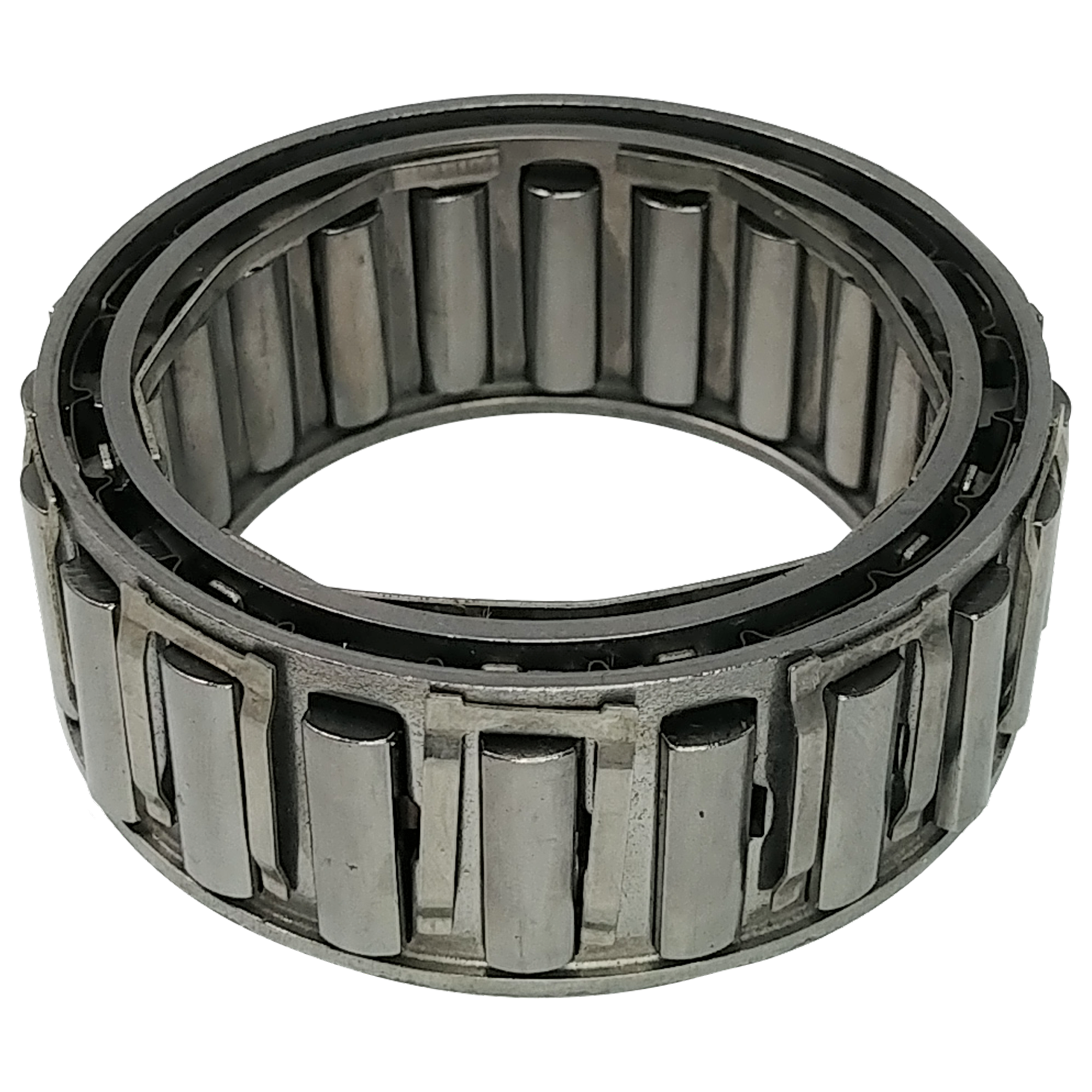

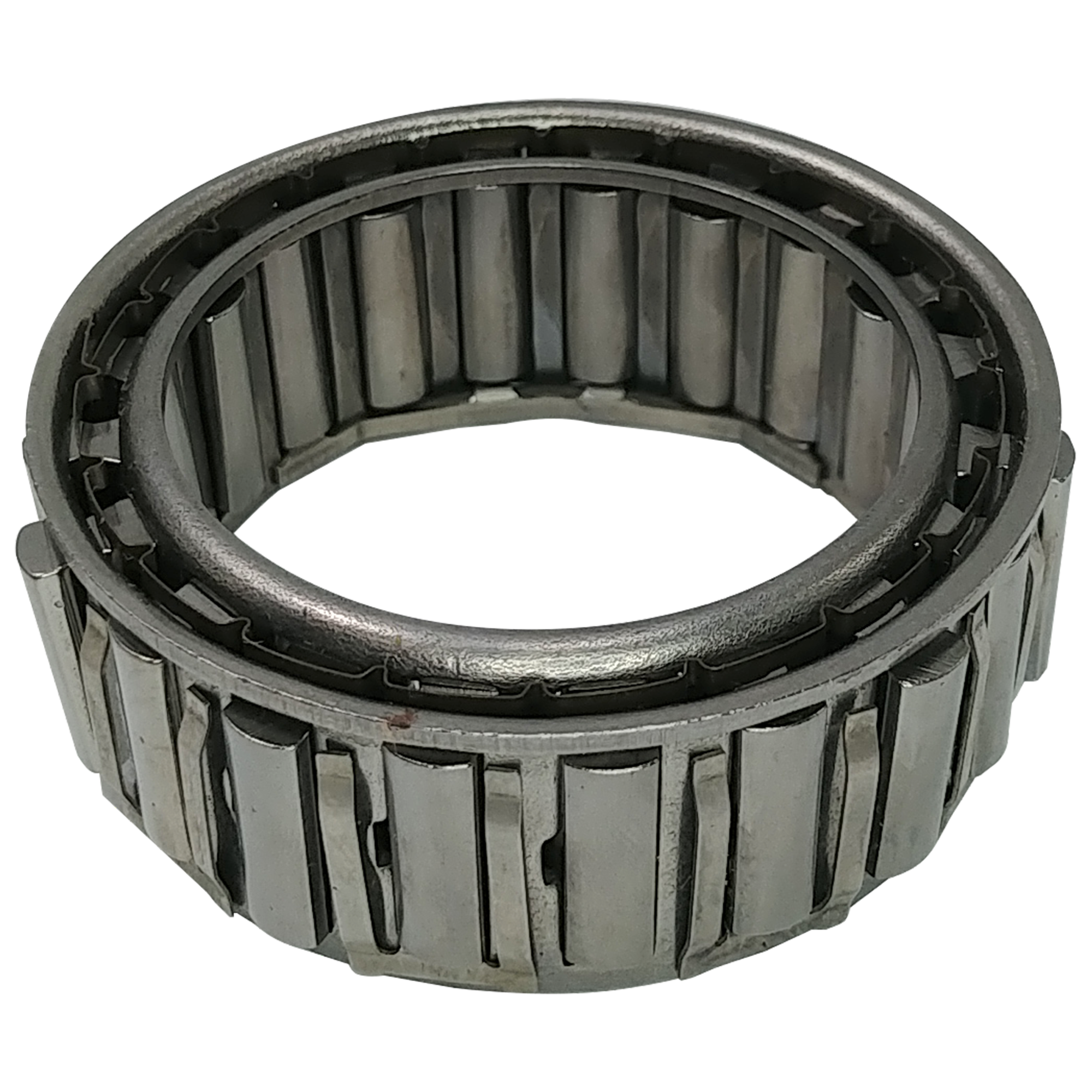

BC-6HDA
|
2.406 | 1.750 | ||

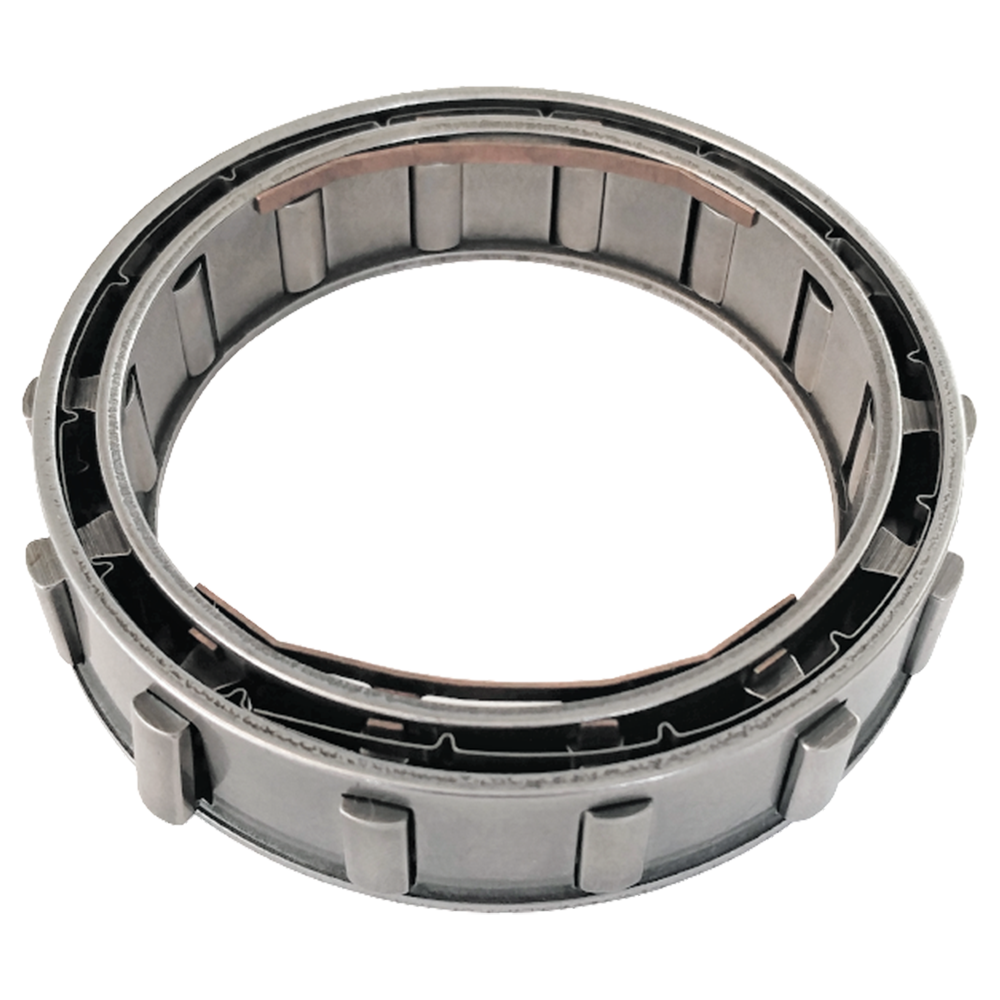

FC-6
|
2.812 | 2.156 | 0.625 | 14 |
| FC-6-1 | 2.812 | 2.156 | 0.625 | 20 |

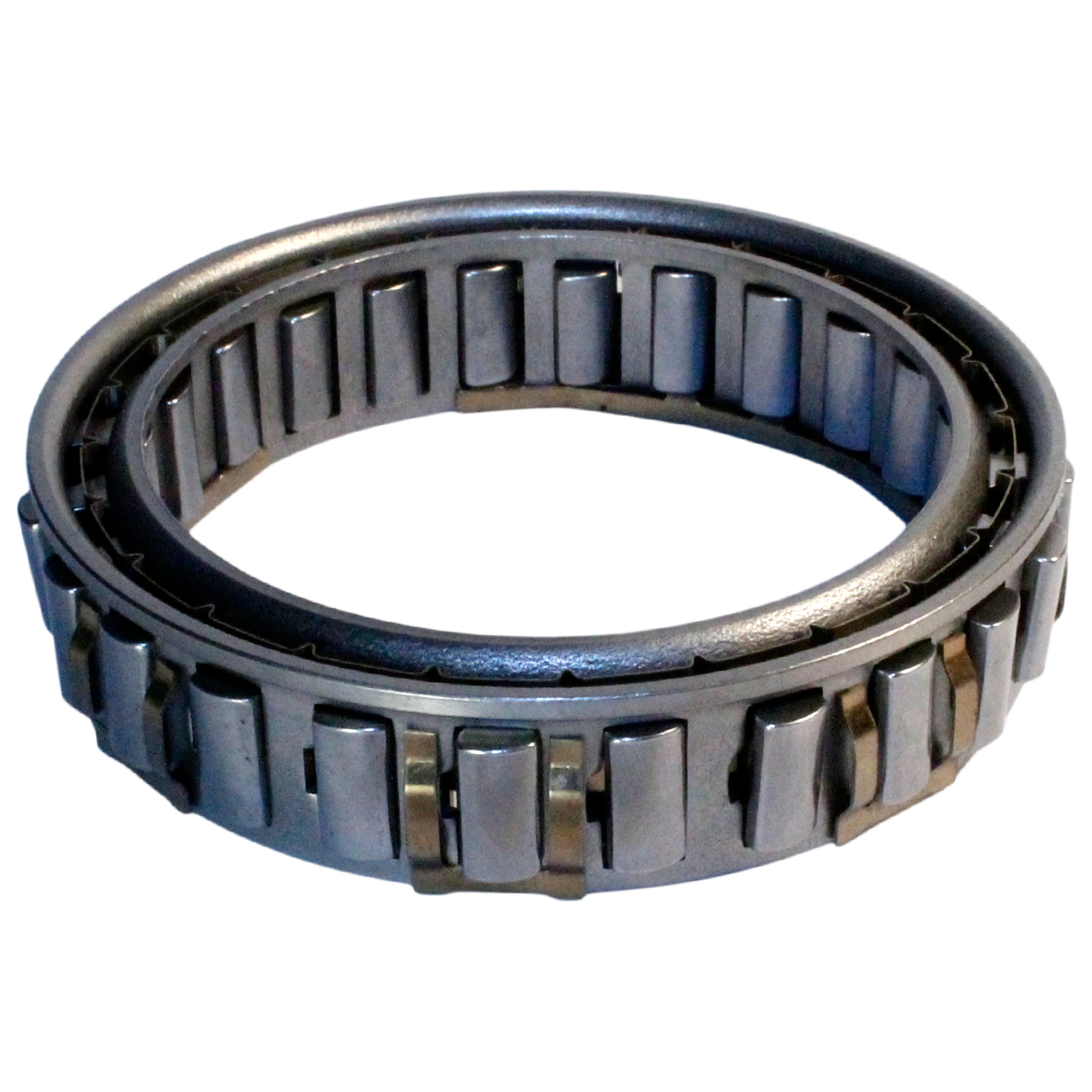

FC-6-10
|
2.812 | 2.156 | 0.625 | 24 |
| FC-6-11 | 3.031 | 2.375 | 0.792 | 26 |

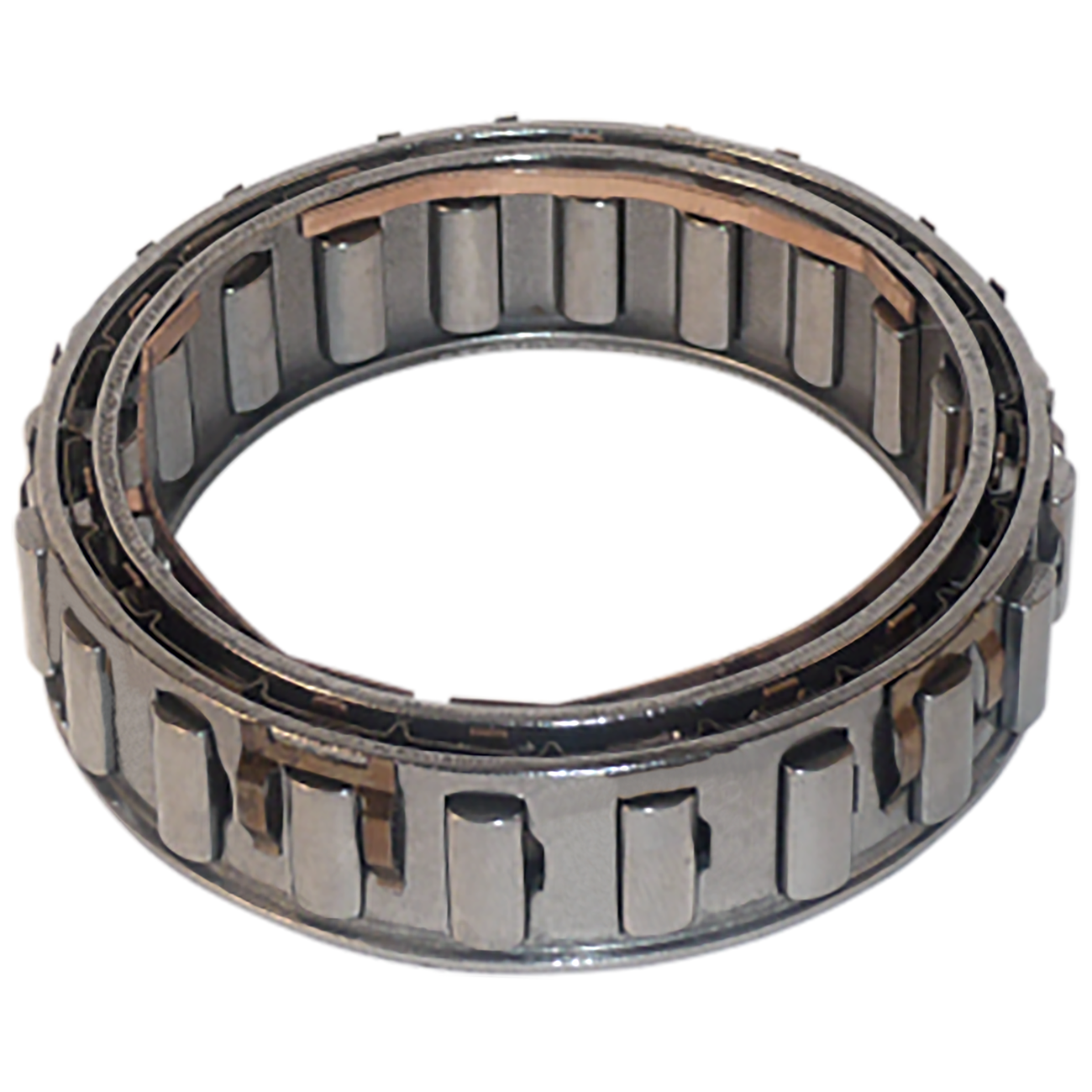

FC-6-3
|
2.812 | 2.156 | 0.625 | 20 |

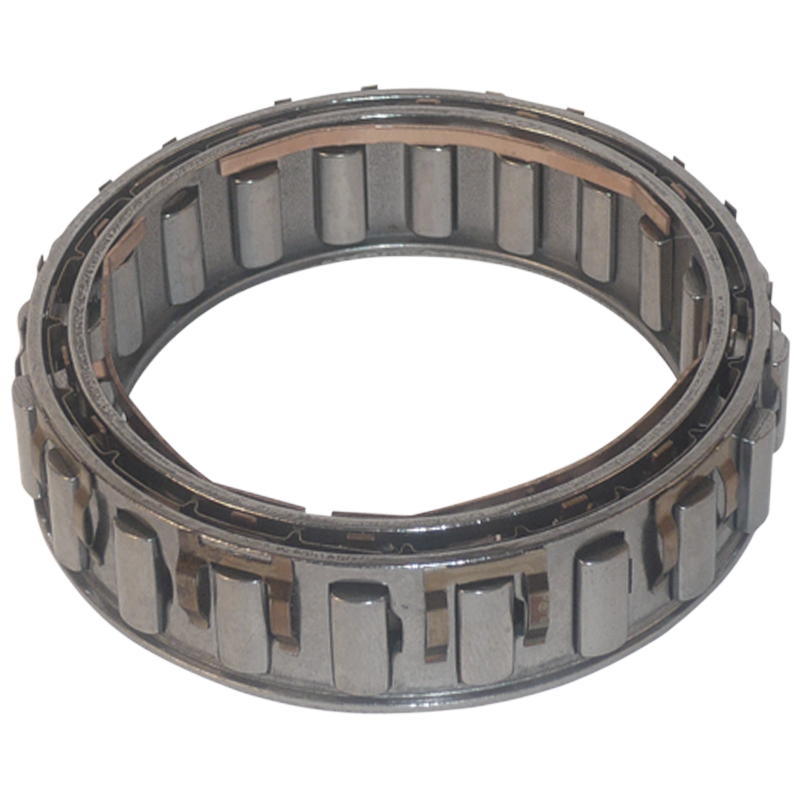

FC-6-4
|
2.812 | 2.156 | 0.625 | 20 |
| FC-6-9 | 2.812 | 2.156 | 0.625 | 22 |

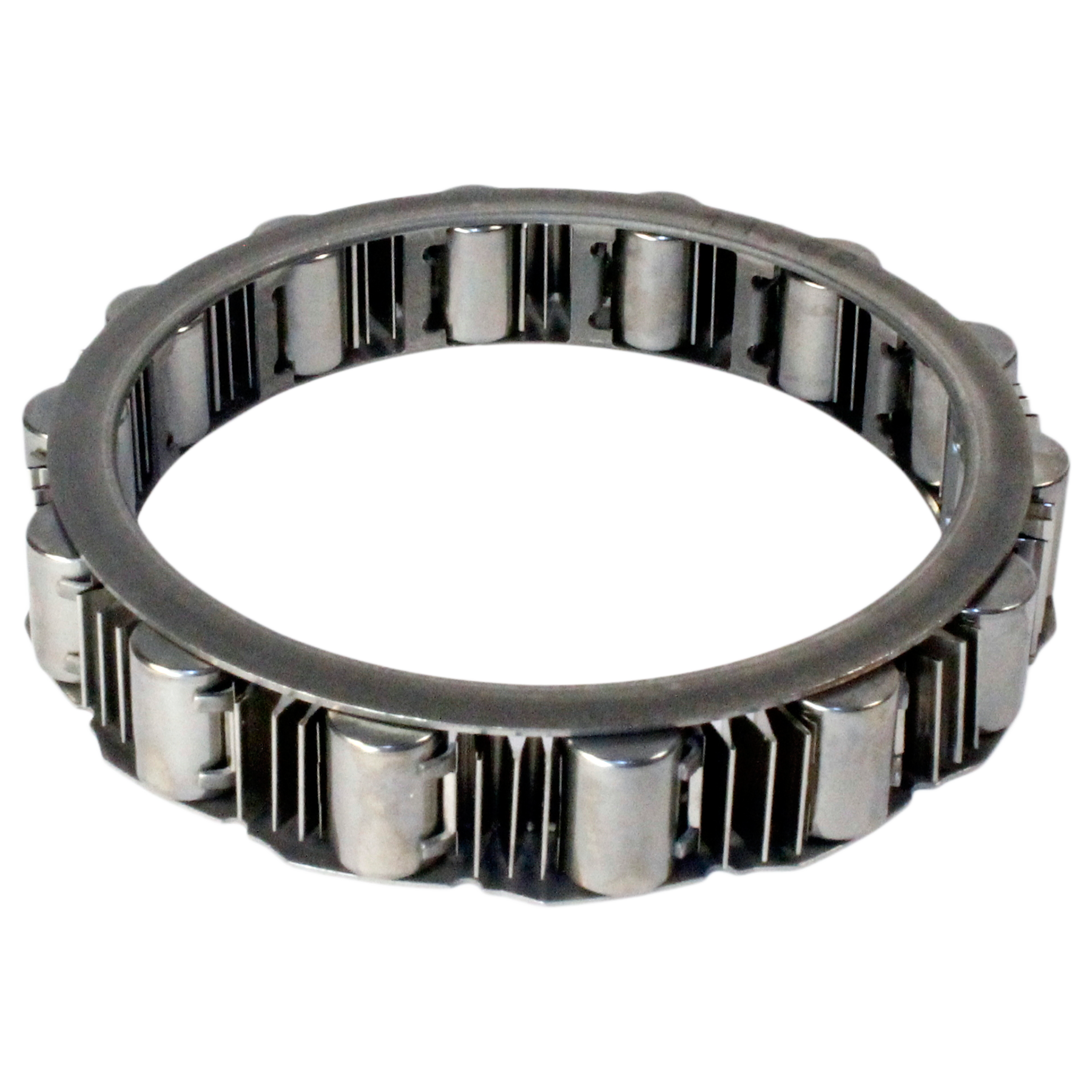

HC-6
.png )
|
||||

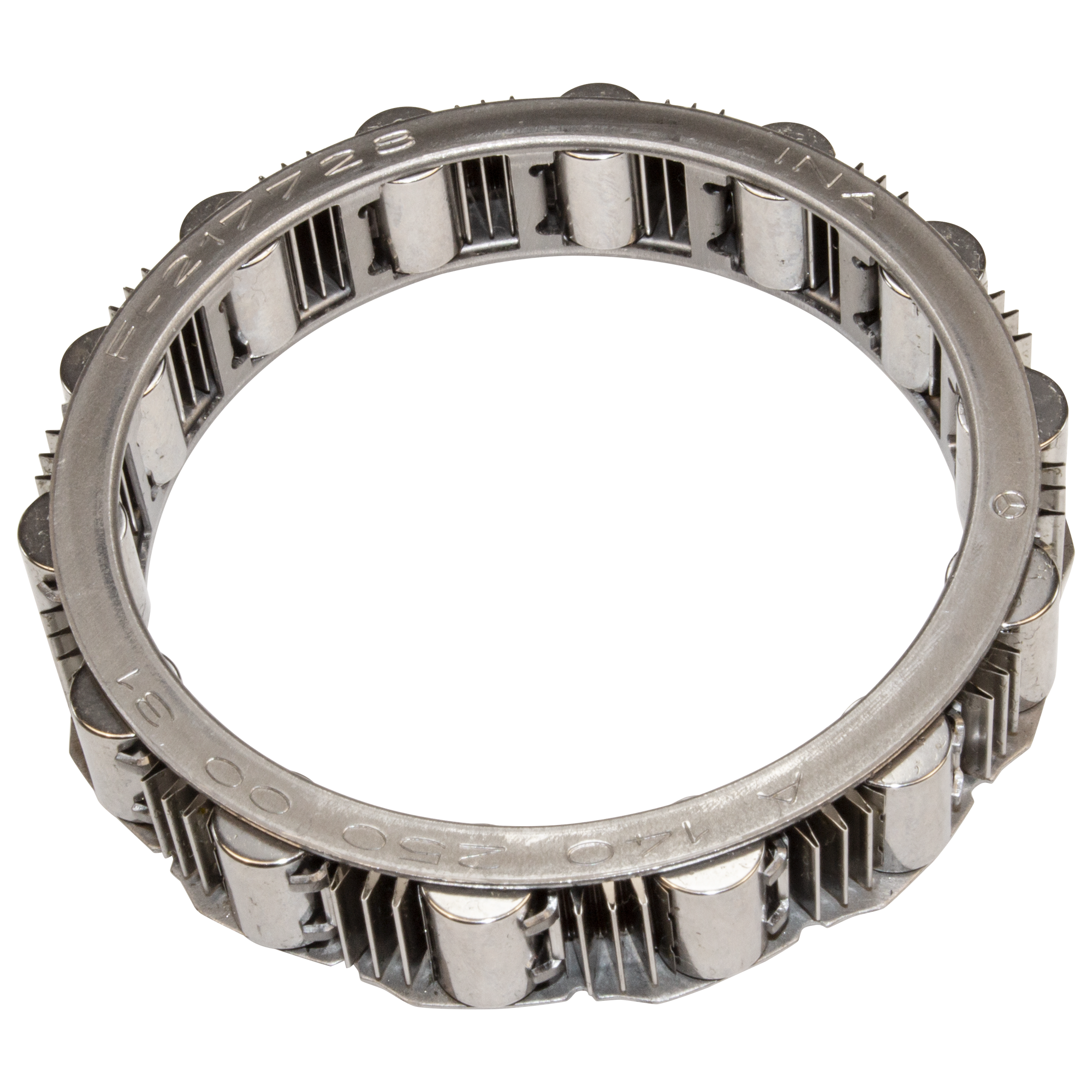

HC-6-1
.png )
.png )
|
0.531 | |||
| HC-6-2 | 0.540 | |||

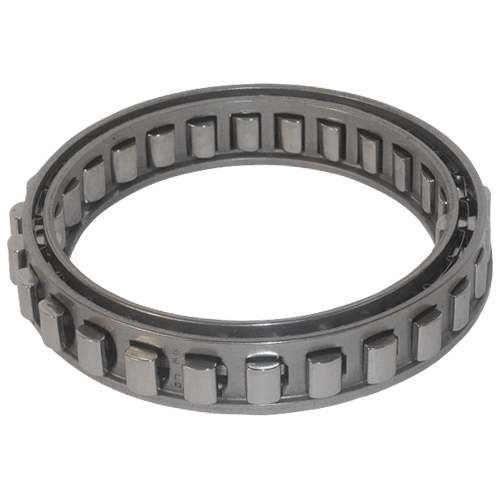

JC-6-2
|
2.820 | 2.410 | 0.450 | 26 |

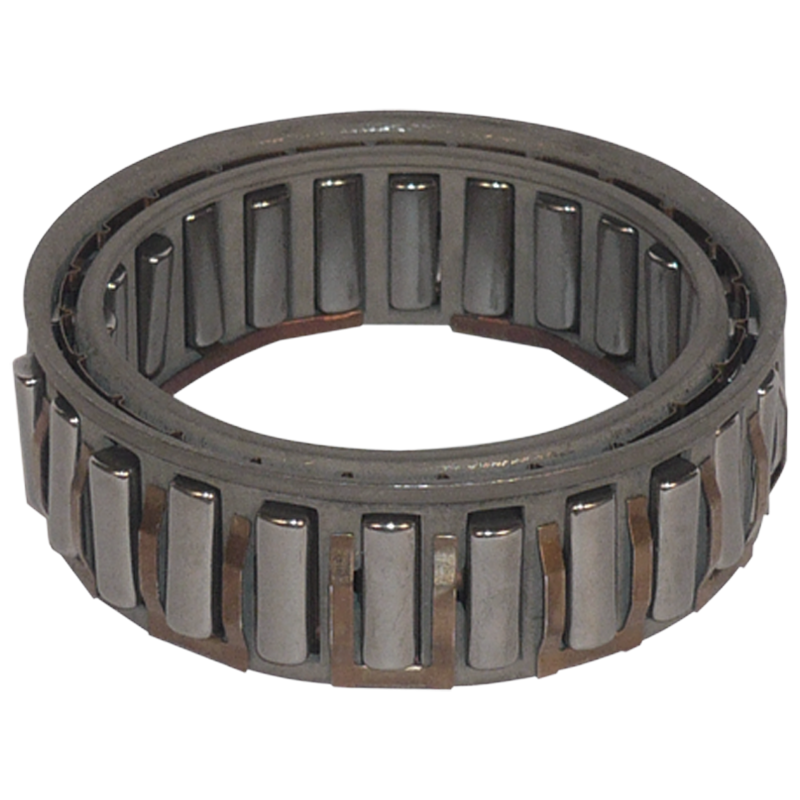

MC-1
|
2.804 | 2.148 | 0.810 | 24 |

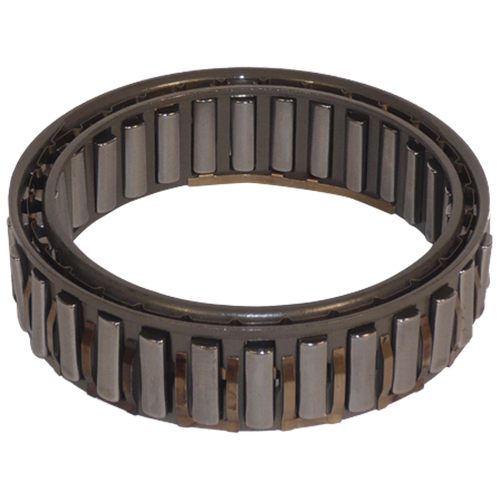

MC-2
|
3.499 | 2.843 | 0.825 | 39 |

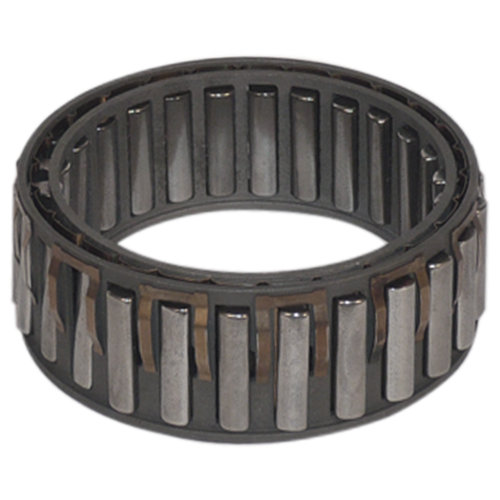

MC-3
|
3.000 | 2.344 | 1.000 | 26 |

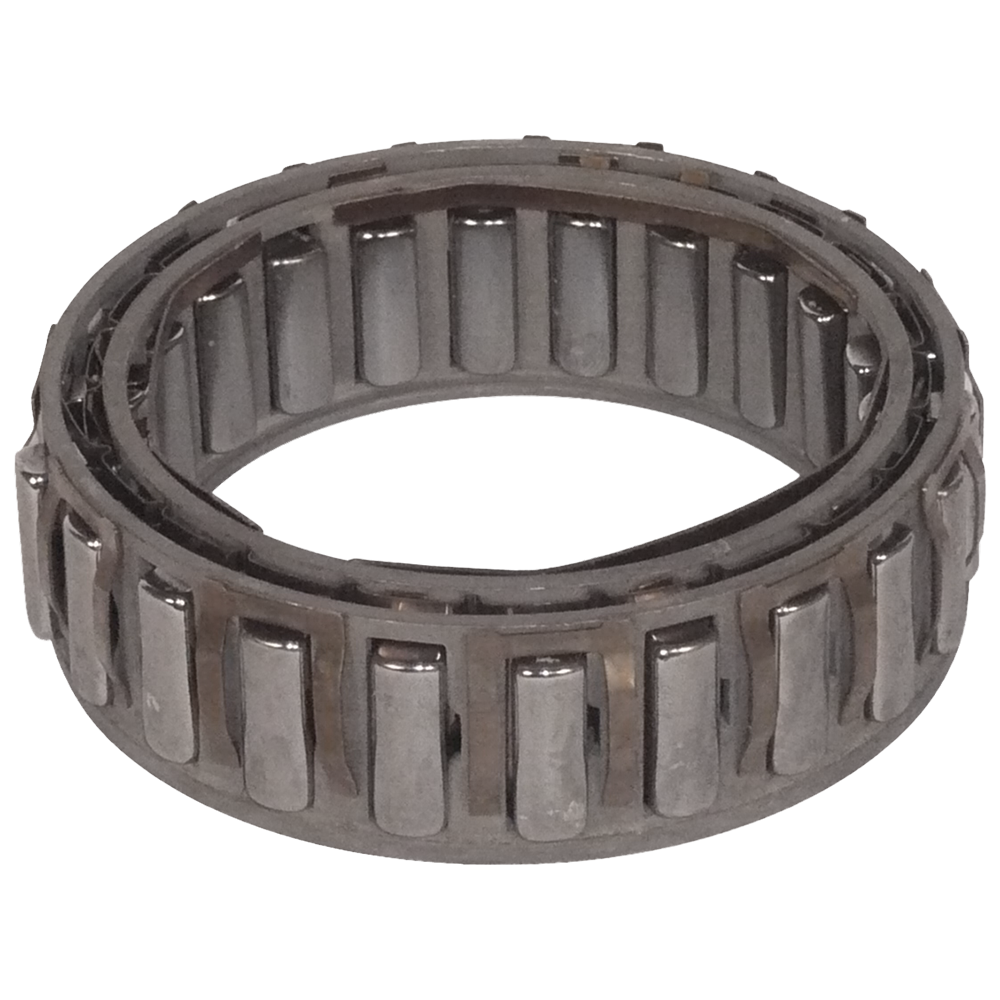

MC-4
|
2.614 | 1.958 | 0.750 | 22 |
| MC-5 | 2.540 | 1.870 | 0.730 | 22 |

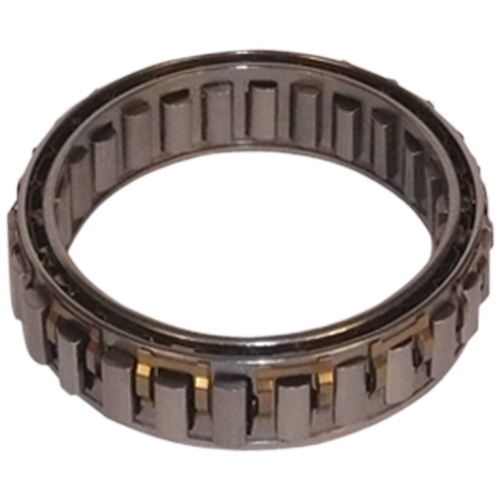

MC-6
|
2.930 | 2.274 | 0.635 | 26 |

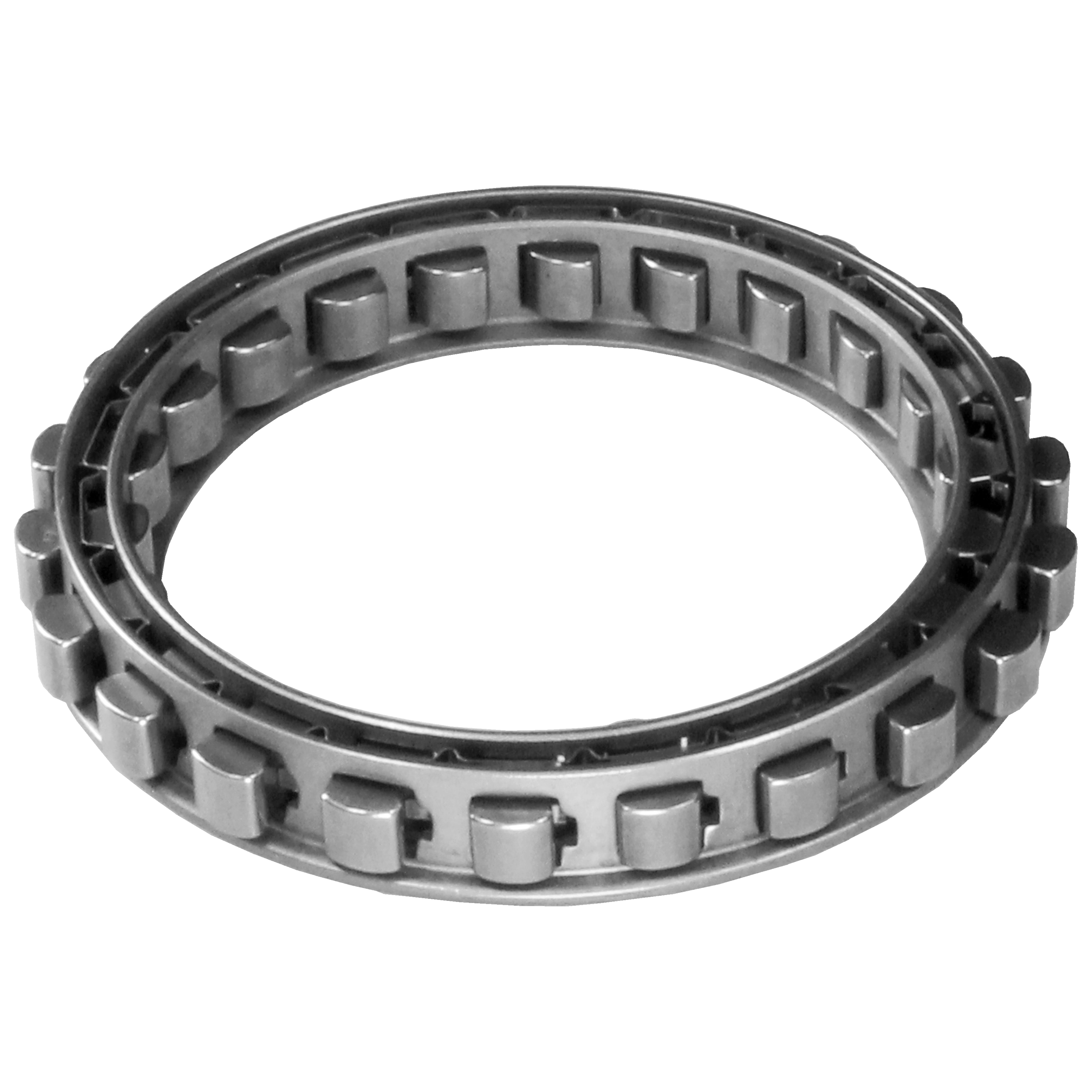

MC-8
|
2.522 | 1.862 | 0.347 | 22 |

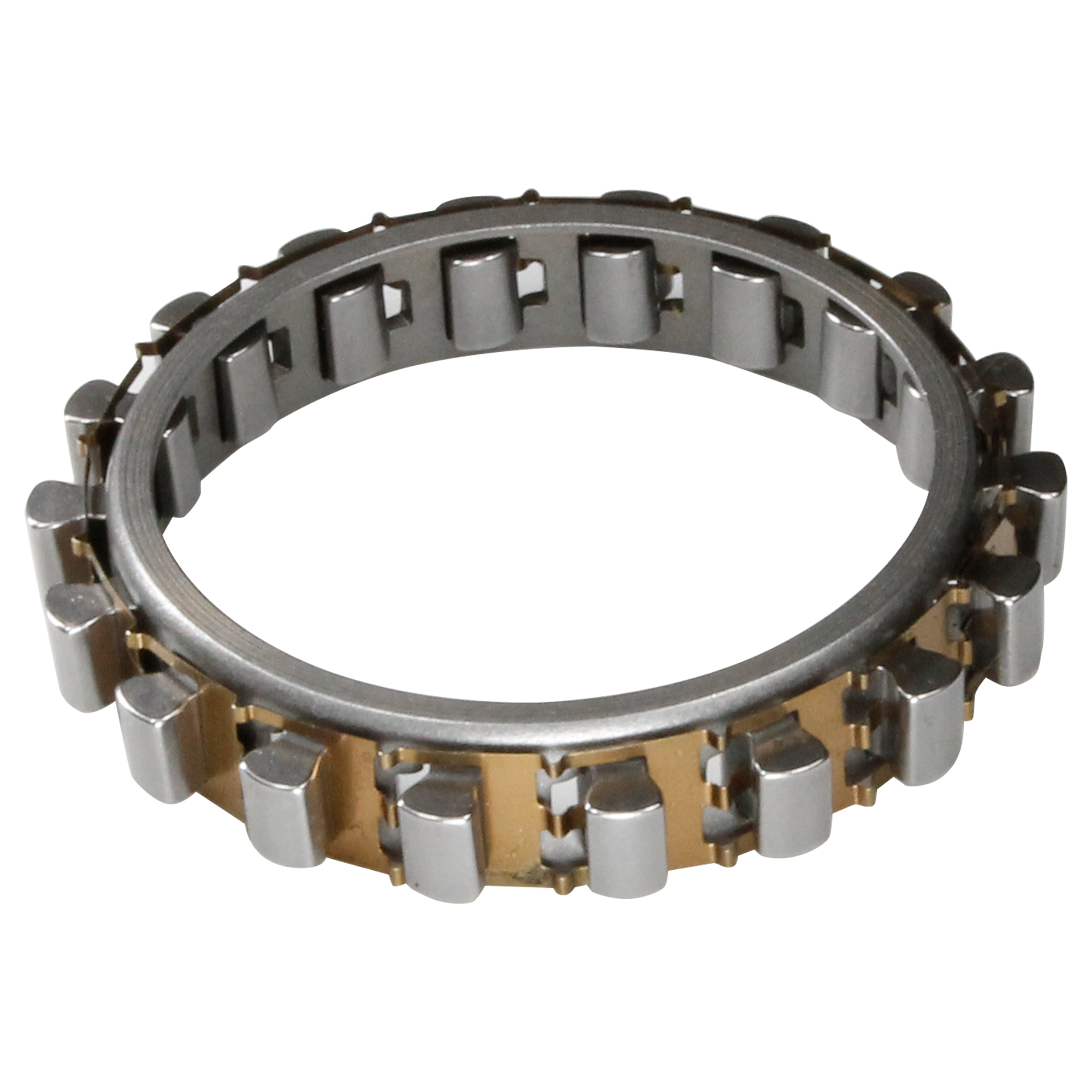

PC-6
|
2.615 | 1.958 | 0.457 | 18 |

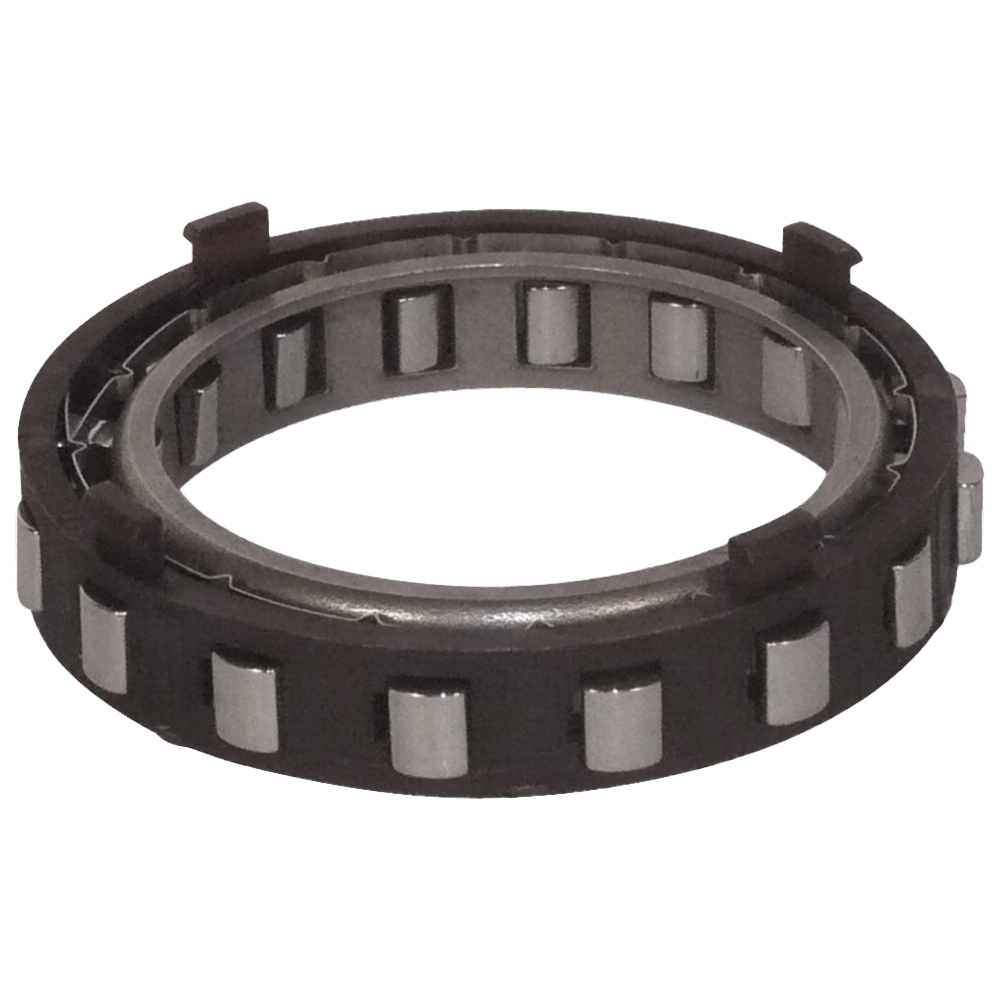

RC-6-1
|
2.400 | 1.750 | 0.420 | 16 |

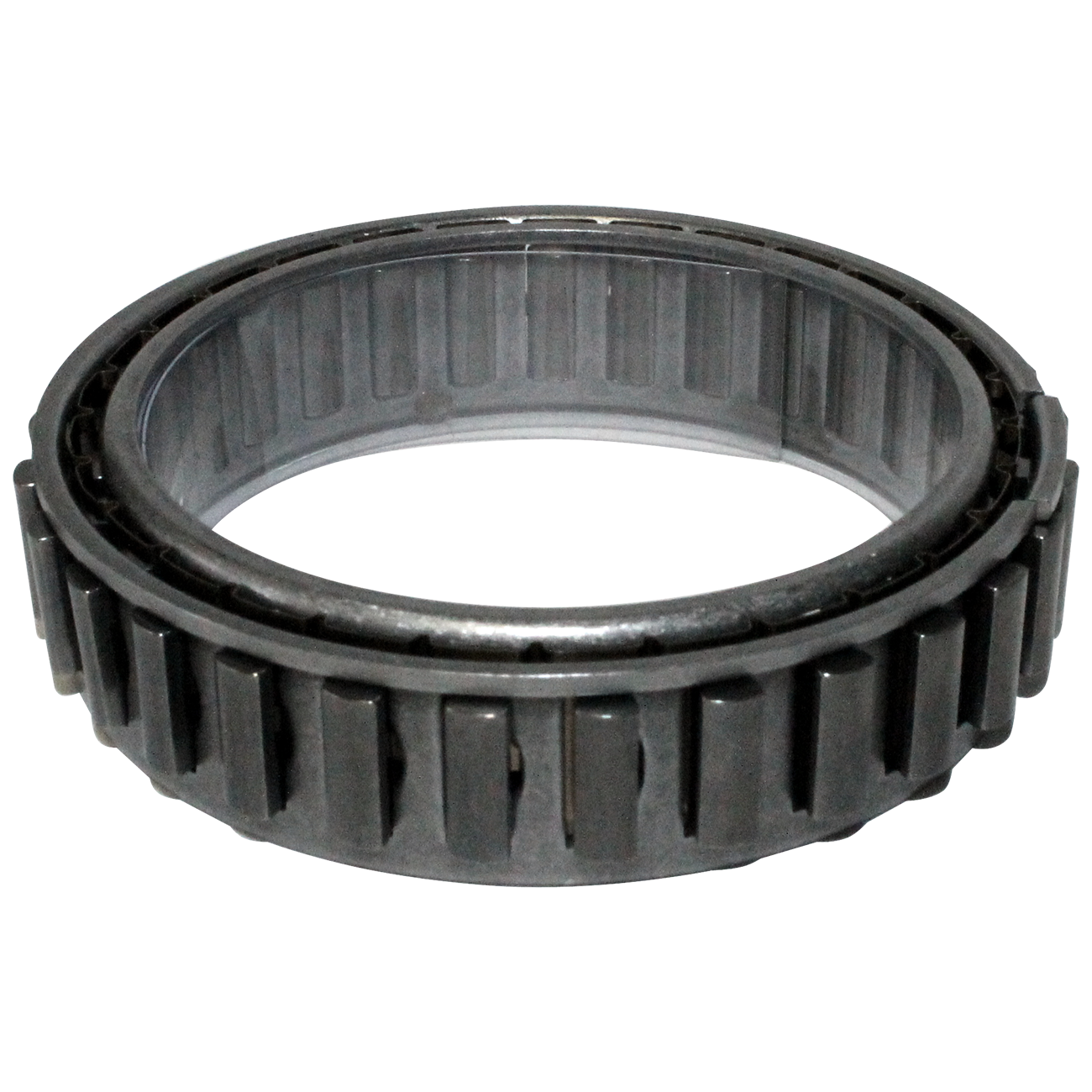

SC-6
|
3.281 | 2.625 | 0.750 | 29 |
| SC-6-1 | ||||

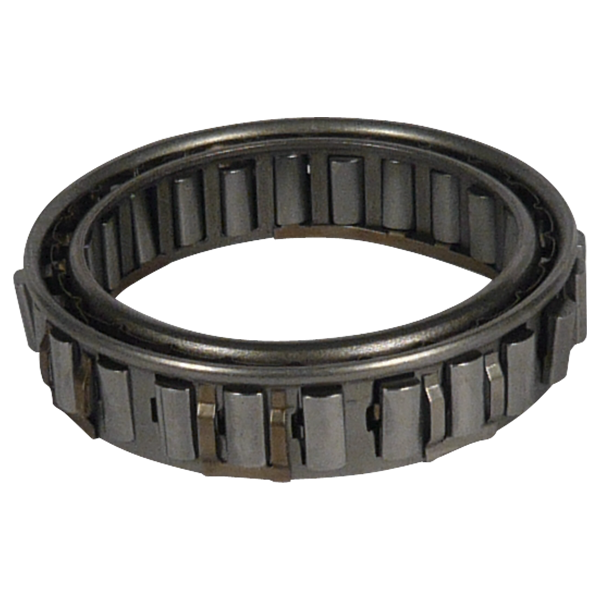

VC-6-1
|
2.613 | 1.957 | 0.530 | 22 |
| VC-6-1P | 2.613 | 1.957 | 0.530 | 22 |

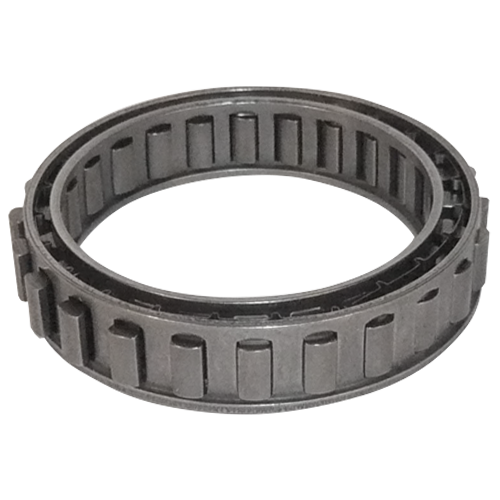

WC-6
|
2.812 | 1.957 | 0.500 | 24 |

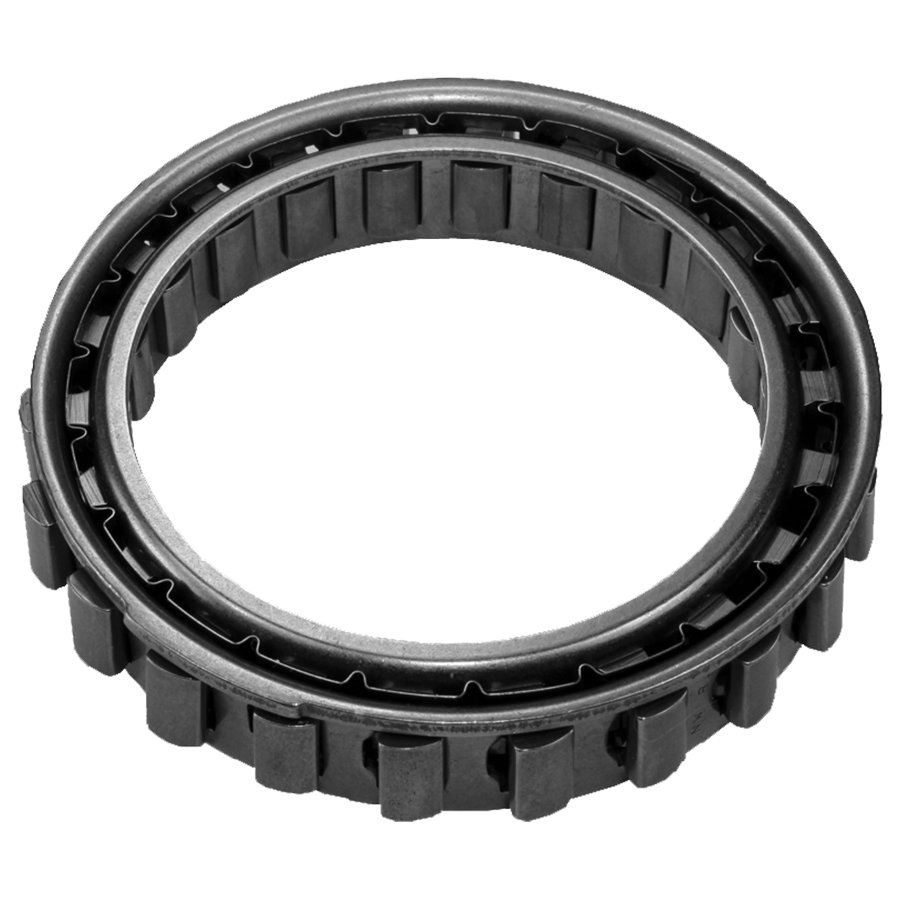

YC-6
|
2.450 | 1.870 | 0.510 | 22 |
| YC-6-1 | 18 | |||

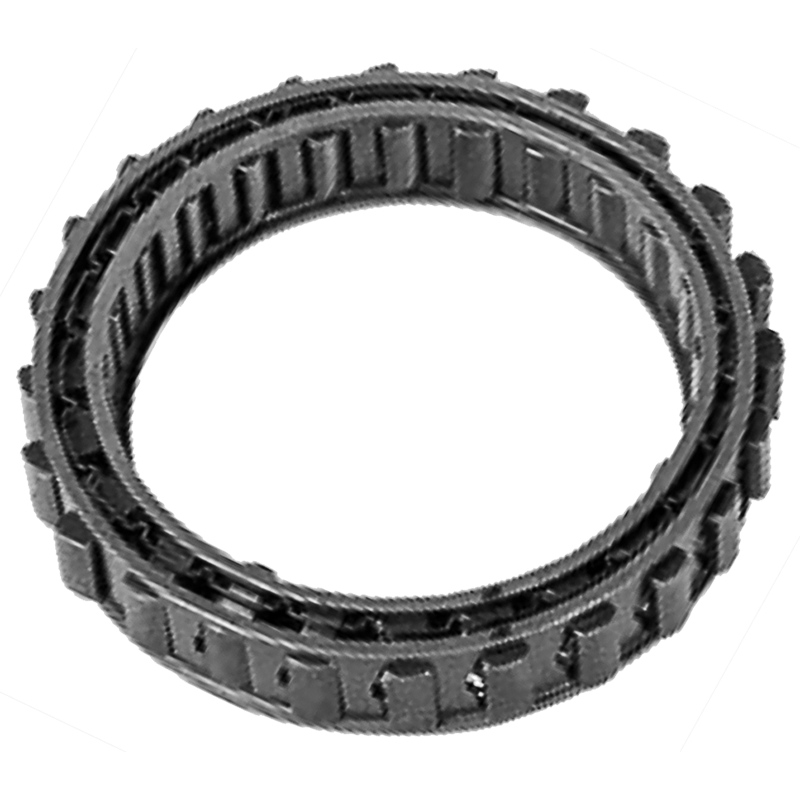

YC-6-2
|
2.717 | 2.074 | 0.638 | 24 |

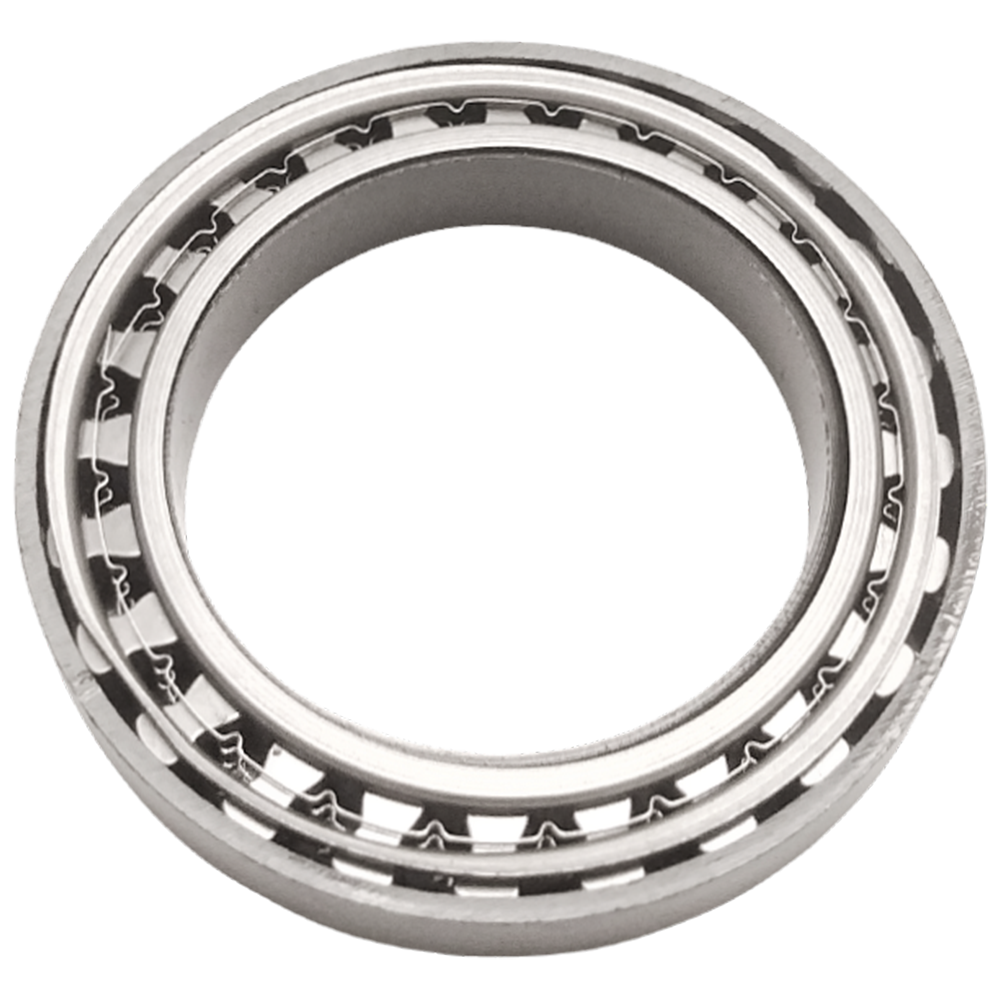

YC-6-3
|
2.747 | 2.087 | 0.336 | 24 |
| YC-6-4 | 2.622 | 1.966 | 0.343 | 23 |
