TORQUE CONVERTER SEAL RINGS

SEAL RINGS Full Listing

Tri’s torque converter seals are manufactured in accordance with OEM and aftermarket upgrade standards and fit most torque converter sealing applications. The materials used in our seals include nitrile, PTFE, fluorocarbon and polyacrylate. Our seal suppliers are ISO 9001 certified.

Part ID Width (inch) Outside Dia. (inch) Inside Dia. (inch) Height (inch) Material Seal Type

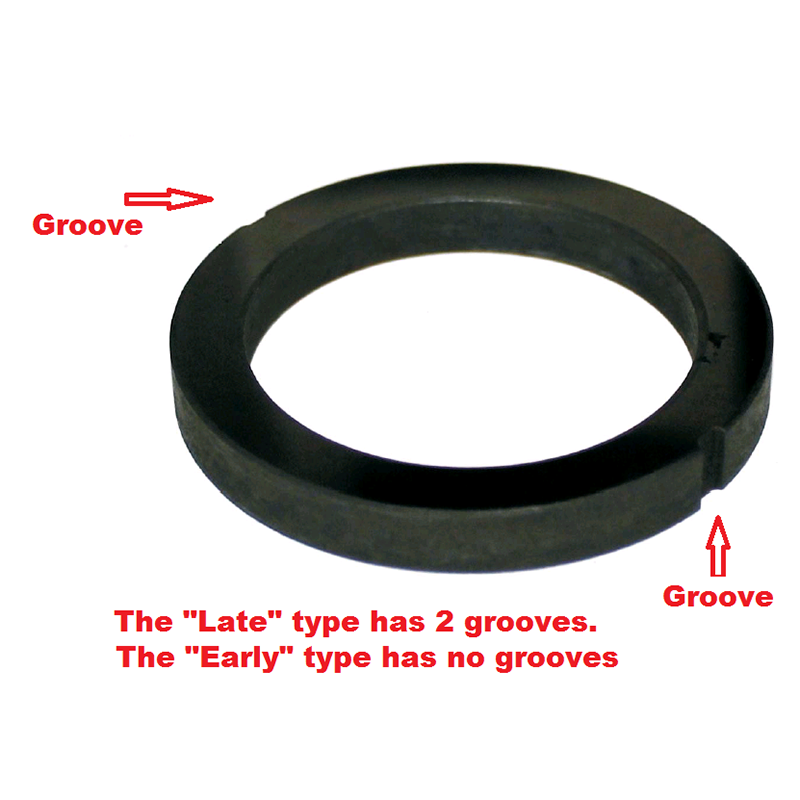

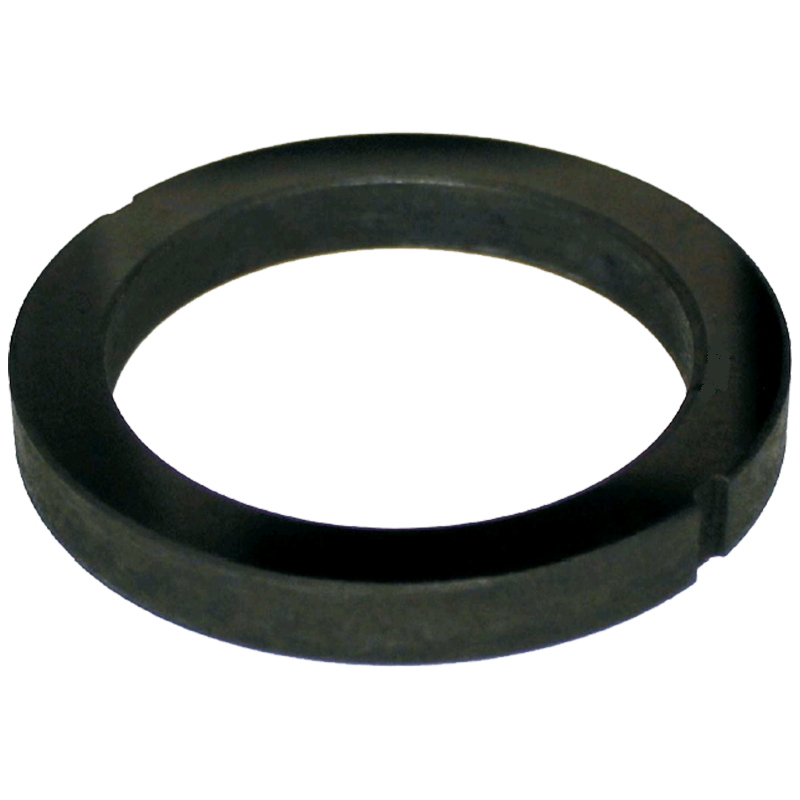

D-8
D-8A

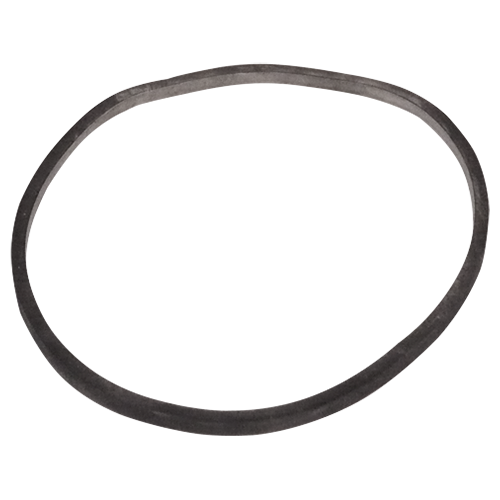

FO-1-20 0.137 3.976 0.137 Fluorocarbon Square-Cut, 4-Lobe

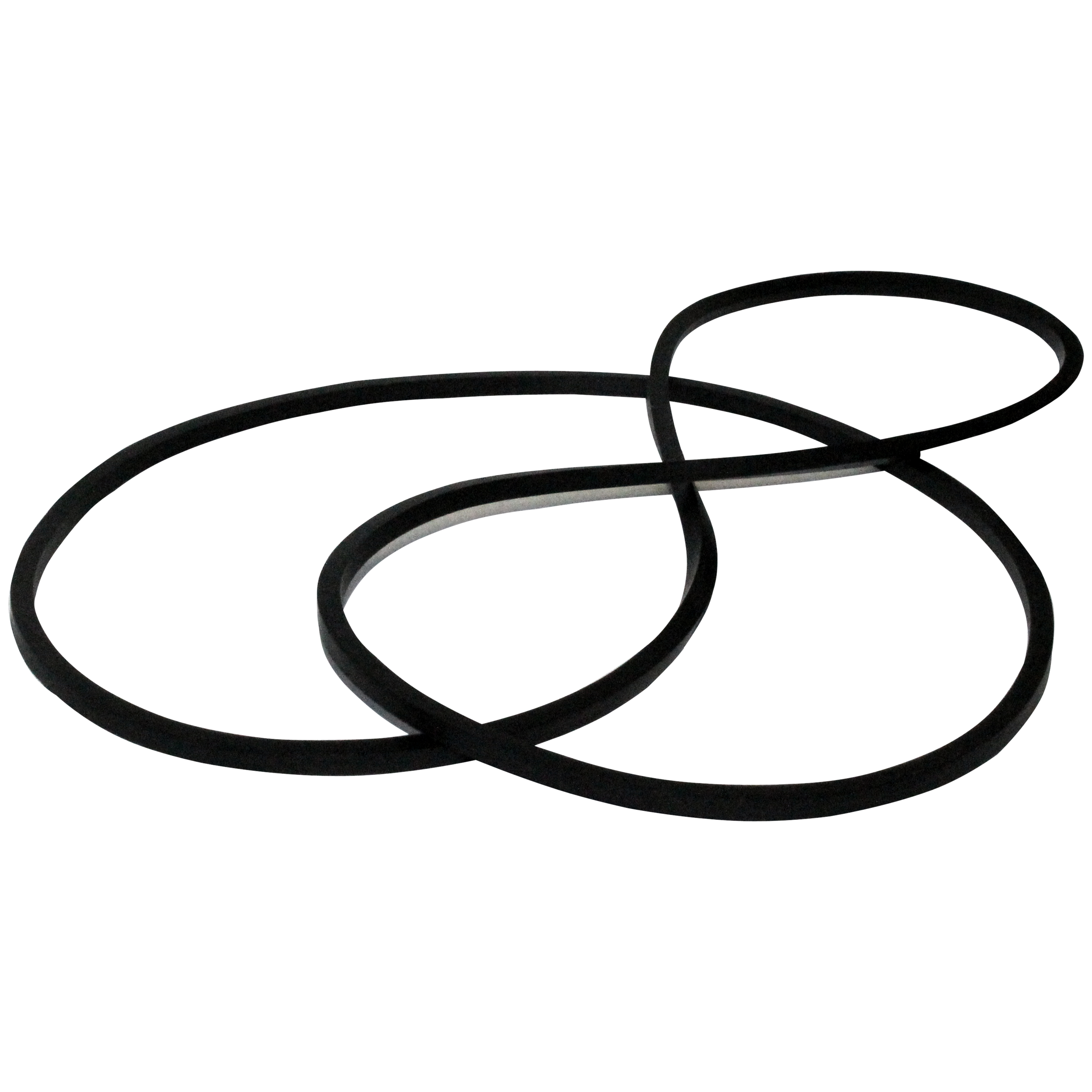

FO-1-21 0.125 12.250 11.752 0.125 Fluorocarbon Square-Cut

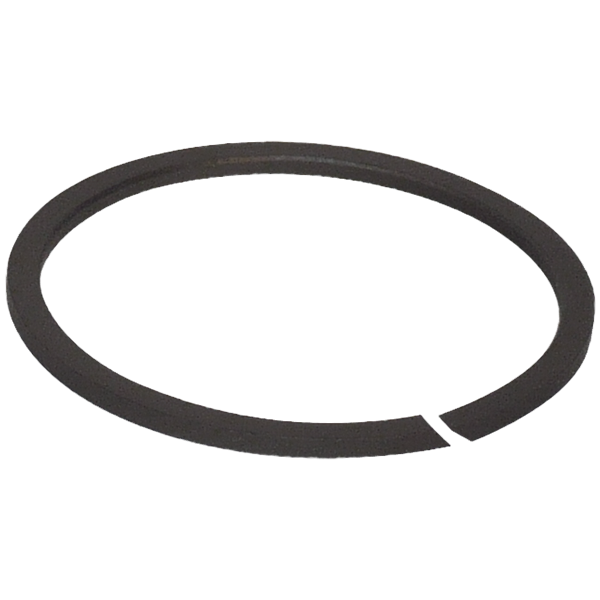

FO-25-1 0.088 2.050 0.101 PTFE Scarf Cut

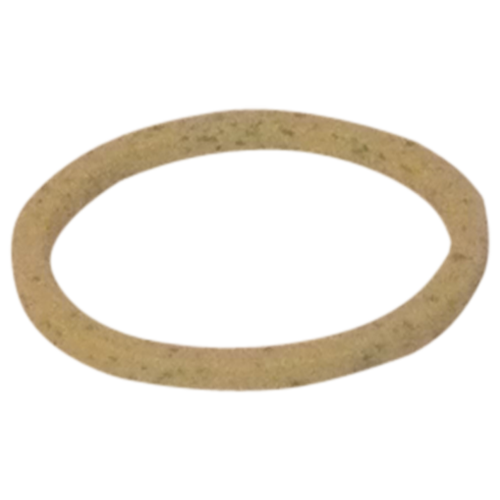

FO-25-11 0.089 1.541 0.102 PTFE Scarf Cut

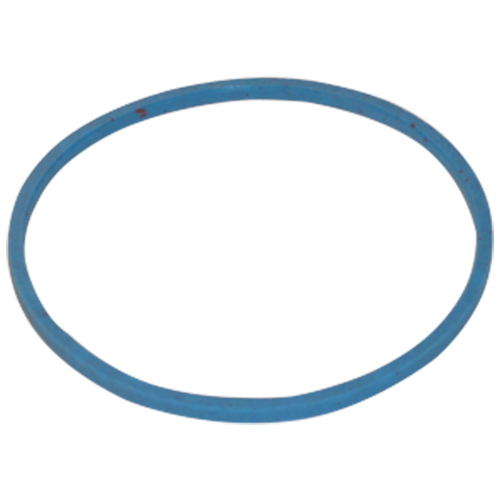

FO-25-12 0.098 2.758 0.097 PTFE Scarf Cut

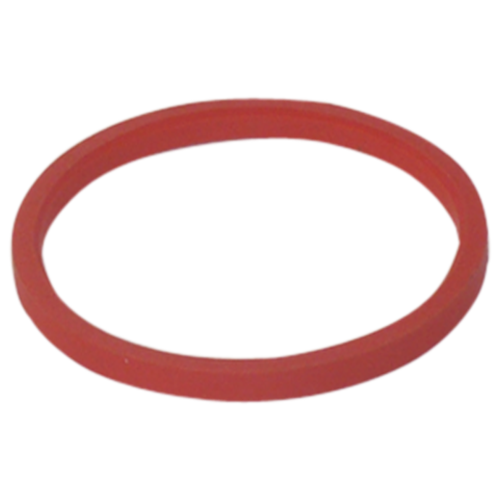

FO-25-13 0.130 1.683 0.095 PTFE Solid

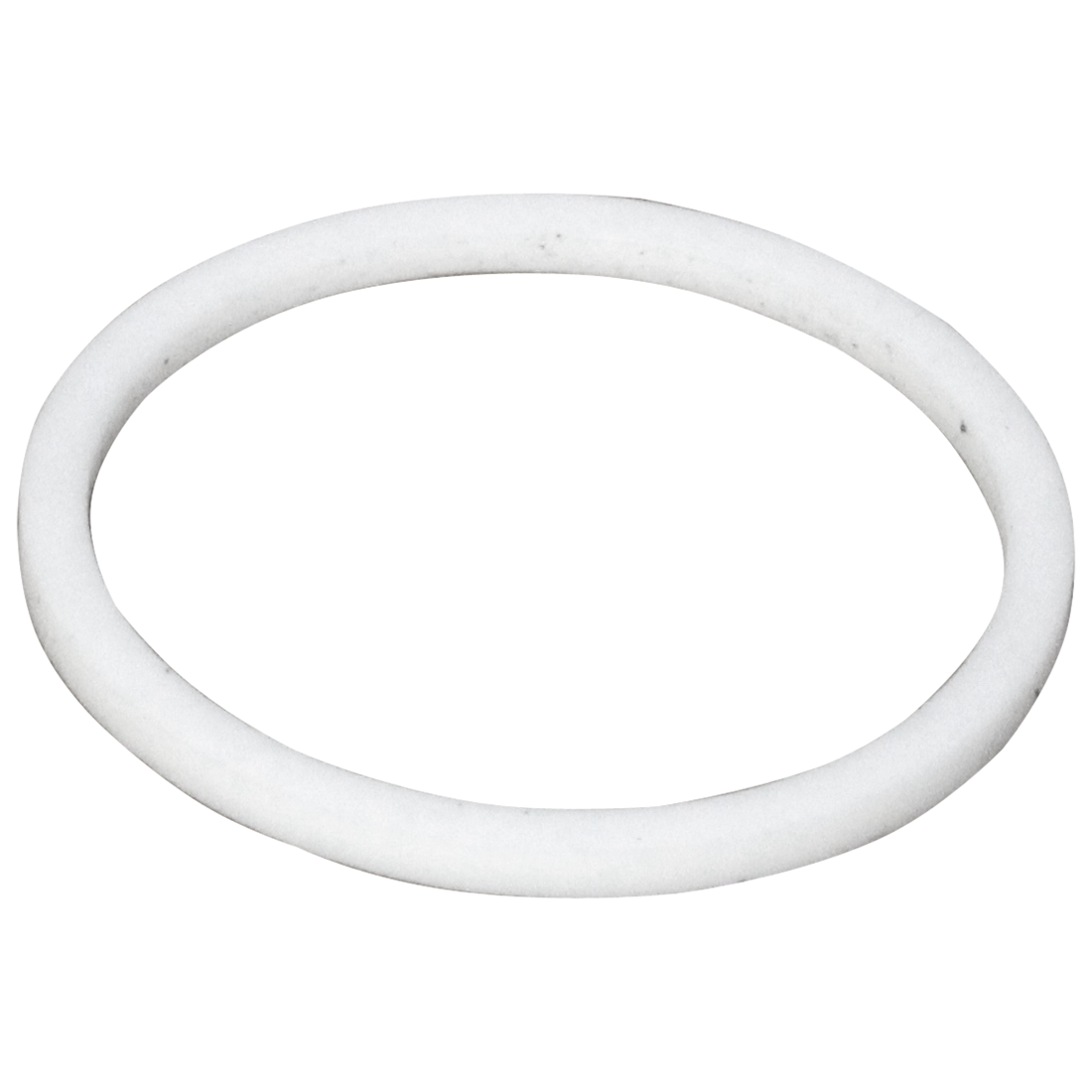

FO-25-14 0.100 1.730 0.114 PTFE Solid

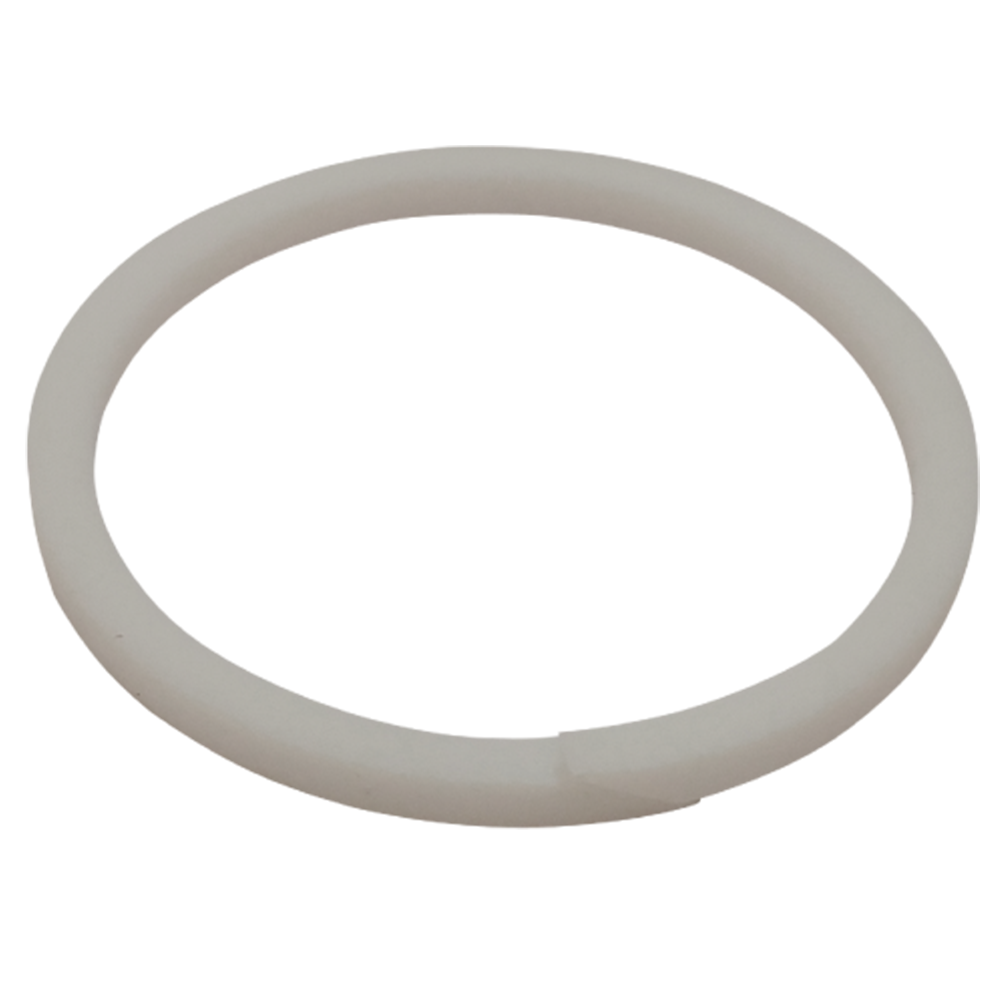

FO-25-15 0.100 1.710 0.111 PTFE Scarf Cut

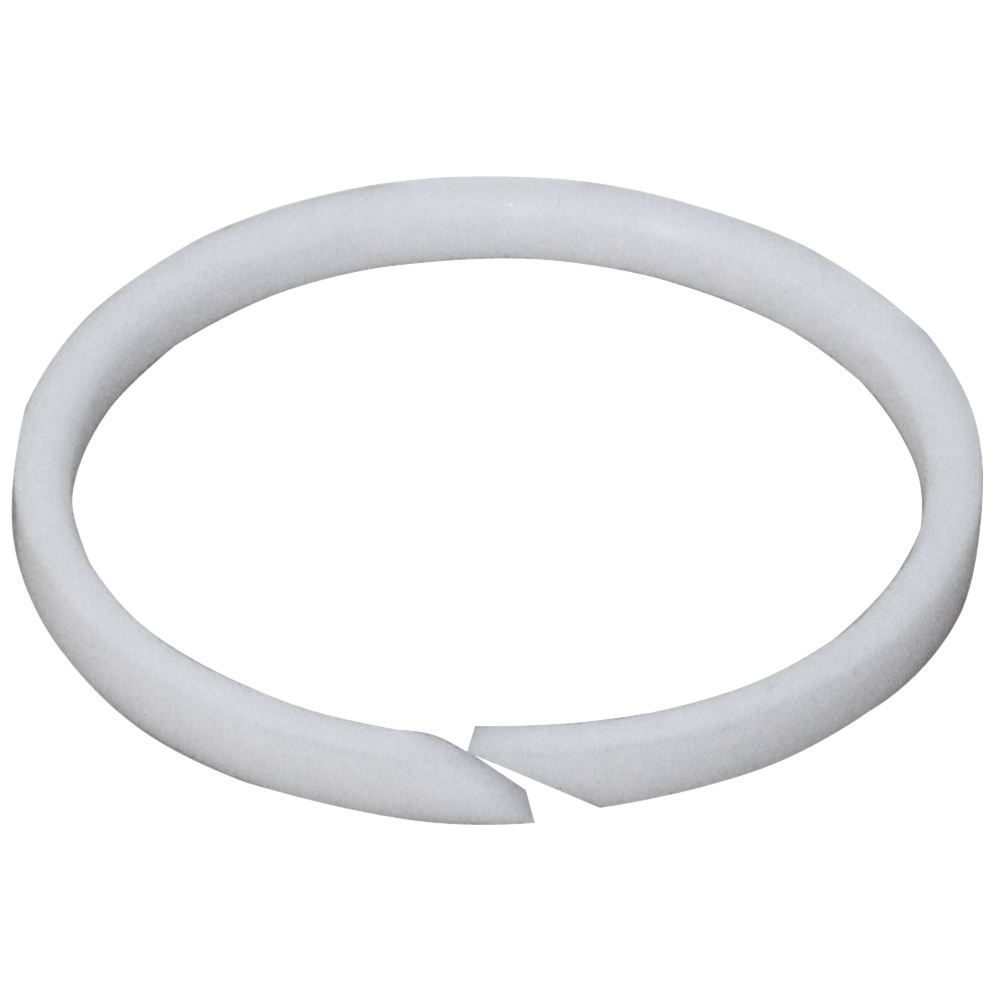

FO-25-16 0.130 1.675 0.094 PTFE Scarf Cut

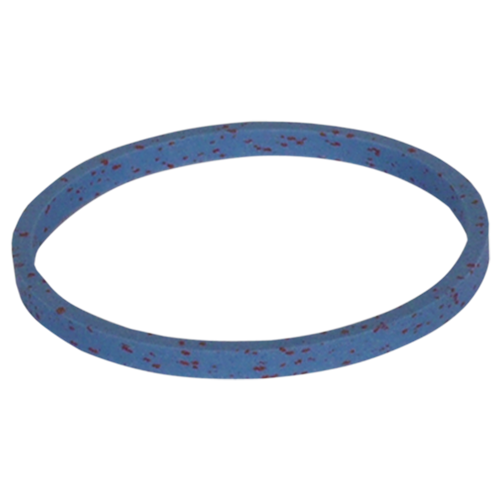

FO-25-17 0.168 2.385 0.104 PTFE Solid

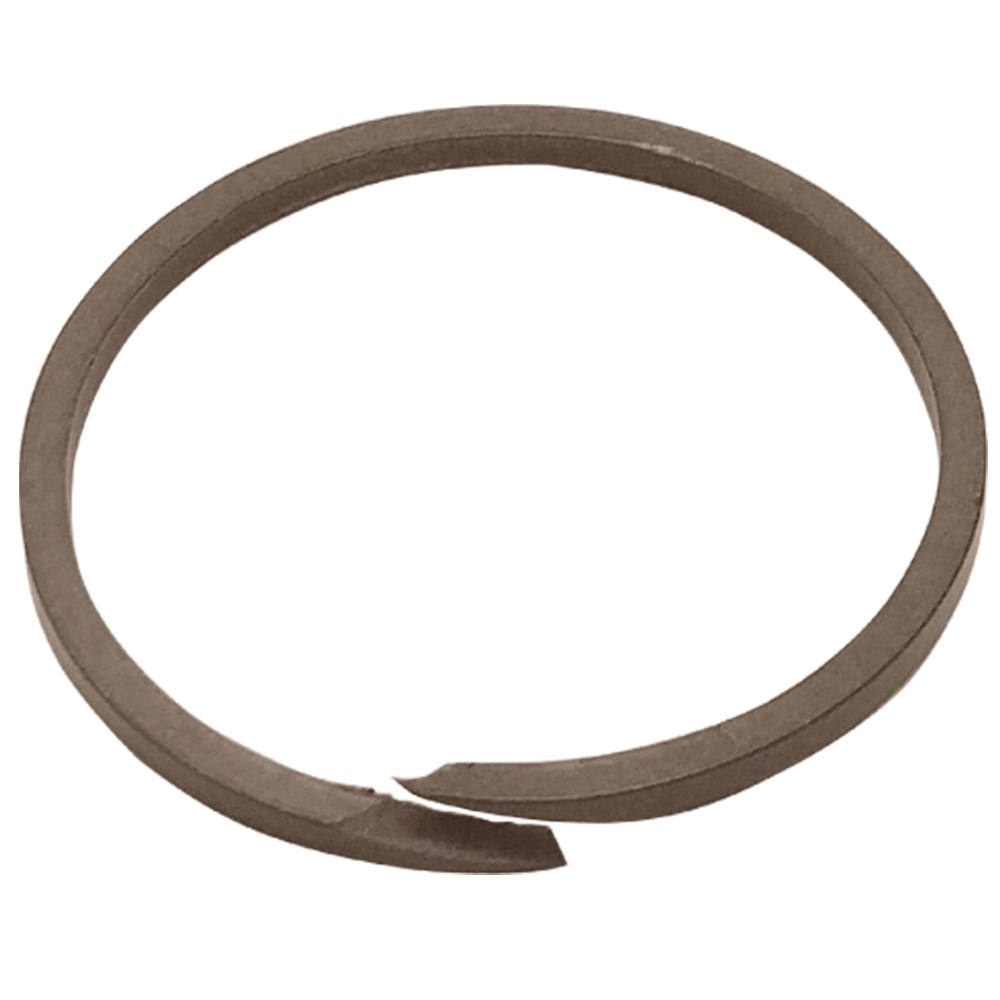

FO-25-19 0.087 1.559 0.077 PTFE Scarf Cut
FO-25-1A 0.092 2.049 0.098 PTFE Scarf Cut
FO-25-1D

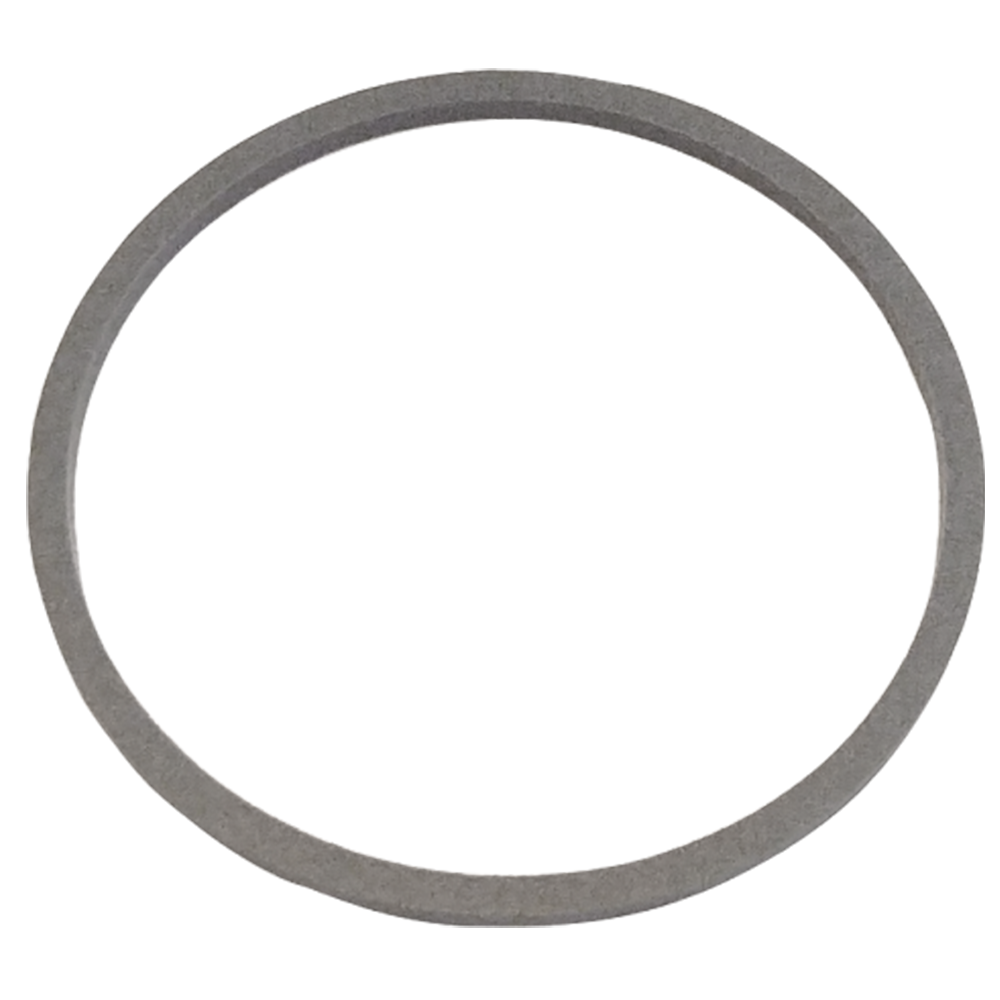

FO-25-21 0.090 2.356 0.100 PTFE Solid Solid

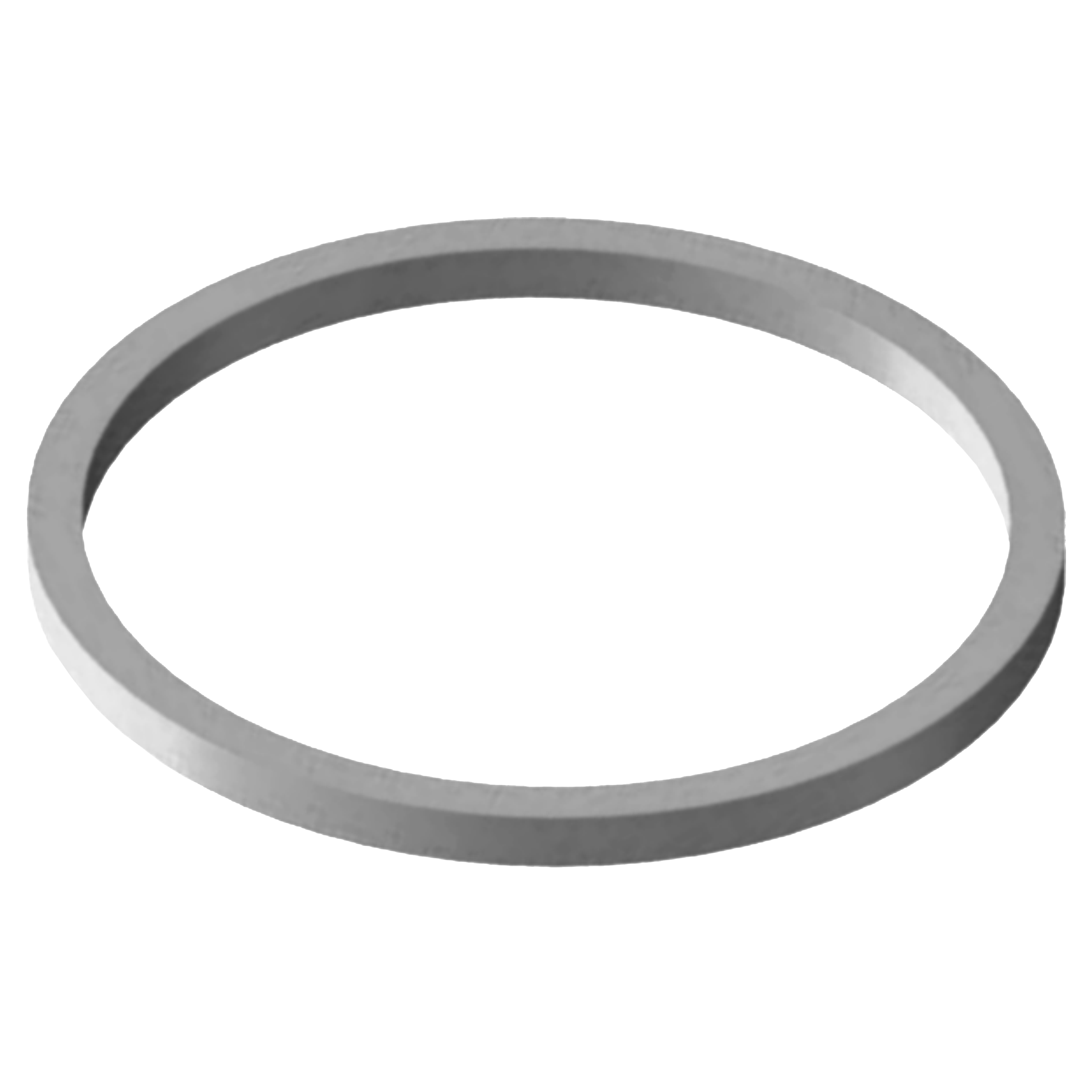

FO-25-22 0.103 3.511 0.160 PTFE Solid
FO-25-34 0.090 1.706 0.095 PTFE Solid

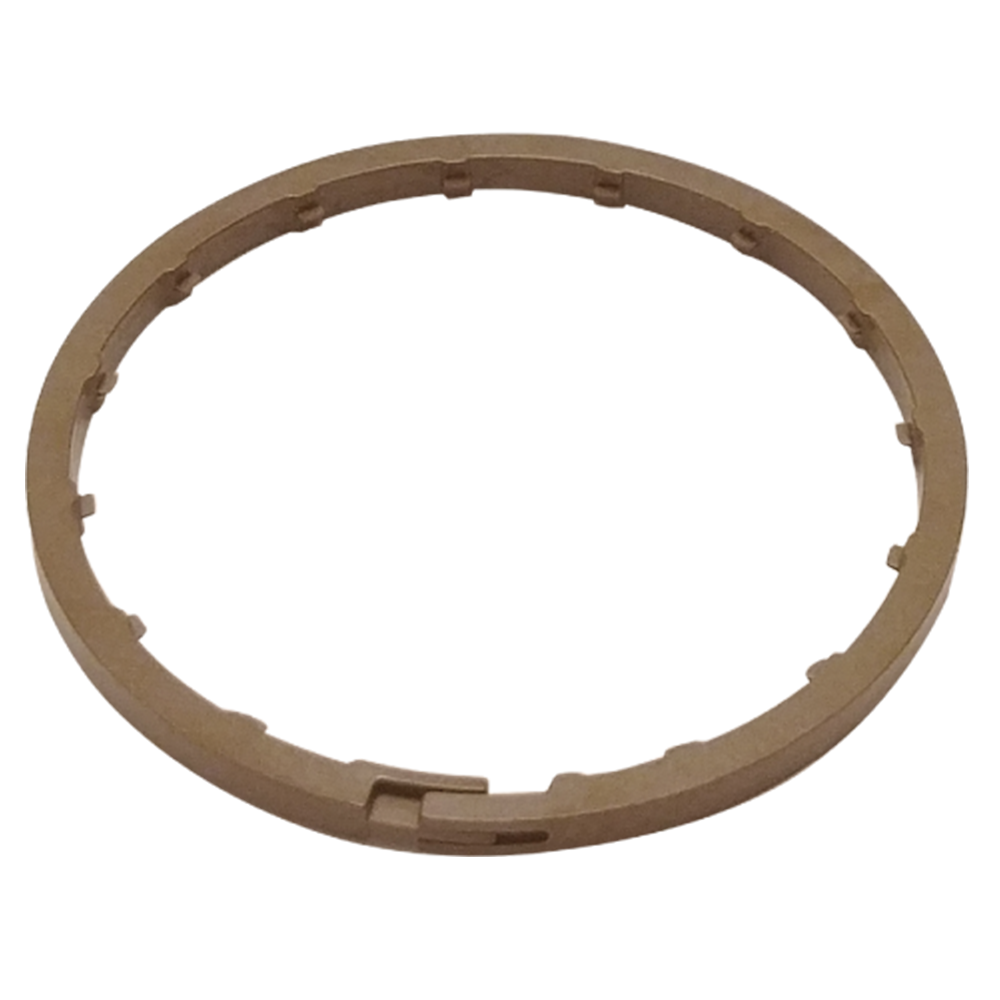

HO-25-11 0.084 1.489 0.087 Polyimide Slip-Joint

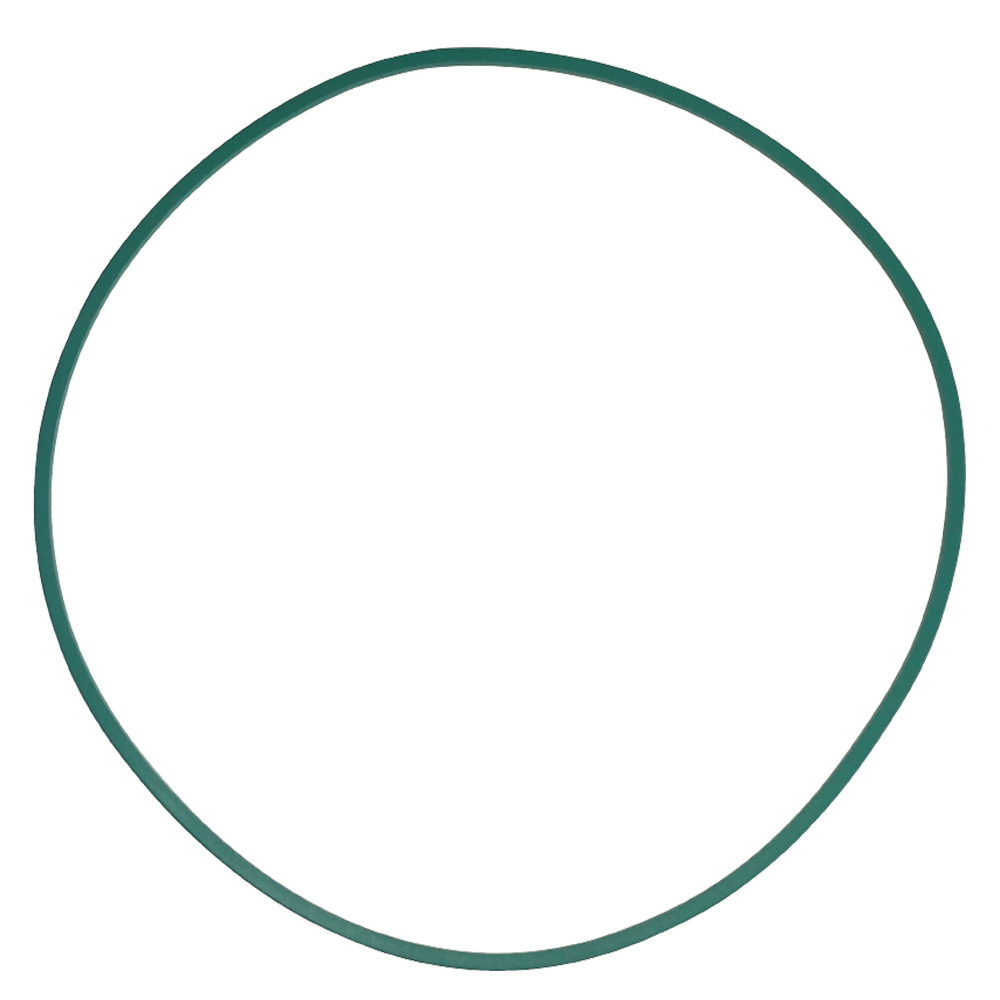

HO-25-12 0.080 6.528 0.125 Fluorocarbon D-Ring

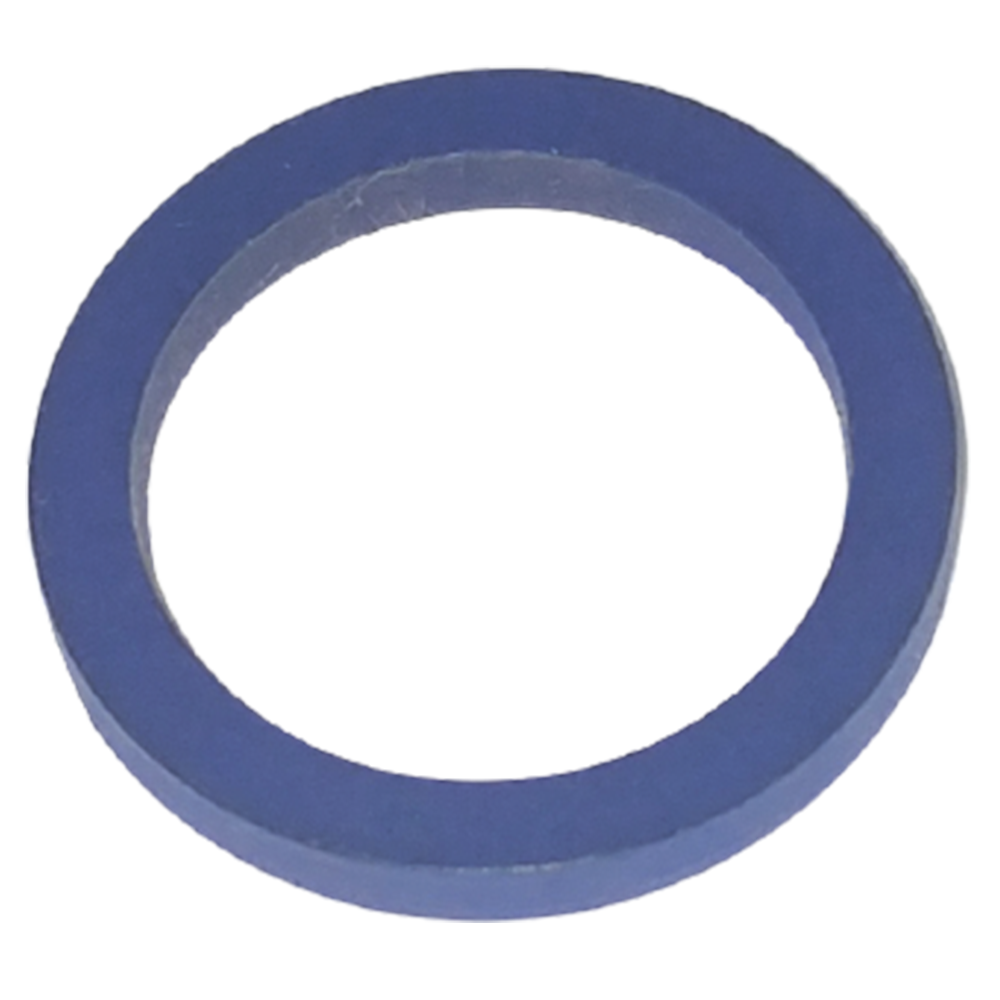

HO-25-14 0.095 0.815 0.093 Fluorocarbon

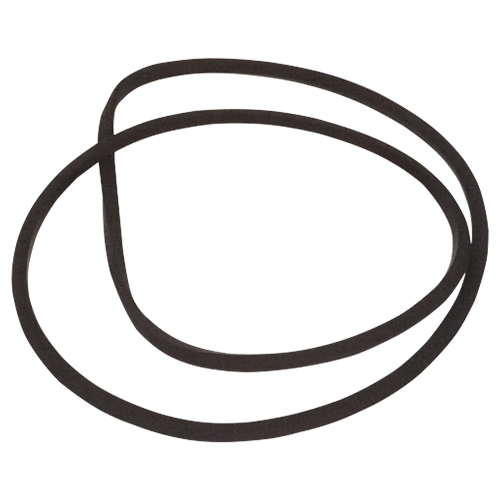

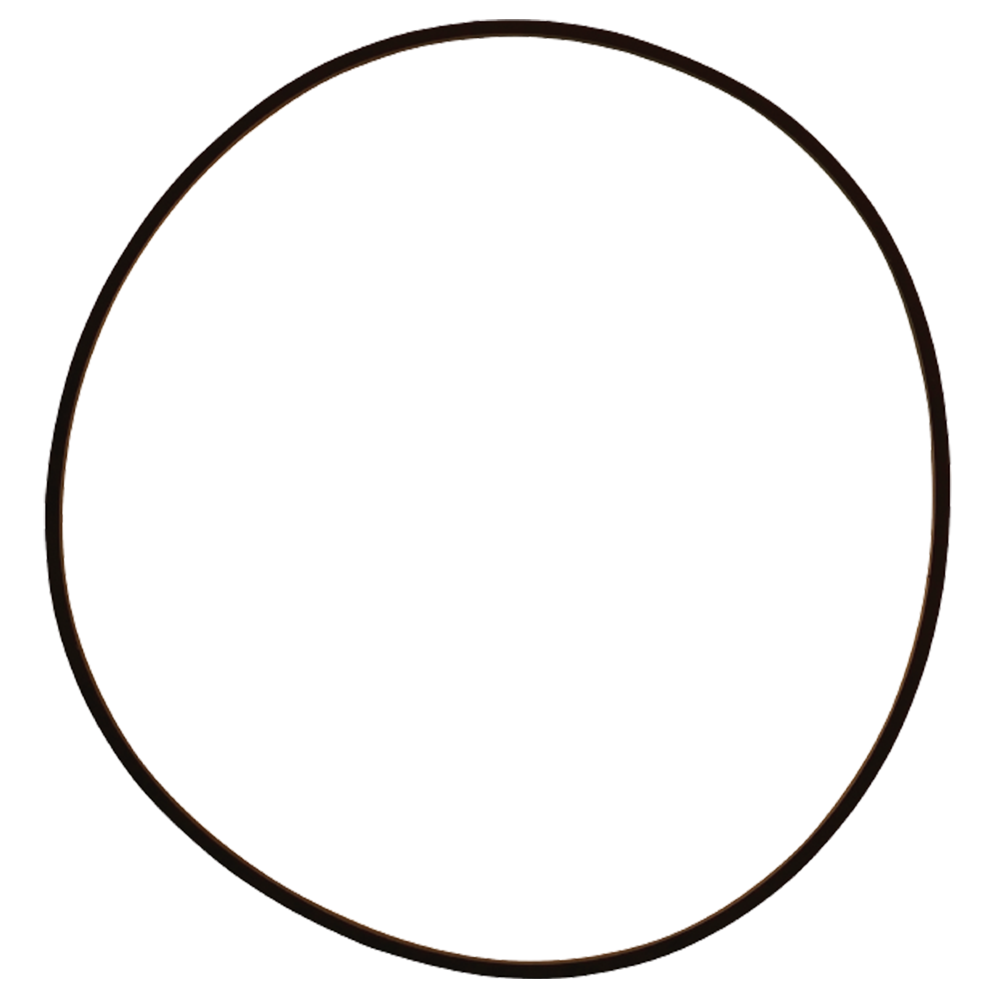

HO-25-1X 6.528

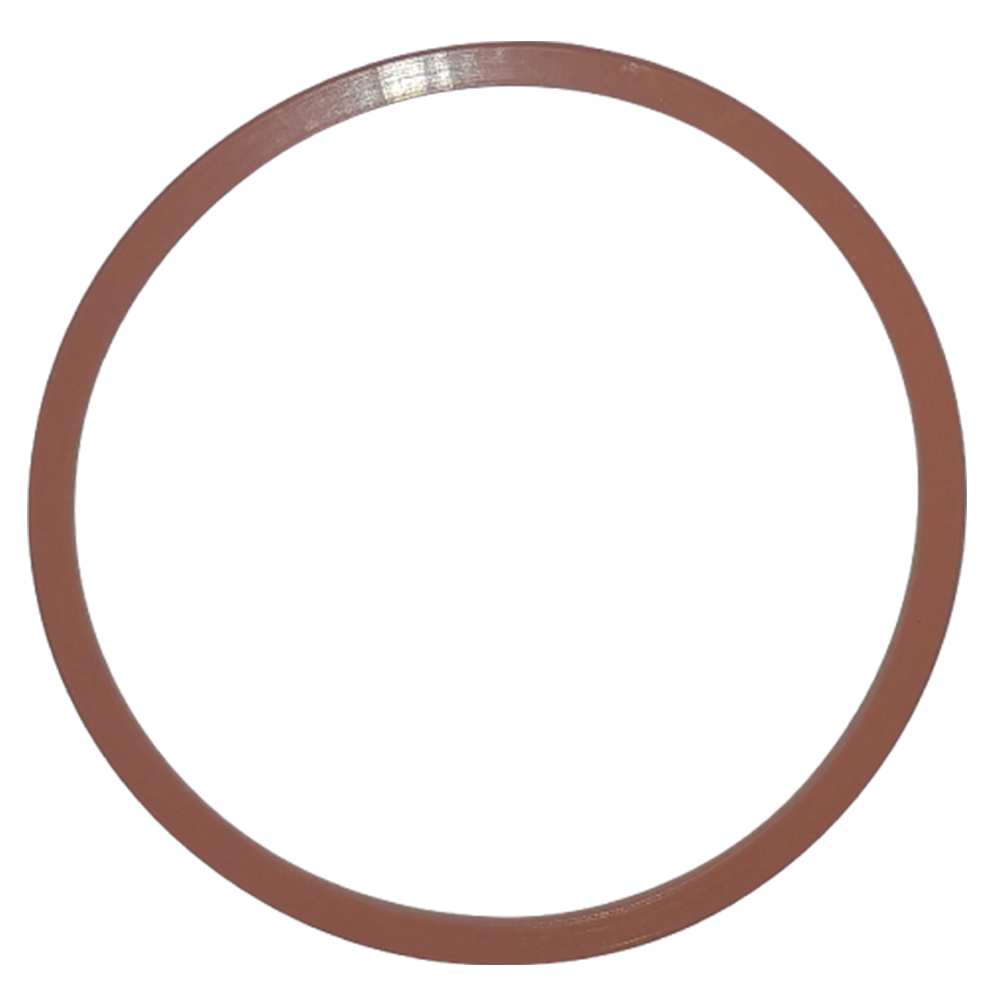

HO-25-2HD 2.020

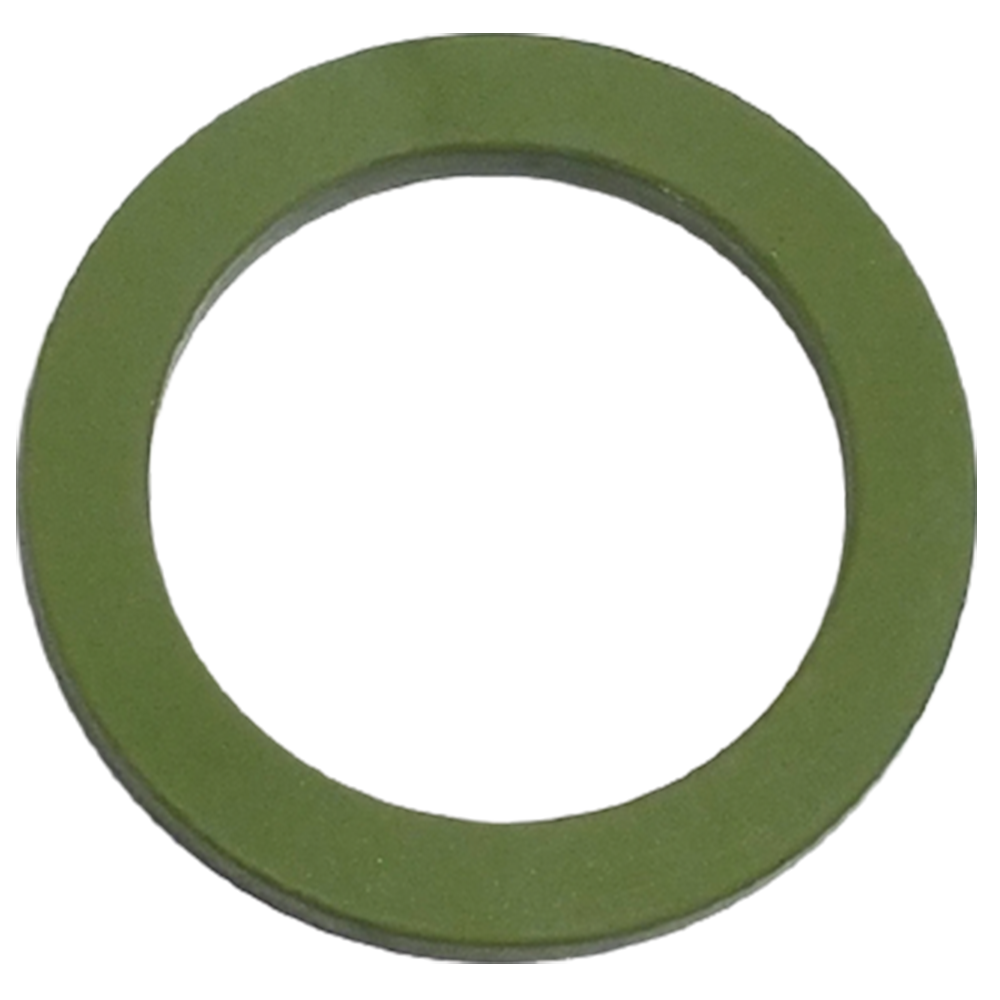

HO-25-3 0.082 0.834 0.112 Fluorocarbon Square-Cut

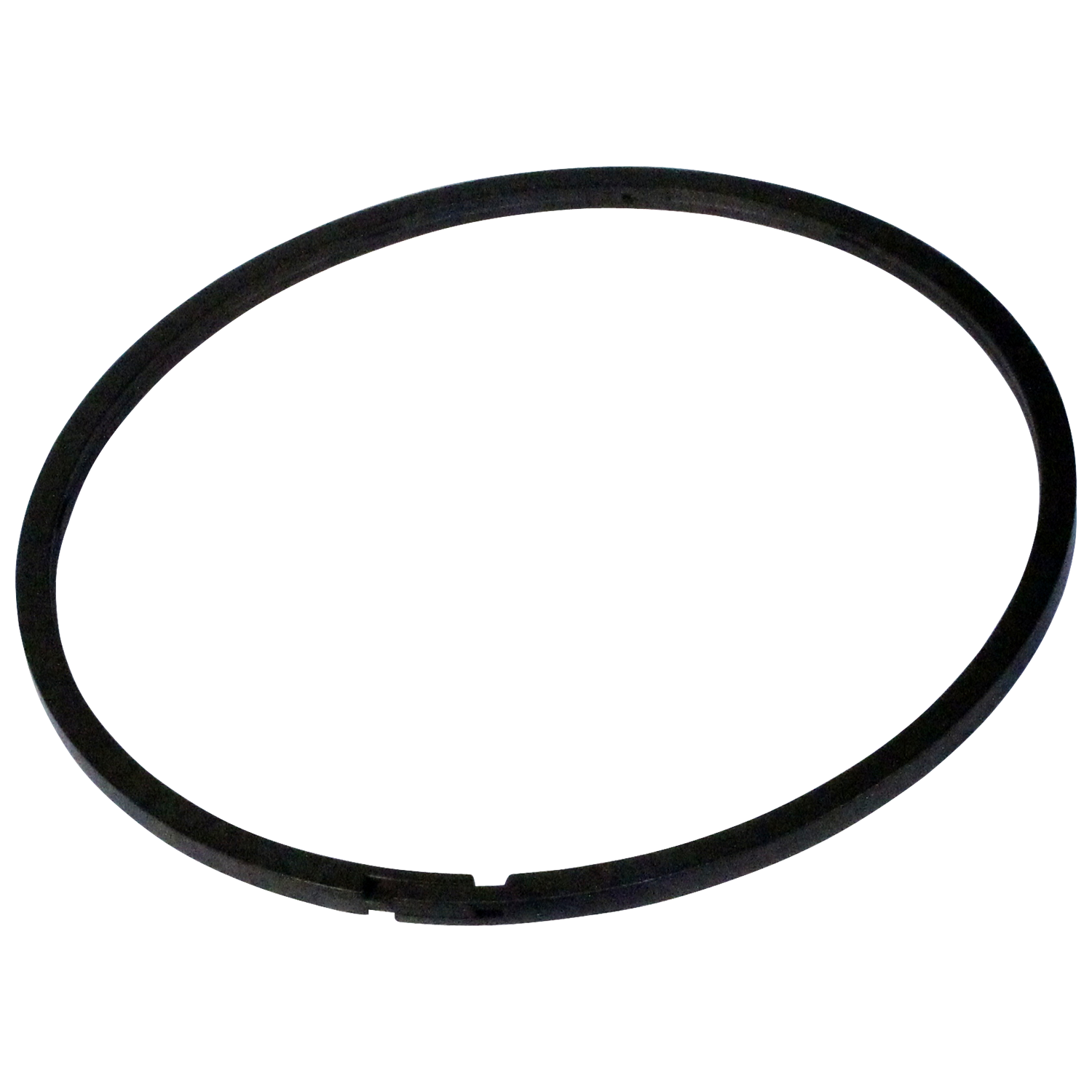

HO-25-6 0.099 2.742 0.083 Polyimide Slip-Joint

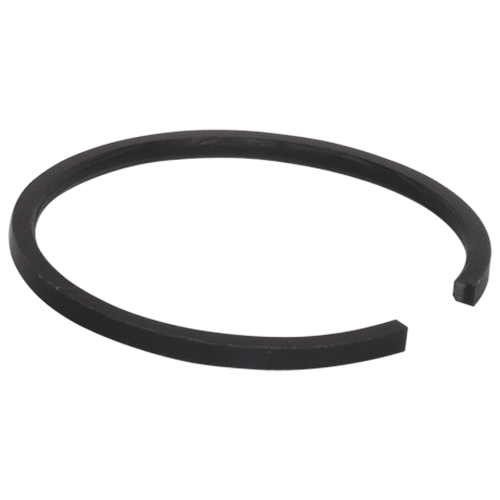

JO-25-16 0.090 1.699 0.089 PTFE Square Cut

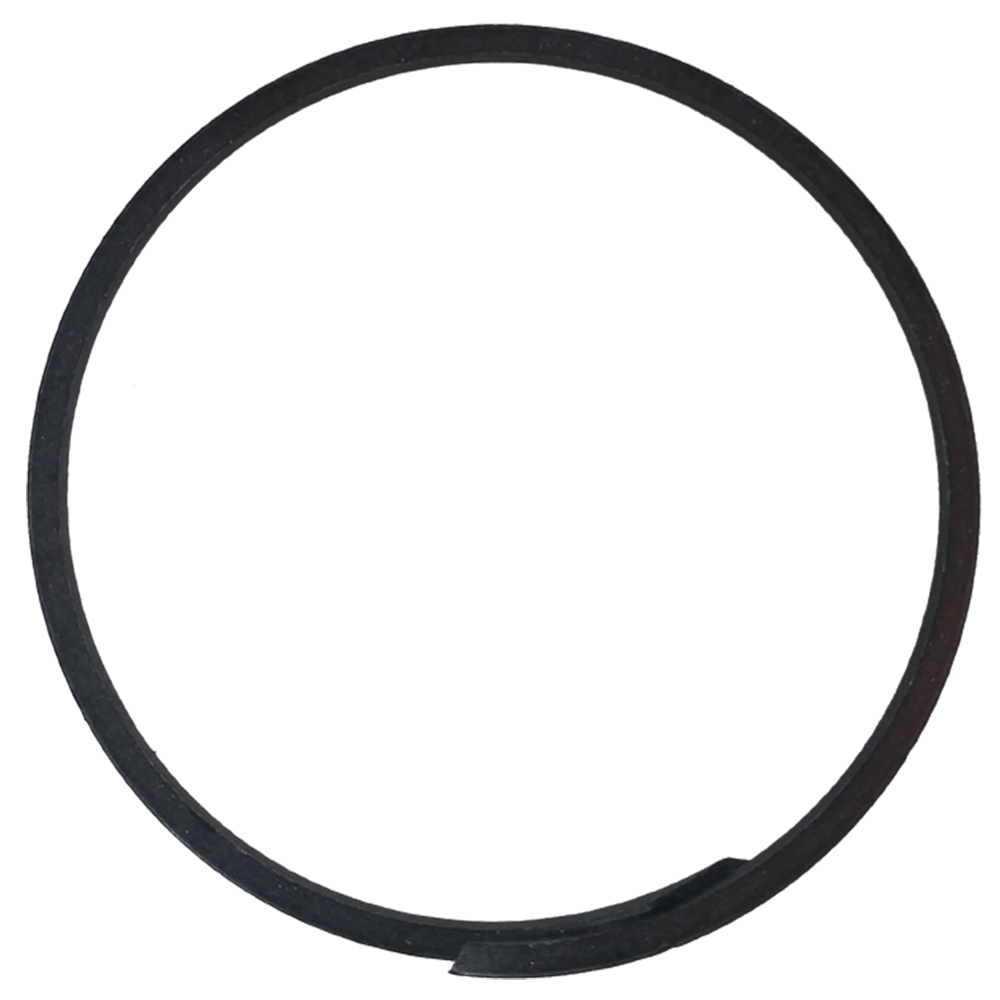

JO-25-20 0.093 3.493 0.113 PTFE Scarf Cut

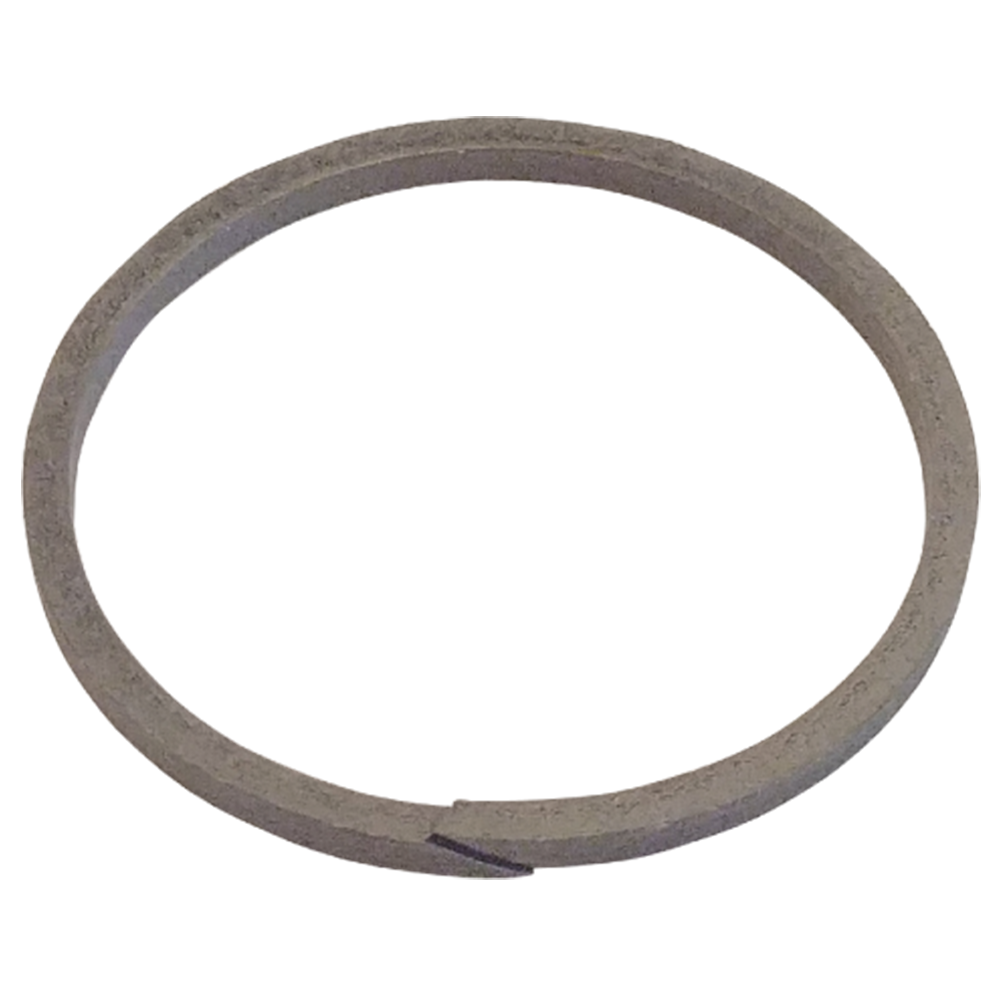

JO-25-21 0.091 1.693 0.083 PTFE Scarf Cut

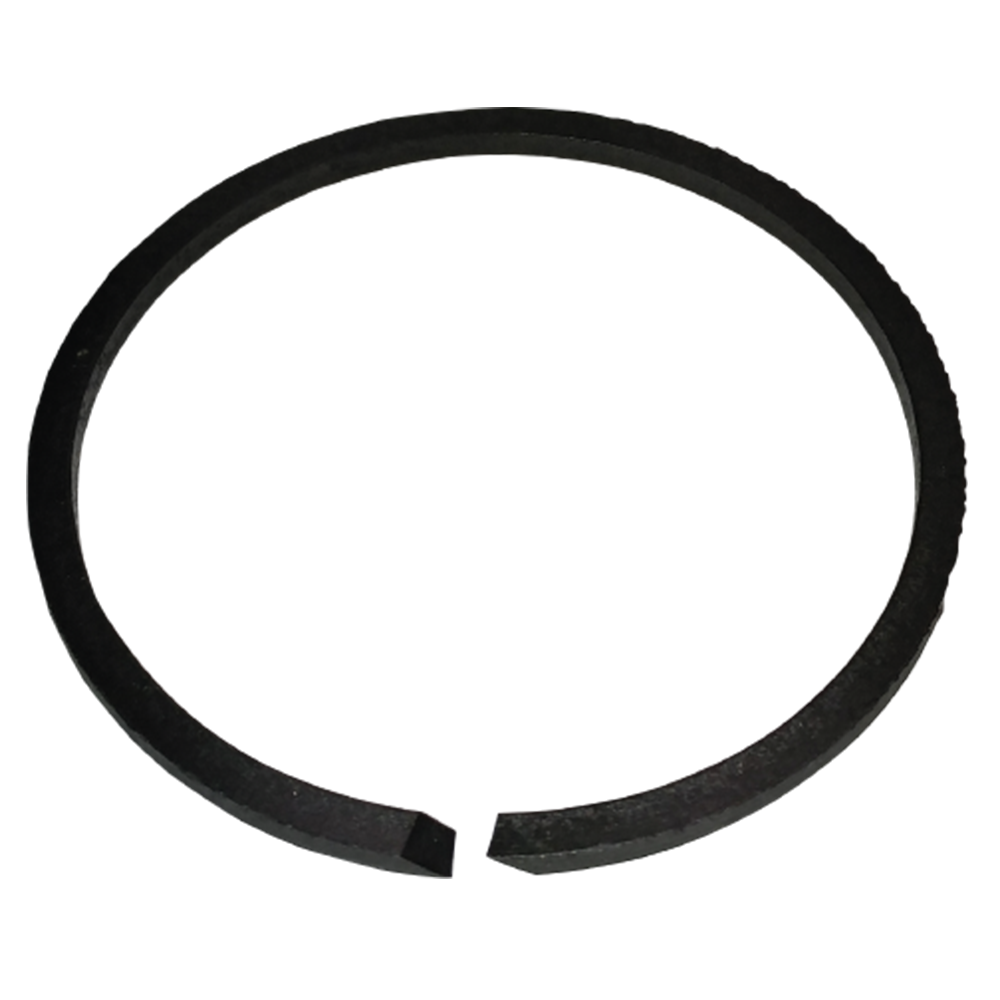

JO-25-5 0.094 2.377 0.116 PTFE Scarf Cut

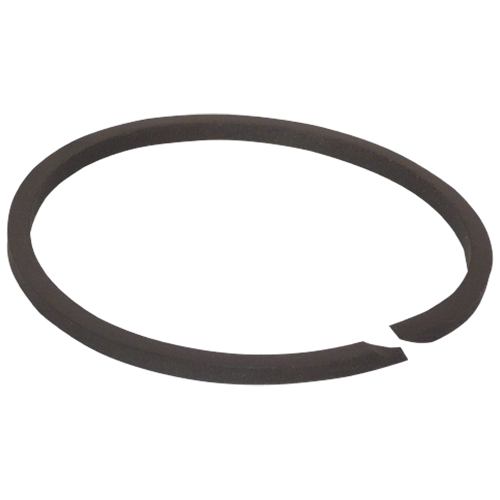

JO-25-7 0.096 2.280 0.105 PTFE Scarf Cut

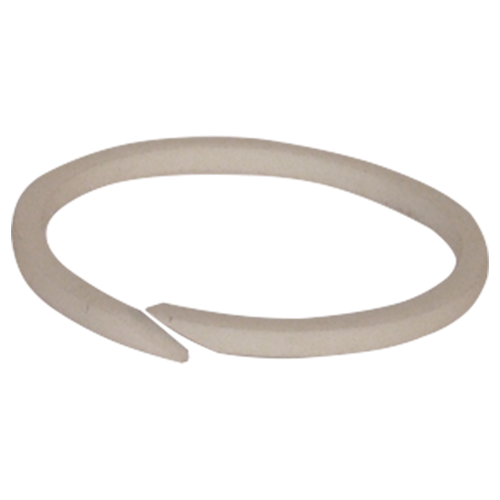

JO-25-8 0.088 1.575 0.094 PTFE Scarf Cut

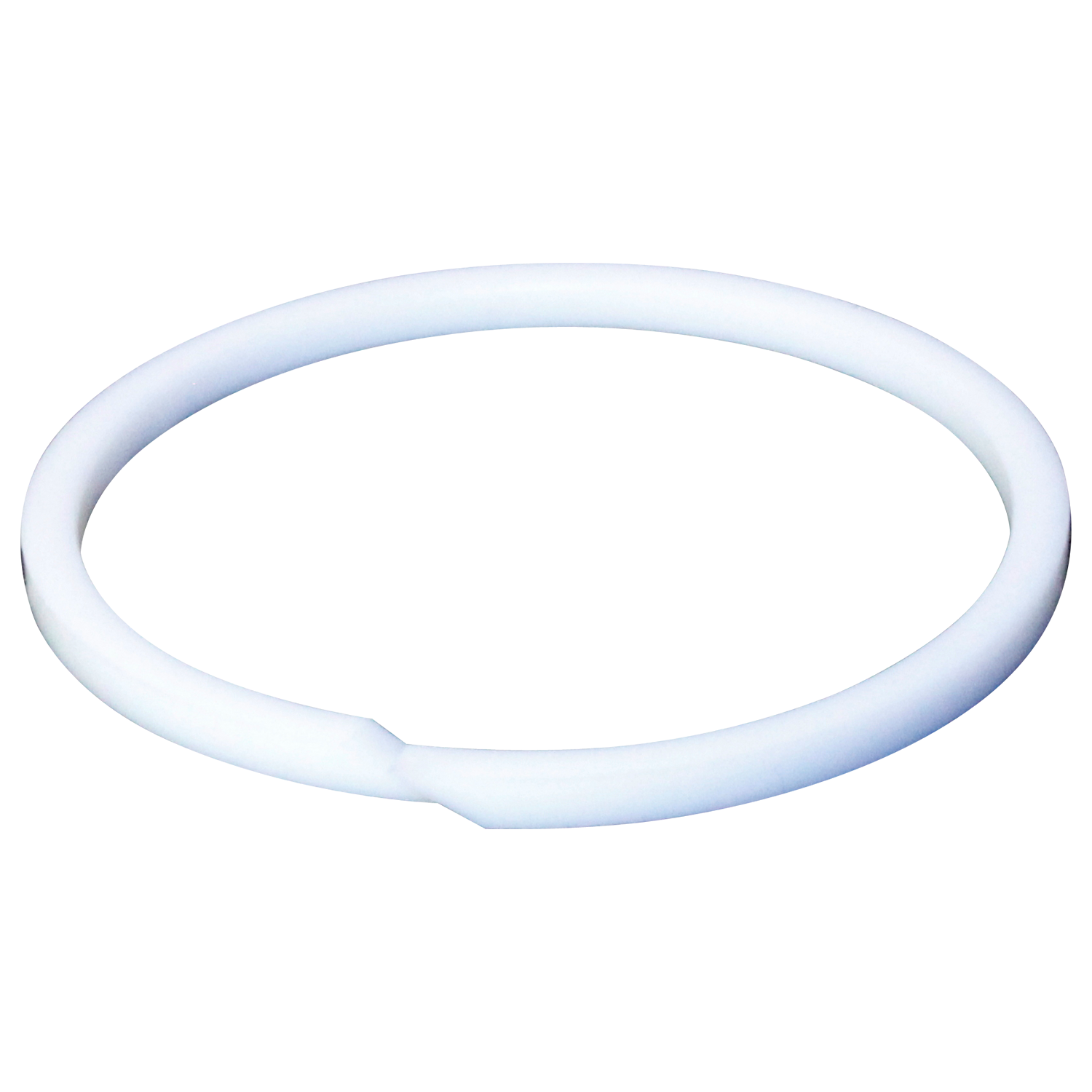

JO-25-9 0.092 1.689 0.092 PTFE Scarf Cut

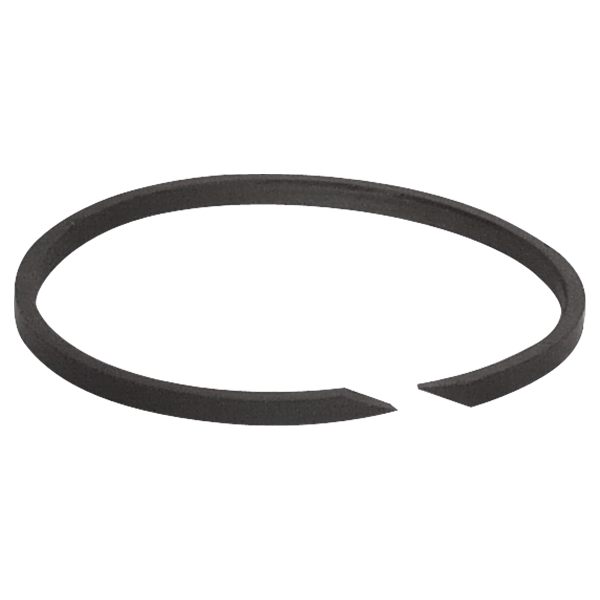

NO-25 0.079 1.417 0.052 PTFE Scarf Cut

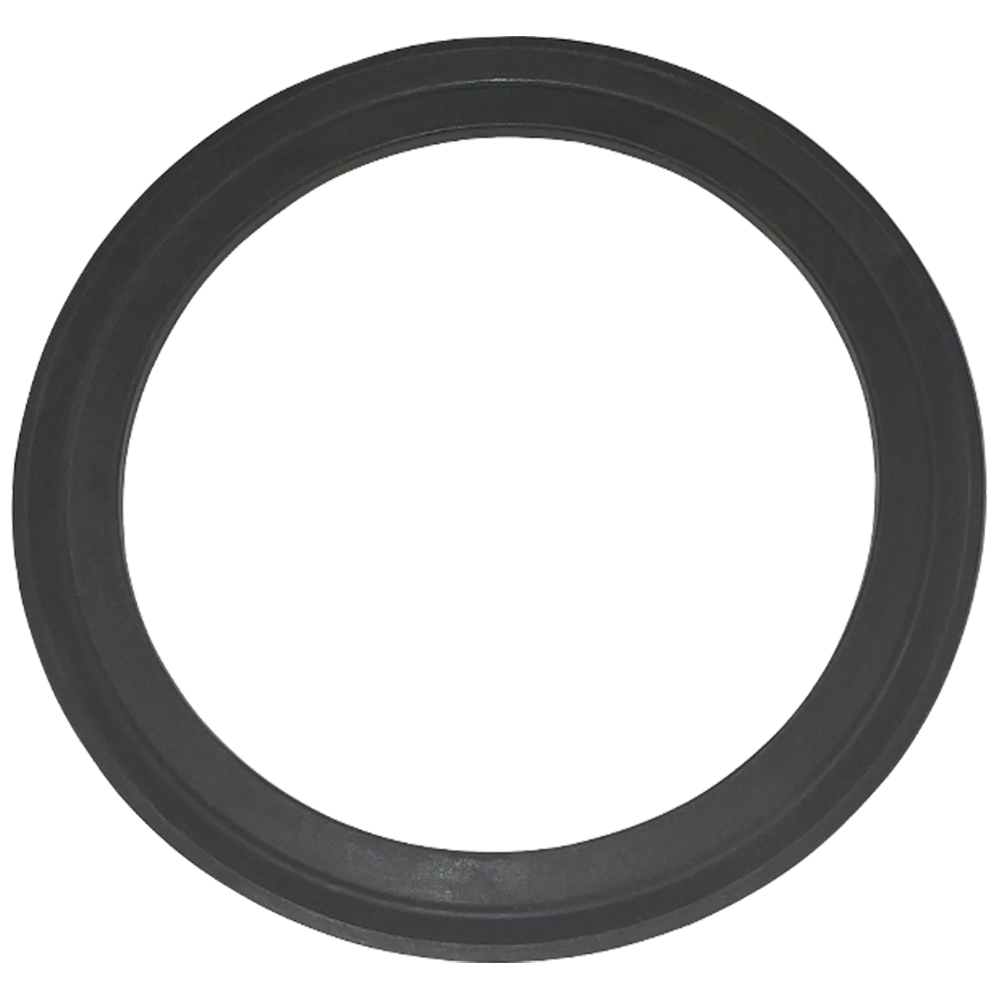

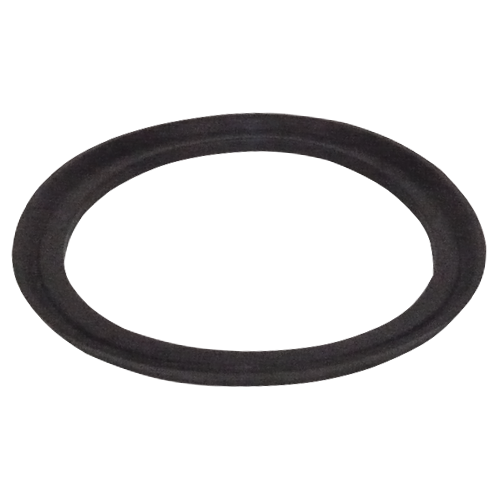

ORG 4-5A

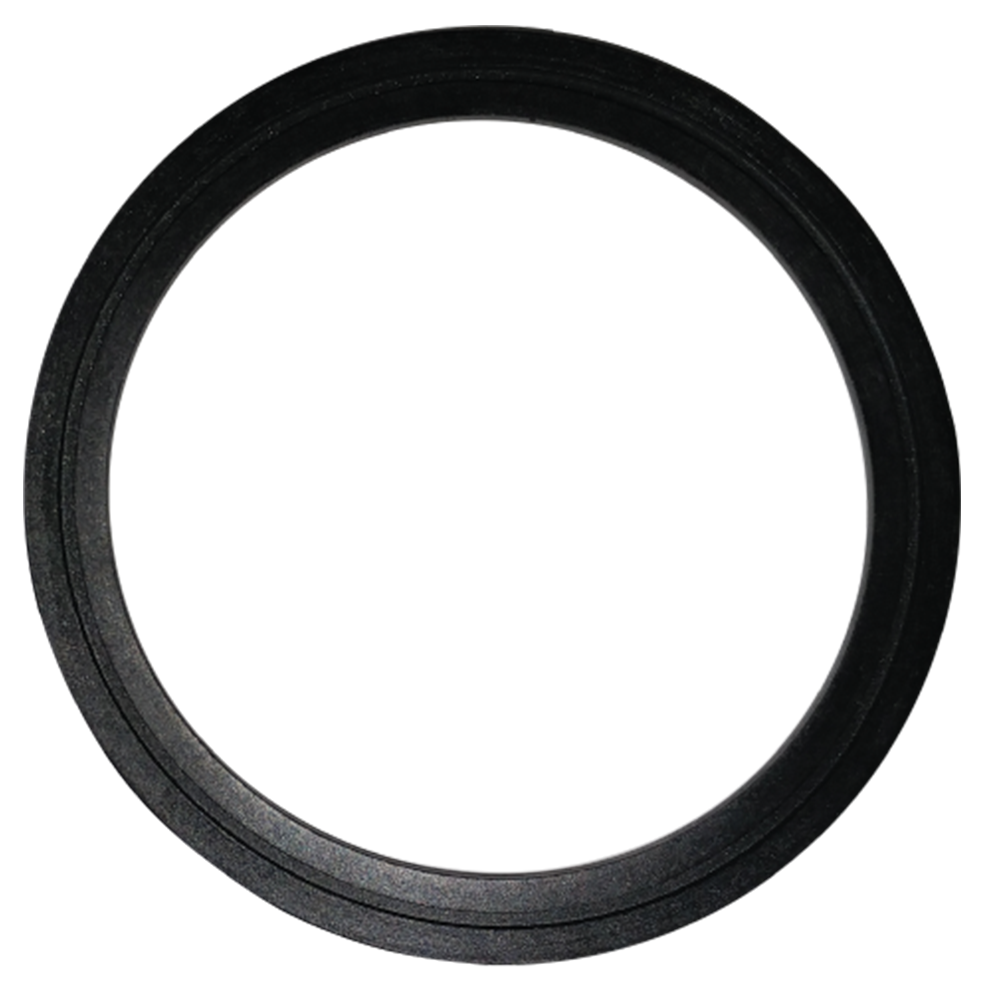

PO-25 0.095 2.150 0.214 Polyacrylic Rubber Square-Cut

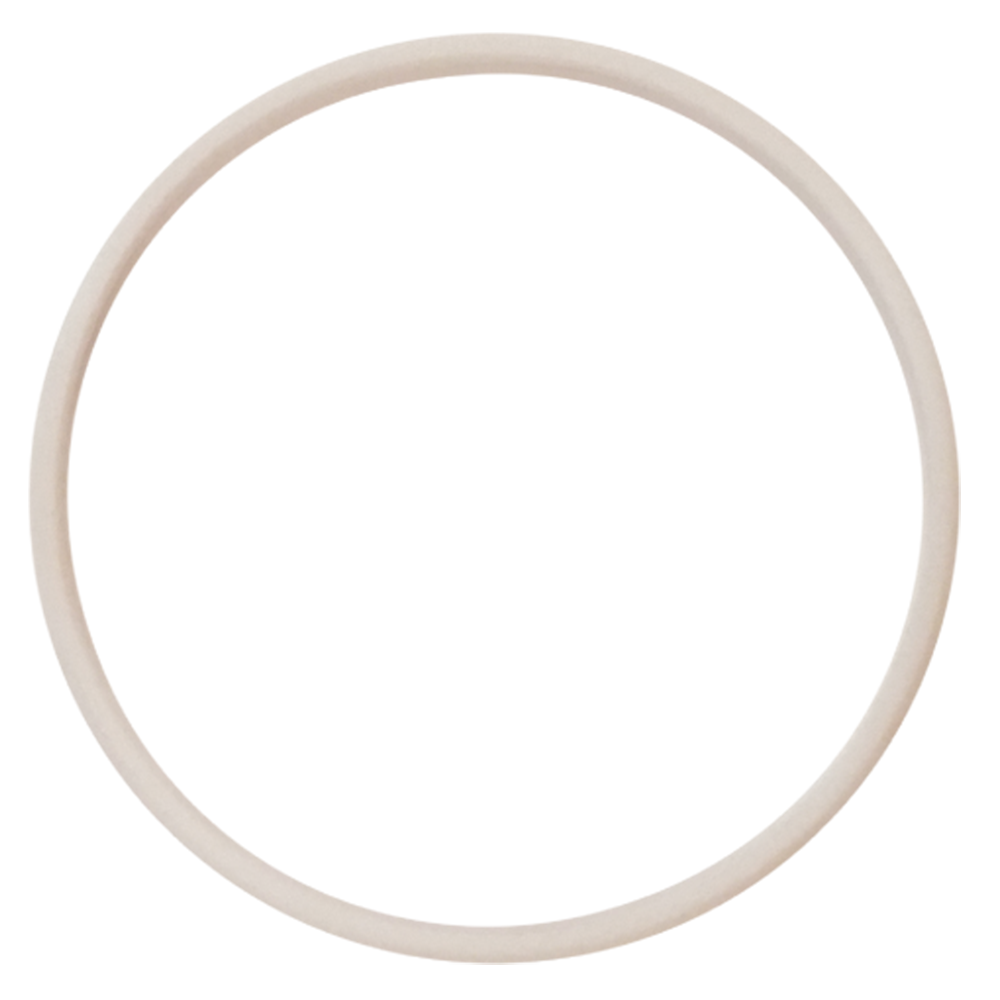

PO-25-10 0.087 2.404 0.081 PTFE Solid Solid

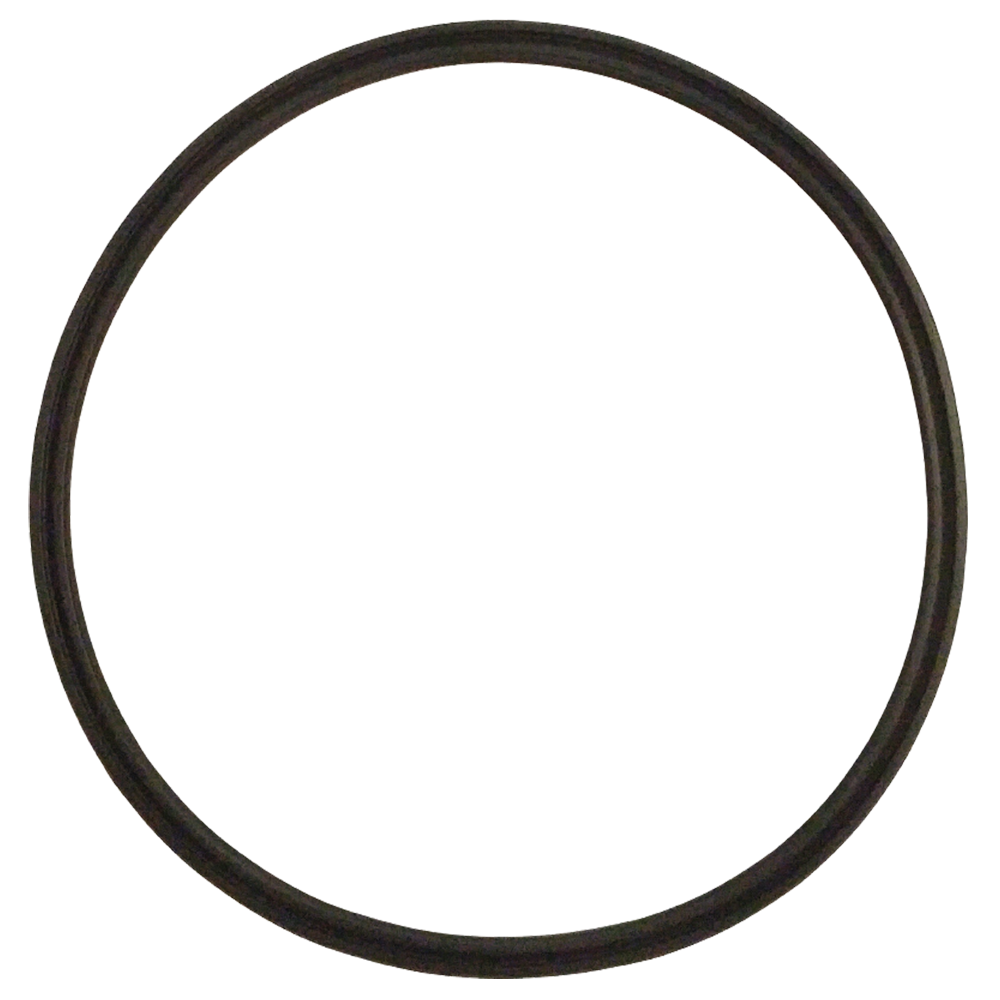

PO-25-12 0.194 4.349 0.174 Fluorocarbon Square-Cut, 4-Lobe

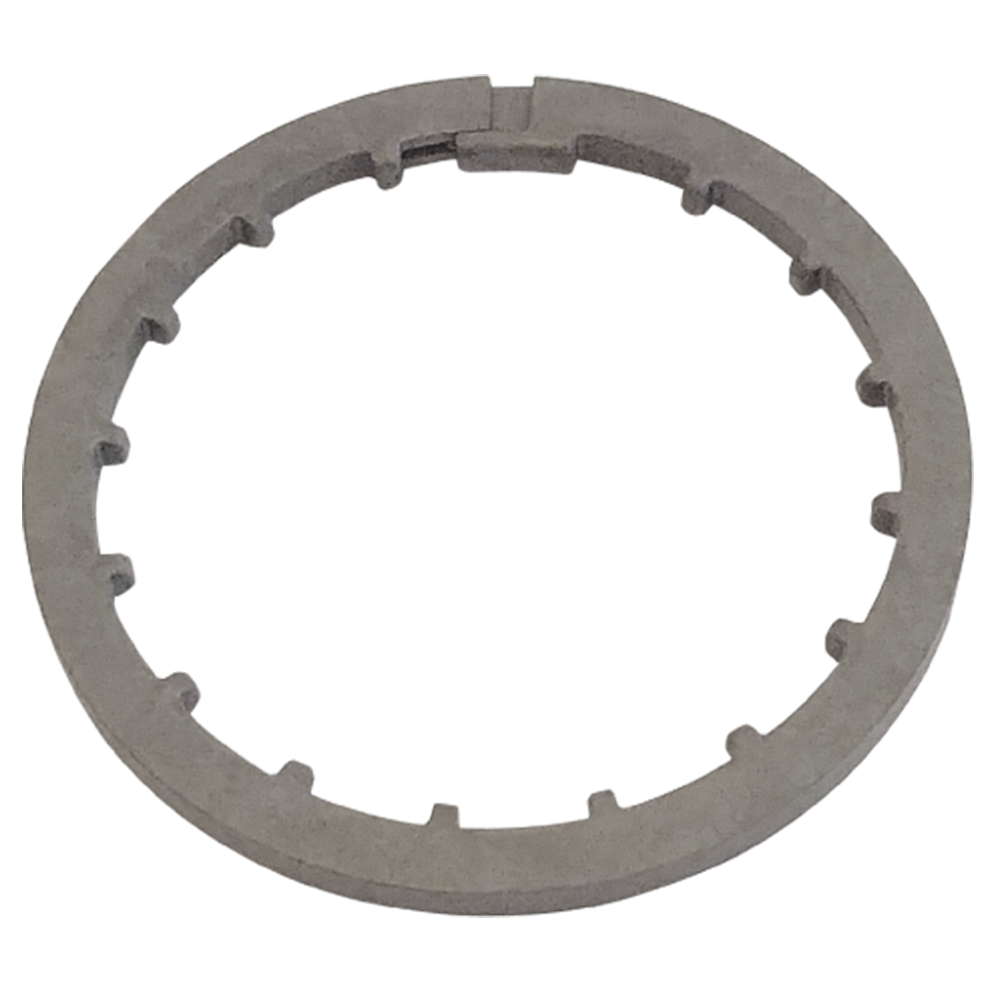

PO-25-13 0.095 1.696 0.160 Polyimide Slip-Joint

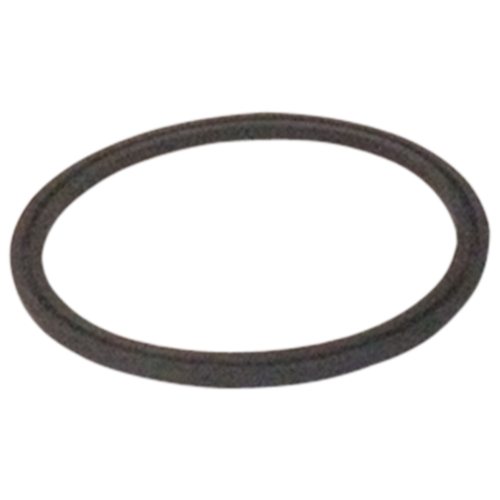

PO-25-2 0.102 2.947 0.205 Fluorocarbon

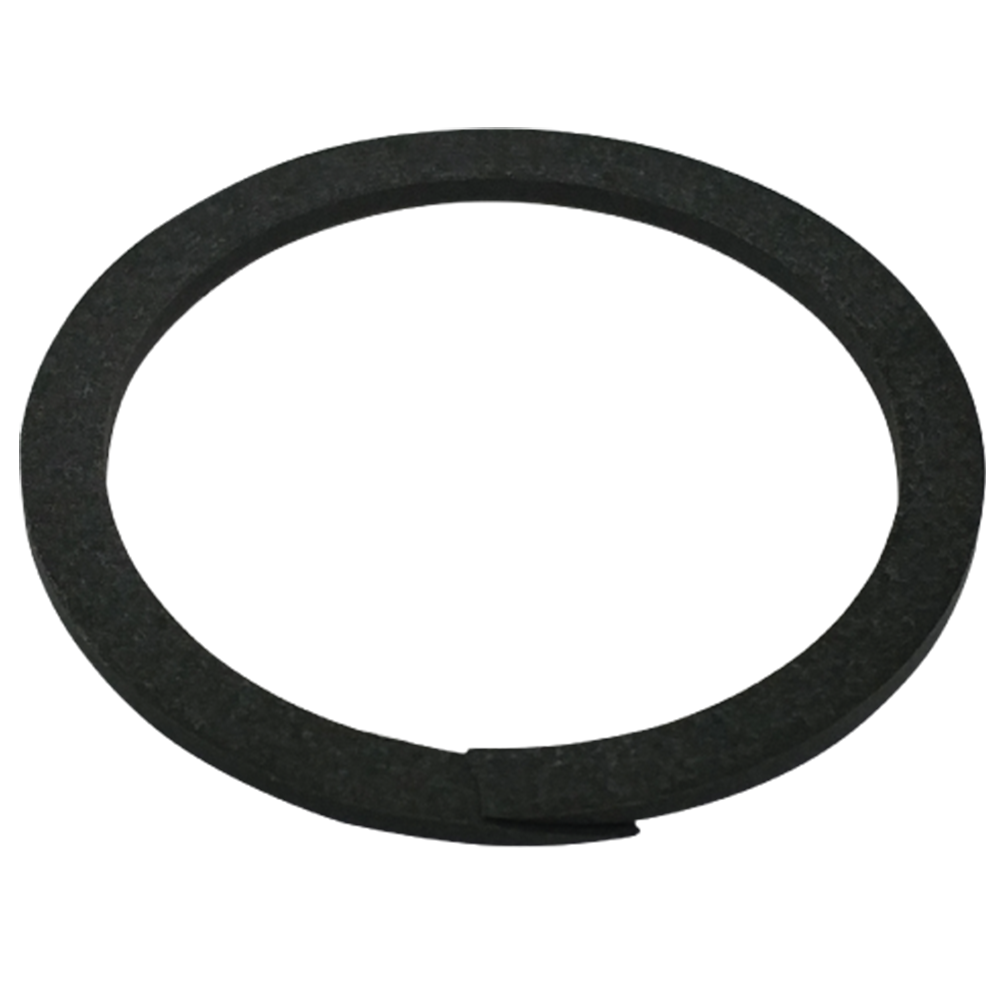

PO-25T 0.086 2.367 0.196 PTFE Scarf Cut

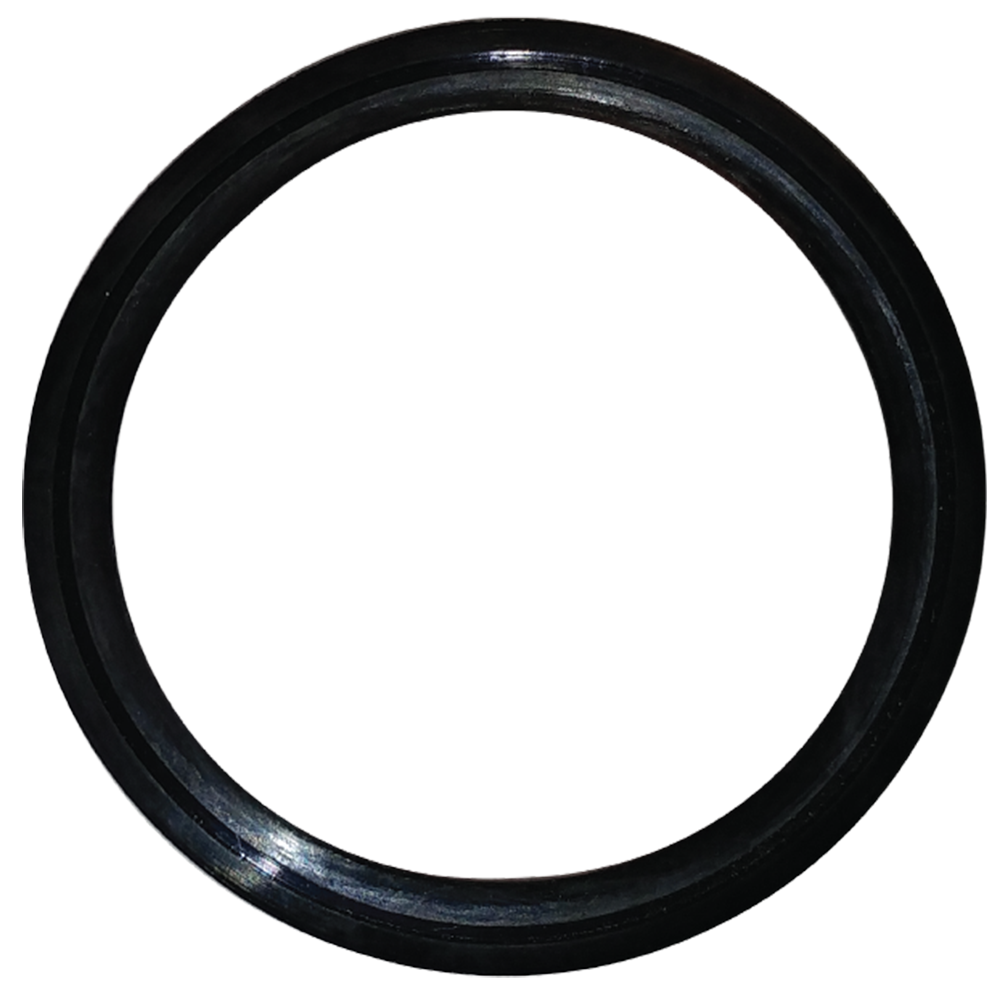

PO-25X 0.095 2.362 Polyacrylic Rubber

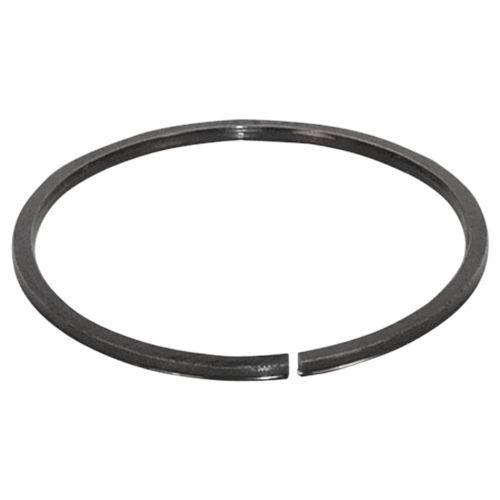

RO-25-1 0.074 2.135 0.086 PTFE Scarf Cut

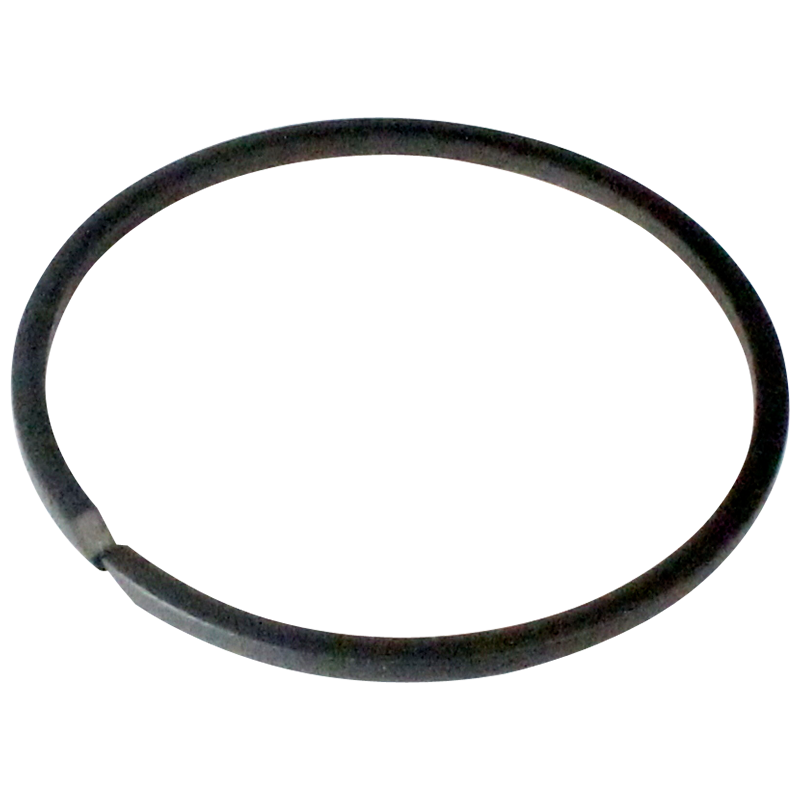

RO-25-2 0.092 2.153 0.094 PTFE Scarf Cut

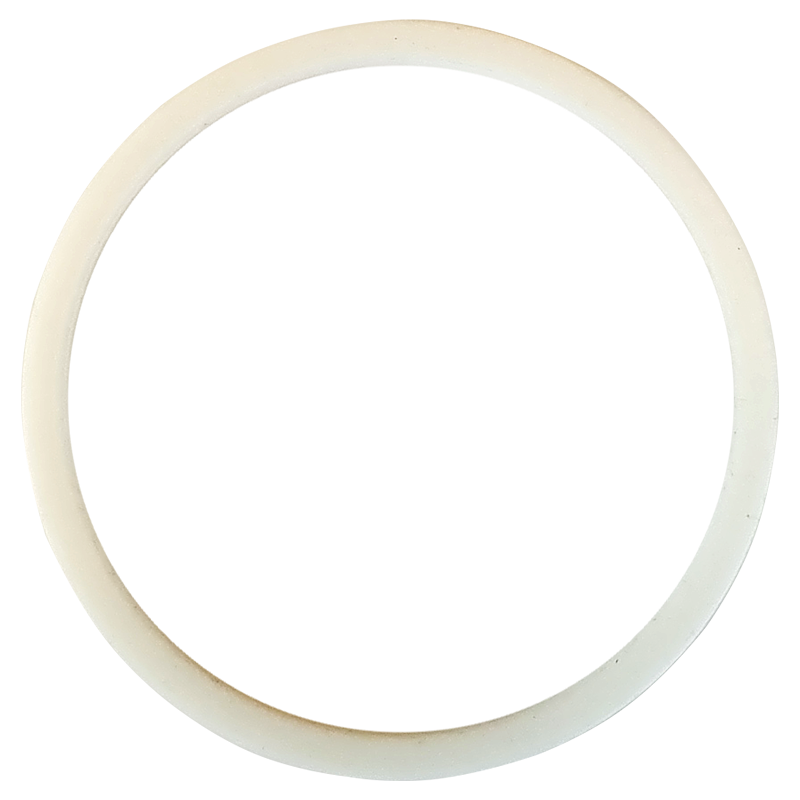

SO-23-30 0.098 2.393 0.128 PTFE Solid

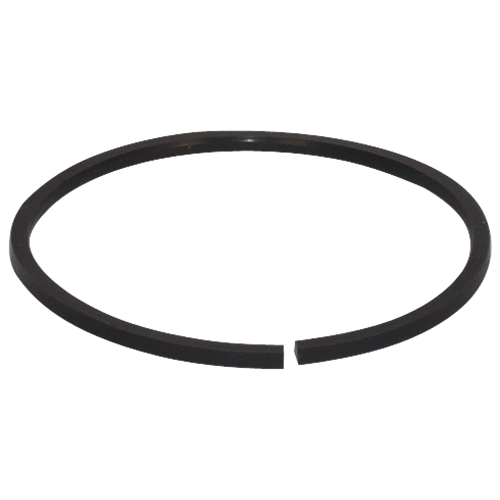

SO-23-34 0.090 2.380 0.096 PTFE Square-Cut

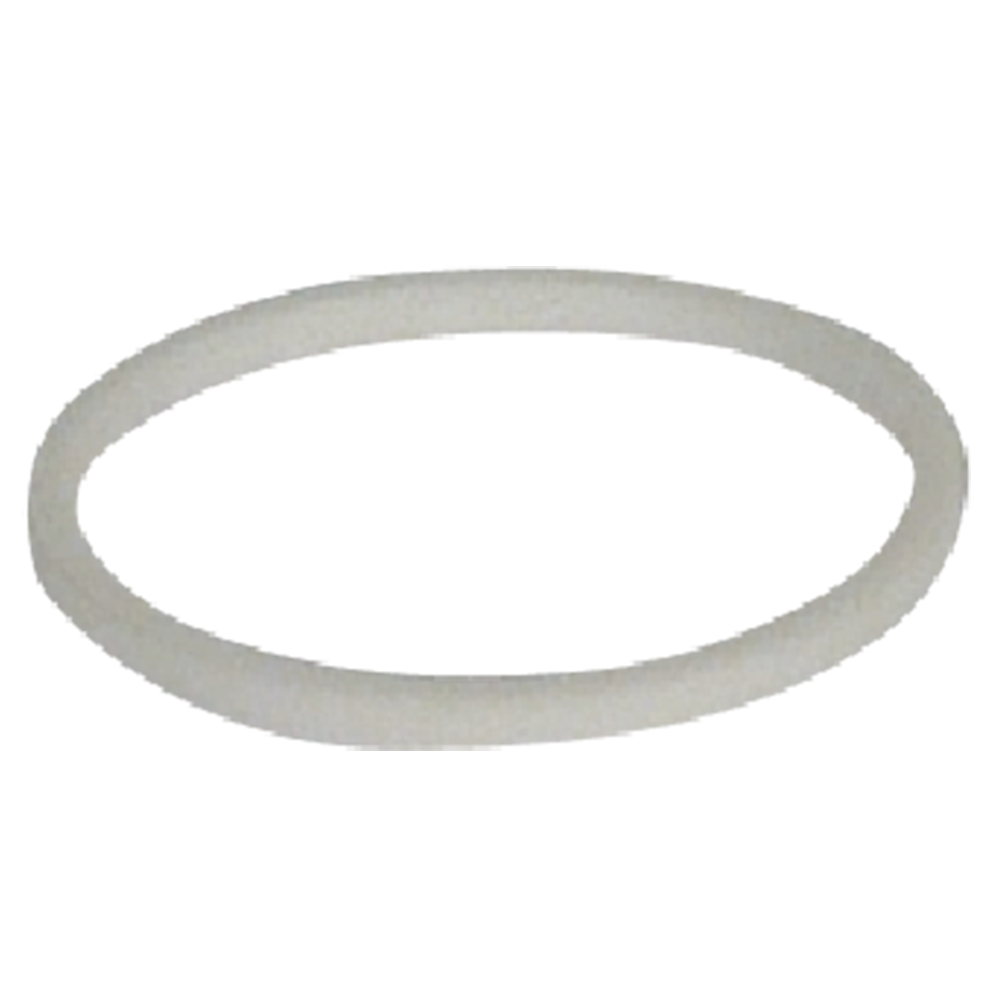

SO-23-35 0.094 1.730 0.086 PTFE Solid

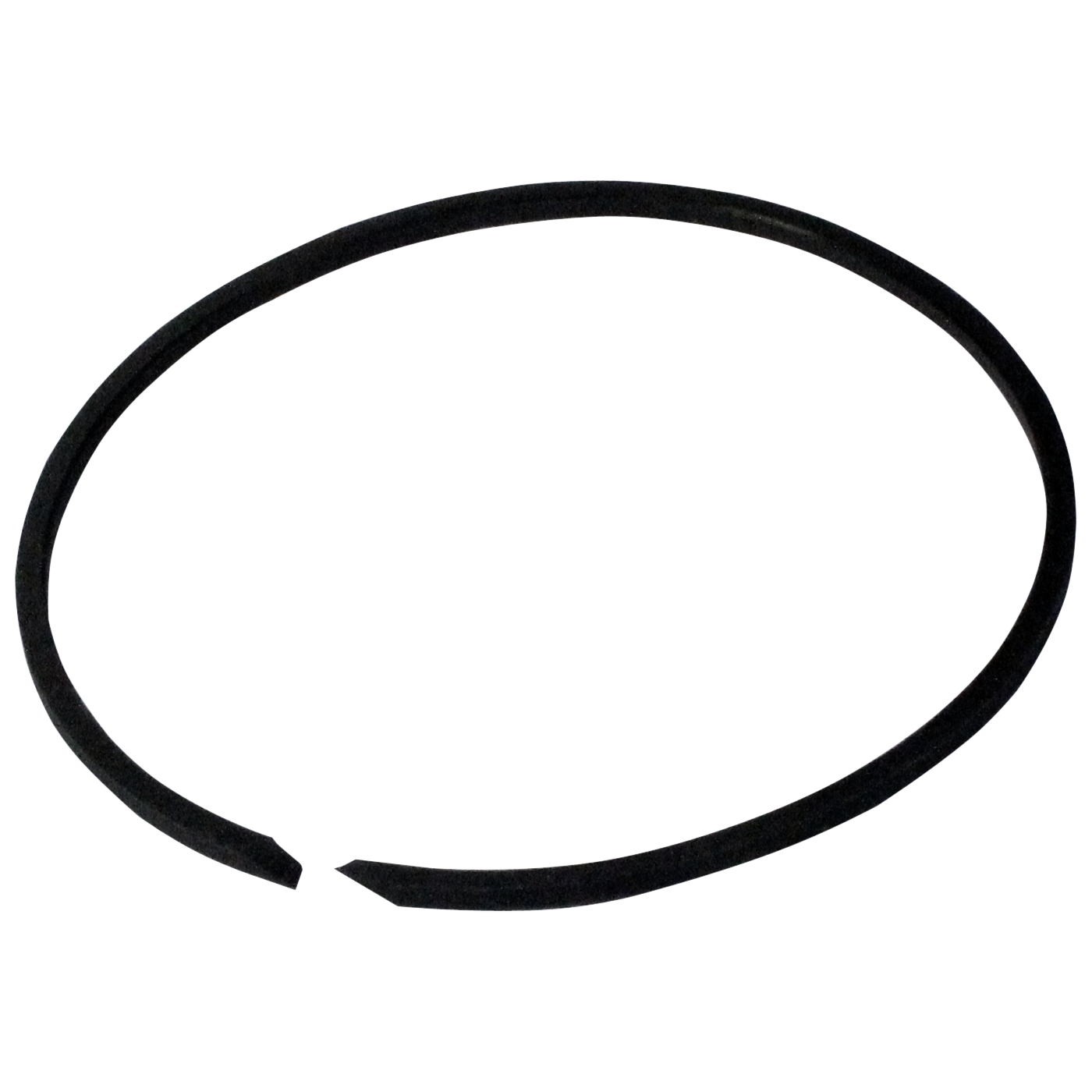

SO-23-37 0.091 2.953 0.085 PTFE Scarf Cut
SO-23-43 0.113 2.586 0.081 PTFE Solid
SO-23-44 0.090 3.160 0.100 PTFE Solid
SO-23-46A 2.300
SO-23-47 0.093 1.572 0.128 Solid

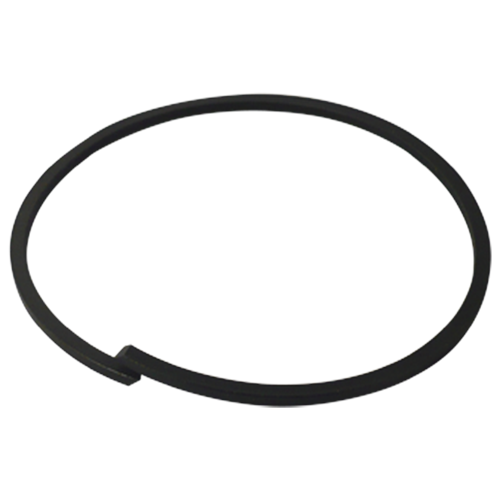

TO-25-11 0.094 3.499 0.113 PTFE Square-Cut

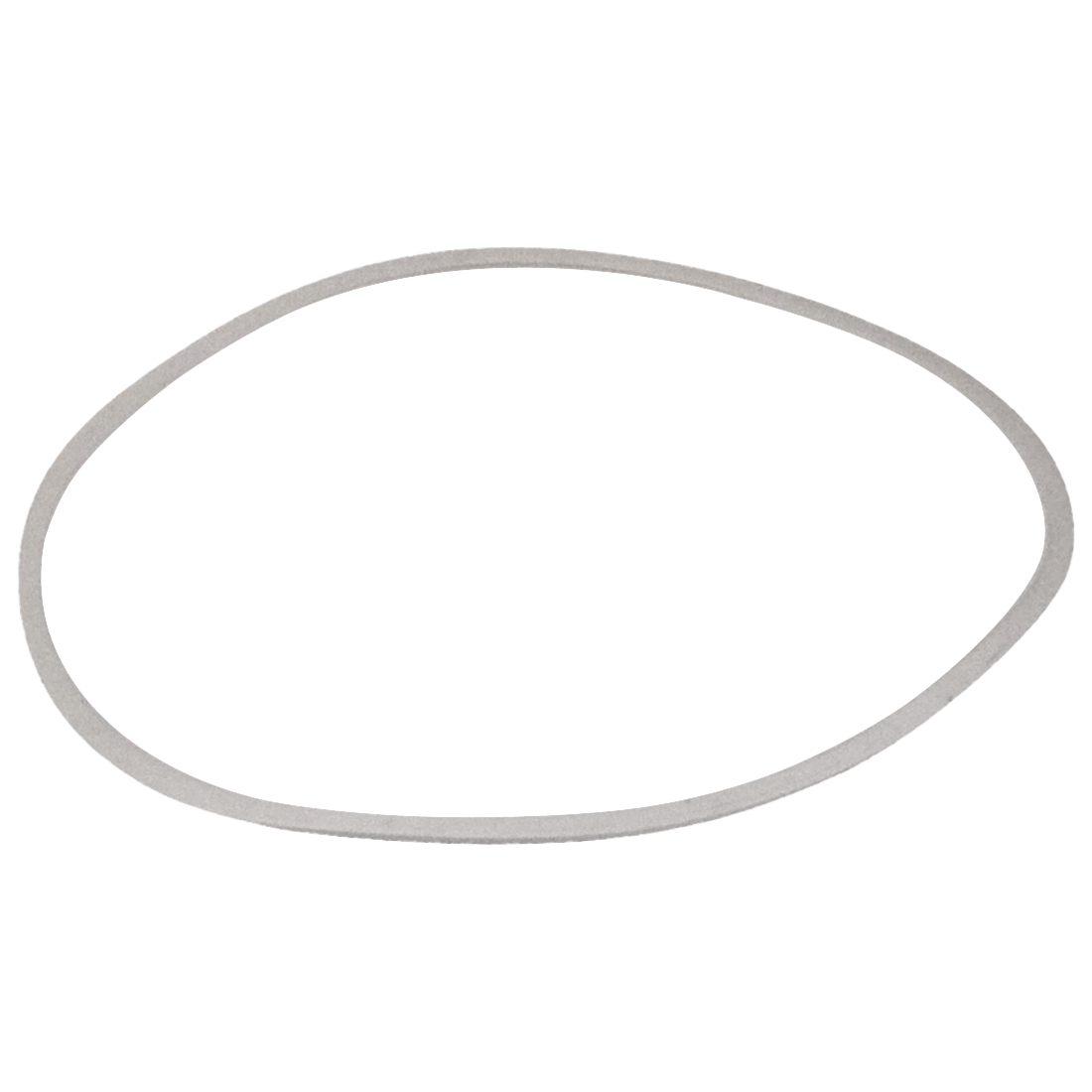

TO-25-2 0.033 4.428 0.090 PTFE Solid

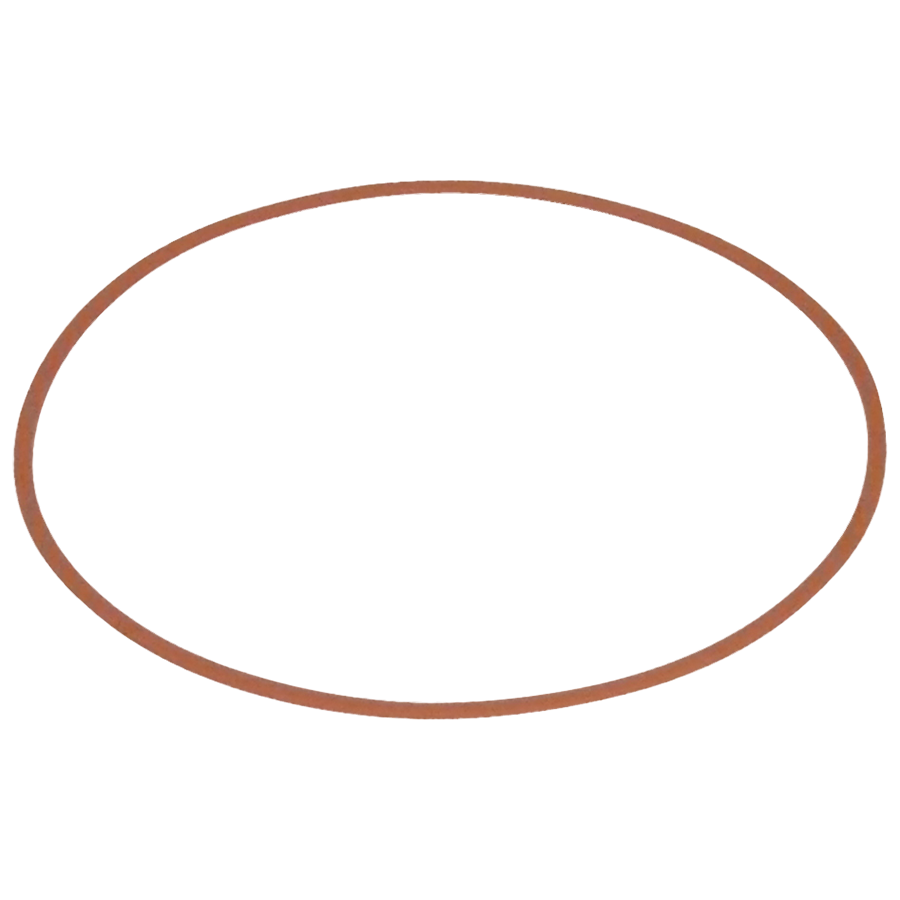

TO-25-7 0.033 4.344 0.096 PTFE Solid
VO-25-2A

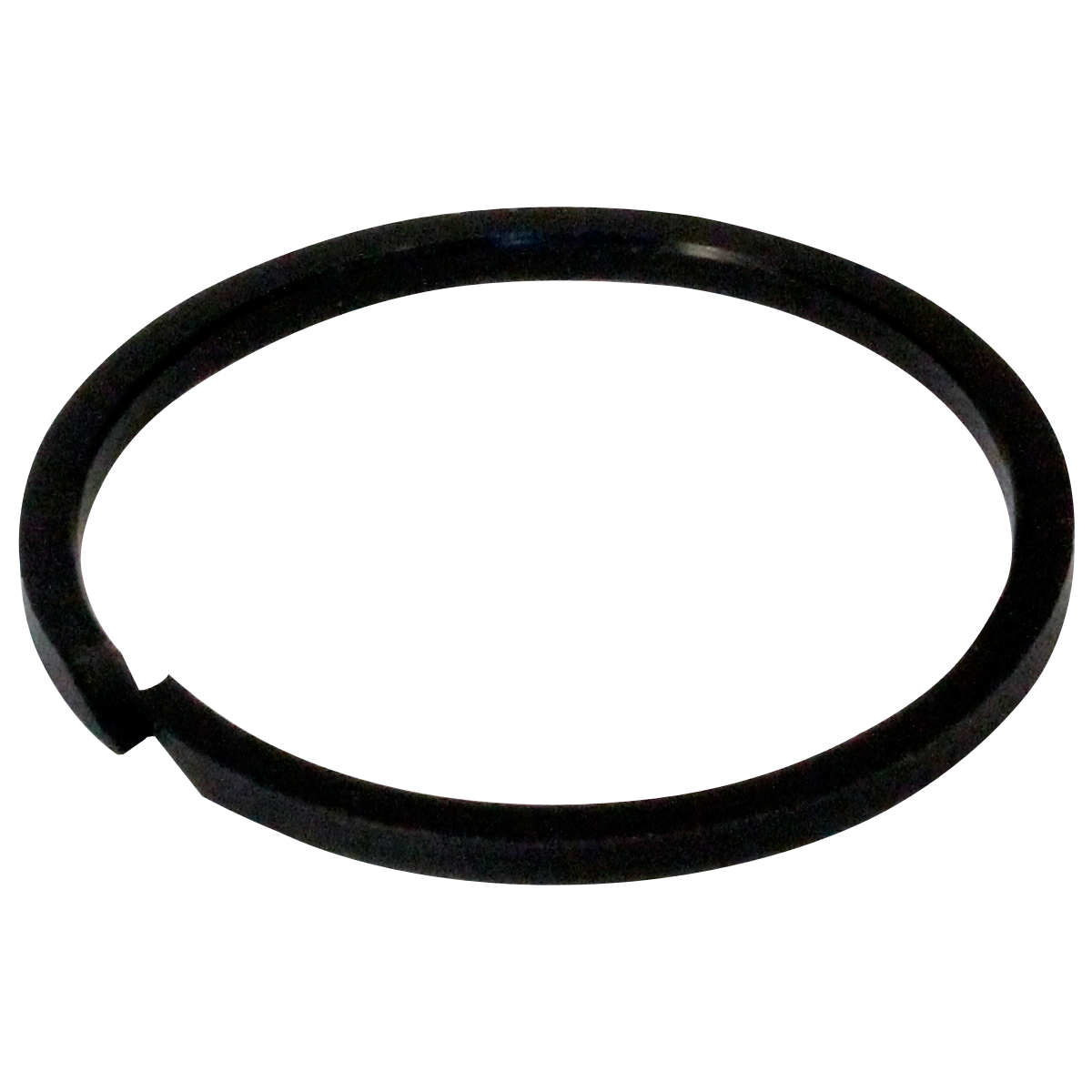

VO-25-3 0.093 1.562 0.090 PTFE Scarf Cut

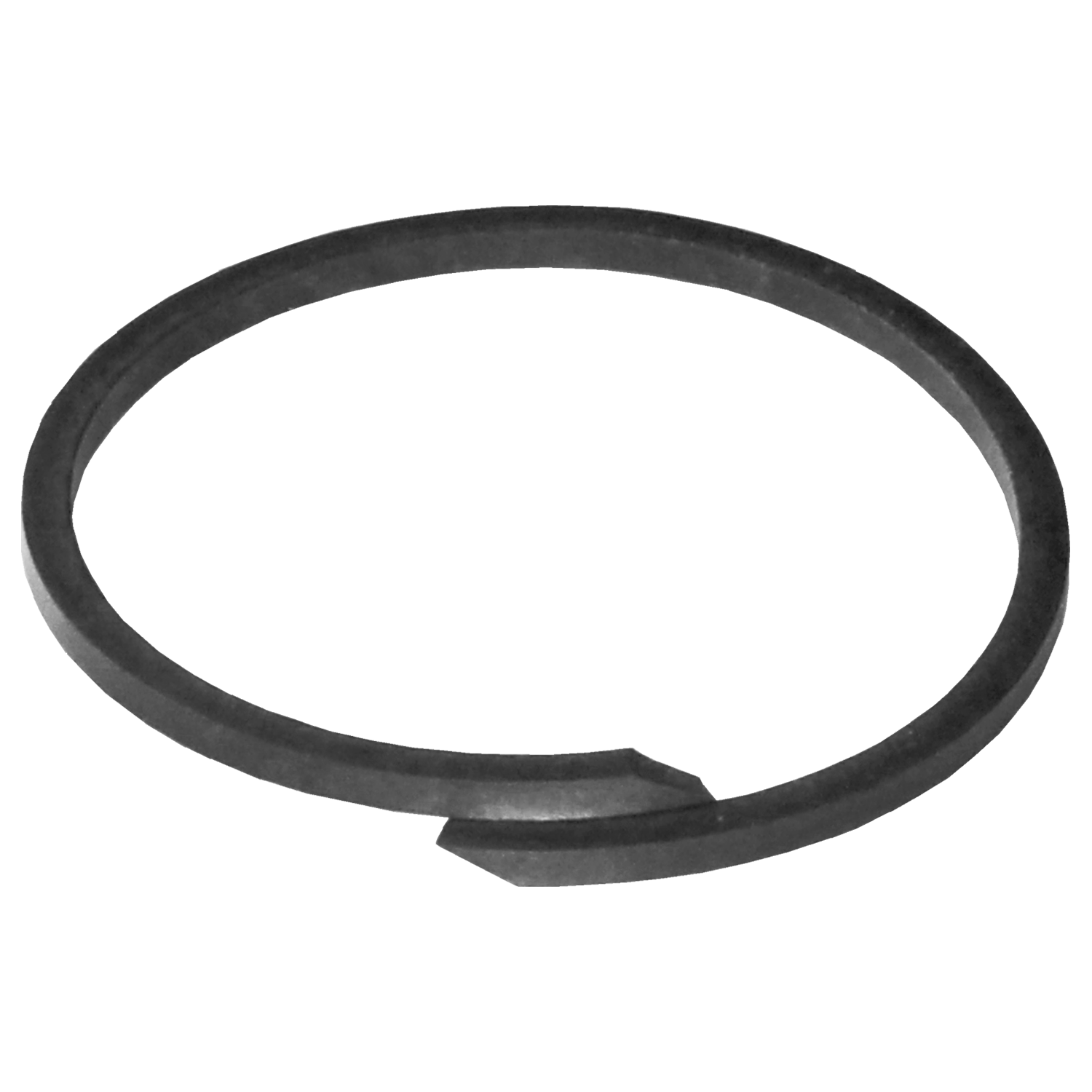

VO-25-4 0.090 2.052 0.093 PTFE Scarf Cut

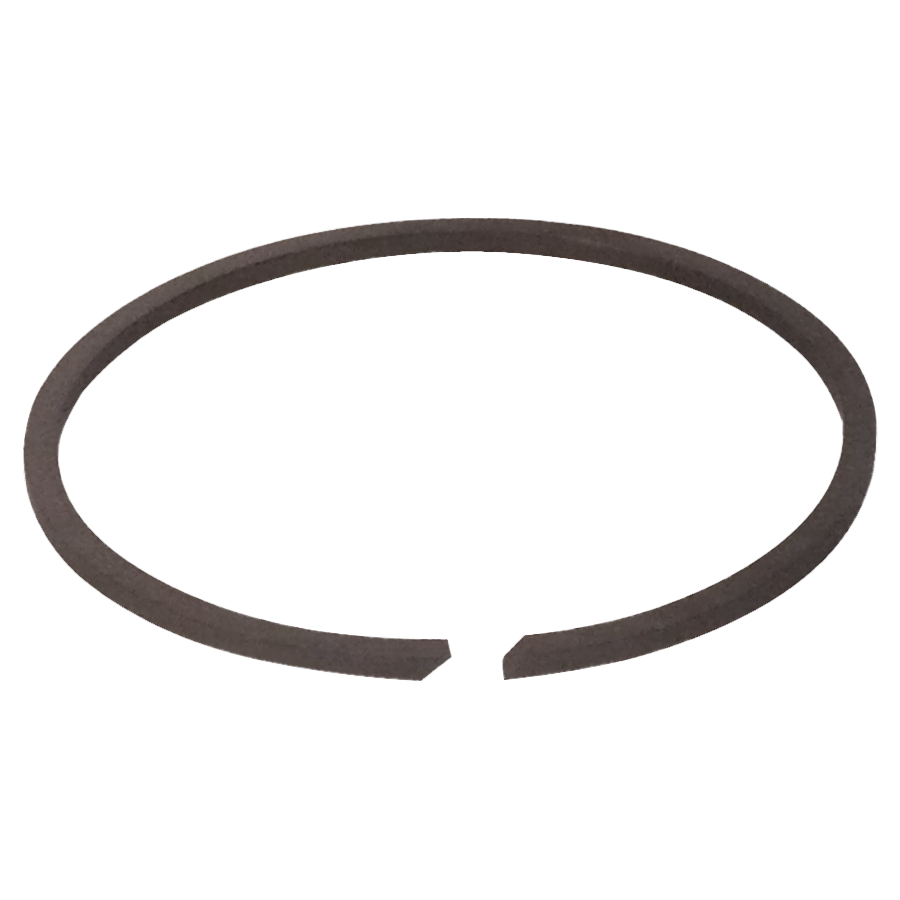

YO-25-1 0.090 2.683 0.106 PTFE Scarf Cut

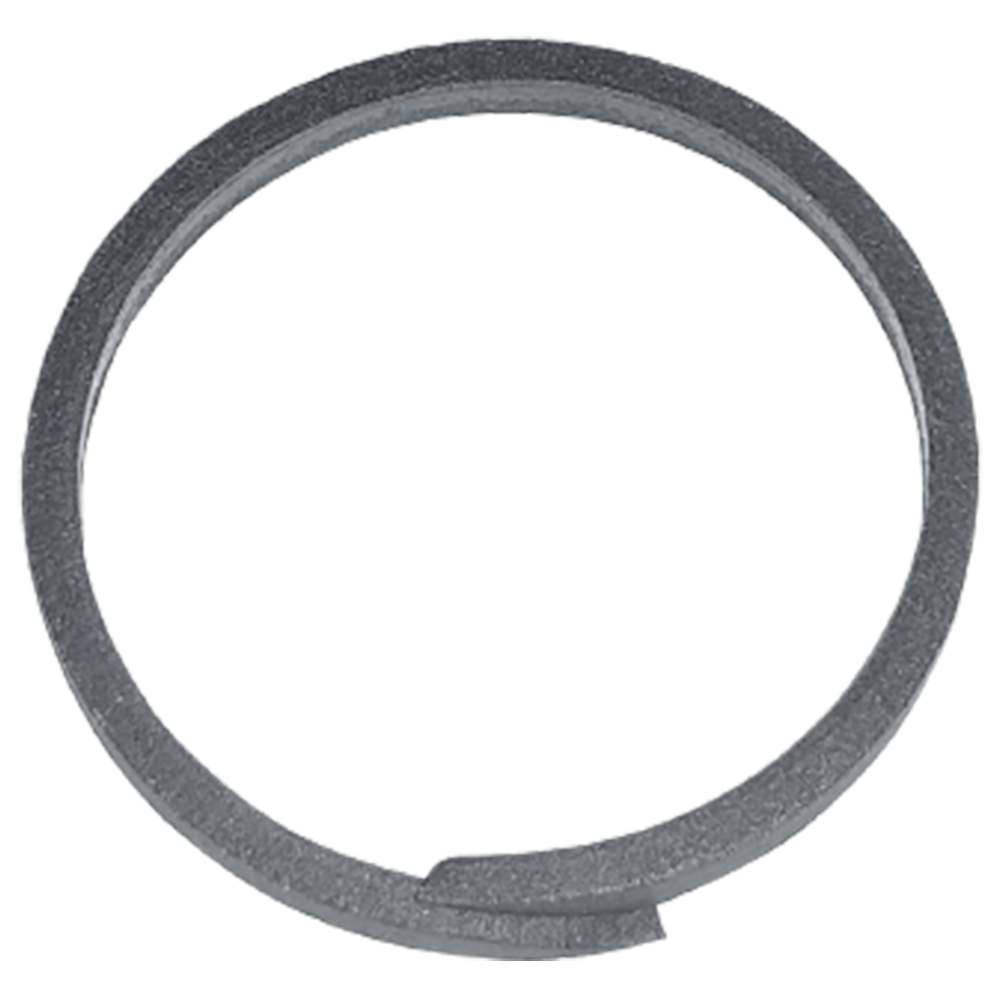

YO-25-14 0.091 1.261 0.064 PTFE Scarf Cut

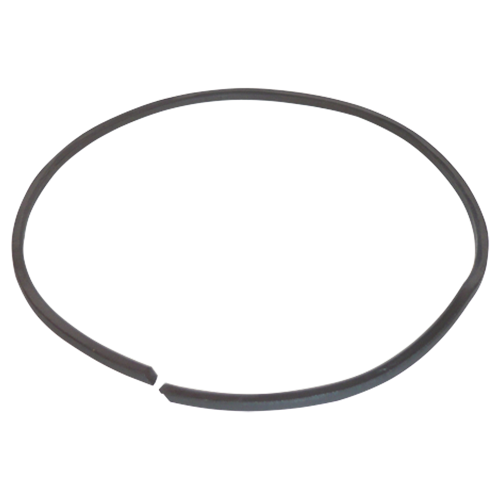

YO-25-3 0.091 4.357 0.091 PTFE Scarf Cut

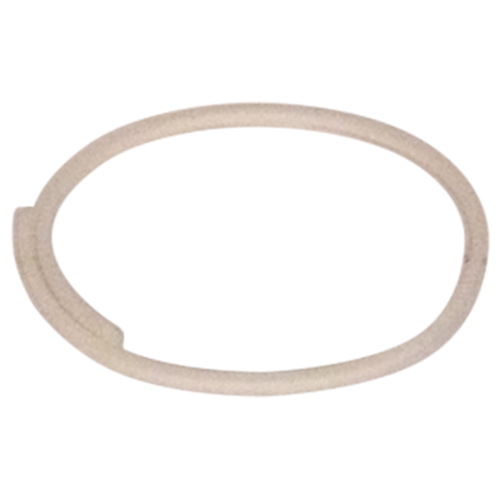

YO-25-4 0.090 4.033 0.092 PTFE Scarf Cut

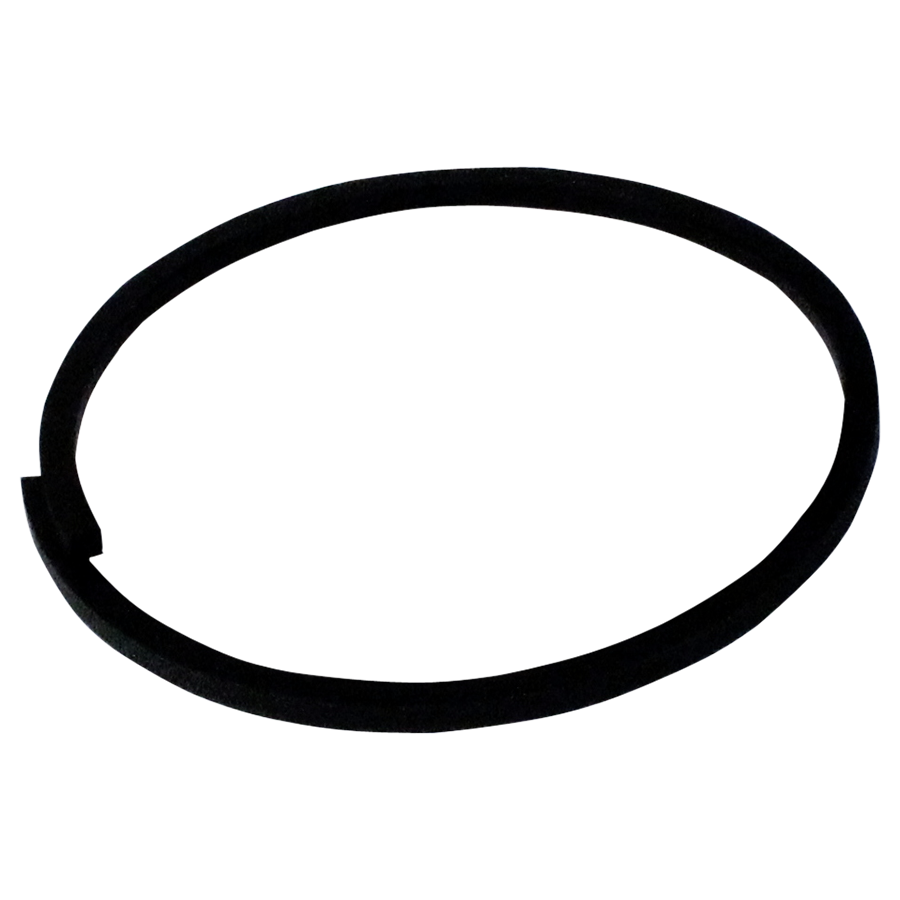

YO-25-7 0.091 2.383 0.095 PTFE Straight Cut

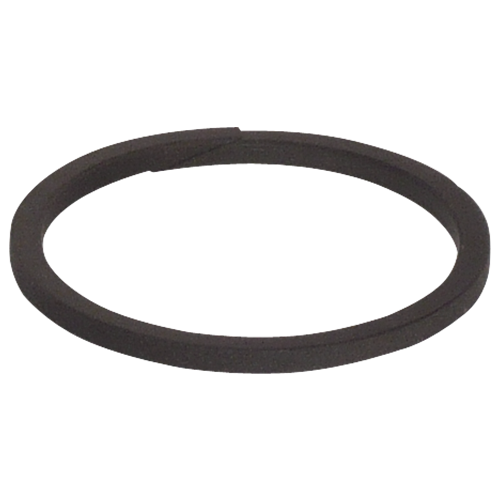

YO-25-9 0.077 1.263 0.082 PTFE Scarf Cut
