TORQUE CONVERTER CLUTCH PLATES

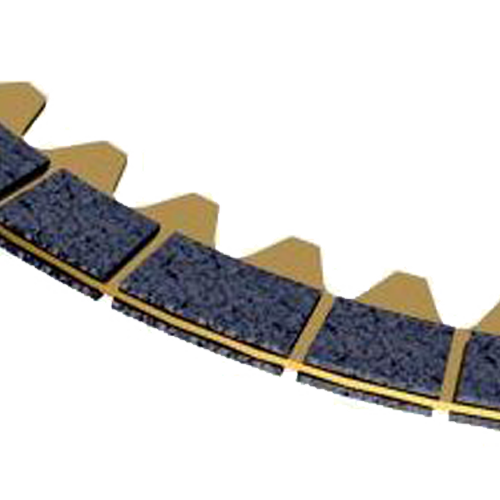

part category image 1

Tri's heavy-duty lockup clutch damper plate FX-23-43, fits a Ford E4OD torque converter and replaces the OEM version. Our lock-up clutch plate has 5 double silicon chrome springs. Tri's clutch plates are not limited to American models. HX-23-16 is a segmented friction lining clutch disk for Mercedes 722.9-9 Late and 7G-Tronic torque converters and is sold internationally. We also manufacture clutch plates used in ZF 5HP30, 5HP519, 6HP19, 6HP26 torque converters. We do friction material bonding on premises, using the finest friction materials that include Kevlar(tm) and High Carbon.

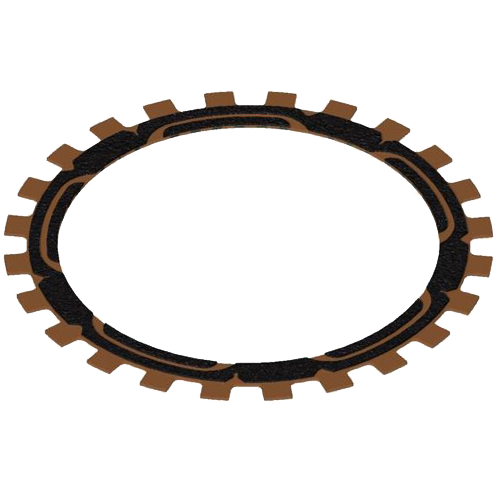

part category image 2

Part_ID description Specifications Application
Torque-Converter Friction Plate, 6F21WA
PART#: AW-23-1
Torque-Converter Friction Plate, 6F21WA
description
Friction Plate
Specifications
  • Outer Dia: 9.173"
  • Inner Dia: 7.639"
  • Thickness: 0.158"
Application
  • Aisin-Warner  6F21WA

PART#: FX-23-106
Reference Part#: FD-DA-5
description
Lockup Clutch
Specifications
  • Outer Dia: 10-3/4"
Application
  • Ford  AOD-E, 4R70W
Torque-Converter Clutch Plate Assembly, Remanufactured CD4E
PART#: FX-23-108
Reference Part#: FD-DA-8
Torque-Converter Clutch Plate Assembly, Remanufactured CD4E
description
Clutch Plate Assembly,Remanufactured
Specifications
  • Outer Dia: 9-3/8"
Application
  • Ford  CD4E

PART#: FX-23-109
Reference Part#: FD-DA-6
description
Lockup Clutch
Specifications
  • Outer Dia: 11-3/4"
Application
  • Ford  AOD-E, 4R70W
Torque-Converter Clutch Plate Assembly, Rebuilt E4OD
PART#: FX-23-11
Reference Part#: FD-DA-9K
Torque-Converter Clutch Plate Assembly, Rebuilt E4OD
description
Clutch Plate Assembly,Rebuilt
Specifications
Application
  • Ford  E4OD

PART#: FX-23-11K
description
Clutch Plate Assembly
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, Luk Design, Not Suited For Power Stroke Engine. (Lad-112) E4OD
PART#: FX-23-11N
Reference Part#: FD-DA-9
description
Clutch Plate Assembly,Luk Design, Not Suited For Power Stroke Engine. (Lad-112)
Specifications
Application
  • Ford  E4OD

PART#: FX-23-11X
description
Lockup Clutch
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, Multi-Plate A4LD Multi-Clutch 4.0
PART#: FX-23-14
Torque-Converter Clutch Plate Assembly, Multi-Plate A4LD Multi-Clutch 4.0
description
Clutch Plate Assembly,Multi-Plate
Specifications
Application
  • Ford  A4LD Multi-Clutch 4.0

PART#: FX-23-20
description
Clutch Plate Assembly
Specifications
  • Diesel, Double Spring, First Design (Single Plate)
Application
  • Ford  E4OD

PART#: FX-23-208
description
Clutch Plate Assembly,Unlined
Specifications
  • Outer Dia: 10"
Application
  • Ford  CD4E

PART#: FX-23-21
description
Clutch Plate Assembly,Multi-Clutch, Diesel
Specifications
  • Uses 3 FX-23-23 Linings
Application
  • Ford  E4OD
Torque-Converter Friction Plate, 5R55N, 5R55S, 5R55W, AX4S / AX4N (4F50N)
PART#: FX-23-31
Reference Part#: FD-CP-1
Torque-Converter Friction Plate, 5R55N, 5R55S, 5R55W, AX4S / AX4N (4F50N)
description
Friction Plate
Specifications
  • Inner Dia: 7.94"
  • 4 Lugs, Double Lining
Application
  • Ford  5R55N, 5R55S, 5R55W
  • Ford  AX4S / AX4N (4F50N)
Torque-Converter Friction Plate, 6 Lugs, Double Lining AX4S / AX4N (4F50N)
PART#: FX-23-32
Reference Part#: FD-CP-2
Torque-Converter Friction Plate, 6 Lugs, Double Lining AX4S / AX4N (4F50N)
description
Friction Plate,6 Lugs, Double Lining
Specifications
Application
  • Ford  AX4S / AX4N (4F50N)

PART#: FX-23-33
description
Clutch Plate Assembly,Intermediate Design, 6 Springs
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, Late Design, 8 Springs E4OD
PART#: FX-23-34
description
Clutch Plate Assembly,Late Design, 8 Springs
Specifications
Application
  • Ford  E4OD

PART#: FX-23-36
description
Pressure Plate,54 teeth, late
Specifications
Application
  • Miscellaneous/General Purpose  Misc Unlisted
Torque-Converter Piston Plate, With FB-18-7 Bushing 5R110W, 4R100 4 Speed, RWD / 4 x 4
PART#: FX-23-37
description
Piston Plate,With FB-18-7 Bushing
Specifications
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-42
description
Clutch Plate Assembly,8 Springs, Late Design, 54 Teeth (6 Missing)
Specifications
  • Replaces LAD 116
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W
Torque-Converter Clutch Plate Assembly, Luk Design, 5 Double Springs, Heavy Duty E4OD
PART#: FX-23-43
Reference Part#: FD-DA-14
Torque-Converter Clutch Plate Assembly, Luk Design, 5 Double Springs, Heavy Duty E4OD
description
Clutch Plate Assembly,Luk Design, 5 Double Springs, Heavy Duty
Specifications
Application
  • Ford  E4OD

PART#: FX-23-43C
description
Clutch Plate Assembly,10 Springs, Carbon
Specifications
  • Thickness: 0.045"
  • Material: Carbon
Application
  • Ford  E4OD

PART#: FX-23-43HC
description
Clutch Plate Assembly,Heavy-Duty, 10 SPRING High Carbon Lining
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, 10 Springs, Kevlar® E4OD
PART#: FX-23-43K
description
Clutch Plate Assembly,10 Springs, Kevlar®
Specifications
Application
  • Ford  E4OD

PART#: FX-23-43KCVC
description
Clutch Plate Assembly,Kevlar®, (non segmented)
Specifications
Application
  • Ford  E4OD

PART#: FX-23-43U
description
Clutch Plate Assembly,Un-lined & un-machined
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, 10 Springs, Unlined E4OD
PART#: FX-23-43X
description
Clutch Plate Assembly,10 Springs, Unlined
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, Reman, HD E4OD
PART#: FX-23-43XR
Torque-Converter Clutch Plate Assembly, Reman, HD E4OD
description
Clutch Plate Assembly,Reman, HD
Specifications
Application
  • Ford  E4OD
Torque-Converter Clutch Plate Assembly, Multi Plate With Bushing 4R100 4 Speed, RWD / 4 x 4, 5R110W
PART#: FX-23-45
Reference Part#: FD-DA-13
Torque-Converter Clutch Plate Assembly, Multi Plate With Bushing 4R100 4 Speed, RWD / 4 x 4, 5R110W
description
Clutch Plate Assembly,Multi Plate With Bushing
Specifications
  • Multi Plate with Bushing, for PTO. Contains Items #21, 22, 23, 24, 25, 26. Use With FX-13-35HT Turbine Hub
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W
Torque-Converter Clutch Plate Assembly, Bulk Packed, 4 Pieces. 4R100 4 Speed, RWD / 4 x 4, 5R110W
PART#: FX-23-45-4
Torque-Converter Clutch Plate Assembly, Bulk Packed, 4 Pieces. 4R100 4 Speed, RWD / 4 x 4, 5R110W
description
Clutch Plate Assembly,Bulk Packed, 4 Pieces.
Specifications
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-45A
description
Clutch Plate Assembly,3 Pieces
Specifications
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-45AT
description
Clutch Plate Assembly,3 Pieces, 4R100
Specifications
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-45AX
description
Clutch Plate Assembly,Unlined
Specifications
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W
Torque-Converter Drive Plate, 4R100 4 Speed, RWD / 4 x 4, 5R110W
PART#: FX-23-46
description
Drive Plate
Specifications
  • Height: 0.395"
  • Outer Dia: 12.144"
  • Inner Dia: 9.800"
  • Thickness: 0.104"
  • External teeth: 54 (6 removed)
  • Uses 1 Lining FX-23-49
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-46HC
description
Drive Plate,Friction, High-Carbon
Specifications
  • Height: 0.395"
  • Outer Dia: 12.144"
  • Inner Dia: 9.800"
  • Thickness: 0.104"
  • External teeth: 54 (6 removed)
  • Uses 1 Lining FX-23-49HC
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W
Torque-Converter Drive Plate, Unlined 4R100 4 Speed, RWD / 4 x 4, 5R110W
PART#: FX-23-46X
description
Drive Plate,Unlined
Specifications
  • Height: 0.395"
  • Outer Dia: 12.144"
  • Inner Dia: 9.800"
  • Thickness: 0.104"
  • External teeth: 54 (6 removed)
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-4R55E
description
Clutch Plate Assembly,8 Double Springs
Specifications
  • Internal Teeth: 21
Application
  • Ford  A4LD, 4R55E, Late
Torque-Converter Clutch Plate Assembly, AXOD / AXODE
PART#: FX-23-5
Torque-Converter Clutch Plate Assembly, AXOD / AXODE
description
Clutch Plate Assembly
Specifications
  • Outer Dia: 9-3/4"
Application
  • Ford  AXOD / AXODE
Torque-Converter Friction Plate, Double Lining, O.E. Type 5R55N, 5R55S, 5R55W, AX4S / AX4N (4F50N)
PART#: FX-23-53
Reference Part#: FD-CP-7
description
Friction Plate,Double Lining, O.E. Type
Specifications
  • Outer Dia: 9.55"
  • Inner Dia: 7.25"
Application
  • Ford  5R55N, 5R55S, 5R55W
  • Ford  AX4S / AX4N (4F50N)
Torque-Converter Clutch Plate, Piston, 5R55N/S/W 5R55N, 5R55S, 5R55W
PART#: FX-23-60
Reference Part#: FD-DA-17PB
Torque-Converter Clutch Plate, Piston, 5R55N/S/W 5R55N, 5R55S, 5R55W
description
Clutch Plate,Piston, 5R55N/S/W
Specifications
Application
  • Ford  5R55N, 5R55S, 5R55W
Torque-Converter Conversion Plate, Bonded 5R55N, 5R55S, 5R55W
PART#: FX-23-60A
Reference Part#: FD-DA-17PBF
Torque-Converter Conversion Plate, Bonded 5R55N, 5R55S, 5R55W
description
Conversion Plate,Bonded
Specifications
  • Thickness: 0.200"
Application
  • Ford  5R55N, 5R55S, 5R55W
Torque-Converter Conversion Plate, Friction, High-Carbon, 5R55 5R55N, 5R55S, 5R55W
PART#: FX-23-60HC
Torque-Converter Conversion Plate, Friction, High-Carbon, 5R55 5R55N, 5R55S, 5R55W
description
Conversion Plate,Friction, High-Carbon, 5R55
Specifications
Application
  • Ford  5R55N, 5R55S, 5R55W
Torque-Converter Conversion Plate, Bonded Kevlar®,5R55 5R55N, 5R55S, 5R55W
PART#: FX-23-60K
Torque-Converter Conversion Plate, Bonded Kevlar®,5R55 5R55N, 5R55S, 5R55W
description
Conversion Plate,Bonded Kevlar®,5R55
Specifications
Application
  • Ford  5R55N, 5R55S, 5R55W

PART#: FX-23-66
Reference Part#: FD-DA-19PB
description
Clutch Plate,Piston
Specifications
  • Thickness: 0.200"
Application
  • Ford  CD4E 9-1/4" (3.0L & 2.3L)

PART#: FX-23-66A
Reference Part#: FD-DA-19PBF
description
Friction Plate
Specifications
Application
  • Ford  CD4E 9-1/4" (3.0L & 2.3L)

PART#: FX-23-68
Reference Part#: FD-DA-18PB
description
Conversion Plate
Specifications
  • Thickness: 0.200"
Application
  • Ford  AX4S / AX4N (4F50N)

PART#: FX-23-68A
Reference Part#: FD-DA-18PBF
description
Conversion Plate,Bonded
Specifications
Application
  • Ford  AX4S / AX4N (4F50N)

PART#: FX-23-75
Reference Part#: .
description
Friction Plate
Specifications
  • Outer Dia: 9.640"
  • Inner Dia: 6.491"
  • Thickness: 0.158"
  • Internal Teeth: 6
Application
  • Ford  FORD 6R75/6R80 Expedition, Lincoln Navigator
Torque-Converter Drive Plate, 5R110W, 4R100 4 Speed, RWD / 4 x 4
PART#: FX-23-78
Torque-Converter Drive Plate, 5R110W, 4R100 4 Speed, RWD / 4 x 4
description
Drive Plate
Specifications
  • Height: 0.895"
  • Outer Dia: 12.144"
  • Inner Dia: 9.800"
  • NOT FOR DIESEL (GASOLINE ONLY)
Application
  • Ford  4R100 4 Speed, RWD / 4 × 4
  • Ford  5R110W

PART#: FX-23-79
Reference Part#: FD-DA-23P
description
Piston Plate
Specifications
  • Material: Steel Forging
Application
  • Ford  6R60, 6R75W

PART#: FX-23-8
description
Lockup Clutch
Specifications
Application
  • Miscellaneous/General Purpose  Misc Unlisted
Torque-Converter Friction Plate, 6R140
PART#: FX-23-81
Reference Part#: FD-CP-140
Torque-Converter Friction Plate, 6R140
description
Friction Plate
Specifications
  • Outer Dia: 11.500"
  • Inner Dia: 9.770"
  • Thickness: 0.118"
  • 30 Internal Flat Tab bonded to each side
Application
  • Ford  6R140
Torque-Converter Clutch Plate Assembly, Single-Plate A4LD, 4R55E, A4LD Multi-Clutch 4.0, A4LD, 4R55E, Late
PART#: FX-23-8N
Reference Part#: FD-DA-7
Torque-Converter Clutch Plate Assembly, Single-Plate A4LD, 4R55E, A4LD Multi-Clutch 4.0, A4LD, 4R55E, Late
description
Clutch Plate Assembly,Single-Plate
Specifications
Application
  • Ford  A4LD, 4R55E
  • Ford  A4LD, 4R55E, Late
  • Ford  A4LD Multi-Clutch 4.0
Torque-Converter Clutch Plate Assembly, AXOD / AXODE
PART#: FX-23-9
Torque-Converter Clutch Plate Assembly, AXOD / AXODE
description
Clutch Plate Assembly
Specifications
  • Outer Dia: 10-1/4"
  • 3.8 Liter
Application
  • Ford  AXOD / AXODE
Torque-Converter Friction Plate, Bonded on Each Side 6R60, 6R75W
PART#: FX-26-1
Reference Part#: FD-CP-15
description
Friction Plate,Bonded on Each Side
Specifications
  • Outer Dia: 8.071"
Application
  • Ford  6R60, 6R75W
Torque-Converter Friction Plate, Bent External Teeth 6R80, 260mm (Late)
PART#: FX-26-2
Reference Part#: FD-CP-18
description
Friction Plate,Bent External Teeth
Specifications
  • Outer Dia: 10.775"
  • Inner Dia: 8.700"
  • Thickness: 0.159"
  • External teeth: 40
Application
  • Ford  6R80, 260mm (Late)
Torque-Converter Friction Plate, Tab Style, Bent External Teeth 6R80, 280mm (Late)
PART#: FX-26-3
Reference Part#: FD-CP-19
description
Friction Plate,Tab Style, Bent External Teeth
Specifications
  • Outer Dia: 11.340"
  • Inner Dia: 9.145"
  • Thickness: 0.159"
  • External teeth: 40
Application
  • Ford  6R80, 280mm (Late)

PART#: FX-26-4
Reference Part#: .
description
Friction Plate
Specifications
  • Outer Dia: 9.640"
  • Inner Dia: 6.491"
  • Thickness: 0.158"
  • Internal Teeth: 6
Application
  • Ford  6R75/6R80 Expedition, Lincoln Navigator

PART#: FX-26-5
Reference Part#: FD-CP-140
description
Friction Plate,Replaces FX-26-5
Specifications
  • Outer Dia: 11.500"
  • Inner Dia: 9.770"
Application
  • Ford  6R140
Torque-Converter Friction Plate, Kevlar® 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23
Reference Part#: MB-CP-9K
description
Friction Plate,Kevlar®
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.90"
  • Thickness: .09"
  • Internal Teeth: 34
  • 36 Segments, With Kevlar® Linings
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate, Steel Mercedes
PART#: HX-23-1
Reference Part#: .
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.28"
  • Inner Dia: 5.63"
  • Thickness: 0.070"
  • External teeth: 20
Application
  • Mercedes  722.7 FWD, 5 Speed, A140, A 160, A170, A190, ‘97-UP
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate Kit, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-11K
description
Clutch Plate Kit
Specifications
  • Contains: HX-23-1 / HX-23-1A (2), HX-23-8 (2), HX-23-2 (1)
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate Kit, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-12K
description
Clutch Plate Kit
Specifications
  • Contains: HX-23-1 / HX-23-1A (2), HX-23-9 (2), HX-23-3 (1)
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate, Steel 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-13
Reference Part#: MB-CP-10R
description
Clutch Plate,Steel
Specifications
  • Inner Dia: 5.63"
  • Thickness: 0.070"
  • External teeth: 20
  • With notches for springs
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-13K
Reference Part#: MB-CP-10KA
description
Kit,Clutch Release
Specifications
  • Inner Dia: 5.63"
  • Contains: (1) HX-23-13 (steel) and (10) HX-24-1 Short Springs
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-14
description
Clutch Plate,Steel
Specifications
  • Inner Dia: 5.63"
  • Thickness: 0.080"
  • External teeth: 20
  • With notches for springs
Application
  • Miscellaneous/General Purpose  Misc Unlisted
Torque-Converter Clutch Plate Kit, With Springs 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-15K
Reference Part#: MB-CP-11KA
description
Clutch Plate Kit,With Springs
Specifications
  • (2) HX-23-13 (steel) and (10) HX-24-2 Long Springs
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, 40 Outside Teeth 725.0, 9G-Tronic, 722.9 Late, 7G -Tronic
PART#: HX-23-16
Reference Part#: MB-CP-8BW, MB-CP-8
Torque-Converter Friction Plate, 40 Outside Teeth 725.0, 9G-Tronic, 722.9 Late, 7G -Tronic
description
Friction Plate, 40 Outside Teeth
Specifications
  • Outer Dia: 7.716"
  • Inner Dia: 6.102"
  • Thickness: .109"
  • External teeth: 40
Application
  • Mercedes  725.0, 9G-Tronic
  • Mercedes  722.9 Late, 7G -Tronic

PART#: HX-23-16HC
description
Friction Plate,High-Carbon, 40 Outside Teeth
Specifications
  • Outer Dia: 7.716"
  • Inner Dia: 6.102"
  • Thickness: .109"
Application
  • Mercedes  725.0, 9G-Tronic
  • Mercedes  722.9 Late, 7G -Tronic
Torque-Converter Clutch Plate, Steel 722.9 Late, 7G -Tronic
PART#: HX-23-17
Reference Part#: MB-CP-14S
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.400"
  • Inner Dia: 5.585"
  • Thickness: 0.071"
  • Internal Teeth: 36
  • A total of four steel plates are required per converter. Please measure and select accordingly between HX-23-17 and HX-23-18
Application
  • Mercedes  722.9 Late, 7G -Tronic
Torque-Converter Clutch Plate, Steel 722.9 Late, 7G -Tronic
PART#: HX-23-18
Reference Part#: MB-CP-15S
Torque-Converter Clutch Plate, Steel 722.9 Late, 7G -Tronic
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.400"
  • Inner Dia: 5.585"
  • Thickness: 0.078"
  • Internal Teeth: 36
  • A total of four steel plates are required per converter. Please measure and select accordingly between HX-23-17 and HX-23-18
Application
  • Mercedes  722.9 Late, 7G -Tronic

PART#: HX-23-19
Reference Part#: MB-CP-12
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.28"
  • Inner Dia: 5.63"
  • Thickness: 0.142"
  • External teeth: 20
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate, Steel Mercedes
PART#: HX-23-1A
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.28"
  • Inner Dia: 5.63"
  • Thickness: 0.080"
  • External teeth: 20
  • Compensates For Ring Groove Wear
Application
  • Mercedes  722.7 FWD, 5 Speed, A140, A 160, A170, A190, ‘97-UP
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate Kit, 2 Steels Mercedes
PART#: HX-23-1K
Reference Part#: MB-CP-3KR
description
Clutch Plate Kit,2 Steels
Specifications
  • Outer Dia: 7.28"
  • Inner Dia: 5.63"
  • Thickness: 0.070"
  • External teeth: 20
  • Kit Includes 2 Steel Plates (HX-23-1), Each plate is 0.070" thick.
Application
  • Mercedes  722.7 FWD, 5 Speed, A140, A 160, A170, A190, ‘97-UP
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Pressure Plate, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-2
Reference Part#: MB-CP-4K
description
Pressure Plate
Specifications
  • Outer Dia: 7.28"
  • Inner Dia: 5.63"
  • Thickness: .16"
  • External teeth: 20
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate, Steel Mercedes
PART#: HX-23-3
Reference Part#: MB-CP-6K
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.28"
  • Inner Dia: 5.63"
  • Thickness: .197"
  • External teeth: 20
Application
  • Mercedes  722.7 FWD, 5 Speed, A140, A 160, A170, A190, ‘97-UP
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, 2.7mm 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-4
description
Friction Plate,2.7mm
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: .107"
  • Internal Teeth: 34
  • With 36 Kevlar Segments
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-4HC
description
Friction Plate,High-Carbon
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.90"
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate Kit, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-4K
Reference Part#: MB-CP-7K
description
Clutch Plate Kit
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.90"
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-4KV
description
Friction Plate,.107, Mercedes
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.90"
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate Kit, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-5K
Reference Part#: MB-CP-272K
description
Clutch Plate Kit
Specifications
  • Includes: HX-23-1 (2), HX-23-4 (2), HX-23-2 (1)
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Clutch Plate Kit, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-6K
Reference Part#: MB-CP-290K
description
Clutch Plate Kit
Specifications
  • Includes: HX-23-1 (2), HX-23 (2), HX-23-3 (1)
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, 2.7mm 722.7 FWD, 5 Speed, A140, A 160, A170, A190, ?97-UP
PART#: HX-23-7
description
Friction Plate,2.7mm
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 4.72"
  • Thickness: .107"
  • Internal Teeth: 30
  • OE Duplicate. 36 Discrete Segments, High Flow™
Application
  • Mercedes  722.7 FWD, 5 Speed, A140, A 160, A170, A190, ‘97-UP
Torque-Converter Friction Plate, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-8
Reference Part#: .
description
Friction Plate
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: 0.107"
  • Internal Teeth: 34
  • Outer Dia Metric: 176mm
  • Inner Dia metric: 134mm
  • Thickness metric: 2.7mm
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-8CBN
description
Friction Plate,Carbon
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: 0.107"
  • Internal Teeth: 34
  • Outer Dia Metric: 176mm
  • Inner Dia metric: 134mm
  • Thickness metric: 2.7mm
  • Material: Carbon
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, High Carbon 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-8HC
description
Friction Plate,High Carbon
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: 0.107"
  • Internal Teeth: 34
  • Outer Dia Metric: 176mm
  • Inner Dia metric: 134mm
  • Thickness metric: 2.7mm
  • Material: High Carbon
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate Kit, 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-8K
Reference Part#: MB-CP-7KBW
description
Friction Plate Kit
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: 0.107"
  • Internal Teeth: 34
  • Outer Dia Metric: 176mm
  • Inner Dia metric: 134mm
  • Thickness metric: 2.7mm
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, Kevlar, 722.6 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-8KV
description
Friction Plate,Kevlar, 722.6
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness metric: 2.7mm
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-8T
description
Friction Material Paper,2.7mm, 722.6/9 272mm
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, Kevlar® 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23-9
Reference Part#: .
description
Friction Plate,Kevlar®
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: .09"
  • Internal Teeth: 34
  • With 72 Segments
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23-9HC
description
Friction Plate,High-Carbon
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.29"
  • Thickness: .09"
  • Internal Teeth: 34
  • With 72 Segments
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: HX-23HC
description
Friction Plate,High-Carbon
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.90"
  • Thickness: .09"
  • Internal Teeth: 34
  • 36 Segments, With High-Carbon Linings
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19
Torque-Converter Friction Plate, Kevlar, 36 Segments, 722.6 722.6 & 722.9, 5 Speed, MC-18, MC-19
PART#: HX-23KV
description
Friction Plate,Kevlar, 36 Segments, 722.6
Specifications
  • Outer Dia: 6.93"
  • Inner Dia: 5.90"
Application
  • Mercedes  722.6 & 722.9, 5 Speed, MC-18, MC-19

PART#: JX-23-13
description
Lockup Clutch
Specifications
Application
  • Jatco, Nissan & Other Japanese  L4N71B, DA-8
Torque-Converter Clutch Plate Assembly, RE4R01A, DA-18, DA-48, RL4F02A, DA-11
PART#: JX-23-14
Torque-Converter Clutch Plate Assembly, RE4R01A, DA-18, DA-48, RL4F02A, DA-11
description
Clutch Plate Assembly
Specifications
Application
  • Jatco, Nissan & Other Japanese  RL4F02A, DA-11
  • Jatco, Nissan & Other Japanese  RE4R01A, DA-18, DA-48
Torque-Converter Clutch Plate Assembly, 9 Springs, 12 Dimples Mazda
PART#: JX-23-16
Torque-Converter Clutch Plate Assembly, 9 Springs, 12 Dimples Mazda
description
Clutch Plate Assembly,9 Springs, 12 Dimples
Specifications
Application
  • Mazda  G4A-EL, Late, DA-29, DA-34
  • Mazda  G4A, Ford 4EAT, DA-15,15L/S
  • Mazda  G4A, Ford 4EAT, DA-16
Torque-Converter Clutch Plate Assembly, 9 Springs, 6 Dimples G4A, Ford 4EAT, DA-24, G4A-HL, DA-17
PART#: JX-23-18
Torque-Converter Clutch Plate Assembly, 9 Springs, 6 Dimples G4A, Ford 4EAT, DA-24, G4A-HL, DA-17
description
Clutch Plate Assembly,9 Springs, 6 Dimples
Specifications
Application
  • Mazda  G4A-HL, DA-17
  • Mazda  G4A, Ford 4EAT, DA-24
Torque-Converter Clutch Plate Assembly, G4A, Ford 4EAT, DA-15,15L/S
PART#: JX-23-19
Torque-Converter Clutch Plate Assembly, G4A, Ford 4EAT, DA-15,15L/S
description
Clutch Plate Assembly
Specifications
Application
  • Mazda  G4A, Ford 4EAT, DA-15,15L/S
Torque-Converter Clutch Plate Assembly, SU-11
PART#: JX-23-25
Torque-Converter Clutch Plate Assembly, SU-11
description
Clutch Plate Assembly
Specifications
Application
  • Subaru  SU-11

PART#: JX-23-26
description
Lockup Clutch
Specifications
Application
  • Jatco, Nissan & Other Japanese  RL4F03A, DA-28
Torque-Converter Clutch Plate Assembly, RG4R01A, DA-25, RE4R03A, DA-31, 250mm
PART#: JX-23-28
Torque-Converter Clutch Plate Assembly, RG4R01A, DA-25, RE4R03A, DA-31, 250mm
description
Clutch Plate Assembly
Specifications
Application
  • Jatco, Nissan & Other Japanese  RG4R01A, DA-25
  • Jatco, Nissan & Other Japanese  RE4R03A, DA-31, 250mm
Torque-Converter Clutch Plate Assembly, RE4R03A, DA-30, 280mm
PART#: JX-23-29
description
Clutch Plate Assembly
Specifications
Application
  • Jatco, Nissan & Other Japanese  RE4R03A, DA-30, 280mm

PART#: JX-23-30
description
Lockup Clutch
Specifications
Application
  • Jatco, Nissan & Other Japanese  Nissan Micra, DA-35
Torque-Converter Friction Plate, RE5R05A DA-65, RE5R05A DA-65 Nissan Titan 5.6L 2004-07
PART#: JX-23-34
Reference Part#: JA-CP-1
description
Friction Plate
Specifications
  • Outer Dia: 6.465"
  • Inner Dia: 5.150"
  • Thickness: 0.071"
  • Internal Teeth: 40
Application
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65 Nissan Titan 5.6L 2004-07
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65

PART#: JX-23-34C
description
Friction Plate,Core
Specifications
  • Outer Dia: 6.46"
  • Inner Dia: 5.15"
Application
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65 Nissan Titan 5.6L 2004-07
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65
Torque-Converter Clutch Plate, Steel RE5R05A DA-65, RE5R05A DA-65 Nissan Titan 5.6L 2004-07
PART#: JX-23-35
Reference Part#: JA-CP-2
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 6.76"
  • Inner Dia: 5.61"
  • Thickness: 0.071"
  • External teeth: 36
  • Material: Steel
Application
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65 Nissan Titan 5.6L 2004-07
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65
Torque-Converter Pressure Plate, RE5R05A DA-65 Nissan Titan 5.6L 2004-07, RE5R05A DA-65
PART#: JX-23-36
Reference Part#: .
Torque-Converter Pressure Plate, RE5R05A DA-65 Nissan Titan 5.6L 2004-07, RE5R05A DA-65
description
Pressure Plate
Specifications
  • Outer Dia: 6.76"
  • Inner Dia: 5.61"
  • Thickness: 026"
  • External teeth: 36
  • Material: Steel
Application
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65 Nissan Titan 5.6L 2004-07
  • Jatco, Nissan & Other Japanese  RE5R05A DA-65
Torque-Converter Friction Plate, RE7R01A (JR710E) 7 speed, Infinity, Nissan ?09 & Up
PART#: JX-23-38
Reference Part#: JA-CP-4
description
Friction Plate
Specifications
  • Outer Dia: 6.825"
  • Inner Dia: 5.147"
  • Thickness: 0.071"
  • Internal Teeth: 24
  • Material: Hardened Steel
Application
  • Jatco, Nissan & Other Japanese  RE7R01A (JR710E) 7 speed, Infinity, Nissan ’09 & Up
Torque-Converter Pressure Plate, RE7R01A (JR710E) 7 speed, Infinity, Nissan ?09 & Up
PART#: JX-23-39
Reference Part#: JA-CP-6P
description
Pressure Plate
Specifications
  • Outer Dia: 7.110"
  • Inner Dia: 5.607"
  • Thickness: 0.168"
  • External teeth: 30
  • Material: Steel
Application
  • Jatco, Nissan & Other Japanese  RE7R01A (JR710E) 7 speed, Infinity, Nissan ’09 & Up
Torque-Converter Clutch Plate, Steel RE7R01A (JR710E) 7 speed, Infinity, Nissan ?09 & Up
PART#: JX-23-40
Reference Part#: JA-CP-5S
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.110"
  • Inner Dia: 5.607"
  • Thickness: 0.071"
  • External teeth: 30
  • Material: Steel
Application
  • Jatco, Nissan & Other Japanese  RE7R01A (JR710E) 7 speed, Infinity, Nissan ’09 & Up

PART#: JX-23-5
description
Lockup Clutch
Specifications
Application
  • Jatco, Nissan & Other Japanese  L3N71B, DA-5

PART#: JX-23-6
description
Lockup Clutch
Specifications
Application
  • Jatco, Nissan & Other Japanese  L4N71B, DA-8
  • Jatco, Nissan & Other Japanese  R4A-EL, DA-8-20
Torque-Converter Clutch Plate Assembly, RL3F01A, DA-6; RL4F02A, DA-13
PART#: JX-23-7
description
Clutch Plate Assembly
Specifications
Application
  • Jatco, Nissan & Other Japanese  RL3F01A, DA-6; RL4F02A, DA-13
Torque-Converter Clutch Plate Assembly, Without Valve Honda Lockup
PART#: NX-23
Torque-Converter Clutch Plate Assembly, Without Valve Honda Lockup
description
Clutch Plate Assembly,Without Valve
Specifications
  • Outer Dia: 9-3/8"
Application
  • Honda / Acura  Honda Lockup
Torque-Converter Clutch Plate Assembly, Honda Lockup
PART#: NX-23-3
Torque-Converter Clutch Plate Assembly, Honda Lockup
description
Clutch Plate Assembly
Specifications
  • Outer Dia: 9-7/8"
Application
  • Honda / Acura  Honda Lockup
Torque-Converter Clutch Plate Assembly, Honda Lockup
PART#: NX-23L
Torque-Converter Clutch Plate Assembly, Honda Lockup
description
Clutch Plate Assembly
Specifications
Application
  • Honda / Acura  Honda Lockup
Torque-Converter Clutch Plate Assembly, With Valve Honda Lockup
PART#: NX-23V
description
Clutch Plate Assembly,With Valve
Specifications
  • Outer Dia: 9-3/8"
Application
  • Honda / Acura  Honda Lockup
Torque-Converter Friction Plate, MT4A (MDX)
PART#: NX-26-1
Reference Part#: HO-CP-1
description
Friction Plate
Specifications
  • Outer Dia: 8.183"
  • Thickness: 0.076"
  • Internal Teeth: 40
Application
  • Honda / Acura  MT4A (MDX)

PART#: NX-26-1K
Reference Part#: HO-CP-12K
description
Clutch Plate Kit
Specifications
Application
  • Honda / Acura  MT4A (MDX)
Torque-Converter Clutch Plate, Steel MT4A (MDX)
PART#: NX-26-2
Reference Part#: HO-CP-2
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 8.630"
  • Inner Dia: 7.173"
  • Thickness: 0.047"
  • External teeth: 36
Application
  • Honda / Acura  MT4A (MDX)
Torque-Converter Clutch Plate Assembly, Lined ZF4HP22 & Chrysler Jeep A999
PART#: PX-26
Torque-Converter Clutch Plate Assembly, Lined ZF4HP22 & Chrysler Jeep A999
description
Clutch Plate Assembly,Lined
Specifications
  • Outer Dia Metric: 255mm
Application
  • ZF  ZF4HP22 & Chrysler Jeep A999
Torque-Converter Lockup Clutch, Lined ZF4HP22 & Chrysler Jeep A999
PART#: PX-26-1
Torque-Converter Lockup Clutch, Lined ZF4HP22 & Chrysler Jeep A999
description
Lockup Clutch,Lined
Specifications
  • Outer Dia Metric: 265mm
Application
  • ZF  ZF4HP22 & Chrysler Jeep A999
Torque-Converter Friction Plate, ZF6HP26 260mm
PART#: PX-26-10
Reference Part#: FS-CP-56BW
description
Friction Plate
Specifications
  • Outer Dia: 10.63"
  • Inner Dia: 8.13"
  • Thickness: 0.16"
  • External teeth: 24
  • 24 bent teeth
Application
  • ZF  ZF6HP26 260mm
Torque-Converter Clutch Plate, Thicker 0.020
PART#: PX-26-10A
Torque-Converter Clutch Plate, Thicker 0.020
description
Clutch Plate,Thicker 0.020"
Specifications
  • Outer Dia: 10.63"
  • Inner Dia: 8.13"
Application
  • ZF  ZF6HP26 260mm

PART#: PX-26-10HC
description
Friction Plate,High-Carbon
Specifications
  • Outer Dia: 10.63"
  • Inner Dia: 8.13"
Application
  • ZF  ZF6HP26 260mm

PART#: PX-26-10T
description
Friction Plate,ZF6HP26 260mm
Specifications
  • Outer Dia: 10.63"
  • Inner Dia: 8.13"
Application
  • ZF  ZF6HP26 260mm
Torque-Converter Friction Plate, ZF6HP19 245mm
PART#: PX-26-11
Reference Part#: FS-CP-7BW
description
Friction Plate
Specifications
  • Outer Dia: 9.85"
  • Inner Dia: 7.87"
  • Thickness: 0.16"
  • External teeth: 24
Application
  • ZF  ZF6HP19 245mm

PART#: PX-26-11HC
description
Friction Plate,High-Carbon. Made in USA
Specifications
  • Outer Dia: 9.85"
  • Inner Dia: 7.87"
Application
  • ZF  ZF6HP19 245mm
Torque-Converter Friction Plate, ZF6HP19, 255mm, ZF6HP26 255mm
PART#: PX-26-12
Reference Part#: ZF-CP-1
description
Friction Plate
Specifications
  • Outer Dia: 8.08"
  • Inner Dia: 6.30"
  • Thickness: .14"
  • External teeth: 24
Application
  • ZF  ZF6HP26 255mm
  • ZF  ZF6HP19, 255mm
Torque-Converter Friction Plate, High-Carbon, Heavy-Duty, ZF6HP26 2.7L ZF6HP19, 255mm, ZF6HP26 255mm
PART#: PX-26-12HC
description
Friction Plate,High-Carbon, Heavy-Duty, ZF6HP26 2.7L
Specifications
  • Outer Dia: 8.08"
  • Inner Dia: 6.30"
Application
  • ZF  ZF6HP26 255mm
  • ZF  ZF6HP19, 255mm
Torque-Converter Friction Plate, Kevlar, ZF6HP26 2.7L ZF6HP19, 255mm, ZF6HP26 255mm
PART#: PX-26-12K
description
Friction Plate,Kevlar, ZF6HP26 2.7L
Specifications
  • Outer Dia: 8.08"
  • Inner Dia: 6.30"
Application
  • ZF  ZF6HP26 255mm
  • ZF  ZF6HP19, 255mm

PART#: PX-26-12N
description
Friction Plate
Specifications
  • Outer Dia: 8.08"
  • Inner Dia: 6.30"
Application
  • ZF  ZF6HP26 255mm
  • ZF  ZF6HP19, 255mm
Torque-Converter Friction Plate, Tan, ZF6HP26 2.7L ZF6HP19, 255mm, ZF6HP26 255mm
PART#: PX-26-12T
description
Friction Plate,Tan, ZF6HP26 2.7L
Specifications
  • Outer Dia: 8.08"
  • Inner Dia: 6.30"
Application
  • ZF  ZF6HP26 255mm
  • ZF  ZF6HP19, 255mm
Torque-Converter Clutch Plate, Steel ZF6HP19, 255mm, ZF6HP26 255mm
PART#: PX-26-13
Reference Part#: ZF-CP-7
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.56"
  • Inner Dia: 5.71"
  • Thickness: .11"
  • Internal Teeth: 24
Application
  • ZF  ZF6HP26 255mm
  • ZF  ZF6HP19, 255mm
Torque-Converter Friction Plate, ZF8HP70, ZF8HP45
PART#: PX-26-14
Reference Part#: ZF-CP-8F
description
Friction Plate
Specifications
  • Outer Dia: 7.768"
  • Inner Dia: 6.120"
  • Thickness: 0.096"
  • Internal Teeth: 80
Application
  • ZF  ZF8HP55
  • ZF  ZF8HP45
  • ZF  ZF8HP70
Torque-Converter Friction Plate, ZF6HP26 275mm ZF6HP26 275mm
PART#: PX-26-15
Reference Part#: ZF-CP-5
description
Friction Plate,ZF6HP26 275mm
Specifications
  • Outer Dia: 9.060"
  • Inner Dia: 7.283"
  • Thickness: 0.109"
  • External teeth: 20
Application
  • ZF  ZF6HP26 275mm
Torque-Converter Lockup Clutch, Misc Unlisted
PART#: PX-26-16
Reference Part#: ZF-CP-3
Torque-Converter Lockup Clutch, Misc Unlisted
description
Lockup Clutch
Specifications
  • Height: 0.278"
  • Outer Dia: 9.355"
  • Inner Dia: 7.325"
  • Thickness: 0.114"
  • External teeth: 30
  • Outer Dia Metric: 237.6mm
  • Inner Dia metric: 186.0mm
  • Thickness metric: 2.9mm
  • Friction linings on both sides
Application
  • Miscellaneous/General Purpose  Misc Unlisted
Torque-Converter Pressure Plate, ZF8HP70, ZF8HP45
PART#: PX-26-17
Reference Part#: ZF-CP-11P
description
Pressure Plate
Specifications
  • Outer Dia: 8.151"
  • Inner Dia: 6.499"
  • Thickness: 0.169"
  • External teeth: 30
Application
  • ZF  ZF8HP55
  • ZF  ZF8HP45
  • ZF  ZF8HP70
Torque-Converter Clutch Plate, Steel ZF8HP70, ZF8HP45
PART#: PX-26-18
Reference Part#: ZF-CP-10S
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 8.151"
  • Inner Dia: 6.499"
  • Thickness: 0.109"
  • External teeth: 30
  • Material: Steel
Application
  • ZF  ZF8HP55
  • ZF  ZF8HP45
  • ZF  ZF8HP70
Torque-Converter Clutch Plate, Steel ZF8HP70
PART#: PX-26-19
Reference Part#: ZF-CP-9S
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 8.151"
  • Inner Dia: 6.499"
  • Thickness: 0.071"
  • External teeth: 30
  • Material: Steel
Application
  • ZF  ZF8HP55
  • ZF  ZF8HP70

PART#: PX-26-2
description
Lockup Clutch,Lined
Specifications
  • Outer Dia Metric: 235mm
Application
  • ZF  BMW (BABY, 318) 254mm, BM-12
Torque-Converter Clutch Plate, ZF6HP21, 245mm (LuK)
PART#: PX-26-20
Reference Part#: ZF-CP-12
Torque-Converter Clutch Plate, ZF6HP21, 245mm (LuK)
description
Clutch Plate
Specifications
  • Outer Dia: 8.670"
  • Inner Dia: 4.240"
  • Thickness: 0.138"
  • 4 Internal Tabs, Bolt Circle Dia: 4.975"
Application
  • ZF  ZF6HP21, 245mm (LuK)
Torque-Converter Friction Plate, Internal Spline ZF6HP19, 245mm (LuK)
PART#: PX-26-21
Reference Part#: ZF-CP-13
Torque-Converter Friction Plate, Internal Spline ZF6HP19, 245mm (LuK)
description
Friction Plate,Internal Spline
Specifications
  • Outer Dia: 8.670"
  • Inner Dia: 6.300"
  • Thickness: 0.138"
Application
  • ZF  ZF6HP19, 245mm (LuK)

PART#: PX-26-22
Reference Part#: N/A
description
Clutch Plate,ZF6HP32
Specifications
Application
  • Miscellaneous/General Purpose  Misc Unlisted
Torque-Converter Friction Plate, ZF5HP30, 5 Speed, BM-29
PART#: PX-26-3
Reference Part#: FS-CP-1
description
Friction Plate
Specifications
  • Outer Dia: 11.04"
  • Inner Dia: 9.36"
  • Thickness: .12"
  • External teeth: 24
  • Contains 2 Linings
Application
  • ZF  ZF5HP30, 5 Speed, BM-29
Torque-Converter Friction Plate, ZF5HP24
PART#: PX-26-6
Reference Part#: FS-CP-3
description
Friction Plate
Specifications
  • Outer Dia: 10.21"
  • Inner Dia: 8.38"
  • Thickness: 0.12"
  • External teeth: 24
  • With 2 Linings
Application
  • ZF  ZF5HP24

PART#: PX-26-6C
description
Clutch Plate,Core
Specifications
  • Outer Dia: 10.21"
  • Inner Dia: 8.38"
Application
  • ZF  ZF5HP24

PART#: PX-26-6HC
description
Clutch Plate Assembly,Friction, High-Carbon
Specifications
  • Outer Dia: 10.21"
  • Inner Dia: 8.38"
Application
  • ZF  ZF5HP24
Torque-Converter Friction Plate, Serpentine™ ZF5HP19 FL (Captive Clutch)
PART#: PX-26-7
Reference Part#: FS-CP-2
description
Friction Plate,Serpentine™
Specifications
  • Outer Dia: 10.210"
  • Inner Dia: 8.148"
  • Thickness: .14"
  • External teeth: 24
  • With 2 Linings
Application
  • ZF  ZF5HP19 FL (Captive Clutch)
Torque-Converter Friction Plate, Grooved ZF5HP19 FL (Captive Clutch)
PART#: PX-26-8
description
Friction Plate,Grooved
Specifications
  • Outer Dia: 10.210"
  • Inner Dia: 8.148"
Application
  • ZF  ZF5HP19 FL (Captive Clutch)
Torque-Converter Friction Plate, ZF6HP28, ZF6HP26 280mm
PART#: PX-26-9
Reference Part#: ZF-CP-2
description
Friction Plate
Specifications
  • Outer Dia: 11.31"
  • Inner Dia: 8.77"
  • Thickness: 0.16"
  • External teeth: 24
Application
  • ZF  ZF6HP26 280mm
  • ZF  ZF6HP28
Torque-Converter Friction Plate, ZF6HP28, ZF6HP26 280mm
PART#: PX-26-9A
description
Friction Plate
Specifications
  • Outer Dia: 11.31"
  • Inner Dia: 8.77"
  • Thickness: .177"
  • External teeth: 24
  • Oversized
Application
  • ZF  ZF6HP26 280mm
  • ZF  ZF6HP28
Torque-Converter Friction Plate, With Linings Renault (DPO), Peugeot (AL4), Early
PART#: RX-26-1
Reference Part#: RE-CP-1
description
Friction Plate,With Linings
Specifications
  • Outer Dia: 7.87"
  • Inner Dia: 6.65"
  • Thickness: .36"
  • External teeth: 24
Application
  • Renault, Peugeot  Renault (DPO), Peugeot (AL4), Early
Torque-Converter Clutch Plate Kit, Renault (DPO), Peugeot (AL4), Early
PART#: RX-26-1K
Reference Part#: RE-CP-1K
description
Clutch Plate Kit
Specifications
  • Includes RX-26-1 and RX-22-1 (4), RX 22-3 (4)
Application
  • Renault, Peugeot  Renault (DPO), Peugeot (AL4), Early
Torque-Converter Friction Plate, With Linings Renault (DPO), Peugeot (AL4), Late
PART#: RX-26-2
Reference Part#: RE-CP-2
description
Friction Plate,With Linings
Specifications
  • Outer Dia: 8.54"
  • Inner Dia: 7.10"
  • Thickness: .73"
  • External teeth: 24
Application
  • Renault, Peugeot  Renault (DPO), Peugeot (AL4), Late
Torque-Converter Clutch Plate Kit, Includes rivets Renault (DPO), Peugeot (AL4), Late
PART#: RX-26-2K
Reference Part#: RE-CP-2K
Torque-Converter Clutch Plate Kit, Includes rivets Renault (DPO), Peugeot (AL4), Late
description
Clutch Plate Kit,Includes rivets
Specifications
  • Outer Dia: 8.54"
  • Inner Dia: 7.10"
Application
  • Renault, Peugeot  Renault (DPO), Peugeot (AL4), Late

PART#: RX-26-3K
Reference Part#: RE-CP-3K
description
Clutch Plate Kit
Specifications
Application
  • Miscellaneous/General Purpose  Misc Unlisted

PART#: SX-23-0379
description
Damper Part,Damper Only, Gasoline
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)

PART#: SX-23-103
Reference Part#: GM-DA-2
description
Lockup Clutch
Specifications
Application
  • General Motors  228mm Saturn

PART#: SX-23-104
Reference Part#: GM-DA-1
description
Lockup Clutch
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)

PART#: SX-23-110
Reference Part#: GM-DA-3
description
Lockup Clutch
Specifications
Application
  • General Motors  265mm Lockup, 4T60E & 4T80E

PART#: SX-23-111
Reference Part#: GM-DA-4
description
Pressure Plate,Luk Style
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)
Torque-Converter Damper Part, Pressure Plate, Less Damper, Diesel Type With 2 Oil Ports General Motors
PART#: SX-23-15A
Torque-Converter Damper Part, Pressure Plate, Less Damper, Diesel Type With 2 Oil Ports General Motors
description
Damper Part,Pressure Plate, Less Damper, Diesel Type With 2 Oil Ports
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)
Torque-Converter Clutch Plate Assembly, General Motors
PART#: SX-23-22
Torque-Converter Clutch Plate Assembly, General Motors
description
Clutch Plate Assembly
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)
Torque-Converter Clutch Plate Assembly, And Damper, O.E. Style, Gasoline, No Valve General Motors
PART#: SX-23-22A
Torque-Converter Clutch Plate Assembly, And Damper, O.E. Style, Gasoline, No Valve General Motors
description
Clutch Plate Assembly,And Damper, O.E. Style, Gasoline, No Valve
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)
Torque-Converter Pressure Plate, And Damper Assy., Diesel, With Valve General Motors
PART#: SX-23-22B
Torque-Converter Pressure Plate, And Damper Assy., Diesel, With Valve General Motors
description
Pressure Plate,And Damper Assy., Diesel, With Valve
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)

PART#: SX-23-22C
description
Lockup Clutch,And Damper Assy., Viscous Damper, Aluminum, 8646407
Specifications
Application
  • General Motors  245mm Lockup, Models: TH125C, TH180C, TH200C, TH440-R4, TH700-R4 (S-10 Only)
Torque-Converter Clutch Plate Assembly, 310mm Lockup, 4L80E Single Stator and Dual Stator
PART#: SX-23-23
Torque-Converter Clutch Plate Assembly, 310mm Lockup, 4L80E Single Stator and Dual Stator
description
Clutch Plate Assembly
Specifications
Application
  • General Motors  310mm Lockup, 4L80E Single Stator and Dual Stator

PART#: SX-23-26
description
Drive Plate,Damper, 4 External Lugs (Use SX-12 Rivets)
Specifications
Application
  • General Motors  310mm Lockup, 4L80E Single Stator and Dual Stator

PART#: SX-23-3
description
Lockup Clutch,With Poppet Valve, With Damper
Specifications
Application
  • Miscellaneous/General Purpose  Misc Unlisted
Torque-Converter Clutch Plate Assembly, With 4 Double Springs 258mm Lockup, 4T65E, 5L40E BMW Lockup
PART#: SX-23-36
Torque-Converter Clutch Plate Assembly, With 4 Double Springs 258mm Lockup, 4T65E, 5L40E BMW Lockup
description
Clutch Plate Assembly,With 4 Double Springs
Specifications
Application
  • General Motors  258mm Lockup, 4T65E
  • General Motors  5L40E BMW Lockup
Torque-Converter Clutch Plate Assembly, 6 Springs 300mm Lockup, 4L60E
PART#: SX-23-37
Torque-Converter Clutch Plate Assembly, 6 Springs 300mm Lockup, 4L60E
description
Clutch Plate Assembly,6 Springs
Specifications
Application
  • General Motors  300mm Lockup, 4L60E
Torque-Converter Damper & Pressure Plate, Assembly, Non-Poppet 298mm Lockup, 250C, 350C, 700-R4, 4L60E
PART#: SX-23-3E
description
Damper & Pressure Plate,Assembly, Non-Poppet
Specifications
Application
  • General Motors  298mm Lockup, 250C, 350C, 700-R4, 4L60E

PART#: SX-23-53
Reference Part#: GM-DA-7P
description
Piston Plate
Specifications
Application
  • General Motors  265mm Lockup, 4T60E & 4T80E

PART#: SX-23-60
Reference Part#: BW-DS-2
description
Insert Sleeve,Chrysler 310mm
Specifications
Application
  • Chrysler  310mm Lockup, 47RH, 48RE, A-618
Torque-Converter Friction Plate, 6L45 (310mm)
PART#: SX-26-1
Reference Part#: GM-CP-5
Torque-Converter Friction Plate, 6L45 (310mm)
description
Friction Plate
Specifications
  • Outer Dia: 8.700"
  • Inner Dia: Inner Dia
  • Thickness: 0.137"
  • Internal Teeth: 24
Application
  • General Motors  6L45 (310mm)

PART#: TX-23-34
Reference Part#: CH-DA-5PB
description
Piston Plate
Specifications
  • Material: Steel
  • Machining Proces Fully Machined Forging
Application
  • Chrysler  62TE

PART#: TX-26-1
description
Clutch Plate Assembly,Non-Lined
Specifications
  • (Lined Piston, TX-26-2)
Application
  • Chrysler  10-3/4" Lockup, Late, A-500, A-518, RWD

PART#: TX-26-12
description
Lockup Clutch,8 Springs
Specifications
Application
  • Mitsubishi  KM-175-5, KM-177 Lockup, CT-12
  • Mitsubishi  KM-175-5, KM-177 Lockup, F4A43, CT-12-1, CT- 18, Late

PART#: TX-26-13
description
Clutch Plate Assembly,8 Springs
Specifications
Application
  • Mitsubishi  F4A42, GALANT '99, CT-26; F4A41, F4A52 CT-27

PART#: TX-26-15
description
Clutch Plate Assembly,With 9 Springs
Specifications
Application
  • Mitsubishi  KM-175 & KM-176 LOCKUP, CT-15
Torque-Converter Clutch Plate Assembly, 10-3/4
PART#: TX-26-2
Torque-Converter Clutch Plate Assembly, 10-3/4
description
Clutch Plate Assembly
Specifications
Application
  • Chrysler  10-3/4" Lockup, Early, TF-6 A-904 & TF-8 A-727, RWD

PART#: TX-26-8
description
Lockup Clutch
Specifications
Application
  • Mitsubishi  KM-175 Lockup, CT-7, CT-9

PART#: VX-23-1
description
Lockup Clutch
Specifications
Application
  • Volkswagen / Audi  VW 097, 098

PART#: VX-23-2
Reference Part#: AW-CP-4S
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 10.542"
  • Inner Dia: 8.764"
  • Thickness: 0.126"
  • External teeth: 20
  • Material: Steel
Application
  • Aisin-Warner  AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH

PART#: VX-23-3
Reference Part#: AW-CP-5P
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 10.542"
  • Inner Dia: 8.764"
  • Thickness: 0.197"
  • External teeth: 20
  • Material: Steel
Application
  • Aisin-Warner  AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
Torque-Converter Friction Plate, AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
PART#: VX-23-4
Reference Part#: .
description
Friction Plate
Specifications
  • Outer Dia: 7.033"
  • Inner Dia: 5.574"
  • Thickness: 0.103"
  • Internal Teeth: 30
Application
  • Aisin-Warner  AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
Torque-Converter Clutch Plate, Steel AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
PART#: VX-23-5
Reference Part#: .
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.350"
  • Inner Dia: 5.862"
  • Thickness: 0.092"
  • External teeth: 48
  • Material: Steel
Application
  • Aisin-Warner  AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
Torque-Converter Pressure Plate, AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
PART#: VX-23-6
Reference Part#: .
description
Pressure Plate
Specifications
  • Outer Dia: 7.350"
  • Inner Dia: 5.862"
  • Thickness: 0.150"
  • External teeth: 48
  • Material: Steel
Application
  • Aisin-Warner  AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
Torque-Converter Piston, D.G. With Direct Drive Clutch 11
PART#: WX-23-1D
Torque-Converter Piston, D.G. With Direct Drive Clutch 11
description
Piston
Specifications
Application
  • Borg Warner  D.G. With Direct Drive Clutch 11" (279mm Dia.)
Torque-Converter Clutch Plate Assembly, D.G. With Direct Drive Clutch 11
PART#: WX-23-1F
Torque-Converter Clutch Plate Assembly, D.G. With Direct Drive Clutch 11
description
Clutch Plate Assembly
Specifications
Application
  • Borg Warner  D.G. With Direct Drive Clutch 11" (279mm Dia.)
Torque-Converter Pressure Plate, D.G. With Direct Drive Clutch 11
PART#: WX-23-2D
description
Pressure Plate
Specifications
Application
  • Borg Warner  D.G. With Direct Drive Clutch 11" (279mm Dia.)
Torque-Converter Pressure Plate, D.G. With Direct Drive Clutch 11
PART#: WX-23-2F
description
Pressure Plate
Specifications
Application
  • Borg Warner  D.G. With Direct Drive Clutch 11" (279mm Dia.)
Torque-Converter Pressure Plate, D.G. With Direct Drive Clutch 11
PART#: WX-23-2FR
description
Pressure Plate
Specifications
Application
  • Borg Warner  D.G. With Direct Drive Clutch 11" (279mm Dia.)
Torque-Converter Pressure Plate, D.G. With Direct Drive Clutch 11
PART#: WX-23-2FS
description
Pressure Plate
Specifications
Application
  • Borg Warner  D.G. With Direct Drive Clutch 11" (279mm Dia.)

PART#: YX-23-14
description
Lockup Clutch
Specifications
Application
  • Toyota  A-440-L, TO-46
Torque-Converter Clutch Plate Assembly, A-131L Lockup
PART#: YX-23-4
description
Clutch Plate Assembly
Specifications
Application
  • Toyota  A-131L Lockup

PART#: YX-23-5
description
Lockup Clutch
Specifications
  • Outer Dia: 10-5/8"
  • Inner Dia: 4-5/16"
Application
  • Toyota  A-140E
Torque-Converter Clutch Plate Assembly, A-42/43/44/45 DE/DL Lockup
PART#: YX-23-6
description
Clutch Plate Assembly
Specifications
  • Outer Dia: 10-5/8"
  • Inner Dia: 4-5/16"
Application
  • Toyota  A-42/43/44/45 DE/DL Lockup

PART#: YX-23-9
description
Lockup Clutch
Specifications
Application
  • Toyota  A-440F, TO-34
Torque-Converter Friction Plate, AISIN SEIKI AS68RC, A465, A860E
PART#: YX-26-1
Reference Part#: AS-CP-1FK
description
Friction Plate
Specifications
  • Outer Dia: 7.431"
  • Inner Dia: 5.804"
  • Thickness: 0.098"
  • Internal Teeth: 36
Application
  • Aisin-Warner  AISIN SEIKI AS68RC, A465
  • Toyota  A860E

PART#: YX-26-1K
Reference Part#: AS-CP-1FK
description
Friction Plate Kit
Specifications
  • Outer Dia: 7.431"
  • Inner Dia: 5.804"
Application
  • Aisin-Warner  AISIN SEIKI AS68RC, A465
  • Toyota  A860E
Torque-Converter Clutch Plate, Steel AISIN SEIKI AS68RC, A465, A860E
PART#: YX-26-2
Reference Part#: AS-CP-2SK
description
Clutch Plate,Steel
Specifications
  • Outer Dia: 7.955"
  • Inner Dia: 6.240"
  • Thickness: 0.070"
  • External teeth: 16
  • Material: Steel
Application
  • Aisin-Warner  AISIN SEIKI AS68RC, A465
  • Toyota  A860E
Torque-Converter Friction Plate, AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH
PART#: YX-26-3
Reference Part#: AW-CP-6F
description
Friction Plate
Specifications
  • Outer Dia: 10.206"
  • Inner Dia: 8.441"
  • Thickness: 0.147"
  • Internal Teeth: 36
Application
  • Aisin-Warner  AISIN AW TR-60SN, (VW 09D), CAPTIVE CLUTCH

PART#: YX-26-4
Reference Part#: .
description
Pressure Plate
Specifications
  • Outer Dia: 7.955"
  • Inner Dia: 6.240"
  • Thickness: 0.249"
  • External teeth: 16
  • Material: Steel
Application
  • Aisin-Warner  AISIN SEIKI AS68RC, A465

PART#: YX-26-5K
Reference Part#: .
description
Clutch Plate Kit
Specifications
  • Contains: 3 Friction (YX-26-1, ) & 3 Steel Plates (YX-26-1) & 1 Steel Plate ( YX-2-4)
Application
  • Aisin-Warner  AISIN SEIKI AS68RC, A465
Torque-Converter Friction Plate, AS69RC AS69RC
PART#: YX-26-7
Reference Part#: AS-CP-5F
Torque-Converter Friction Plate, AS69RC AS69RC
description
Friction Plate,AS69RC
Specifications
  • Outer Dia: 8.563"
  • Inner Dia: 6.810"
  • Thickness: 0.099"
  • Internal Teeth: 42
Application
  • Aisin-Warner  AS69RC
Torque-Converter Clutch Plate, Steel, AS69RC AS69RC
PART#: YX-26-8
Reference Part#: AS-CP-4S
description
Clutch Plate,Steel, AS69RC
Specifications
  • Outer Dia: 9.175"
  • Inner Dia: 7.340"
  • Thickness: 0.072"
  • External teeth: 16
Application
  • Aisin-Warner  AS69RC
part category image 1
