Transmission | ZF | 3HP22

Ill.# Image Description Specification Part #

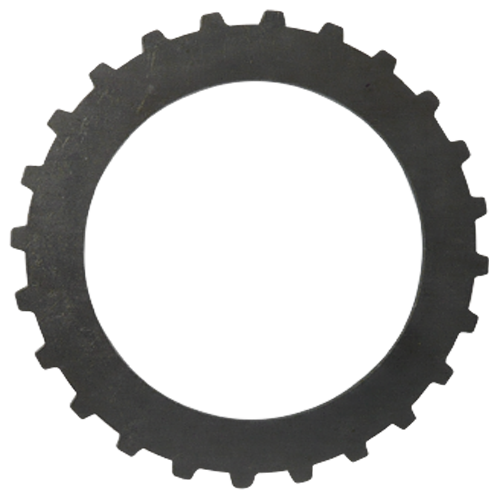

Steel Clutch-Plate Forward, Flat ZF|3HP-22 1976 - on
  • Thickness: 0.071"
  • External Teeth: 24
  • Outside Dia: 4.252"
  • Inside Dia: 3.004"
 82100
Steel Clutch-Plate 82100
Forward, Flat & ZF|3HP-22 1976 - on
  • Thickness: 0.071"
  • External Teeth: 24
  • Outside Dia: 4.252"
  • Inside Dia: 3.004"

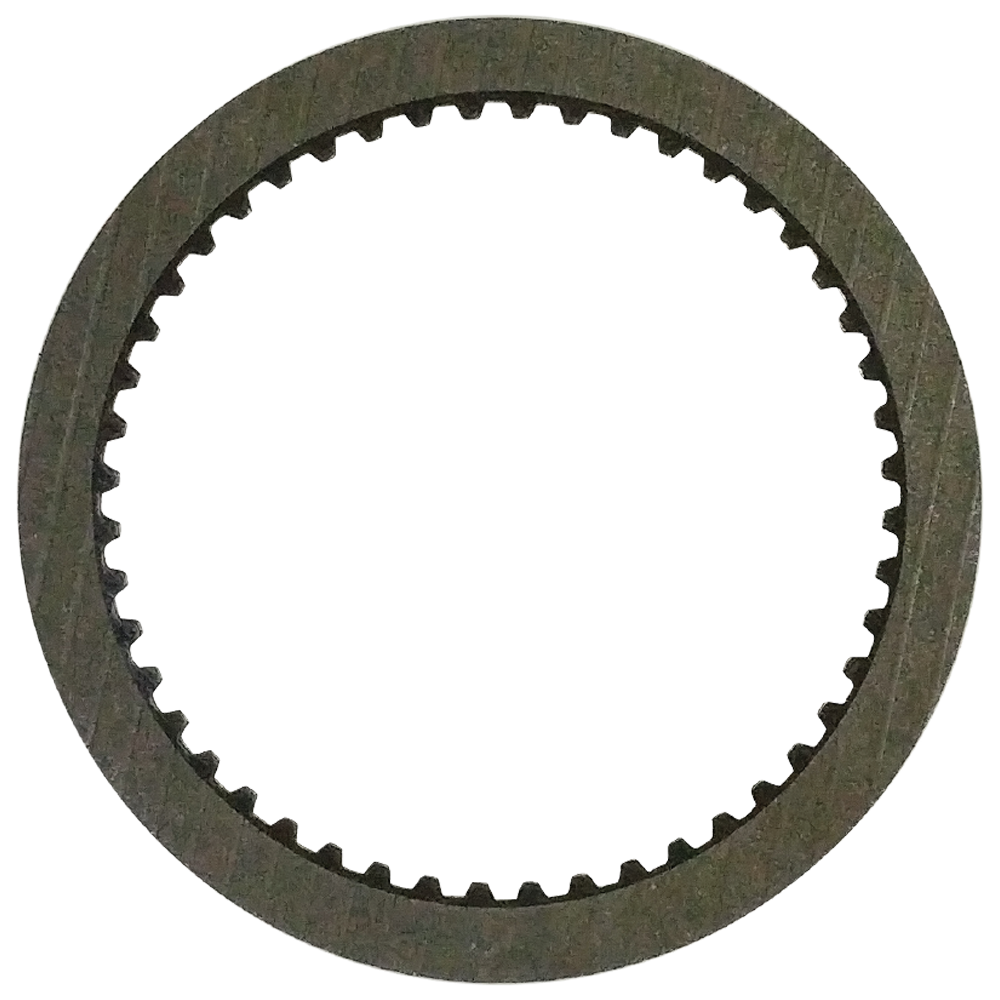

Friction Plate Reverse, 48 Teeth ZF|3HP-22 76 - on
  • Thickness: 0.059"
  • Internal Teeth: 48
  • Outside Dia: 5.626"
  • Inside Dia: 4.638"
 82101
Friction Plate 82101
Reverse, 48 Teeth & ZF|3HP-22 76 - on
  • Thickness: 0.059"
  • Internal Teeth: 48
  • Outside Dia: 5.626"
  • Inside Dia: 4.638"

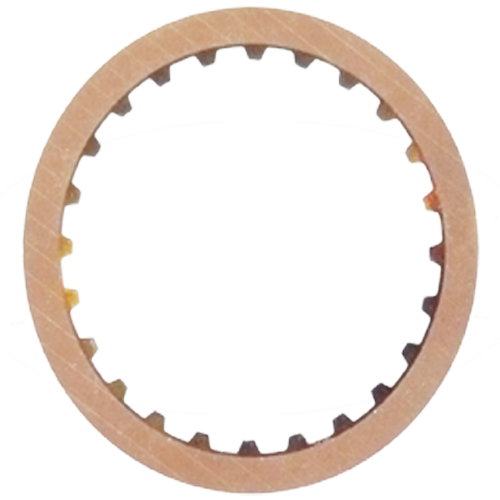

Friction Plate Direct 24 Teeth ZF|3HP-22 1976 - on
  • Thickness: 0.059"
  • Internal Teeth: 24
  • Outside Dia: 5.626"
  • Inside Dia: 4.646"
 82102
Friction Plate 82102
Direct 24 Teeth & ZF|3HP-22 1976 - on
  • Thickness: 0.059"
  • Internal Teeth: 24
  • Outside Dia: 5.626"
  • Inside Dia: 4.646"

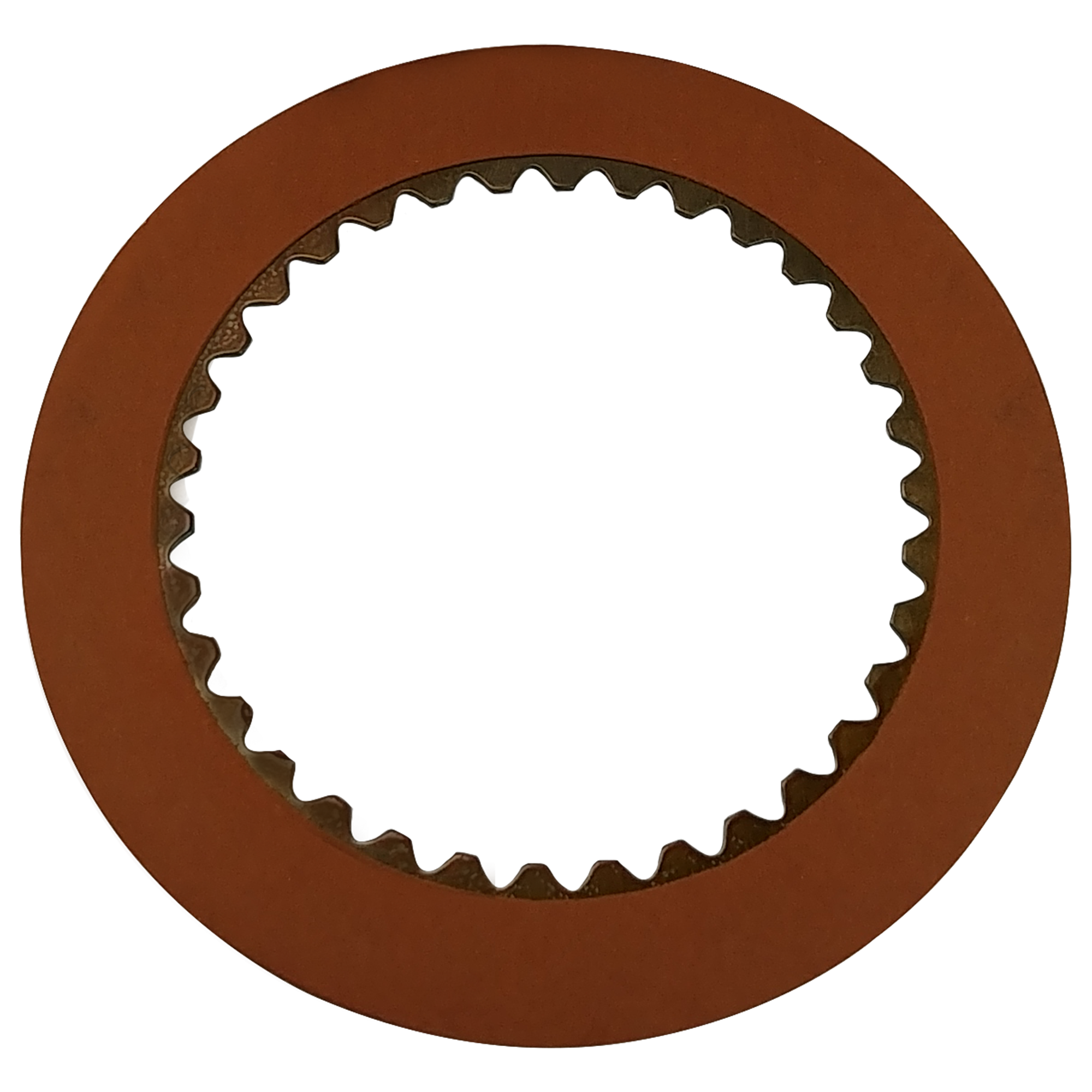

Friction Plate 34 Teeth, Forward ZF|3HP-22 76 - on
  • Thickness: 0.059"
  • Internal Teeth: 34
  • Outside Dia: 3.937"
  • Inside Dia: 2.87"
 82103
Friction Plate 82103
34 Teeth, Forward & ZF|3HP-22 76 - on
  • Thickness: 0.059"
  • Internal Teeth: 34
  • Outside Dia: 3.937"
  • Inside Dia: 2.87"

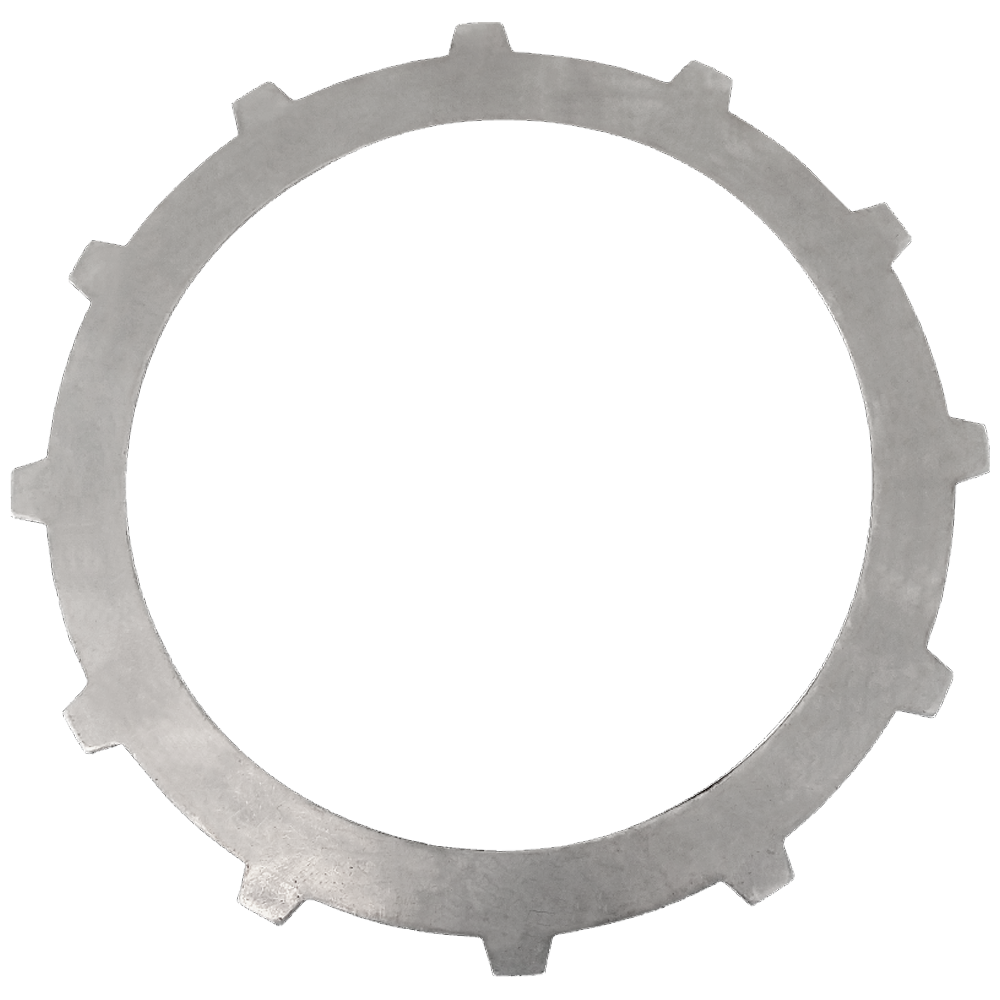

Steel Clutch-Plate Forward ZF|3HP-22 76 - on
  • Thickness: 0.071"
  • Outside Dia: 6.142"
  • Inside Dia: 4.685"
 82104
Steel Clutch-Plate 82104
Forward & ZF|3HP-22 76 - on
  • Thickness: 0.071"
  • Outside Dia: 6.142"
  • Inside Dia: 4.685"

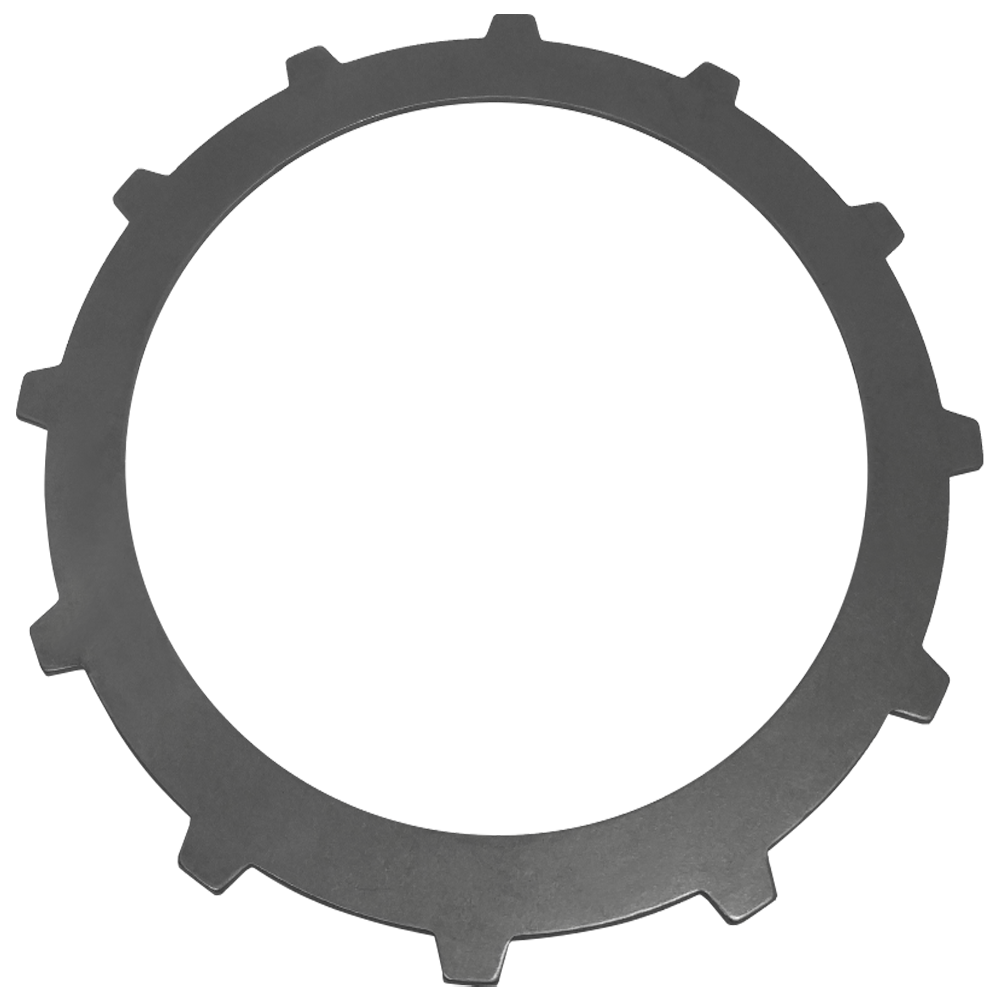

Steel Clutch-Plate Dir./Reverse, 1.5mm Thick ZF|3HP-22 76 - on
  • Thickness: 0.063"
  • External Teeth: 12
  • Outside Dia: 6.142"
  • Inside Dia: 4.685"
 82104B
Steel Clutch-Plate 82104B
Dir./Reverse, 1.5mm Thick & ZF|3HP-22 76 - on
  • Thickness: 0.063"
  • External Teeth: 12
  • Outside Dia: 6.142"
  • Inside Dia: 4.685"

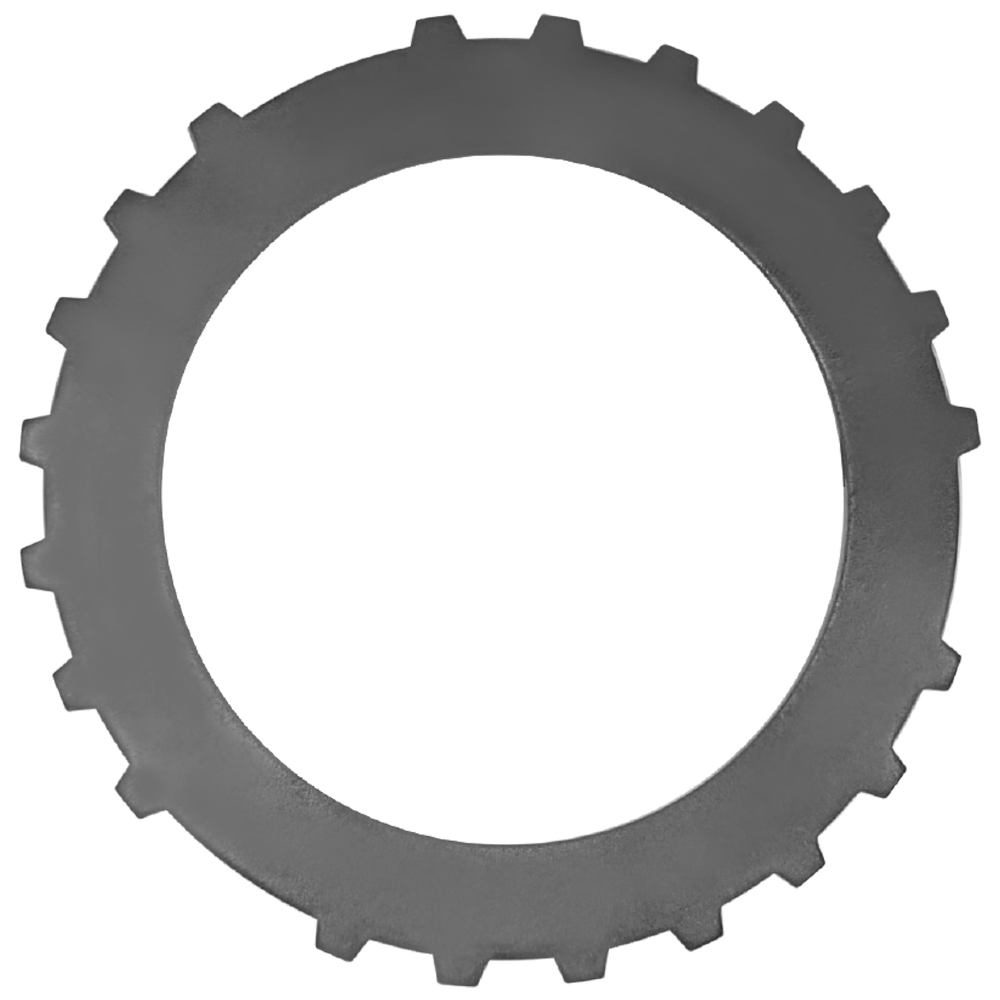

Steel Clutch-Plate 1St Cl., Waved ZF|3HP-22 76 - on 82105
Steel Clutch-Plate 82105
1St Cl., Waved & ZF|3HP-22 76 - on

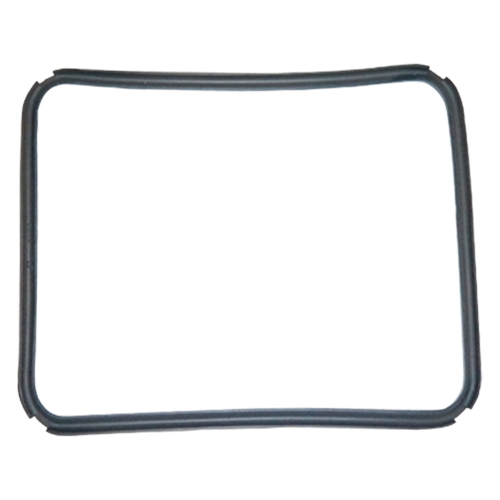

Pan Gasket ZF|3HP-22 76 - 82 82500
Pan Gasket 82500
& ZF|3HP-22 76 - 82

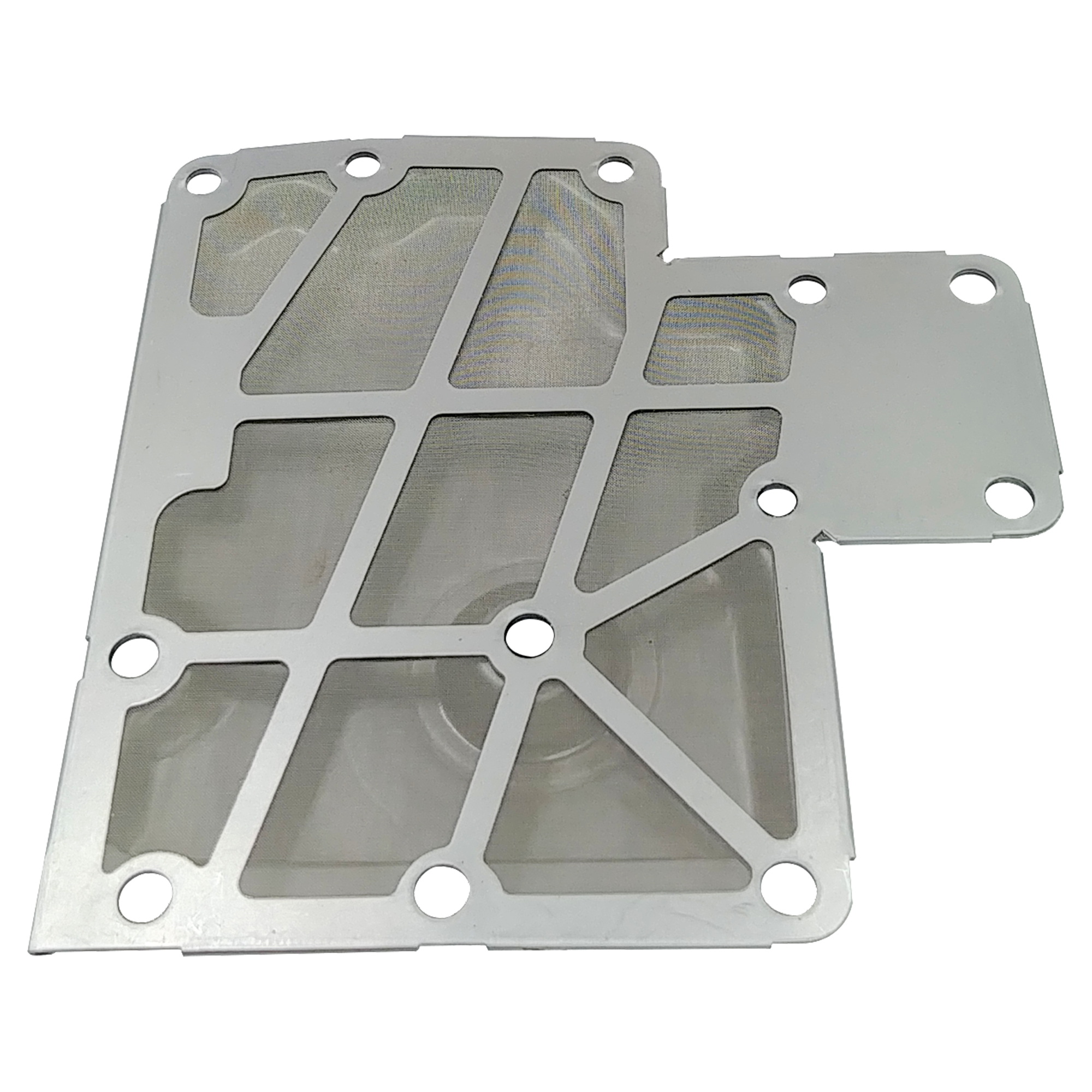

Filter Trans. ZF|3HP-22 1976 - on 82710
Filter 82710
Trans. & ZF|3HP-22 1976 - on
Gasket 87005
Gasket 87005
&

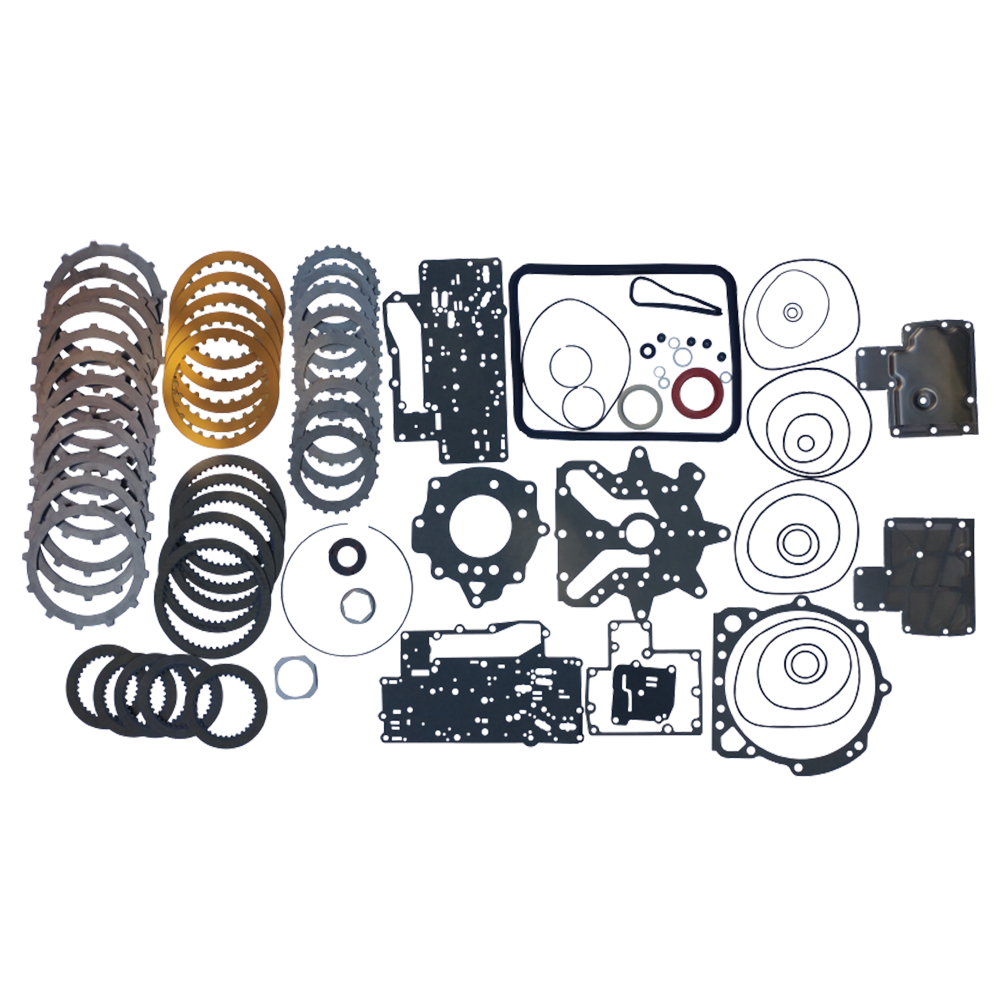

Kit Master with Steels, ZF HP 22 3-Speed, 1976-Up DK8200M
Kit DK8200M
Master with Steels, ZF HP 22 & 3-Speed, 1976-Up
