Transmission | GM | TH350 | General Motors

Ill.# Image Description Specification Part #
Seal Governor Cover, Square-Cut, TH350/700 1241734
Seal 1241734
Governor Cover, Square-Cut, TH350/700 &
Seal Dipstick 79 - on 1259474
Seal 1259474
Dipstick & 79 - on

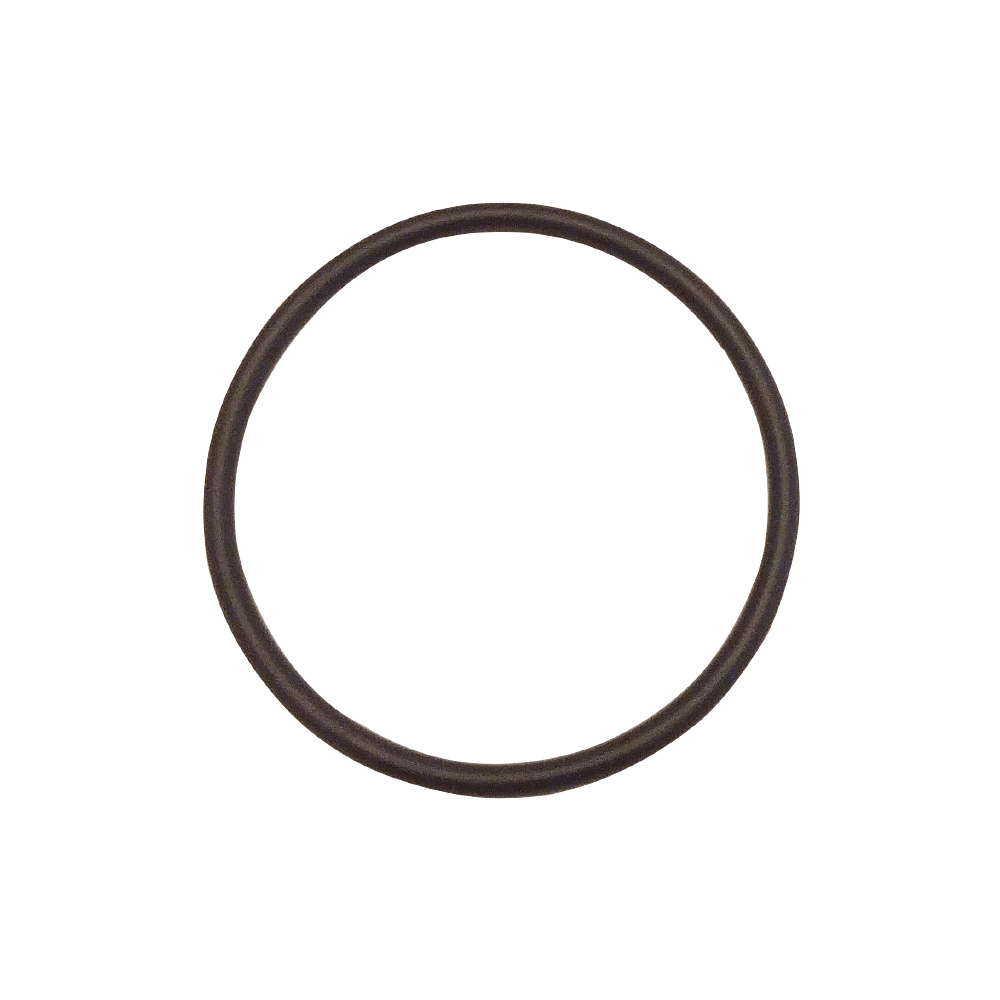

O-Ring Accumulator, TH350 1969 - on 338926
O-Ring 338926
Accumulator, TH350 & 1969 - on
Flywheel 340296
Flywheel 340296
&
Pin Spring, Governor Gear 34411SP
Pin 34411SP
Spring, Governor Gear &
Roll Pin Governor 34411T
Roll Pin 34411T
Governor &
Bushing Direct Drum, Babbit, 1/2" Wide 35000
Bushing 35000
Direct Drum, Babbit, 1/2" Wide &
Bushing 1/2 INCH BRONZE,350 DRUM 35000A
Bushing 35000A
1/2 INCH BRONZE,350 DRUM &

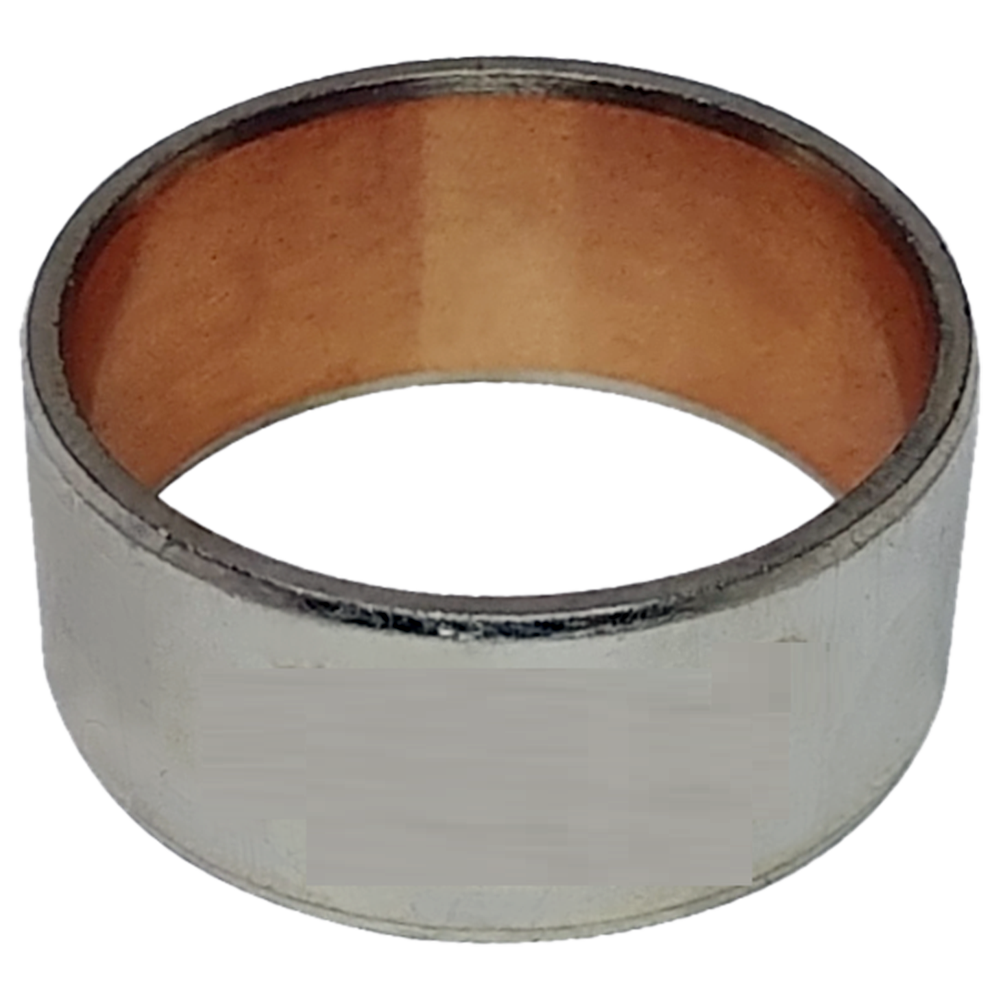

Bushing Stator Front, Narrow 35007
Bushing 35007
Stator Front, Narrow &

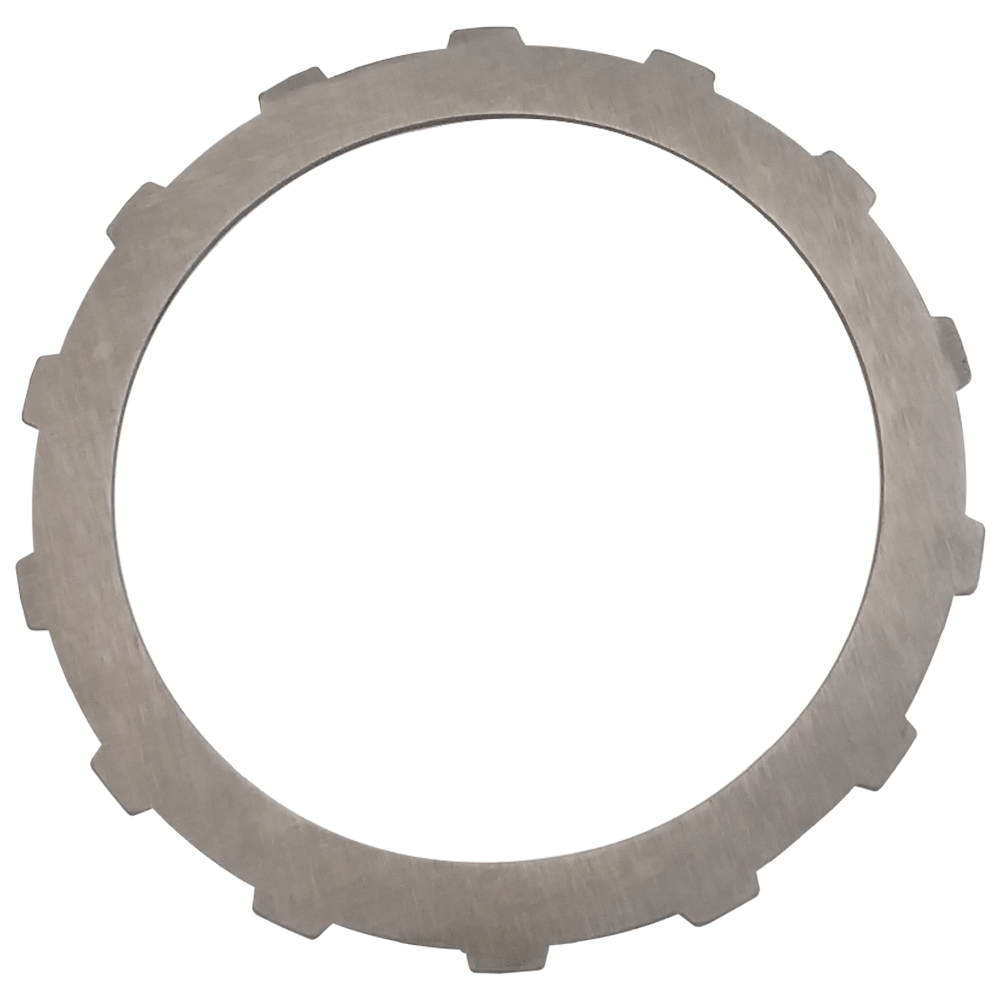

Steel Clutch-Plate Forward & Direct Clutch, Oversized 0.90" Thick 35100X
Steel Clutch-Plate 35100X
Forward & Direct Clutch, Oversized 0.90" Thick &
PLATE,FRICTION,EXTRA-HD,DIRECT,TH350 1969 - on 35103
PLATE,FRICTION,EXTRA-HD,DIRECT,TH350 35103
& 1969 - on
Metal Clad Seal Pump 35151
Metal Clad Seal 35151
Pump &
Case Saver 35350
Case Saver 35350
&
Case Saver 35354
Case Saver 35354
&

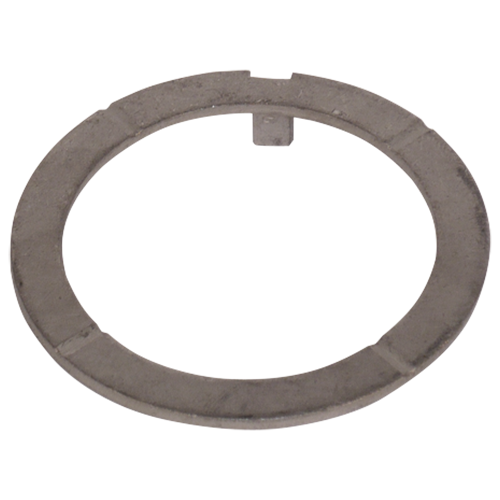

Washer Drum To Pump, .083 35400
Washer 35400
Drum To Pump, .083 &
Bearing 1976 - 1986
  • Thickness: 0.141
  • Thickness metric: 3.58
  • Bearing type: Enclosed
  • Outside Dia: 2.89
  • Inside Dia: 2.138
  • Outside Dia Metric: 73.41
  • Inside Dia metric: 54.31
 35400C
Bearing 35400C
& 1976 - 1986
  • Thickness: 0.141
  • Thickness metric: 3.58
  • Bearing type: Enclosed
  • Outside Dia: 2.89
  • Inside Dia: 2.138
  • Outside Dia Metric: 73.41
  • Inside Dia metric: 54.31
Bearing 1975 - 1986
  • Thickness: 0.14
  • Thickness metric: 3.56
  • Bearing type: Enclosed, 3 I.D Tags
  • Outside Dia: 2.47
  • Inside Dia: 1.67
  • Outside Dia Metric: 62.74
  • Inside Dia metric: 42.42
 35402B
Bearing 35402B
& 1975 - 1986
  • Thickness: 0.14
  • Thickness metric: 3.56
  • Bearing type: Enclosed, 3 I.D Tags
  • Outside Dia: 2.47
  • Inside Dia: 1.67
  • Outside Dia Metric: 62.74
  • Inside Dia metric: 42.42
Bearing 1977 - on
  • Thickness: 0.16
  • Thickness metric: 4.06
  • Bearing type: Enclosed
  • Outside Dia: 2.64
  • Inside Dia: 1.76
  • Outside Dia Metric: 67.06
  • Inside Dia metric: 44.7
 35403B
Bearing 35403B
& 1977 - on
  • Thickness: 0.16
  • Thickness metric: 4.06
  • Bearing type: Enclosed
  • Outside Dia: 2.64
  • Inside Dia: 1.76
  • Outside Dia Metric: 67.06
  • Inside Dia metric: 44.7
Bearing
  • Thickness: 0.14
  • Thickness metric: 3.56
  • Bearing type: Enclosed
  • Outside Dia: 2.5
  • Inside Dia: 1.67
  • Outside Dia Metric: 63.5
  • Inside Dia metric: 42.42
 35404
Bearing 35404
&
  • Thickness: 0.14
  • Thickness metric: 3.56
  • Bearing type: Enclosed
  • Outside Dia: 2.5
  • Inside Dia: 1.67
  • Outside Dia Metric: 63.5
  • Inside Dia metric: 42.42
Shim Rear
  • Thickness: 0.010"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"

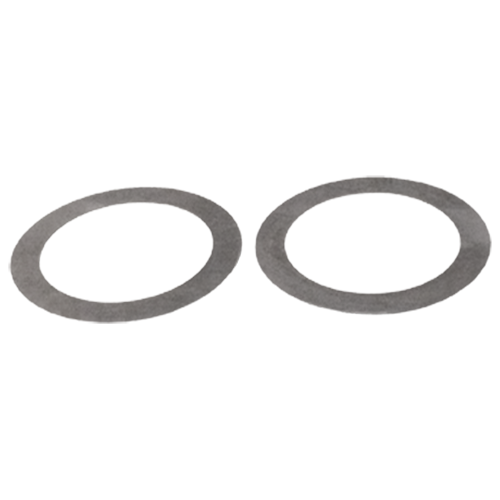

 35404S
Shim 35404S
Rear &
  • Thickness: 0.010"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
Shim Rear
  • Thickness: 0.020"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
 35404U
Shim 35404U
Rear &
  • Thickness: 0.020"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
Shim Rear
  • Thickness: 0.025"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"

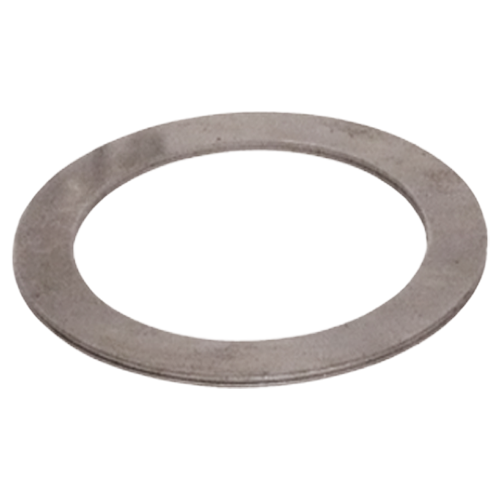

 35404V
Shim 35404V
Rear &
  • Thickness: 0.025"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
Shim Rear
  • Thickness: 0.030"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"

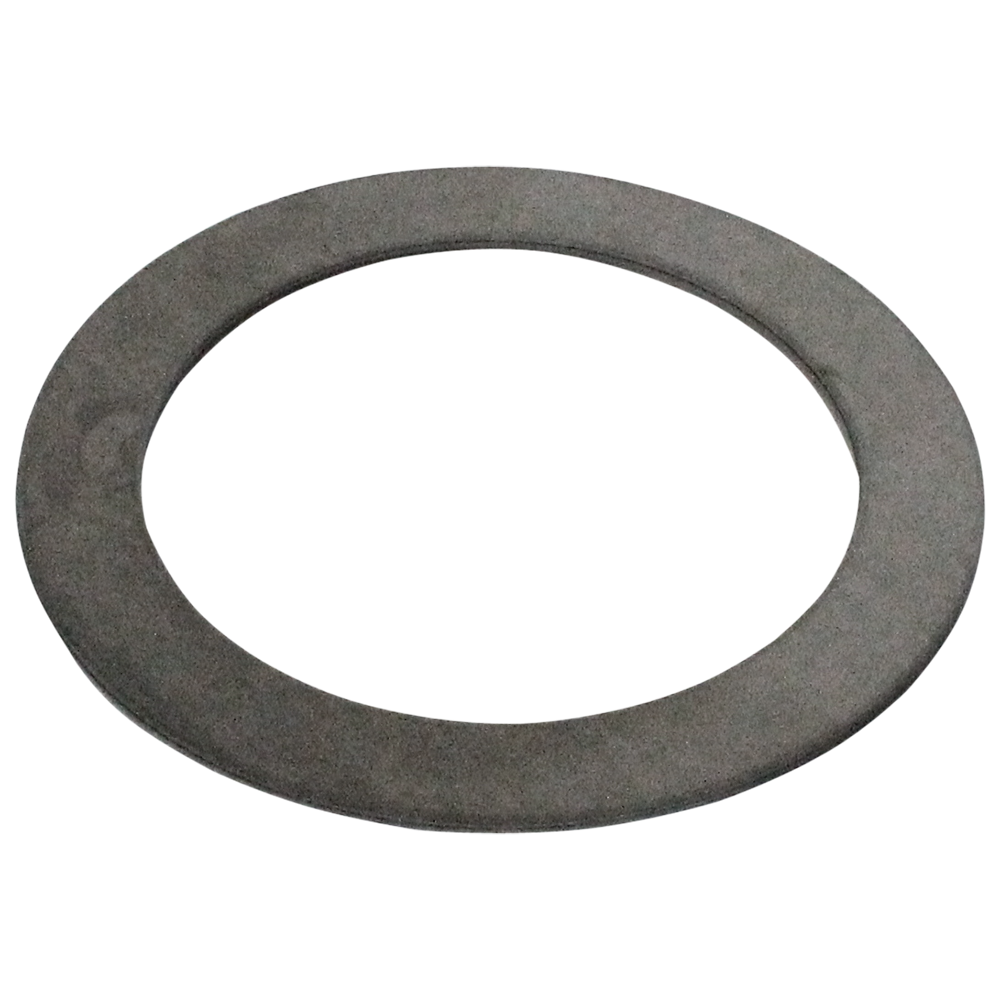

 35404W
Shim 35404W
Rear &
  • Thickness: 0.030"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
Shim REAR
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
 35404X
Shim 35404X
REAR &
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
Shim Rear
  • Thickness: 0.040"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"

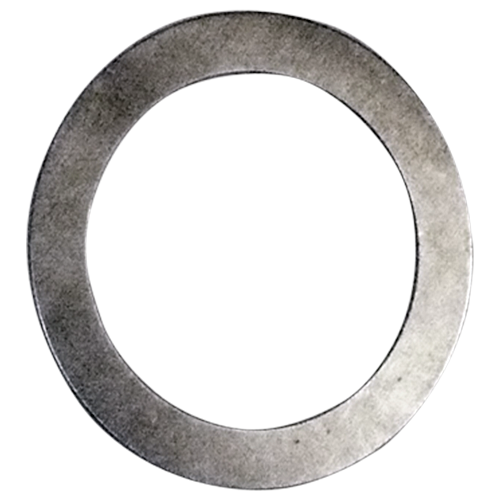

 35404Y
Shim 35404Y
Rear &
  • Thickness: 0.040"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"
Shim Rear
  • Thickness: 0.045"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"

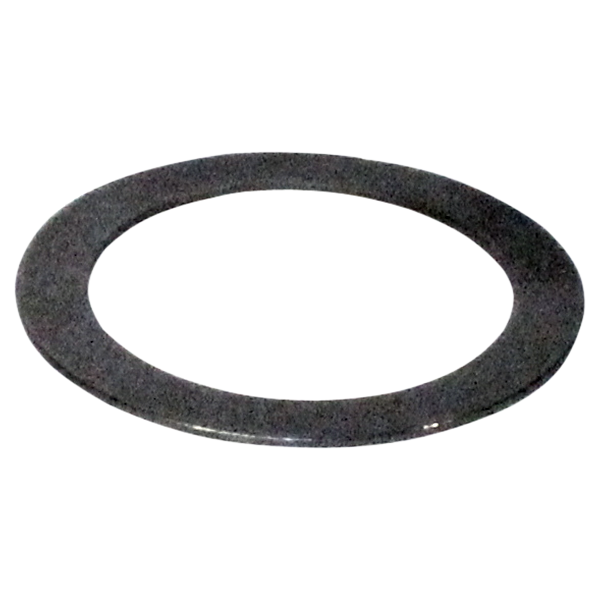

 35404Z
Shim 35404Z
Rear &
  • Thickness: 0.045"
  • Outside Dia: 2.250"
  • Inside Dia: 1.675"

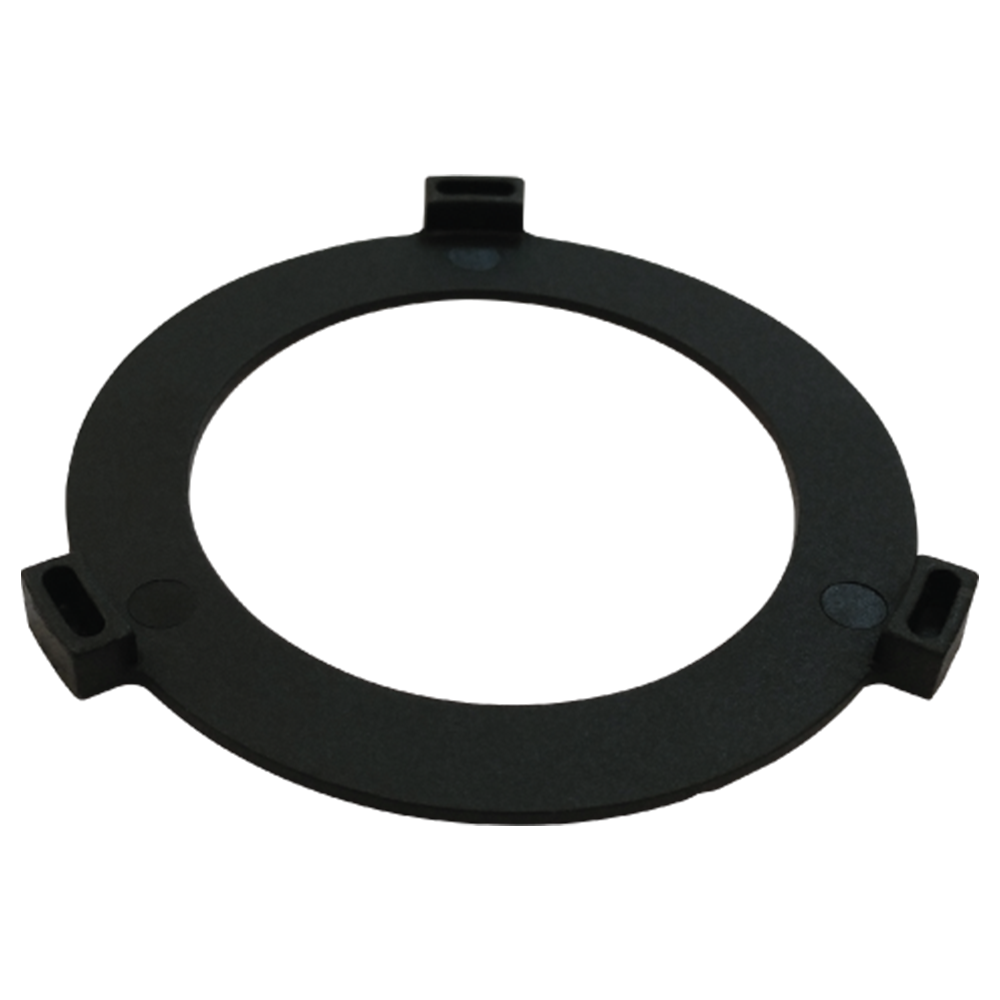

Washer Plastic,8640060 35405A
Washer 35405A
Plastic,8640060 &
Washer Sun Gear Shell, Rear, Metal 35406
Washer 35406
Sun Gear Shell, Rear, Metal &
Washer Sun Gear Shell, Rear, Plastic 35406A
Washer 35406A
Sun Gear Shell, Rear, Plastic &
Bearing Output Ring-Gear To Case
  • Outside Dia: 2.5
  • Inside Dia: 1.67
 35408
Bearing 35408
Output Ring-Gear To Case &
  • Outside Dia: 2.5
  • Inside Dia: 1.67

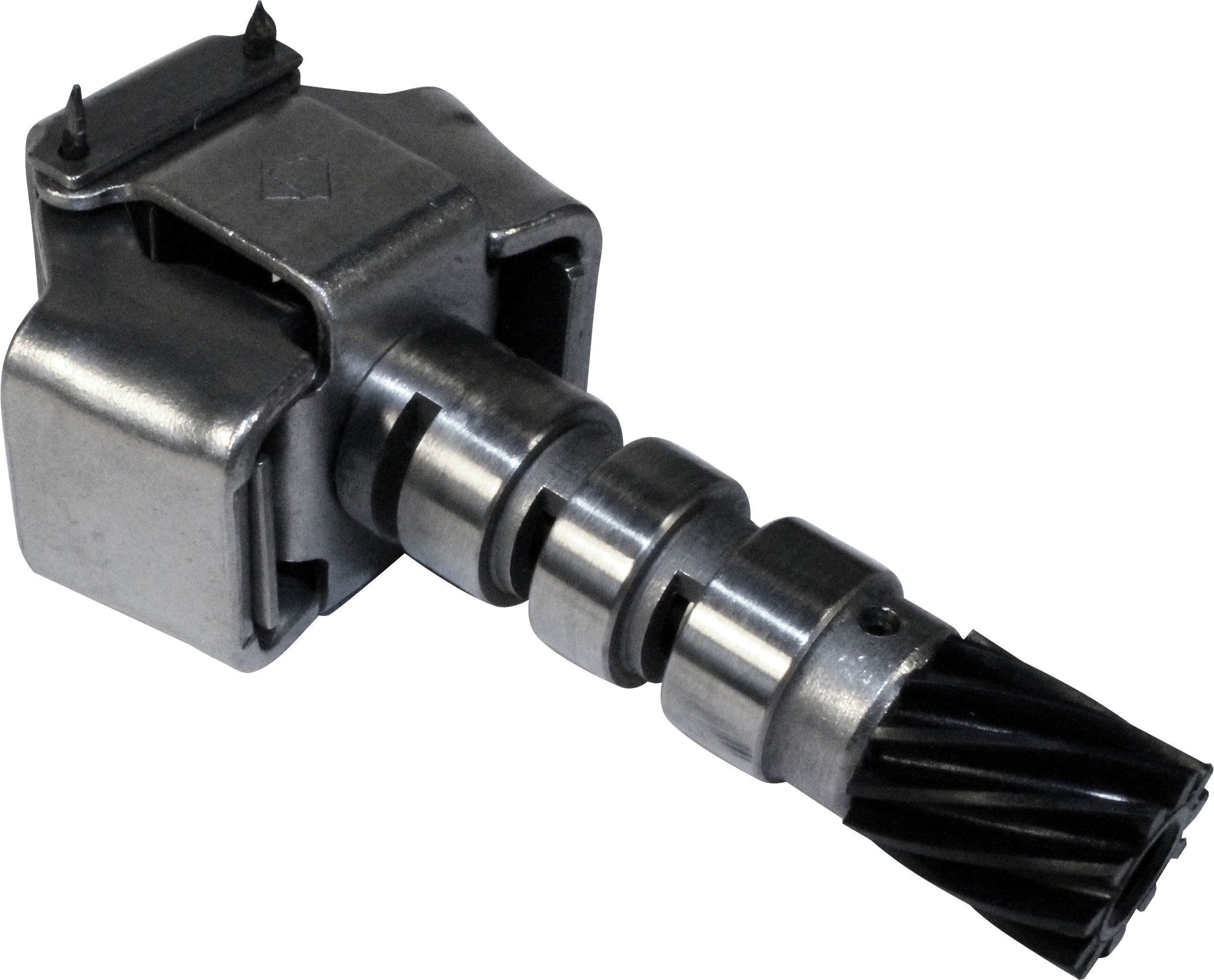

Governor 35410
Governor 35410
&

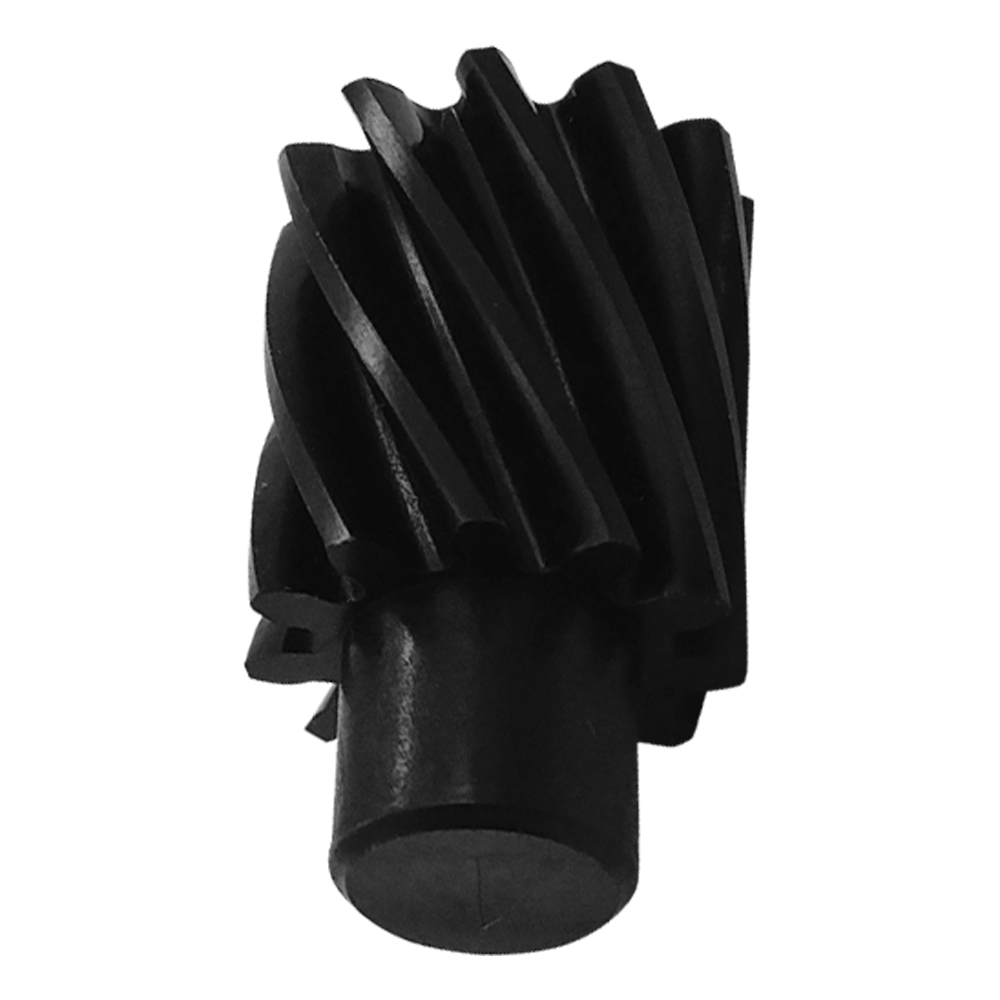

Governor Gear Plastic 35411
Governor Gear 35411
Plastic &

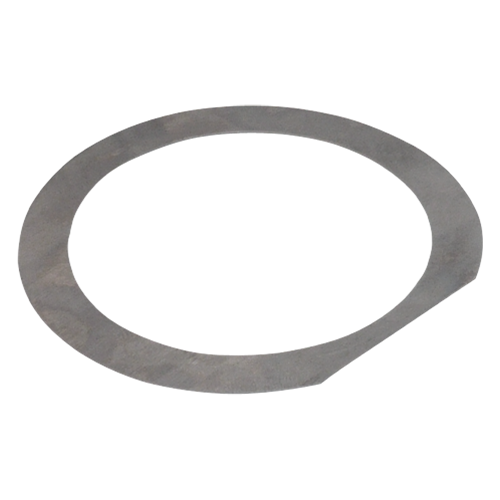

Shim Front, 0.010 35412
Shim 35412
Front, 0.010 &

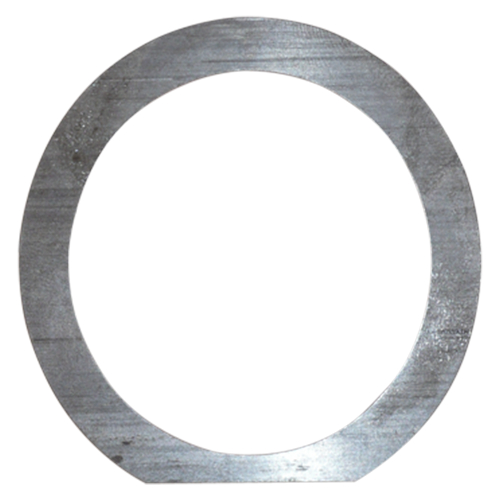

Shim Front, 0.015 35412A
Shim 35412A
Front, 0.015 &

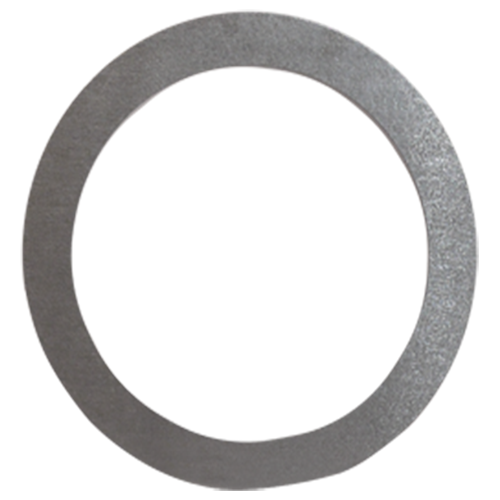

Shim Front, 0.020 35412B
Shim 35412B
Front, 0.020 &

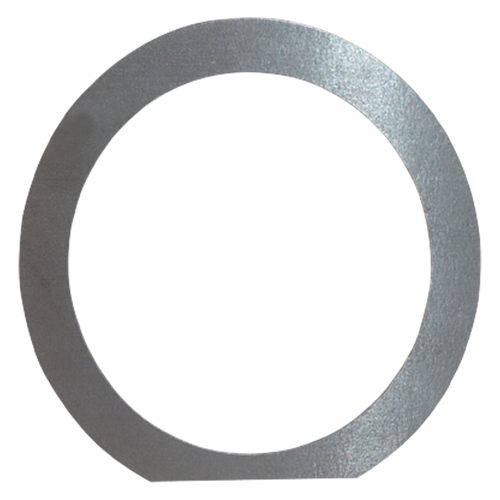

Shim Front, 0.025 35412C
Shim 35412C
Front, 0.025 &
Shim Front, 0.030 35412D
Shim 35412D
Front, 0.030 &

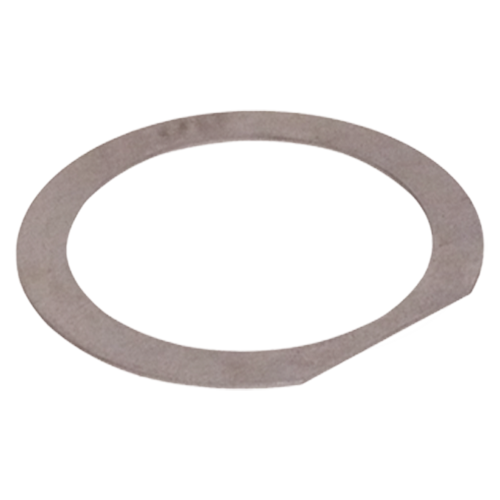

Shim Front, 0.035 35412E
Shim 35412E
Front, 0.035 &

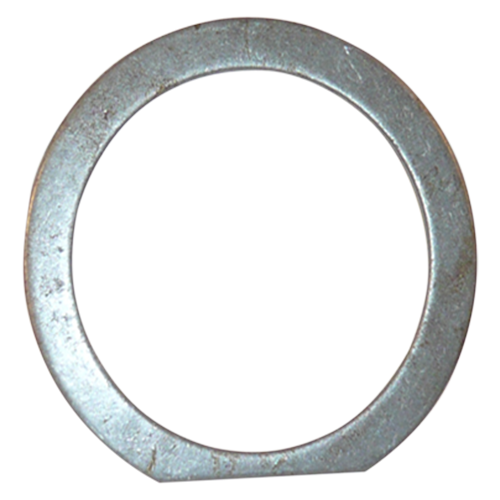

Shim Front, 0.100" 35412F
Shim 35412F
Front, 0.100" &

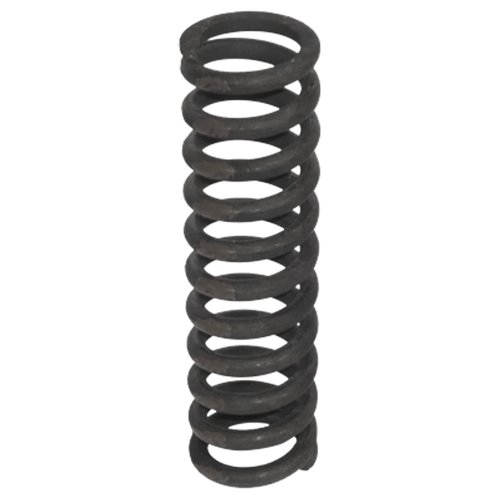

Spring Accumulator, Orange 1969 - on 35703
Spring 35703
Accumulator, Orange & 1969 - on

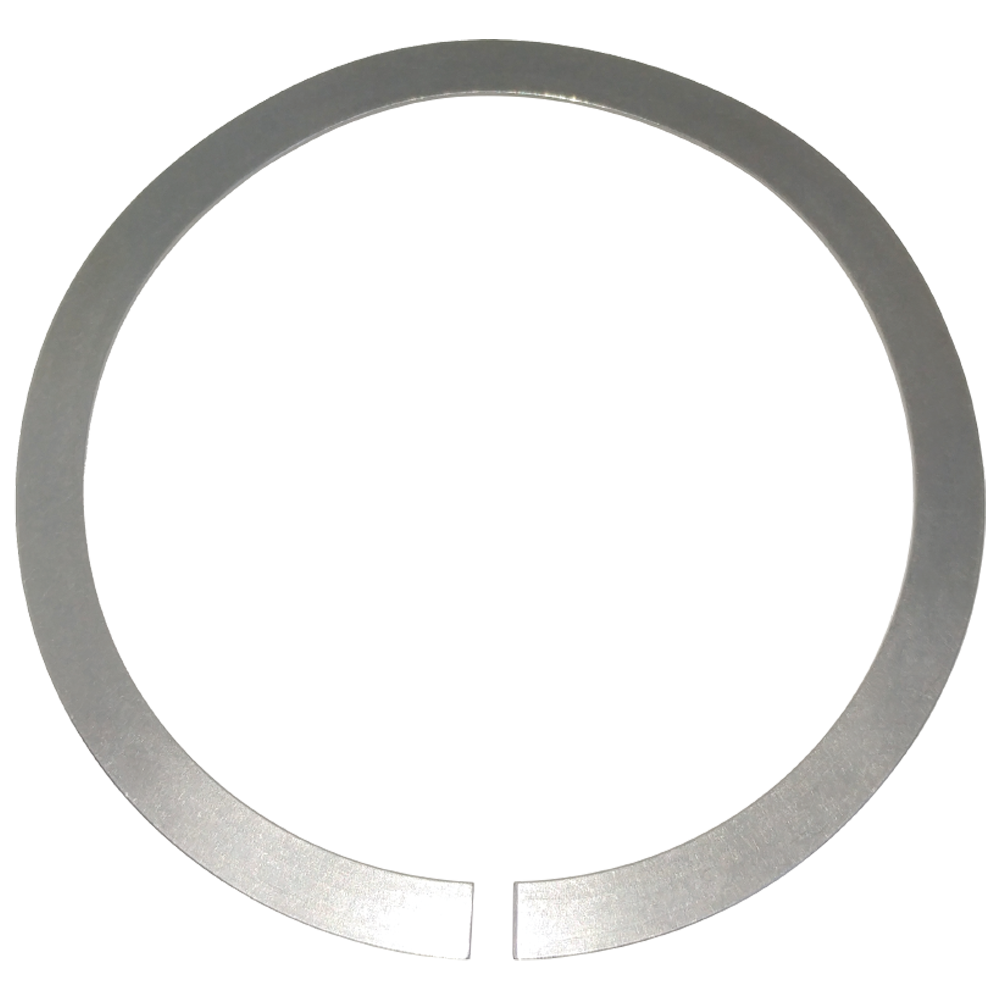

Spring Disc Cushion, Direct Clutch 35705
Spring Disc 35705
Cushion, Direct Clutch &
Pressure Plate Forward .275/.285 1969 - 1986 35714
Pressure Plate 35714
Forward .275/.285 & 1969 - 1986
Pressure Plate Direct, .245/.255 35715
Pressure Plate 35715
Direct, .245/.255 &

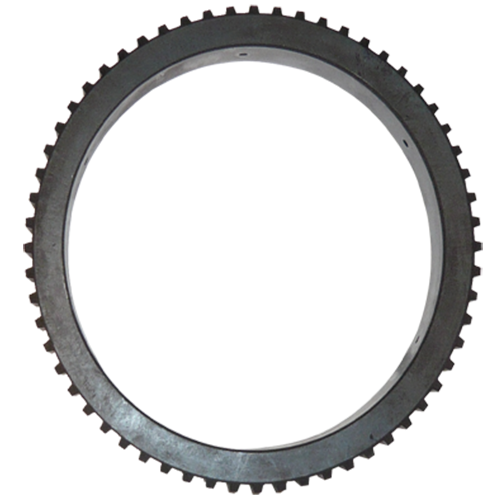

Outer Race Intermediate 35723
Outer Race 35723
Intermediate &
Outer Race Intermediate, H.D., High Performance 69 - 86 35723HD
Outer Race 35723HD
Intermediate, H.D., High Performance & 69 - 86

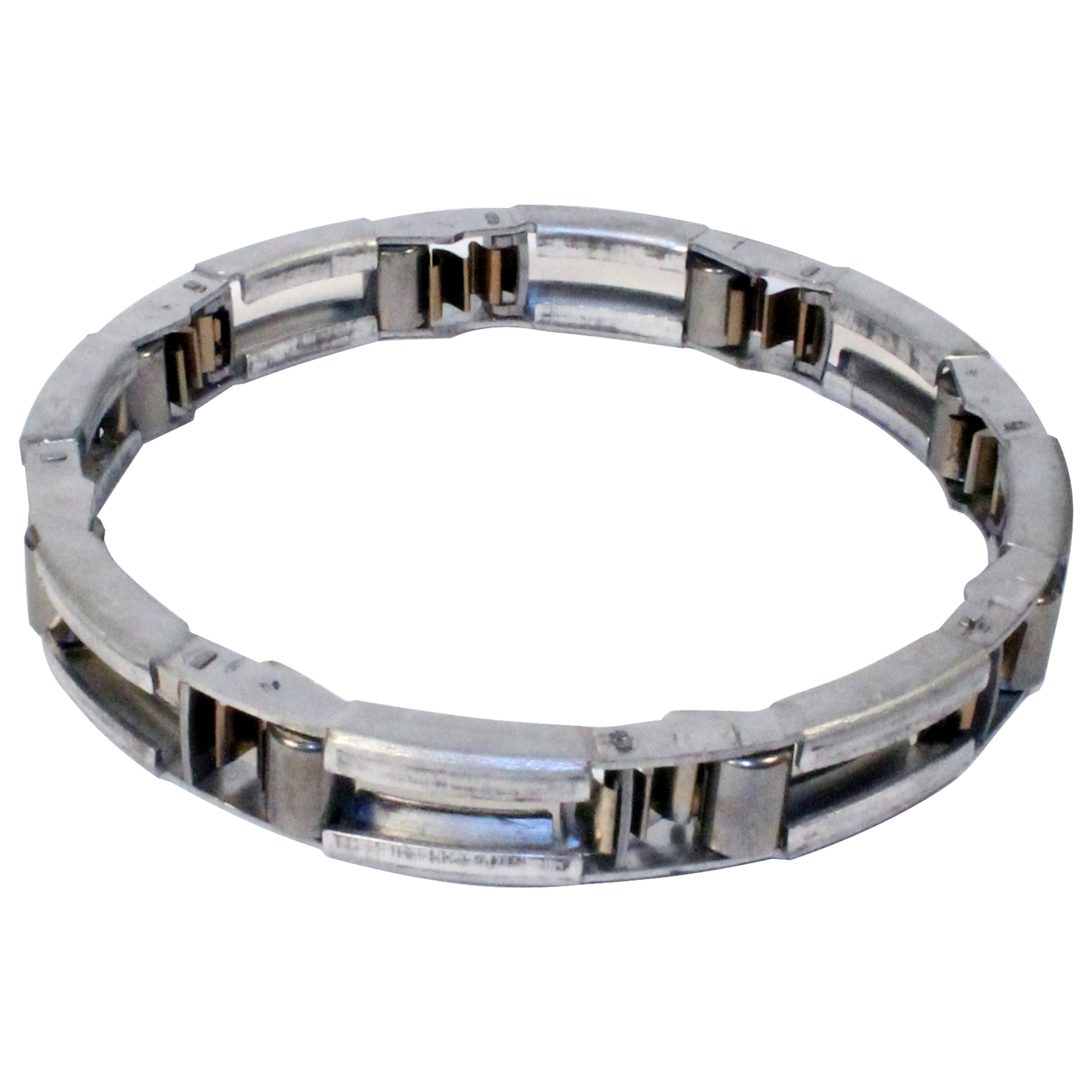

Roller Clutch (Sprag) 35724
Roller Clutch (Sprag) 35724
&

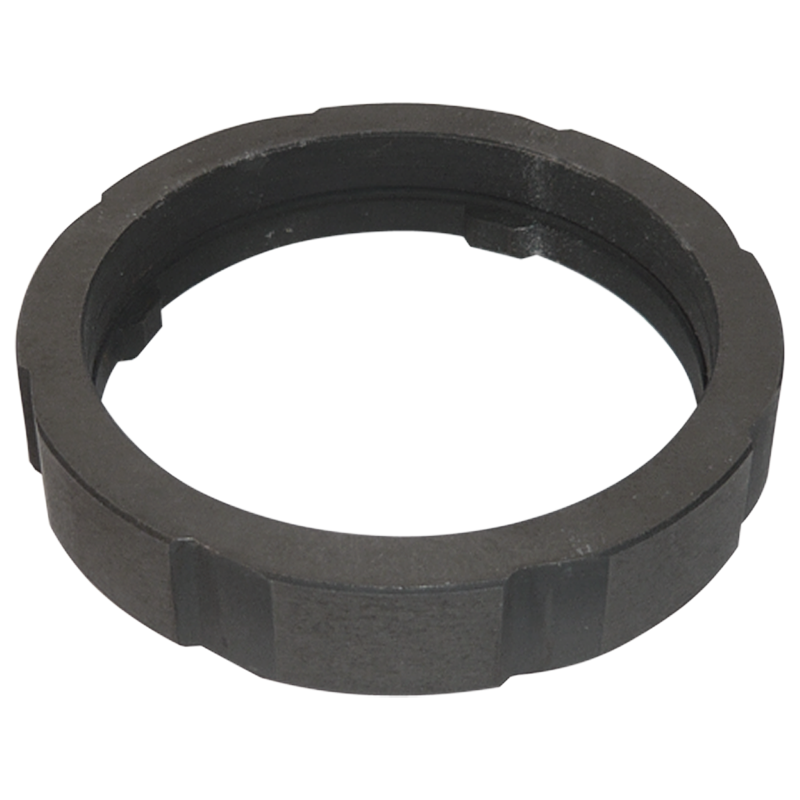

Inner Race Intermediate, 4 Lug 69 - 86 35726L
Inner Race 35726L
Intermediate, 4 Lug & 69 - 86

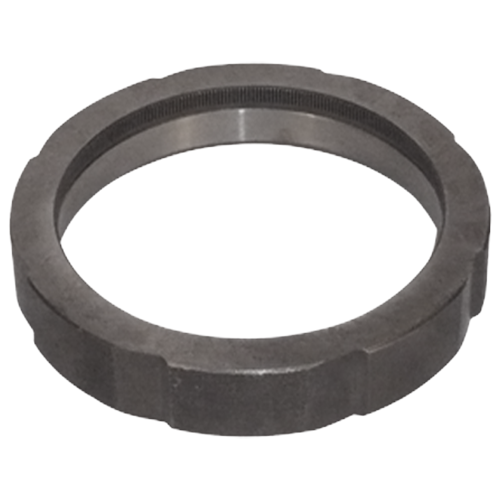

Inner Race Intermediate, Splined Type 69 - on 35726S
Inner Race 35726S
Intermediate, Splined Type & 69 - on
Inner Race Intermediate, 2 Lug 69 - on 35726T
Inner Race 35726T
Intermediate, 2 Lug & 69 - on

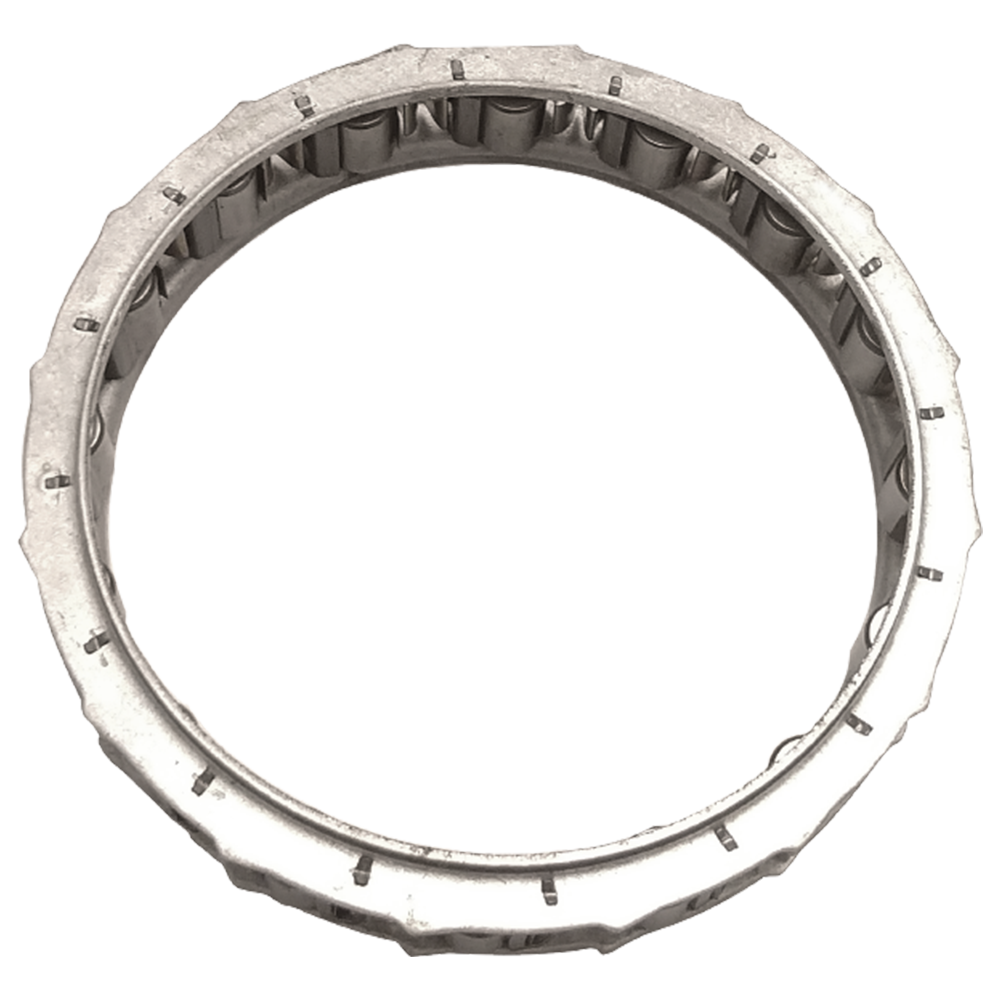

Roller Clutch (Sprag) 35727
Roller Clutch (Sprag) 35727
&

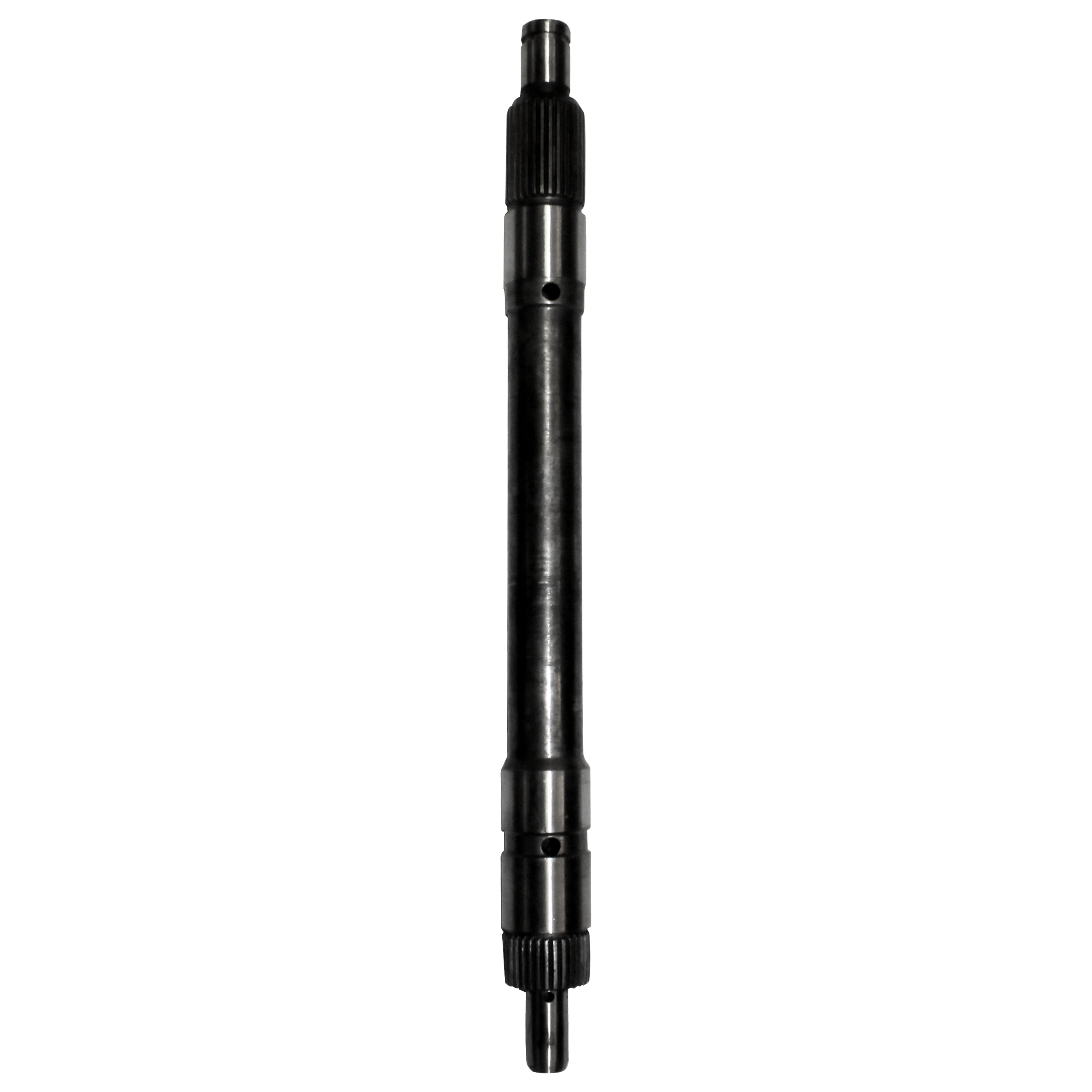

Input Shaft Lockup 80 - on 35733L
Input Shaft 35733L
Lockup & 80 - on

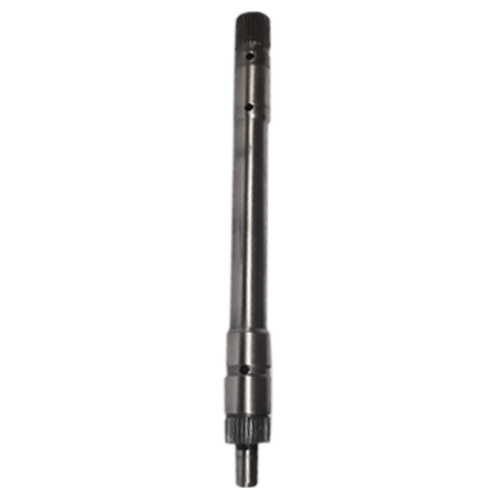

Input Shaft Bushing Type 1969 - 1979 35733S
Input Shaft 35733S
Bushing Type & 1969 - 1979

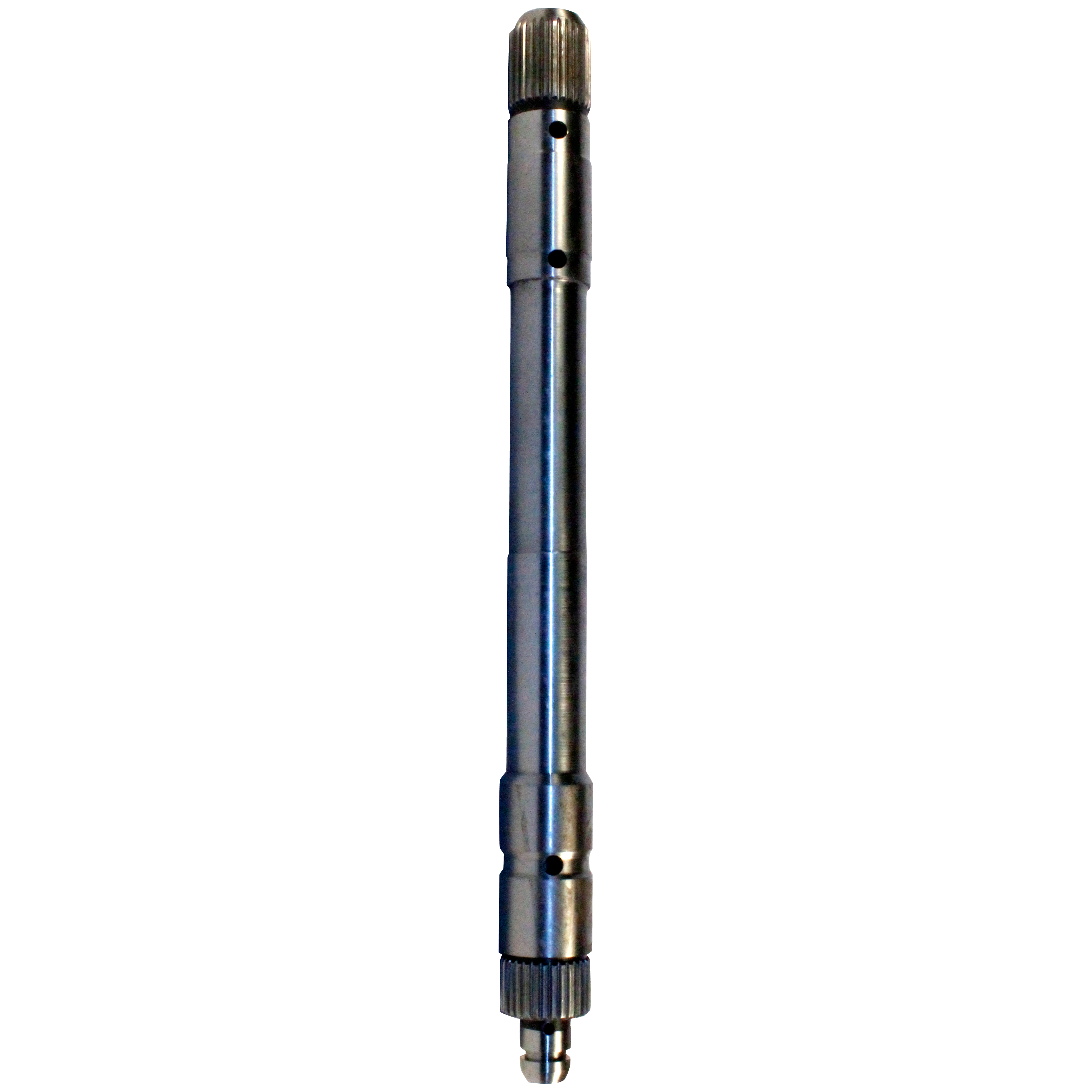

Input Shaft Fluorocarbon Ring Type 76 - 79 35733T
Input Shaft 35733T
Fluorocarbon Ring Type & 76 - 79
Spring Cushion, Intermediate 1969 - 1986 35750
Spring 35750
Cushion, Intermediate & 1969 - 1986

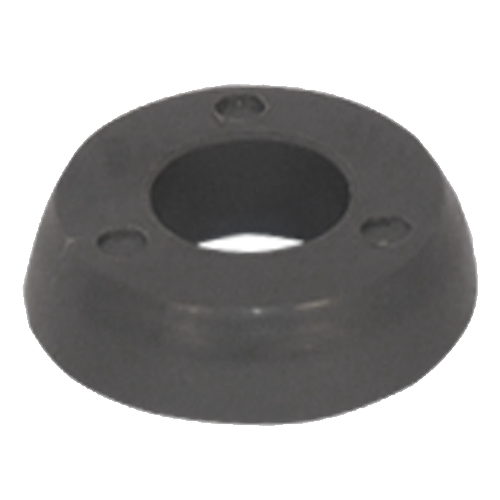

Grommet Manual Linkage 1969 - on 35800
Grommet 35800
Manual Linkage & 1969 - on
Grommet 35801
Grommet 35801
&

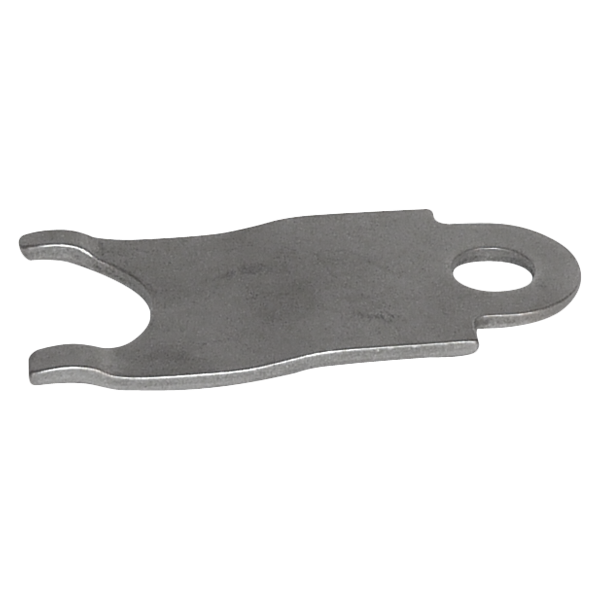

Modulator Bracket (Retainer) 35820B
Modulator Bracket 35820B
(Retainer) &
Modulator 1 RED STRIPE,TH350/400 35820R
Modulator 35820R
1 RED STRIPE,TH350/400 &

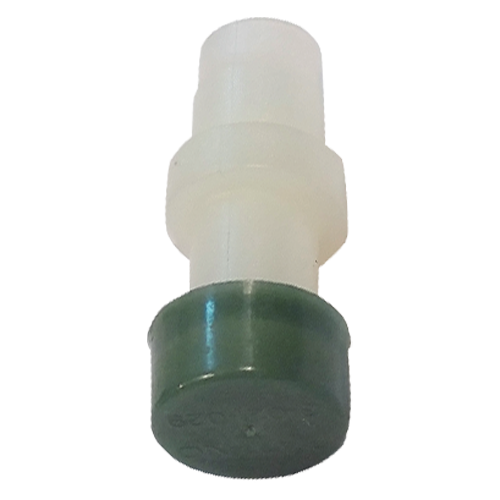

Tube Vent, Transmission Case 1969 - on 35910
Tube 35910
Vent, Transmission Case & 1969 - on
Pump Body With Gears,TH350 35916
Pump Body 35916
With Gears,TH350 &

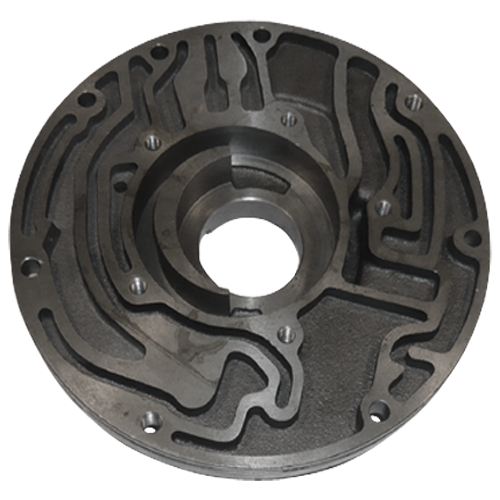

Pump Body Without Gears, TH350 8641410 35916X
Pump Body 35916X
Without Gears, TH350 & 8641410
Adapter Bullet, Speedometer, Steel 1969 - on 35922
Adapter 35922
Bullet, Speedometer, Steel & 1969 - on

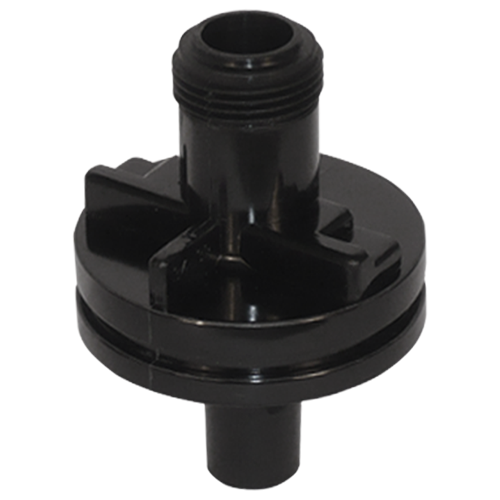

Adapter Speedo, Plastic 1976 - on 35923
Adapter 35923
Speedo, Plastic & 1976 - on
Shaft Stator, Hardened Splines 1980 - on 35969
Shaft 35969
Stator, Hardened Splines & 1980 - on

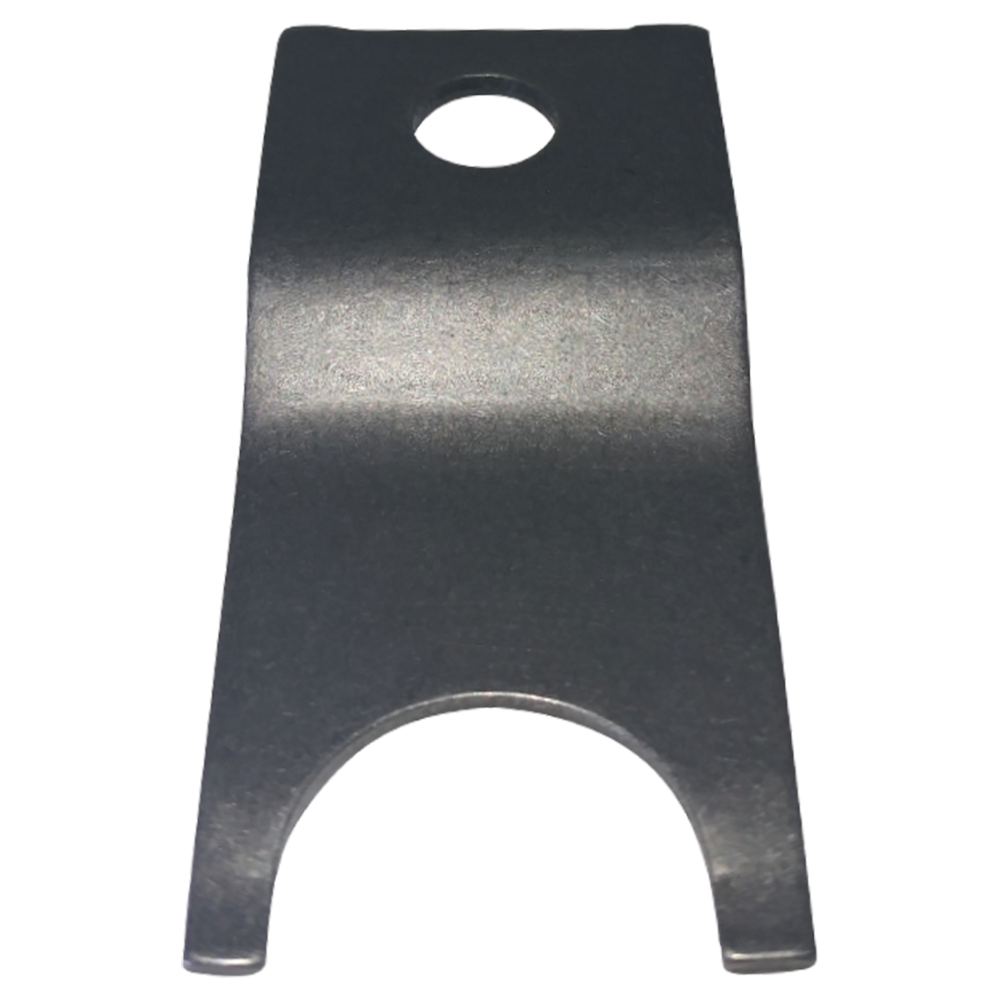

Modulator Bracket (Retainer) 6261285
Modulator Bracket 6261285
(Retainer) &
Grommet Shift Linkage, Frame 1605083 65800
Grommet 65800
Shift Linkage, Frame & 1605083
Washer Bronze,.025,Round 75905B
Washer 75905B
Bronze,.025,Round &
Washer Steel 75905S
Washer 75905S
Steel &
Bushing Output shaft pilot
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
 8004
Bushing 8004
Output shaft pilot &
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
Bushing Outputshaft Pilot (Plastic) 8004P
Bushing 8004P
Outputshaft Pilot (Plastic) &
Bushing Front pump 8005
Bushing 8005
Front pump &
Bushing Front Pump Body, Bronze 8005A
Bushing 8005A
Front Pump Body, Bronze &
Nail governor 8623232HT
Nail 8623232HT
governor &
Metal Clad Seal Pump (Use 35151) TH-250/350/325/375/400/425 Powerglide 3L80 35151 8641826
Metal Clad Seal 8641826
Pump (Use 35151) & TH-250/350/325/375/400/425 Powerglide 3L80 35151
Modulator 2 RED STRIPE, TH350/TH400 8646956
Modulator 8646956
2 RED STRIPE, TH350/TH400 &

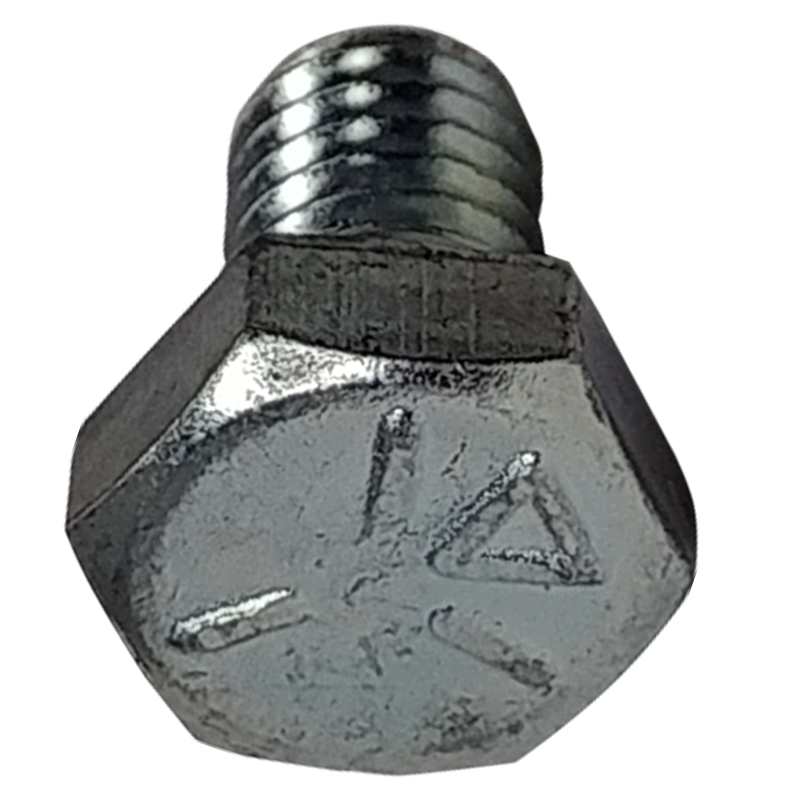

Bolt Modulator Bracket, TH350/400 92865A578
Bolt 92865A578
Modulator Bracket, TH350/400 &
Bushing Cover
  • Thickness: 0.495"
  • Housing Bore Dia: 0.625"
  • Shaft Dia: 0.495"
  • Material: Babbit
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
 CB-18-3
Bushing CB-18-3
Cover &
  • Thickness: 0.495"
  • Housing Bore Dia: 0.625"
  • Shaft Dia: 0.495"
  • Material: Babbit
  • Outside Dia: 0.628
  • Inside Dia: 0.5030

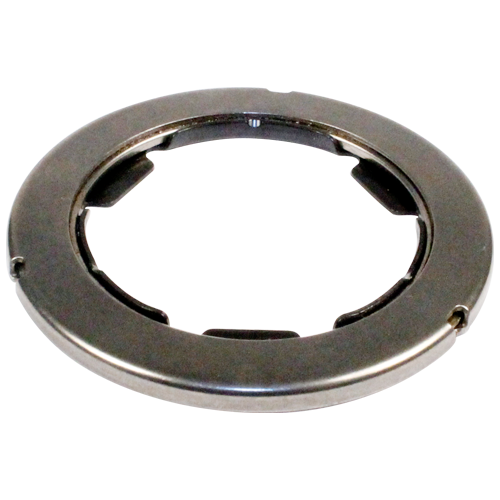

Bearing Torrington
  • Outside Dia: 2.47
  • Inside Dia: 1.67
 FH-49401
Bearing FH-49401
Torrington &
  • Outside Dia: 2.47
  • Inside Dia: 1.67

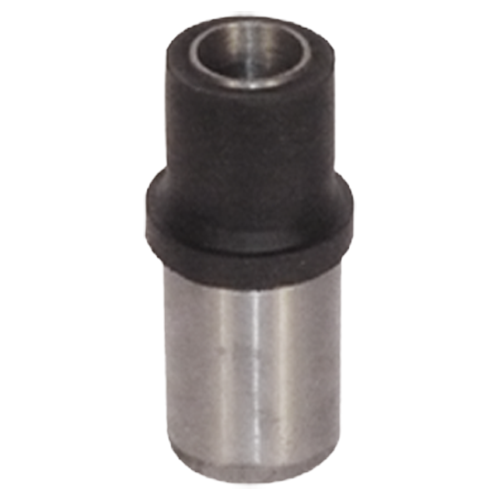

Kit Filler Tube Adapter, With Grommet K30999
Kit K30999
Filler Tube Adapter, With Grommet &
Kit Case Saver, 4 Pcs. 1969 - 1986 K35354
Kit K35354
Case Saver, 4 Pcs. & 1969 - 1986

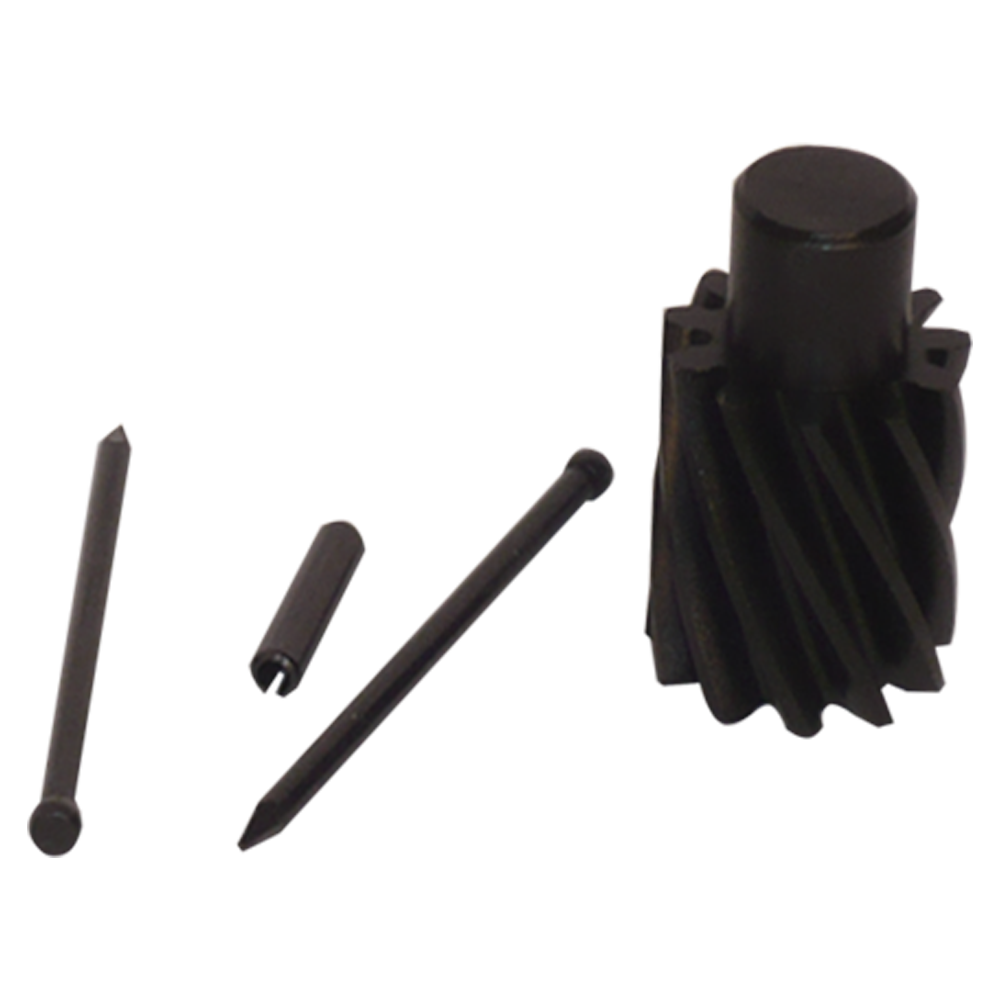

Kit Governor Gear K35411
Kit K35411
Governor Gear &
Shim Kit Pump K35412
Shim Kit K35412
Pump &
Kit Spring & O-Ring, Accumulator K35703A
Kit K35703A
Spring & O-Ring, Accumulator &
Kit Spring, Retainer Assembly 1969-1986 K35720
Kit K35720
Spring, Retainer Assembly & 1969-1986
Washer Kit TH-250/250C/350/350C 1969-Up K35907-1
Washer Kit K35907-1
& TH-250/250C/350/350C 1969-Up

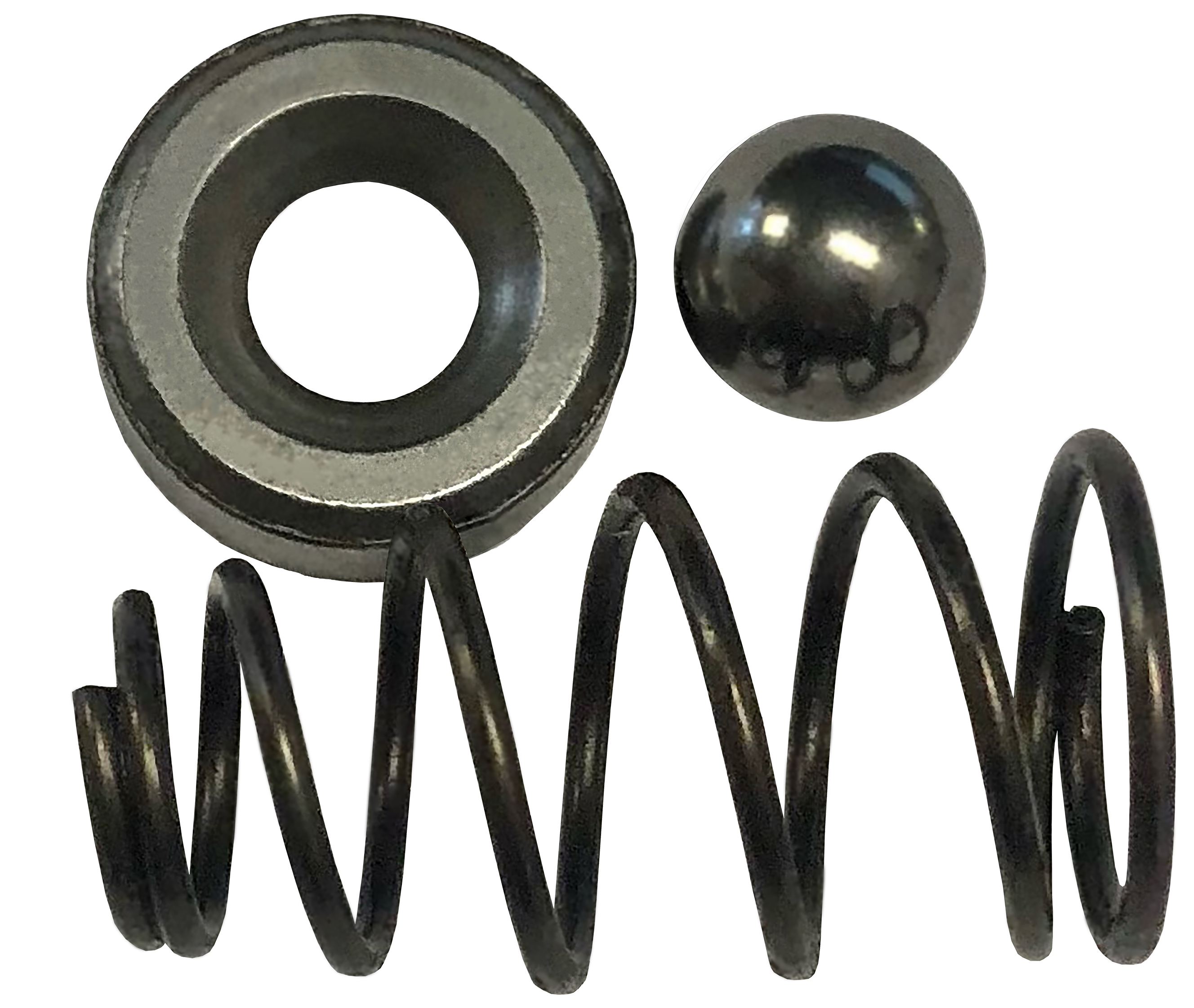

Spring & Ball Kit Front Pump Body (transmission cooler bypass assembly) 69 - 79 K35915
Spring & Ball Kit K35915
Front Pump Body (transmission cooler bypass assembly) & 69 - 79
Seal Kit Fits 35922 "Bullet" K35922A
Seal Kit K35922A
Fits 35922 "Bullet" &
Kit Speedo Bullet & Extra Seals, TH350 K35922C
Kit K35922C
Speedo Bullet & Extra Seals, TH350 &
Kit Speedo Sleeve+Oring K35923A
Kit K35923A
Speedo Sleeve+Oring &
Planetary Washer Repair Kit .025X.400X.805 K75905
Planetary Washer Repair Kit K75905
.025X.400X.805 &
Pump Gear Kit .723 Thick 64 - on MG-723K
Pump Gear Kit MG-723K
.723 Thick & 64 - on
Pump Gear Kit .725" Thick 64 - on MG-725K
Pump Gear Kit MG-725K
.725" Thick & 64 - on
Pump Gear Kit .727" Thick 64 - on MG-727K
Pump Gear Kit MG-727K
.727" Thick & 64 - on
Pump Gear Kit 0.727", Oversized, TH350 MG-727SK
Pump Gear Kit MG-727SK
0.727", Oversized, TH350 &
Pump Gear Kit .841 Thick. 1980 - on MG-841K
Pump Gear Kit MG-841K
.841 Thick. & 1980 - on

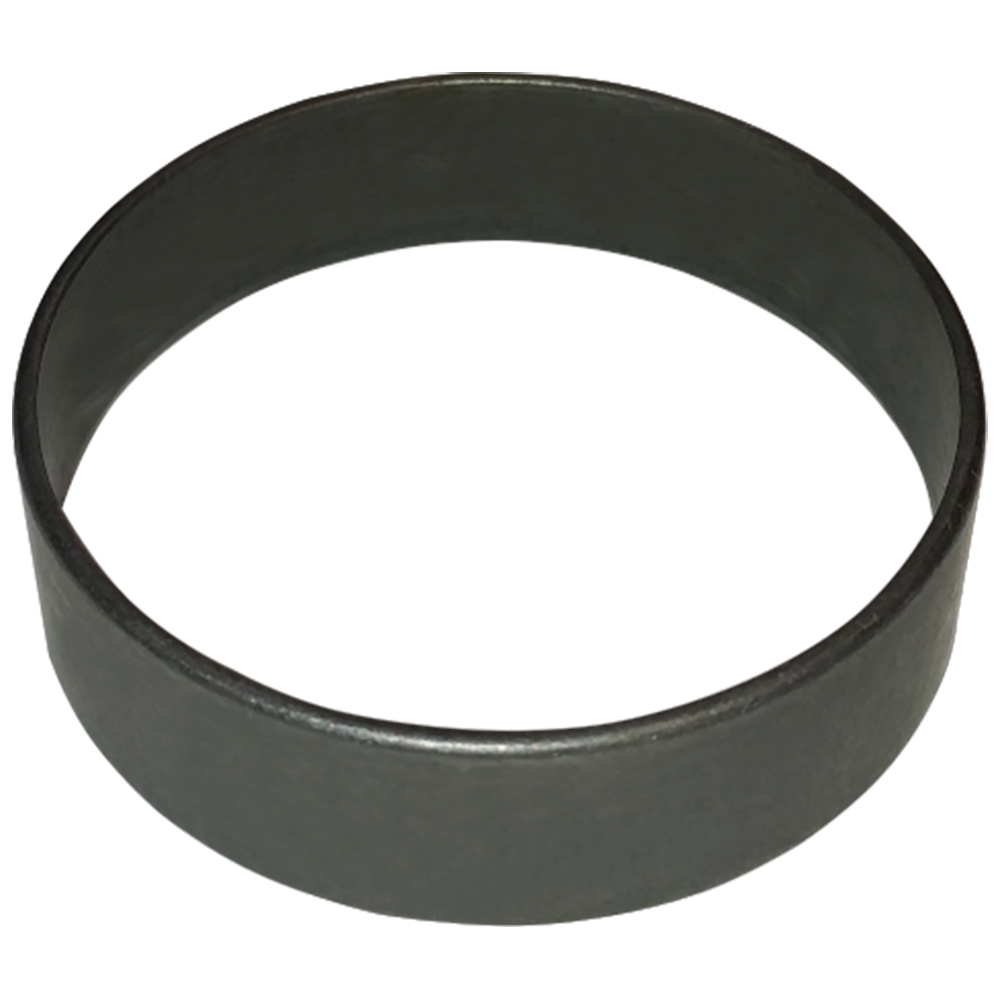

Sleeve Repair, Front, Planetary MGB-350B
Sleeve MGB-350B
Repair, Front, Planetary &
Sleeve MGB-350-D2
Sleeve MGB-350-D2
&

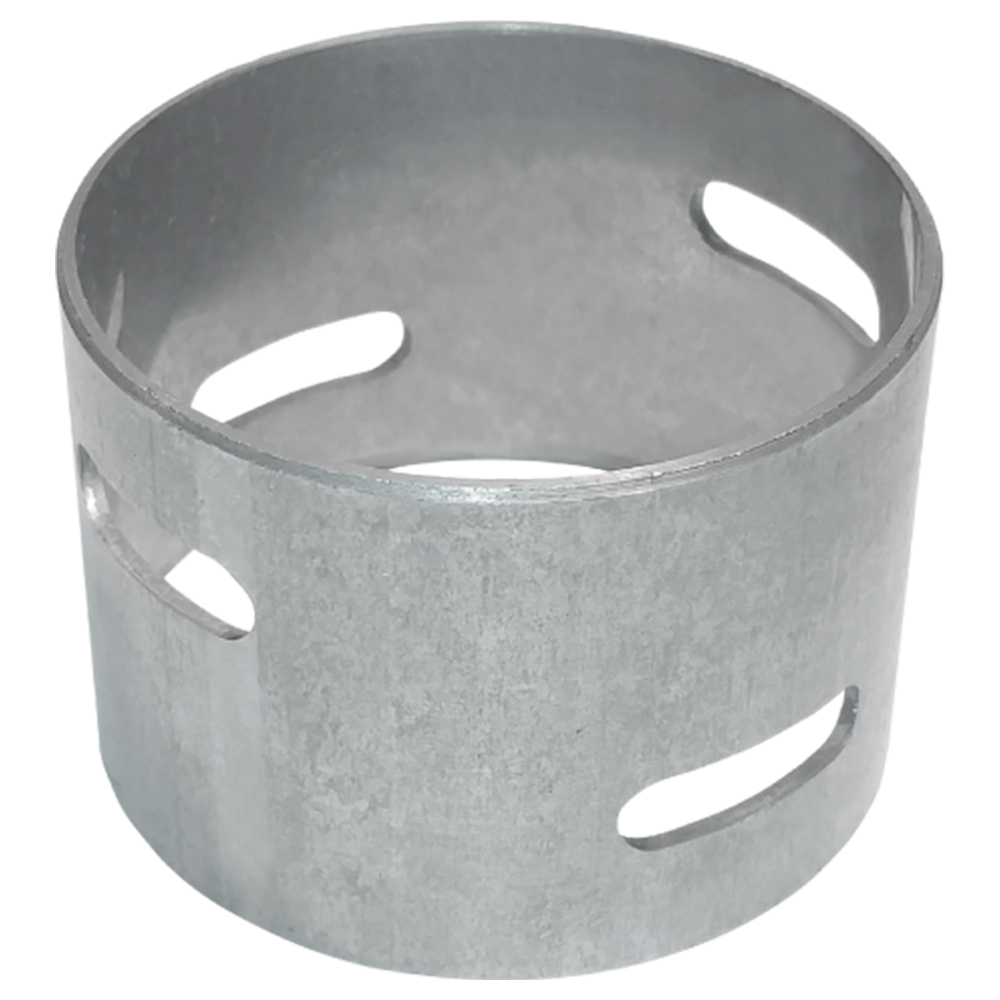

Sleeve Sleeve,Repair,Dir.Drum,TH350 MGB-350-D4
Sleeve MGB-350-D4
Sleeve,Repair,Dir.Drum,TH350 &

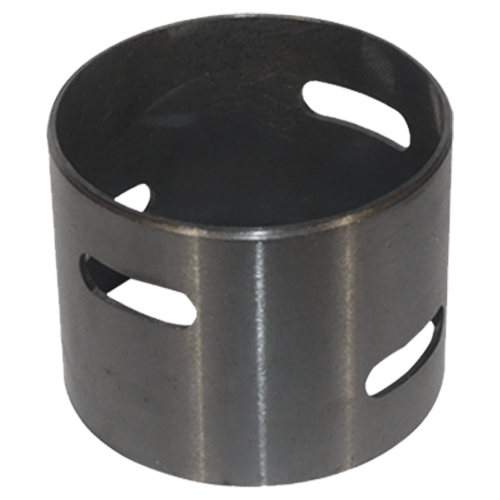

Sleeve Dir.Drum, Finished. O.D. MGB-350-D5
Sleeve MGB-350-D5
Dir.Drum, Finished. O.D. &

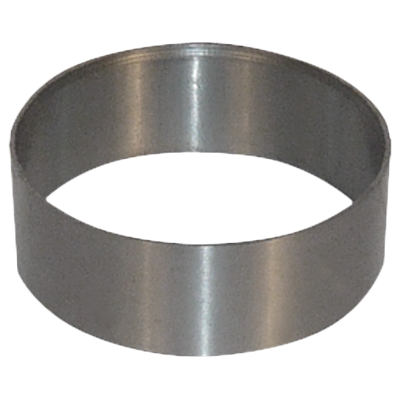

Sleeve Stator Support, Bushing Surface MGB-350R
Sleeve MGB-350R
Stator Support, Bushing Surface &

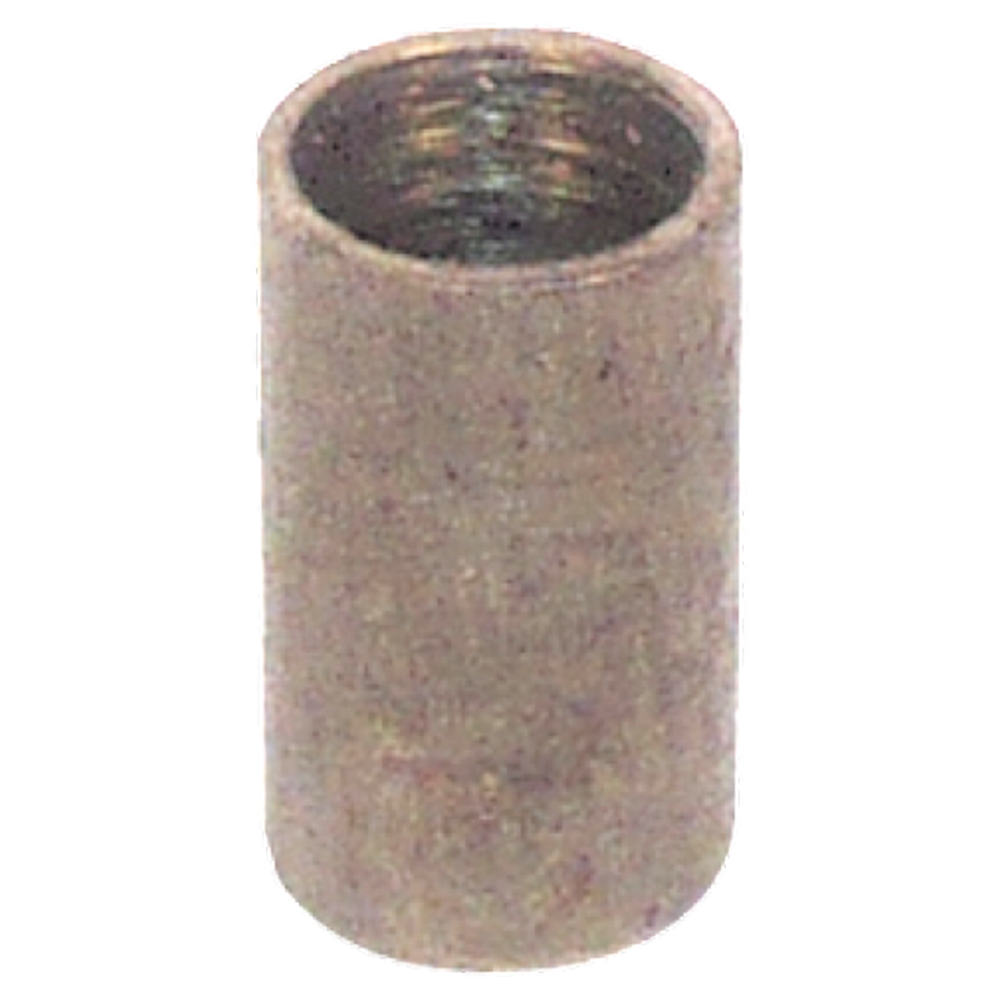

Sleeve Input Shaft MGB-350S
Sleeve MGB-350S
Input Shaft &

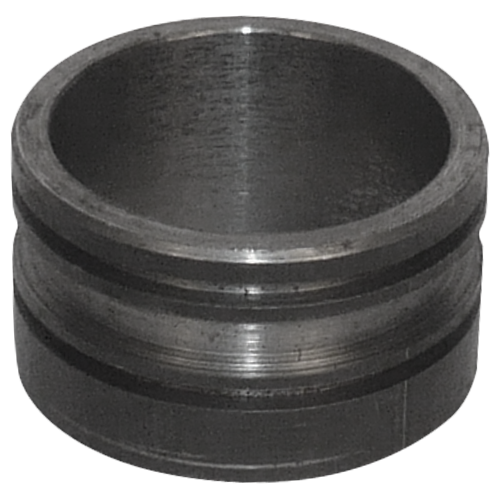

Sleeve Stator Support, 2 Ring Grooves MGB-350T
Sleeve MGB-350T
Stator Support, 2 Ring Grooves &
Inner Pump Gear 0.721", Oversized, TH350 MGI-721E
Inner Pump Gear MGI-721E
0.721", Oversized, TH350 &
Inner Pump Gear Oversized 0.727, TH350 MGI-727E
Inner Pump Gear MGI-727E
Oversized 0.727, TH350 &
Inner Pump Gear MGI-845
Inner Pump Gear MGI-845
&
Sleeve MGO-350-D5
Sleeve MGO-350-D5
&
Outer Pump Gear 0.723", TH350 MGO-723A
Outer Pump Gear MGO-723A
0.723", TH350 &
Outer Pump Gear 0.727", TH350 MGO-727A
Outer Pump Gear MGO-727A
0.727", TH350 &
Tool T814C
Tool T814C
&
