Transmission | GM | TH180 (3L30, Trimatic) | General Motors

Ill.# Image Description Specification Part #
Bushing Stator Support,Rear 54015
Bushing 54015
Stator Support,Rear &
Steel Clutch-Plate Overdrive, Brake 4L30E 1990 - on 54109
Steel Clutch-Plate 54109
Overdrive, Brake & 4L30E 1990 - on
Pump TH-180 TH-180/180C/3L30, 1969-Up 54200A
Pump 54200A
TH-180 & TH-180/180C/3L30, 1969-Up
Steel Clutch-Plate Third, .083" 4L30E 69 - on 54221C
Steel Clutch-Plate 54221C
Third, .083" & 4L30E 69 - on
Modulator Trimatic TH180/180C/3L30/4L30 54525
Modulator 54525
Trimatic & TH180/180C/3L30/4L30
Modulator 2 Green Stripe, TH180 Postal 54525B
Modulator 54525B
2 Green Stripe, TH180 Postal &
Sprag 3L30
  • Cam Count: 26 elements
  • 26 cams
 54724
Sprag 54724
& 3L30
  • Cam Count: 26 elements
  • 26 cams

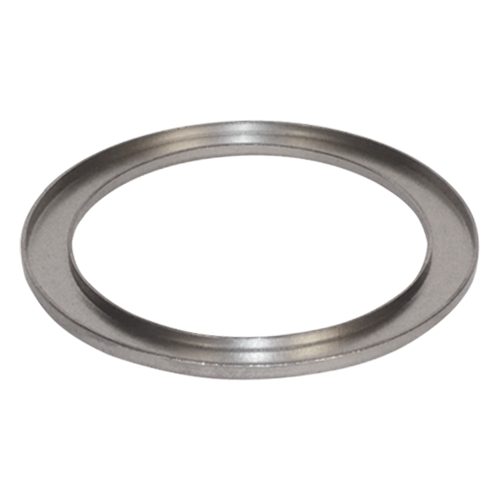

Washer Sprag, End-Cap 4L30E 1969 - on 54724W
Washer 54724W
Sprag, End-Cap & 4L30E 1969 - on
Steel Clutch-Plate 0.082, TH180 56405
Steel Clutch-Plate 56405
0.082, TH180 &
Sprag 4L30E 1969 - on
  • Cam Count: 26 elements
 77725
Sprag 77725
& 4L30E 1969 - on
  • Cam Count: 26 elements
Sprag 4L30E 1969 - on
  • Includes 77725 Sprag and 2 end-caps of (part ID 54724W)
 K77402
Sprag K77402
& 4L30E 1969 - on
  • Includes 77725 Sprag and 2 end-caps of (part ID 54724W)
Pump Gear Kit 0.626", TH180 TH180 / 3L30/4L30-E 1969-Up MG-180-626K
Pump Gear Kit MG-180-626K
0.626", TH180 & TH180 / 3L30/4L30-E 1969-Up

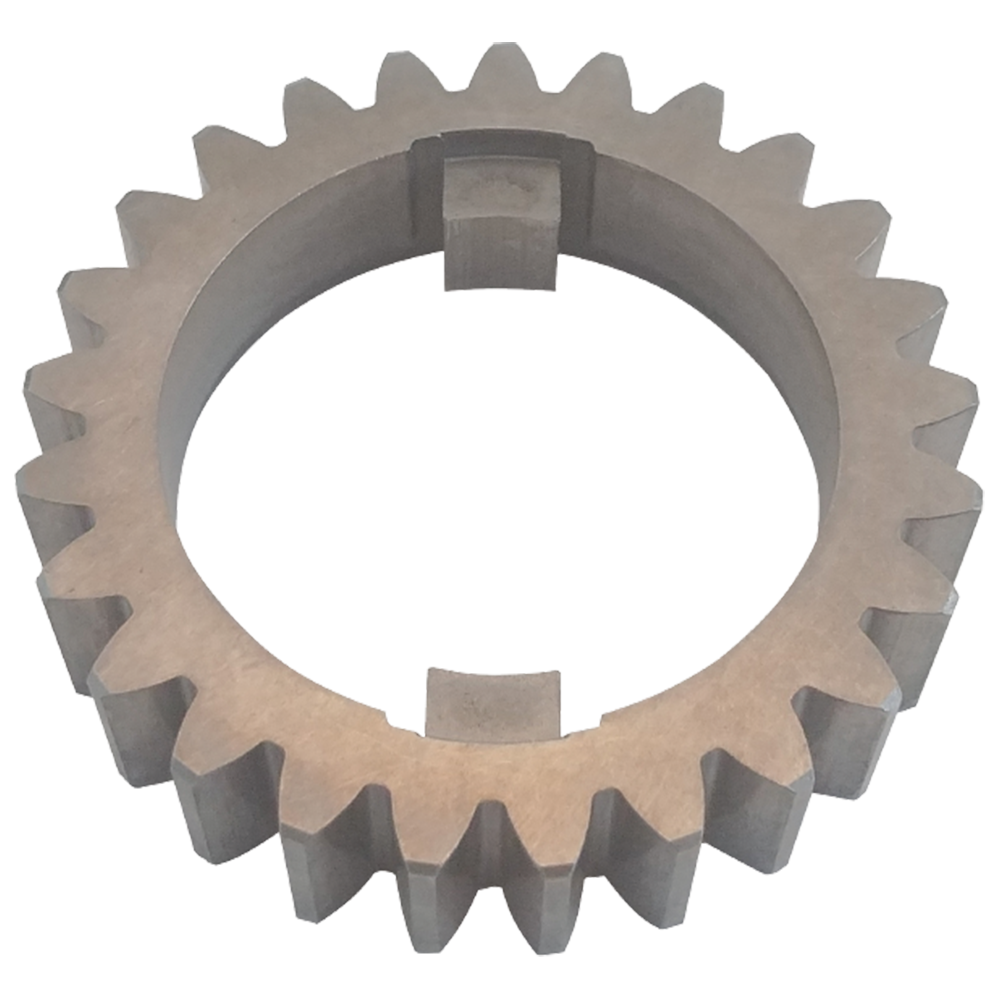

Inner Pump Gear MGI-180-626
Inner Pump Gear MGI-180-626
&
