Transmission | GM | Powerglide | General Motors

Ill.# Image Description Specification Part #
U/Steel Plate (Use 18506 ) 1379373
U/Steel Plate (Use 18506 ) 1379373
&
Friction Plate 1961 - 1962 18305A
Friction Plate 18305A
& 1961 - 1962
Friction Plate 1959 - 1961 18305C
Friction Plate 18305C
& 1959 - 1961

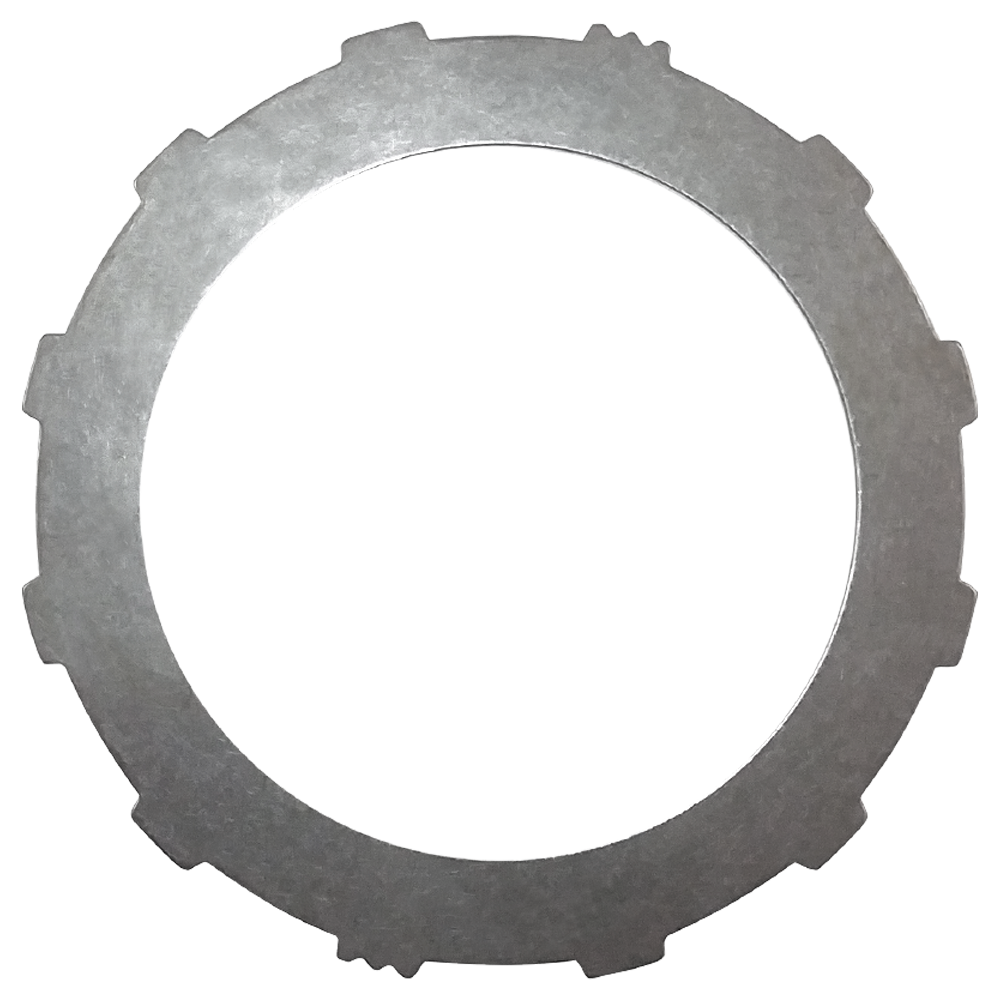

Steel Clutch-Plate Alum Powerglide 1962-'73 18306B
Steel Clutch-Plate 18306B
& Alum Powerglide 1962-'73
Steel Clutch-Plate Reverse 18506
Steel Clutch-Plate 18506
Reverse &

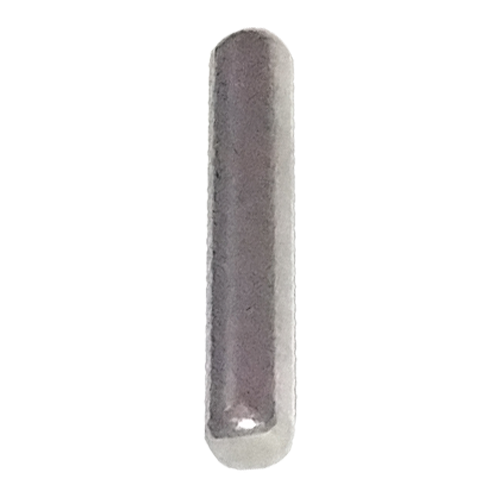

Pinion Roller Spacer PowerGlide 1950-1973 2569RSHP
Pinion Roller Spacer 2569RSHP
PowerGlide & 1950-1973
Bearing Assembly Low Sungear (Alum. Case) 28321
Bearing Assembly 28321
Low Sungear (Alum. Case) &
Modulator Aluminum P.G. 28738
Modulator 28738
Aluminum P.G. &
Lip Seal Piston Inner (3103L,3812833) 3689713
Lip Seal 3689713
Piston Inner (3103L,3812833) &
Lip Seal Selector, All Rubber, Iron P.G.(3528) 3689866
Lip Seal 3689866
Selector, All Rubber, Iron P.G.(3528) &
Seal Square, Pressure Regulator 3713642
Seal 3713642
Square, Pressure Regulator &
Steel Clutch-Plate 6 lug, flat (18306A ) 3779903
Steel Clutch-Plate 3779903
6 lug, flat (18306A ) &
O-Ring FRONT PUMP, POWERGLIDE 3789013
O-Ring 3789013
FRONT PUMP, POWERGLIDE &
GASKET, PUMP, POWERGLIDE 3789022
GASKET, PUMP, POWERGLIDE 3789022
&
Bushing Output shaft pilot
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
 8004
Bushing 8004
Output shaft pilot &
  • Outside Dia: 0.628
  • Inside Dia: 0.5030

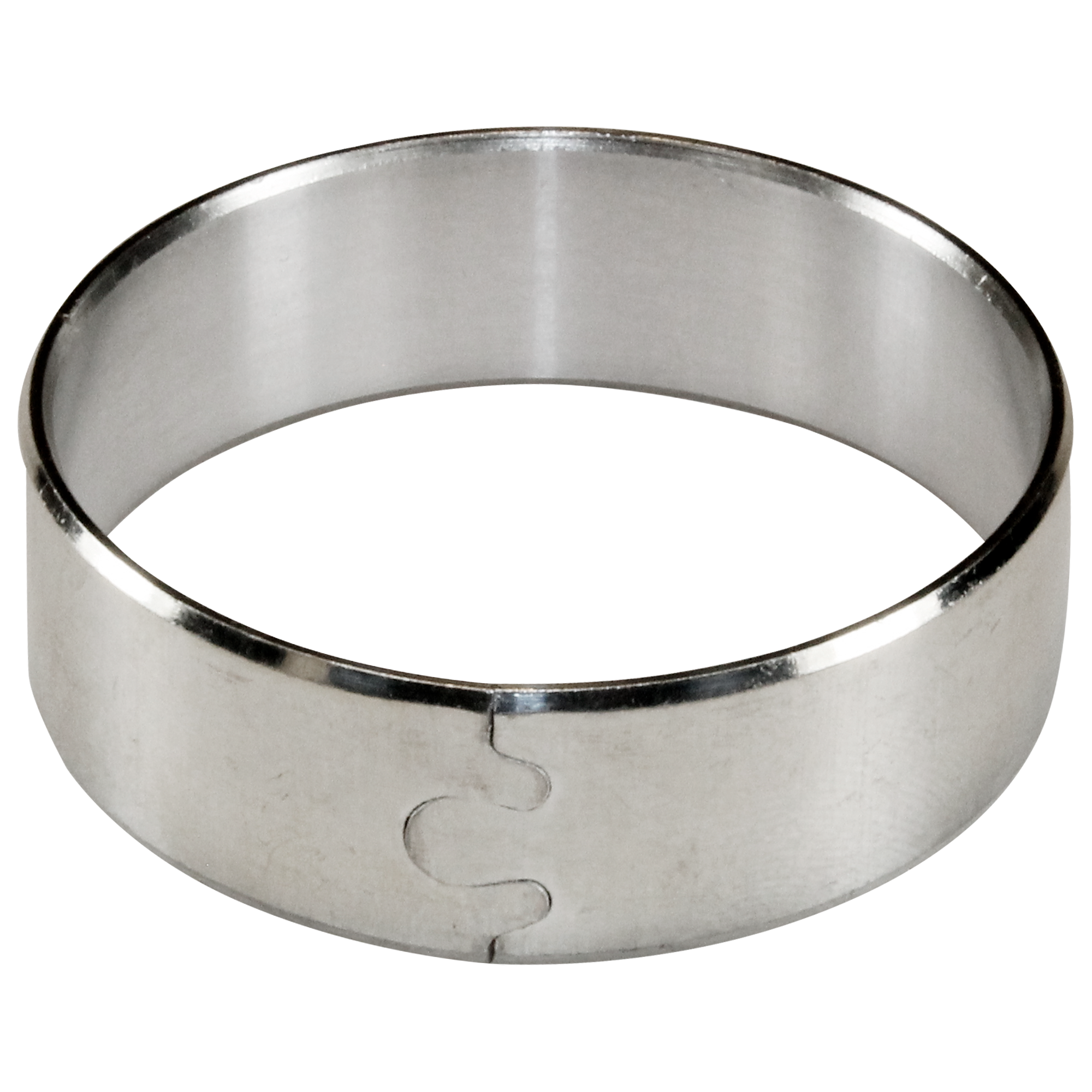

Bushing Front pump 8005
Bushing 8005
Front pump &
Bushing Extension Housing 8008
Bushing 8008
Extension Housing &
Friction Plate Lug Type 1950 - 1955 8305
Friction Plate 8305
Lug Type & 1950 - 1955
Friction Plate 1956 - 1960 8305A
Friction Plate 8305A
& 1956 - 1960
Bushing Sun Gear, Bronze, 19 Splines 8436
Bushing 8436
Sun Gear, Bronze, 19 Splines &

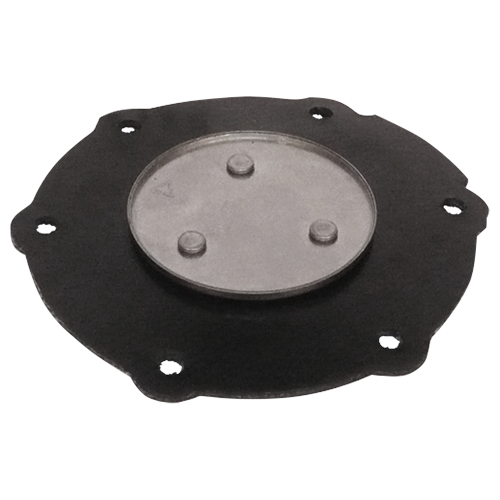

Diaphragm Assembly modulator 8510
Diaphragm Assembly 8510
modulator &

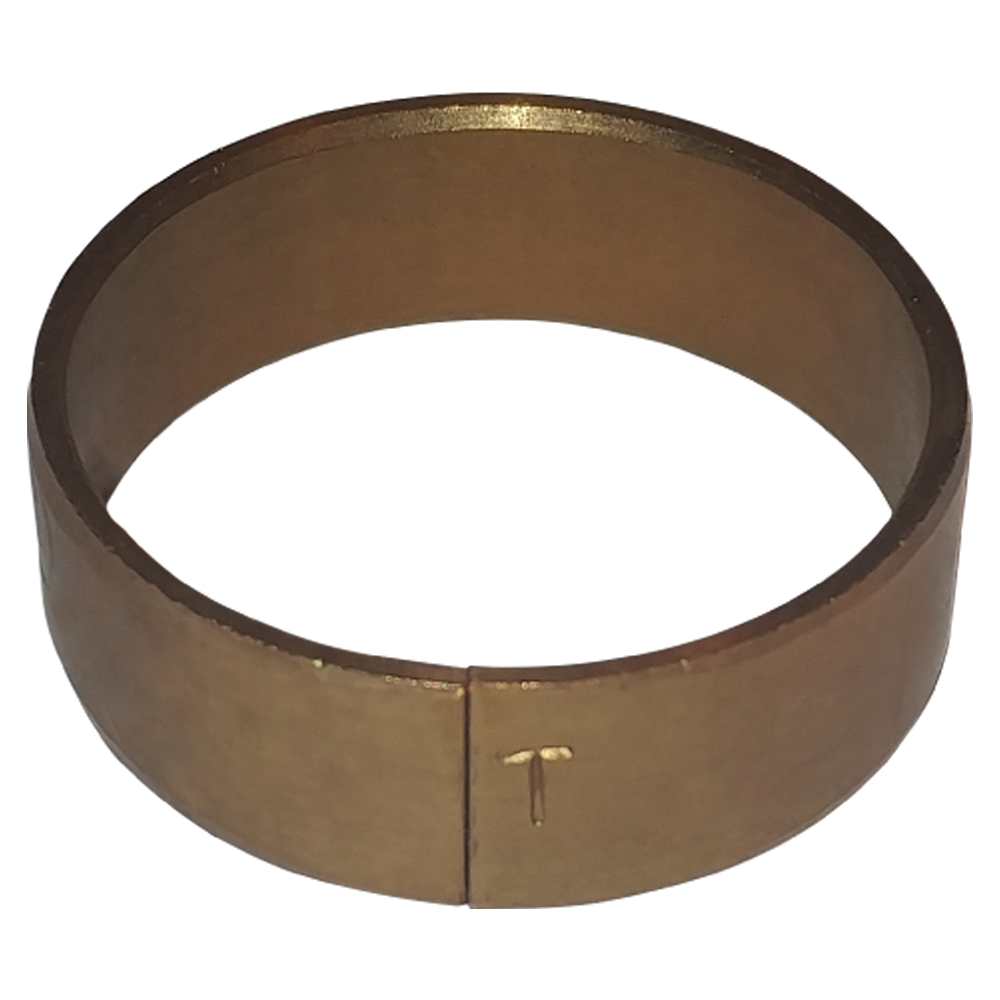

Bushing cover
  • Thickness: 0.437"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
  • Type: Precision
 CB-18
Bushing CB-18
cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
  • Type: Precision
Bushing Cover
  • Thickness: 0.495"
  • Housing Bore Dia: 0.625"
  • Shaft Dia: 0.495"
  • Material: Babbit
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
 CB-18-3
Bushing CB-18-3
Cover &
  • Thickness: 0.495"
  • Housing Bore Dia: 0.625"
  • Shaft Dia: 0.495"
  • Material: Babbit
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
Bushing Sintered
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 CB-18P
Bushing CB-18P
Sintered &
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
Roller stator 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
 CR-7
Roller CR-7
stator & 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
Accordion Spring
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
 CS-6
Accordion Spring CS-6
&
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
Seal Ring Square-Cut, Large Cover
  • Height: 0.125
  • Thickness: 0.126"
  • Width: 0.125
  • Thickness metric: 3.2mm
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: Square-Cut
  • Outside Dia: 12.25
  • Inside Dia: 11.752
  • Outside Dia Metric: 311.15
 FO-1-21
Seal Ring FO-1-21
Square-Cut, Large Cover &
  • Height: 0.125
  • Thickness: 0.126"
  • Width: 0.125
  • Thickness metric: 3.2mm
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: Square-Cut
  • Outside Dia: 12.25
  • Inside Dia: 11.752
  • Outside Dia Metric: 311.15

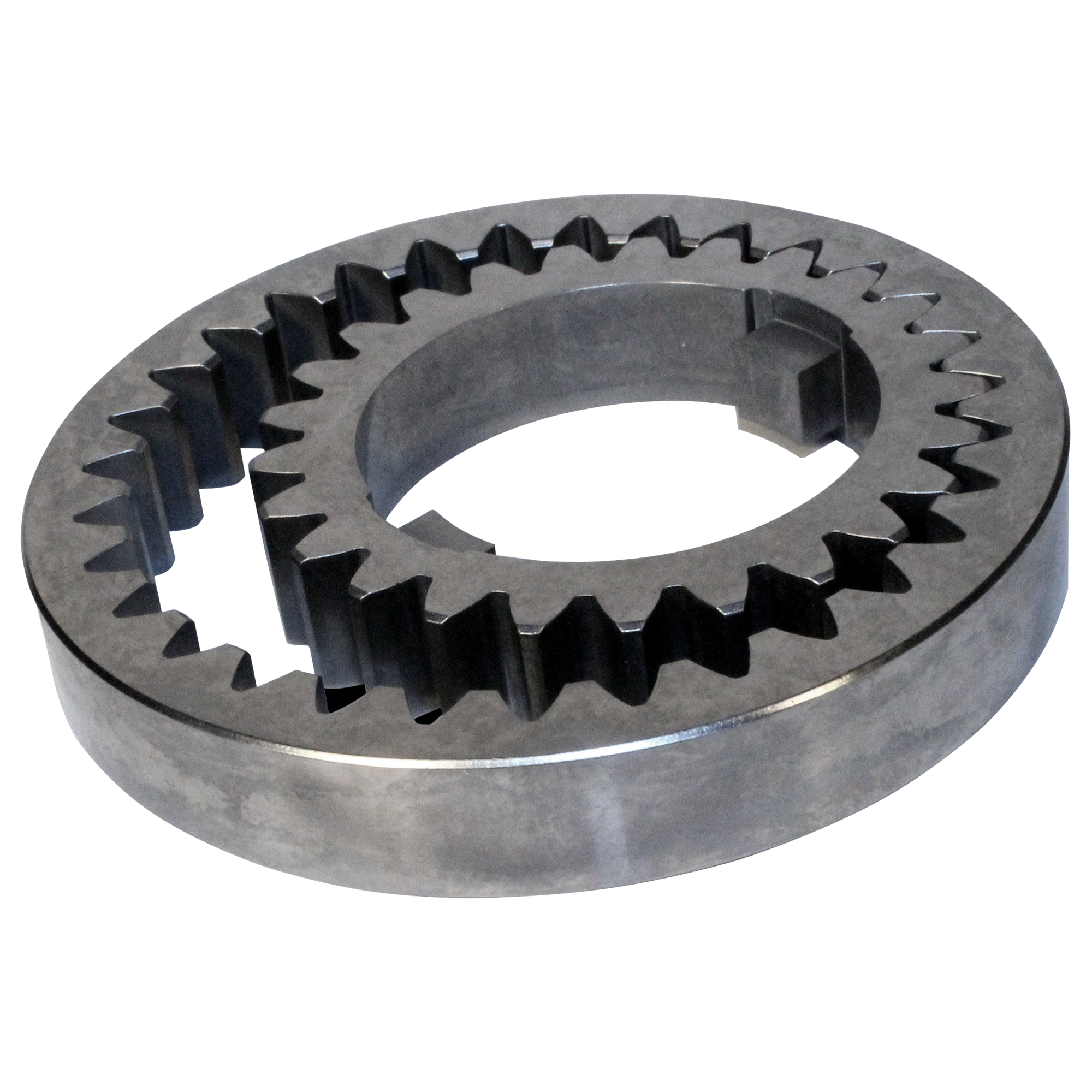

Pump Gear Kit 53 - 73 MG-100K
Pump Gear Kit MG-100K
& 53 - 73

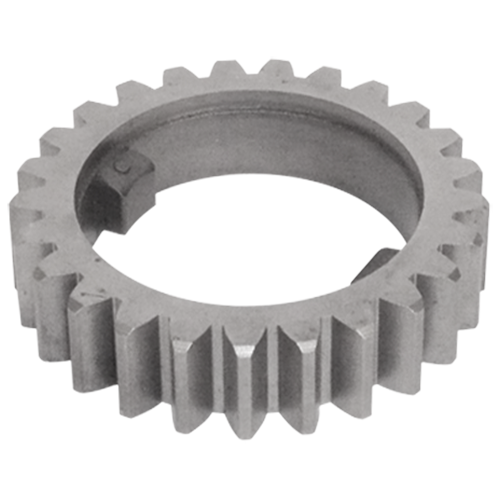

Gear Inner MGI-100
Gear MGI-100
Inner &

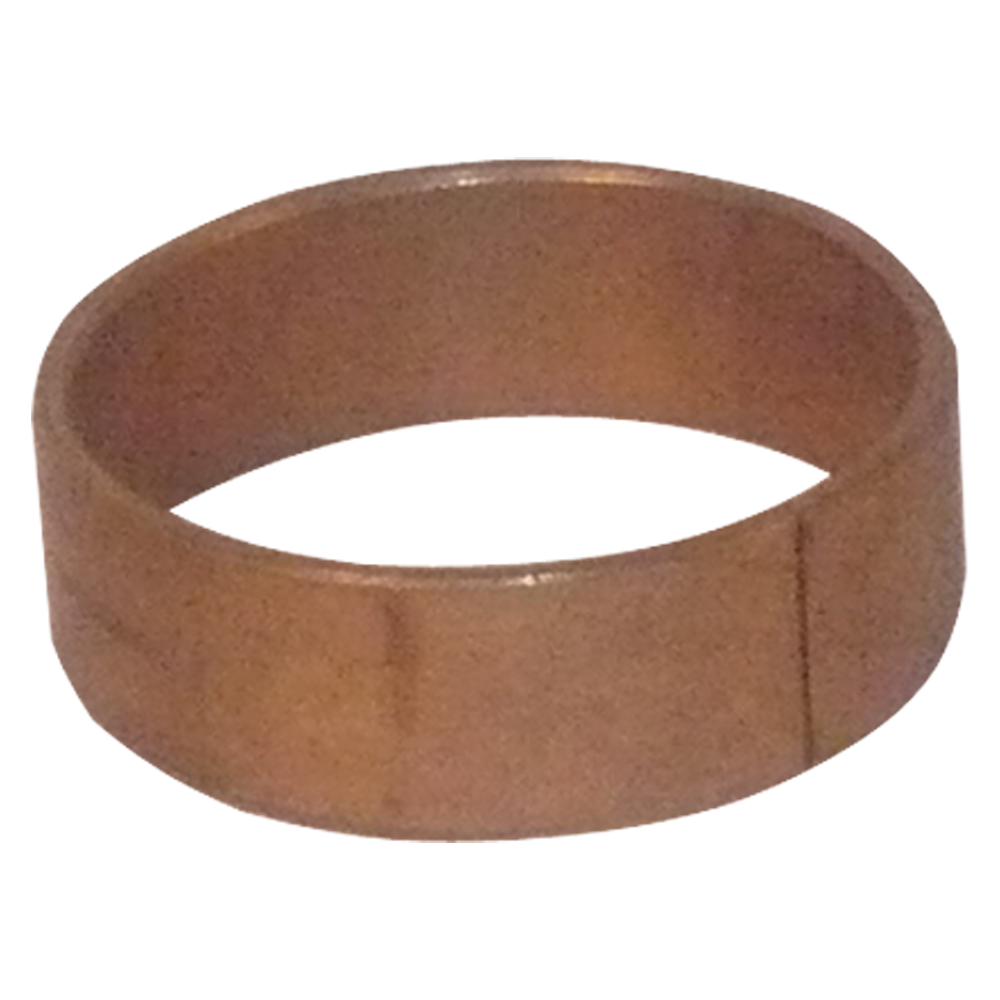

Bushing Cover
  • Thickness: 0.44"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 TB-18-9
Bushing TB-18-9
Cover &
  • Thickness: 0.44"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
