Transmission | Ford | Cruisomatic

Ill.# Image Description Specification Part #

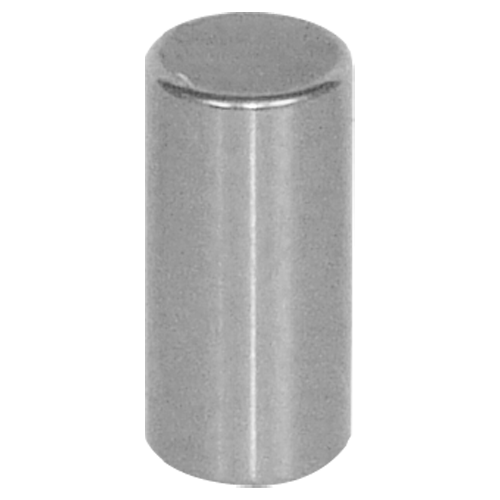

Roller 36960B For 36960B 16 Pieces Required. 2472R
Roller 2472R
36960B & For 36960B 16 Pieces Required.

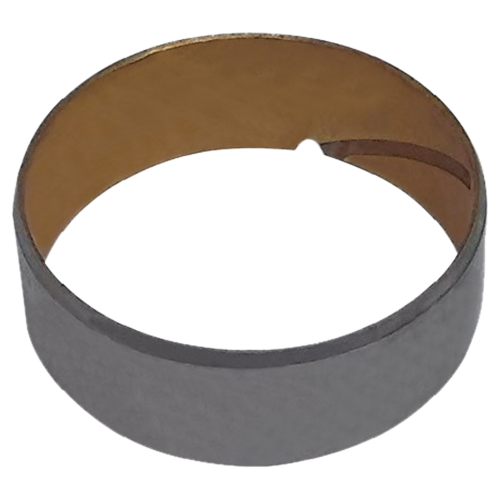

Bushing Pump, Front, Heavy Duty, Bronze 36002
Bushing 36002
Pump, Front, Heavy Duty, Bronze &

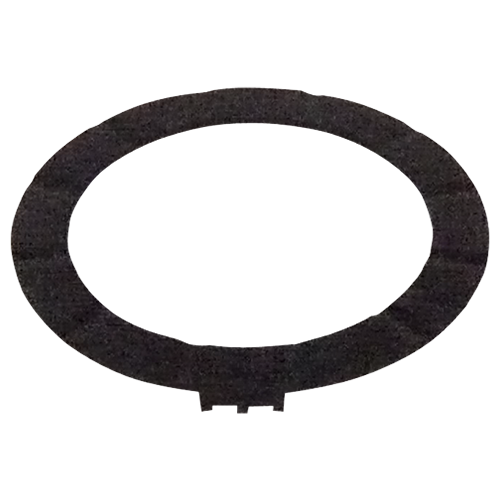

Washer Pump, (.074), Plastic 36409AP
Washer 36409AP
Pump, (.074), Plastic &

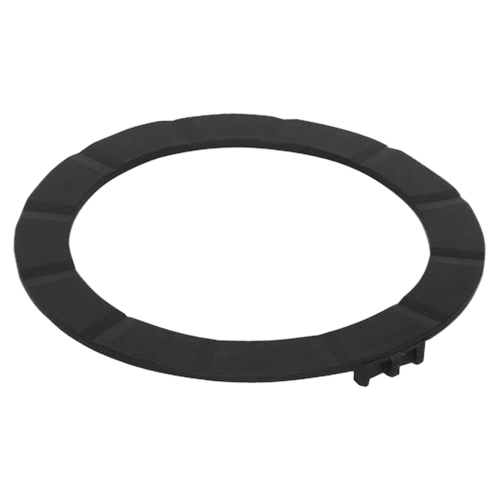

Washer Pump, (.089), Plastic 36409BP
Washer 36409BP
Pump, (.089), Plastic &

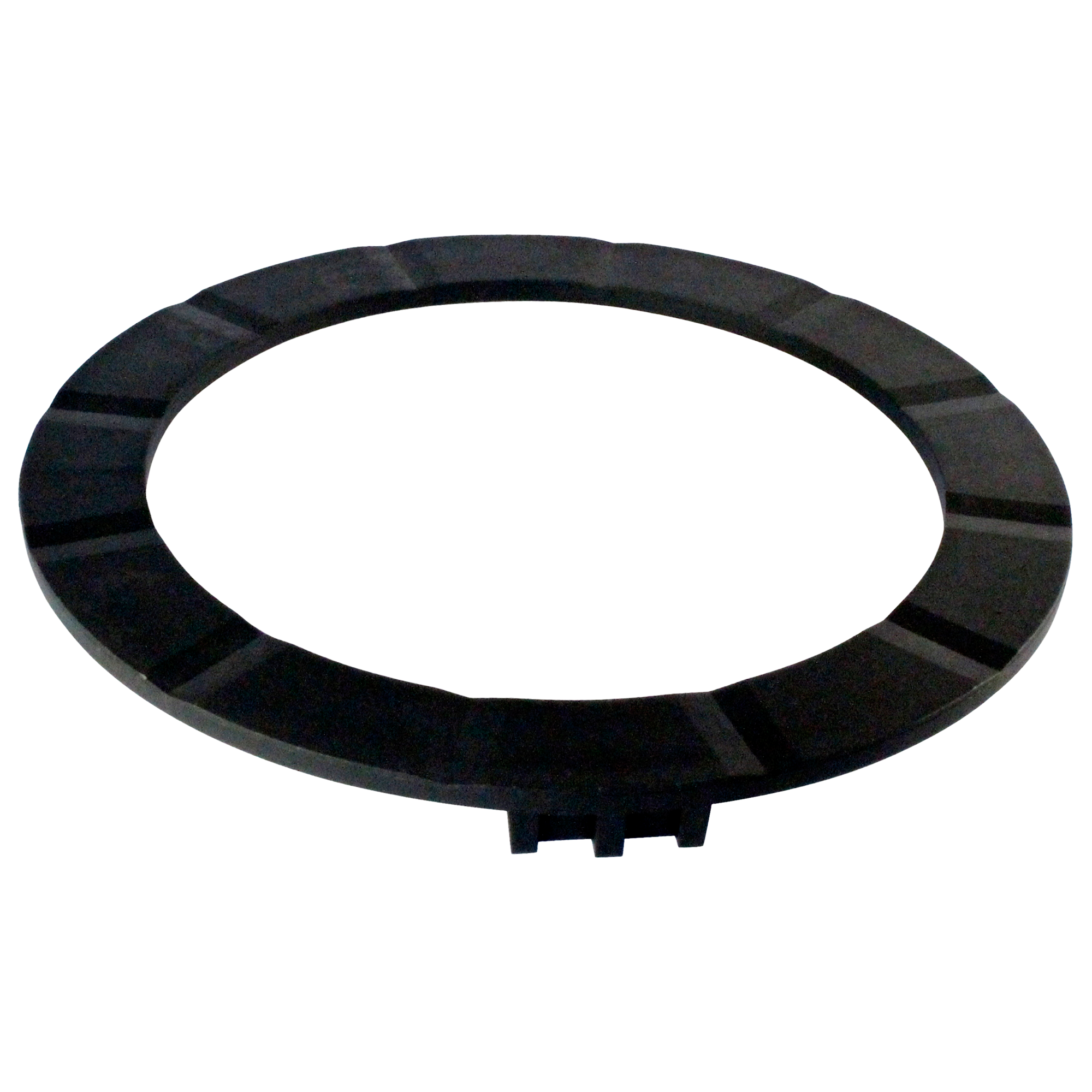

Washer Pump, (.104), Plastic 36409CP
Washer 36409CP
Pump, (.104), Plastic &
Washer Pump, 0.119, Plastic, C6 36409DP
Washer 36409DP
Pump, 0.119, Plastic, C6 &

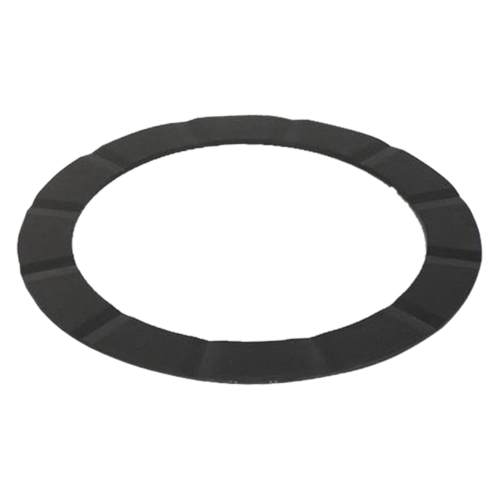

Washer Pump, (.157), Plastic 36409P
Washer 36409P
Pump, (.157), Plastic &

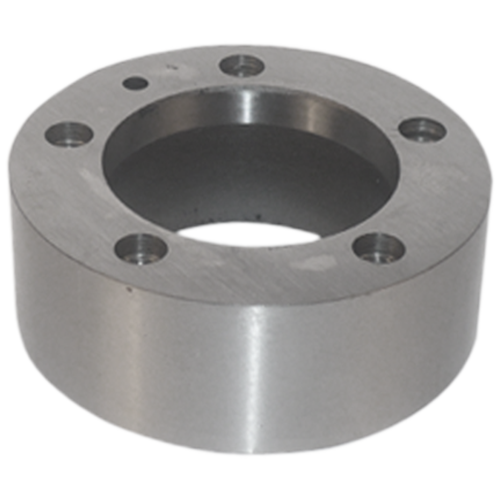

Inner Race Overrun Clutch Inner, 1.089" Height 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429A
Inner Race 36429A
Overrun Clutch Inner, 1.089" Height & 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"

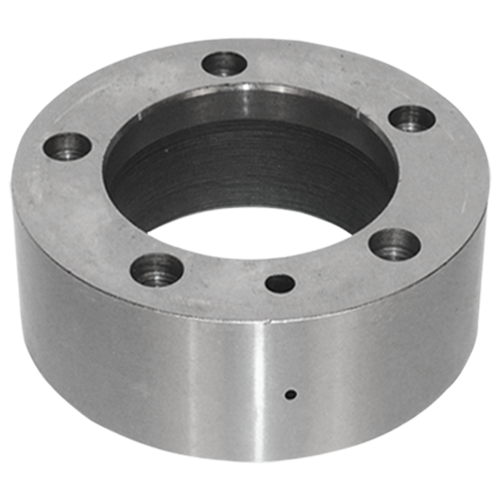

Inner Race Sold In Kit Only
  • Thickness: 1.090"
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429B
Inner Race 36429B
Sold In Kit Only &
  • Thickness: 1.090"
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Inner Race Overrun Clutch Inner, 1.013" Height 1989 - 1995
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"

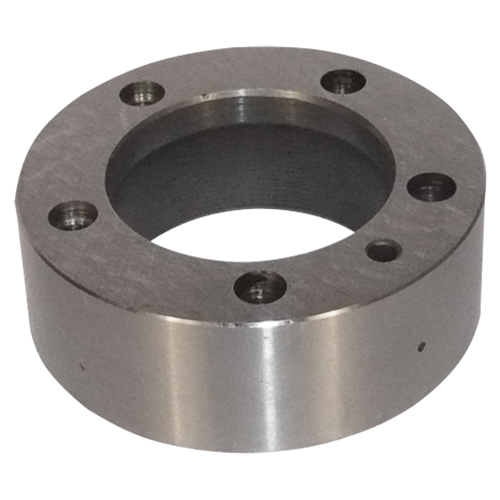

 36429E
Inner Race 36429E
Overrun Clutch Inner, 1.013" Height & 1989 - 1995
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Inner Race Overrun, Inner,. 1.013" Height"x3.398" Dia
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429F
Inner Race 36429F
Overrun, Inner,. 1.013" Height"x3.398" Dia &
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Piston Servo, Rev., Late, Pink 36528A
Piston 36528A
Servo, Rev., Late, Pink &

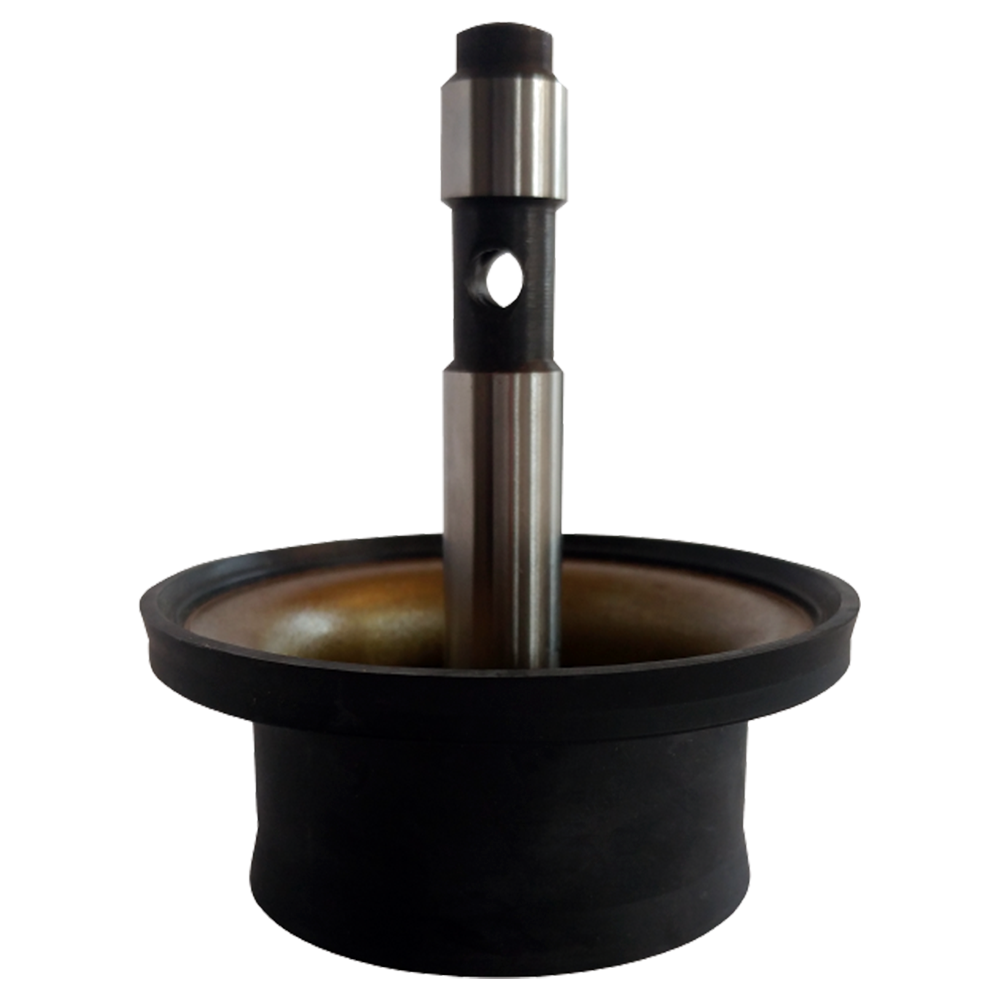

Piston Servo, Rev., Late, Blue 36528B
Piston 36528B
Servo, Rev., Late, Blue &

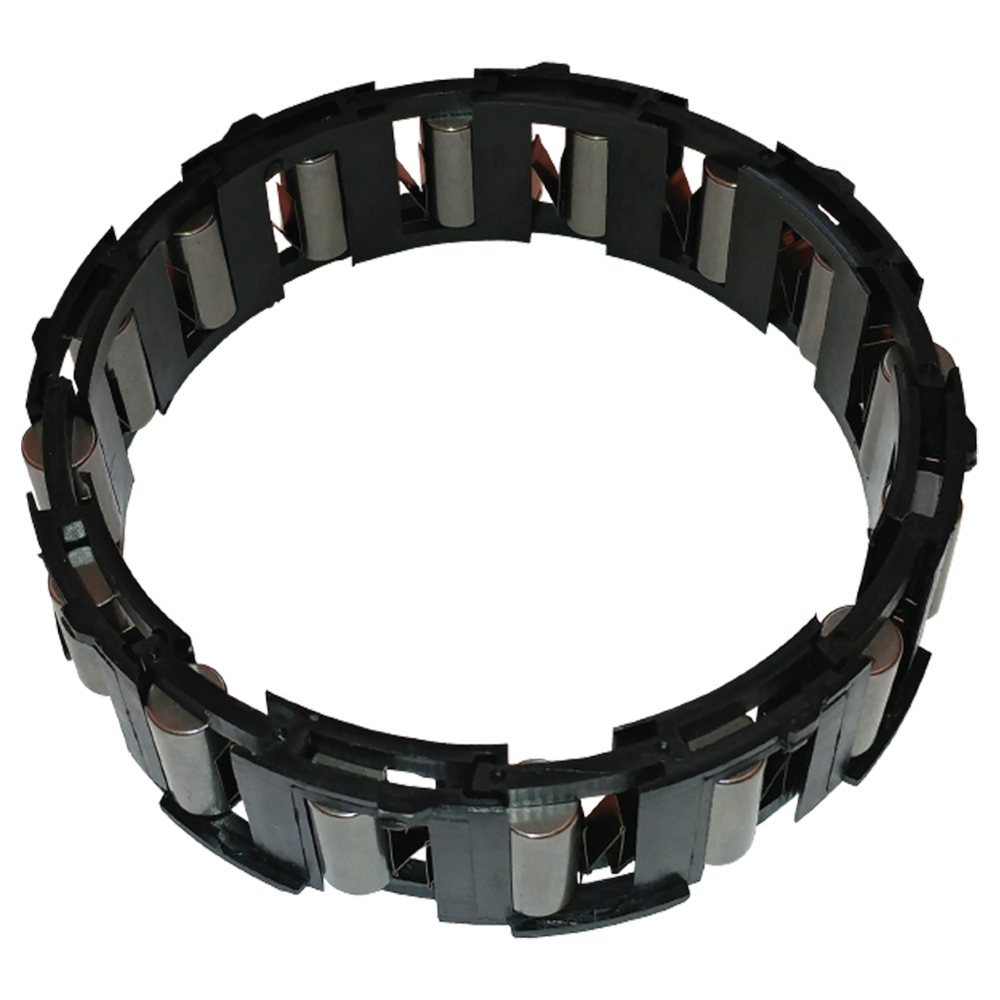

Roller Clutch (Sprag) Plastic Cage 36960B
Roller Clutch (Sprag) 36960B
Plastic Cage &

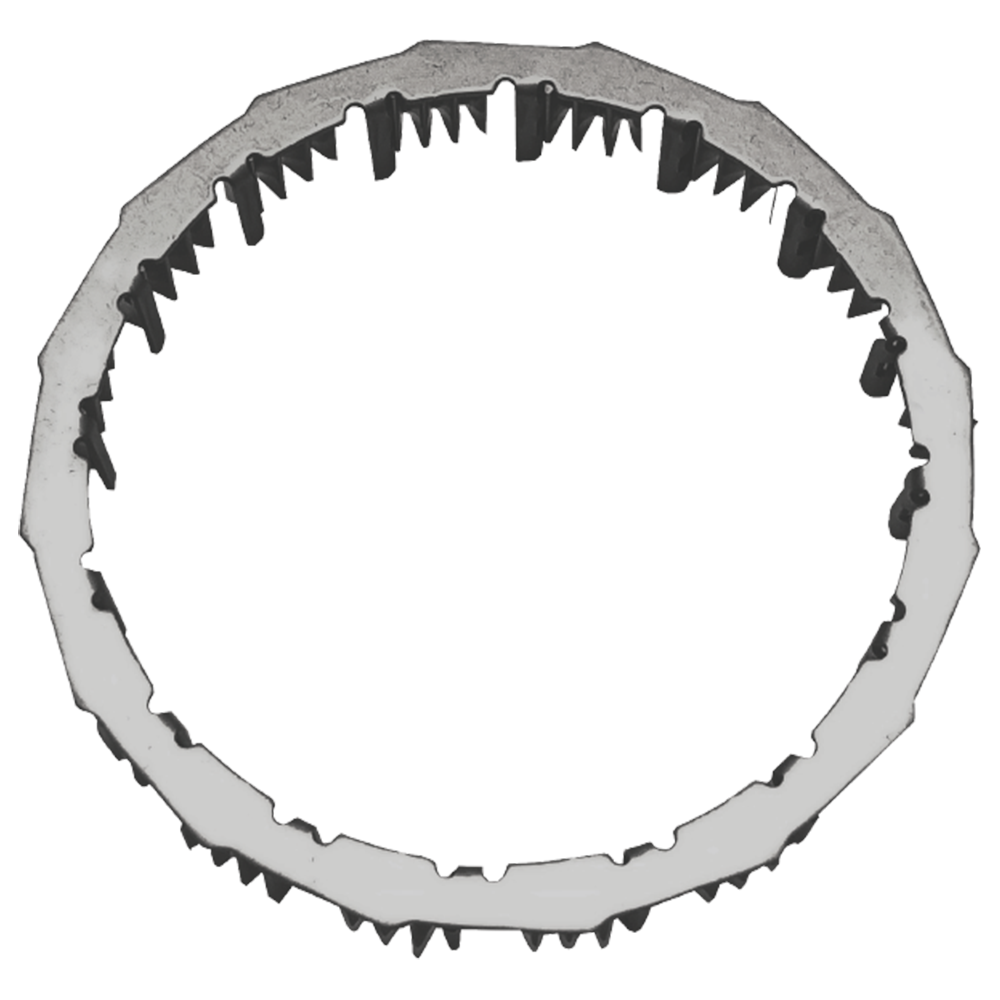

Cage Roller Clutch Retainer+ Springs (Without Rollers) 36960C
Cage 36960C
Roller Clutch Retainer+ Springs (Without Rollers) &

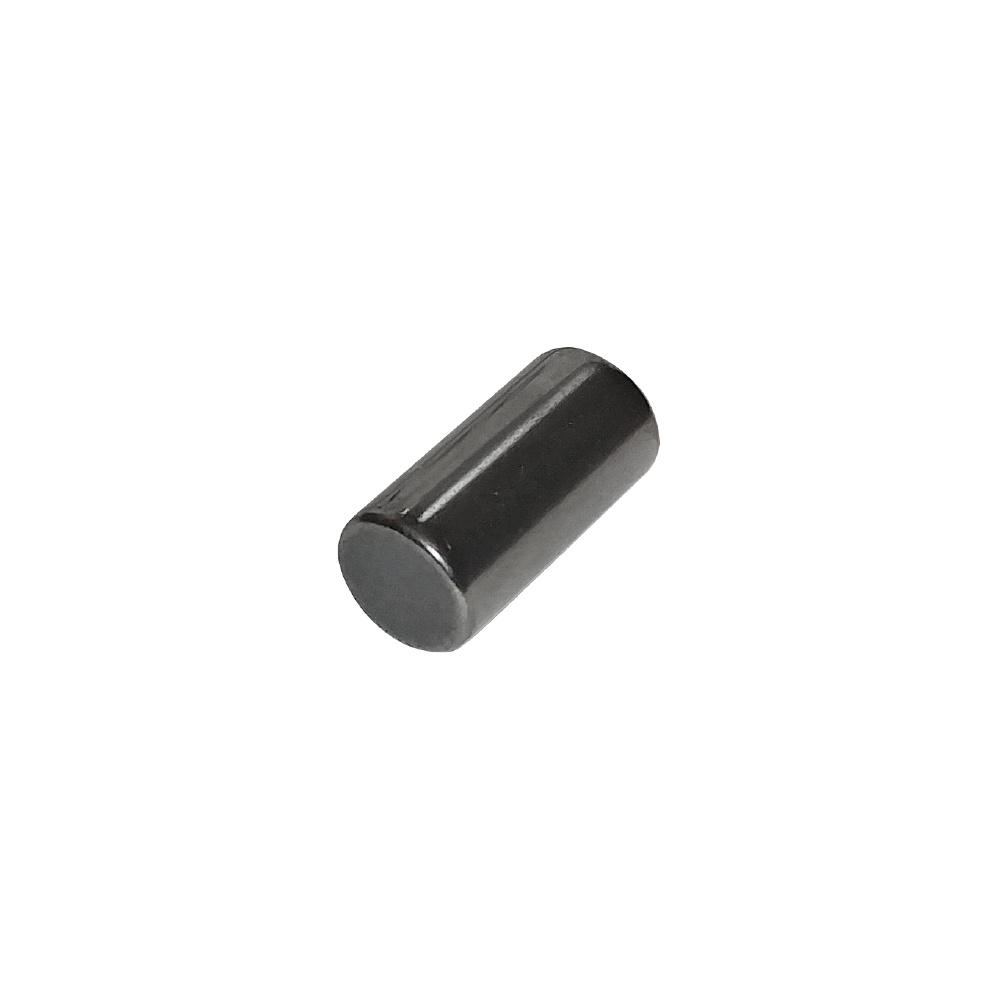

Roller 66 - on
  • Length: 0.625"
  • Outside Dia: 0.31"
 36960R
Roller 36960R
& 66 - on
  • Length: 0.625"
  • Outside Dia: 0.31"

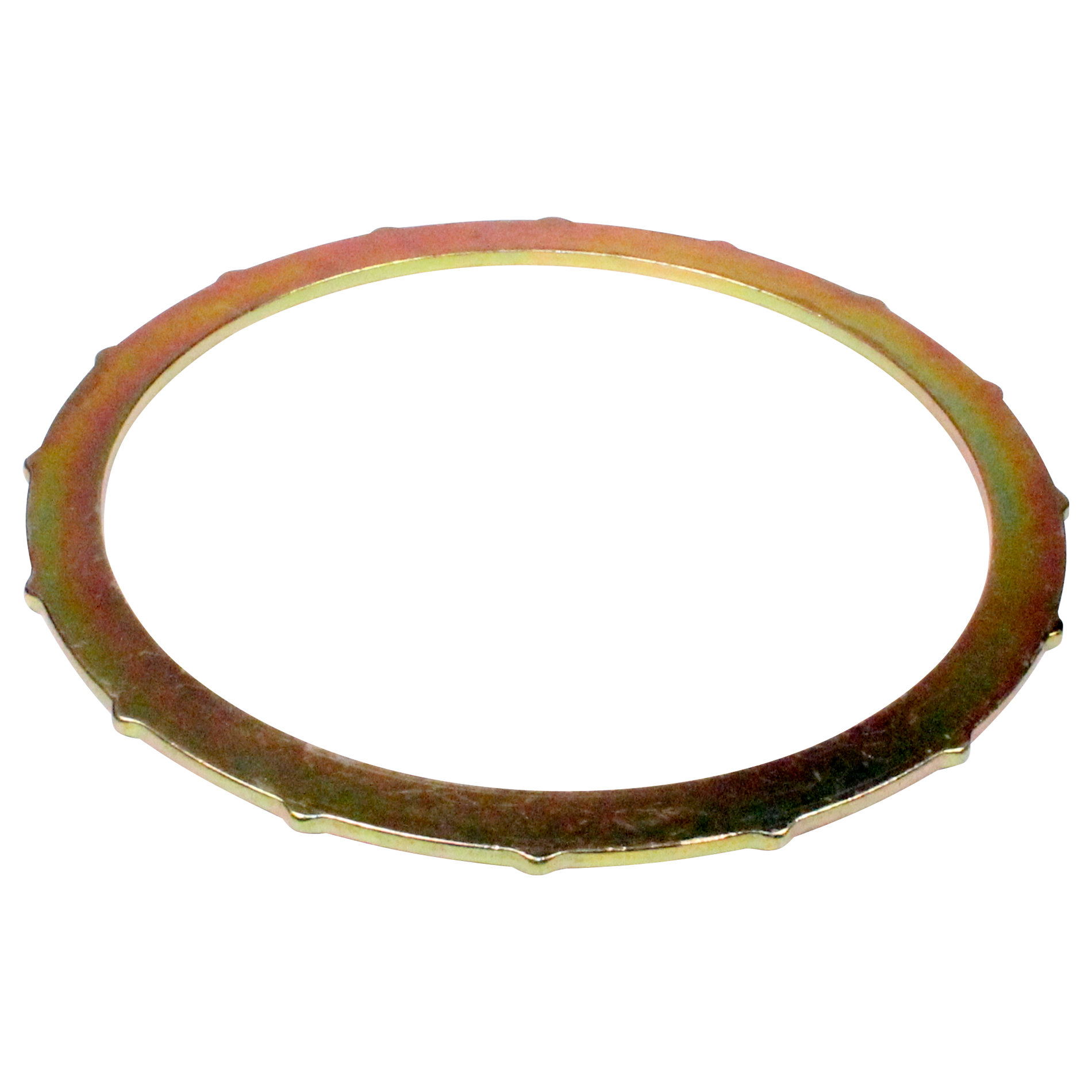

Washer 36960W
Washer 36960W
&

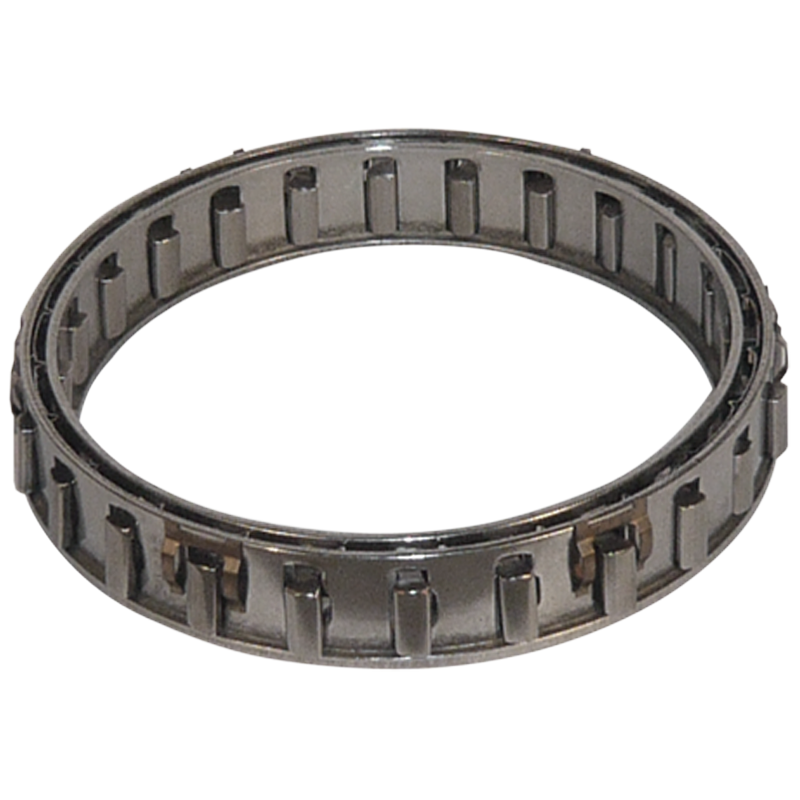

Sprag Planet 1956 - 1967
  • Cam Count: 24 elements
  • Outside Dia: 4.685"
 6239C
Sprag 6239C
Planet & 1956 - 1967
  • Cam Count: 24 elements
  • Outside Dia: 4.685"
Sprag 30 Cams 6239D
Sprag 6239D
30 Cams &
Sprag 36 cams 6239E
Sprag 6239E
36 cams &
Roller Clutch (Sprag) 6239G
Roller Clutch (Sprag) 6239G
&

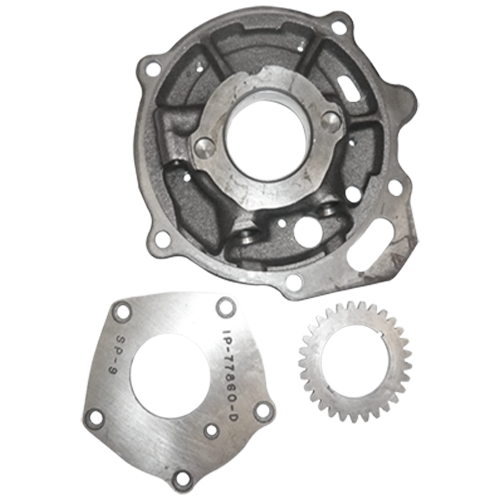

Pump Rear 1951-1961 6554B
Pump 6554B
Rear & 1951-1961
Bushing
  • Thickness: 0.475"
  • Housing Bore Dia: 1.456"
  • Shaft Dia: 1.298"
  • Material: Babbit
 JB-18-6
Bushing JB-18-6
&
  • Thickness: 0.475"
  • Housing Bore Dia: 1.456"
  • Shaft Dia: 1.298"
  • Material: Babbit

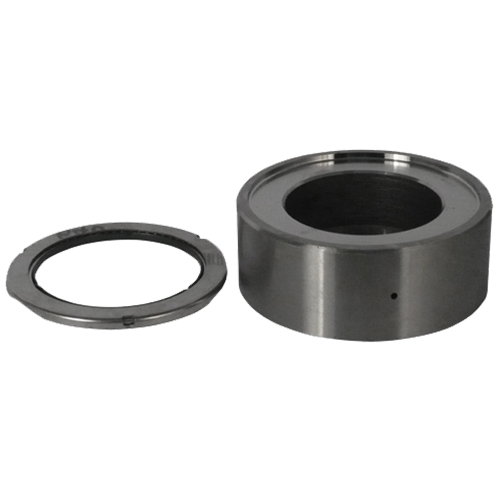

Kit Inner Race & Bearing 66 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 K36429B
Kit K36429B
Inner Race & Bearing & 66 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Kit Inner Race & Bearing 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 K36429E
Kit K36429E
Inner Race & Bearing & 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"

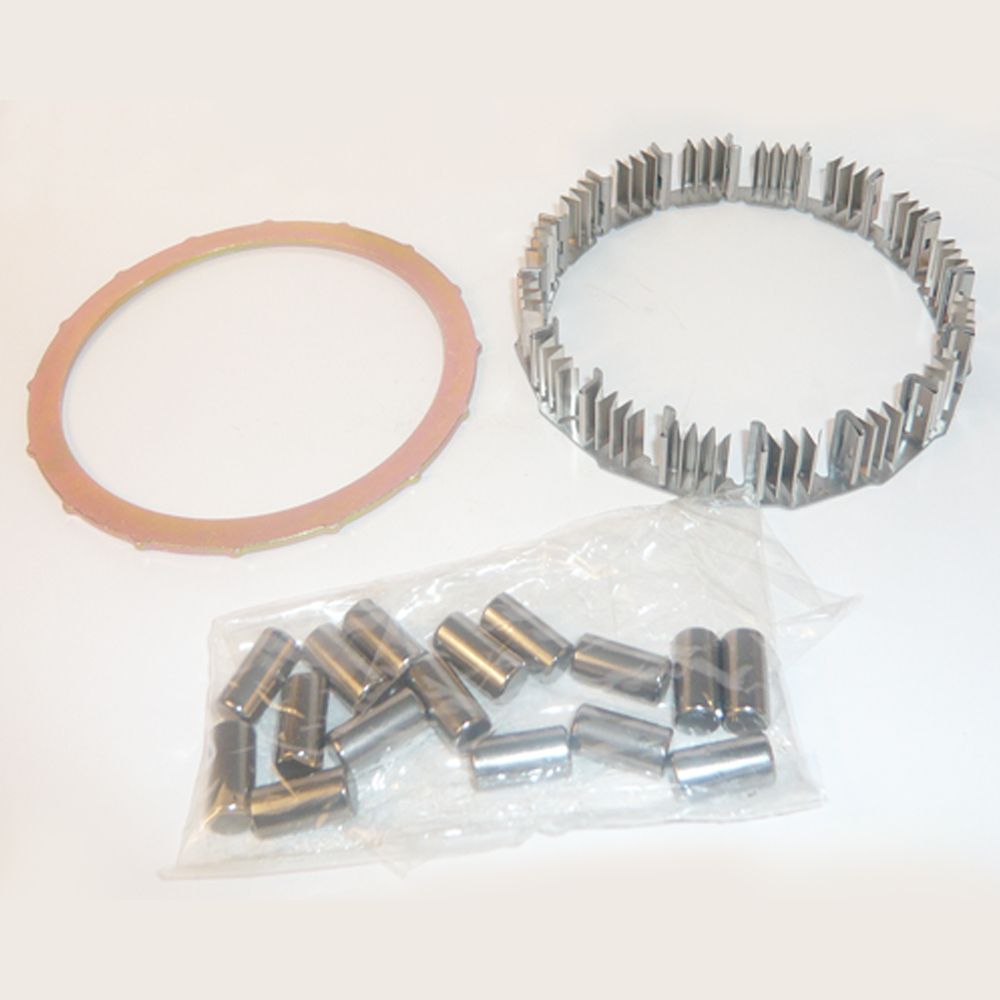

Roller Clutch (Sprag) Overrun, With Bronze Washer K36960
Roller Clutch (Sprag) K36960
Overrun, With Bronze Washer &

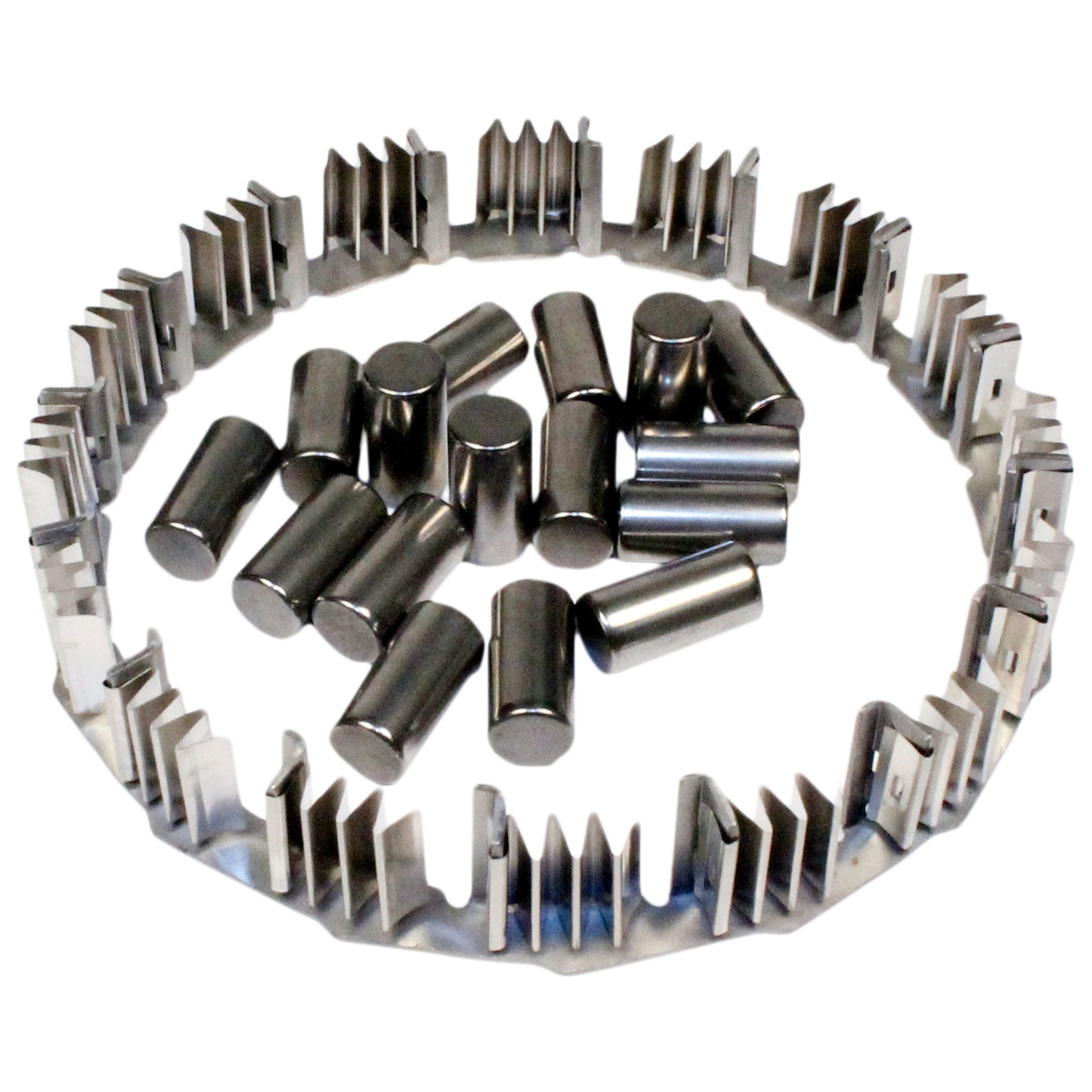

Roller Clutch (Sprag) Overrun, Without Washer K36960A
Roller Clutch (Sprag) K36960A
Overrun, Without Washer &

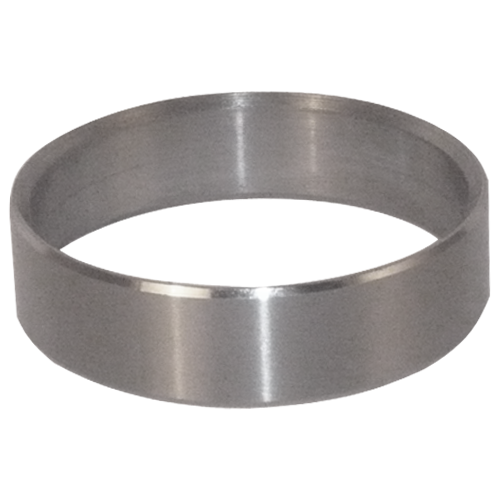

Repair Sleeve Stator Support 1950 - on
  • Width: 0.475
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 1.8085
  • Inside Dia: 1.6500
 MFB-2
Repair Sleeve MFB-2
Stator Support & 1950 - on
  • Width: 0.475
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 1.8085
  • Inside Dia: 1.6500

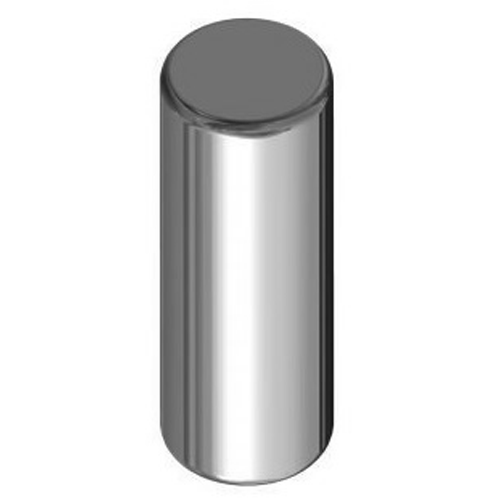

Roller
  • Dia: 0.309"
  • Length: .660"
 TR-7-3
Roller TR-7-3
&
  • Dia: 0.309"
  • Length: .660"

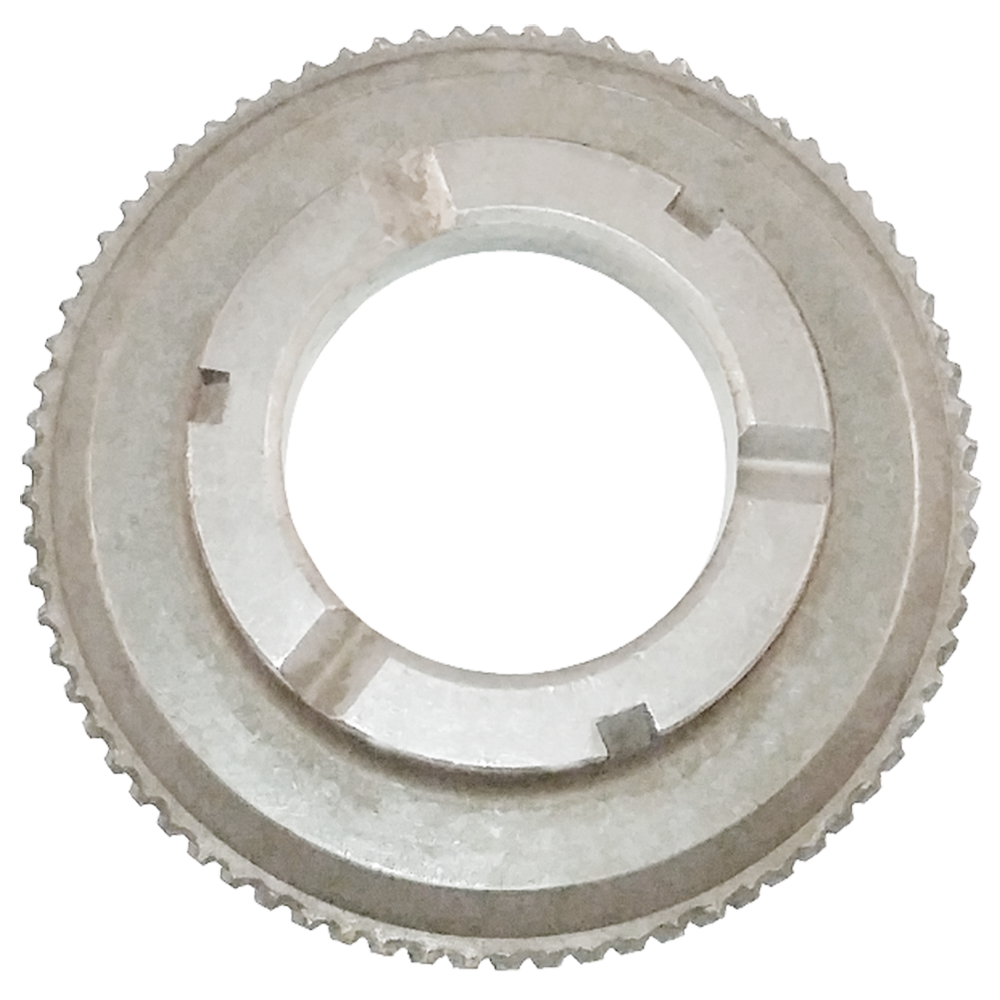

Hub Forward Clutch 66 - on 36418A
Hub 36418A
Forward Clutch & 66 - on
