Transmission | Ford | C6

Ill.# Image Description Specification Part #
Roller 36960B For 36960B 16 Pieces Required. 2472R
Roller 2472R
36960B & For 36960B 16 Pieces Required.

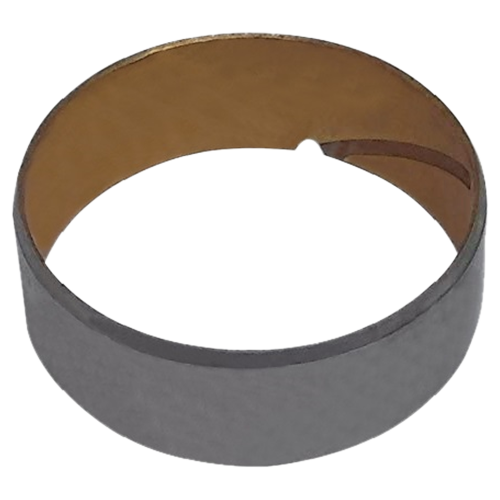

Bushing Pump, Front, Heavy Duty, Bronze 36002
Bushing 36002
Pump, Front, Heavy Duty, Bronze &

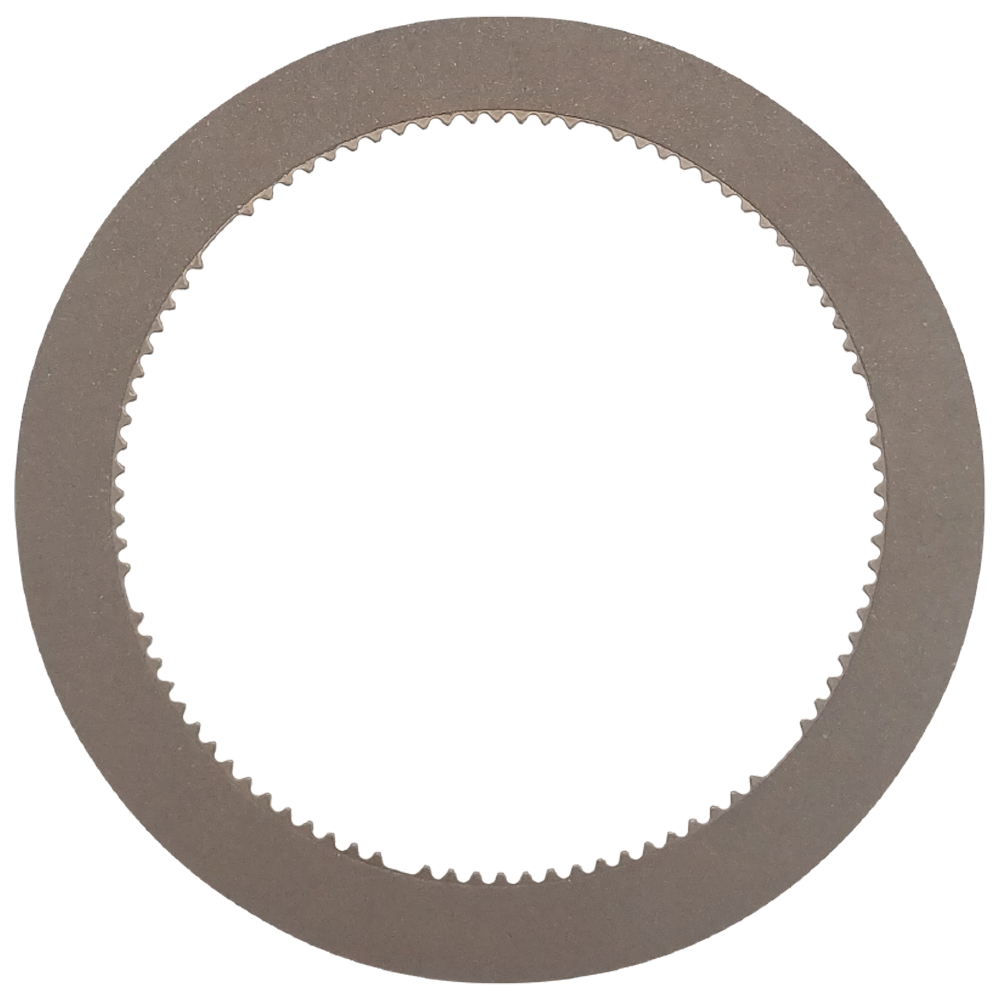

Friction Plate Forward, C6 1976-1996
  • Thickness: 0.079"
  • Internal Teeth: 96
  • Outside Dia: 6.378"
  • Inside Dia: 5.039"
 36404B
Friction Plate 36404B
Forward, C6 & 1976-1996
  • Thickness: 0.079"
  • Internal Teeth: 96
  • Outside Dia: 6.378"
  • Inside Dia: 5.039"

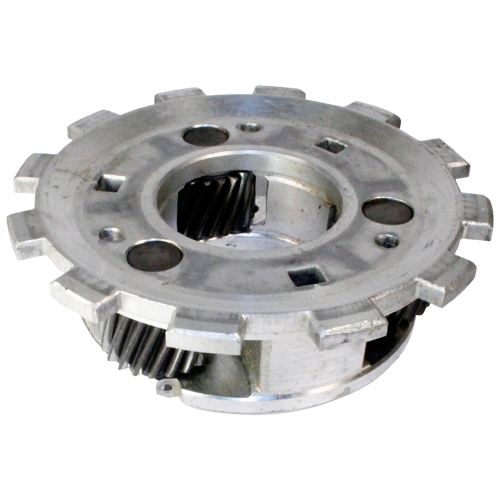

Planetary C-6, 3 Pinion 1966-Up 36408
Planetary 36408
C-6, 3 Pinion & 1966-Up
Washer Pump, (.074), Plastic 36409AP
Washer 36409AP
Pump, (.074), Plastic &
Washer Pump, (.089), Plastic 36409BP
Washer 36409BP
Pump, (.089), Plastic &
Washer Pump, (.104), Plastic 36409CP
Washer 36409CP
Pump, (.104), Plastic &
Washer Pump, 0.119, Plastic, C6 36409DP
Washer 36409DP
Pump, 0.119, Plastic, C6 &
Washer Pump, (.157), Plastic 36409P
Washer 36409P
Pump, (.157), Plastic &

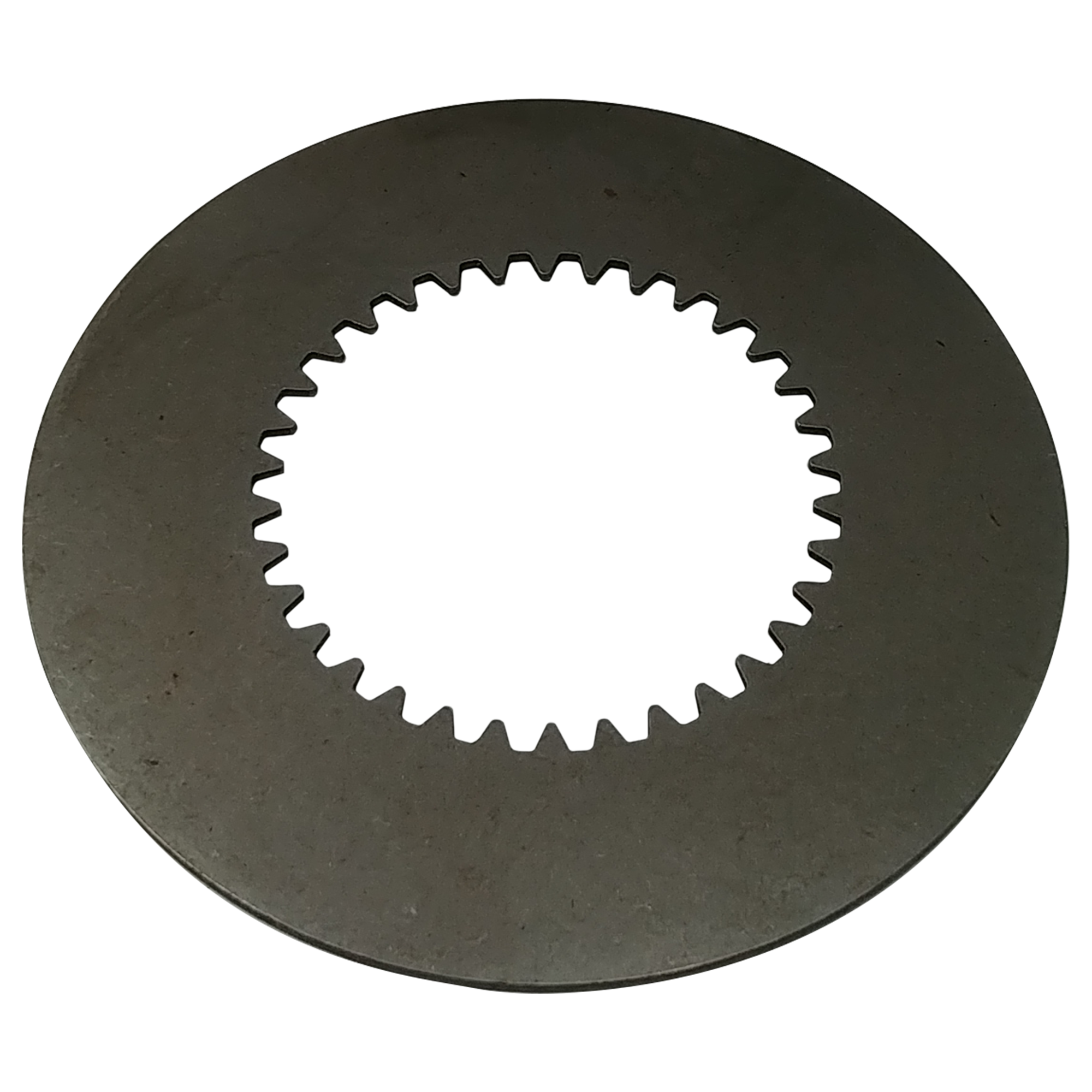

Washer Input C-6 36416
Washer 36416
Input C-6 &

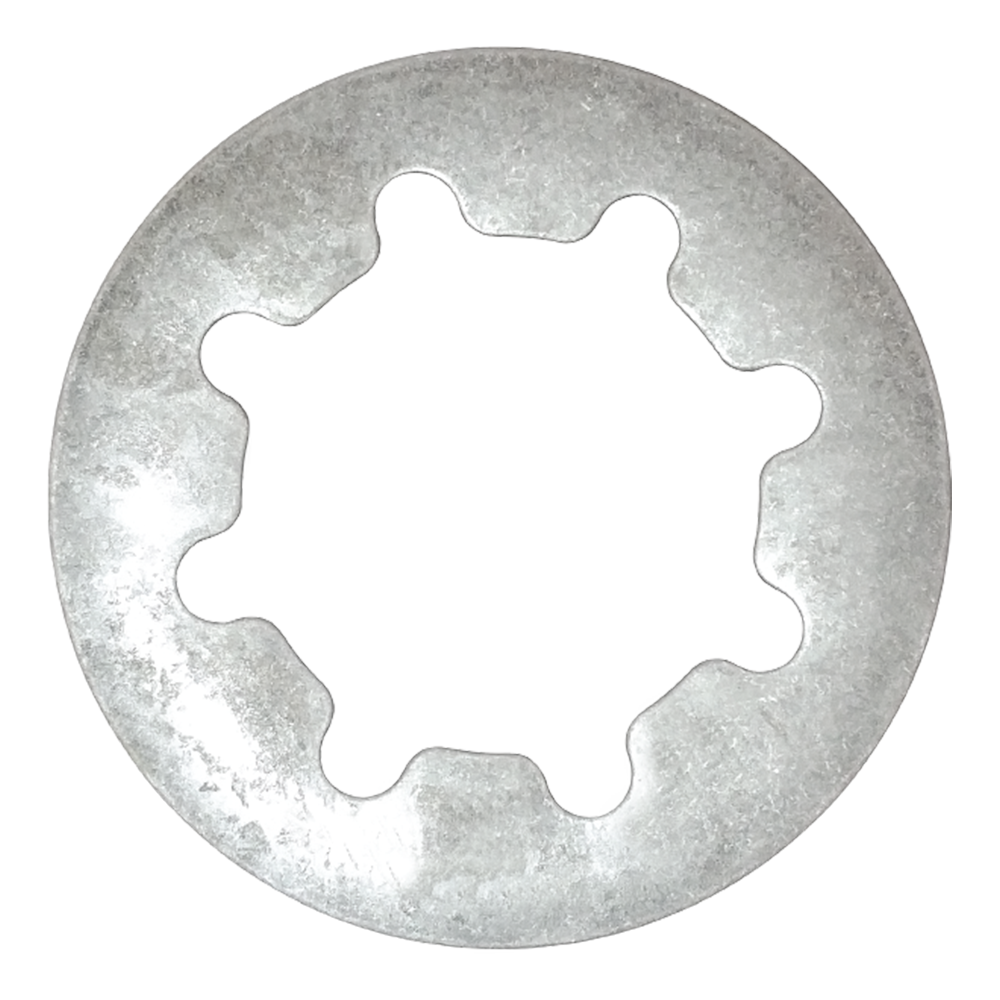

Spring Disc C6 Late 36419A
Spring Disc 36419A
C6 Late &

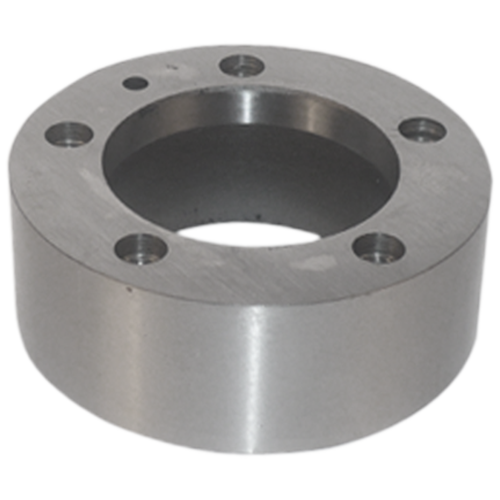

Inner Race Overrun Clutch Inner, 1.089" Height 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429A
Inner Race 36429A
Overrun Clutch Inner, 1.089" Height & 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"

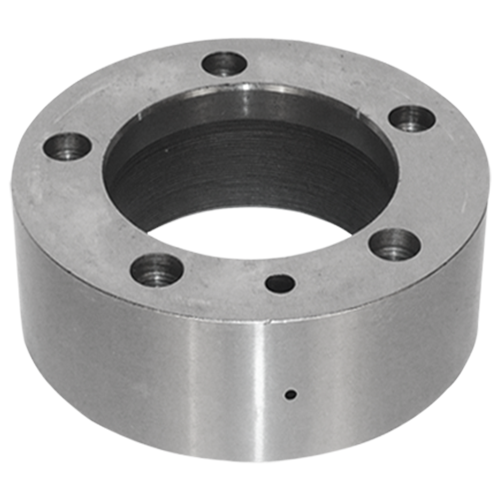

Inner Race Sold In Kit Only
  • Thickness: 1.090"
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429B
Inner Race 36429B
Sold In Kit Only &
  • Thickness: 1.090"
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"

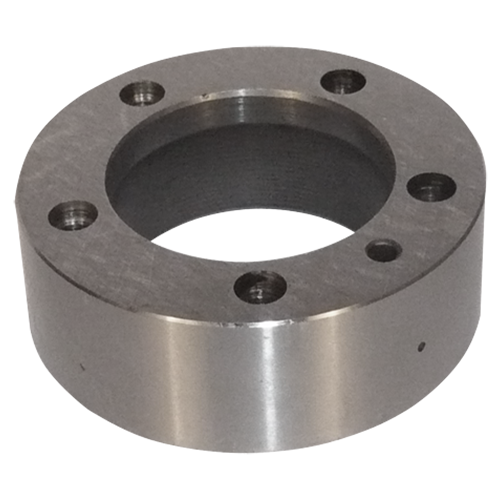

Inner Race Overrun Clutch Inner, 1.013" Height 1989 - 1995
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429E
Inner Race 36429E
Overrun Clutch Inner, 1.013" Height & 1989 - 1995
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Inner Race Overrun, Inner,. 1.013" Height"x3.398" Dia
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 36429F
Inner Race 36429F
Overrun, Inner,. 1.013" Height"x3.398" Dia &
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Piston Servo, Rev., Late, Pink 36528A
Piston 36528A
Servo, Rev., Late, Pink &
Piston Servo, Rev., Late, Blue 36528B
Piston 36528B
Servo, Rev., Late, Blue &

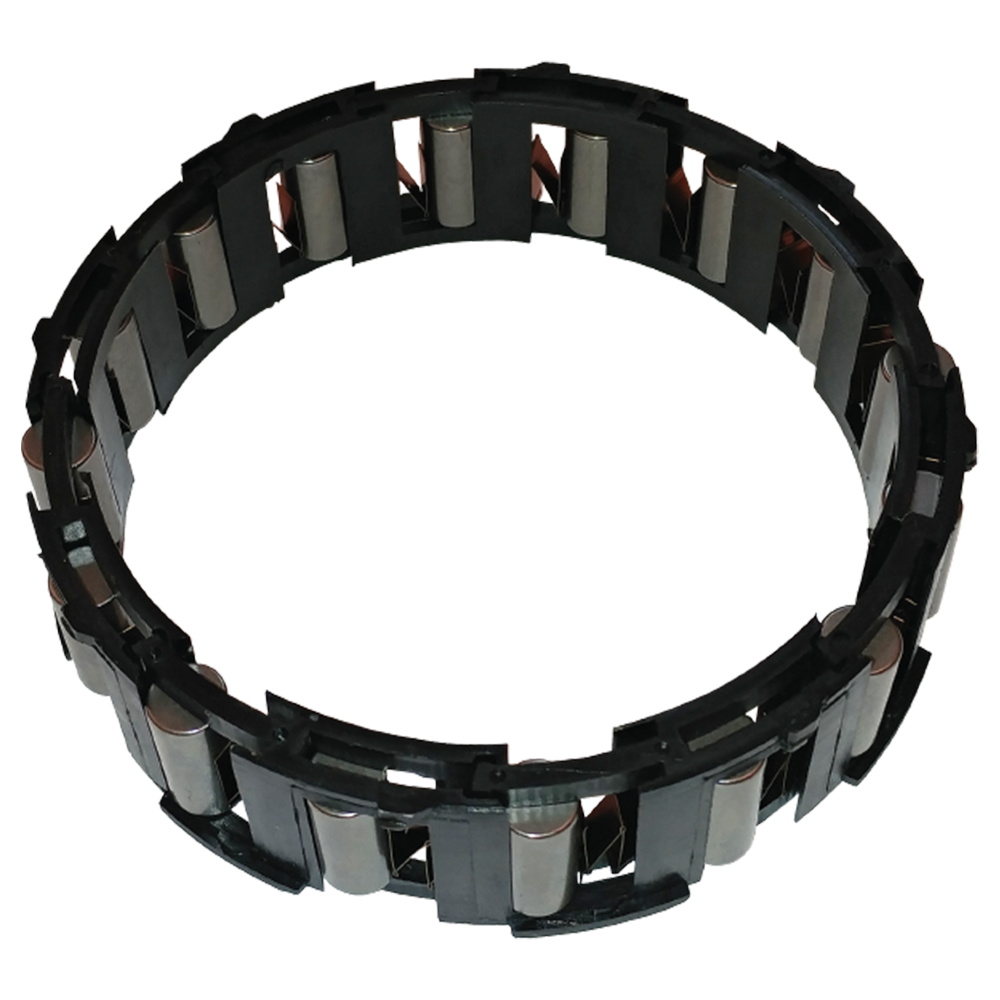

Roller Clutch (Sprag) Plastic Cage 36960B
Roller Clutch (Sprag) 36960B
Plastic Cage &
Cage Roller Clutch Retainer+ Springs (Without Rollers) 36960C
Cage 36960C
Roller Clutch Retainer+ Springs (Without Rollers) &
Roller 66 - on
  • Length: 0.625"
  • Outside Dia: 0.31"
 36960R
Roller 36960R
& 66 - on
  • Length: 0.625"
  • Outside Dia: 0.31"
Washer 36960W
Washer 36960W
&
Bushing C6 Extension Housing, Bronze 6023A
Bushing 6023A
C6 Extension Housing, Bronze &

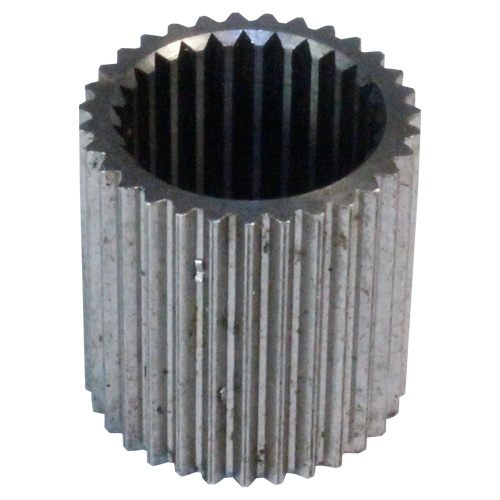

Turbine Hub Spline Adapter Fits 2-Speed Ford, Converts To C-6 (45° Pressure Angle)
  • Height: 1.100
  • Internal Teeth: 26
  • External Teeth: 31
  • Outside Dia: 1.06"
 FX-13-26
Turbine Hub Spline Adapter FX-13-26
Fits 2-Speed Ford, Converts To C-6 (45° Pressure Angle) &
  • Height: 1.100
  • Internal Teeth: 26
  • External Teeth: 31
  • Outside Dia: 1.06"
Turbine Hub Spline Adapter Fits C-6 Turbine Hubs, Converts To C-4, (30° Pressure Angle)
  • Height: 0.910
  • Internal Teeth: 26
  • External Teeth: 31
  • Outside Dia: 1"
 FX-13-26X
Turbine Hub Spline Adapter FX-13-26X
Fits C-6 Turbine Hubs, Converts To C-4, (30° Pressure Angle) &
  • Height: 0.910
  • Internal Teeth: 26
  • External Teeth: 31
  • Outside Dia: 1"
Washer Kit Selective, Pump, FORD C6 K36409A
Washer Kit K36409A
Selective, Pump, FORD C6 &
Kit Inner Race & Bearing 66 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 K36429B
Kit K36429B
Inner Race & Bearing & 66 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
Kit Inner Race & Bearing 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"
 K36429E
Kit K36429E
Inner Race & Bearing & 89 - on
  • Outside Dia: 3.200"
  • Inside Dia: 1.940"

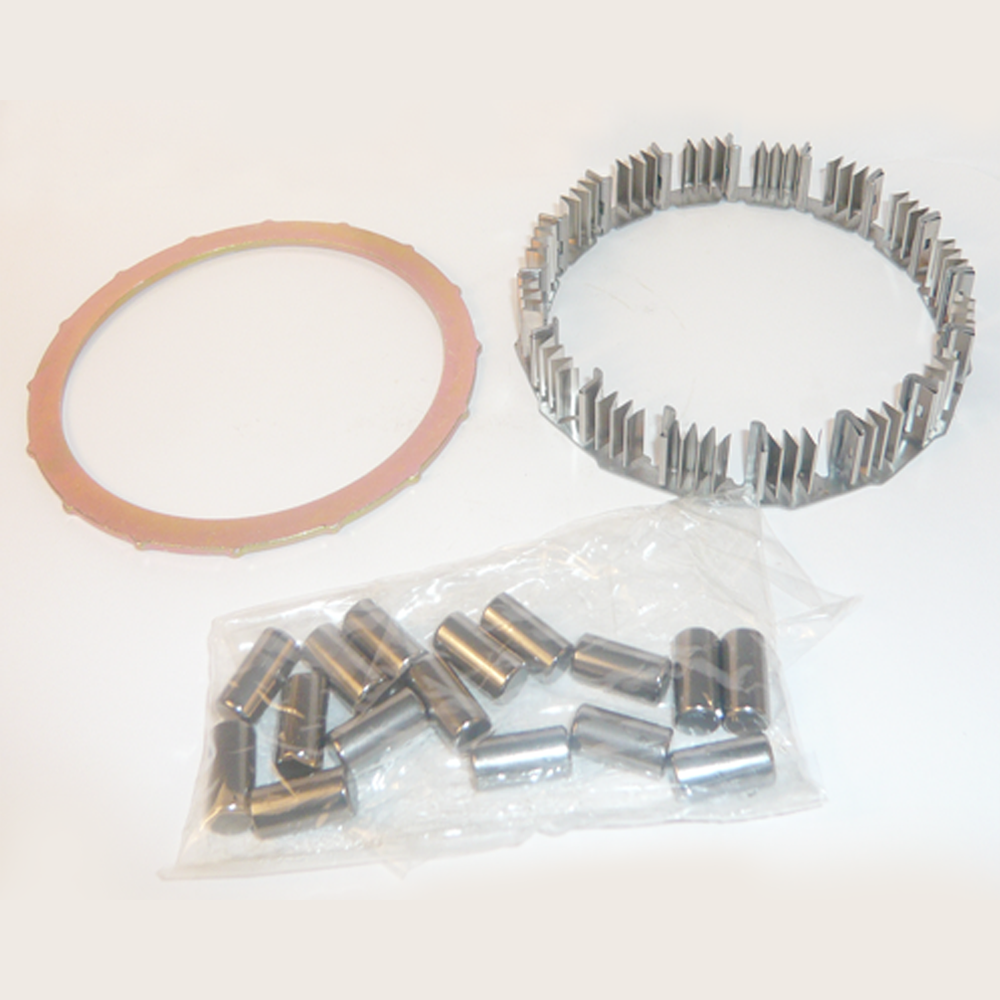

Roller Clutch (Sprag) Overrun, With Bronze Washer K36960
Roller Clutch (Sprag) K36960
Overrun, With Bronze Washer &

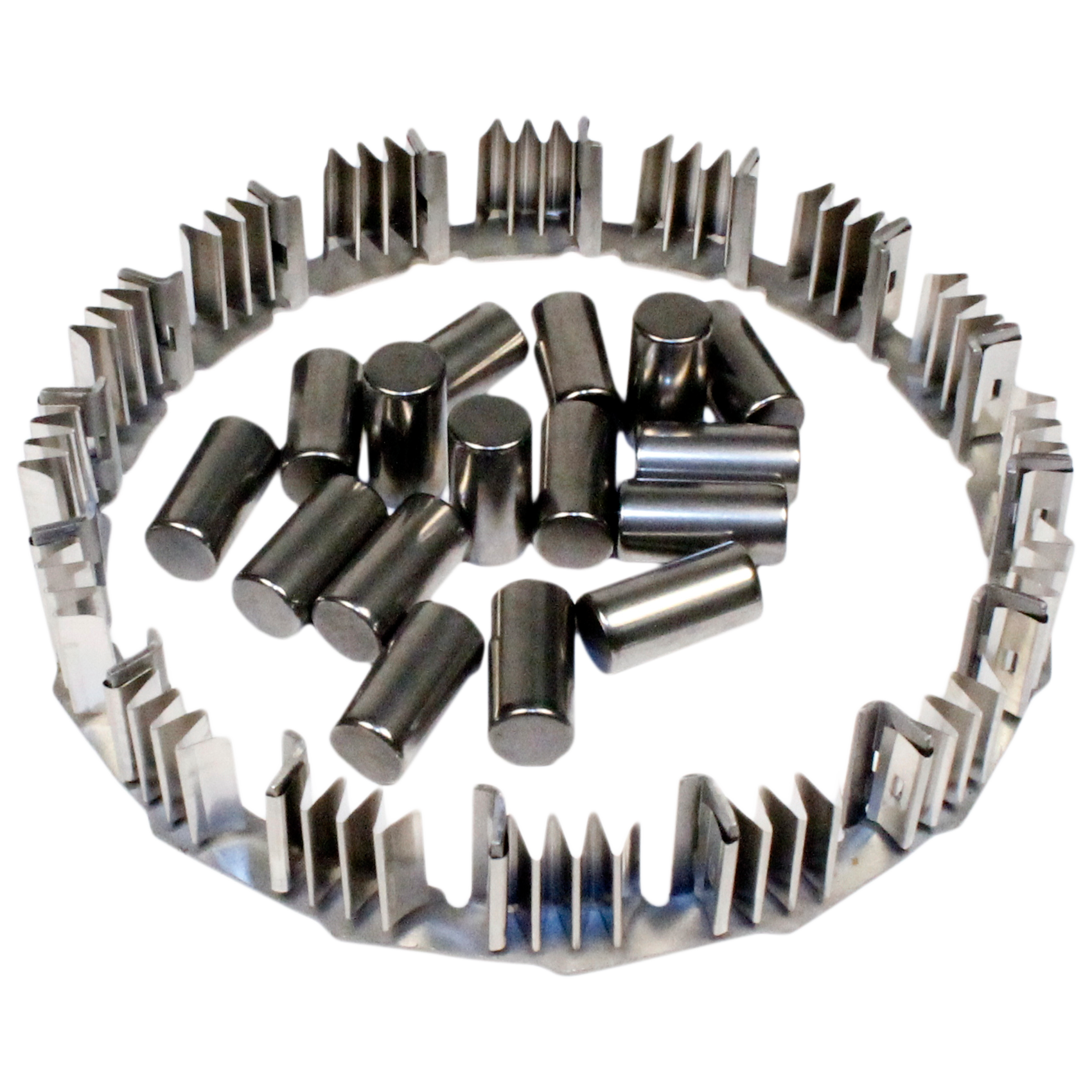

Roller Clutch (Sprag) Overrun, Without Washer K36960A
Roller Clutch (Sprag) K36960A
Overrun, Without Washer &

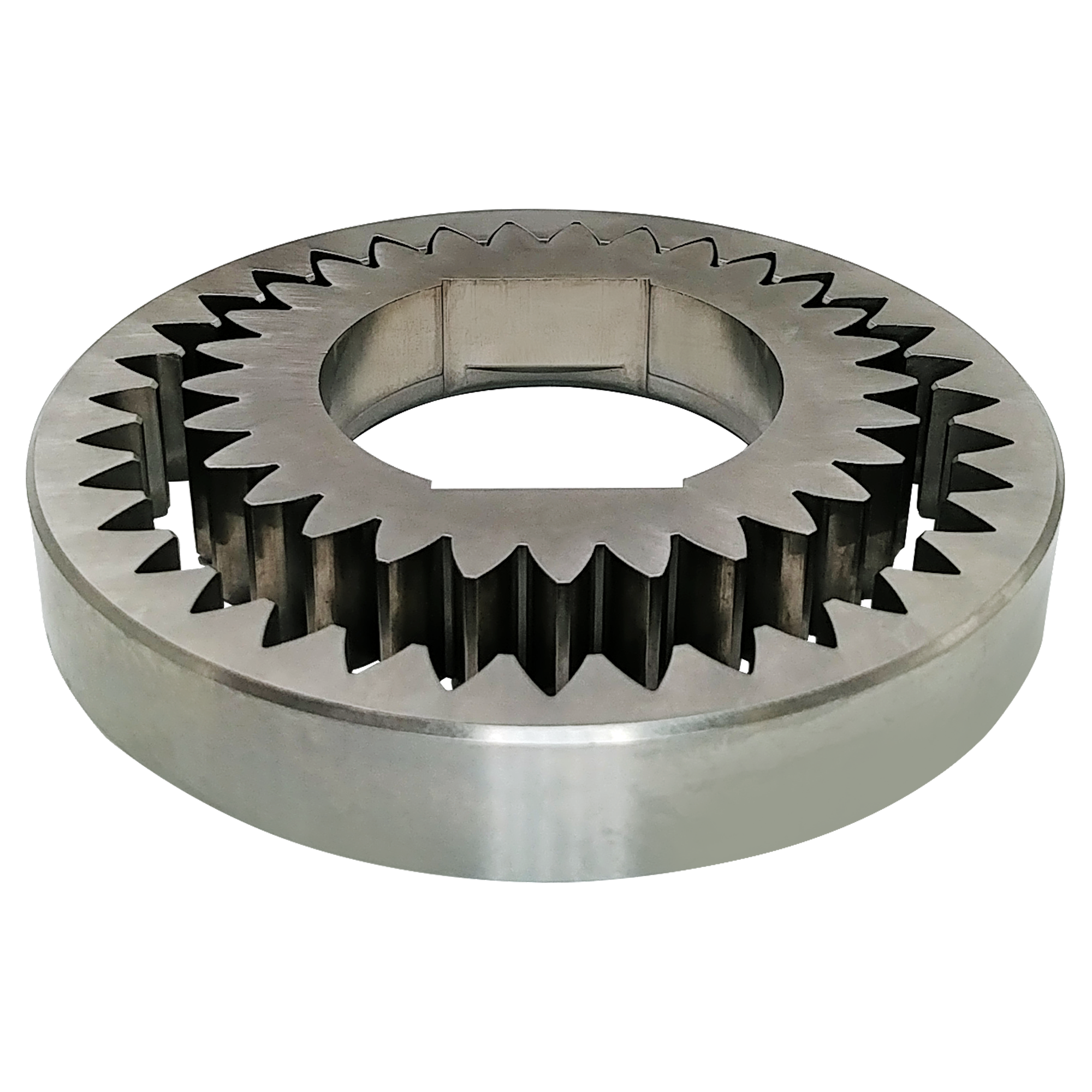

Pump Gear Kit C6 MG-C-6K
Pump Gear Kit MG-C-6K
C6 &
Outer Pump Gear MGO-BW-030
Outer Pump Gear MGO-BW-030
&
Roller
  • Dia: 0.309"
  • Length: .660"
 TR-7-3
Roller TR-7-3
&
  • Dia: 0.309"
  • Length: .660"
Hub Forward Clutch 66 - on 36418A
Hub 36418A
Forward Clutch & 66 - on
