Transmission | Allison | Miscellaneous Allison

Ill.# Image Description Specification Part #

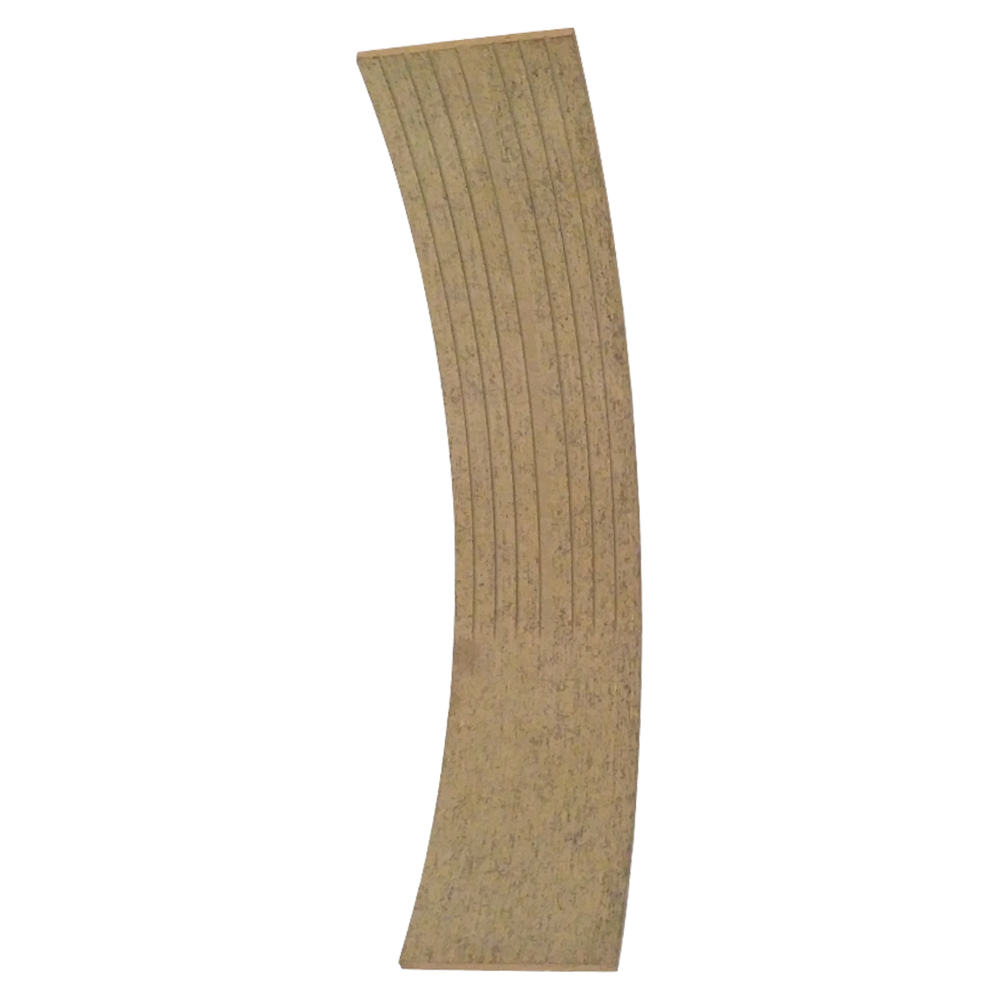

Lining (Friction) Allison, 6834414, NSN 2520-01-007-0346
  • Thickness: 0.045"
  • Material: Red
 11650088

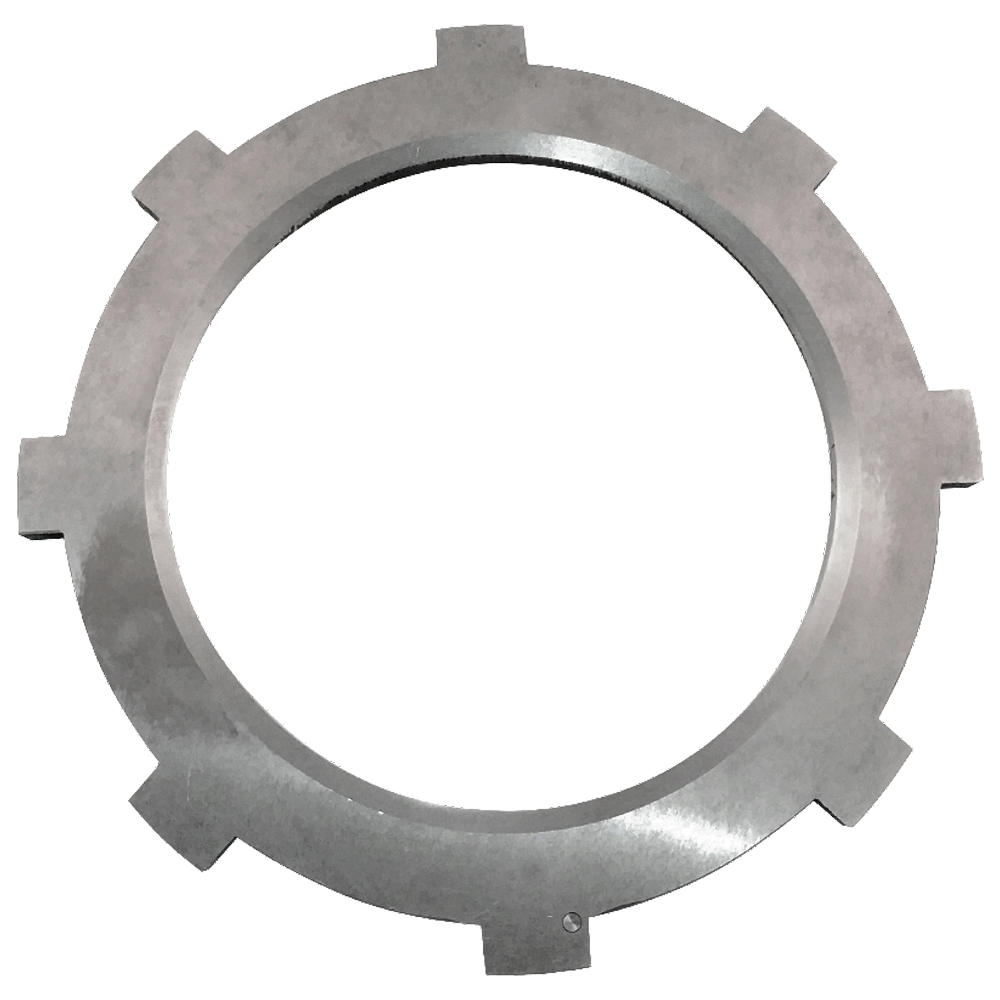

Clutch Plate Allison NSN 2520-01-305-3355 11650270

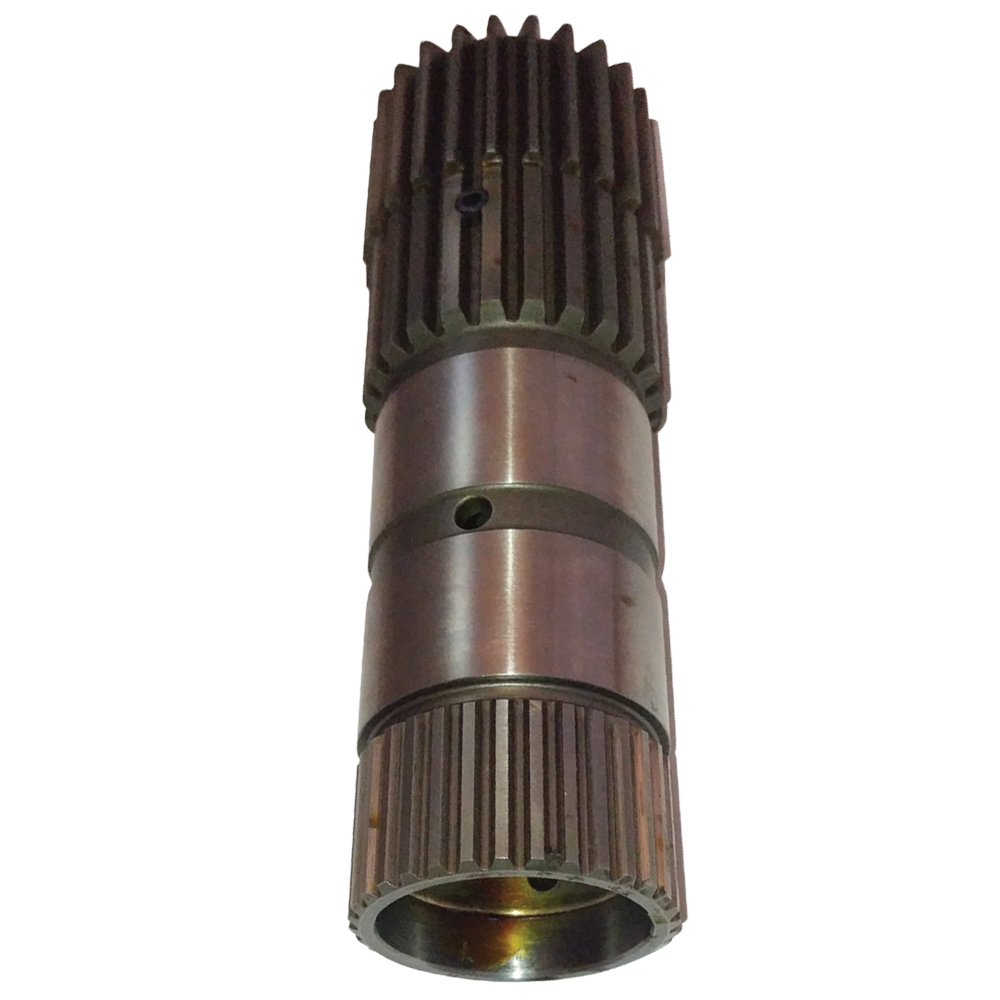

Drive Gear .6850-.6855 23015394
Bearing 23048687

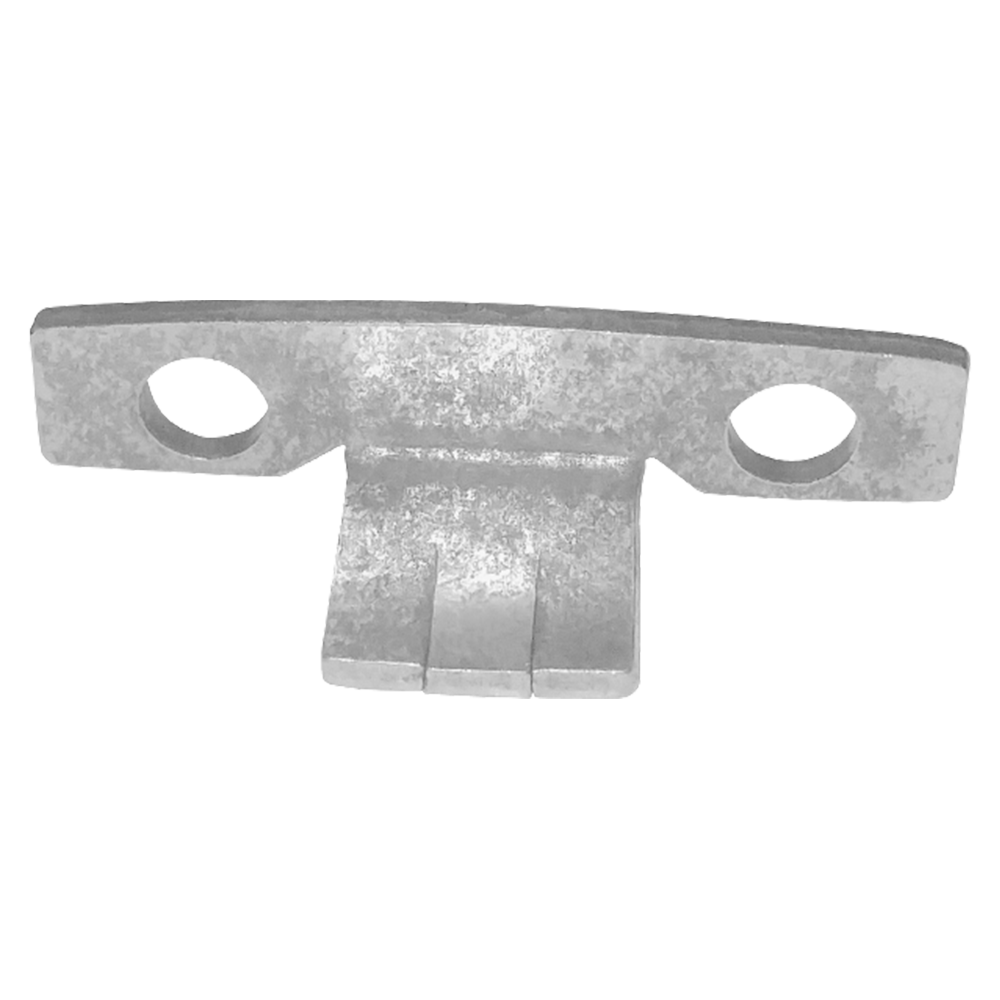

Retainer NSN 2520-00-776-7666 6762196

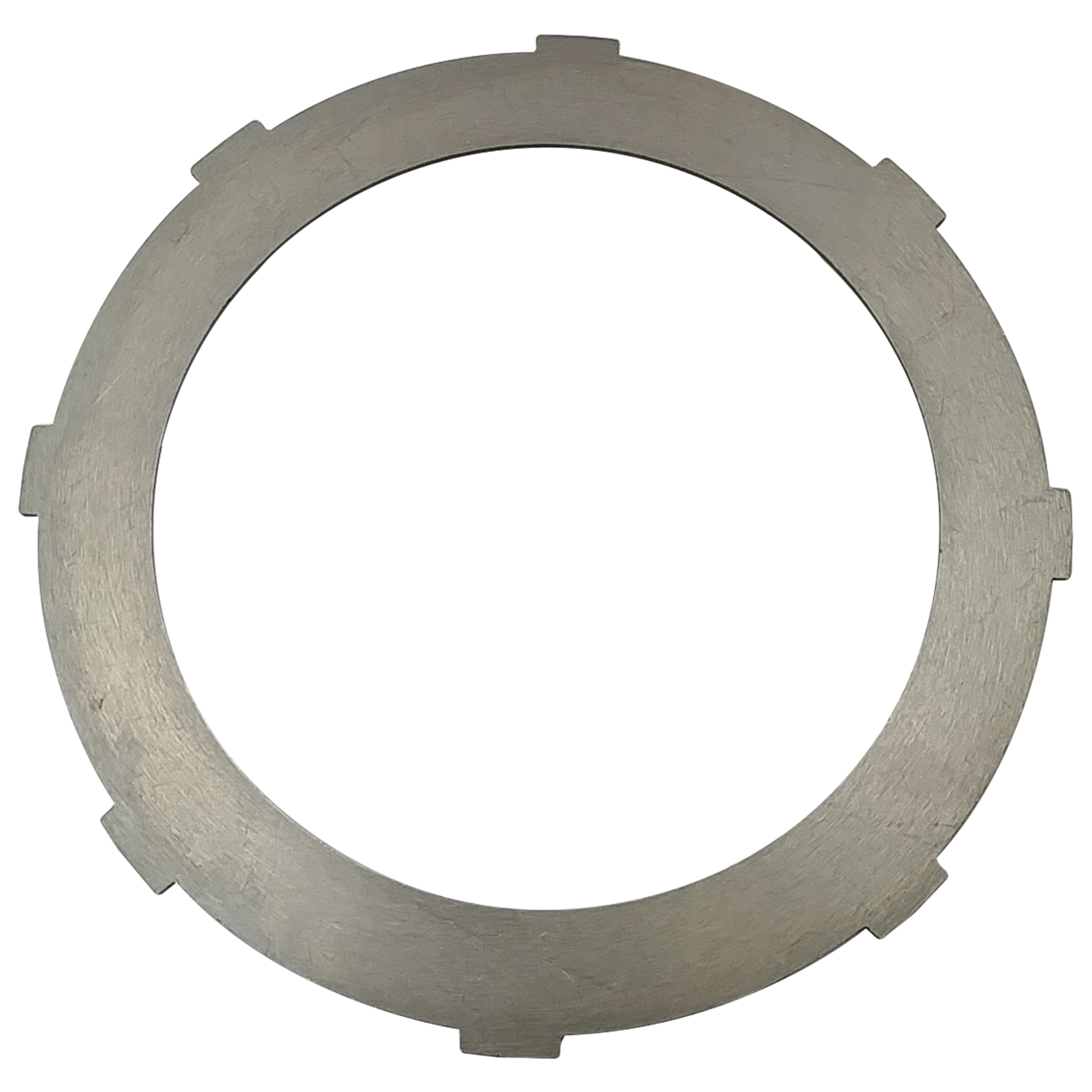

Steel Clutch-Plate 6770917

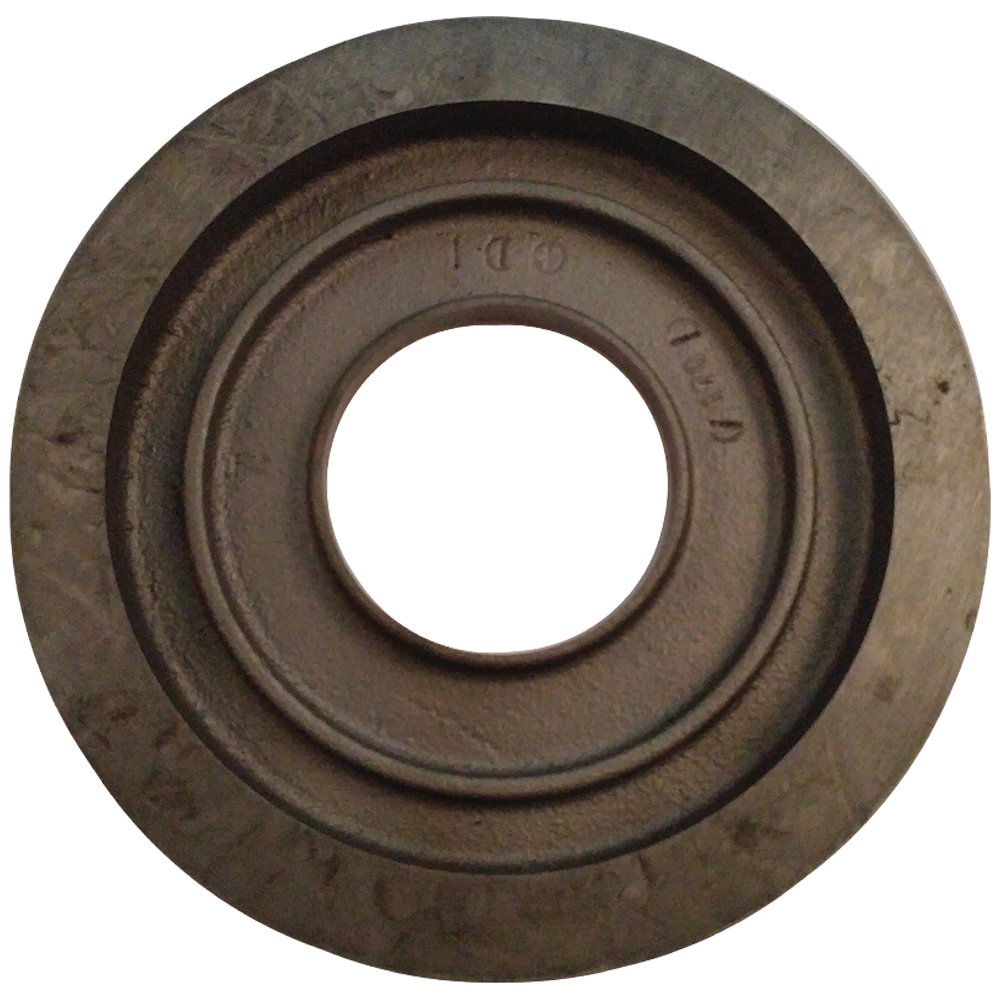

Piston High Range Clutch MT40 6772061 NSN 2520-01-039-9610 6772061

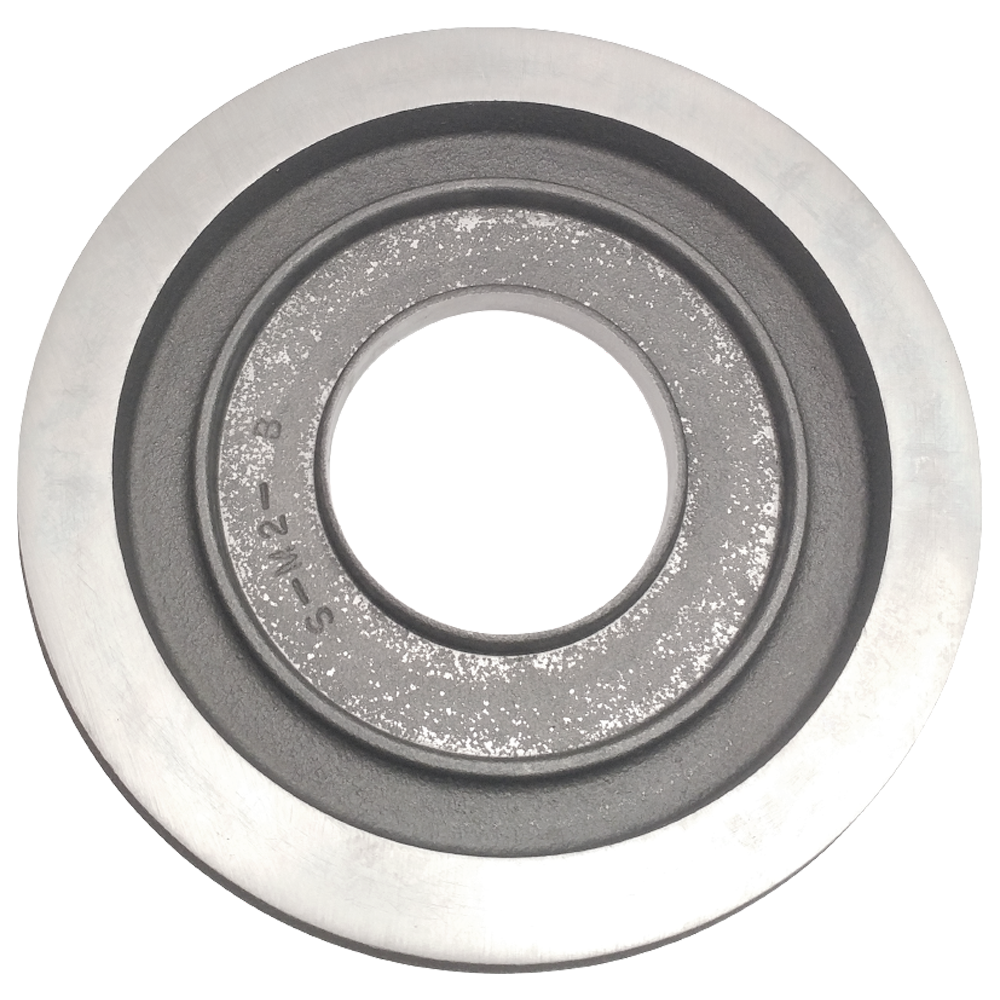

Piston Assembly NSN 2520-00-830-1296 6772062

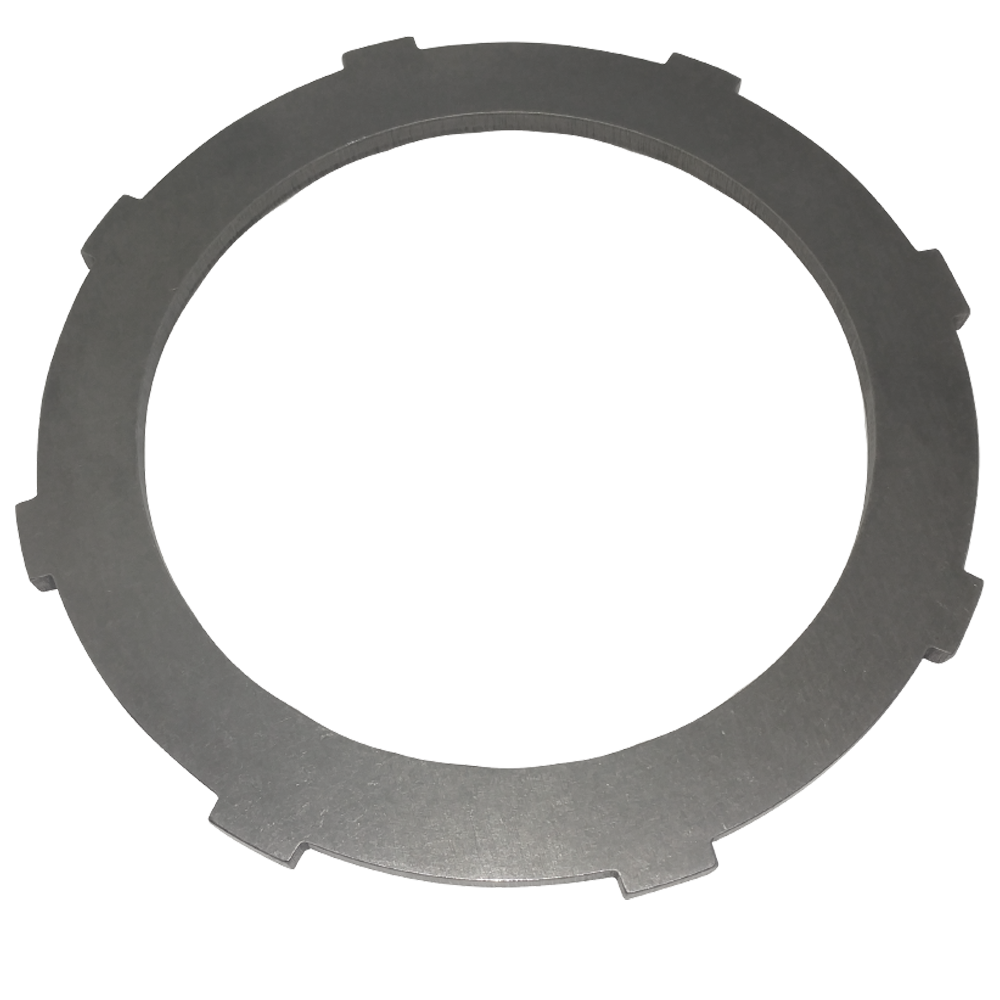

Pressure Plate NSN 2520-00-483-0812
  • Thickness: 0.295"
  • Internal Teeth: 8
  • External Teeth: 8
  • Outside Dia: 8.287"
  • Inside Dia: 6.193"
 6772093

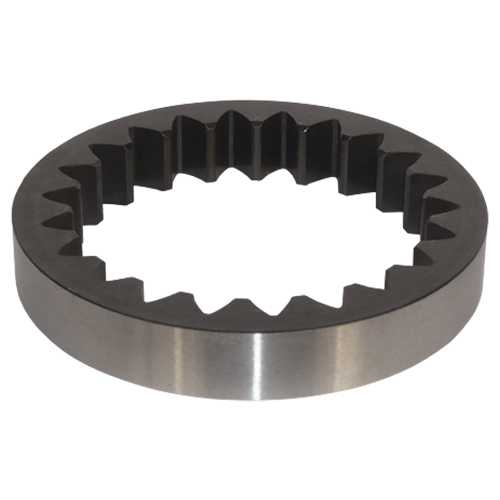

Gear Pump,Outer,Allison 6772576

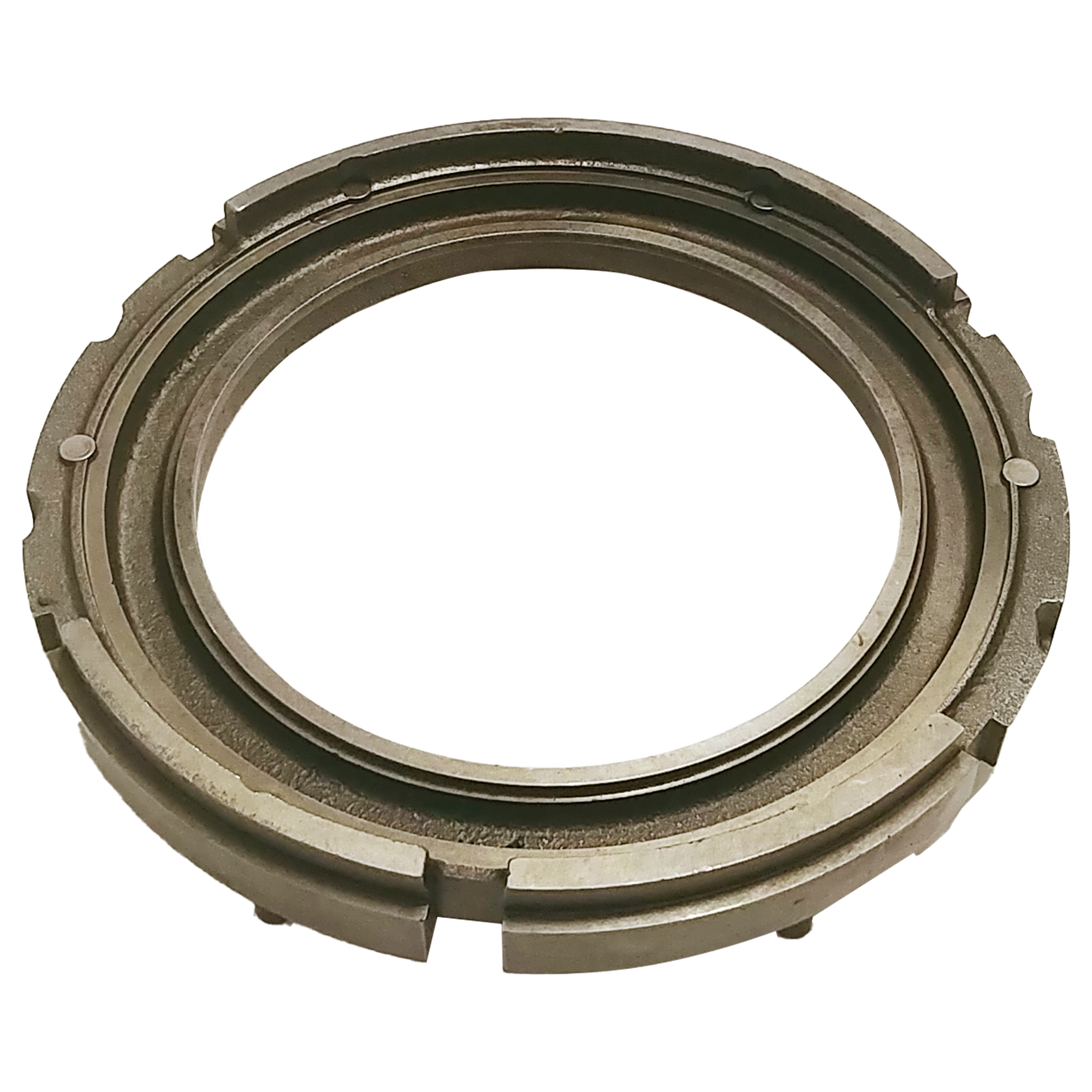

Plate Assembly 6774391

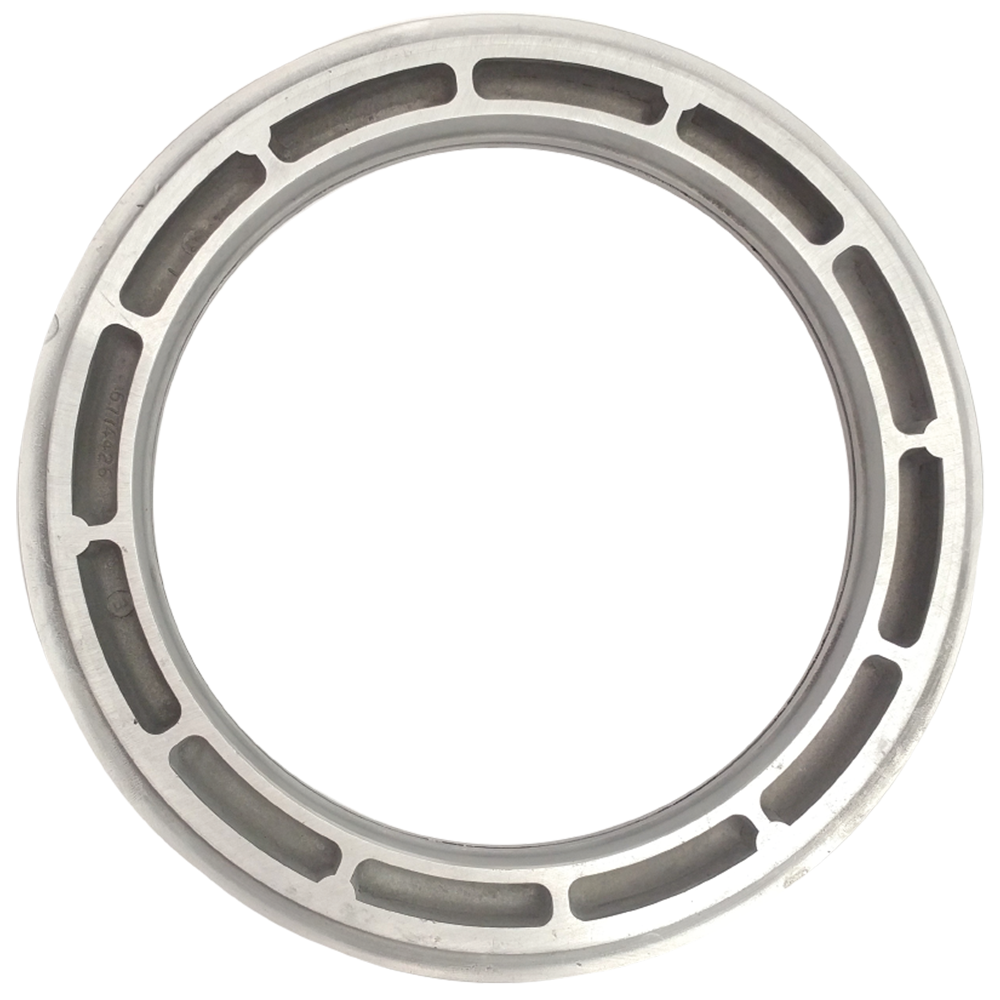

Piston ALLISON TX100 6774426

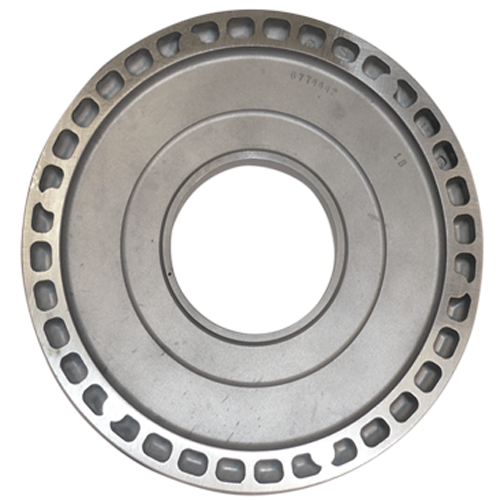

Piston TX-100 6774442

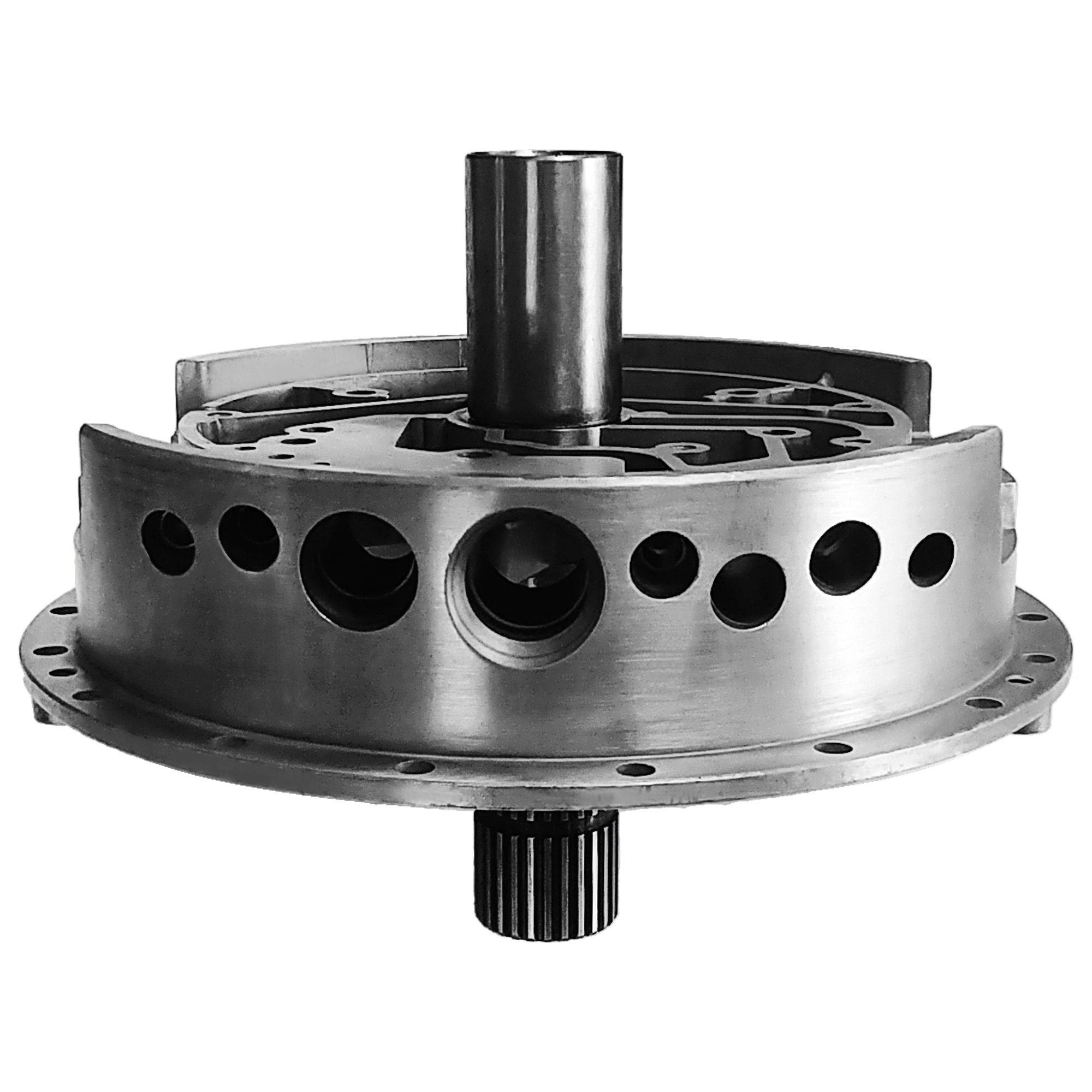

Sleeve & Diaphragm Assembly 6774454

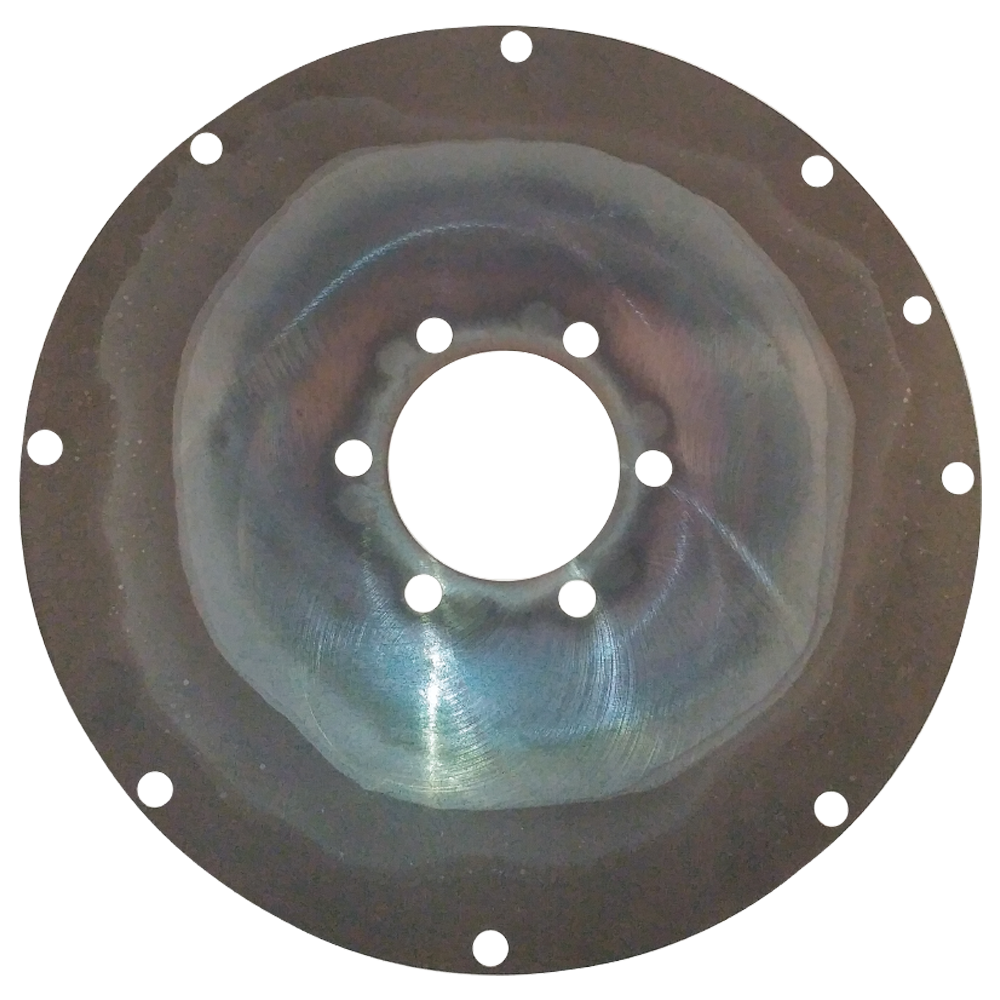

Disc 6777448

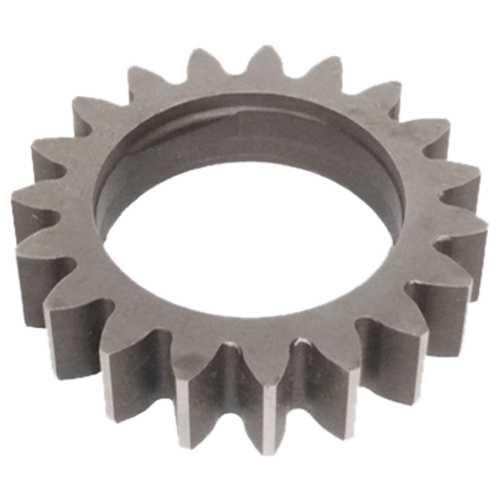

Gear Pump,Inner,Allison 6777849

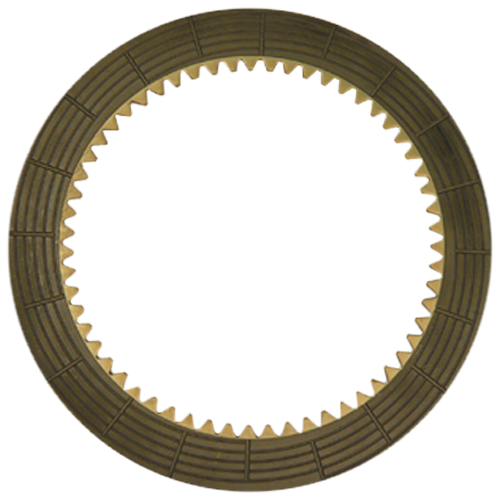

Friction Plate GM#6832629 TX-100 Series 6832629

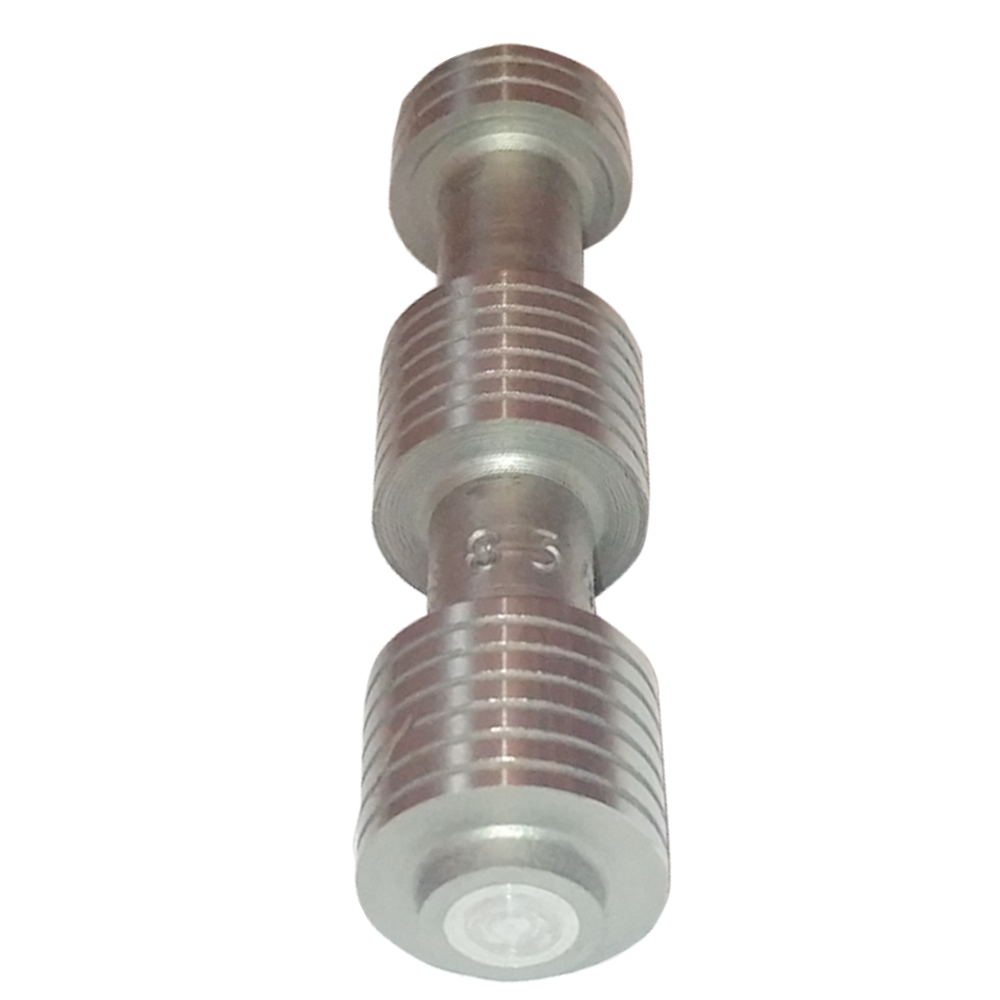

Valve Lockup NSN 2520-01-007-0346, 2520010070346 6834414
Piston 2nd and 3rd Clutch AT500/1500 6834817

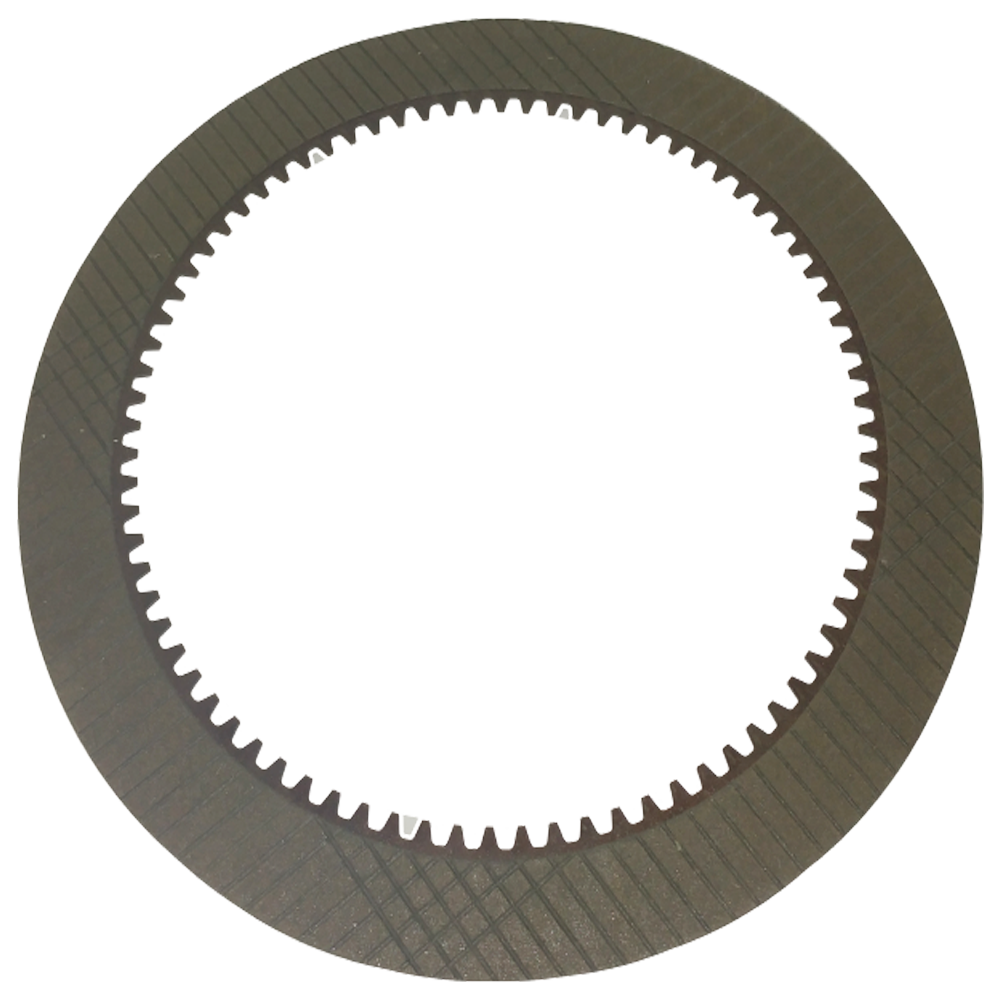

Friction Plate NSN 2520-00-163-0713
  • Thickness: 0.098"
  • Internal Teeth: 80
  • Outside Dia: 9.118"
  • Inside Dia: 6.85"
 6835687

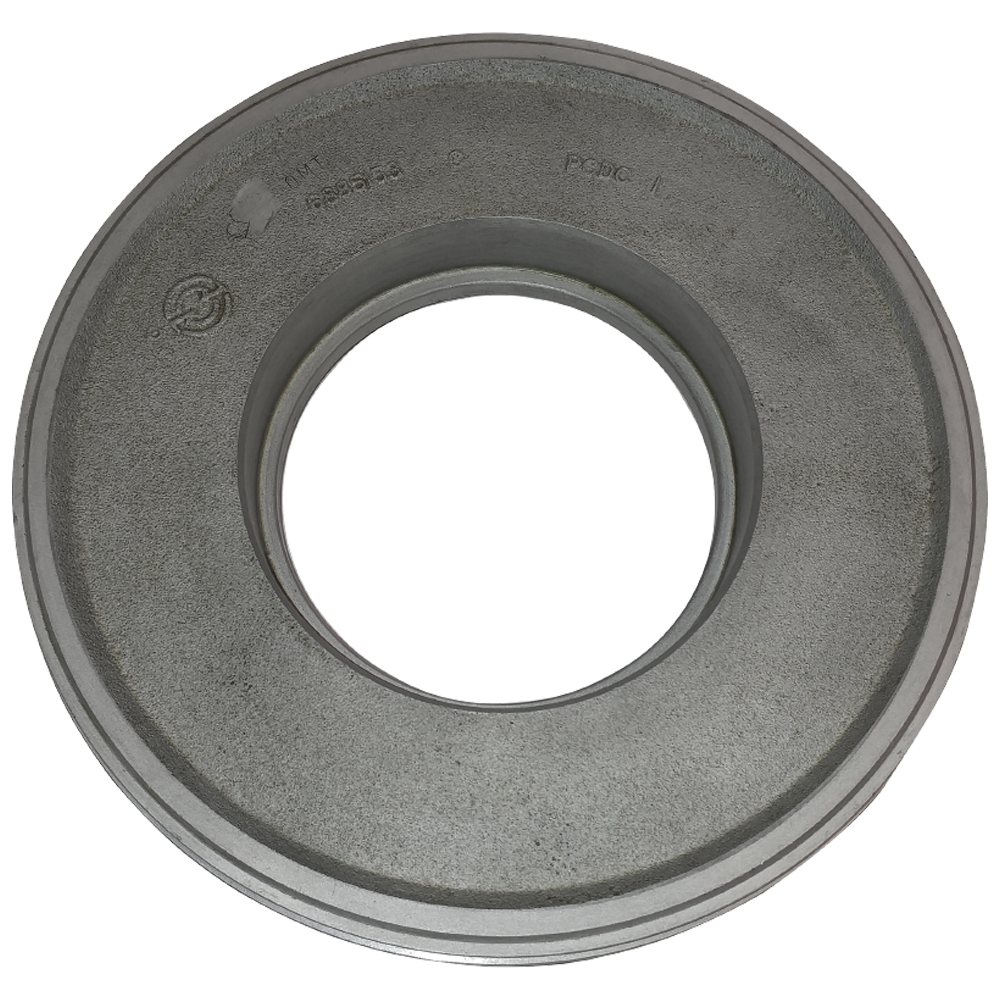

Piston Clutch NSN 2520-01-149-3808, 6885153

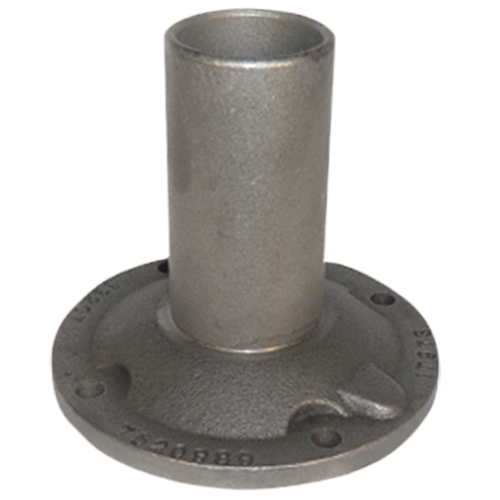

Cap Bearing NSN 2520-00-508-4664 7520989

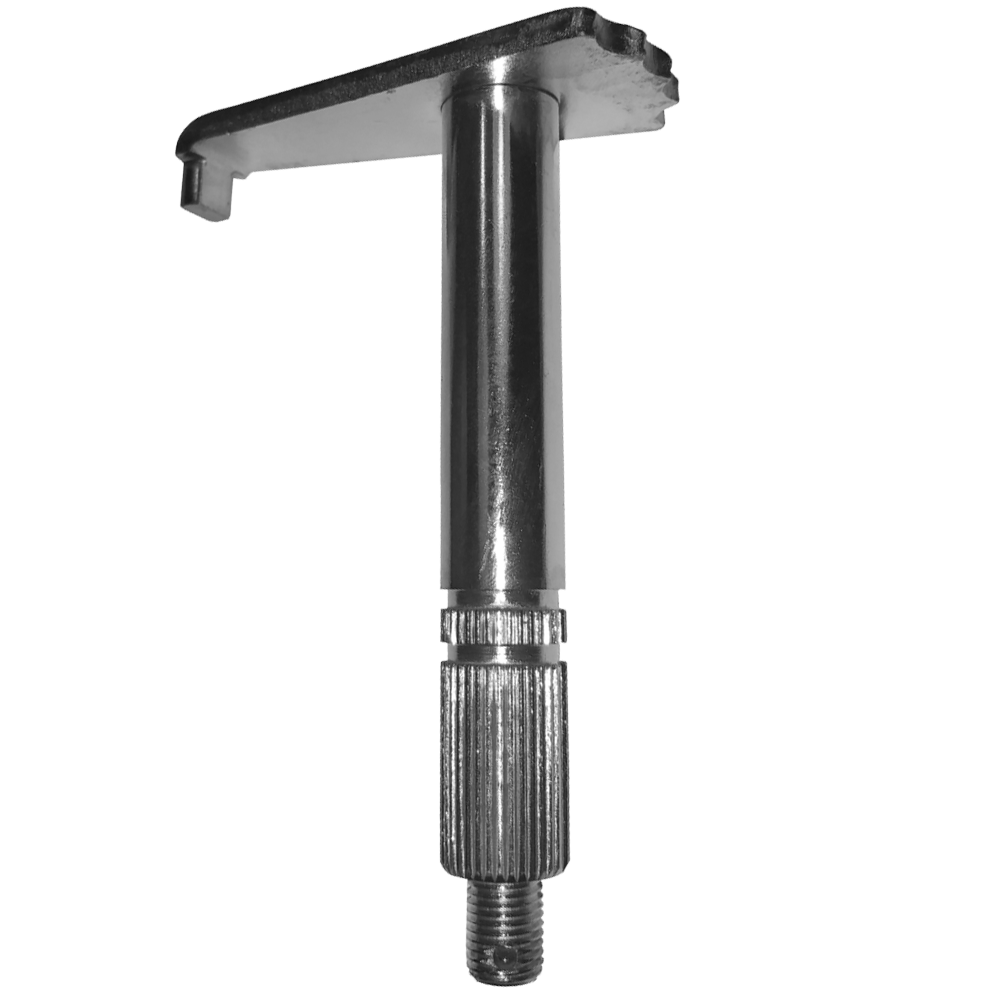

Lever Nsn 2520-00-561-9967 7708260

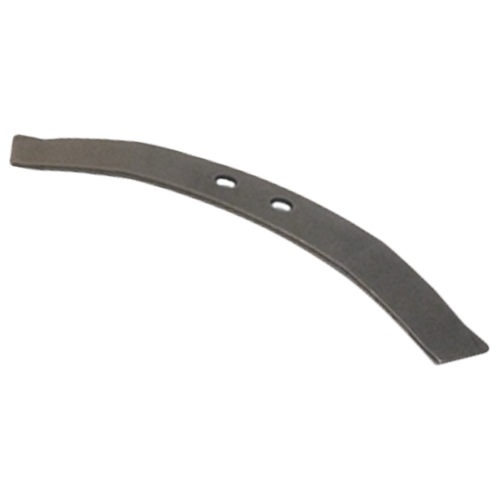

Spring NSN 5360-00-623-6881 7709694

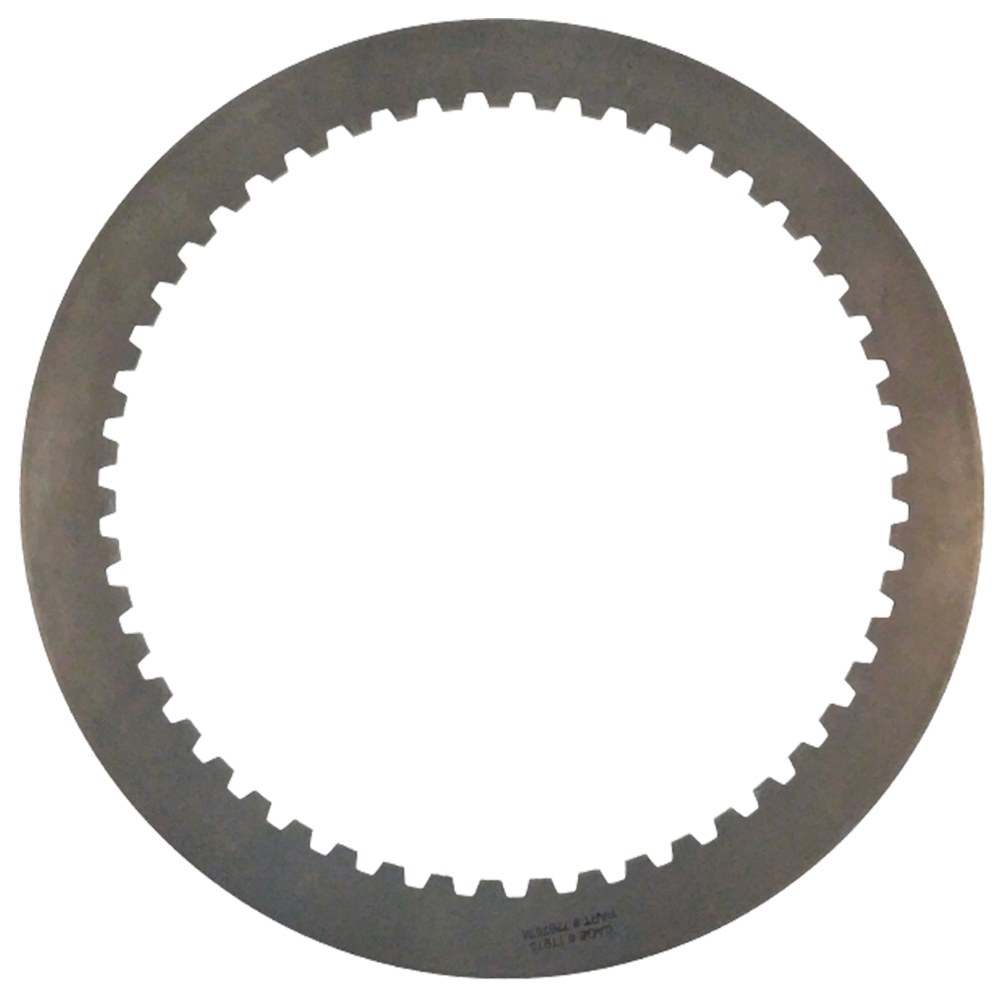

Plate Outer Clutch Driven NSN 2520-00-776-7574 7767574
Lock Plate 7767666

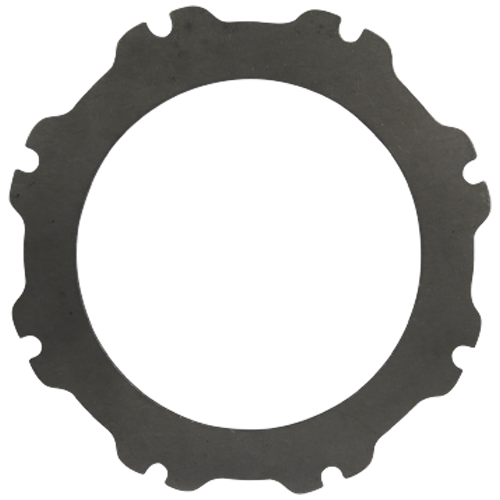

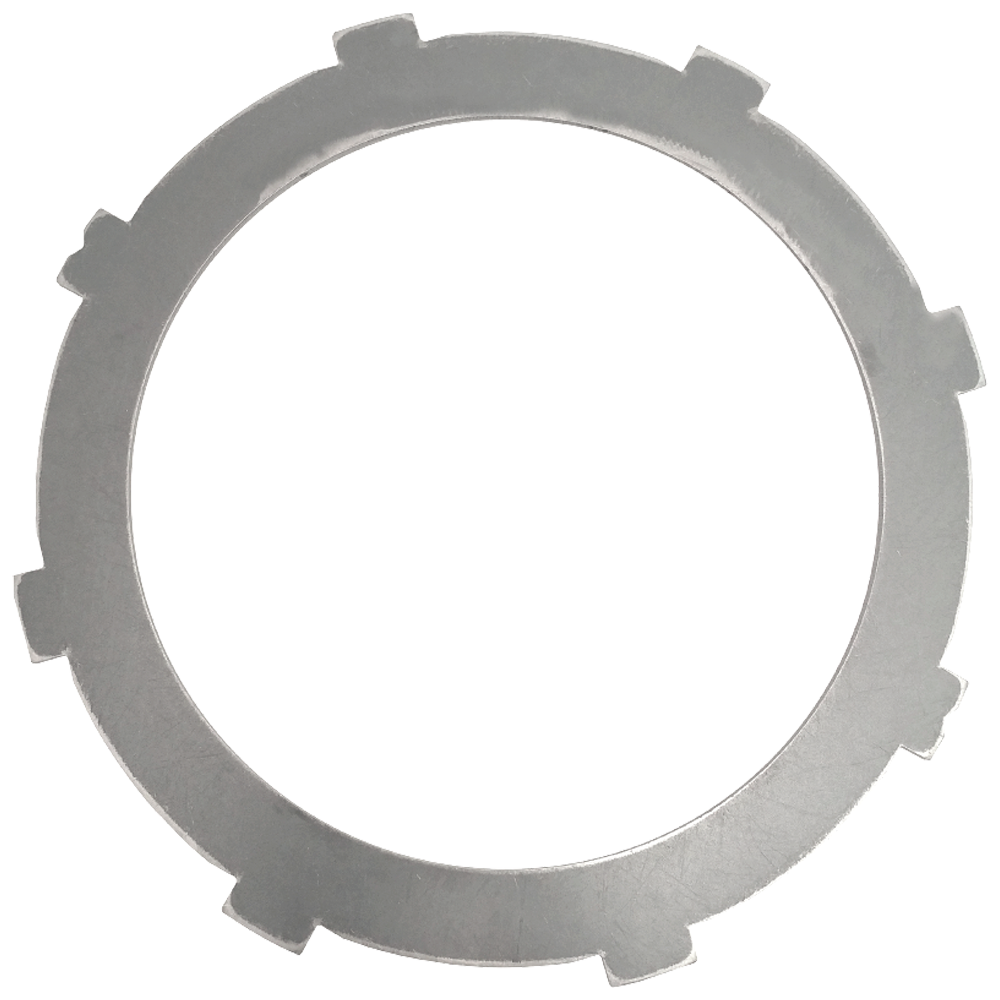

Clutch Plate 8348869

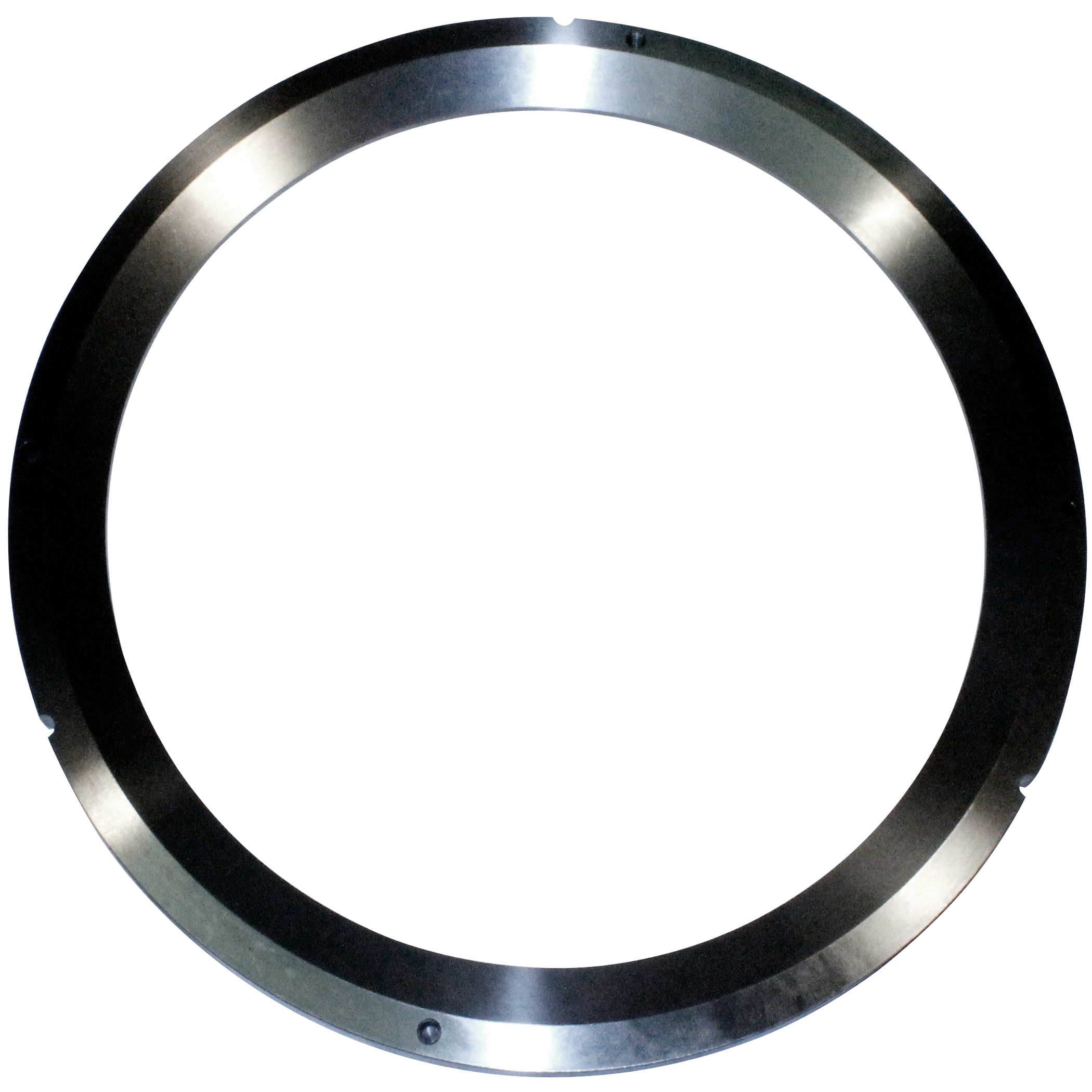

Clutch Plate Backing NSN 2520-00-893-1868 8351141
Clutch Plate 8356970
Bearing MD/HD SERIE
  • Thickness: 0.34
  • Thickness metric: 8.64
  • Bearing type: Semi-Enclosed
  • Outside Dia: 4.46
  • Inside Dia: 3.17
  • Outside Dia Metric: 113.28
  • Inside Dia metric: 80.52
  • Race: SW-2-43
 SW-2-42
Bearing Race MD/HD SERIE SW-2-43
