Part Search

Transmission | Allison | MT-654

Ill.# Image Description Specification Part #

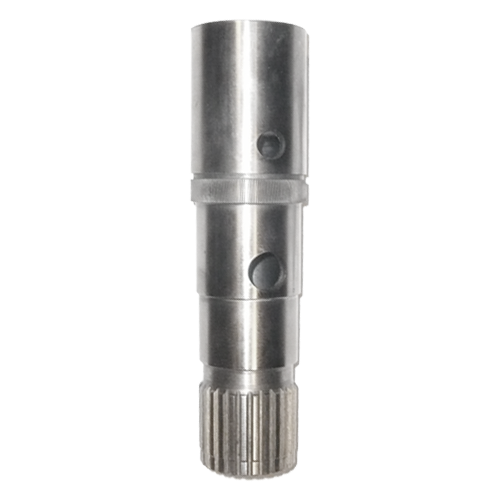

Sleeve Ground, Unfinished 23013905
Sleeve Ground, With Bearing 23014306
Ground Sleeve Finished I.D. With Bearing 1972 - on 23014306A
Ground Sleeve Bearing Included
  • New (not used). Includes INA bearing part ID: 9438017
 23014527A

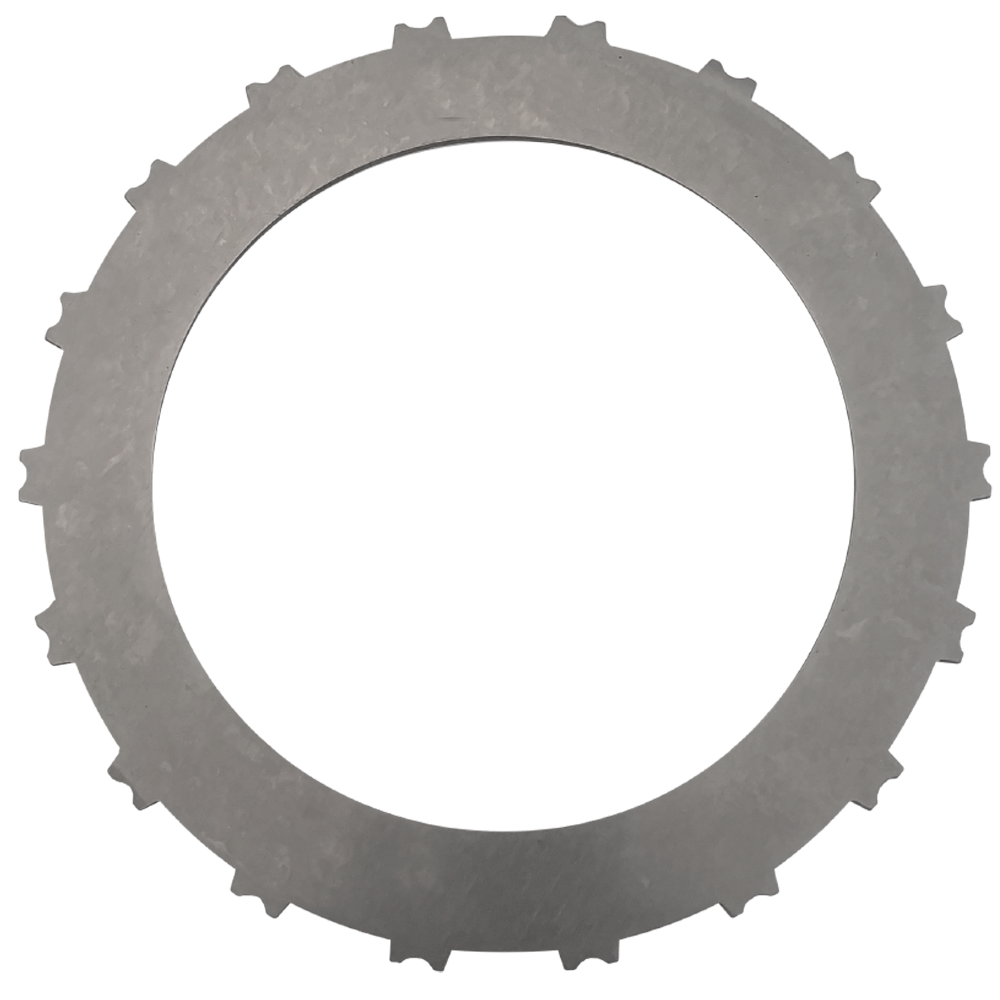

Steel Clutch-Plate
  • Thickness: 0.098"
  • External Teeth: 18
  • Outside Dia: 7.63"
  • Inside Dia: 5.52"
 23016610
Pan Gasket Allison 600 Series 23016682
Bushing Front Planetary Carrier 23045072P
Bushing Front Planetary Carrier, Oversized O.D, Unfinished I.D.
  • Type: Oversized O.D and Unfinished I.D
 23045072X
Shaft Sun Gear(With Bushings Installed) 23045606
Pan Gasket 29501160
Filter Kit MT600 29502302
Accordion Spring Torque Converter, 2nd Type 29513517
O-Ring 6762127
Lock Strip (Locking Plate) Converter Hub 6769631
O-Ring 6771005
Accordion Spring
  • Height: 0.31"
  • Width: 0.897"
  • Folds: 6
 6774966
Roller Torque Converter
  • Dia: 0.375"
  • Length: 0.929"
  • Hardness: Heat-Treated (hardened)
 6774968
Kit Spring & Roller 6775657

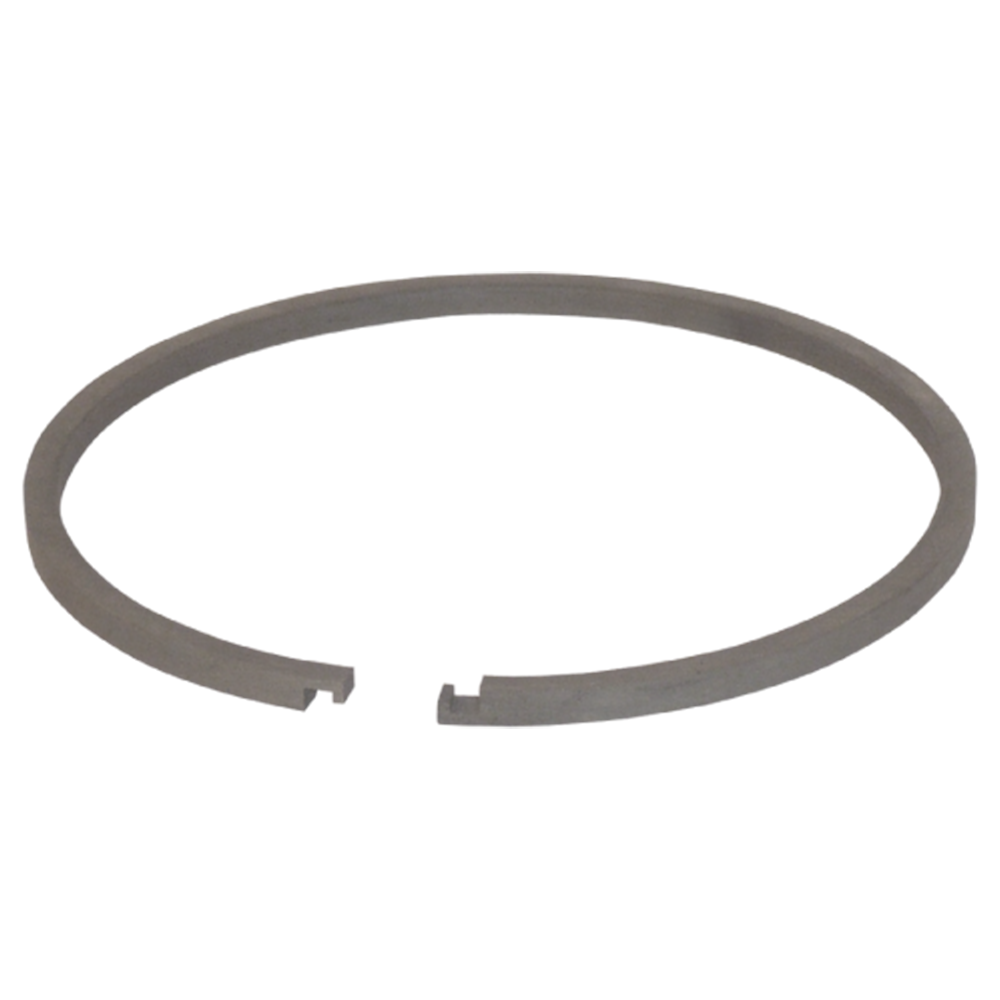

Seal Ring Pump Hub (Hook Type) 6830187
Washer Front Planetary, Steel, 0.515"x 1.075" x 0.025" 6833991

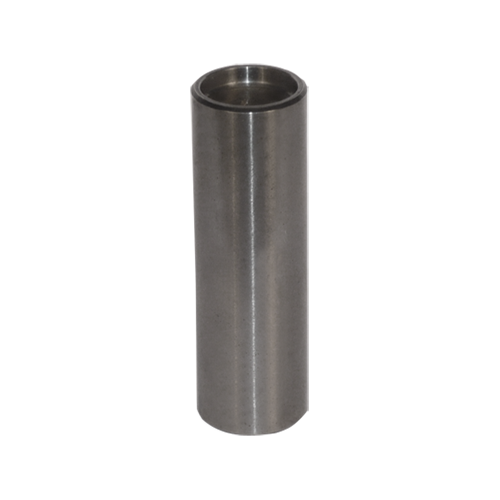

Pin Center/ Rear Planetary Pinion 6835567
Shim Turbine .015", Gold 6837429
Shim Spacer, Turbine .030", Silver 6837430
Spacer Turbine .042", Plain 6837431
Spacer Turbine .060", Black 6837432
Spacer Turbine .075" Copper 6837433

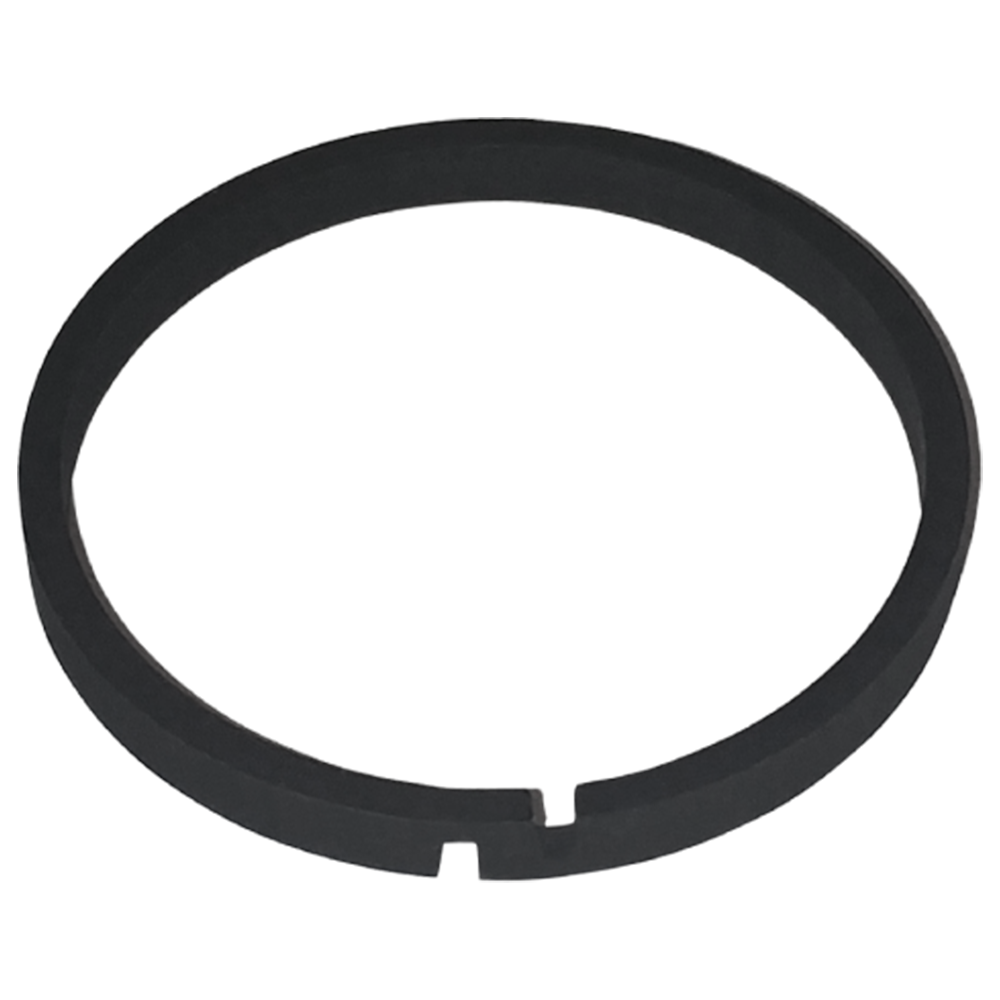

Ring Sealing, Turbine Shaft (640, 650) 6839163
Oil Filter 6883044
Kit T23019201

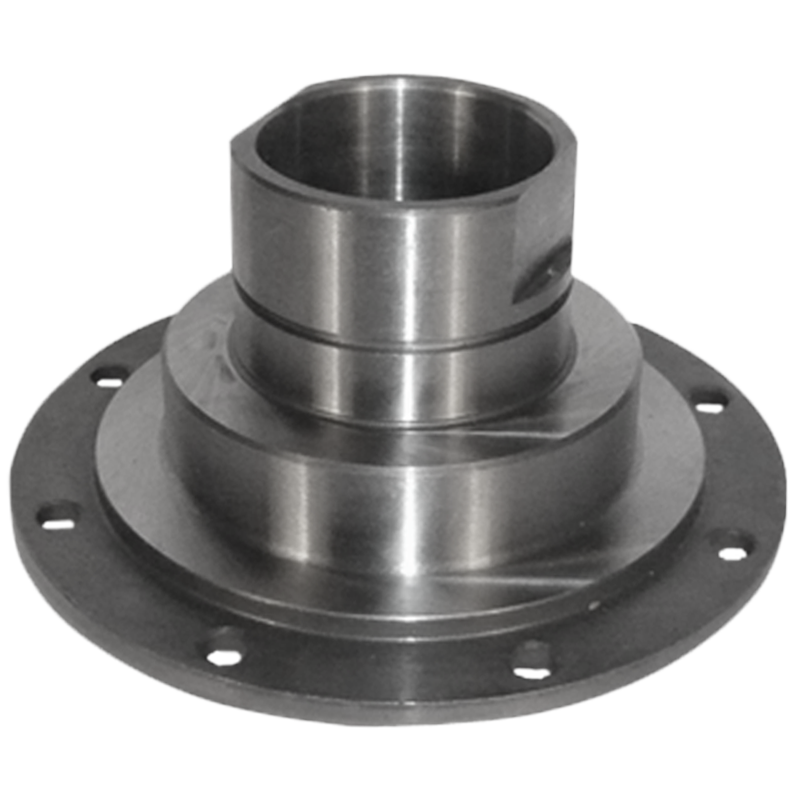

Impeller Hub Flanged, Torque Converter
  • Journal Dia: 1.996"
  • Height: 2.774"
  • Flange Dia: 3.645"
 6881592

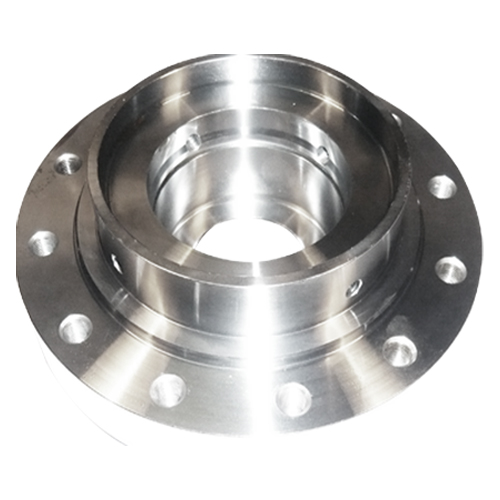

Impeller Hub Flanged, Torque Converter, 2nd Type
  • Journal Dia: 2.247"
  • Height: 3.875"
  • Flange Dia: 7.000"
 23017446
