Torque Converter | ZF | ZF8HP55

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Bearing
  • Outer Dia: 2.780"
  • Inner Dia: 1.900"
  • Thickness: 0.151"
  • Bearing type: Semi- Enclosed
  • Race: PW-2-15, PW-2-16
 PW-2-14
0 Bearing Race
  • Outer Dia: 2.900"
  • Inner Dia: 1.950"
  • Thickness: 0.038"
  • 2 Lugs
 PW-2-15
0 Bearing Race
  • Outer Dia: 2.900"
  • Inner Dia: 1.950"
  • Thickness: 0.031"
  • 2 Lugs
 PW-2-16
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
2 Bearing Turbine-Side
  • Outer Dia: 2.43
  • Inner Dia: 1.51
  • Thickness: 0.18
  • Outer Dia Metric: 61.72
  • Inner Dia metric: 38.35
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race O.D. 2.512"
 PW-2-10
2 Bearing Bulletproof
  • Outer Dia: 2.43
  • Inner Dia: 1.51
  • Thickness: 0.188
  • Outer Dia Metric: 61.72
  • Inner Dia metric: 38.35
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race O.D. 2.512"
 PW-2-10HD
3 Pressure Plate Turbine side
  • Outer Dia: 8.151"
  • Inner Dia: 6.499"
  • Thickness: 0.169"
  • External teeth: 30
 PX-26-17
3 Friction Plate 2 Pieces Required.
  • Outer Dia: 7.768"
  • Inner Dia: 6.120"
  • Thickness: 0.096"
  • Internal Teeth: 80
 PX-26-14

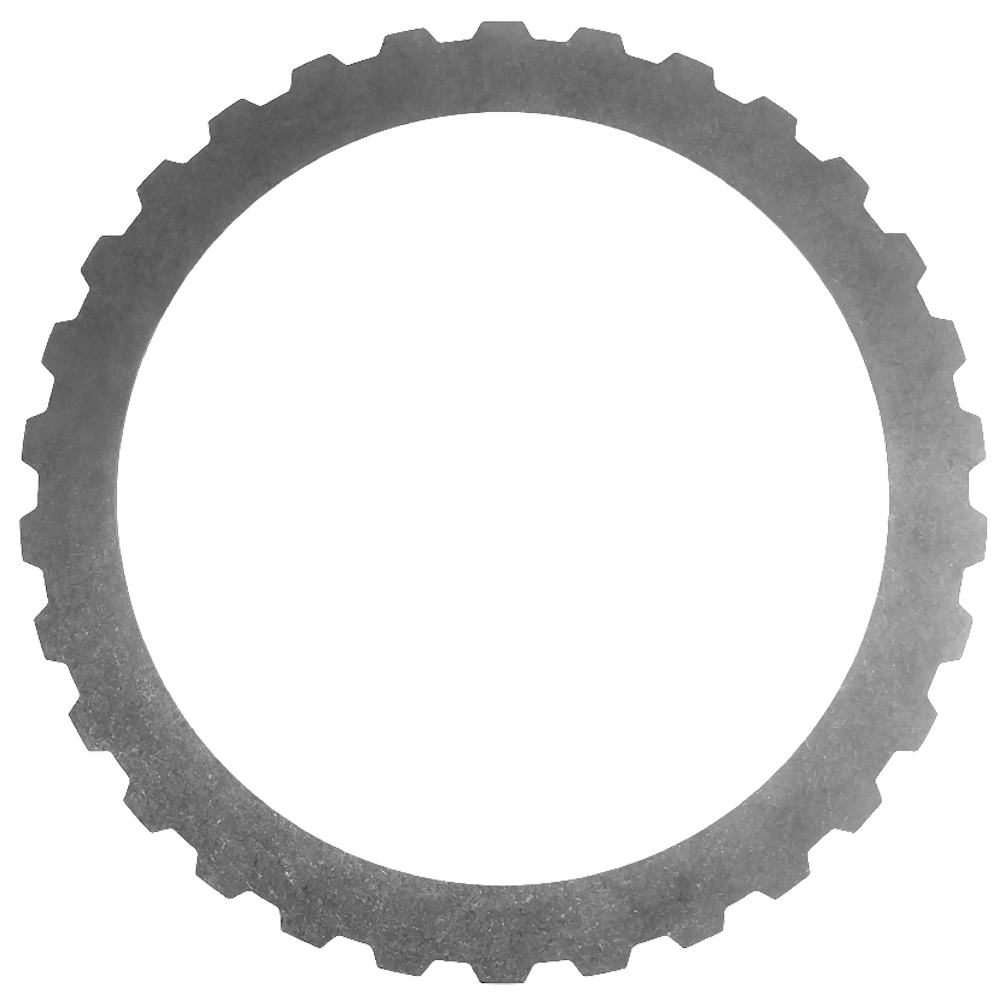

3 Clutch Plate Steel Install Between 2 Friction Plates
  • Outer Dia: 8.151"
  • Inner Dia: 6.499"
  • Thickness: 0.071"
  • External teeth: 30
  • Material: Steel
 PX-26-19
3 Clutch Plate Steel Front Cover Side, inboard of the frictions
  • Outer Dia: 8.151"
  • Inner Dia: 6.499"
  • Thickness: 0.109"
  • External teeth: 30
  • Material: Steel
 PX-26-18
4 D-Ring Seal Solid, Black
  • Height: 0.176
  • Inner Dia: 7.348
  • Width: 0.072
  • Inner Dia metric: 186.6
  • Material: Fluorocarbon
  • Height Metric: 4.4704
 PO-25-11
4 O-Ring Black
  • Inner Dia: 0.703
  • Thickness: 0.083
  • Inner Dia metric: 17.8562
  • Thickness metric: 2.1082
  • Material: Fluorocarbon
 PO-25-14
4 Seal Ring Seal Style Compound Finger Joint
  • Height: 0.160"
  • Outer Dia: 1.696"
  • Width: 0.095"
  • Outer Dia Metric: 43.7388
  • Material: Polyimide
  • Height Metric: 4.064
 PO-25-13

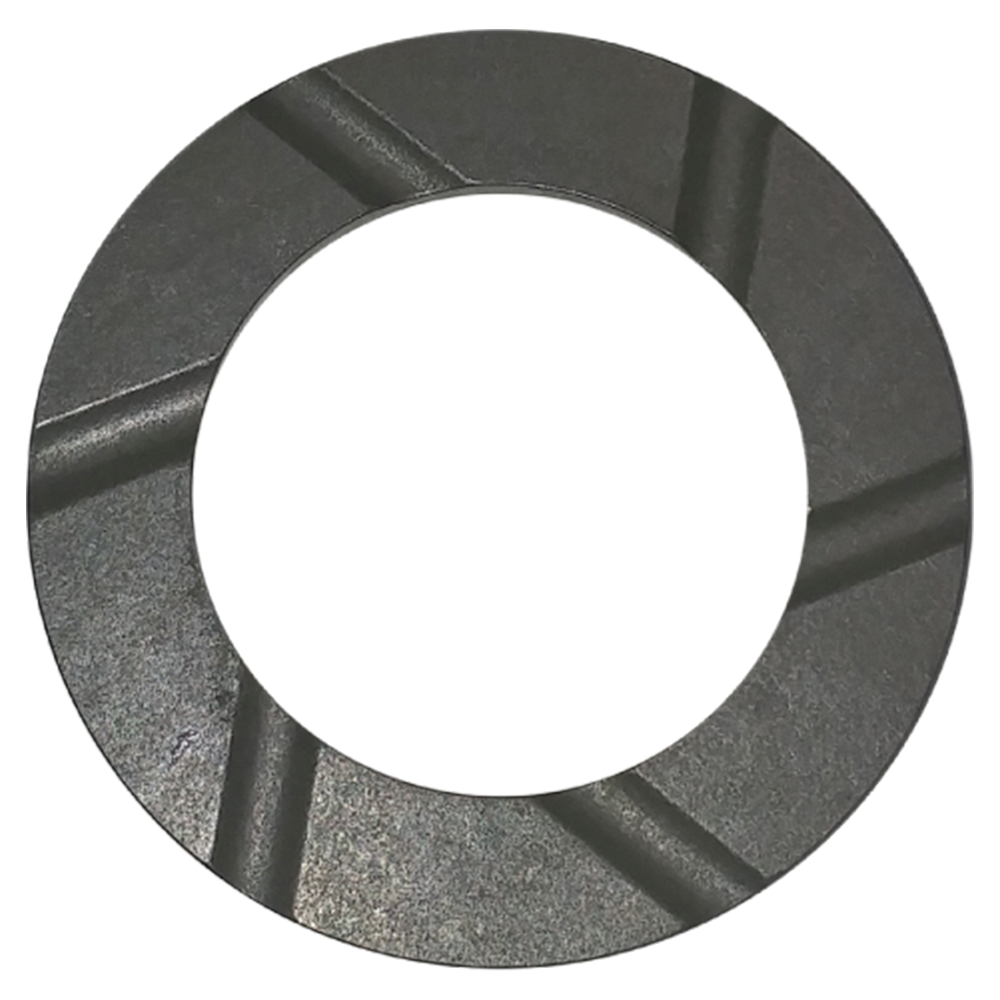

5 Turbine Washer
  • Outer Dia: 1.516"
  • Inner Dia: 0.984"
  • Thickness: 0.079"
  • Material: Polyimide
 PW-9-9
6 Seal Ring Square-Cu, 4-Lobed
  • Height: 0.174
  • Outer Dia: 4.349
  • Width: 0.194
  • Outer Dia Metric: 110.4646
  • Color: Black
  • Material: Fluorocarbon
  • Height Metric: 4.4196
 PO-25-12
