Torque Converter | ZF | ZF6HP26 280mm

Ill.# Image Description Specification Part #
7.1 Sprag Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Outer Dia: 2.615"
  • Inner Dia: 1.958"
  • Width: 0.457"
  • Material: Steel
  • 18 cams (elements). Outer Race O.D.: 2.615"/ 66.4mm. Inner Race I.D.: 1.958"/ 49.7mm
 PC-6
19 Metal Clad Seal Flanged 2 Pieces Required.
  • housing bore dia: 0.945
  • housing bore dia metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
 PO-25-7
23 Lining (Friction Ring,Wafer)
  • Outer Dia: 10.312
  • Inner Dia: 8.8
  • Thickness: 0.045"
  • Material: Red
 PX-23-17
19 Lining (Friction Ring,Wafer) *not recommended for 6HPs with modulated OEM linings. *High Carbon is recommended to replace modulated friction material
  • Outer Dia: 7.283
  • Inner Dia: 6.3
  • Thickness: 0.045"
  • Material: Red
 PX-23-22

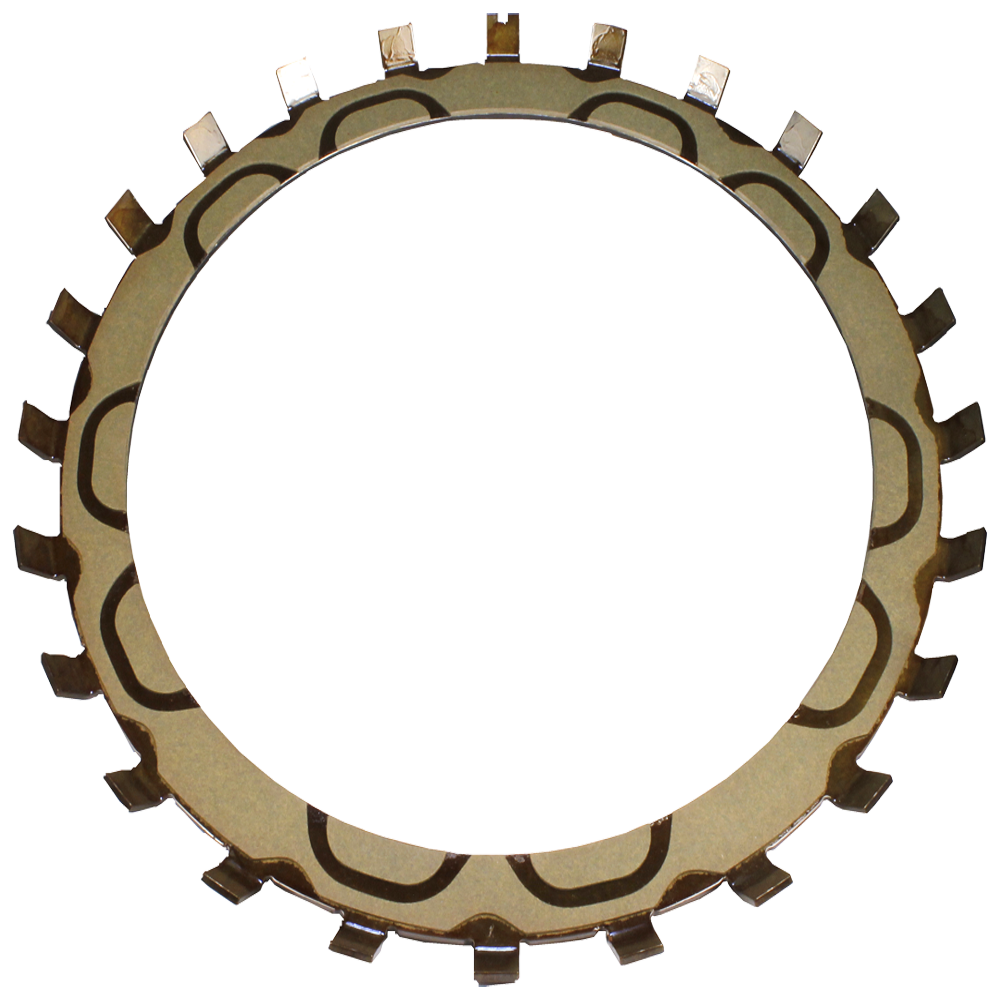

Friction Plate 2 pieces required
  • Outer Dia: 11.31"
  • Inner Dia: 8.77"
  • Thickness: 0.16"
  • External teeth: 24
 PX-26-9

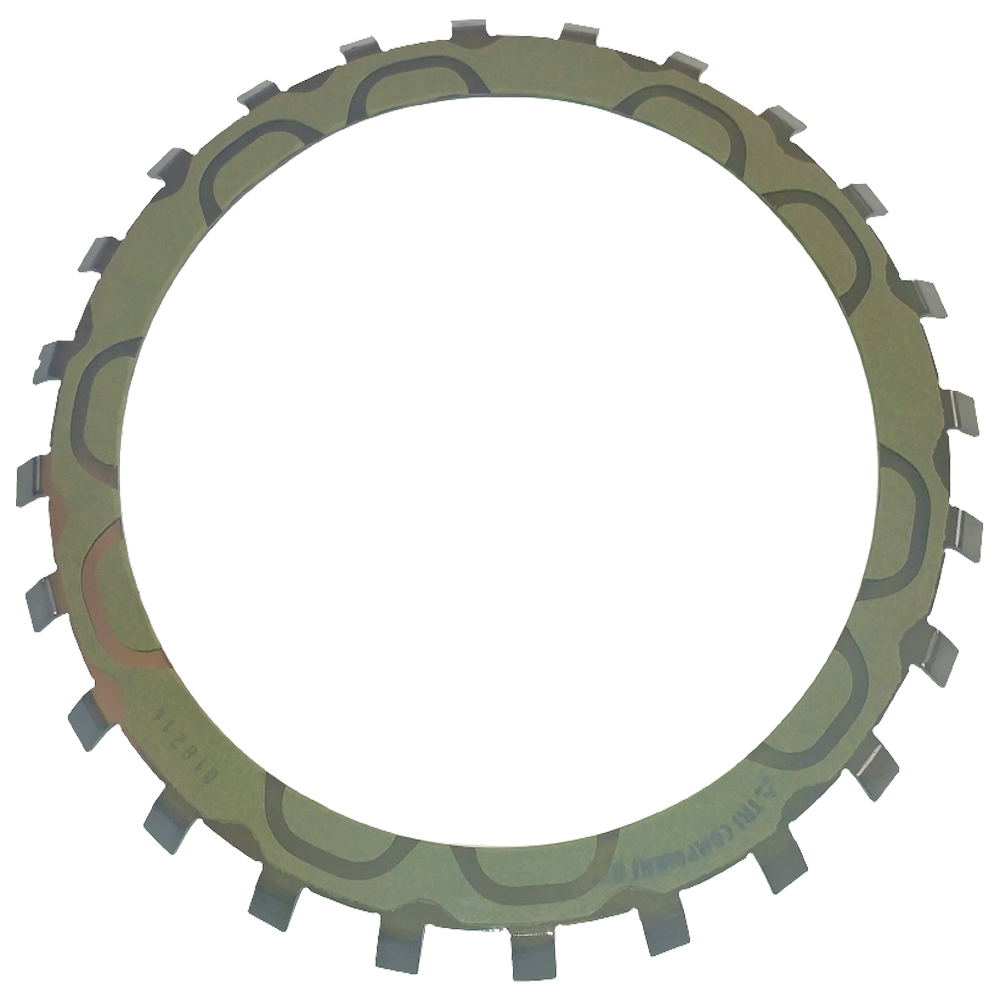

Friction Plate 2 pieces required
  • Outer Dia: 11.31"
  • Inner Dia: 8.77"
  • Thickness: .177"
  • External teeth: 24
  • Oversized
 PX-26-9A
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: 1.500"
  • Color: Blue
 MHC-BU
