Torque Converter | ZF | ZF6HP26 275mm

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
Misc NPN-SPL
&
26 Lining (Friction Ring,Wafer) *not recommended for 6HPs with modulated OEM linings. *High Carbon is recommended to replace modulated friction material
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 7.283
  • Inside Dia: 6.3
 PX-23-22
Lining (Friction Ring,Wafer) PX-23-22
*not recommended for 6HPs with modulated OEM linings. & *High Carbon is recommended to replace modulated friction material
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 7.283
  • Inside Dia: 6.3

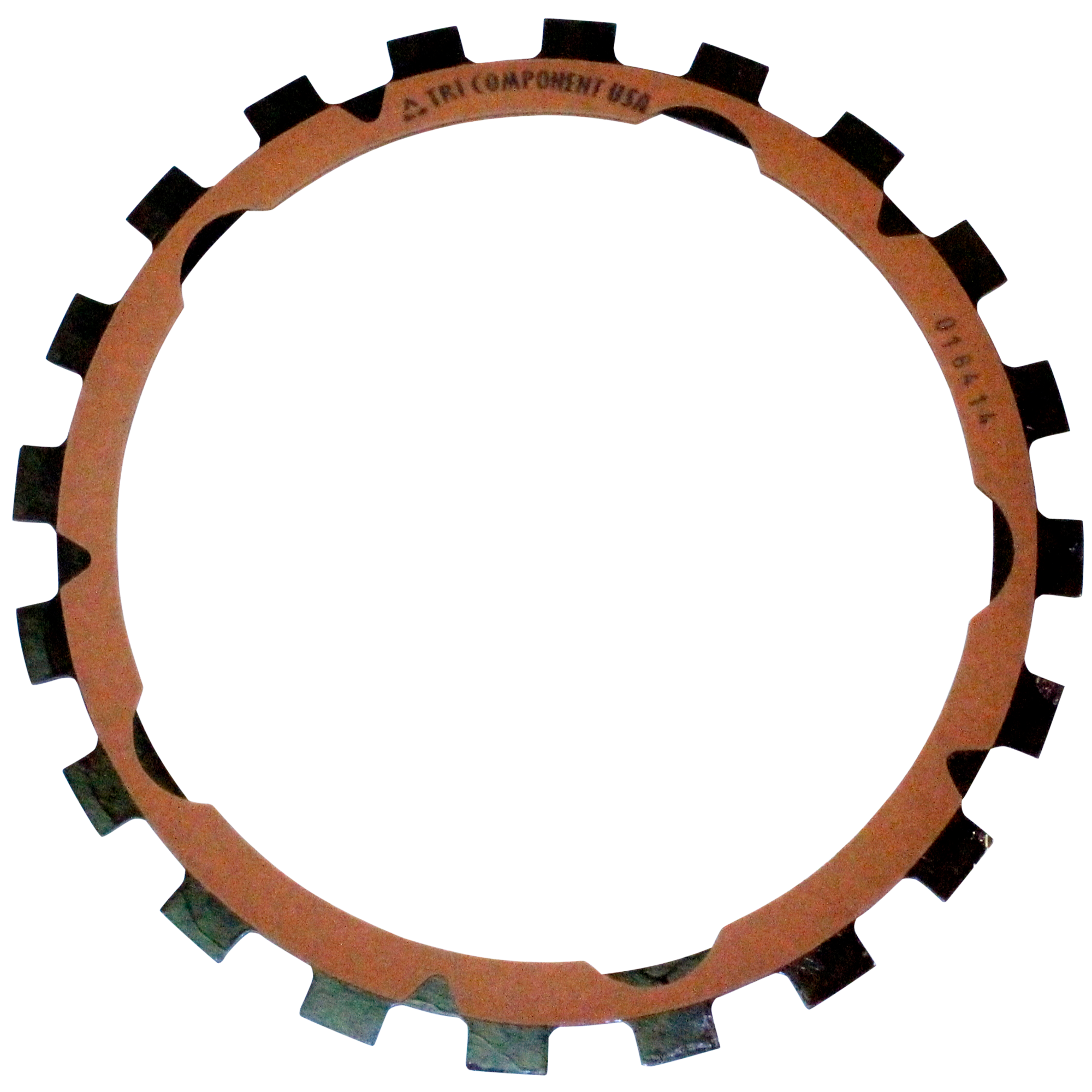

26 Friction Plate ZF6HP26 275mm BMW 750 2 Pieces Required.
  • Thickness: 0.109"
  • External Teeth: 20
  • Lining Count: 2
  • Outside Dia: 9.060"
  • Inside Dia: 7.283"
  • Lining Part-ID: PX-23-24T
PX-26-15
Friction Plate PX-26-15
ZF6HP26 275mm & BMW 750 2 Pieces Required.
  • Thickness: 0.109"
  • External Teeth: 20
  • Lining Count: 2
  • Outside Dia: 9.060"
  • Inside Dia: 7.283"
  • Lining Part-ID: PX-23-24T

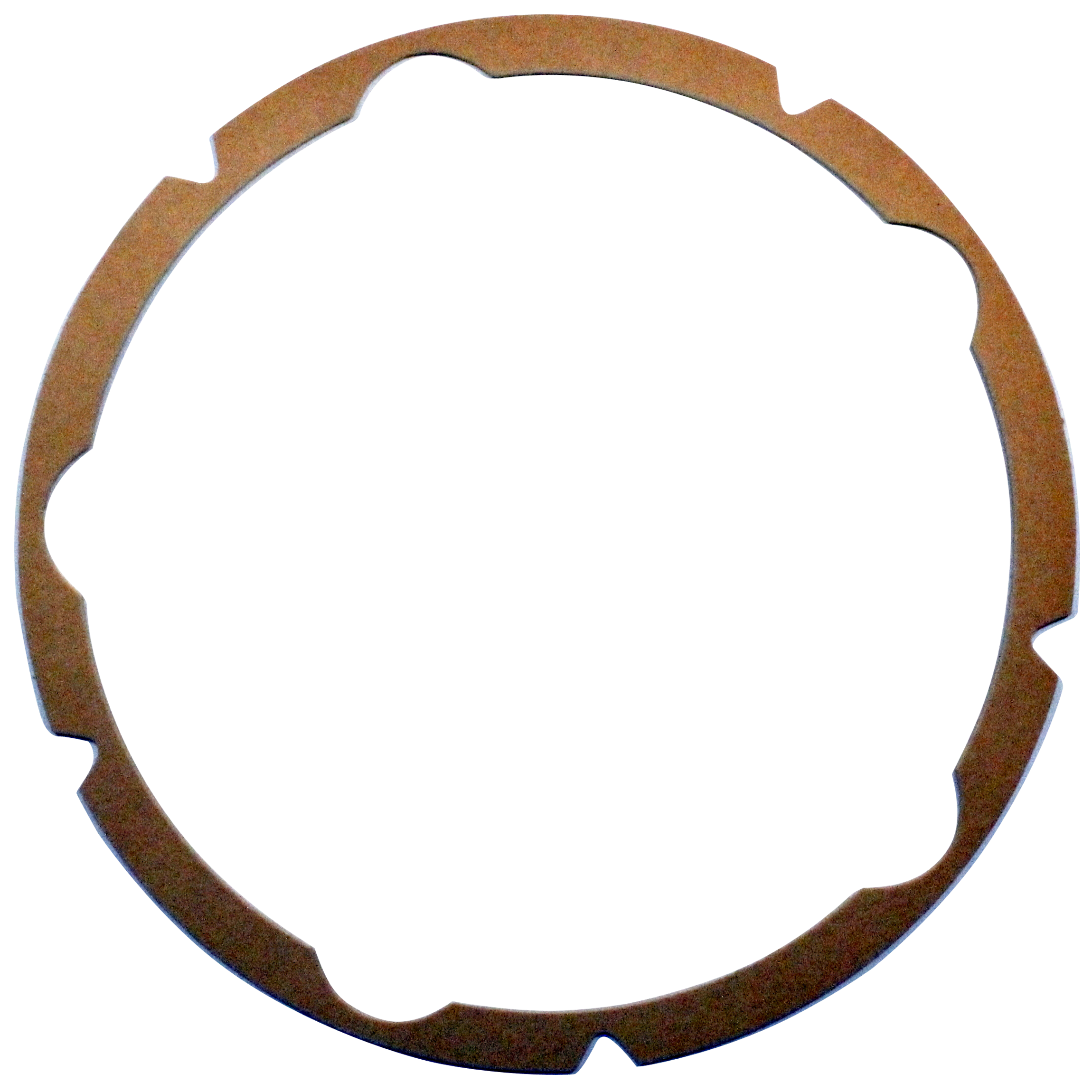

26.1 Lining (Friction Ring,Wafer) 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25
  • Inside Dia: 7.293
 PX-23-24
Lining (Friction Ring,Wafer) PX-23-24
& 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25
  • Inside Dia: 7.293

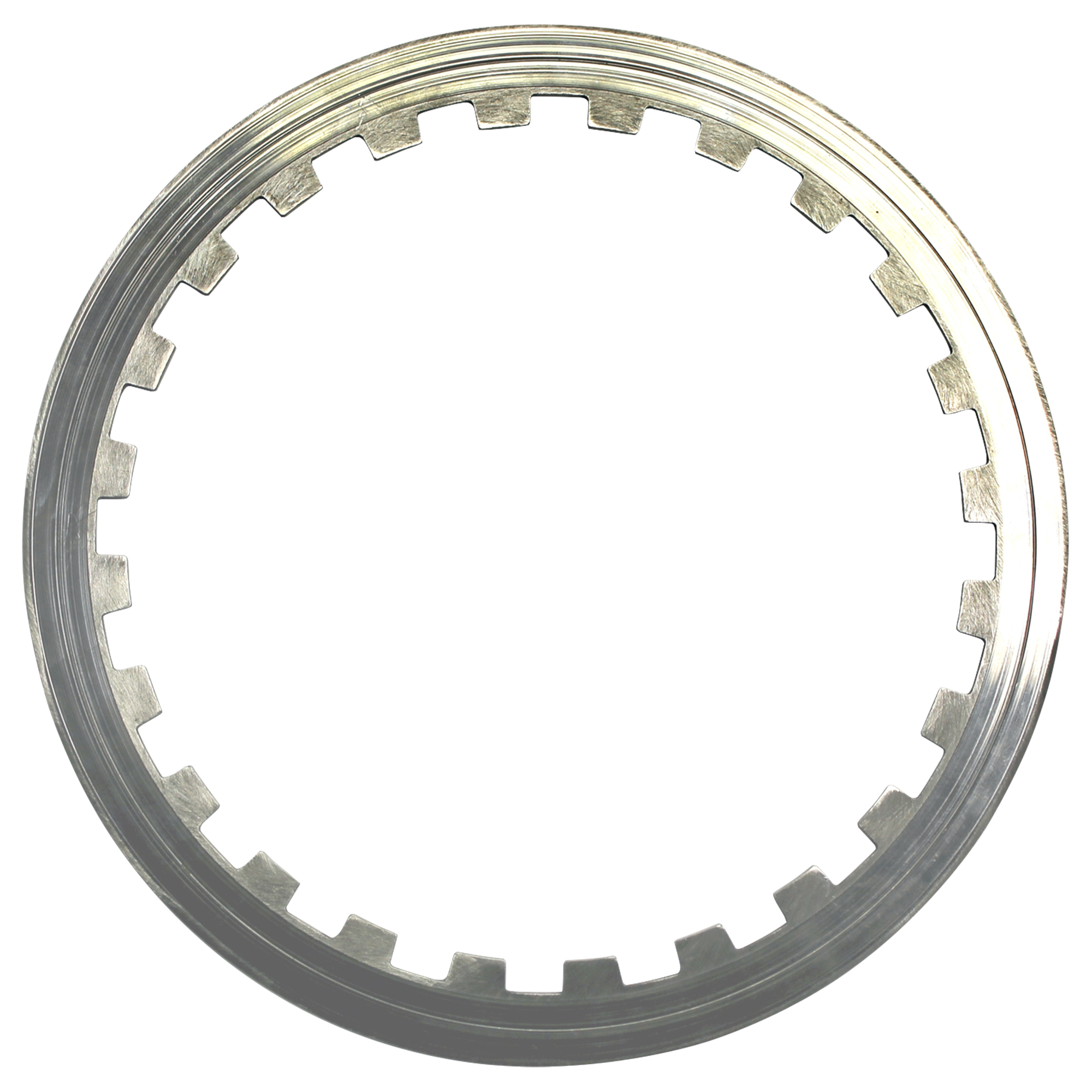

26.1 Steel Clutch-Plate
  • Thickness: 0.094"
  • Internal Teeth: 24
  • Outside Dia: 8.355"
  • Inside Dia: 6.695"
 PX-26-23
Steel Clutch-Plate PX-26-23
&
  • Thickness: 0.094"
  • Internal Teeth: 24
  • Outside Dia: 8.355"
  • Inside Dia: 6.695"
