Torque Converter | ZF | ZF6HP26 260mm

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
2 Impeller Hub
  • Journal Dia: 1.771"
  • Installed Height: 2.129"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 2.890"
  • Hardness: Rc 32-36
  • Inside Dia: 2.890"
 PH-1-14GRC
4 Bearing 2 Pieces Required.
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10
4 Bearing Bulletproof Both Sides of Stator 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10HD
8 Misc NPN-SPL

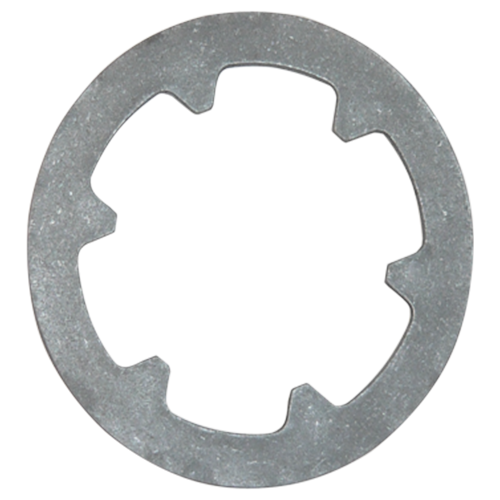

12 Retainer Repair Ring Beefplate™ Simplies rebuilding captive-clutch
  • Thickness: .10"
  • Outside Dia: 3.56"
  • Inside Dia: 2.17"
 PX-22-6
15 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.71"
  • Inside Dia: 8.19"
 PX-23-19

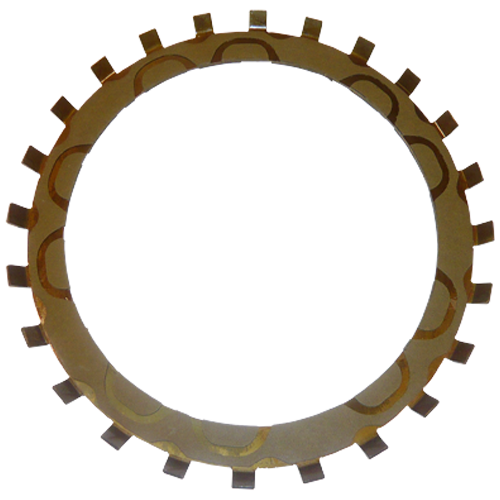

16 Friction Plate
  • Thickness: 0.16"
  • External Teeth: 24 bent teeth
  • Lining Count: 2
  • Outside Dia: 10.63"
  • Inside Dia: 8.19"
  • Lining Part-ID: PX-23-19HC
PX-26-10

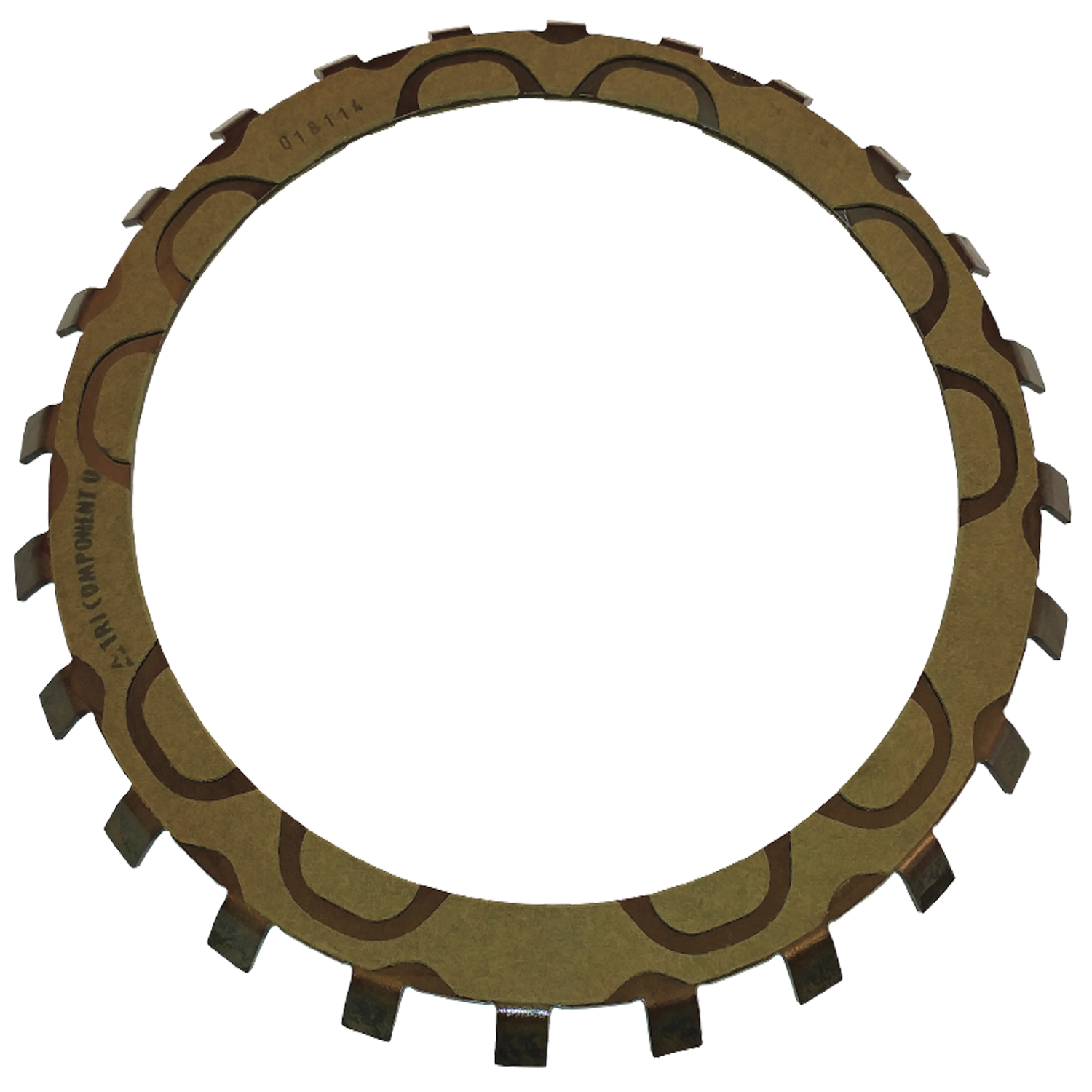

16 Friction Plate Thicker 0.020"
  • Thickness: 0.18"
  • External Teeth: 24 bent teeth
  • Outside Dia: 10.63"
  • Inside Dia: 8.13"
 PX-26-10A
16 Friction Plate High-Carbon
  • External Teeth: 24 bent teeth
  • Outside Dia: 10.63"
  • Inside Dia: 8.13"
 PX-26-10HC
16 Friction Plate ZF6HP26 260mm
  • External Teeth: 24 bent teeth
  • Outside Dia: 10.63"
  • Inside Dia: 8.13"
 PX-26-10T
17 O-Ring Front cover hub
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.756
  • Inside Dia metric: 70.0024
 PO-25-1
18 Metal Clad Seal 2 Pieces Required.
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
18 Metal Clad Seal Flanged Front cover hub 2 Pieces Required.
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
 PO-25-7
19 Bearing Front cover hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.850
  • Inside Dia: 1.378
  • Outside Dia Metric: 46.99
  • Inside Dia metric: 35
 PW-9-7
