Torque Converter | ZF | ZF6HP19, 245mm (LuK)

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
2 Seal Ring With a Large 30° Chamfer on the O.D.
  • Height: 0.081
  • Outer Dia: 2.404
  • Width: 0.087
  • Outer Dia Metric: 61.0616
  • Color: White
  • Material: PTFE Solid
  • Height Metric: 2.0574
 PO-25-10
3 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 8.645
  • Inner Dia: 7.325
  • Thickness: 0.045"
  • Material: Red
 PX-23-25

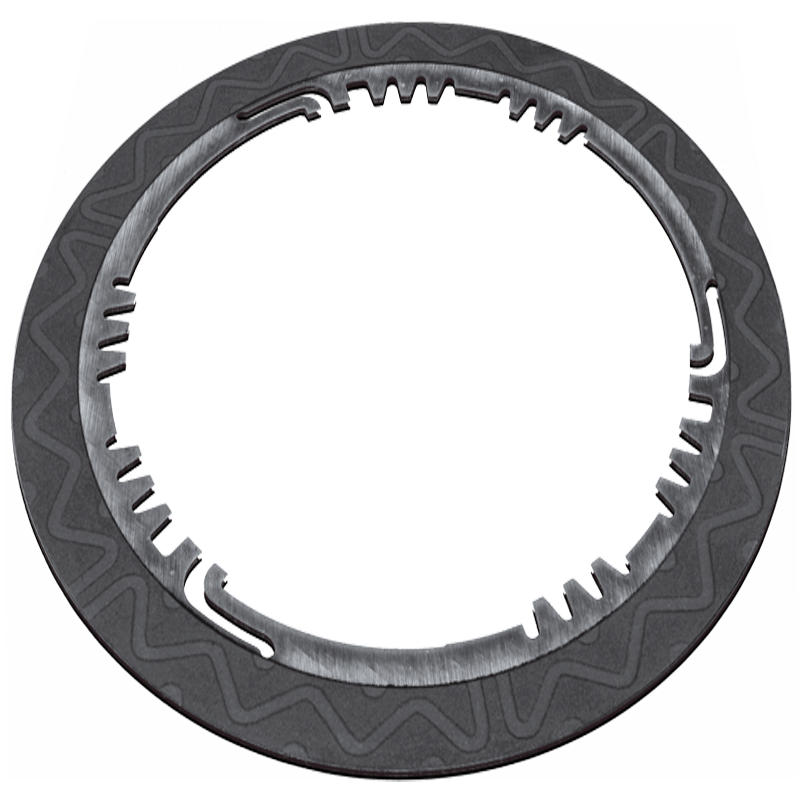

4 Friction Plate Internal Spline
  • Outer Dia: 8.670"
  • Inner Dia: 6.300"
  • Thickness: 0.138"
 PX-26-21
5 Rivet For Pressure Plate 6 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.202"
  • Rivet head dia: 0.28"
 PX-12-1
5 Rivet 6 Pieces Required.
  • Length: 0.272"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.200"
  • Rivet head dia: 0.280"
  • Rivet head Type: Flat
 PX-12-2
