Part Search

Torque Converter | ZF | ZF6HP19 245mm

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.771"
  • Installed Height: 2.129"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 2.890"
  • Hardness: Rc 32-36
  • Inside Dia: 2.890"
 PH-1-14GRC
Impeller Hub PH-1-14GRC
&
  • Journal Dia: 1.771"
  • Installed Height: 2.129"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 2.890"
  • Hardness: Rc 32-36
  • Inside Dia: 2.890"
4 Bearing
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35

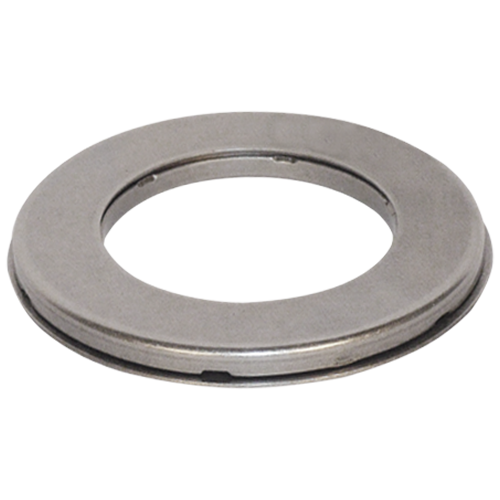

 PW-2-10
Bearing PW-2-10
&
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
4 Bearing Bulletproof
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35

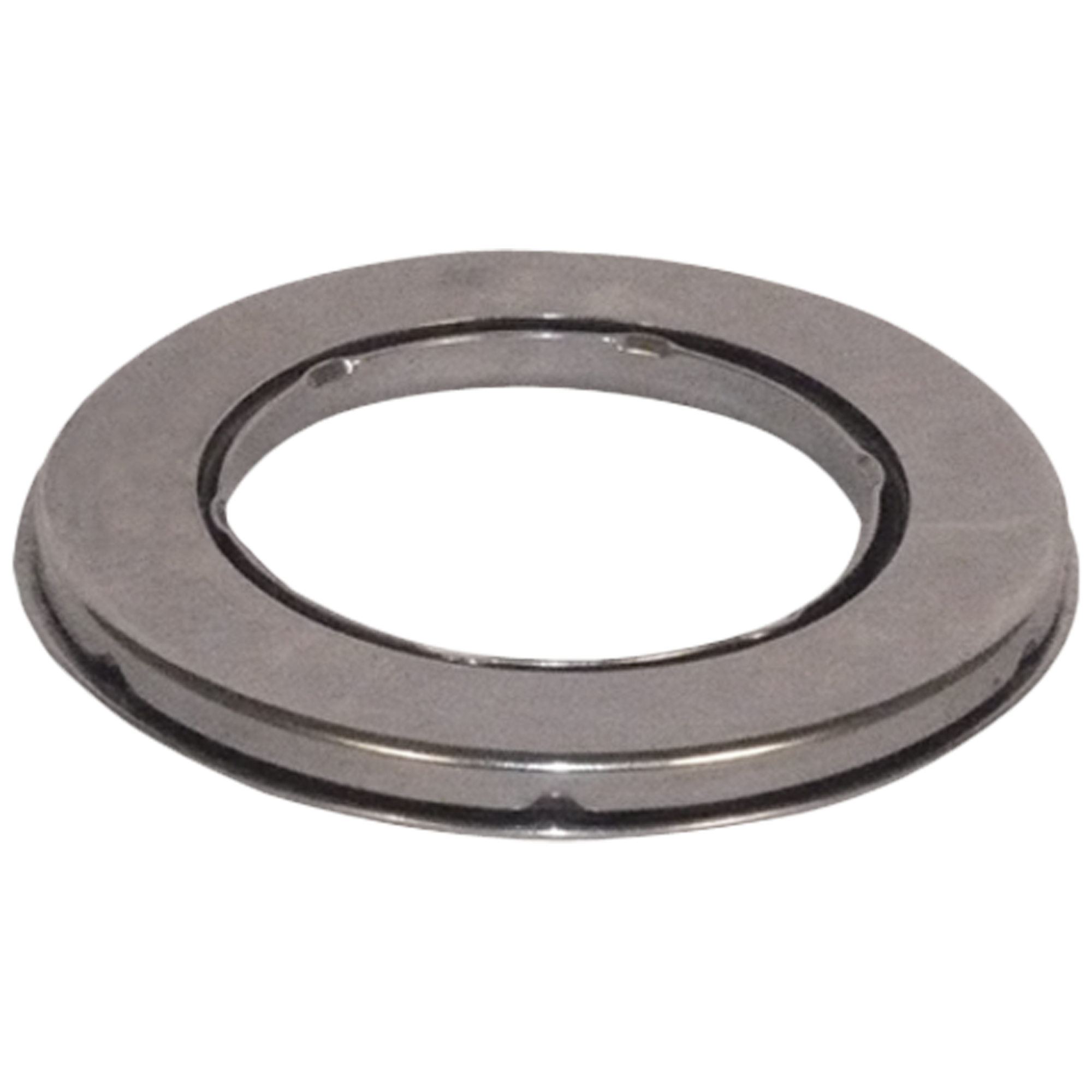

 PW-2-10HD
Bearing PW-2-10HD
Bulletproof &
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
6 Sprag Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
 PC-6
Sprag PC-6
& Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
7 Inner Race Stator
  • Length: 0.727"
  • Internal Teeth: 43
  • Material: Hardened Steel
  • Outside Dia: 1.957"
 PX-14-10
Inner Race PX-14-10
Stator &
  • Length: 0.727"
  • Internal Teeth: 43
  • Material: Hardened Steel
  • Outside Dia: 1.957"
14 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.15"
  • Inside Dia: 7.875"
 PX-23-20
Lining (Friction Ring,Wafer) PX-23-20
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.15"
  • Inside Dia: 7.875"
15 Friction Plate Audi Q7
  • Thickness: 0.16"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 9.85"
  • Inside Dia: 7.87"
  • Lining Part-ID: PX-23-20HC

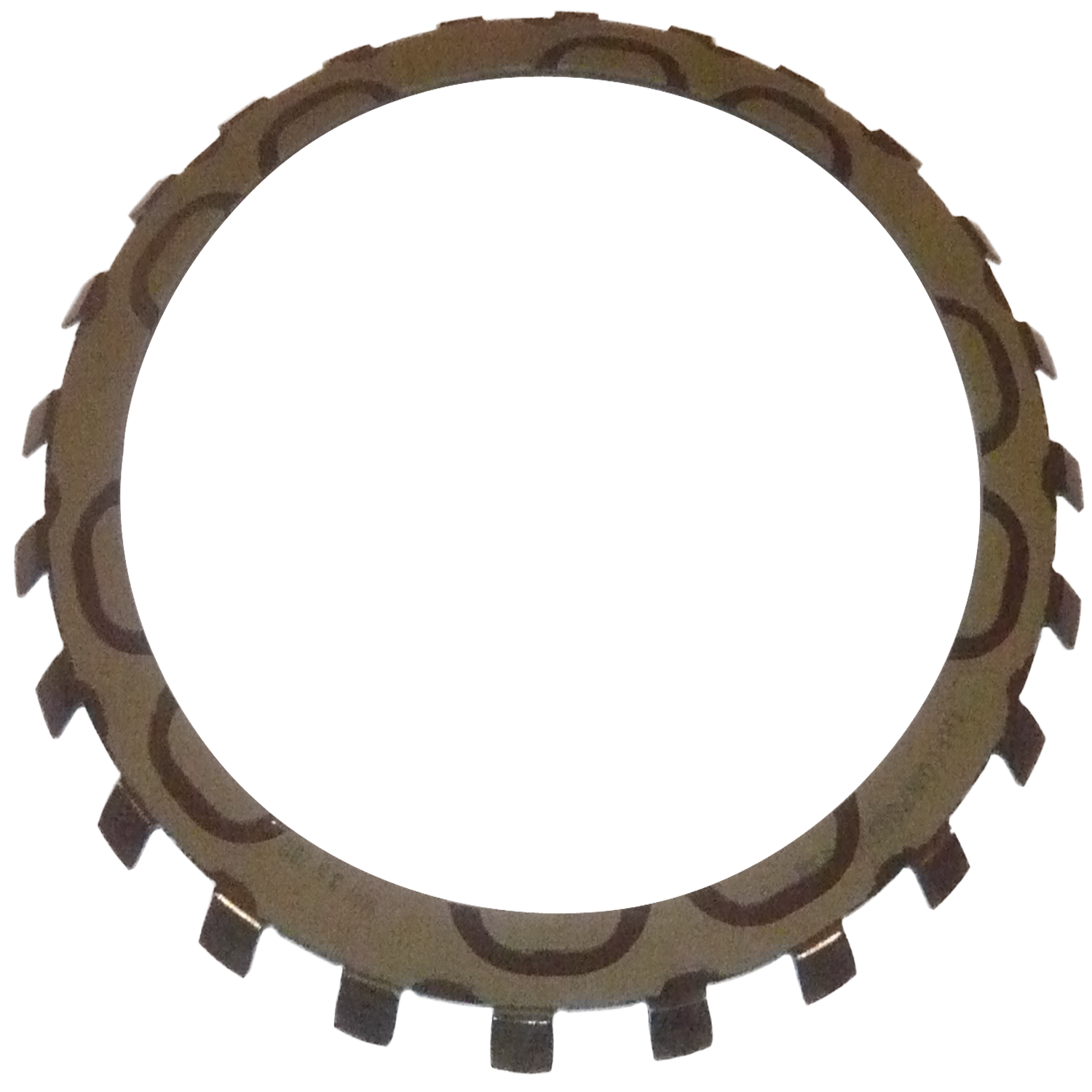

PX-26-11
Friction Plate PX-26-11
& Audi Q7
  • Thickness: 0.16"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 9.85"
  • Inside Dia: 7.87"
  • Lining Part-ID: PX-23-20HC
15 Friction Plate High-Carbon. Made in USA
  • Outside Dia: 9.85"
  • Inside Dia: 7.87"
 PX-26-11HC
Friction Plate PX-26-11HC
High-Carbon. Made in USA &
  • Outside Dia: 9.85"
  • Inside Dia: 7.87"
16 O-Ring
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Material: Fluorocarbon
  • Inside Dia: 4.15
  • Inside Dia metric: 105.41
 TO-25-6V
O-Ring TO-25-6V
&
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Material: Fluorocarbon
  • Inside Dia: 4.15
  • Inside Dia metric: 105.41
16 O-Ring Hi Temperature
  • Thickness: 0.106"
  • Inside Dia: 4.15
 TO-25-6
O-Ring TO-25-6
Hi Temperature &
  • Thickness: 0.106"
  • Inside Dia: 4.15
16 O-Ring
  • Inside Dia: 4.15
  • Oversized

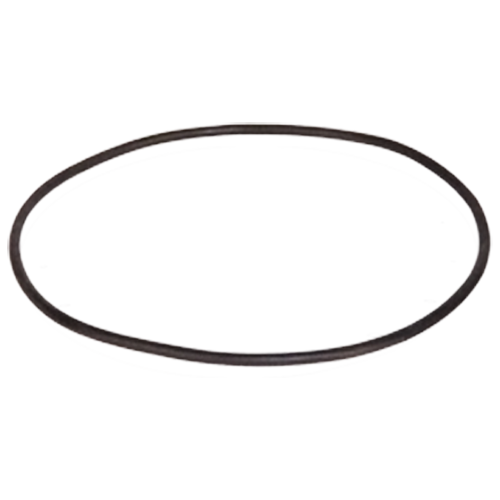

 TO-25-6A
O-Ring TO-25-6A
&
  • Inside Dia: 4.15
  • Oversized
16 O-Ring
  • Thickness: 0.122
  • Thickness metric: 3.0988
  • Material: Fluorocarbon
  • Inside Dia: 4.15
  • Inside Dia metric: 104.394
  • Oversized, Salvages Grooved Pistons
 TO-25-6X
O-Ring TO-25-6X
&
  • Thickness: 0.122
  • Thickness metric: 3.0988
  • Material: Fluorocarbon
  • Inside Dia: 4.15
  • Inside Dia metric: 104.394
  • Oversized, Salvages Grooved Pistons
17 Bearing Front cover hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.850
  • Inside Dia: 1.378
  • Outside Dia Metric: 46.99
  • Inside Dia metric: 35
 PW-9-7
Bearing PW-9-7
& Front cover hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.850
  • Inside Dia: 1.378
  • Outside Dia Metric: 46.99
  • Inside Dia metric: 35
18 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
18 Metal Clad Seal Flanged
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
 PO-25-7
Metal Clad Seal PO-25-7
Flanged &
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
