Torque Converter | ZF | ZF5HP19 (Single Friction)

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.771"
  • Installed Height: 1.760"
  • Height: 1.900"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
 PH-1-12GRC
Impeller Hub PH-1-12GRC
&
  • Journal Dia: 1.771"
  • Installed Height: 1.760"
  • Height: 1.900"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
3 Misc NPN-SPL
Misc NPN-SPL
&
3 Impeller Hub Flanged
  • Journal Dia: 1.771"
  • Installed Height: 1.733"
  • Height: 1.910"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.756"
  • Inside Dia: 2.756"
 PH-1-17FLG
Impeller Hub PH-1-17FLG
Flanged &
  • Journal Dia: 1.771"
  • Installed Height: 1.733"
  • Height: 1.910"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.756"
  • Inside Dia: 2.756"
4 Bearing
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10
Bearing PW-2-10
&
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
4 Bearing Bulletproof
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10HD
Bearing PW-2-10HD
Bulletproof &
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
5 Stator Cap
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
 PW-4-13
Stator Cap PW-4-13
&
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"

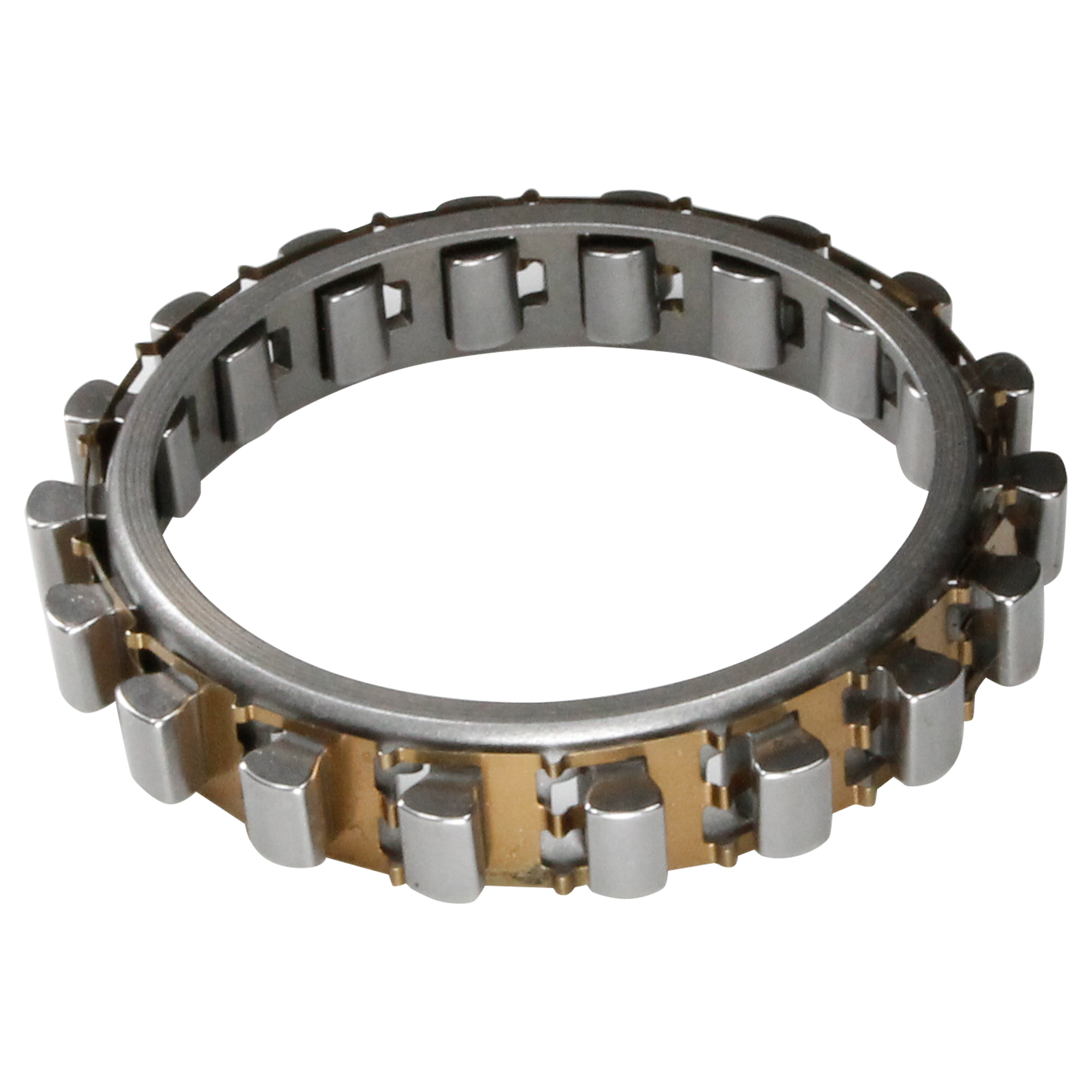

6 Sprag Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
 PC-6
Sprag PC-6
& Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
7 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
Bearing Race PW-2-3
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
8 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
9 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
10 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
 JX-23-22
Lining (Friction Ring,Wafer) JX-23-22
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
11 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
11 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
 PO-25-8
O-Ring PO-25-8
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
11 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
 TO-25-4
O-Ring TO-25-4
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
11 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
 TO-25-4A
O-Ring TO-25-4A
&
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
11 O-Ring
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
 TO-25-4X
O-Ring TO-25-4X
&
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
12 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
12 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon

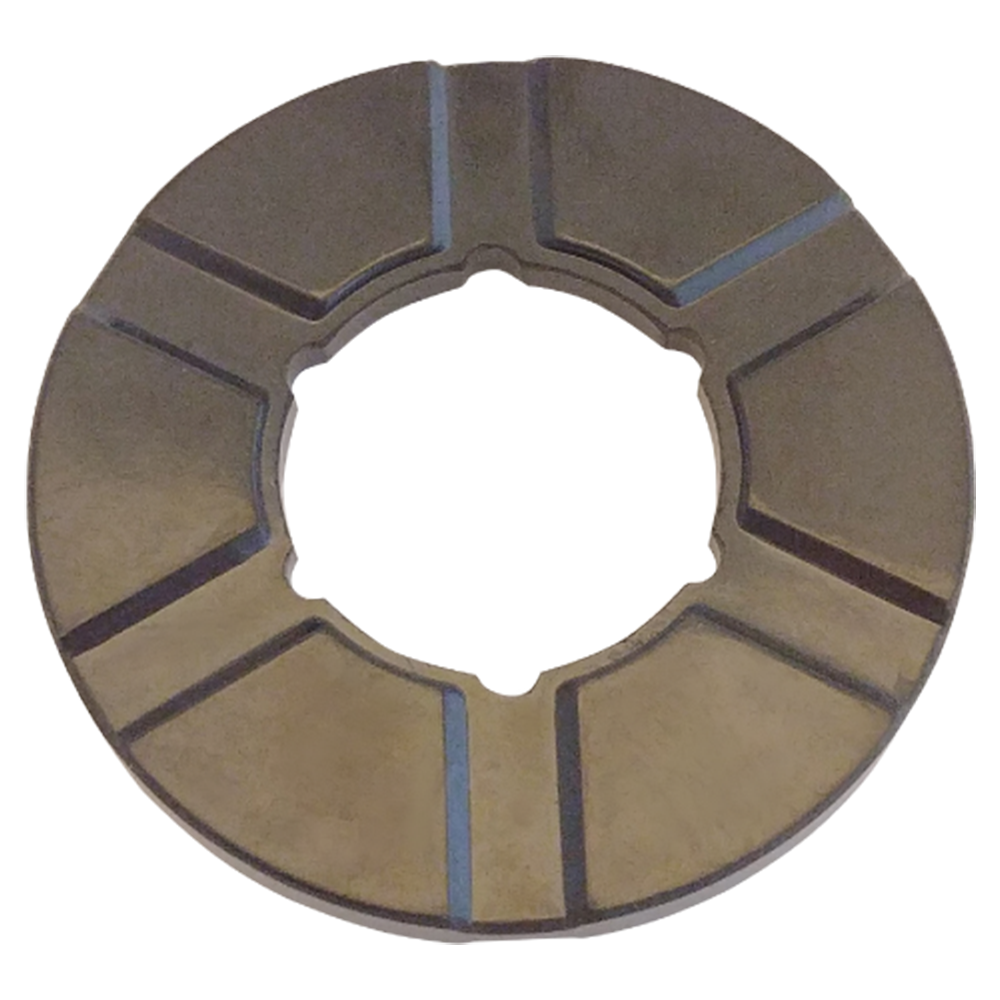

13 Turbine Washer Front cover hub. .030" Thicker than OE
  • Thickness: 0.254"
  • Material: Plastic
  • Outside Dia: 2.690"
  • Inside Dia: 1.267"
  • 0.030" Thicker than OE
 PW-9-8
Turbine Washer PW-9-8
& Front cover hub. .030" Thicker than OE
  • Thickness: 0.254"
  • Material: Plastic
  • Outside Dia: 2.690"
  • Inside Dia: 1.267"
  • 0.030" Thicker than OE
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813"
  • Inside Dia: 8.813"
 JX-23-32
Lining (Friction Ring,Wafer) JX-23-32
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813"
  • Inside Dia: 8.813"
