Torque Converter | ZF | ZF5HP19 FL (Captive Clutch)

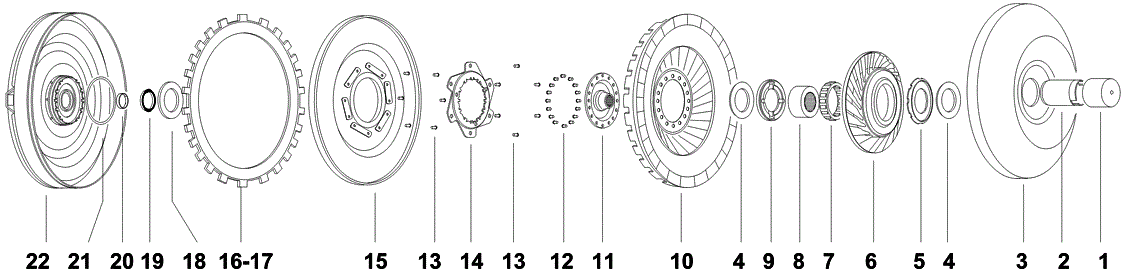

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.756
  • Inside Dia metric: 70.0024
 PO-25-1
O-Ring PO-25-1
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.756
  • Inside Dia metric: 70.0024
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
 PX-23-9
Lining (Friction Ring,Wafer) PX-23-9
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub Flanged
  • Journal Dia: 1.771"
  • Installed Height: 1.733"
  • Height: 1.910"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.756"
  • Inside Dia: 2.756"
 PH-1-17FLG

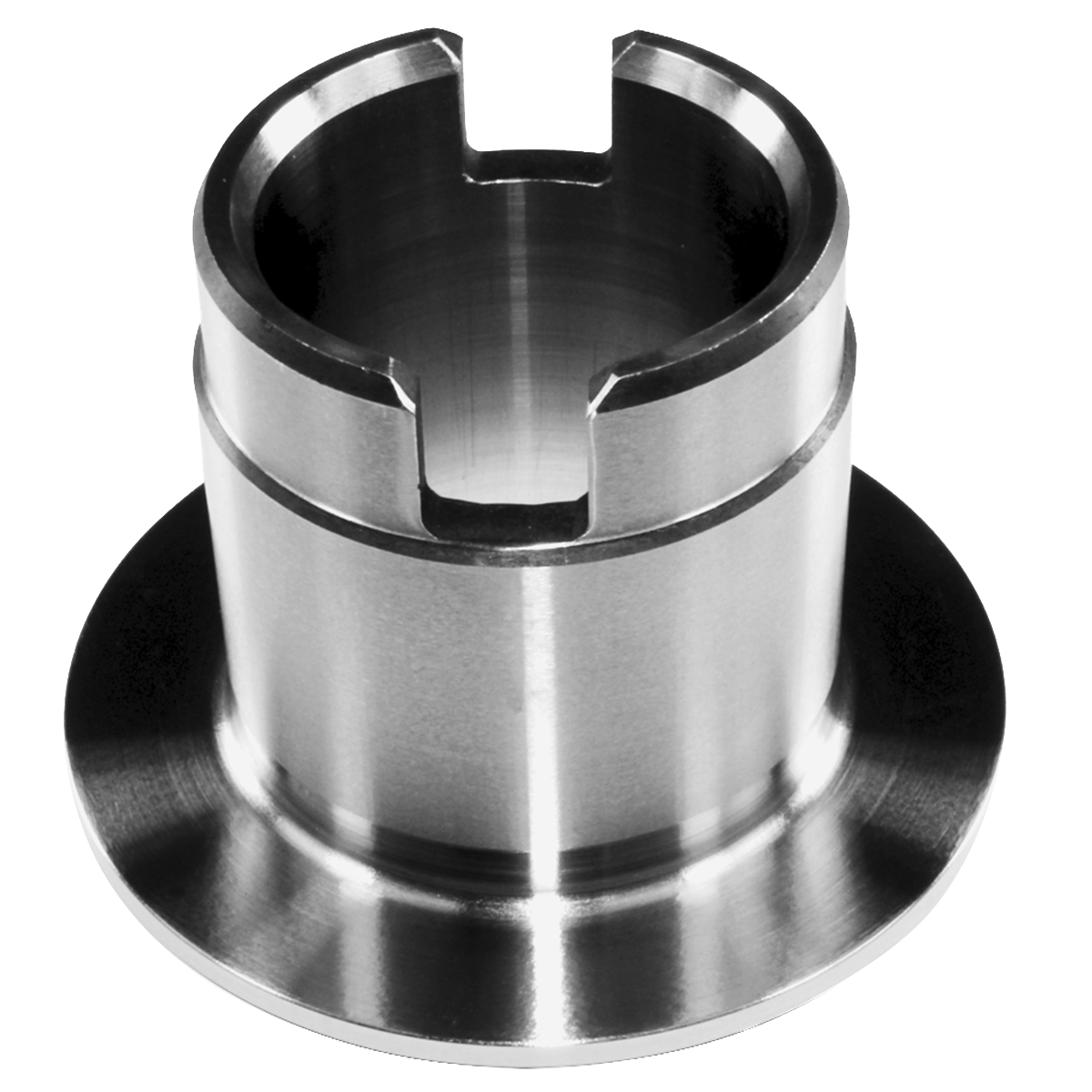

Impeller Hub PH-1-17FLG
Flanged &
  • Journal Dia: 1.771"
  • Installed Height: 1.733"
  • Height: 1.910"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.756"
  • Inside Dia: 2.756"
2 Impeller Hub
  • Journal Dia: 1.771"
  • Installed Height: 1.760"
  • Height: 1.900"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
 PH-1-12GRC

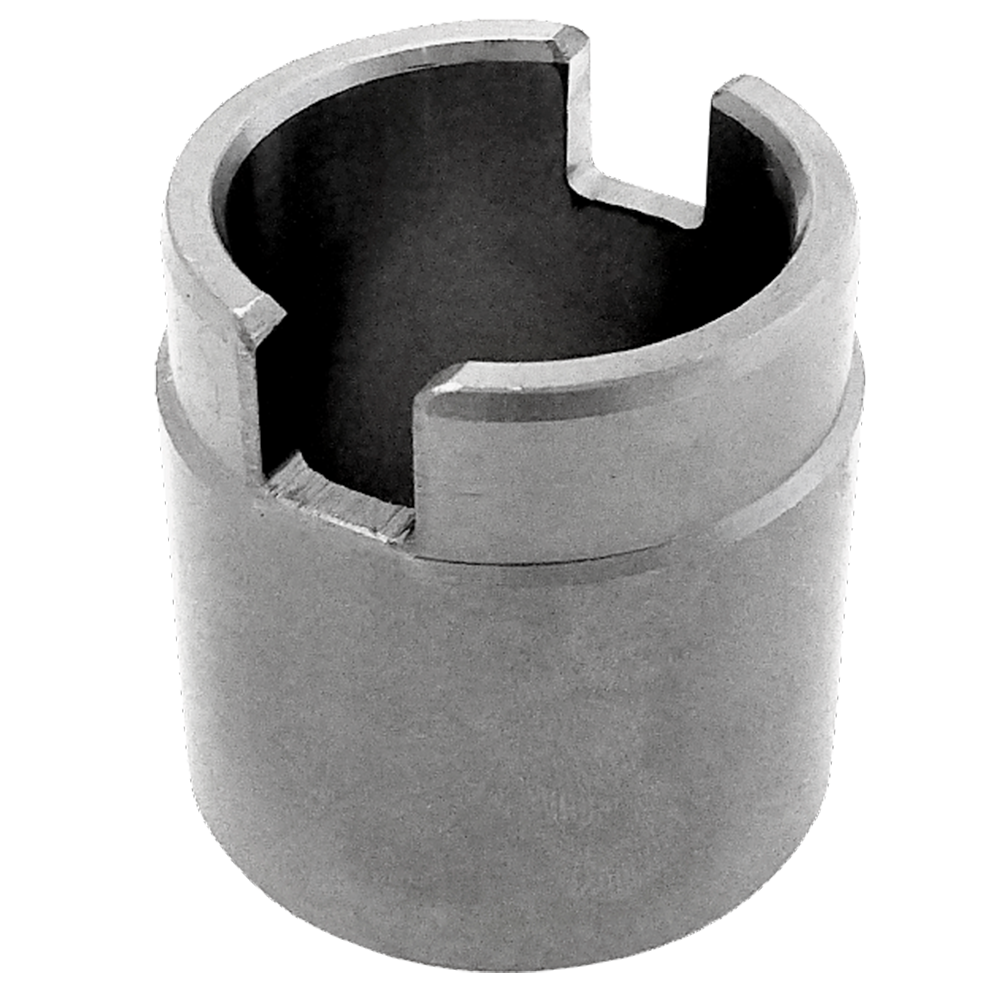

Impeller Hub PH-1-12GRC
&
  • Journal Dia: 1.771"
  • Installed Height: 1.760"
  • Height: 1.900"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
3 Impeller NPN-4-22-3
Impeller NPN-4-22-3
&
4 Bearing 2 Pieces Required.
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10
Bearing PW-2-10
& 2 Pieces Required.
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
4 Bearing Bulletproof 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10HD
Bearing PW-2-10HD
Bulletproof & 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
6 Stator NPN-4-22-6
Stator NPN-4-22-6
&
7 Sprag
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
 PC-6
Sprag PC-6
&
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
7 Sprag
  • Cam Count: 18 elements
 NPN-4-22-7
Sprag NPN-4-22-7
&
  • Cam Count: 18 elements
7 Kit Sprag Cam Repair MF-295-18K

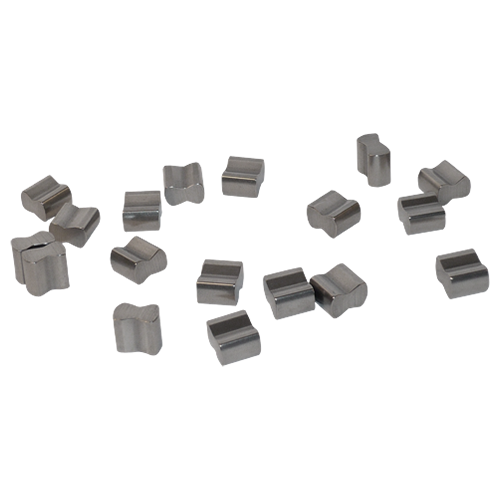

Kit MF-295-18K
Sprag Cam Repair &
8 Inner Race
  • Height: 0.725"
  • Internal Teeth: 43
  • Outside Dia: 1.957"
 NPN-4-22-8
Inner Race NPN-4-22-8
&
  • Height: 0.725"
  • Internal Teeth: 43
  • Outside Dia: 1.957"
9 Stator Cap
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
 PW-4-13

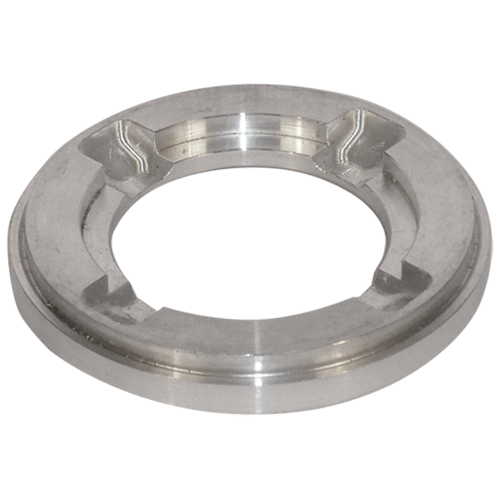

Stator Cap PW-4-13
&
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
9 Stator Cap
  • Thickness: .363"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
 PW-4-14

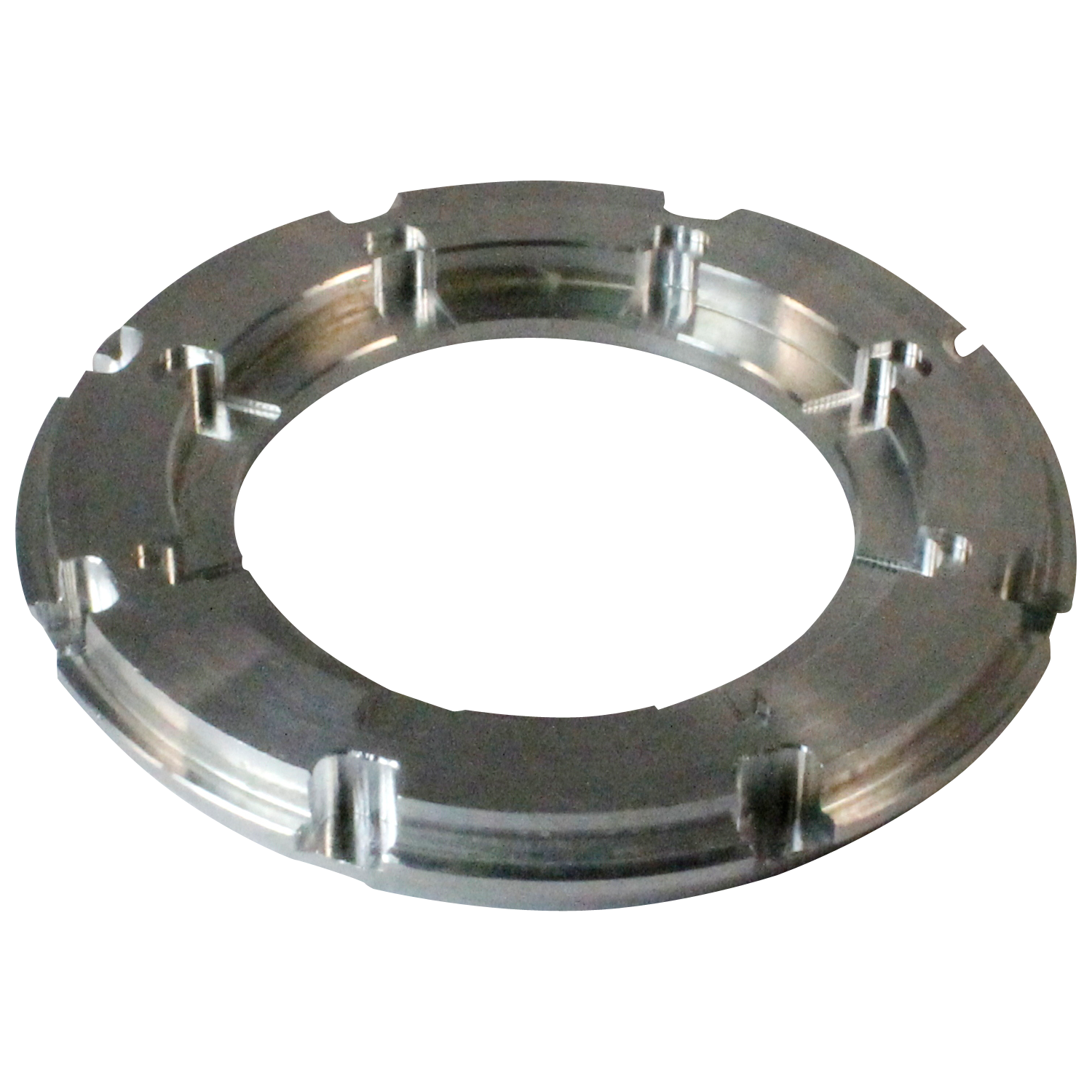

Stator Cap PW-4-14
&
  • Thickness: .363"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
10 Turbine Assembly NPN-4-22-10
Turbine NPN-4-22-10
Assembly &
11 Turbine Hub
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.015"
 PX-13-18HT
Turbine Hub PX-13-18HT
&
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.015"
12 Rivet 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
12 Rivet 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
12 Rivet 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
12 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
13 Rivet For Pressure Plate 12 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.202"
  • Rivet Head Dia: 0.28"
 PX-12-1
Rivet PX-12-1
For Pressure Plate & 12 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.202"
  • Rivet Head Dia: 0.28"
13 Rivet 6 Pieces Required.
  • Length: 0.272"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.200"
  • Rivet Head Dia: 0.280"
  • Rivet Head: Flat
 PX-12-2

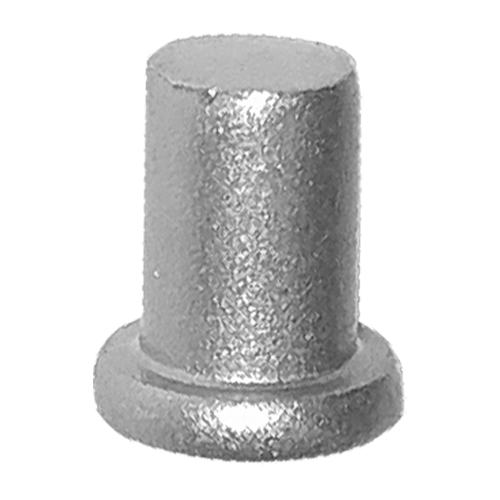

Rivet PX-12-2
& 6 Pieces Required.
  • Length: 0.272"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.200"
  • Rivet Head Dia: 0.280"
  • Rivet Head: Flat
14 Plate Spring Retainer
  • Internal Teeth: 12
  • Outside Dia: 3.09"
 PX-22-4
Plate PX-22-4
Spring Retainer &
  • Internal Teeth: 12
  • Outside Dia: 3.09"
14 Plate Retainer Repair
  • Thickness: .10"
  • Material: Steel
  • Outside Dia: 3.56"
  • Inside Dia: 2.24
 PX-22-5
Plate PX-22-5
Retainer Repair &
  • Thickness: .10"
  • Material: Steel
  • Outside Dia: 3.56"
  • Inside Dia: 2.24
15 Pressure Plate With 6 Springs PX-22-2
Pressure Plate PX-22-2
With 6 Springs &
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.438"
  • Inside Dia: 8.141"
 PX-23-12
Lining (Friction Ring,Wafer) PX-23-12
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.438"
  • Inside Dia: 8.141"
17 Friction Plate Serpentine™ Lube Grooving
  • Thickness: .14"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 10.210"
  • Inside Dia: 8.148"
  • Lining Part-ID: PX-23-12MK (Grooved).
 PX-26-7
Friction Plate PX-26-7
& Serpentine™ Lube Grooving
  • Thickness: .14"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 10.210"
  • Inside Dia: 8.148"
  • Lining Part-ID: PX-23-12MK (Grooved).
17 Friction Plate
  • Thickness: 0.14"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 10.210"
  • Inside Dia: 8.148"
  • Lining Part-ID: PX-23-14MK (Grooved).
 PX-26-8

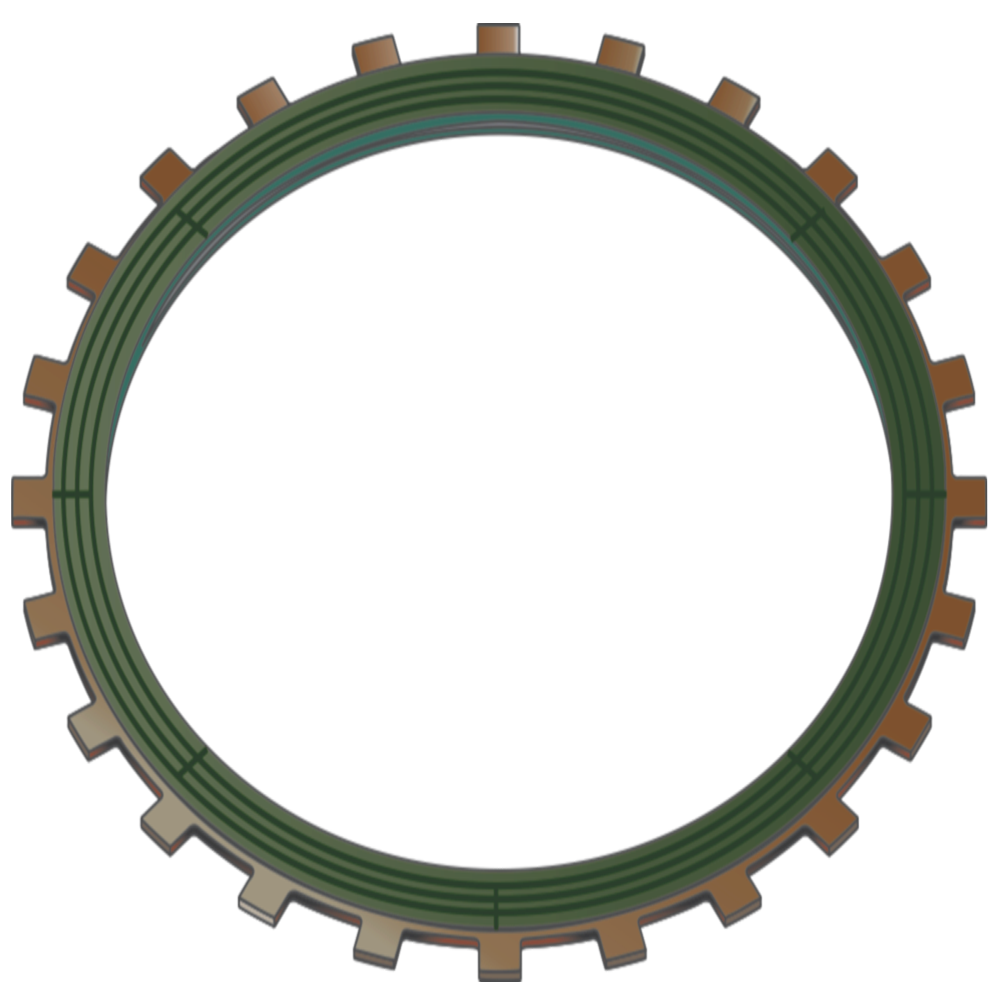

Friction Plate PX-26-8
&
  • Thickness: 0.14"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 10.210"
  • Inside Dia: 8.148"
  • Lining Part-ID: PX-23-14MK (Grooved).
18 Bearing
  • Thickness: 0.161
  • Thickness metric: 4.09
  • Bearing type: Enclosed
  • Outside Dia: 2.19
  • Inside Dia: 1.39
  • Outside Dia Metric: 55.63
  • Inside Dia metric: 35.31
 PW-2-11
Bearing PW-2-11
&
  • Thickness: 0.161
  • Thickness metric: 4.09
  • Bearing type: Enclosed
  • Outside Dia: 2.19
  • Inside Dia: 1.39
  • Outside Dia Metric: 55.63
  • Inside Dia metric: 35.31
19 Metal Clad Seal Flanged
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
 PO-25-7
Metal Clad Seal PO-25-7
Flanged &
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
19 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
20 Bushing Cover
  • Height: .45"
  • Outside Dia: 1.54"
 PB-18-3
Bushing PB-18-3
Cover &
  • Height: .45"
  • Outside Dia: 1.54"
21 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 3.307
  • Inside Dia metric: 84
 PO-25-3
O-Ring PO-25-3
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 3.307
  • Inside Dia metric: 84
22 Front Cover Assembly NPN-4-22-22
Front Cover NPN-4-22-22
Assembly &
