Torque Converter | ZF | ZF4HP18

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU

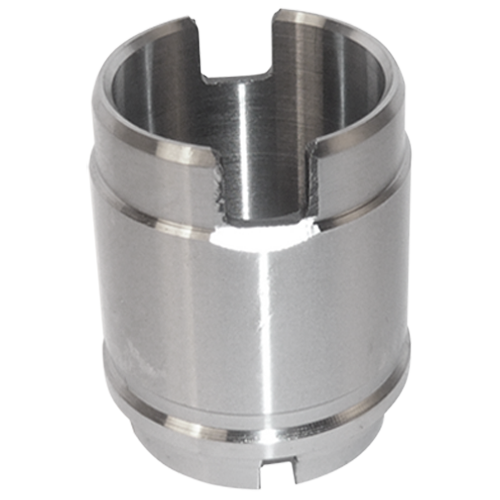

2 Impeller Hub
  • Journal Dia: 1.770"
  • Installed Height: 1.720"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-7GRC
3 Impeller NPN-4-4-3
4 Shim Impeller Side
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
4 Shim Impeller Side
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
4 Shim Impeller Side
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30
5 Bearing Race Steel Impeller Sid
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4
5 Bearing Race
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4P
6 Bearing Impeller Side
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
6 Bearing
  • Thickness: 0.125
  • Bearing type: Exposed
  • Outside Dia: 2.360"
  • Inside Dia: 1.575
  • Race: JW-2-5TT (TRA-4060) .030 thick, Race: JW-2-5T (.040 Thick), JW-2-5 (.080 Thick) .060 thick .
 FNT-4060
6 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
7 Bearing Race Turbine & Impeller Sides 2 Pieces Required.
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
8 Stator Cap
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
 PW-4-1
9 Stator NPN-4-4-9
10 Cam (Sprag Element) For VC-6-1 F-315
10 Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
10 Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
10 Cam Kit (Sprag Element) Sprag, 22 Cams MF-295-22K
11 Inner Race
  • Internal Teeth: 43
 NPN-4-4-11
12 Stator Cap
  • Thickness: 0.34"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.66"
 PW-4-10
13 Bearing
  • Thickness: 0.079
  • Thickness metric: 2.01
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.574
  • Outside Dia Metric: 60
  • Inside Dia metric: 39.98
  • Race: PW-2-3, JW-2-5TT
 PW-2-6
14 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
14 Bearing Race Turbine Side
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
15 Turbine Hub
  • Internal Teeth: 34
 NPN-4-4-15
16 Turbine NPN-4-4-16
17 Rivet Optional. Used in 2 positions (16+16) 32 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
17 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
17 Rivet 32 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
17 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
17 Rivet Used in 2 positions (16+16) 16 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12L
18 Turbine Washer
  • Thickness: 0.225"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3D
18 Turbine Washer
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3E
18 Turbine Washer
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3F
18 Washer Bronze
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3FB
19 Hub Damper
  • Internal Teeth: 22
 NPN-4-4-19
20 Gear Cup
  • External Teeth: 48
 PX-8
21 Cover Damper Assembly NPN-4-4-21
