Torque Converter | ZF | ZF NON-LOCKUP

Ill.# Image Description Specification Part #
Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
Shim FW-2-010
&
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
Shim FW-2-020
&
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
Shim FW-2-030
&
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)

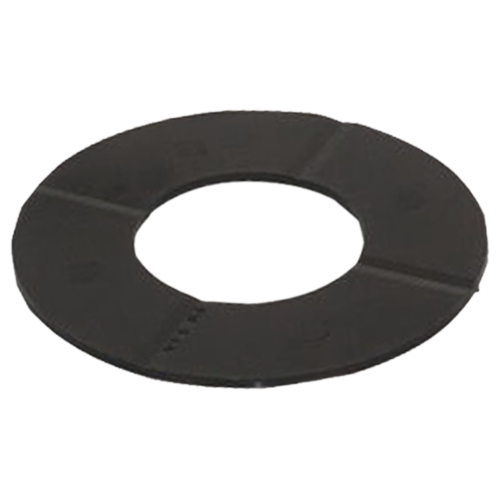

Turbine Washer
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4A
Turbine Washer FW-9-4A
&
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4AF

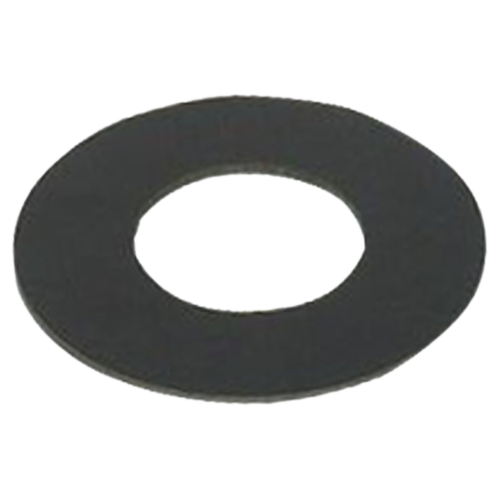

Turbine Washer FW-9-4AF
&
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4B

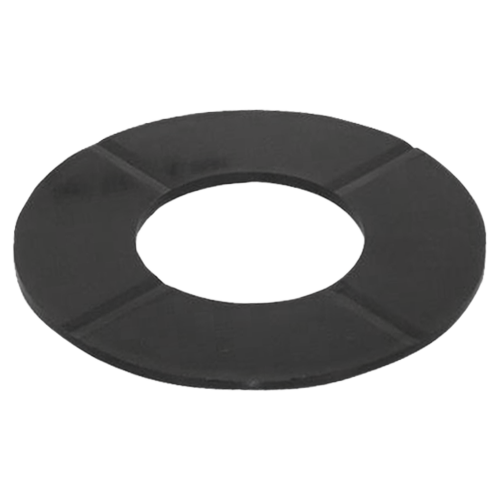

Turbine Washer FW-9-4B
&
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4BF
Turbine Washer FW-9-4BF
&
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4C
Turbine Washer FW-9-4C
&
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
Turbine Washer
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4CF
Turbine Washer FW-9-4CF
&
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
Turbine Washer
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4D

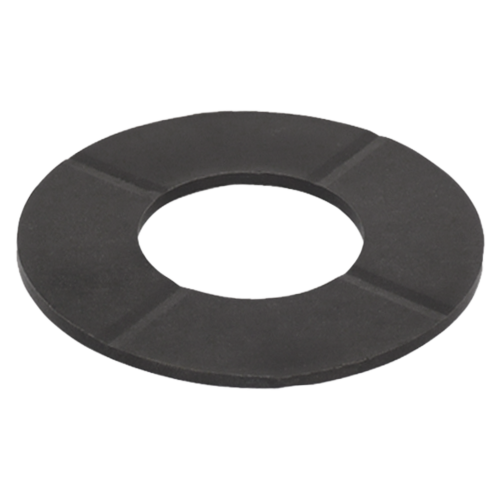

Turbine Washer FW-9-4D
&
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DF

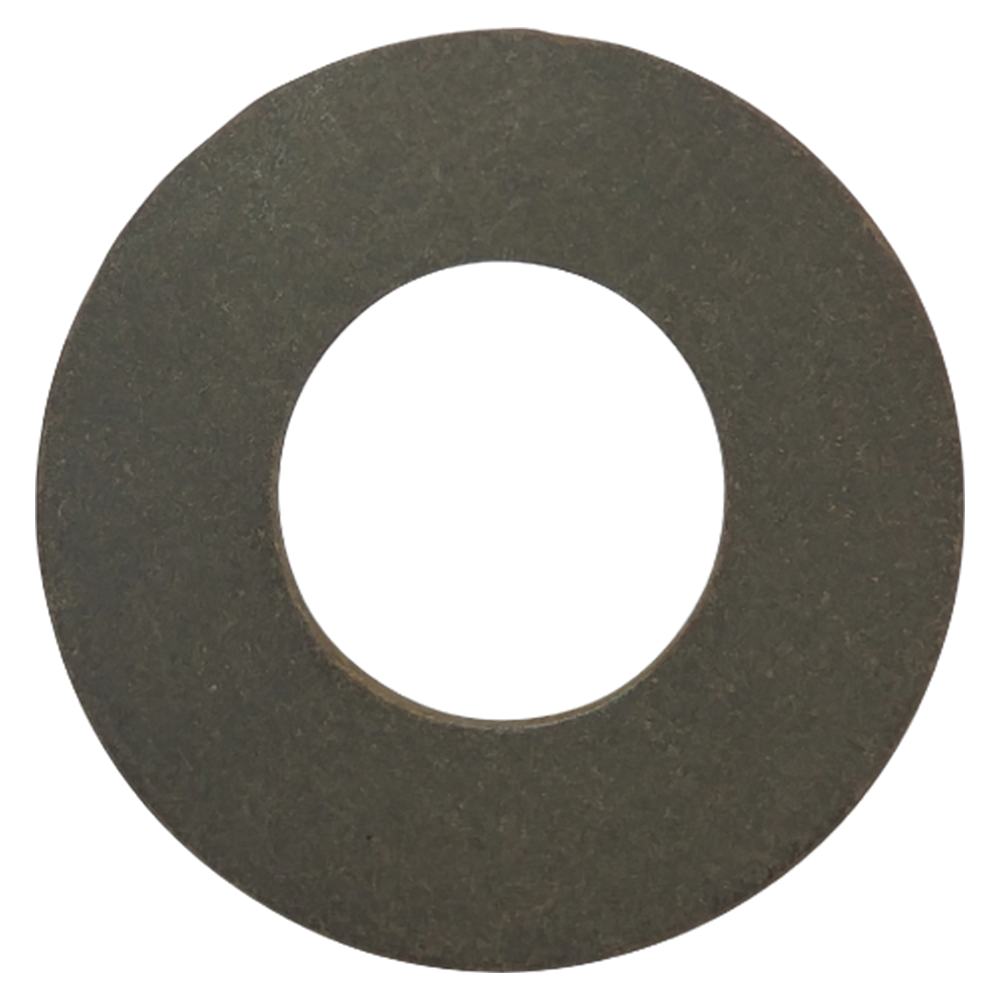

Turbine Washer FW-9-4DF
&
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DS
Turbine Washer FW-9-4DS
&
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4E
Turbine Washer FW-9-4E
&
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4EF

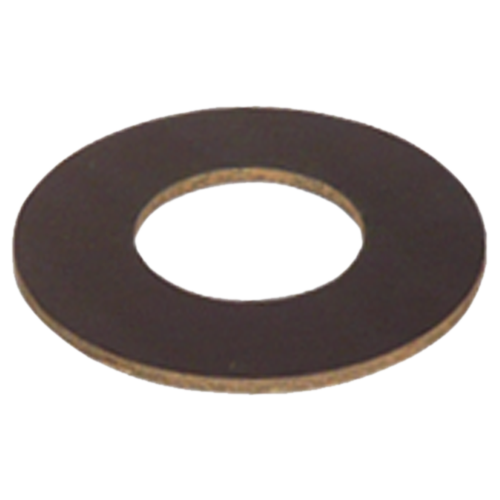

Turbine Washer FW-9-4EF
&
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4F

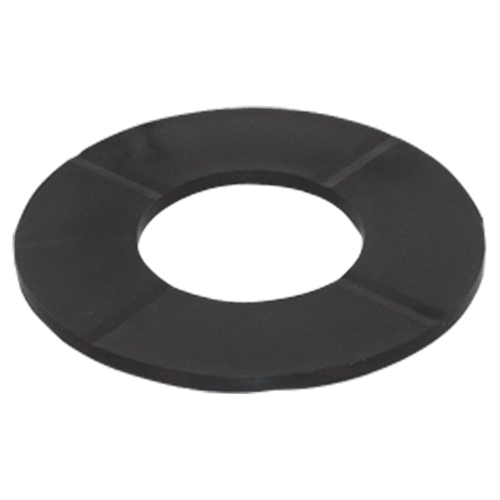

Turbine Washer FW-9-4F
&
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4FF
Turbine Washer FW-9-4FF
&
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4G
Turbine Washer FW-9-4G
&
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4GF
Turbine Washer FW-9-4GF
&
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4T

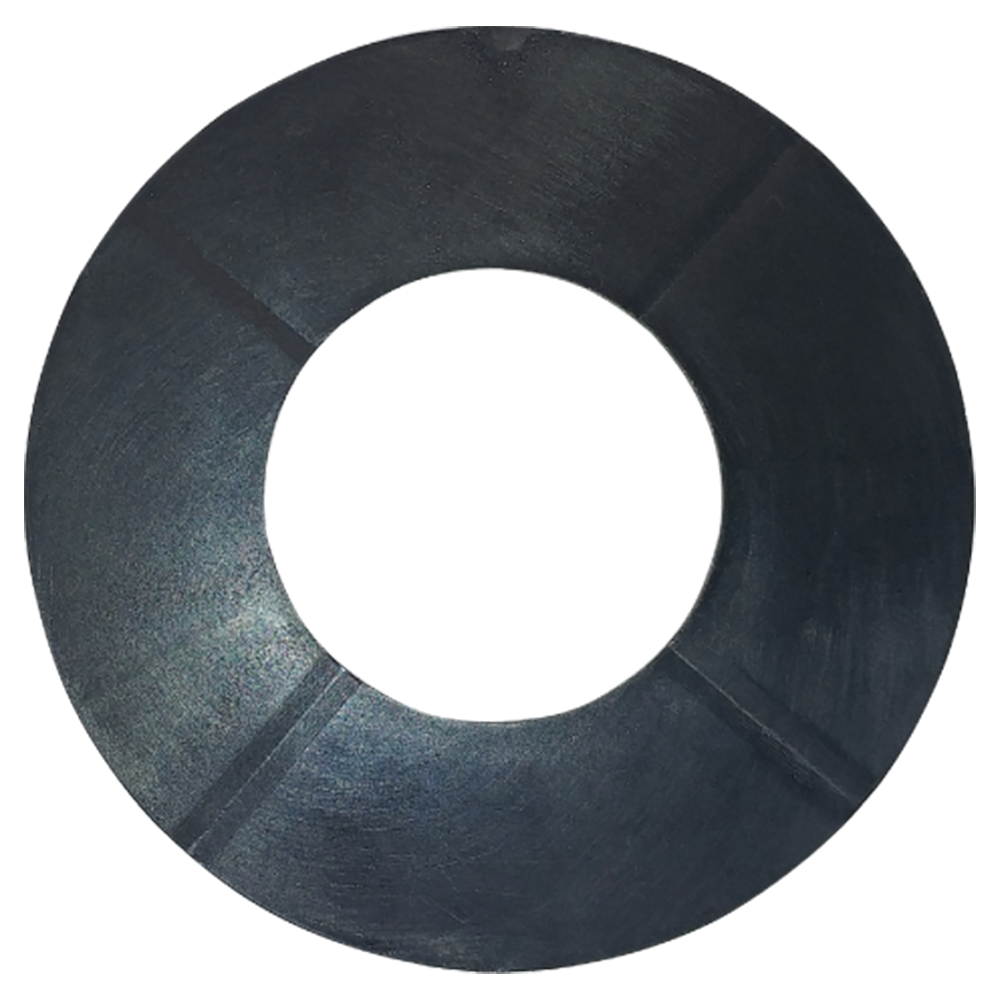

Turbine Washer FW-9-4T
&
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Turbine Washer
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4TF

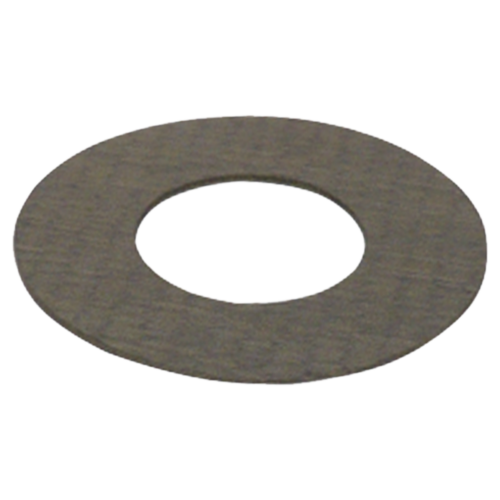

Turbine Washer FW-9-4TF
&
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
Roller Stator
  • Dia: 0.235"
  • Length: 0.47"
 PR-7

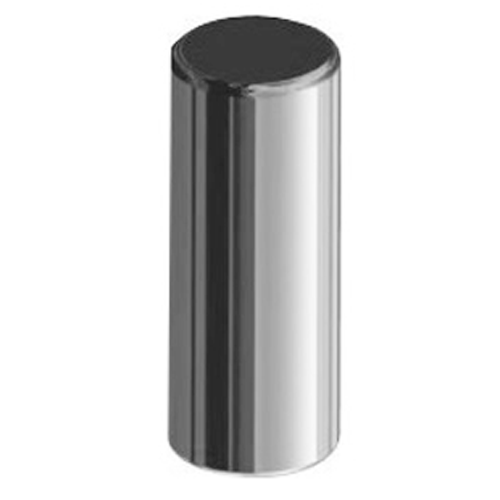

Roller PR-7
& Stator
  • Dia: 0.235"
  • Length: 0.47"

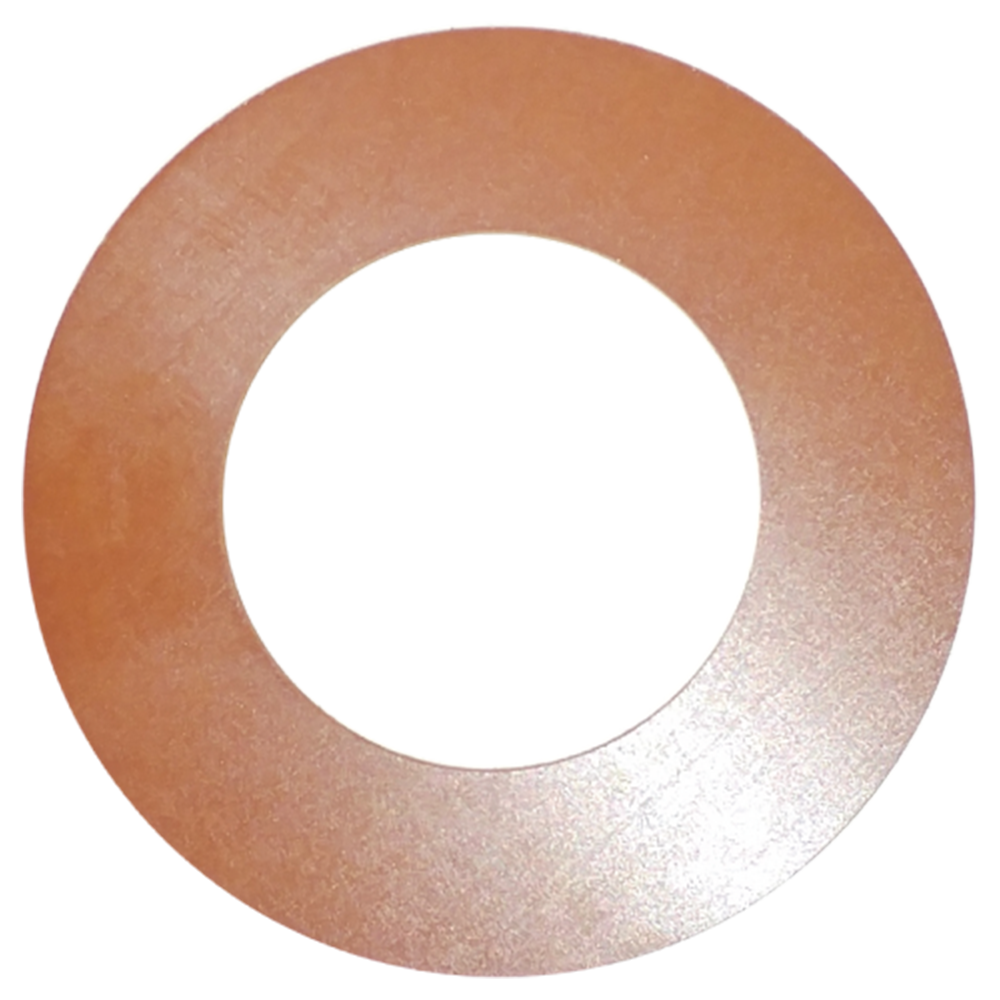

Washer
  • Material: Fiber
  • Outside Dia: 2.36"
  • Inside Dia: 1.34"
 PW-9-062
Washer PW-9-062
&
  • Material: Fiber
  • Outside Dia: 2.36"
  • Inside Dia: 1.34"
Washer
  • Material: Fiber
  • Outside Dia: 2.36"
  • Inside Dia: 1.34"
 PW-9-094

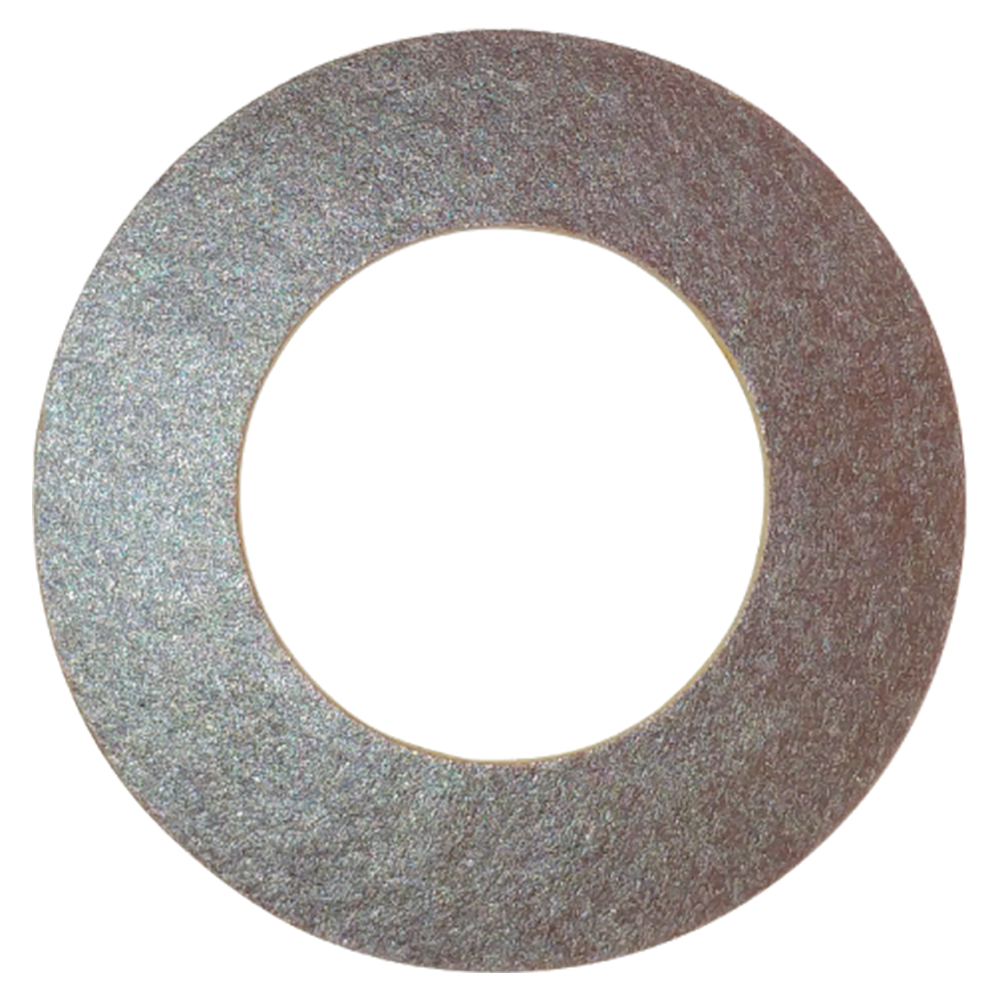

Washer PW-9-094
&
  • Material: Fiber
  • Outside Dia: 2.36"
  • Inside Dia: 1.34"
Turbine Washer Late
  • Thickness: .12"
  • Material: Fiber
  • Outside Dia: 2.74"
  • Inside Dia: 1.45"
 PW-9-1
Turbine Washer PW-9-1
& Late
  • Thickness: .12"
  • Material: Fiber
  • Outside Dia: 2.74"
  • Inside Dia: 1.45"
Turbine Hub
  • Internal Teeth: 22
  • Outside Dia: 3.5"
 PX-13-11

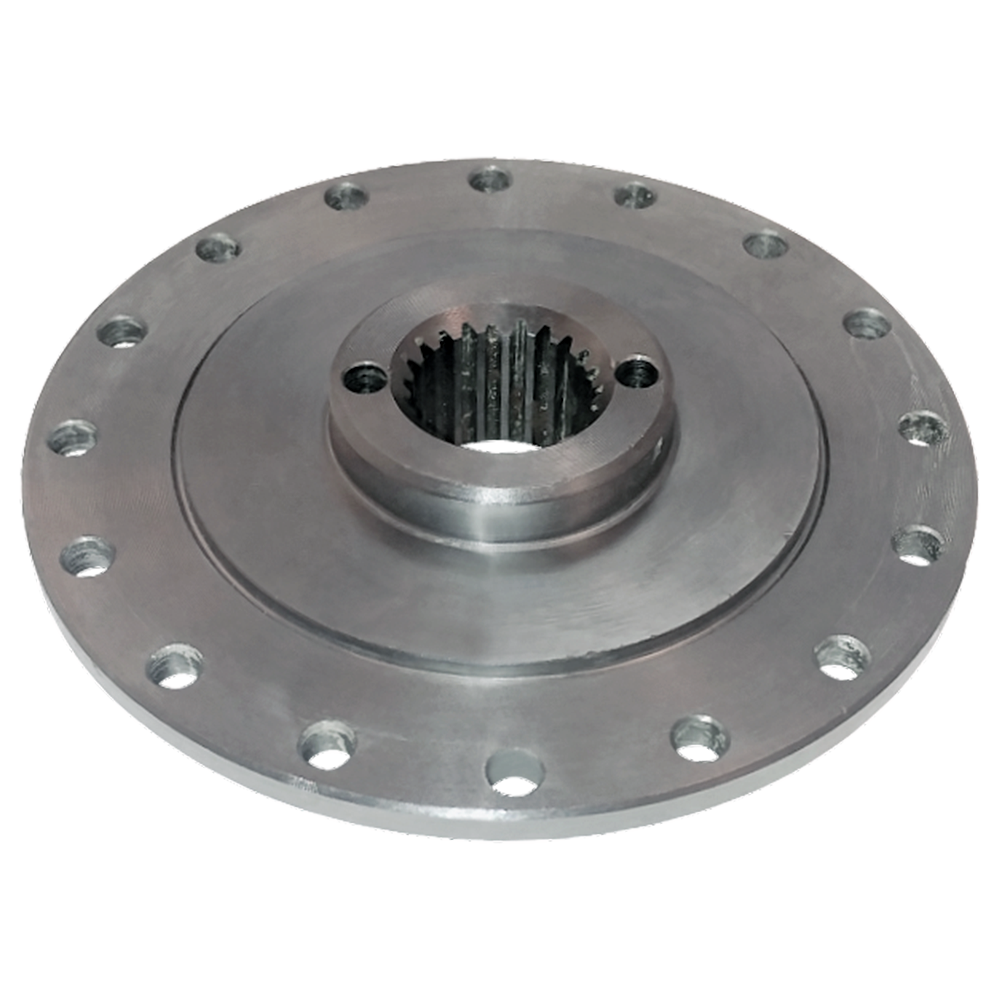

Turbine Hub PX-13-11
&
  • Internal Teeth: 22
  • Outside Dia: 3.5"
Turbine Hub
  • Internal Teeth: 22
  • Outside Dia: 3.5000
 PX-13-11HT
Turbine Hub PX-13-11HT
&
  • Internal Teeth: 22
  • Outside Dia: 3.5000
Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 3.56"
 PX-13-13

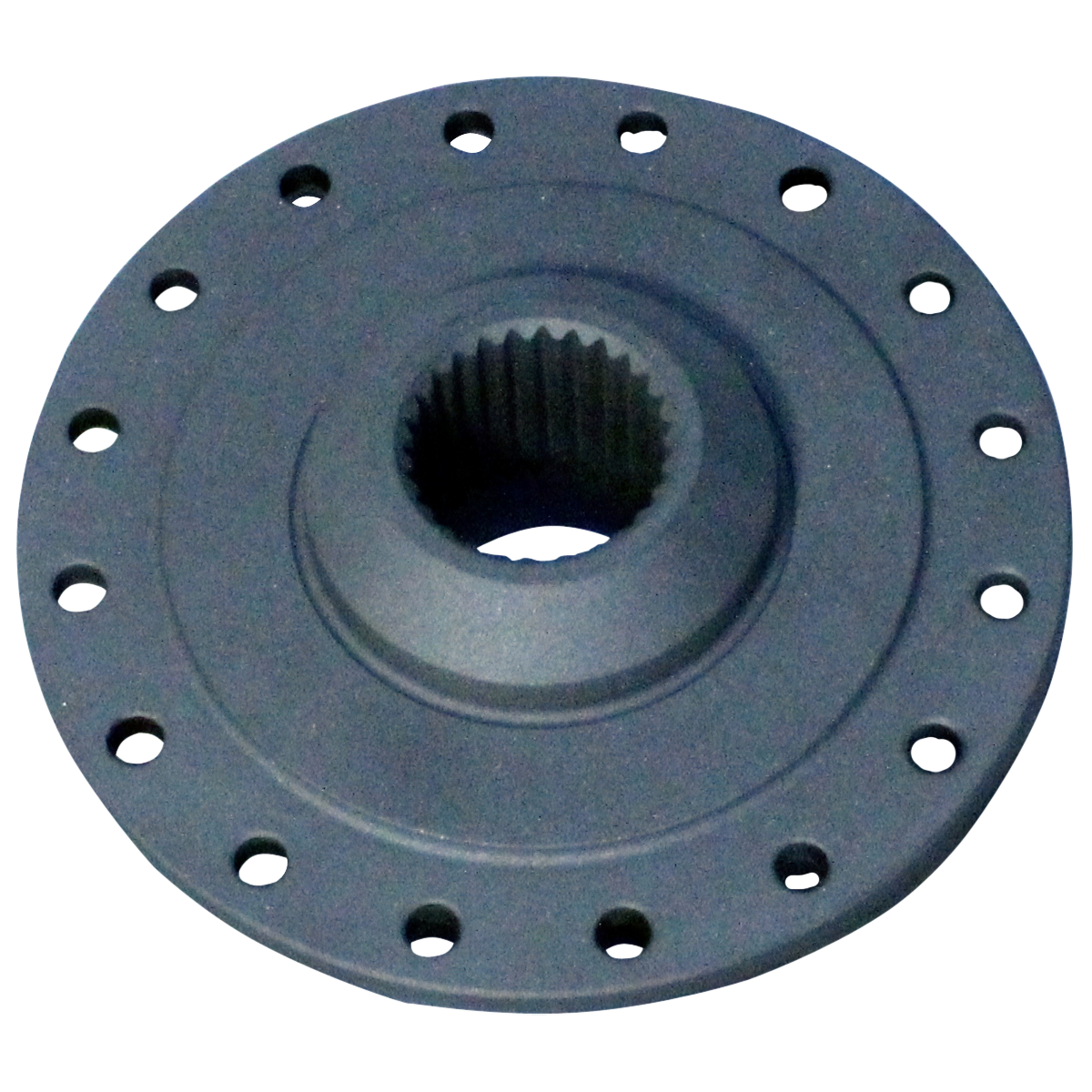

Turbine Hub PX-13-13
&
  • Internal Teeth: 27
  • Outside Dia: 3.56"
Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 3.56"
 PX-13-17
Turbine Hub PX-13-17
&
  • Internal Teeth: 27
  • Outside Dia: 3.56"
Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 3.5600
 PX-13-17HT
Turbine Hub PX-13-17HT
&
  • Internal Teeth: 27
  • Outside Dia: 3.5600
Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 3.5"
 PX-13-2

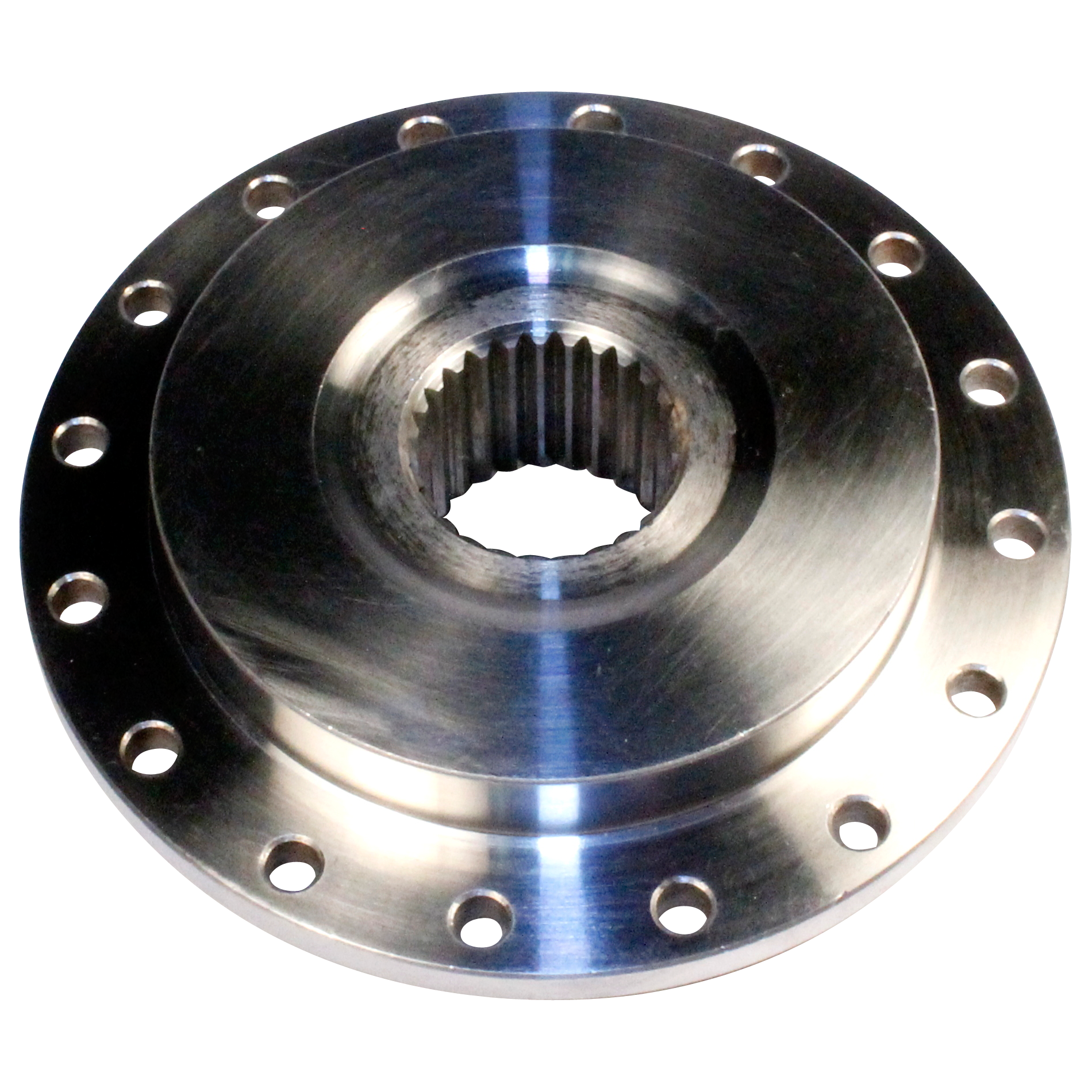

Turbine Hub PX-13-2
&
  • Internal Teeth: 27
  • Outside Dia: 3.5"
Insert Ez-Weld™
  • Height: 1.380
  • Internal Teeth: 27
  • Outside Dia: 1.258"
  • With Seal Bore
 PX-13-27L

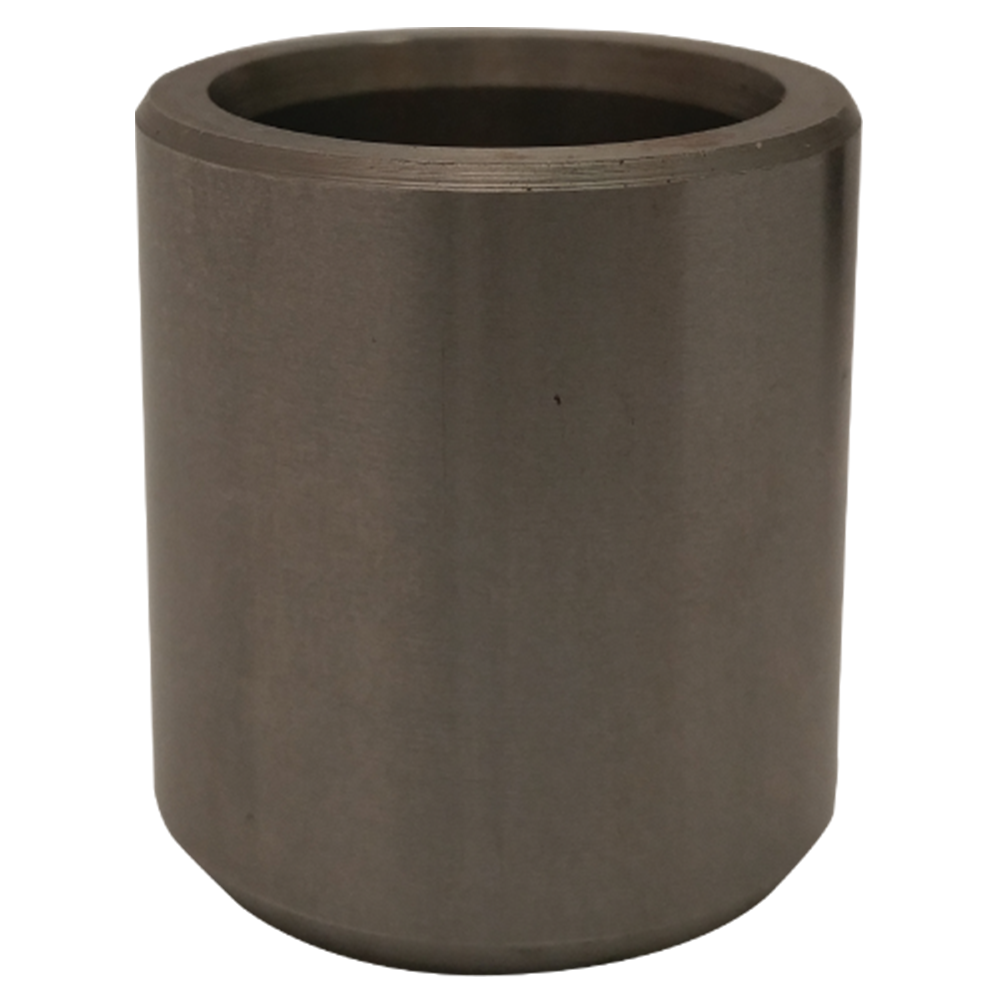

Insert PX-13-27L
Ez-Weld™ &
  • Height: 1.380
  • Internal Teeth: 27
  • Outside Dia: 1.258"
  • With Seal Bore
Insert For Range Rover
  • Height: 1.50"
  • Internal Teeth: 27
  • Outside Dia: 1.31"
  • With Seal Bore
 PX-13-27LR
Insert PX-13-27LR
& For Range Rover
  • Height: 1.50"
  • Internal Teeth: 27
  • Outside Dia: 1.31"
  • With Seal Bore
Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 3.5000
 PX-13-2HT
Turbine Hub PX-13-2HT
&
  • Internal Teeth: 27
  • Outside Dia: 3.5000
Turbine Hub
  • Internal Teeth: 29
  • Outside Dia: 3.50"
  • Uses 16 rivets (PX-12 or PX-12L)
 PX-13-3

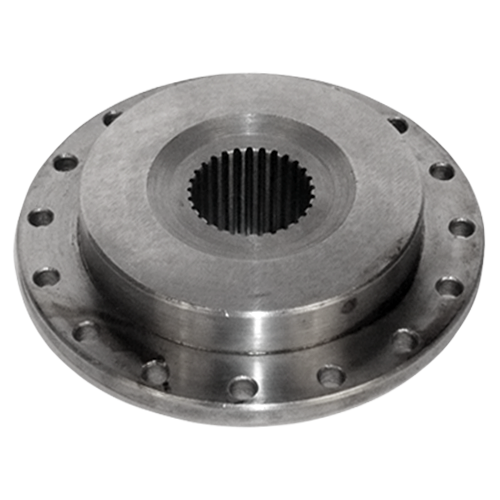

Turbine Hub PX-13-3
&
  • Internal Teeth: 29
  • Outside Dia: 3.50"
  • Uses 16 rivets (PX-12 or PX-12L)

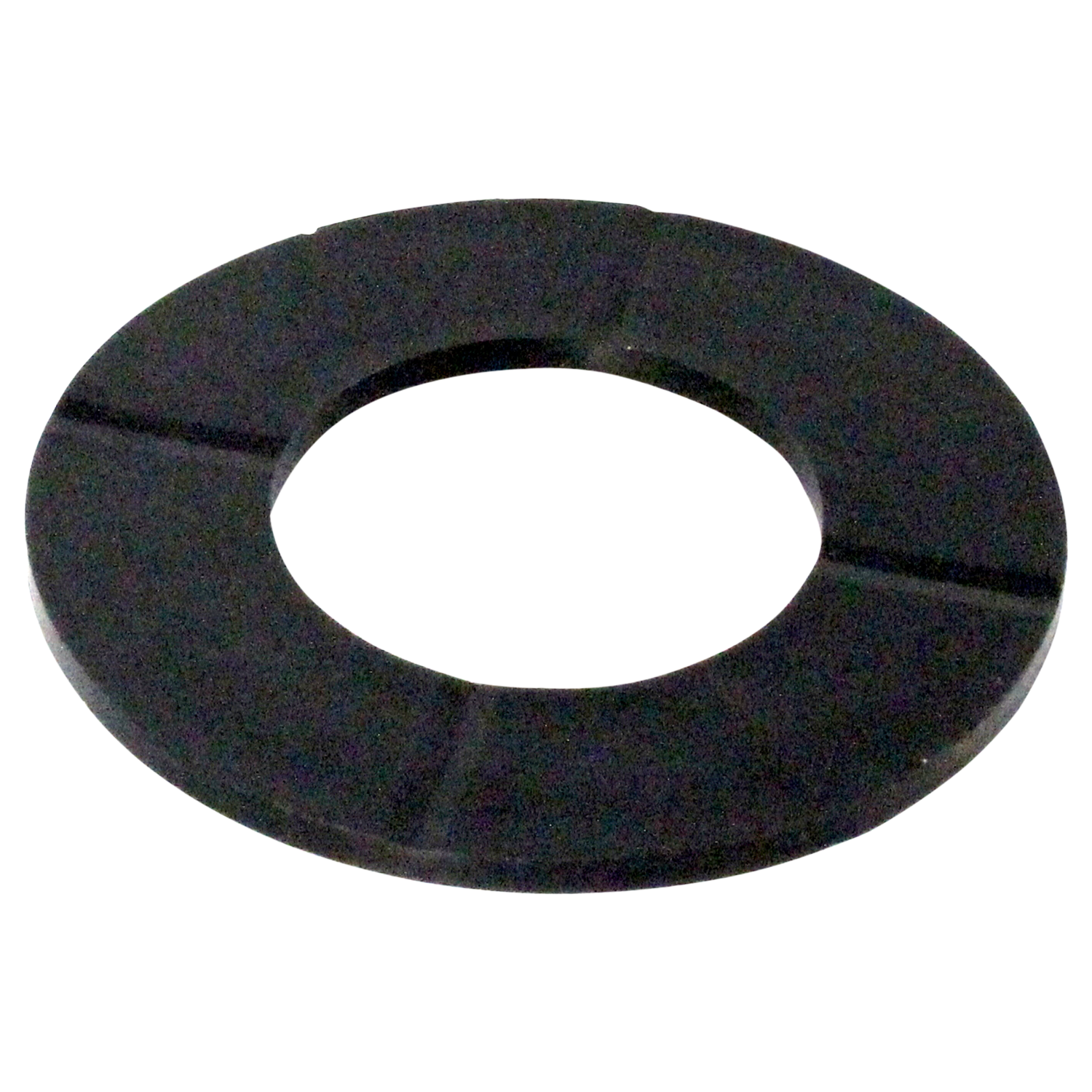

Turbine Washer
  • Thickness: .118"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 SW-9
Turbine Washer SW-9
&
  • Thickness: .118"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
Turbine Washer
  • Thickness: .132"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 SW-9-1
Turbine Washer SW-9-1
&
  • Thickness: .132"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
Turbine Washer
  • Thickness: 0.125"
  • Material: Nylon
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 SW-9-1F
Turbine Washer SW-9-1F
&
  • Thickness: 0.125"
  • Material: Nylon
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
Washer
  • Thickness: .160"
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 SW-9-3
Washer SW-9-3
&
  • Thickness: .160"
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
Turbine Washer
  • Thickness: 0.160"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 SW-9-3F
Turbine Washer SW-9-3F
&
  • Thickness: 0.160"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
Turbine Washer
  • Thickness: 0.118"
  • Material: Fiber
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 SW-9F

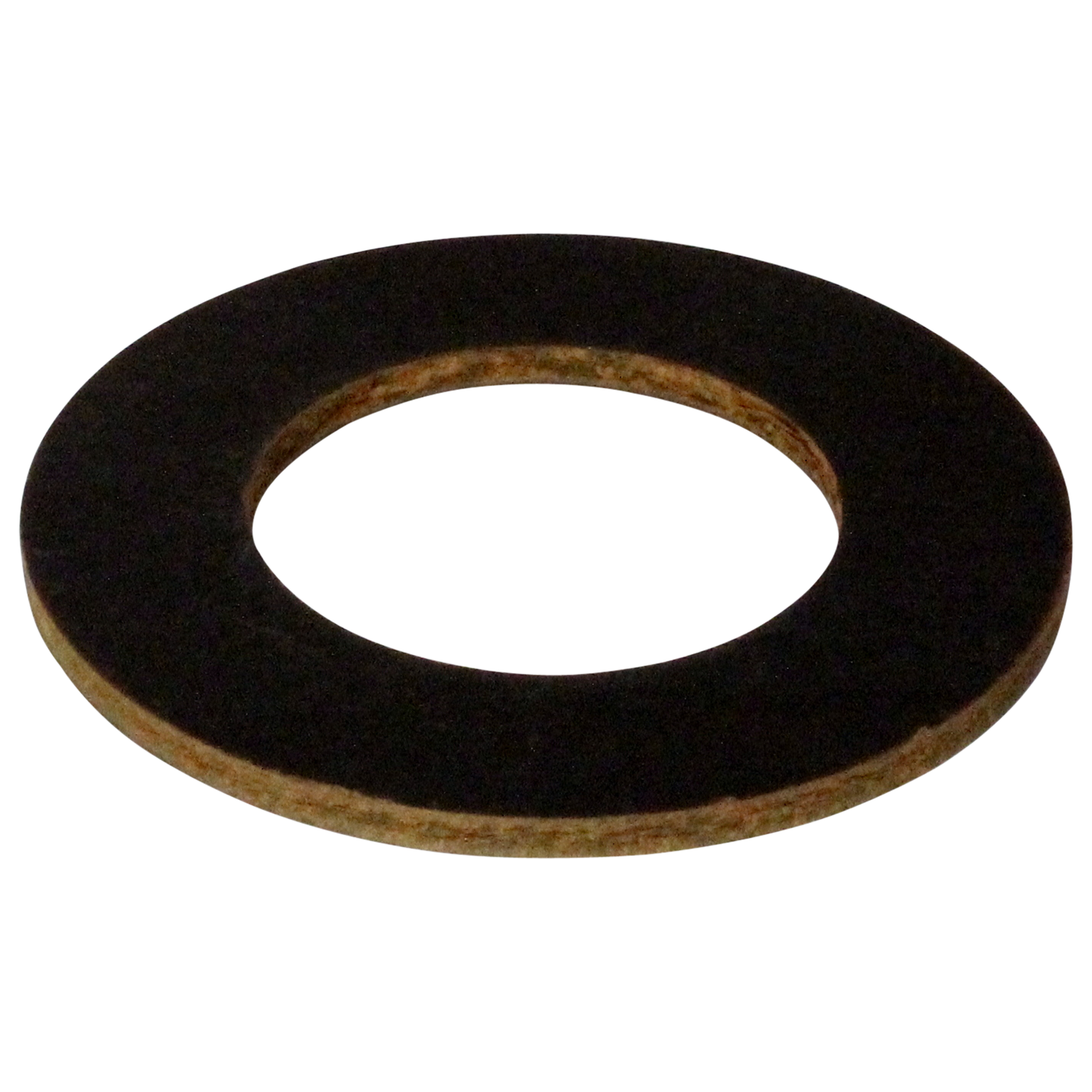

Turbine Washer SW-9F
&
  • Thickness: 0.118"
  • Material: Fiber
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
Shim
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
Shim TW-2-10
&
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
Shim TW-2X
&
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
Shim TW-2X10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
Shim TW-2X30
&
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
Shim TW-2X-30
&
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
Turbine Washer
  • Thickness: .130"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 TW-9-5C
Turbine Washer TW-9-5C
&
  • Thickness: .130"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 TW-9-5CF
Turbine Washer TW-9-5CF
&
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
