Torque Converter | ZF | Volkswagen Stick Auto (Antique)

Ill.# Image Description Specification Part #
Cam (Sprag Element) For VC-6-1 F-315
Pilot Unfinished
  • Length: .88"
  • Outside Dia: 0.875
 FX-17-30
Roller
  • Dia: 0.235"
  • Length: 0.47"
 PR-7
Ring Gear
  • External Teeth: 130
  • Outside Dia: 10.88"
  • Inside Dia: 9.99"
 RG-130V
Shim
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-010
Shim
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-020
Shim
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-030
Shim
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
 TW-9-9

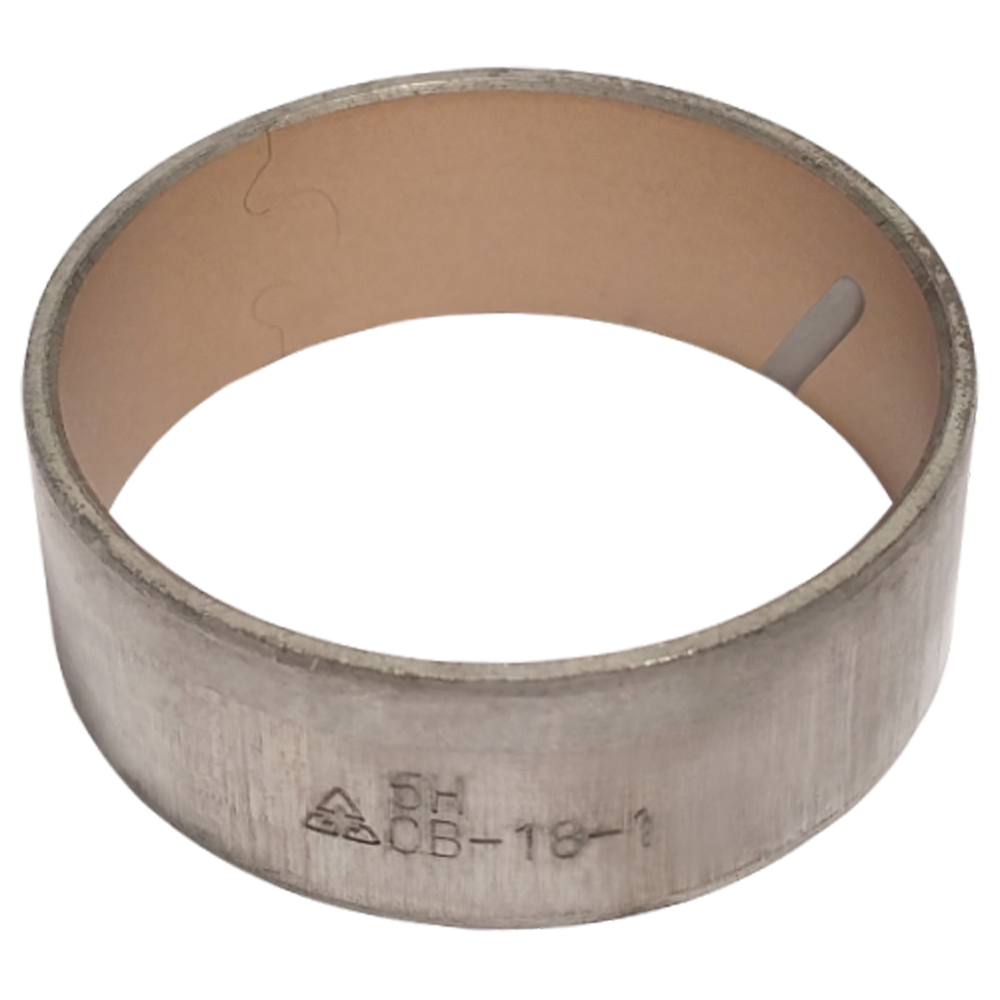

Bushing
  • Thickness: 0.551"
  • Housing Bore Dia: 1.535"
  • Shaft Dia: 1.415"
  • Material: Bronze
 VB-18-1
Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P

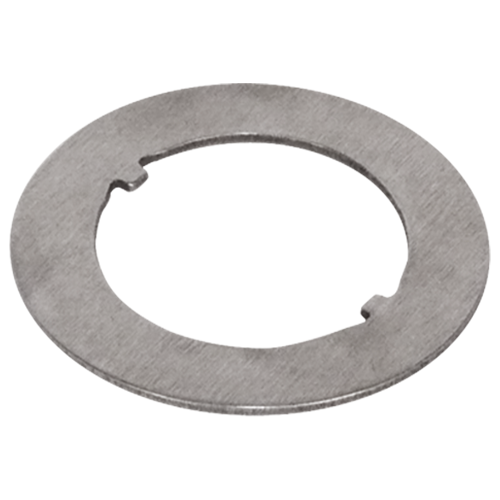

Washer Steel VW-2-1
Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
Shim
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30

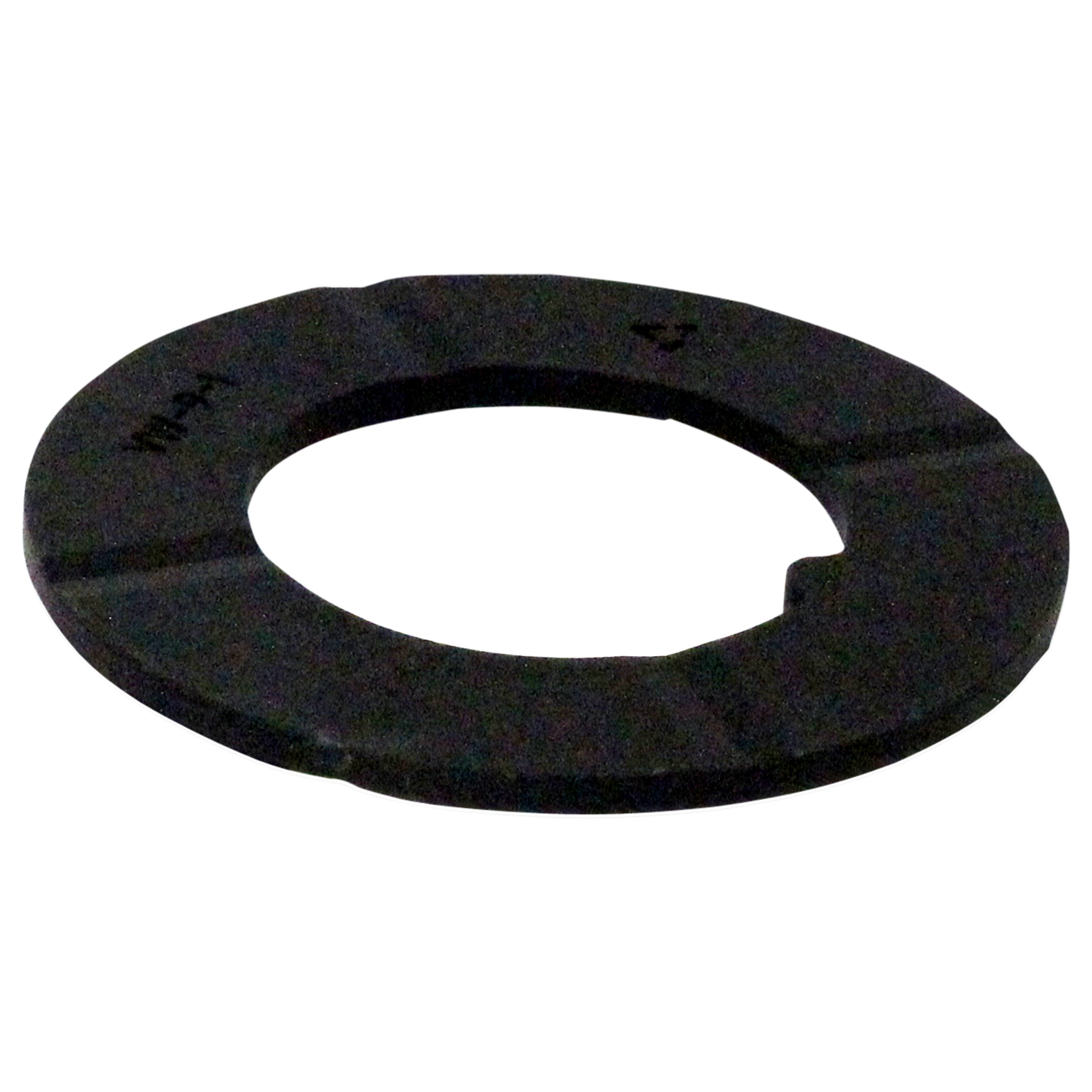

Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.36"
  • Inside Dia: 1.33"
 VW-9-1
Shim
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"
 VW-9-2

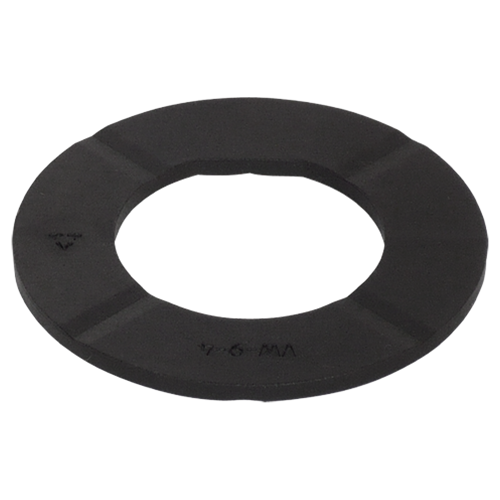

Washer
  • Material: Plastic
  • Outside Dia: 2.36"
  • Inside Dia: 1.33"
 VW-9-4
Turbine Hub VX-13-1
Inner Race Stator, 41 teeth ROLLER TYPE (VX-14-3) VX-14-1

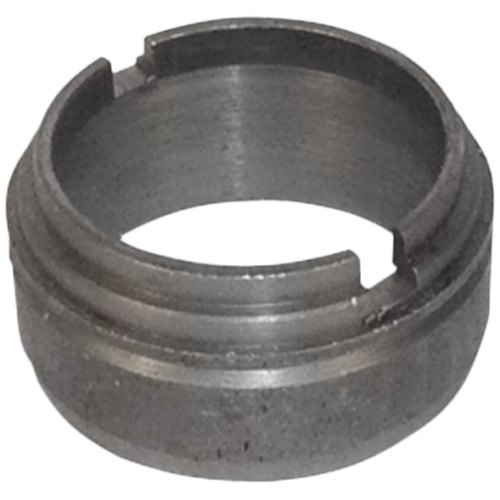

Impeller Hub Unfinished, Volskwagen
  • Journal Dia: 1.767"
  • Installed Height: .580"
  • Hub Mount: Thru
 VH-1-1

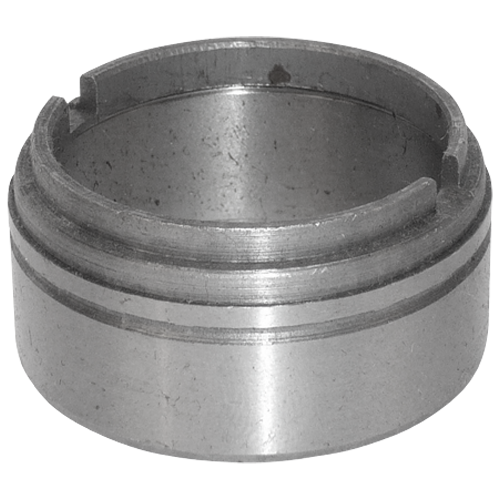

Impeller Hub
  • Journal Dia: 1.767"
  • Installed Height: .580"
  • Hub Mount: Thru
 VH-1-1G
