Torque Converter | ZF | Miscellaneous ZF

Ill.# Image Description Specification Part #

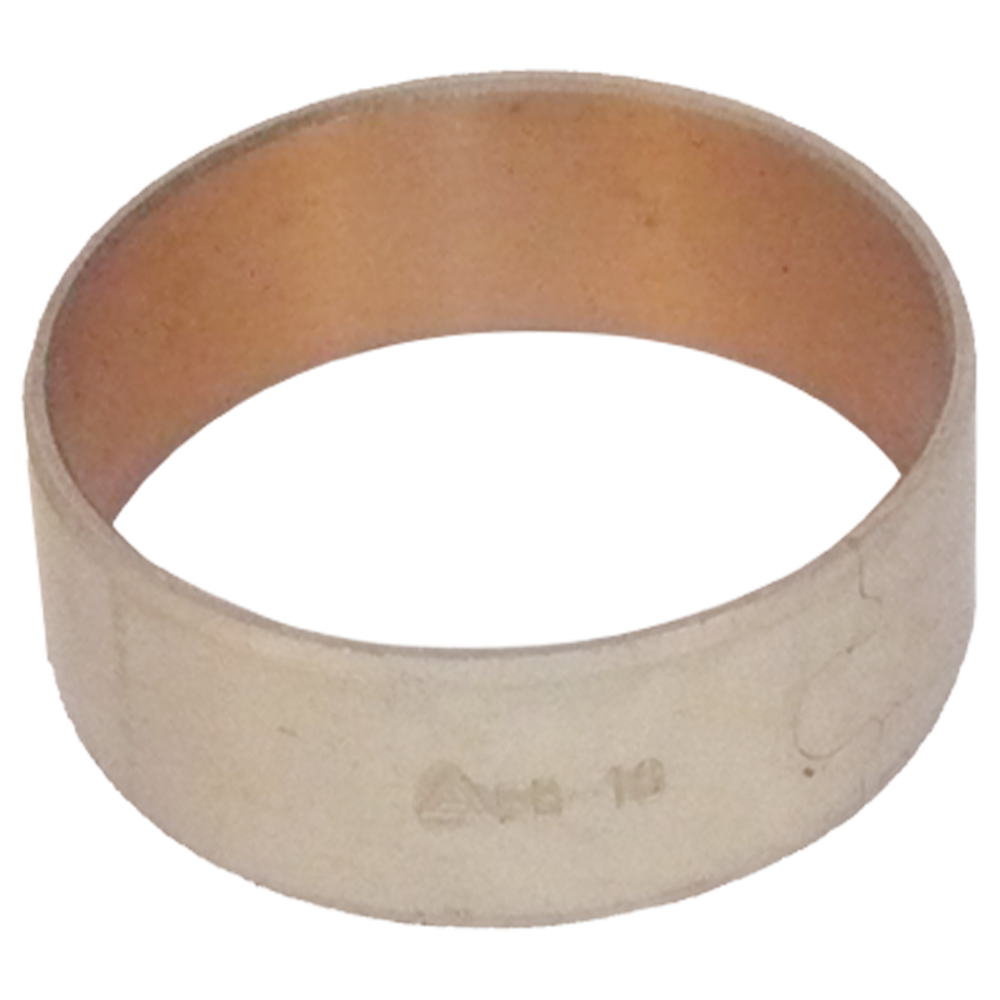

Bushing Hub, OE, Citroen Verto
  • Thickness: 0.583"
  • Housing Bore Dia: 1.74"
  • Shaft Dia: 1.618"
  • Material: Babbit
 EB-18
Bushing EB-18
Hub, OE, Citroen Verto &
  • Thickness: 0.583"
  • Housing Bore Dia: 1.74"
  • Shaft Dia: 1.618"
  • Material: Babbit
Lining (Friction Ring,Wafer) For PX-26-16 clutch plate, With Cut-outs
  • Thickness: 0.045"
  • Material: Red, With Cut-outs
  • Outside Dia: 8.617"
  • Inside Dia: 7.335"
 PX-23-26
Lining (Friction Ring,Wafer) PX-23-26
For PX-26-16 clutch plate, With Cut-outs &
  • Thickness: 0.045"
  • Material: Red, With Cut-outs
  • Outside Dia: 8.617"
  • Inside Dia: 7.335"
Friction Plate
  • Thickness: .14"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
  • Lining Part-ID: PX-23-22HC
PX-26-12
Friction Plate PX-26-12
&
  • Thickness: .14"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
  • Lining Part-ID: PX-23-22HC
Friction Plate High-Carbon, Heavy-Duty, ZF6HP26 2.7L
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
 PX-26-12HC
Friction Plate PX-26-12HC
High-Carbon, Heavy-Duty, ZF6HP26 2.7L &
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
Friction Plate Kevlar, ZF6HP26 2.7L
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
 PX-26-12K
Friction Plate PX-26-12K
Kevlar, ZF6HP26 2.7L &
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
Friction Plate
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
 PX-26-12N
Friction Plate PX-26-12N
&
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
Friction Plate Tan, ZF6HP26 2.7L
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
 PX-26-12T
Friction Plate PX-26-12T
Tan, ZF6HP26 2.7L &
  • Outside Dia: 8.08"
  • Inside Dia: 6.30"
Steel Clutch-Plate
  • Thickness: .11"
  • Internal Teeth: 24
  • Outside Dia: 7.56"
  • Inside Dia: 5.71"
 PX-26-13
Steel Clutch-Plate PX-26-13
&
  • Thickness: .11"
  • Internal Teeth: 24
  • Outside Dia: 7.56"
  • Inside Dia: 5.71"
Friction Plate ZF6HP26 275mm
  • Thickness: 0.109"
  • External Teeth: 20
  • Lining Count: 2
  • Outside Dia: 9.060"
  • Inside Dia: 7.283"
  • Lining Part-ID: PX-23-24T
PX-26-15
Friction Plate PX-26-15
ZF6HP26 275mm &
  • Thickness: 0.109"
  • External Teeth: 20
  • Lining Count: 2
  • Outside Dia: 9.060"
  • Inside Dia: 7.283"
  • Lining Part-ID: PX-23-24T
Lockup Clutch
  • Height: 0.278"
  • Thickness: 0.114"
  • External Teeth: 30
  • Thickness metric: 2.9mm
  • Lining Count: 2
  • Outside Dia: 9.355"
  • Inside Dia: 7.325"
  • Outside Dia Metric: 237.6mm
  • Inside Dia metric: 186.0mm
  • Lining Part-ID: PX-23-26T
 PX-26-16
Lockup Clutch PX-26-16
&
  • Height: 0.278"
  • Thickness: 0.114"
  • External Teeth: 30
  • Thickness metric: 2.9mm
  • Lining Count: 2
  • Outside Dia: 9.355"
  • Inside Dia: 7.325"
  • Outside Dia Metric: 237.6mm
  • Inside Dia metric: 186.0mm
  • Lining Part-ID: PX-23-26T

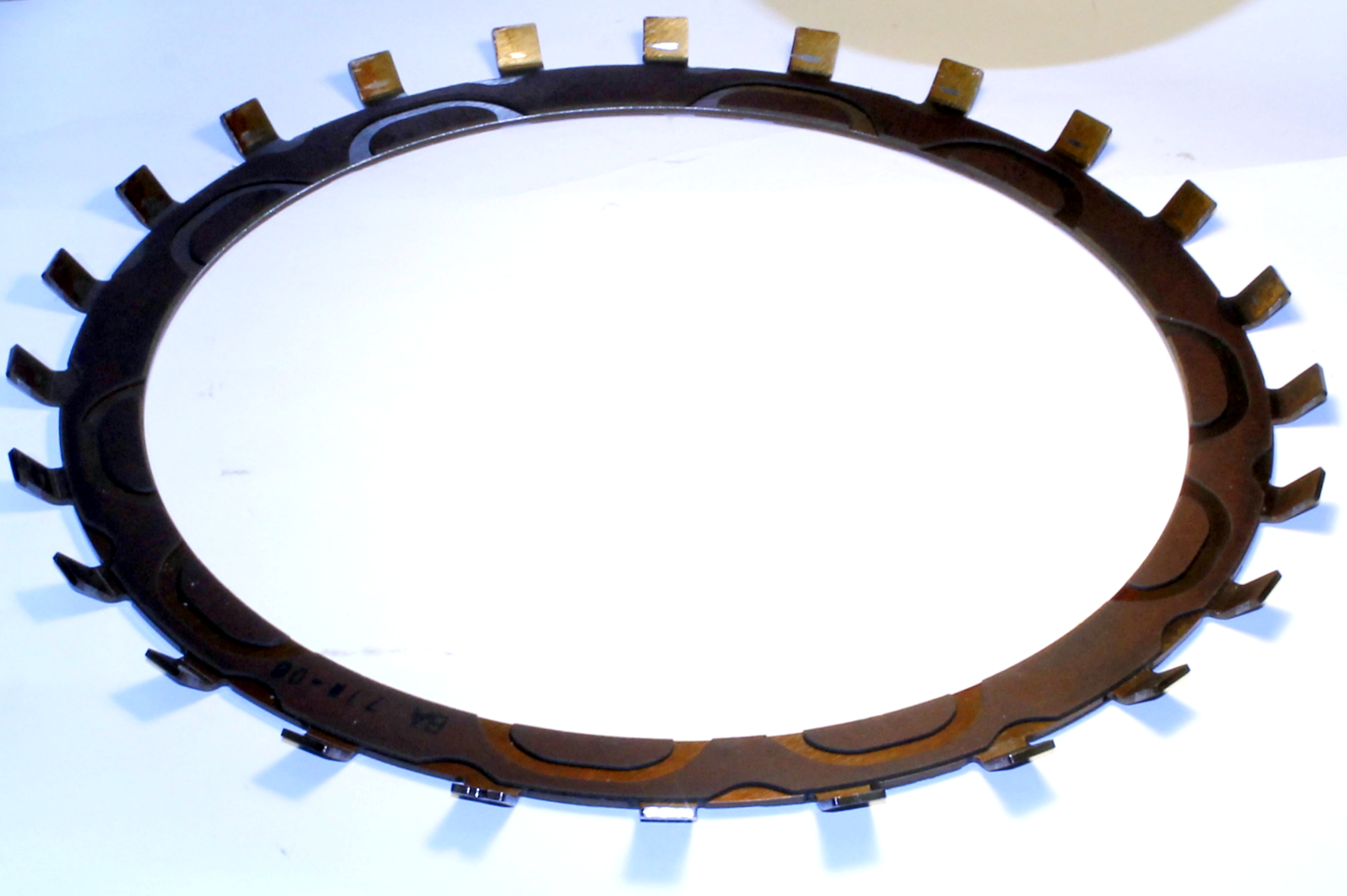

Clutch Plate ZF6HP32 ZF6HP32 PX-26-22
Clutch Plate PX-26-22
ZF6HP32 & ZF6HP32
Friction Plate
  • Thickness: 0.16"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 11.31"
  • Inside Dia: 8.77"
  • Lining Part-ID: PX-23-18HC
PX-26-9
Friction Plate PX-26-9
&
  • Thickness: 0.16"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 11.31"
  • Inside Dia: 8.77"
  • Lining Part-ID: PX-23-18HC
Friction Plate
  • Thickness: .177"
  • External Teeth: 24
  • Outside Dia: 11.31"
  • Inside Dia: 8.77"
  • Oversized
 PX-26-9A
Friction Plate PX-26-9A
&
  • Thickness: .177"
  • External Teeth: 24
  • Outside Dia: 11.31"
  • Inside Dia: 8.77"
  • Oversized
