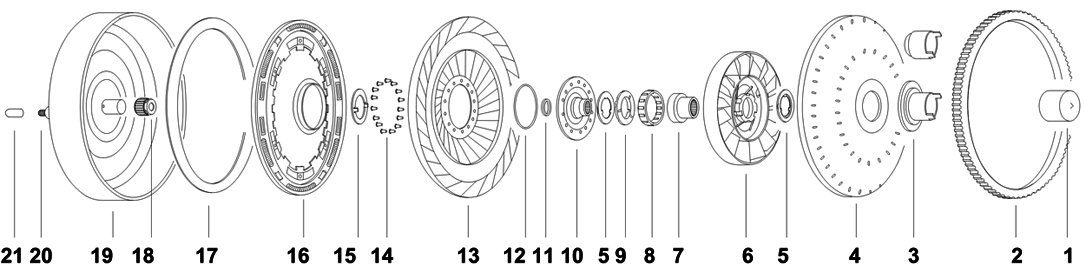

Torque Converter | Volkswagen / Audi | VW 097, 098 | VW20

Ill.# Image Description Specification Part #
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
2 Ring Gear
  • Thickness: .400"
  • External Teeth: 125
  • Outside Dia: 10.538"
  • Inside Dia: 9.245"
 RG-125VL
3 Impeller Hub
  • Journal Dia: 2.000"
  • Installed Height: 1.500"
  • Hub Mount: Butt
  • Pump Drive Type: 2 lugs
  • Hardness: Rc 32-36
 VH-1-3GRC
3 Impeller Hub
  • Hub Mount: Flanged
 NPN-13-6-3
4 Impeller NPN-13-6-4
5 Bearing
  • Bearing type: Enclosed
  • Tang Count: 3
  • Replaced By TW-2-4
 NPN-13-6-5
6 Stator NPN-13-6-6
7 Inner Race
  • Height: 1.10"
  • Internal Teeth: 44
  • Outside Dia: 1.96"
  • Inside Dia: 1.35"
 NPN-13-6-7
8 Cam (Sprag Element) For VC-6-1 F-315
8 Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
8 Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
9 Stator Cap NPN-13-6-9
10 Turbine Hub
  • Internal Teeth: 36
  • Will Accommodate All Washers. See illustration
 VX-13-4
10 Turbine Hub
  • Internal Teeth: 36
  • Hardness: Heat-Treated (hardened)
  • Will Accommodate All Washers. See illustration
 VX-13-4HT
11 Metal Clad Seal
  • Housing Bore Dia: 1.26
  • Housing Bore Dia Metric: 32.02
  • Shaft Dia metric: 26.55
  • Shaft Dia: 1.043
  • Material: Fluorocarbon
 VO-25-2
11 Seal VO-25-2A
12 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
  • Inside Dia metric: 82.1944
  • Oversized
 VO-25-1
12 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
 VO-25-1A
13 Turbine NPN-13-6-13
14 Rivet NPN-13-6-14
15 Turbine Washer
  • Thickness: 0.059"
  • Material: Bronze
  • Lug Count: 2
  • Outside Dia: 2.28"
  • Inside Dia: 1.26"
  • OE Style
 VW-9-5
15 Turbine Washer
  • Thickness: 0.05"
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.58"
  • Inside Dia: 1.31"
 VW-9-7
15 Turbine Washer
  • Thickness: 0.062"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12A
15 Turbine Washer AOD-E
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12AJ
15 Turbine Washer
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-15
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: 0.062"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.360"
  • Inside Dia: 1.150"
 FW-9-15A
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: 0.062
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16A
15 Turbine Washer
  • Thickness: 0.070"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12B
15 Turbine Washer 3 Lugs
  • Thickness: 0.04"
  • Material: Bronze
  • Lug Width: .280
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15B
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: .070"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16B
15 Turbine Washer
  • Thickness: 0.080"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12C
15 Turbine Washer AOD-E
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12CJ
15 Turbine Washer
  • Thickness: 0.108"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12F
15 Kit Turbine Washer, A4LD
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12K
15 Turbine Washer 3 Lugs Mill Slots In Turbine Hub To Accept Washer
  • Thickness: 0.081"
  • Material: Bronze
  • Lug Width: .280
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15C
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: .080"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16C
15 Turbine Washer
  • Thickness: 0.088"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12D
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: 0.088"
  • Material: Bronze
  • Lug Count: 3
  • Lug Width: .0280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15D
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: .088"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16D
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: .088"
  • Material: Bronze
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-16DD
15 Turbine Washer
  • Thickness: 0.098"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12E
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: 0.098"
  • Material: Bronze
  • Lug Count: 3
  • Lug Width: 0.280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
  • Includes a shim and FW-9-15D
 FW-9-15E
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: .098"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16E
15 Turbine Washer 3 Lugs
  • Thickness: .108"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15F
15 Turbine Washer Kit Cover, E4OD
  • Thickness: 0.098"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15K
15 Turbine Washer Mill Slots In Turbine Hub To Accept Washer
  • Thickness: .108"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16F
16 Lockup Clutch VX-23-1
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
 NX-23-2
18 Bearing Needle
  • Outside Dia: 0.866
  • Outside Dia Metric: 22mm
 VB-18-2
19 Front Cover NPN-13-6-19
20 Stud Threaded, " T" Head
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
20 Stud
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
21 Studcap Plastic Stud Protector
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
21 Studcap
  • Inside Dia: 0.375
 MHC-STE
