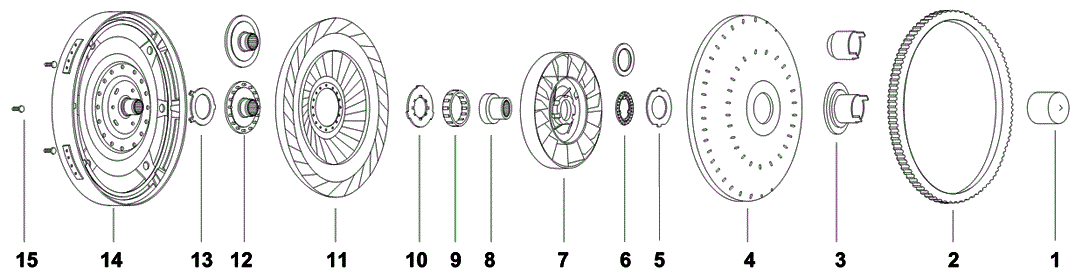

Torque Converter | Volkswagen / Audi | VW 095, 096 | VW17

Ill.# Image Description Specification Part #
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R

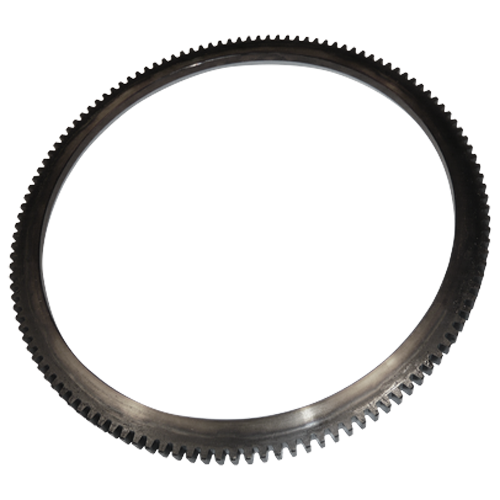

2 Ring Gear
  • Thickness: .320"
  • External Teeth: 125
  • Outside Dia: 10.54"
  • Inside Dia: 9.103"
 RG-125V
3 Impeller Hub
  • Journal Dia: 2.000"
  • Installed Height: 1.500"
  • Hub Mount: Butt
  • Pump Drive Type: 2 lugs
  • Hardness: Rc 32-36
 VH-1-3GRC
3 Impeller Hub
  • Hub Mount: Flanged
 NPN-13-4-3
3 Impeller Hub Flanged
  • Journal Dia: 2.008"
  • Installed Height: 1.536"
  • Height: 1.666"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Lugs
  • Flange Dia: 3.260"
 VH-1-5FLG
4 Impeller NPN-13-4-4
5 Plate NPN-13-4-5
6 Bearing With 3 Tangs, Use TW-2-4
  • Thickness: 0.181
  • Thickness metric: 4.6
  • Bearing type: Enclosed
  • Outside Dia: 2.82
  • Inside Dia: 1.898
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.21
 TW-2-4
6 Bearing With 3 Tangs, Use TW-2-4
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.82"
  • Inside Dia: 1.9"
 TW-2-4NA
7 Stator NPN-13-4-7
8 Inner Race
  • Length: 1.10"
  • Internal Teeth: 44
  • Outside Dia: 1.96"
  • Inside Dia: 1.35"
 NPN-13-4-8
9 Cam (Sprag Element) For VC-6-1 F-315
9 Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
9 Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outside Dia: 2.613"
  • Inside Dia: 1.957"
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
10 Stator Cap Heavy Duty
  • Thickness: 0.15"
  • Outside Dia: 3.165"
  • Inside Dia: 1.64"
  • Casting#: 7700793763
 VW-4-5
11 Turbine NPN-13-4-11
12 Misc NPN-SPL
12 Turbine Hub
  • Internal Teeth: 36
 VX-13-3
12 Turbine Hub
  • Internal Teeth: 36
  • Hardness: Heat-Treated (hardened)
  • Weld-In, Rivet Type
 VX-13-3HT
13 Washer NPN-13-4-13
14 Cover Assembly With 24 Spline Damper NPN-13-4-14
15 Stud Threaded, " T" Head 3 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
15 Stud 3 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
