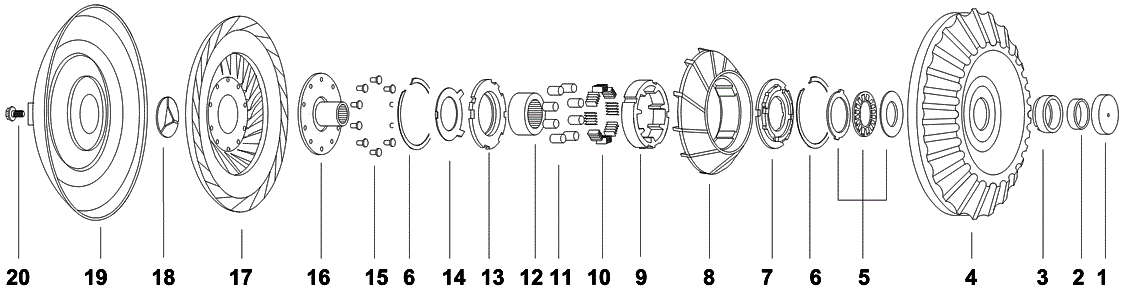

Torque Converter | Volkswagen / Audi | VW 010 | VW13, VW15, VW16

Ill.# Image Description Specification Part #
Accordion Spring
  • Width: 0.375"
  • Relaxed Length: 0.45"
  • Folds: 3
  • Relaxed Height: 0.22"

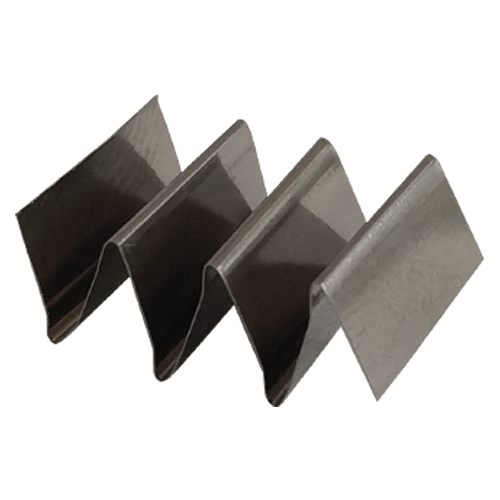

 SS-6-2
Accordion Spring SS-6-2
&
  • Width: 0.375"
  • Relaxed Length: 0.45"
  • Folds: 3
  • Relaxed Height: 0.22"
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Bushing Converter Hub 39002
Bushing 39002
Converter Hub &
2 Bushing Hub
  • Thickness: 0.472"
  • Housing Bore Dia: 1.457"
  • Shaft Dia: 1.337"
  • Material: Bronze
  • Type: Precision

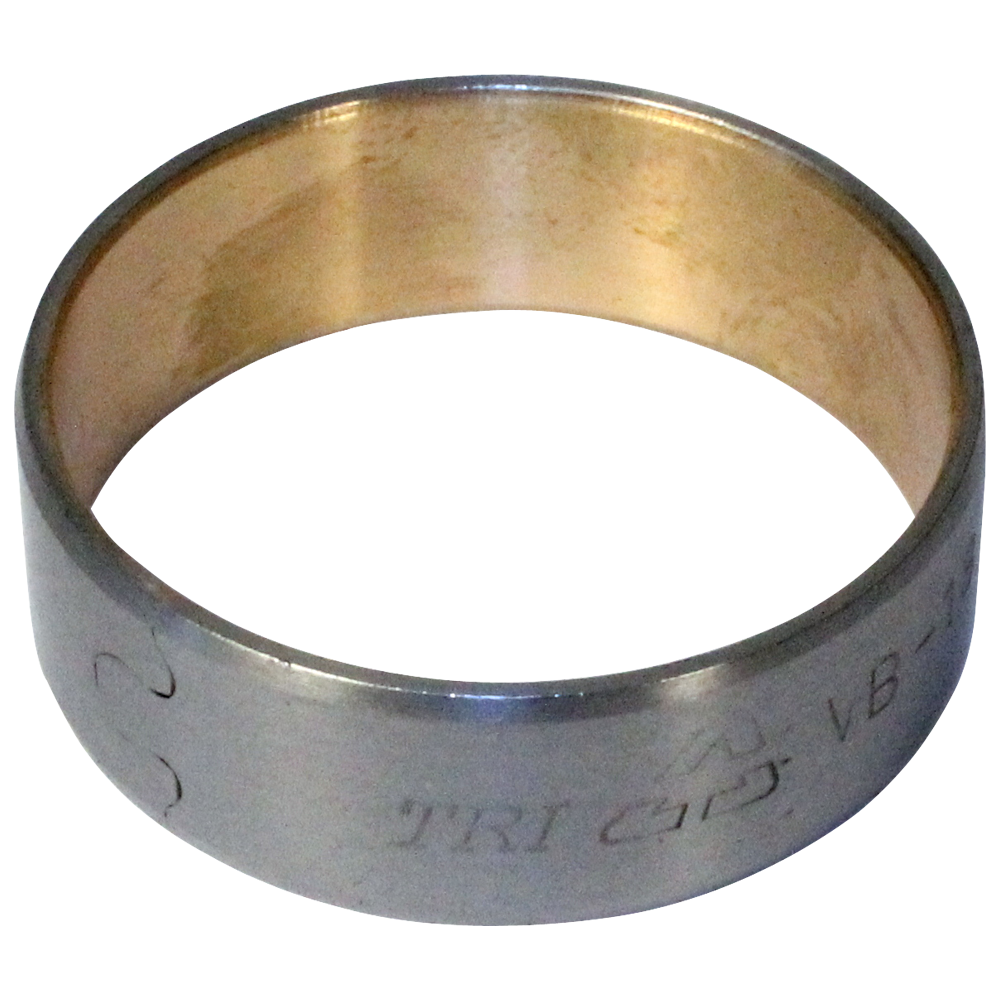

 VB-18
Bushing VB-18
Hub &
  • Thickness: 0.472"
  • Housing Bore Dia: 1.457"
  • Shaft Dia: 1.337"
  • Material: Bronze
  • Type: Precision
3 Impeller Hub Flanged
  • Journal Dia: 1.653"
  • Installed Height: 0.855"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 VH-1FLG
Impeller Hub VH-1FLG
Flanged &
  • Journal Dia: 1.653"
  • Installed Height: 0.855"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36

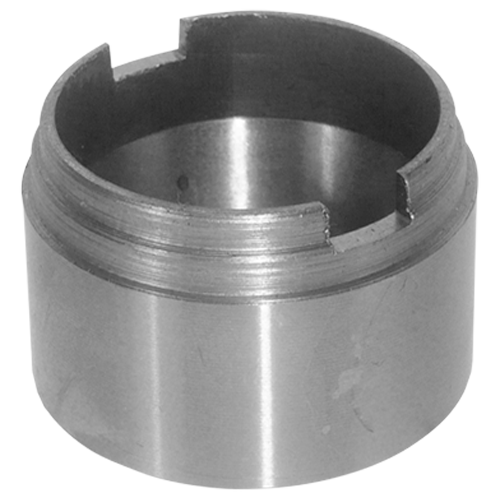

3 Impeller Hub
  • Journal Dia: 1.653"
  • Installed Height: .74"
  • Hub Mount: Thru
  • Butt Mount dia: 1.57"
 VH-1G
Impeller Hub VH-1G
&
  • Journal Dia: 1.653"
  • Installed Height: .74"
  • Hub Mount: Thru
  • Butt Mount dia: 1.57"
3 Impeller Hub
  • Journal Dia: 1.653"
  • Installed Height: .74"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 VH-1GRC
Impeller Hub VH-1GRC
&
  • Journal Dia: 1.653"
  • Installed Height: .74"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
3_N.I. Ring Gear
  • External Teeth: 130
  • Outside Dia: 10.88"
  • Inside Dia: 9.99"

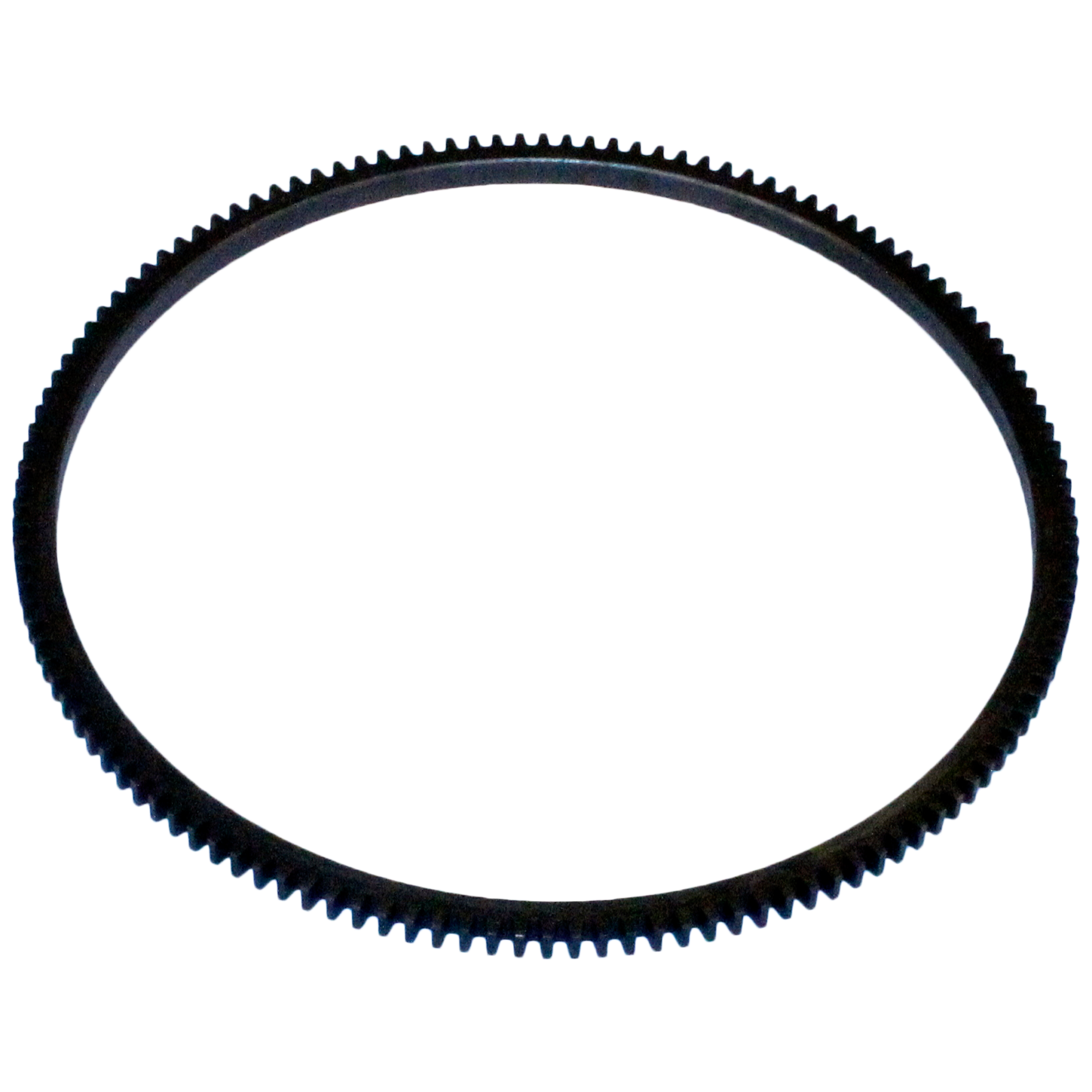

 RG-130V
Ring Gear RG-130V
&
  • External Teeth: 130
  • Outside Dia: 10.88"
  • Inside Dia: 9.99"
4 Impeller NPN-13-2-4
Impeller NPN-13-2-4
&
4_N.I. Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
Shim VW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
4_N.I. Shim
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
Shim VW-2-20
&
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"

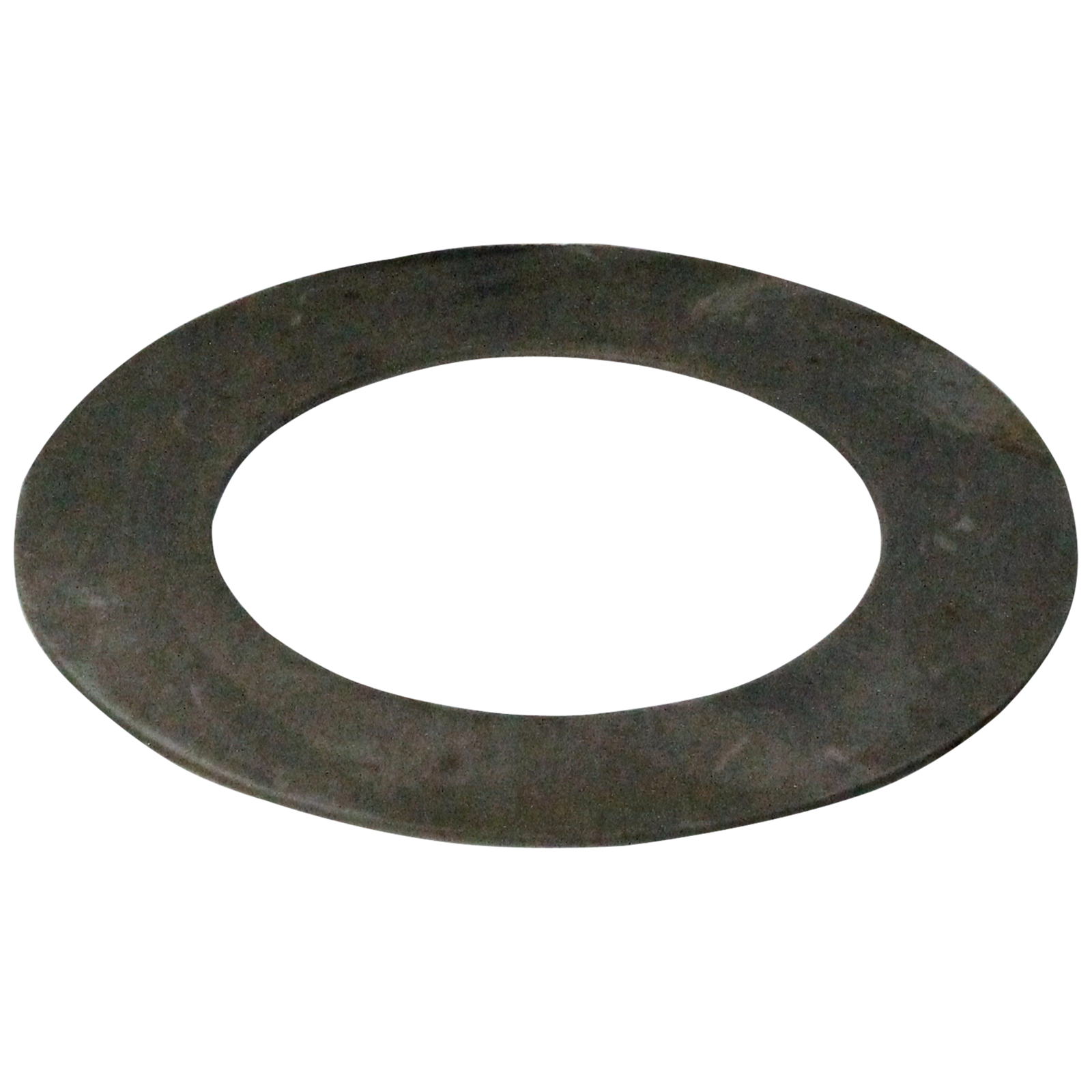

4_N.I. Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30
Shim VW-2-30
&
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
4_N.I. Washer 3 Tangs
  • Thickness: .05"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.75"
 VW-3
Washer VW-3
3 Tangs &
  • Thickness: .05"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.75"
4_N.I. Washer
  • Material: Steel
 VW-2
Washer VW-2
&
  • Material: Steel

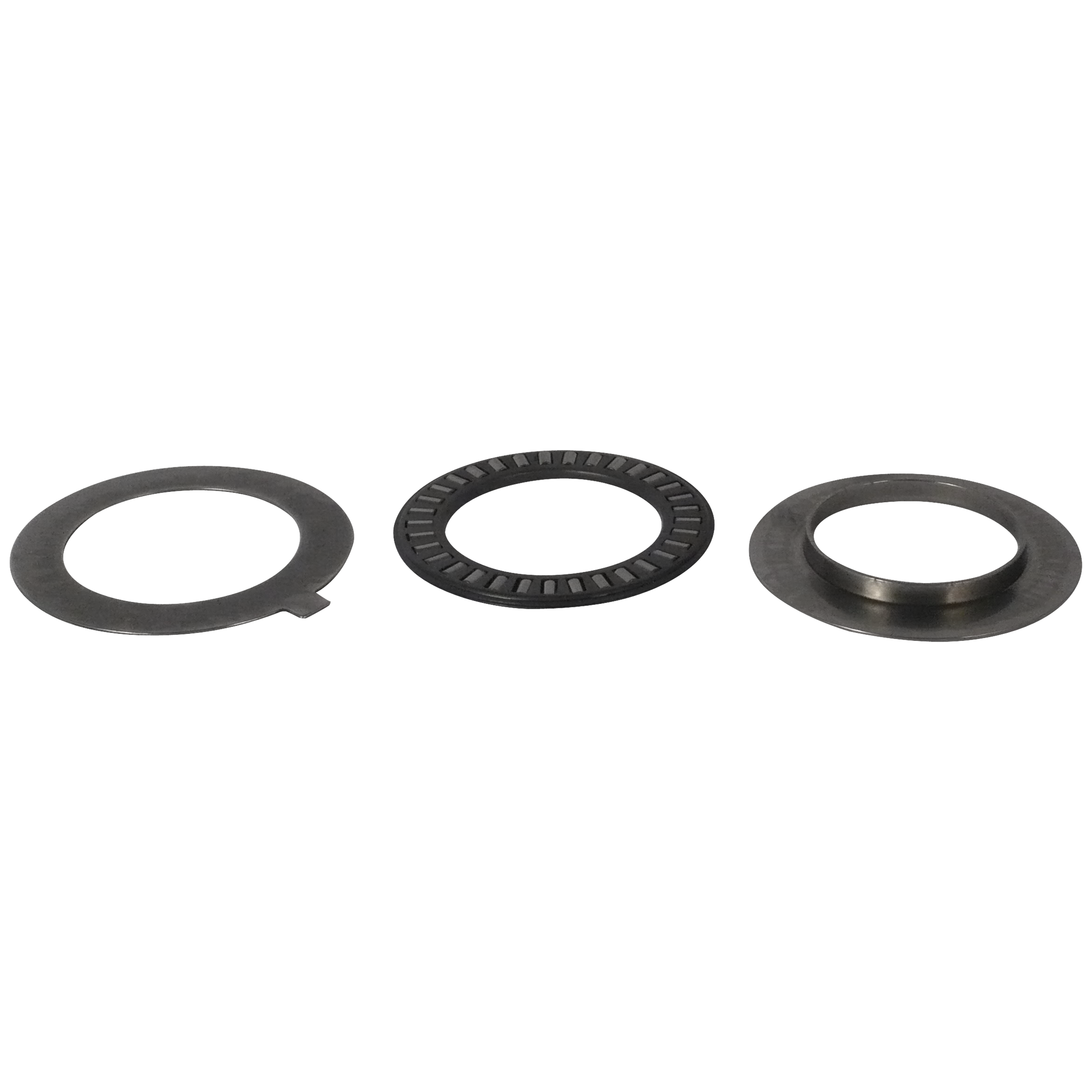

5 Bearing & Race Kit
  • Includes FW-2-3, JW-2N, FW-2-4
 FW-2BK
Bearing & Race Kit FW-2BK
&
  • Includes FW-2-3, JW-2N, FW-2-4

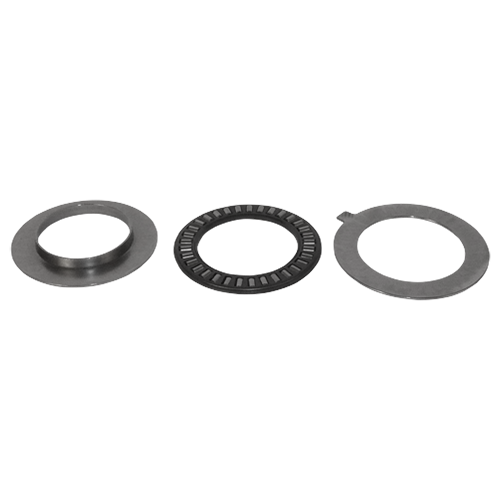

5 Bearing & Race Kit Heavy Duty
  • Includes FW-2-3, JW-2ND, FW-2-4
 FW-2BKHD
Bearing & Race Kit FW-2BKHD
Heavy Duty &
  • Includes FW-2-3, JW-2ND, FW-2-4
5 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
6 Snap Ring NPN-13-2-6
Snap Ring NPN-13-2-6
&
7 Stator Cap
  • Thickness: 0.24"
  • Outside Dia: 3.15"
  • Inside Dia: 1.56"
 VW-4AB
Stator Cap VW-4AB
&
  • Thickness: 0.24"
  • Outside Dia: 3.15"
  • Inside Dia: 1.56"
8 Stator VX-5
Stator VX-5
&
9 Cam NPN-13-2-9
Cam NPN-13-2-9
&

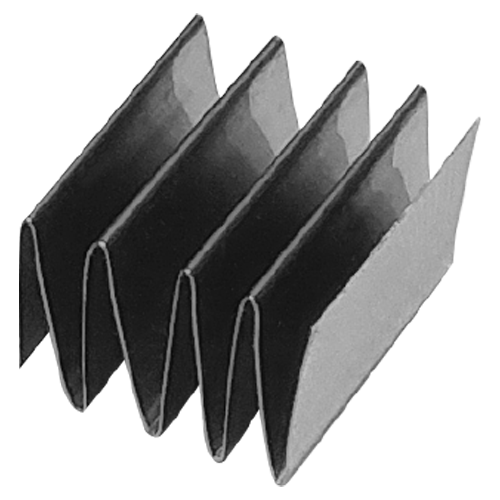

10 Accordion Spring 7 Pieces Required.
  • Width: 0.44"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-5
Accordion Spring FS-6-5
& 7 Pieces Required.
  • Width: 0.44"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.28"
10 Accordion Spring 7 Pieces Required.
  • Width: 0.44"
  • Relaxed Length: 0.41"
  • Folds: 4
  • Relaxed Height: 0.28"

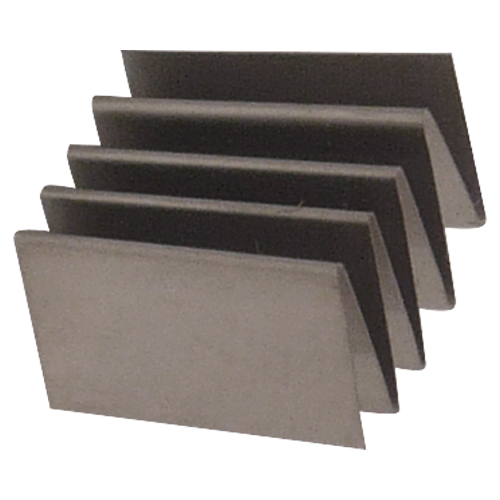

 VS-6
Accordion Spring VS-6
& 7 Pieces Required.
  • Width: 0.44"
  • Relaxed Length: 0.41"
  • Folds: 4
  • Relaxed Height: 0.28"
11 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.432"

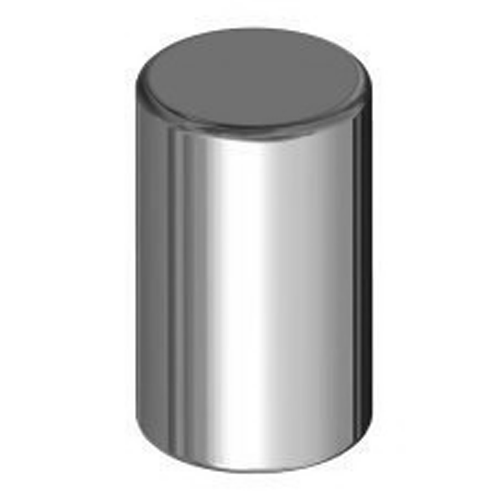

 VR-7
Roller VR-7
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.432"
12 Inner Race Stator
  • Internal Teeth: 41
 VX-14
Inner Race VX-14
Stator &
  • Internal Teeth: 41
13 Washer
  • Material: Bronze
  • Outside Dia: 3.15"
  • Inside Dia: 1.56"
 VW-4B
Washer VW-4B
&
  • Material: Bronze
  • Outside Dia: 3.15"
  • Inside Dia: 1.56"
14 Washer
  • Thickness: .08"
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.56"
  • Inside Dia: 1.75"
 VW-3-080
Washer VW-3-080
&
  • Thickness: .08"
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.56"
  • Inside Dia: 1.75"
15 Rivet 10 Pieces Required.
  • Length: 0.316"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.158"
  • Rivet Head Dia: 0.261"
 VX-12
Rivet VX-12
& 10 Pieces Required.
  • Length: 0.316"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.158"
  • Rivet Head Dia: 0.261"
16 Turbine Hub
  • Height: 1.41"
  • Internal Teeth: 26
  • Outside Dia: 3.03"
 VX-13
Turbine Hub VX-13
&
  • Height: 1.41"
  • Internal Teeth: 26
  • Outside Dia: 3.03"
17 Turbine
  • Outside Dia Metric: 243mm
 NPN-13-2-17
Turbine NPN-13-2-17
&
  • Outside Dia Metric: 243mm
18 Washer
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 1.74"
  • Inside Dia: 0.65"
 VW-9
Washer VW-9
&
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 1.74"
  • Inside Dia: 0.65"
18 Turbine Washer
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 1.810"
  • Inside Dia: 0.875"
 WW-9-3A
Turbine Washer WW-9-3A
&
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 1.810"
  • Inside Dia: 0.875"
18 Turbine Washer
  • Thickness: 0.082"
  • Material: Fiber
  • Outside Dia: 1.81"
  • Inside Dia: 0.875"
 WW-9-3B
Turbine Washer WW-9-3B
&
  • Thickness: 0.082"
  • Material: Fiber
  • Outside Dia: 1.81"
  • Inside Dia: 0.875"
18 Washer Replaces Triangle
  • Thickness: 0.080"
  • Material: Bronze
  • Outside Dia: 1.735"
  • Inside Dia: 0.650"
 VW-9-3
Washer VW-9-3
Replaces Triangle &
  • Thickness: 0.080"
  • Material: Bronze
  • Outside Dia: 1.735"
  • Inside Dia: 0.650"
18_N.I. Insert Pump Drive
  • Height: 0.39"
  • Internal Teeth: 12
  • Outside Dia: 1.75"

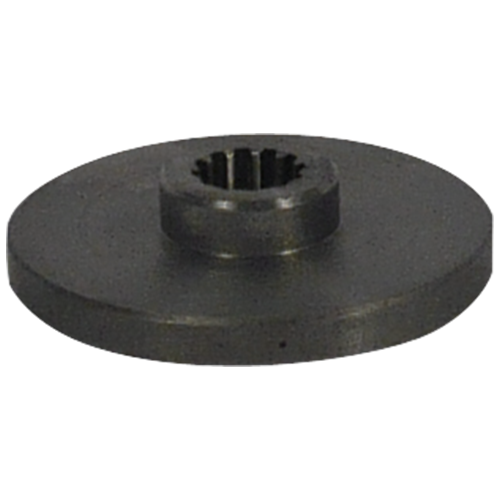

 VX-23
Insert VX-23
Pump Drive &
  • Height: 0.39"
  • Internal Teeth: 12
  • Outside Dia: 1.75"

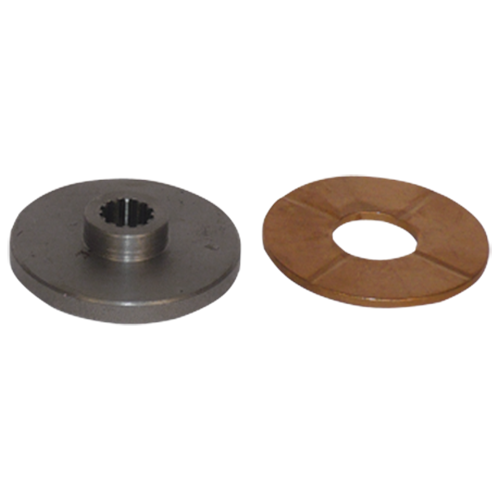

18_N.I. Thrust Plate Kit Pump Drive
  • Outside Dia: 1.75"
  • Includes: Washer VW-9-3 and Insert VW-23
 VX-23K
Thrust Plate Kit VX-23K
Pump Drive &
  • Outside Dia: 1.75"
  • Includes: Washer VW-9-3 and Insert VW-23
19 Front Cover NPN-13-2-19
Front Cover NPN-13-2-19
&
19_N.I. Pilot Unfinished
  • Length: .88"
  • Outside Dia: 0.875
 FX-17-30
Pilot FX-17-30
Unfinished &
  • Length: .88"
  • Outside Dia: 0.875
20 Bolt NPN-13-2-20
Bolt NPN-13-2-20
&
20 Misc NPN-SPL
Misc NPN-SPL
&
