Part Search

Torque Converter | Volkswagen / Audi | 096 LU (01M)

Ill.# Image Description Specification Part #
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)

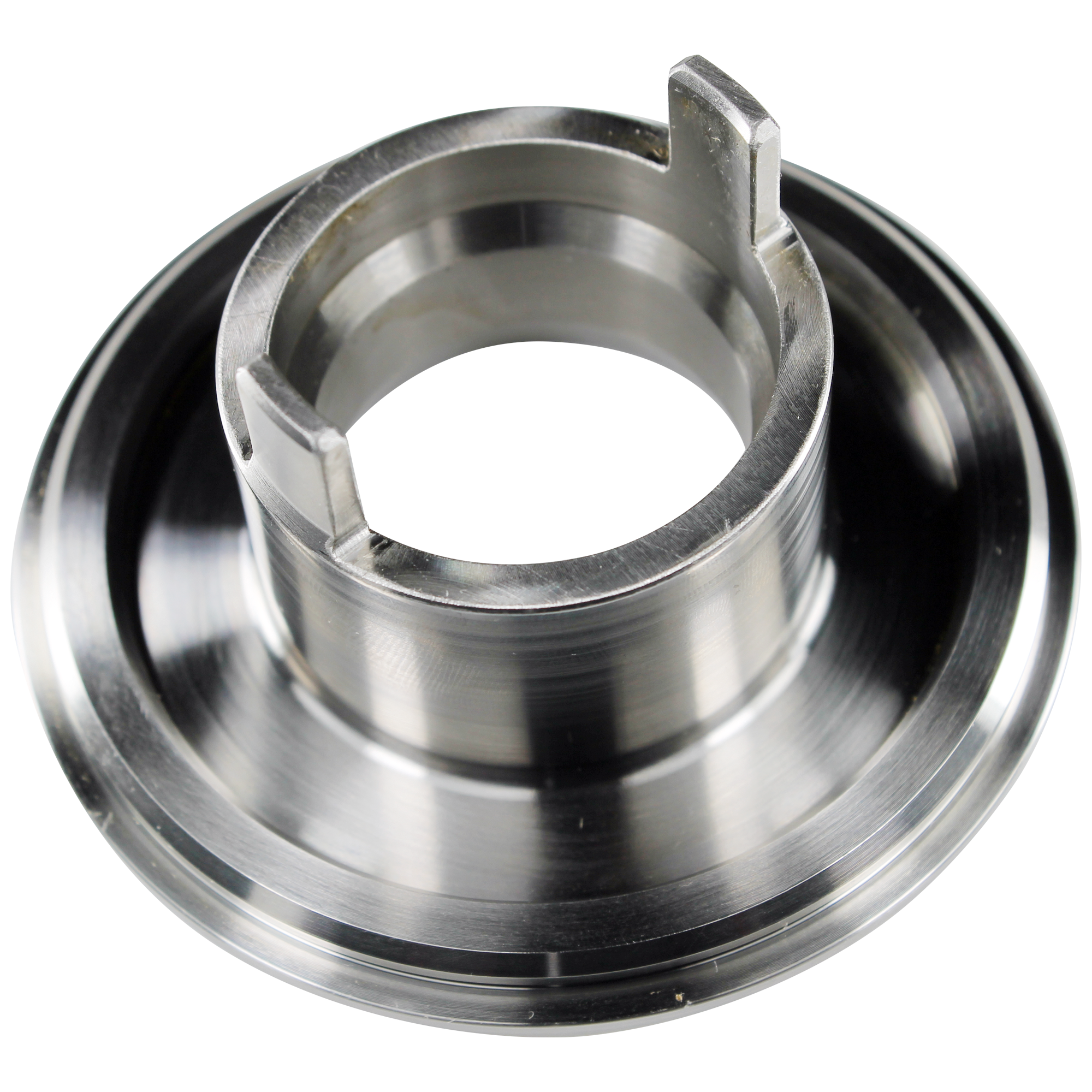

2 Impeller Hub Flanged
  • Journal Dia: 2.008"
  • Installed Height: 1.536"
  • Height: 1.666"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Lugs
  • Flange Dia: 3.260"
 VH-1-5FLG
Impeller Hub VH-1-5FLG
Flanged &
  • Journal Dia: 2.008"
  • Installed Height: 1.536"
  • Height: 1.666"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Lugs
  • Flange Dia: 3.260"
3 Misc NPN-SPL
Misc NPN-SPL
&
12 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
  • Inside Dia metric: 82.1944
  • Oversized
 VO-25-1
O-Ring VO-25-1
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
  • Inside Dia metric: 82.1944
  • Oversized
12 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
 VO-25-1A
O-Ring VO-25-1A
&
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
13 Metal Clad Seal
  • Housing Bore Dia: 1.26
  • Housing Bore Dia Metric: 32.02
  • Shaft Dia metric: 26.55
  • Shaft Dia: 1.043
  • Material: Fluorocarbon
 VO-25-2
Metal Clad Seal VO-25-2
&
  • Housing Bore Dia: 1.26
  • Housing Bore Dia Metric: 32.02
  • Shaft Dia metric: 26.55
  • Shaft Dia: 1.043
  • Material: Fluorocarbon
13 Seal VO-25-2A
Seal VO-25-2A
&
14 Turbine Washer
  • Thickness: 0.059"
  • Material: Bronze
  • Lug Count: 2
  • Outside Dia: 2.28"
  • Inside Dia: 1.26"
  • OE Style
 VW-9-5
Turbine Washer VW-9-5
&
  • Thickness: 0.059"
  • Material: Bronze
  • Lug Count: 2
  • Outside Dia: 2.28"
  • Inside Dia: 1.26"
  • OE Style
14 Turbine Washer
  • Thickness: 0.05"
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.58"
  • Inside Dia: 1.31"
 VW-9-7
Turbine Washer VW-9-7
&
  • Thickness: 0.05"
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.58"
  • Inside Dia: 1.31"
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
 NX-23-2
Lining (Friction Ring,Wafer) NX-23-2
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
