Torque Converter | Toyota | U660E

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)

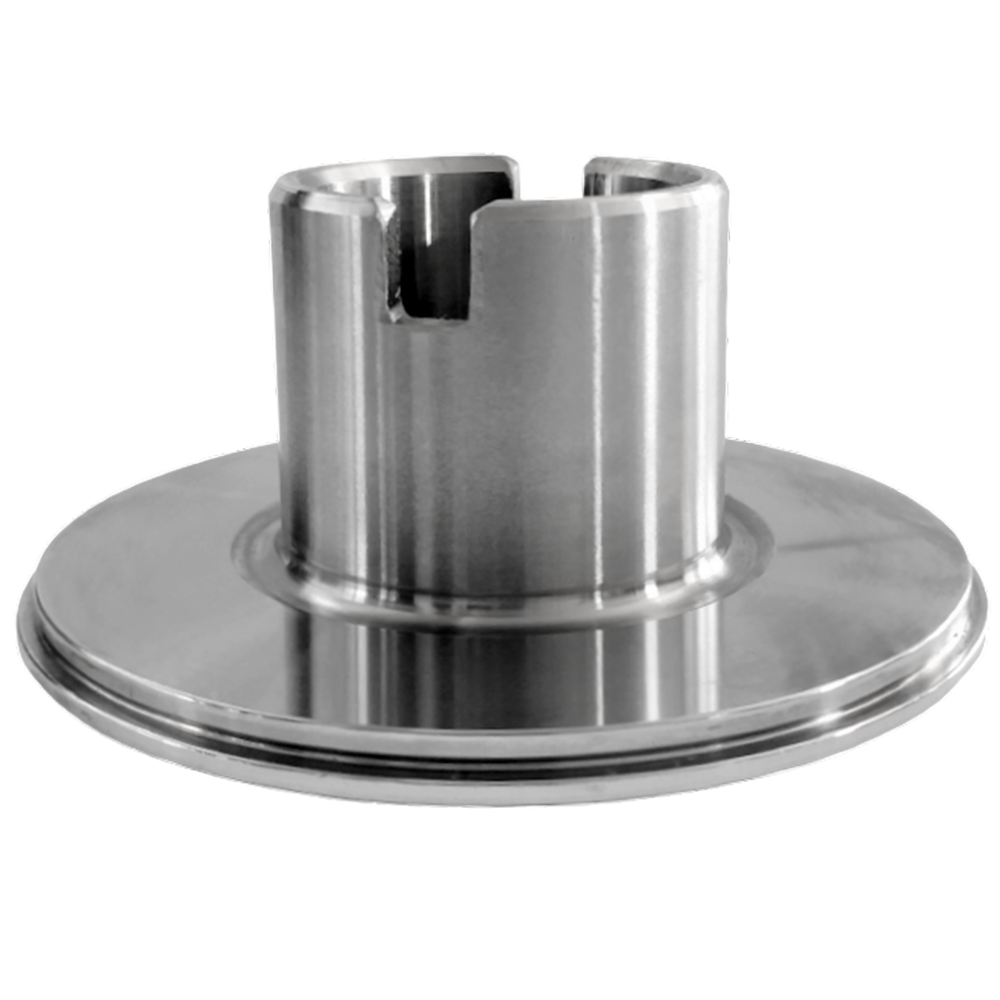

2 Impeller Hub Flanged
  • Journal Dia: 1.695"
  • Installed Height: 1.513"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.622"
 YH-1-17FLG
Impeller Hub YH-1-17FLG
Flanged &
  • Journal Dia: 1.695"
  • Installed Height: 1.513"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.622"
3 Misc NPN-SPL
Misc NPN-SPL
&

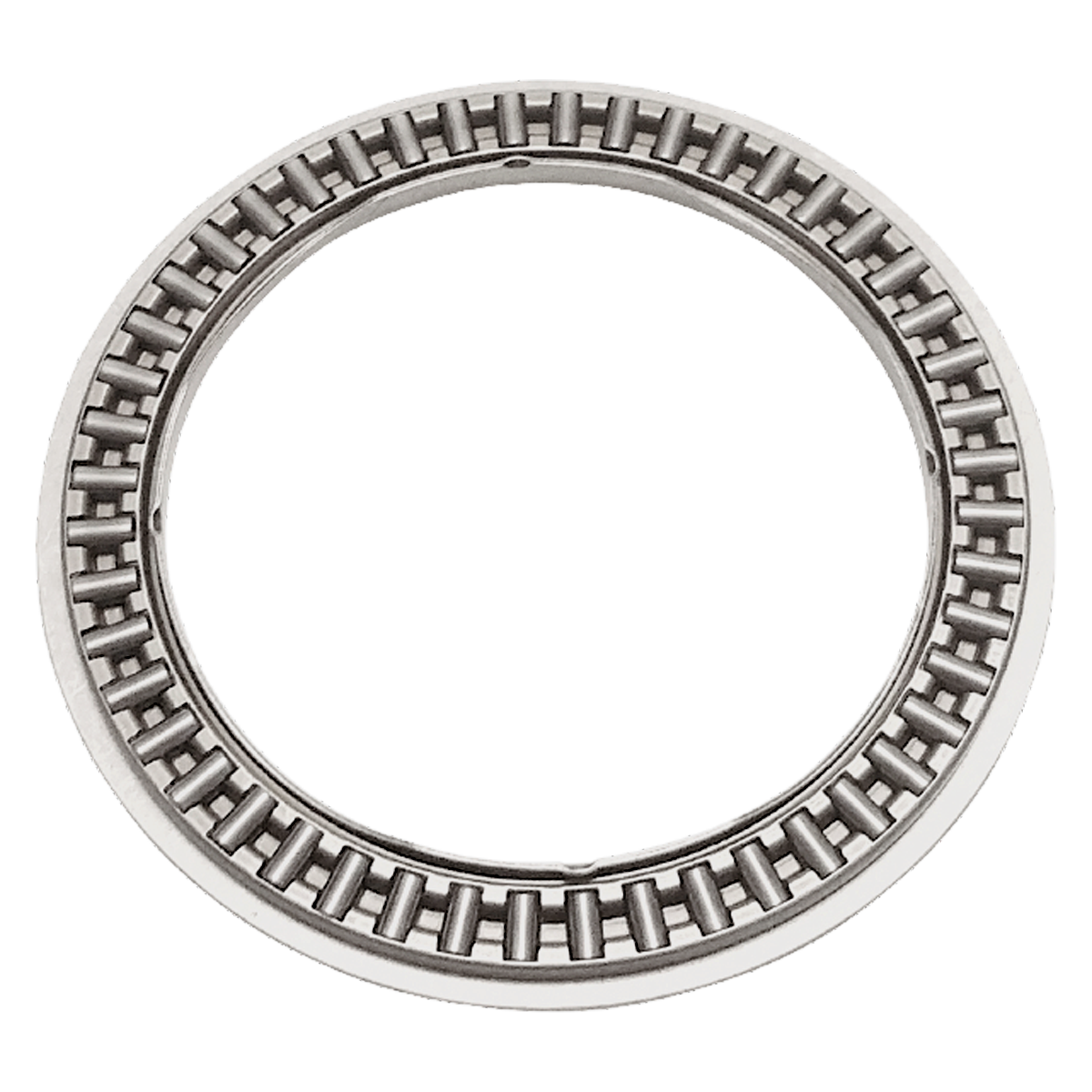

4 Bearing Impeller-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.49
  • Inside Dia: 2.61
  • Outside Dia Metric: 88.65
  • Inside Dia metric: 66.29
  • Race: YW-2-28
 YW-2-26
Bearing YW-2-26
& Impeller-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.49
  • Inside Dia: 2.61
  • Outside Dia Metric: 88.65
  • Inside Dia metric: 66.29
  • Race: YW-2-28

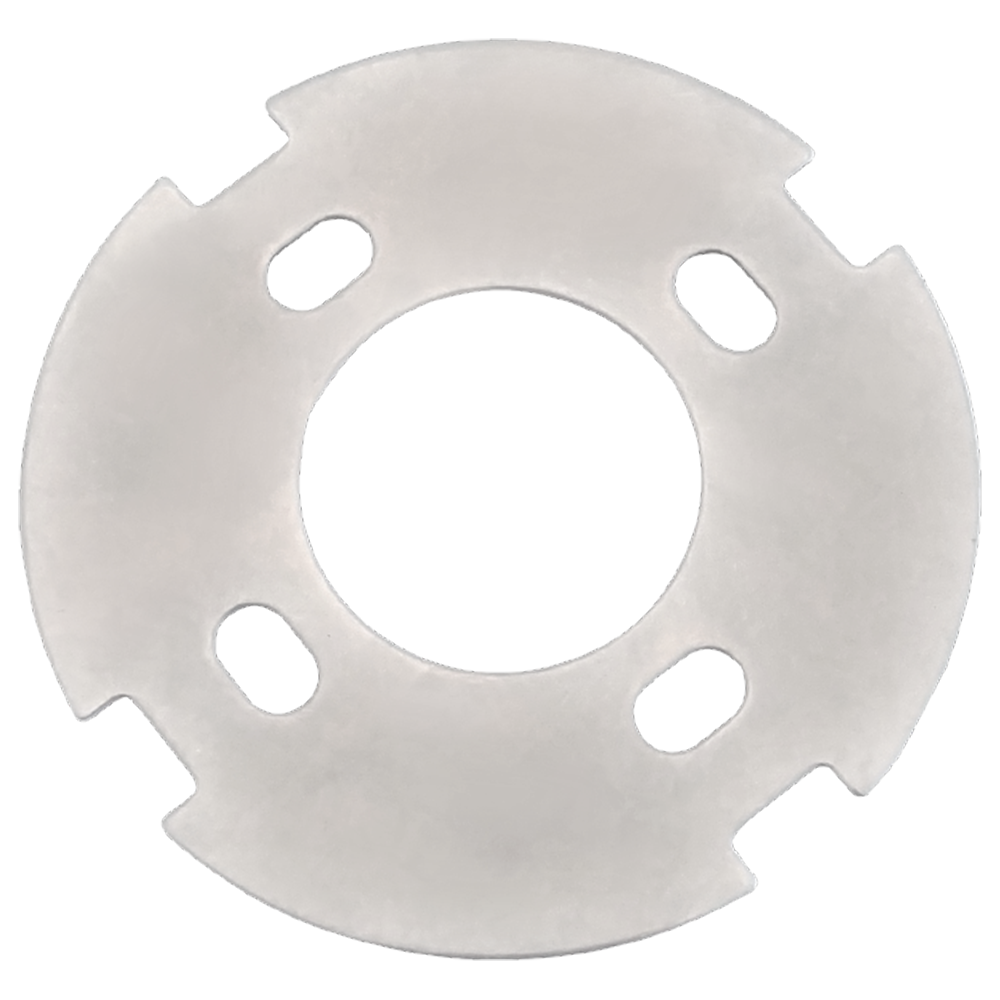

6 Bearing Race Impeller-side
  • Thickness: 0.059"
  • Outside Dia: 3.811"
  • Inside Dia: 1.594"
 YW-2-28
Bearing Race YW-2-28
& Impeller-side
  • Thickness: 0.059"
  • Outside Dia: 3.811"
  • Inside Dia: 1.594"
12 Bearing Race 4 OD Tangs Turbine-side
  • Thickness: 0.079"
  • Outside Dia: 3.487"
  • Inside Dia: 1.500"
 YW-2-29
Bearing Race YW-2-29
4 OD Tangs & Turbine-side
  • Thickness: 0.079"
  • Outside Dia: 3.487"
  • Inside Dia: 1.500"

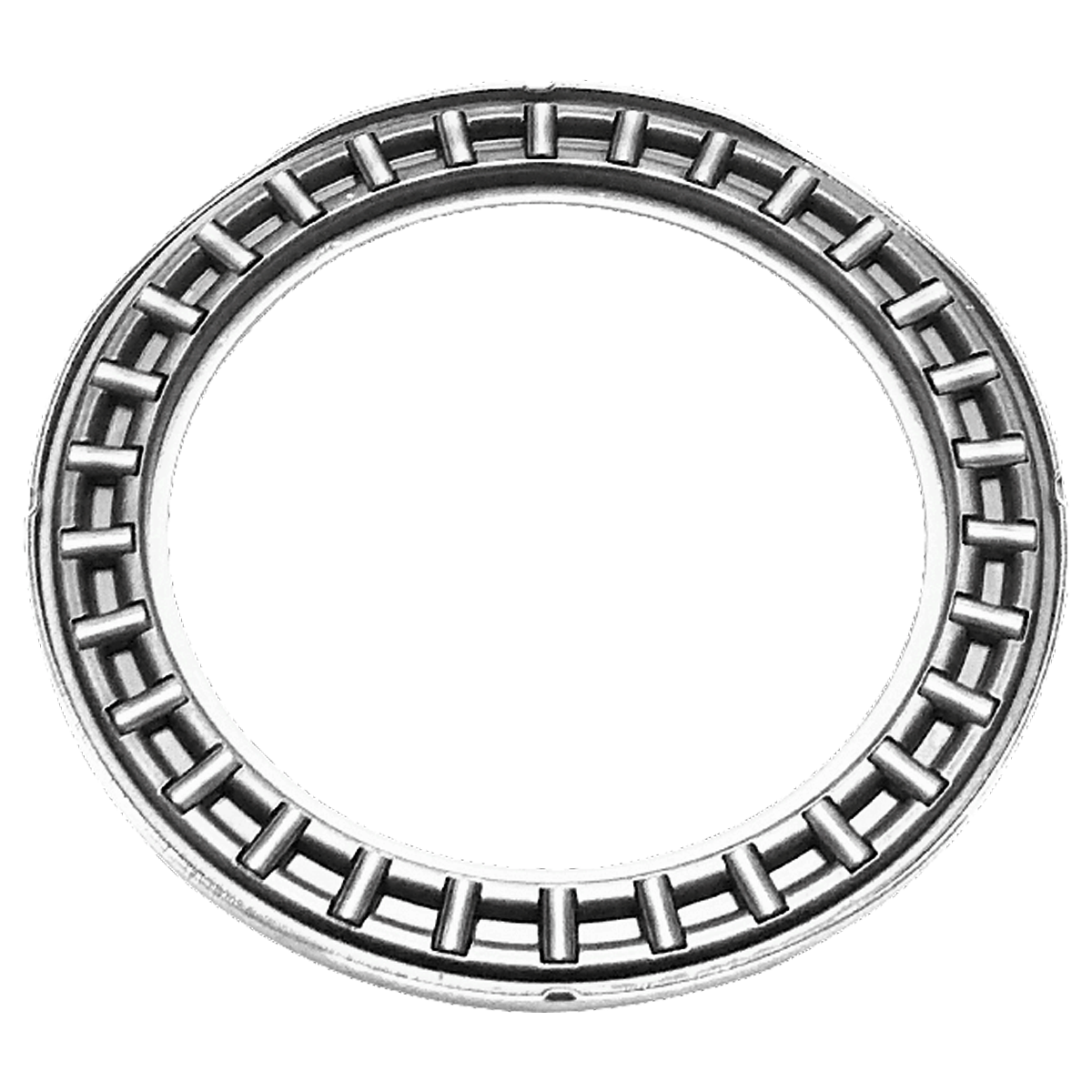

13 Bearing Turbine-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.279
  • Inside Dia: 2.408
  • Outside Dia Metric: 83.29
  • Inside Dia metric: 61.16
  • Race: YW-2-29
 YW-2-27
Bearing YW-2-27
& Turbine-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.279
  • Inside Dia: 2.408
  • Outside Dia Metric: 83.29
  • Inside Dia metric: 61.16
  • Race: YW-2-29

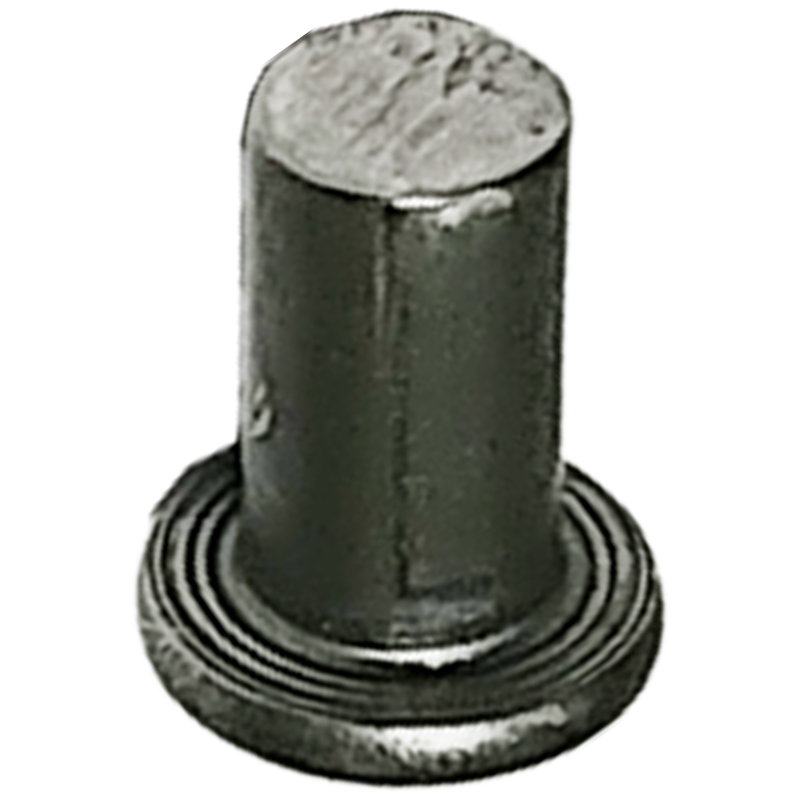

14 Rivet U660E, U760E
  • Length: 0.352
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.203"
  • Rivet Head Dia: 0.340"
  • Rivet Head: Flat
 YX-12-2
Rivet YX-12-2
U660E, U760E &
  • Length: 0.352
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.203"
  • Rivet Head Dia: 0.340"
  • Rivet Head: Flat
24 Turbine Hub U660E
  • Internal Teeth: 22
 YX-13-13HT
Turbine Hub YX-13-13HT
U660E &
  • Internal Teeth: 22
25 Seal Ring
  • Height: 0.064"
  • Width: 0.091"
  • Material: PTFE
  • Height Metric: 1.6256
  • Seal Type: Scarf Cut
  • Outside Dia: 1.261"
  • Outside Dia Metric: 31.877
 YO-25-14
Seal Ring YO-25-14
&
  • Height: 0.064"
  • Width: 0.091"
  • Material: PTFE
  • Height Metric: 1.6256
  • Seal Type: Scarf Cut
  • Outside Dia: 1.261"
  • Outside Dia Metric: 31.877
27 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.188"
  • Inside Dia: 8.730"
 YX-23-24
Lining (Friction Ring,Wafer) YX-23-24
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.188"
  • Inside Dia: 8.730"
