Torque Converter | Toyota | U250E

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing Impeller-side
  • Thickness: 0.148
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.677
  • Inside Dia: 1.732
  • Outside Dia Metric: 68
  • Inside Dia metric: 43.99
  • Race: YW-2-8,YW-2-5
 YW-2-7
Bearing YW-2-7
& Impeller-side
  • Thickness: 0.148
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.677
  • Inside Dia: 1.732
  • Outside Dia Metric: 68
  • Inside Dia metric: 43.99
  • Race: YW-2-8,YW-2-5

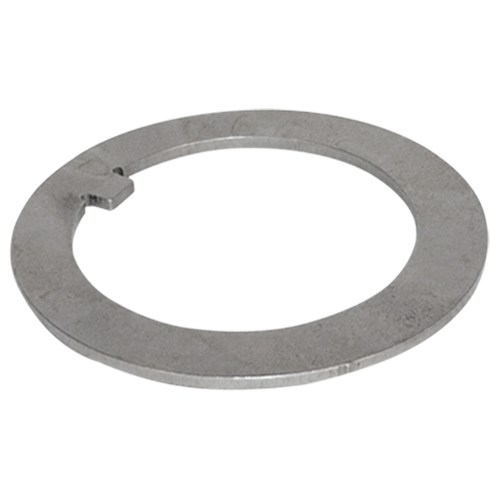

5 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.56"
  • Inside Dia: 1.84"
 YW-2-5
Bearing Race YW-2-5
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.56"
  • Inside Dia: 1.84"
5 Bearing Race Impeller-side
  • Thickness: 0.08"
  • Lug Count: 4
  • Outside Dia: 2.56"
  • Inside Dia: 1.84"
 YW-2-8
Bearing Race YW-2-8
& Impeller-side
  • Thickness: 0.08"
  • Lug Count: 4
  • Outside Dia: 2.56"
  • Inside Dia: 1.84"

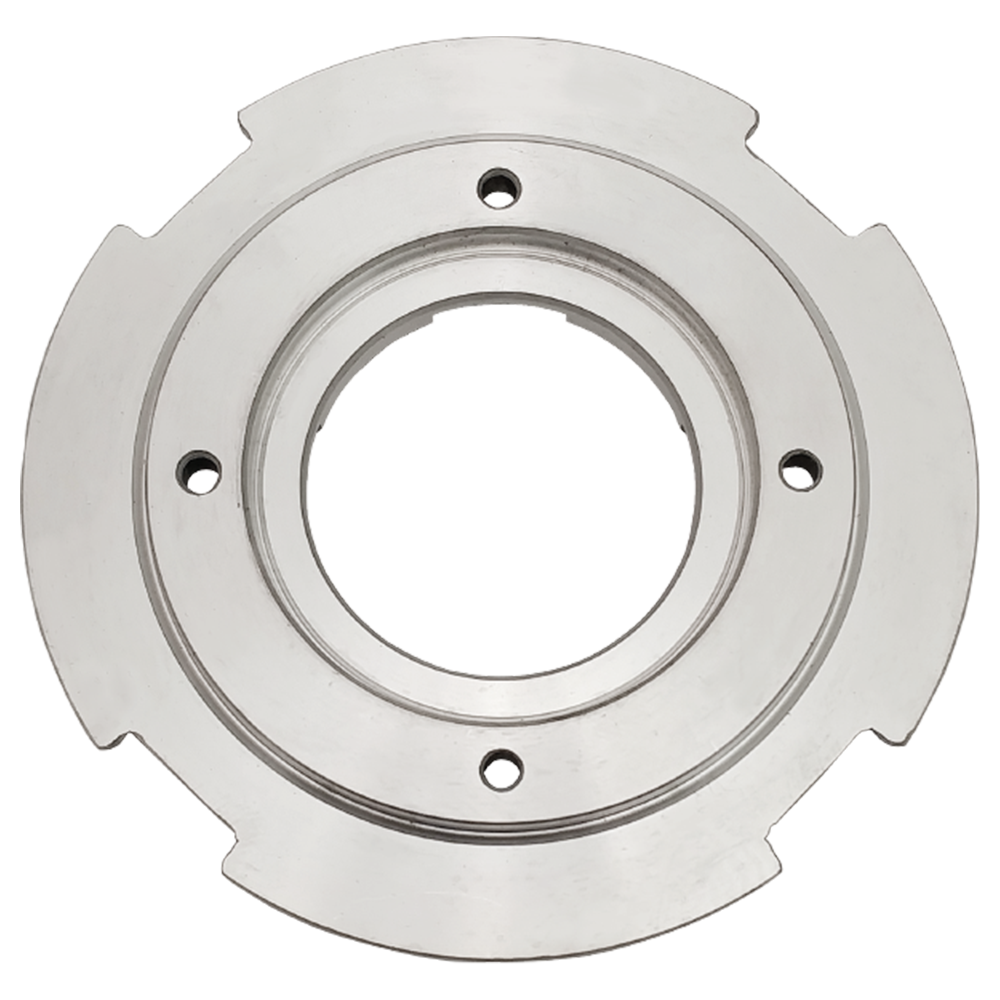

7 Stator Cap Impeller-side
  • Thickness: 0.408"
  • Material: Aluminum
  • Functional Thickness: 0.162"
  • Outside Dia: 3.098"
  • Inside Dia: 1.280"
 YW-4-15
Stator Cap YW-4-15
& Impeller-side
  • Thickness: 0.408"
  • Material: Aluminum
  • Functional Thickness: 0.162"
  • Outside Dia: 3.098"
  • Inside Dia: 1.280"
14 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
 PW-2-12
Bearing PW-2-12
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
14 Bearing Turbine-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
 YW-2-16
Bearing YW-2-16
& Turbine-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2

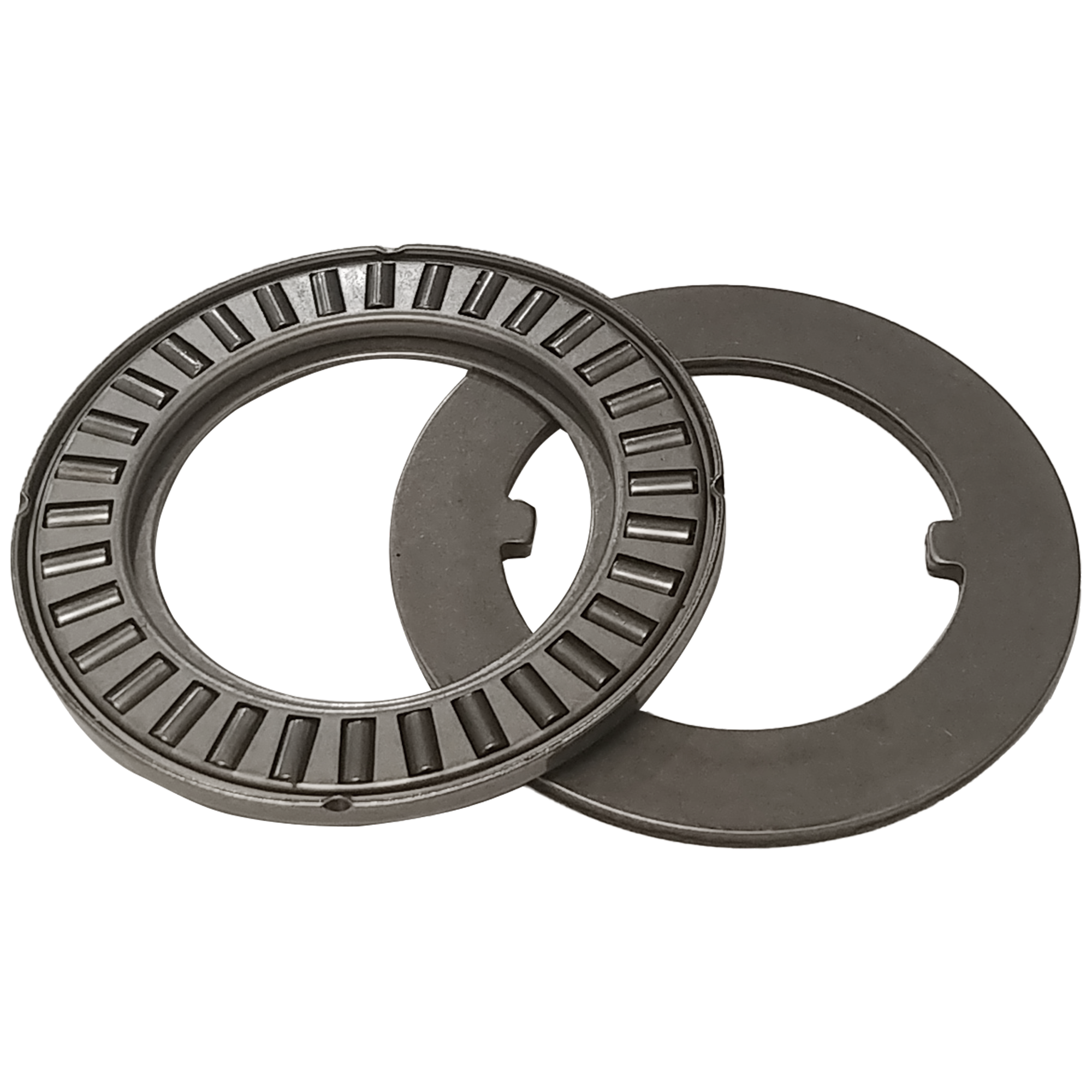

14 Bearing & Race Kit Turbine-side
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
 YW-2-16K
Bearing & Race Kit YW-2-16K
& Turbine-side
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
19 Seal Ring Scarf Cut
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
 YO-25-1
Seal Ring YO-25-1
Scarf Cut &
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
22 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375
  • Inside Dia: 7.875
 YX-23-12
Lining (Friction Ring,Wafer) YX-23-12
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375
  • Inside Dia: 7.875
23 Bearing Front cover
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
 YW-9-6
Bearing YW-9-6
& Front cover
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
