Part Search

Torque Converter | Toyota | U140E

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)

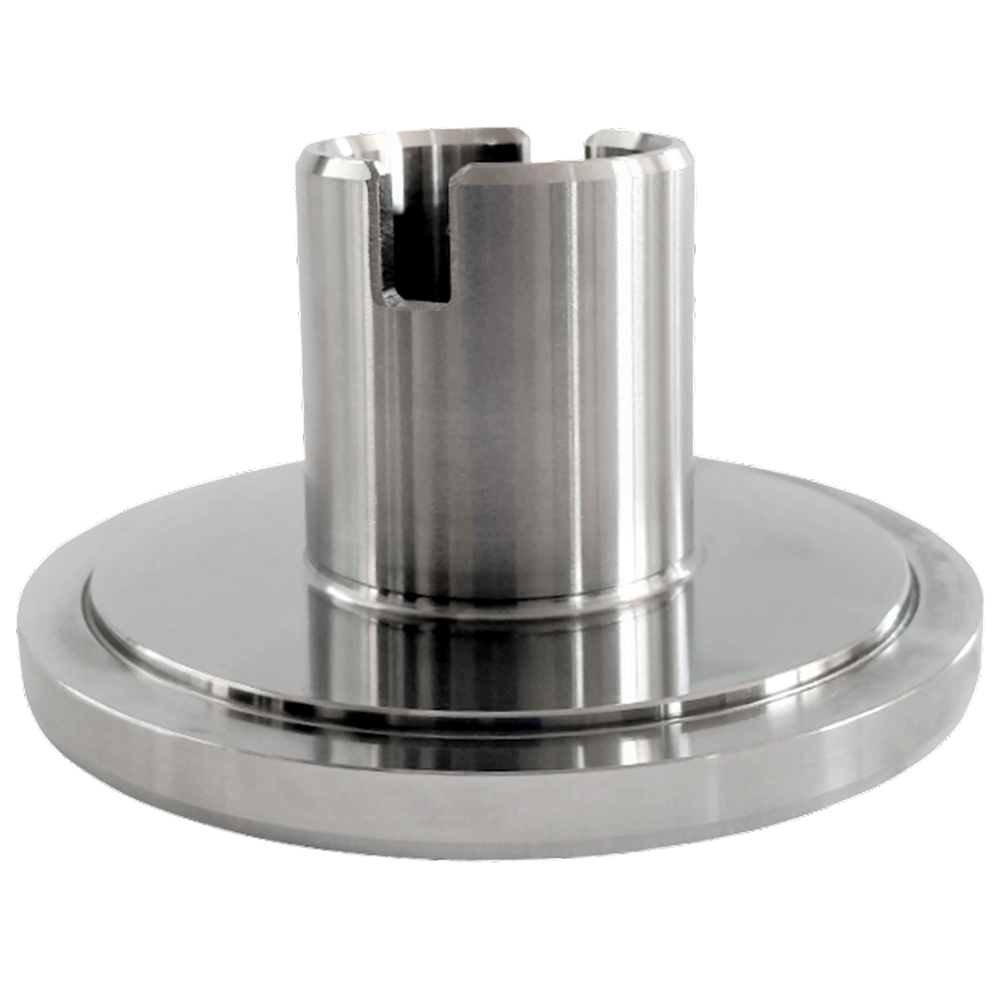

2 Impeller Hub Flanged
  • Journal Dia: 1.499"
  • Installed Height: 1.646"
  • Height: 1.930
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.640"
 YH-1-24FLG
Impeller Hub YH-1-24FLG
Flanged &
  • Journal Dia: 1.499"
  • Installed Height: 1.646"
  • Height: 1.930
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.640"
3 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing
  • Thickness: 0.17
  • Thickness metric: 4.32
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.488
  • Inside Dia: 2.315
  • Outside Dia Metric: 88.6
  • Inside Dia metric: 58.8
  • Race: YW-2-24
 YW-2-23
Bearing YW-2-23
&
  • Thickness: 0.17
  • Thickness metric: 4.32
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.488
  • Inside Dia: 2.315
  • Outside Dia Metric: 88.6
  • Inside Dia metric: 58.8
  • Race: YW-2-24
5 Bearing Race
  • Thickness: 0.138"
  • Material: Hardened Steel
  • Tang Count: 4 ID Tangs
  • Outside Dia: 3.341"
  • Inside Dia: 2.421"
 YW-2-24
Bearing Race YW-2-24
&
  • Thickness: 0.138"
  • Material: Hardened Steel
  • Tang Count: 4 ID Tangs
  • Outside Dia: 3.341"
  • Inside Dia: 2.421"
12 Bearing Race 4 ID Tangs
  • Thickness: 0.118"
  • Material: Hardened Steel
  • Outside Dia: 2.703"
  • Inside Dia: 1.839"
 YW-2-25
Bearing Race YW-2-25
4 ID Tangs &
  • Thickness: 0.118"
  • Material: Hardened Steel
  • Outside Dia: 2.703"
  • Inside Dia: 1.839"
13 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.854
  • Inside Dia: 1.732
  • Outside Dia Metric: 72.49
  • Inside Dia metric: 43.99
  • Race: YW-2-25
 YW-2-22
Bearing YW-2-22
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.854
  • Inside Dia: 1.732
  • Outside Dia Metric: 72.49
  • Inside Dia metric: 43.99
  • Race: YW-2-25
14 Rivet 12 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.4"
 YX-12
Rivet YX-12
& 12 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.4"
18 Seal Ring Scarf Cut
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
 YO-25-1
Seal Ring YO-25-1
Scarf Cut &
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
19 Metal Clad Seal
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
 YO-25-12
Metal Clad Seal YO-25-12
&
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
19 Metal Clad Seal Spring Loaded
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
 YO-25-2
Metal Clad Seal YO-25-2
Spring Loaded &
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10
  • Inside Dia: 8.5
 YX-23-18
Lining (Friction Ring,Wafer) YX-23-18
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10
  • Inside Dia: 8.5
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5
  • Inside Dia: 9
 YX-23-21
Lining (Friction Ring,Wafer) YX-23-21
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5
  • Inside Dia: 9
22 Bearing
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
 YW-9-6
Bearing YW-9-6
&
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
23 Bearing Race
  • Thickness: 0.075"
  • Outside Dia: 2.126"
  • Inside Dia: 1.260"
 YW-9-7
Bearing Race YW-9-7
&
  • Thickness: 0.075"
  • Outside Dia: 2.126"
  • Inside Dia: 1.260"
