Torque Converter | Toyota | Mitsubishi MF '99-'00

Ill.# Image Description Specification Part #
Turbine Hub
  • Height: 1.135
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"

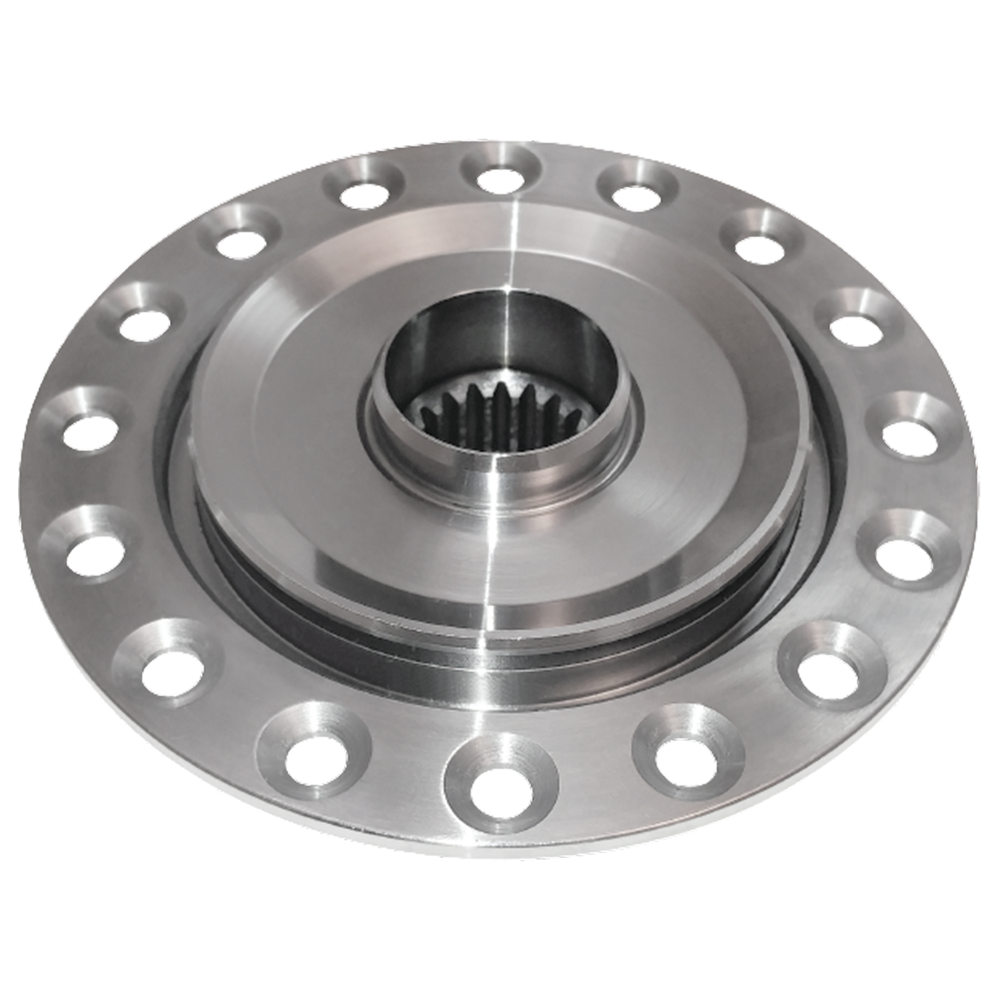

 TX-13-37HT
Turbine Hub TX-13-37HT
&
  • Height: 1.135
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
Turbine Hub
  • Height: 1.140
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
  • Uses 16 Rivets (Use YO-25-6 Metal Clad Seal)
 YX-13-9HT
Turbine Hub YX-13-9HT
&
  • Height: 1.140
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
  • Uses 16 Rivets (Use YO-25-6 Metal Clad Seal)
13.1 Metal Clad Seal
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon

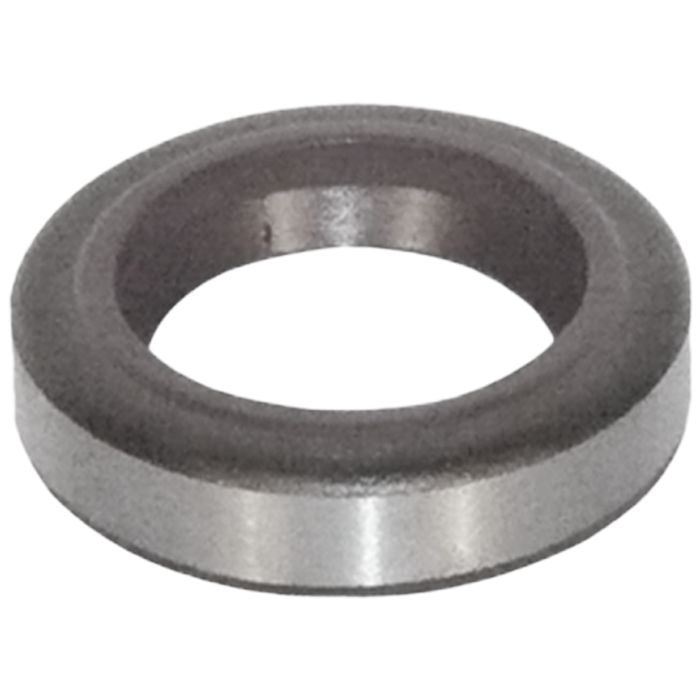

 TO-25-13
Metal Clad Seal TO-25-13
&
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon
13.1 Metal Clad Seal Used with turbine hub YX-13-9HT
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon

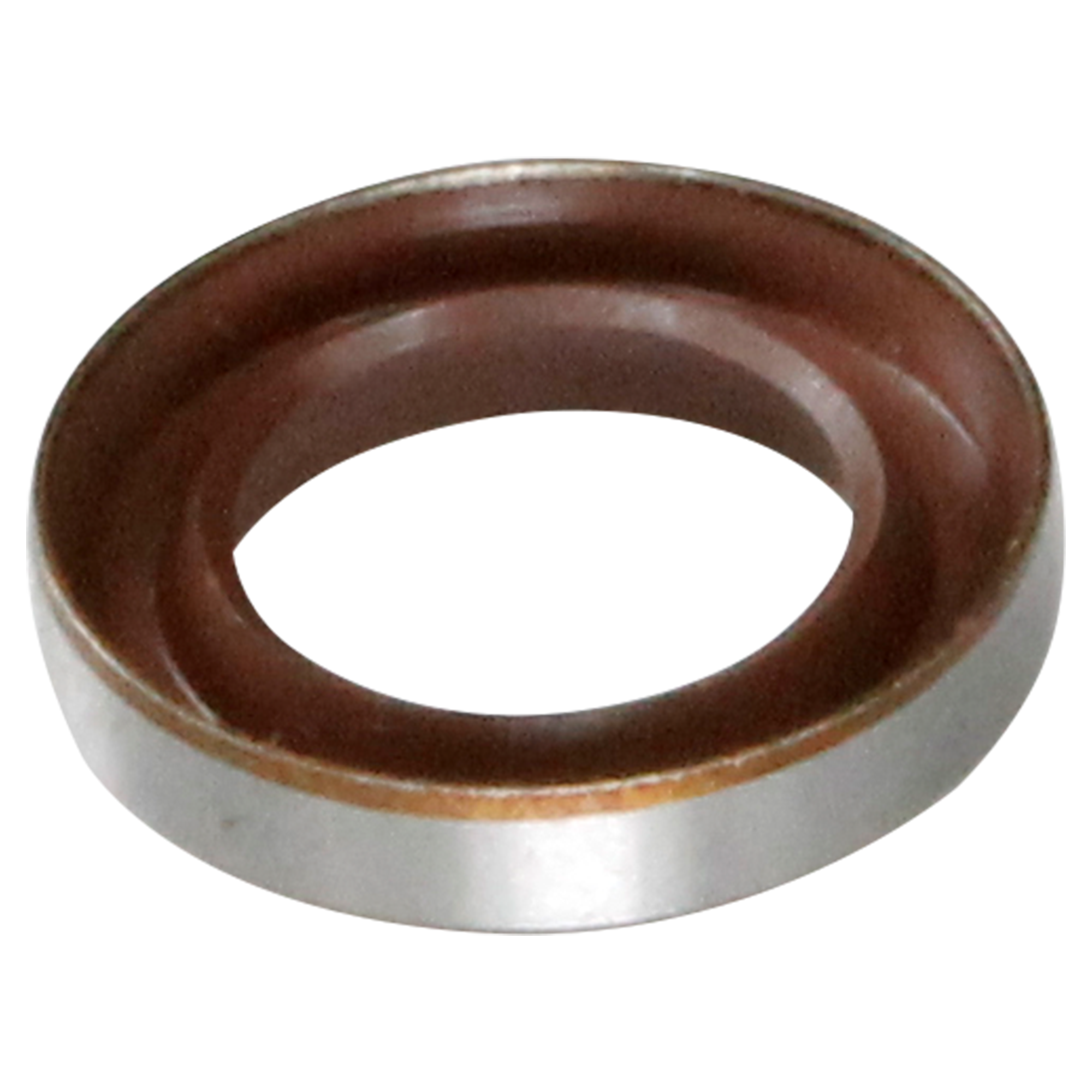

 YO-25-6
Metal Clad Seal YO-25-6
& Used with turbine hub YX-13-9HT
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon
