Torque Converter | Toyota | A750E

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
2 Misc NPN-SPL

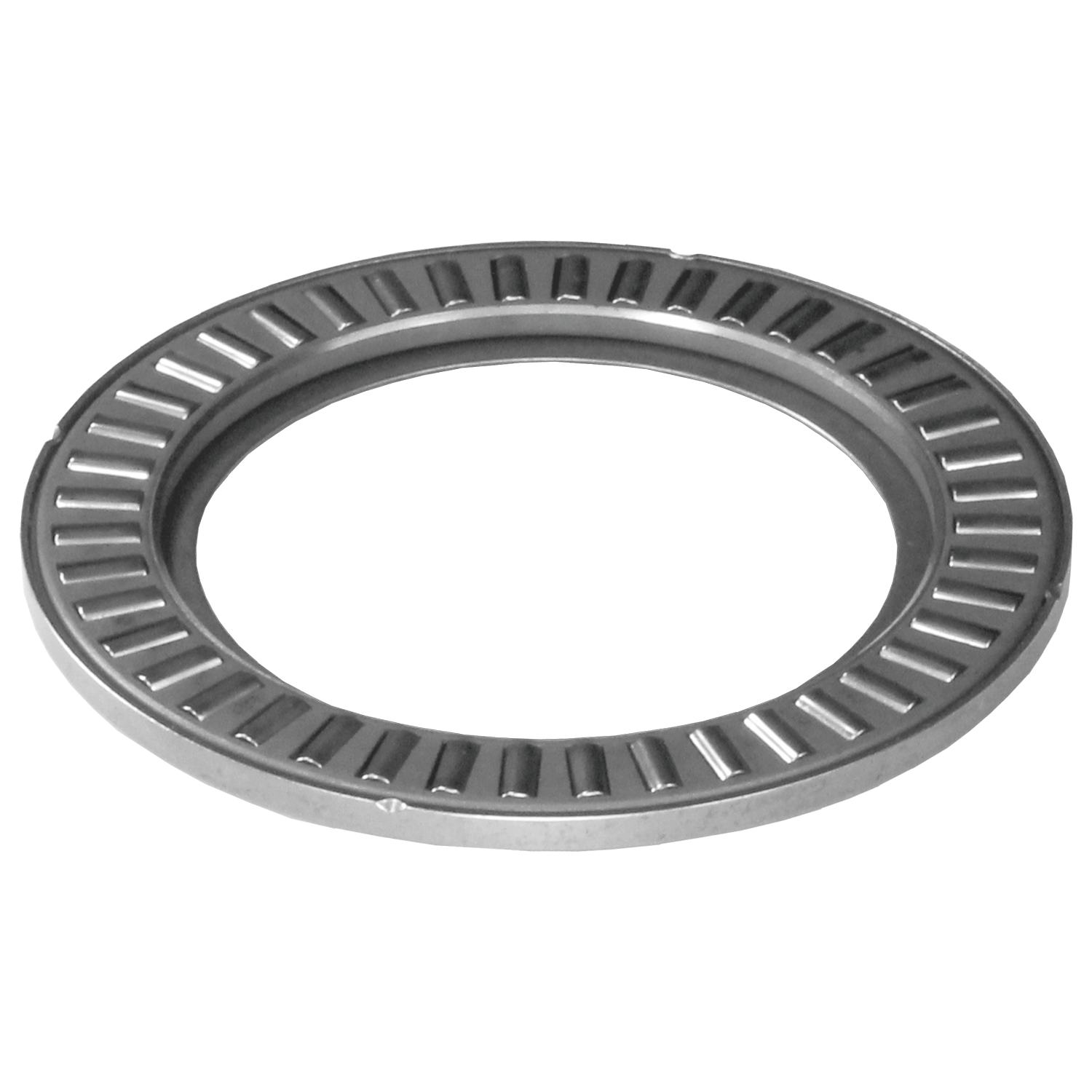

4 Bearing Impeller-side
  • Thickness: 0.17
  • Thickness metric: 4.32
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.488
  • Inside Dia: 2.315
  • Outside Dia Metric: 88.6
  • Inside Dia metric: 58.8
  • Race: YW-2-24
 YW-2-23

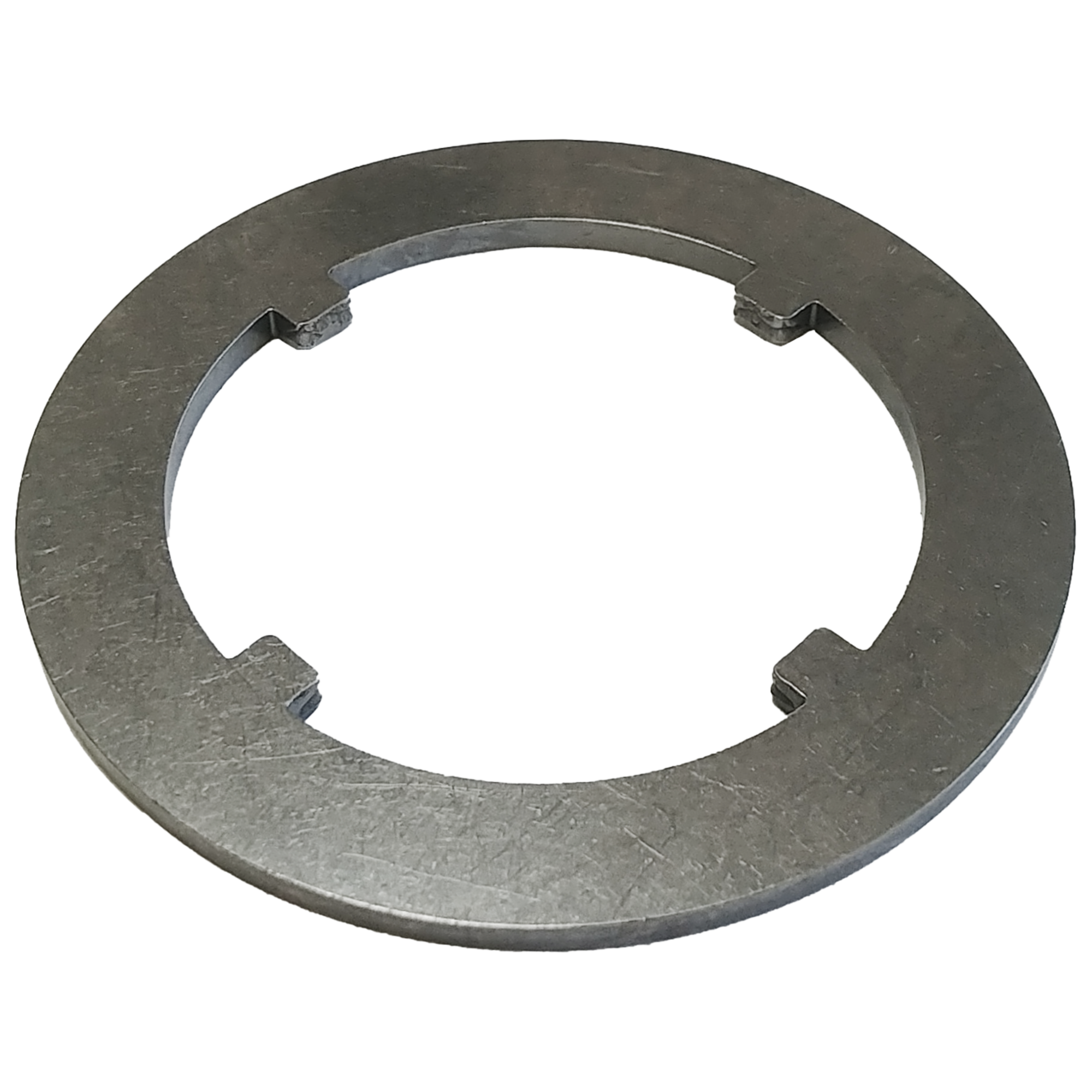

5 Bearing Race Impeller-side
  • Thickness: 0.138"
  • Material: Hardened Steel
  • Tang Count: 4 ID Tangs
  • Outside Dia: 3.341"
  • Inside Dia: 2.421"
 YW-2-24

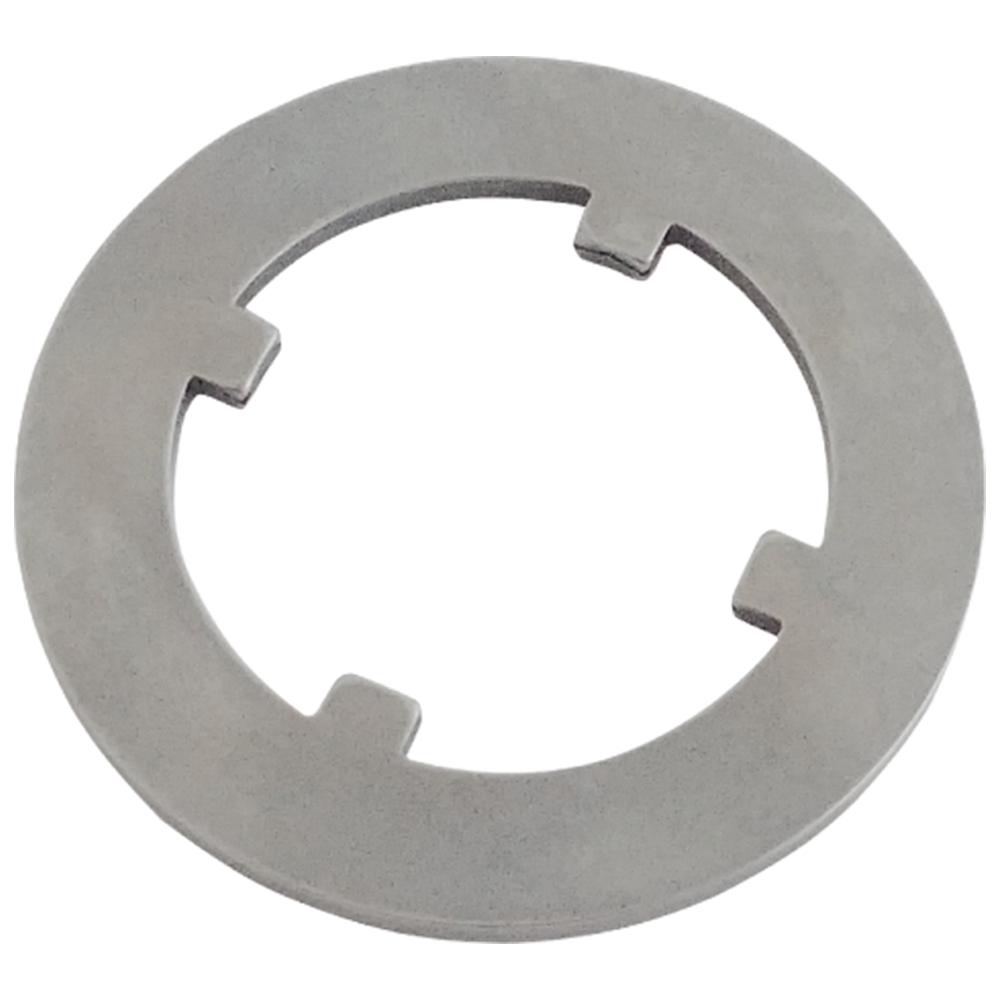

11 Bearing Race 4 ID Tangs Turbine-side
  • Thickness: 0.118"
  • Material: Hardened Steel
  • Outside Dia: 2.703"
  • Inside Dia: 1.839"
 YW-2-25
12 Bearing Turbine-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.854
  • Inside Dia: 1.732
  • Outside Dia Metric: 72.49
  • Inside Dia metric: 43.99
  • Race: YW-2-25
 YW-2-22
14 Seal Ring Scarf Cut
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
 YO-25-1
15 Metal Clad Seal
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
 YO-25-12
15 Metal Clad Seal Spring Loaded
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
 YO-25-2
25 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5
  • Inside Dia: 9
 YX-23-21

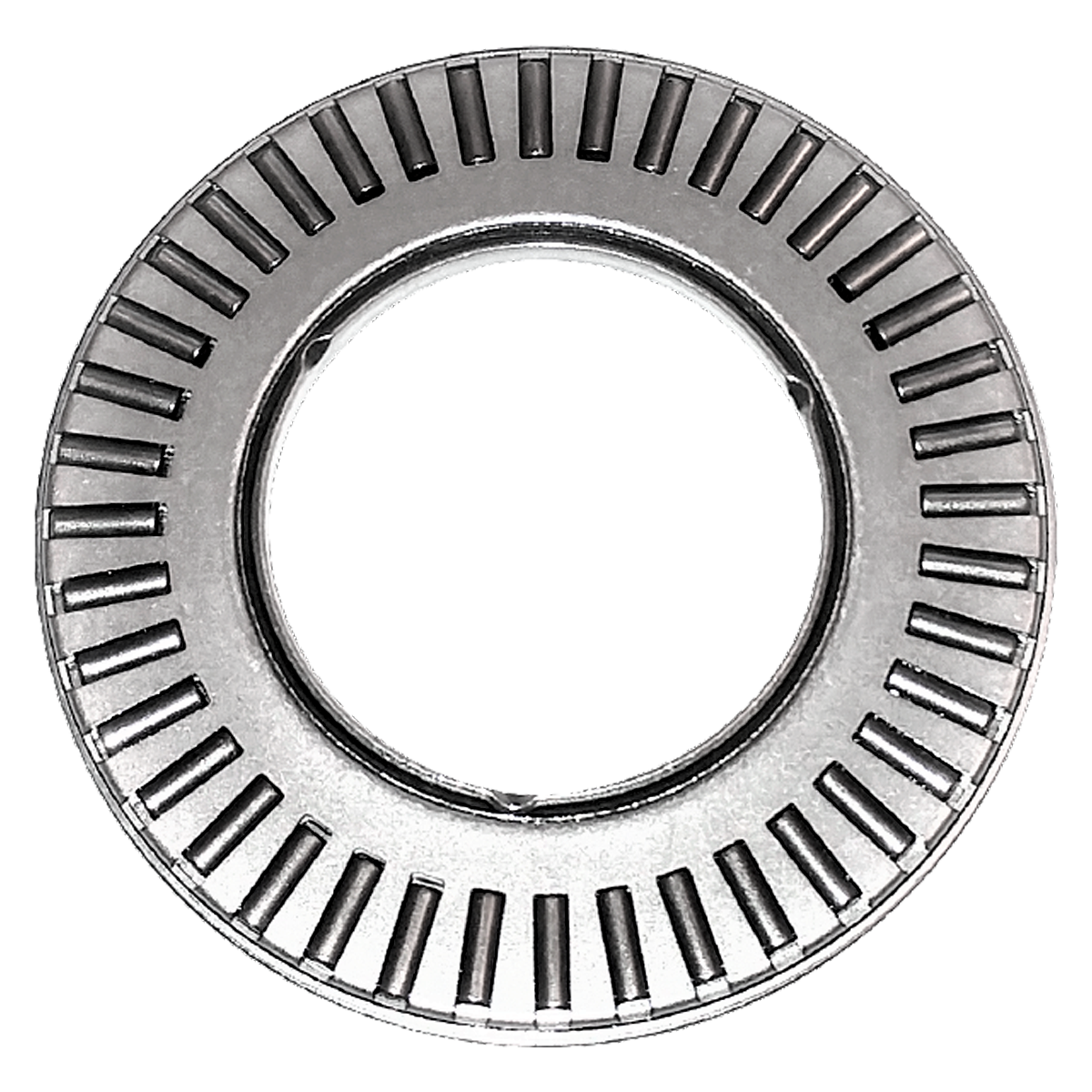

27 Bearing Front cover
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
 YW-9-6
