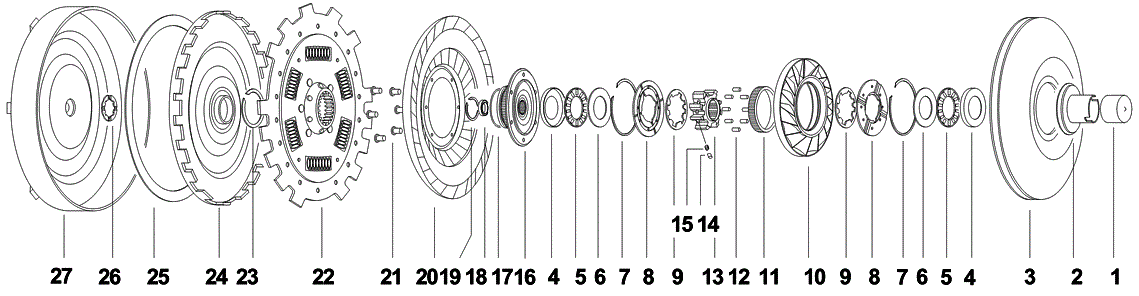

Torque Converter | Toyota | A-440-L, TO-46 | TO46

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-5GRC

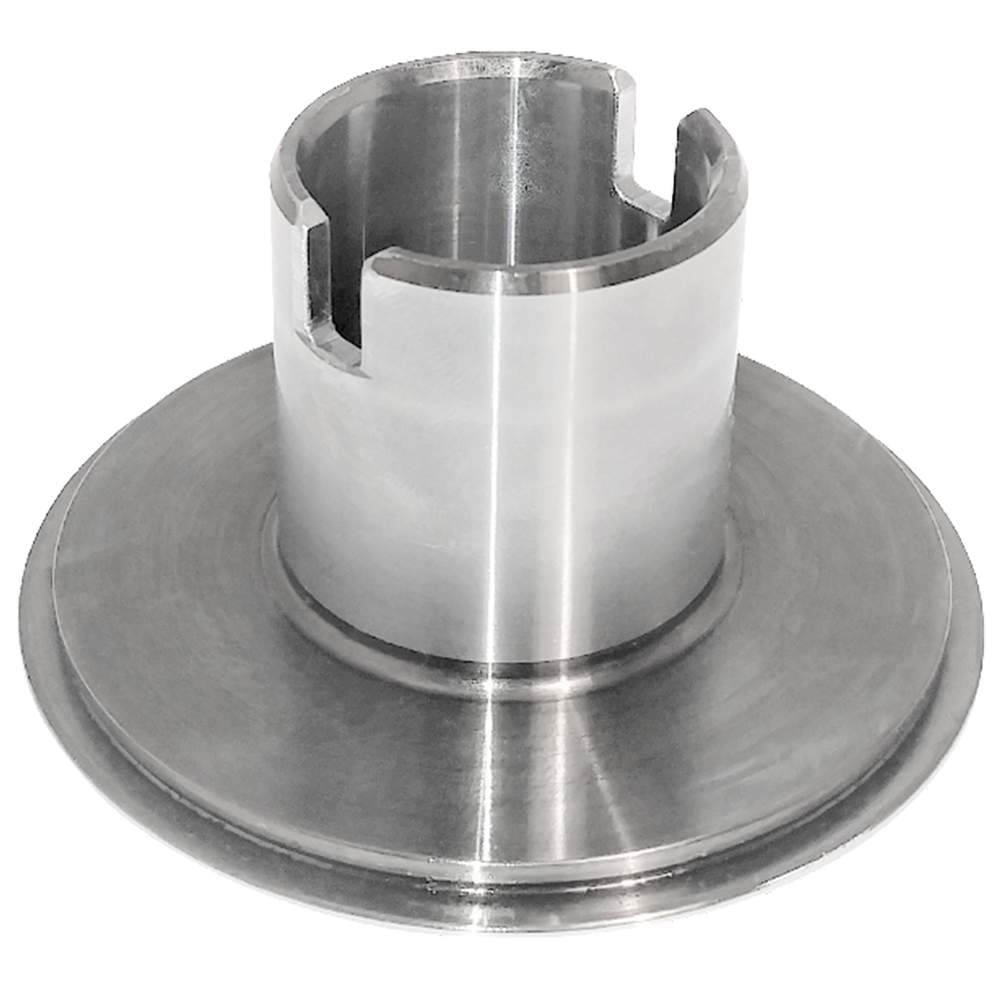

2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.630"
  • Height: 1.78
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-88FLG
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 YH-1-5G

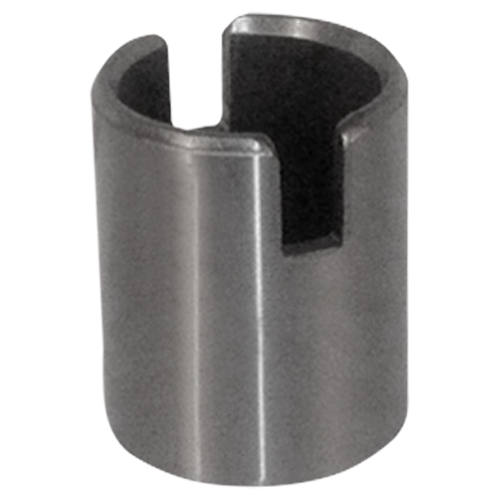

2 Impeller Hub
  • Journal Dia: 1.652"
  • Height: 1.850"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • For Landcruiser ‘92 & Up
 YH-1-7G
2 Impeller Hub Flanged For Landcruiser ‘92 & Up
  • Journal Dia: 1.652"
  • Installed Height: 2.094"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.445"
  • Hardness: Rc 32-36
 YH-1-12FLG
2 Impeller Hub Flanged
  • Journal Dia: 1.652"
  • Installed Height: 2.340"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.85"
  • Hardness: Rc 32-36
  • For Landcruiser ‘88 & Up
 YH-1-11FLG

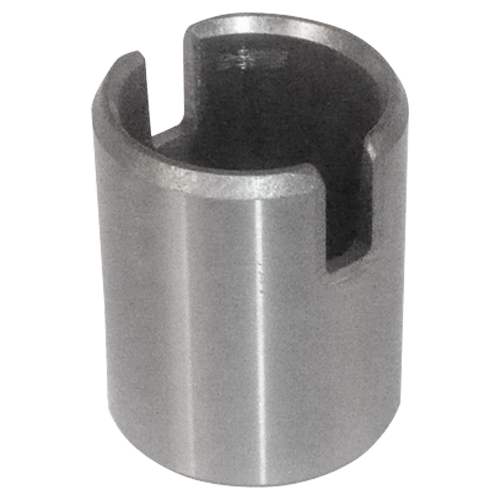

2 Impeller Hub Land Cruiser
  • Journal Dia: 1.652"
  • Height: 1.850"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-7GRC
2 Impeller Hub
  • Journal Dia: 1.652"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • For Landcruiser ‘88 & Up
 YH-1-8GRC
3 Impeller NPN-12-16-3
4 Bearing Race Cupped 2 Pieces Required.
  • Thickness: 0.030"
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
 YW-2-4
4 Bearing & Race Kit
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
 YW-2-4K
5 Bearing 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
5 Bearing Alternate 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N

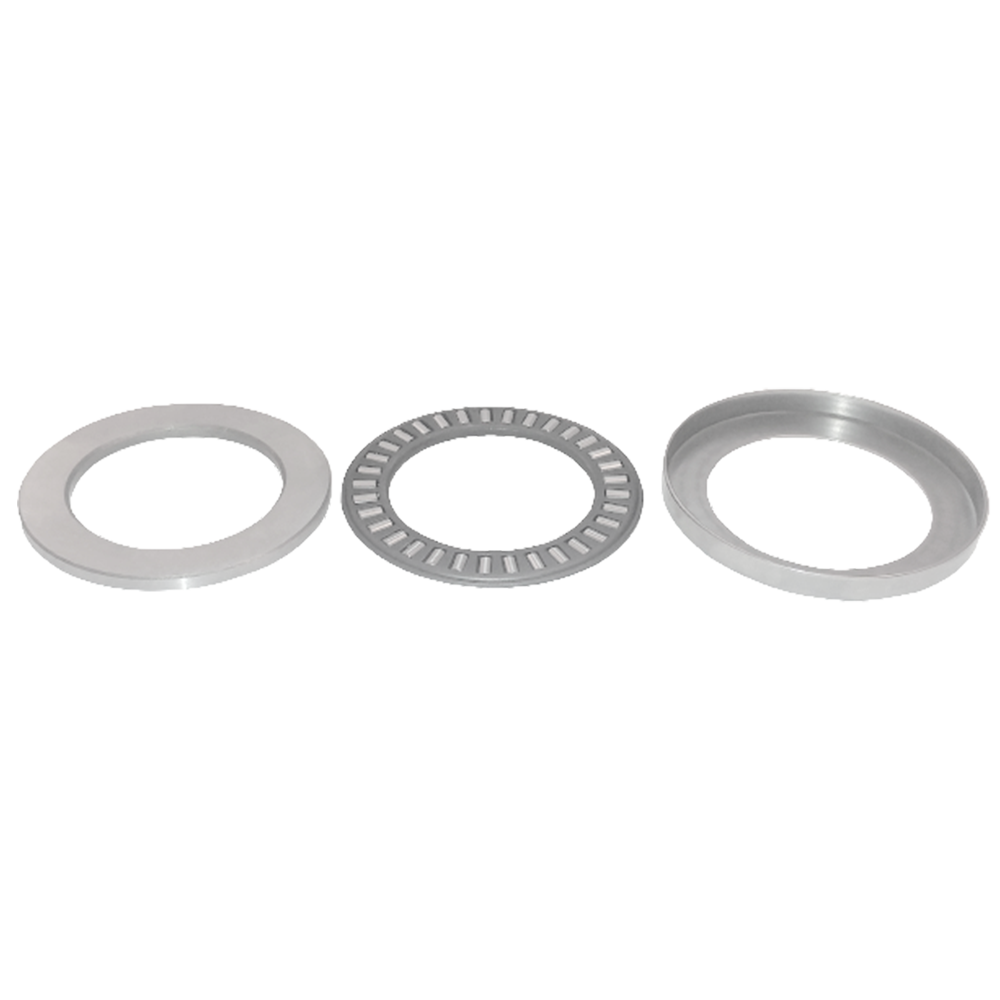

5_N.I. Bearing & Race Kit
  • Includes YW-2-4, JW-2ND, YW-2-6
 YW-2-3BK
5_N.I. Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
 PW-2-12
5_N.I. Bearing Replaces YW-2-4 & JW-2ND
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
 YW-2-16
5_N.I. Bearing & Race Kit Replaces YW-2-4 & JW-2ND
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
 YW-2-16K

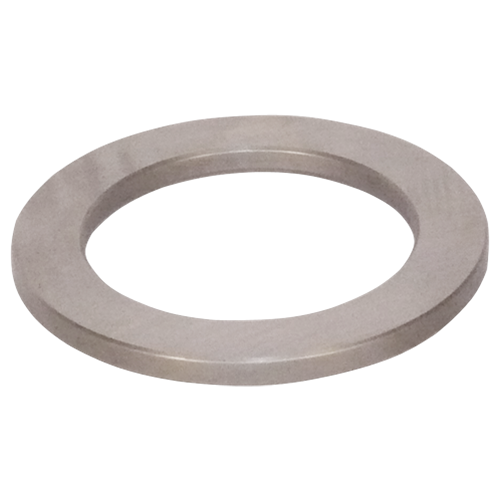

6 Bearing Race 2 Pieces Required.
  • Thickness: 0.14"
  • Outside Dia: 2.28"
  • Inside Dia: 1.59"
 YW-2-6
7 Snap Ring NPN-12-16-7
8 Stator Cap
  • Material: Bronze
 NPN-12-16-8
9 Washer
  • Material: Steel
 NPN-12-16-9
10 Stator NPN-12-16-10
11 Cam NPN-12-16-11
12 Roller
  • Dimensions: 10mm Dia x 17mm Long
 NPN-12-16-12
13 Cam
  • 41 Tooth Internal Spline (12 Removed)
 NPN-12-16-13
14 Spring Coil NPN-12-16-14
15 Plunger NPN-12-16-15
15.1 Bearing
  • Thickness: 0.148
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.677
  • Inside Dia: 1.732
  • Outside Dia Metric: 68
  • Inside Dia metric: 43.99
  • Race: YW-2-8,YW-2-5
 YW-2-7
16 Turbine Hub 20 Spline NPN-12-16-16
17 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 39.3446
 FO-25-8
17 O-Ring
  • Thickness: 0.109
  • Thickness metric: 2.7686
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 40.005
  • Machine Clutch Bore To 1.800"/1.802"
 FO-25-8A
17 O-Ring
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 38.5064
 JO-25-12
17 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Oversized
 JO-25-12X
17 Seal Ring Scarf Cut
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
 YO-25-1
18 Metal Clad Seal
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
 YO-25-5
20 Turbine NPN-12-16-20
21 Rivet 6/12 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet head dia: 0.4"
 YX-12
22 Damper Assembly NPN-12-16-22
24 Lockup Clutch YX-23-14
25 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.375"
  • Inside Dia: 8.625"
 YX-23-7
25 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.5
  • Inside Dia: 9
 YX-23-21

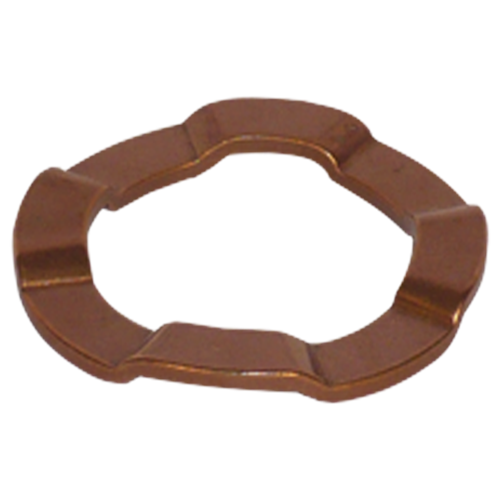

26 Turbine Spacer
  • Thickness: 0.166"
  • Material: Bronze
  • Outside Dia: 1.745"
  • Inside Dia: 1.190"
 YW-9-5
27 Front Cover NPN-12-16-27
27_N.I. Bolt Hex Head 6 Pieces Required.
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm
 YX-10-1
