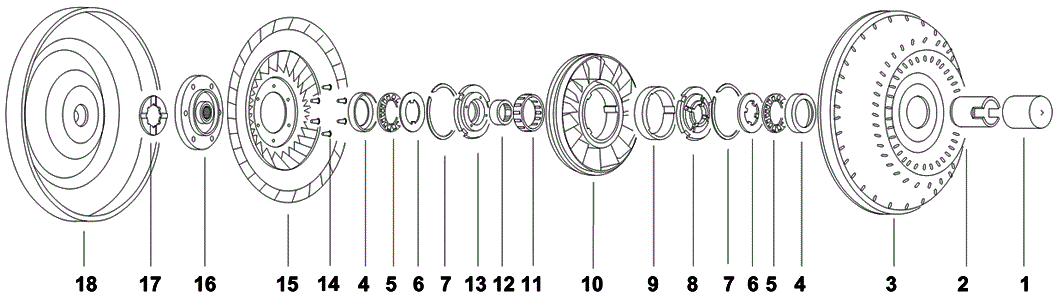

Torque Converter | Toyota | A-41, A-42DL Non-Lockup | TO-20

Ill.#		Description	Specification	Part #
1	Hubcap	Fits 1-1/2" (38.1mm). Length: 1-1/2"	Color: Green Fits 1-1/2" (38.1mm)	MHC-G
2	Impeller Hub	Flanged	Journal Dia: 1.500" Installed Height: 1.880" Height: 2.06 Hub Mount: Flanged Pump Drive Type: Slots Flange Dia: 3.250" Hardness: Rc 32-36	YH-1-55FLG
2	Impeller Hub		Journal Dia: 1.500" Installed Height: 1.770" Hub Mount: Butt Pump Drive Type: Slots Hardness: Rc 32-36	YH-1-3GRC
3	Impeller			NPN-12-10-3
4	Bearing Race	Cupped 2 Pieces Required.	Thickness: 0.030" Outside Dia: 2.440" Inside Dia: 1.664"	YW-2-4
4	Bearing & Race Kit		Outside Dia: 2.440" Inside Dia: 1.664"	YW-2-4K
5	Bearing	2 Pieces Required.	Thickness: 0.125 Thickness metric: 3.18 Bearing type: Exposed Outside Dia: 2.36 Inside Dia: 1.57 Outside Dia Metric: 59.94 Inside Dia metric: 39.88 Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6	JW-2ND
5	Bearing	2 Pieces Required.	Thickness: 0.118 Thickness metric: 3 Bearing type: Exposed Outside Dia: 2.362 Inside Dia: 1.575 Outside Dia Metric: 59.94 Inside Dia metric: 39.88 Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6	JW-2N
5_N.I.	Bearing & Race Kit	Alt# TB010012		YW-2-4KD
5_N.I.	Bearing & Race Kit		Includes YW-2-4 , JW-2ND, YW-2	YW-2BK
6	Bearing Race	2 Pieces Required.	Thickness: .08" Material: Steel Tang Count: Universal, 1 Tang, Replaces 4 Tangs Outside Dia: 2.3" Inside Dia: 1.58"	YW-2
7	Stator Cap	Bulletproof™ Rear	Thickness: .41" Material: Aluminum Outside Dia: 3.09" Inside Dia: 1.28"	YW-4-5
8	Snap Ring			NPN-12-10-8
9	Cam			NPN-12-10-9
10	Stator			NPN-12-10-10
11	Sprag		Thickness: 0.530" Cam Count: 14 elements Outside Dia: 2.281" Inside Dia: 1.625" Cam part-ID: F-315, 2 Inside Strips	BC-6
11	Sprag		Thickness: 0.875" Cam Count: 20 elements Outside Dia: 2.406" Inside Dia: 1.750" Clip Count: 5; Drag Strip Count: 3	BC-6HD

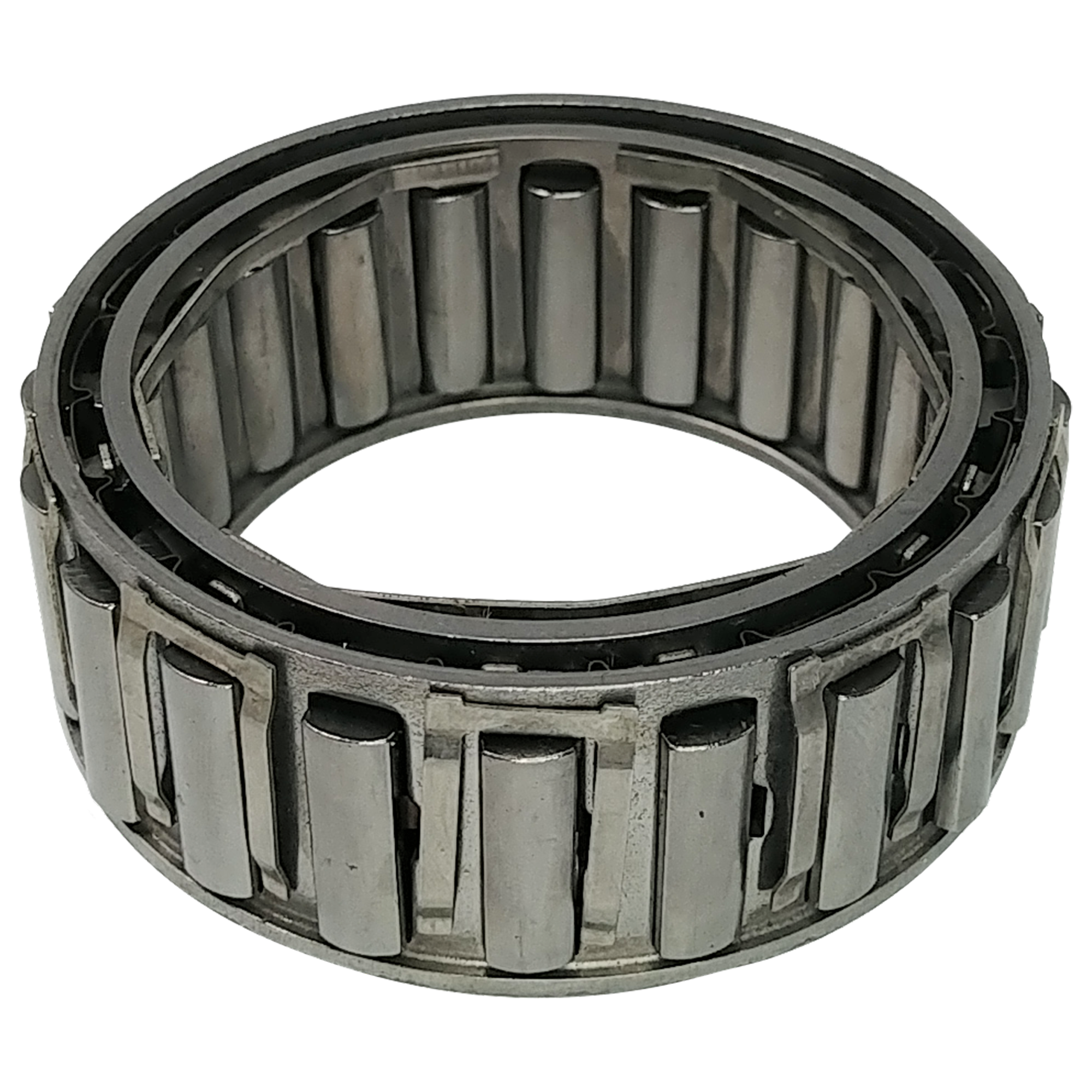

11	Sprag		Outside Dia: 2.406" Inside Dia: 1.750"	BC-6HDA
12	Inner Race	Stator	Height: 0.828" Internal Teeth: 38 (12 Removed) Outside Dia: 1.625" Inside Dia: 1.170"	YX-14-3
14	Rivet	6 Pieces Required.	Length: 0.425" Rivet solid or tubular: Solid Rivet Shank Dia: 0.245" Rivet Head Dia: 0.400"	YX-12L
15	Turbine	254mm		NPN-12-10-15

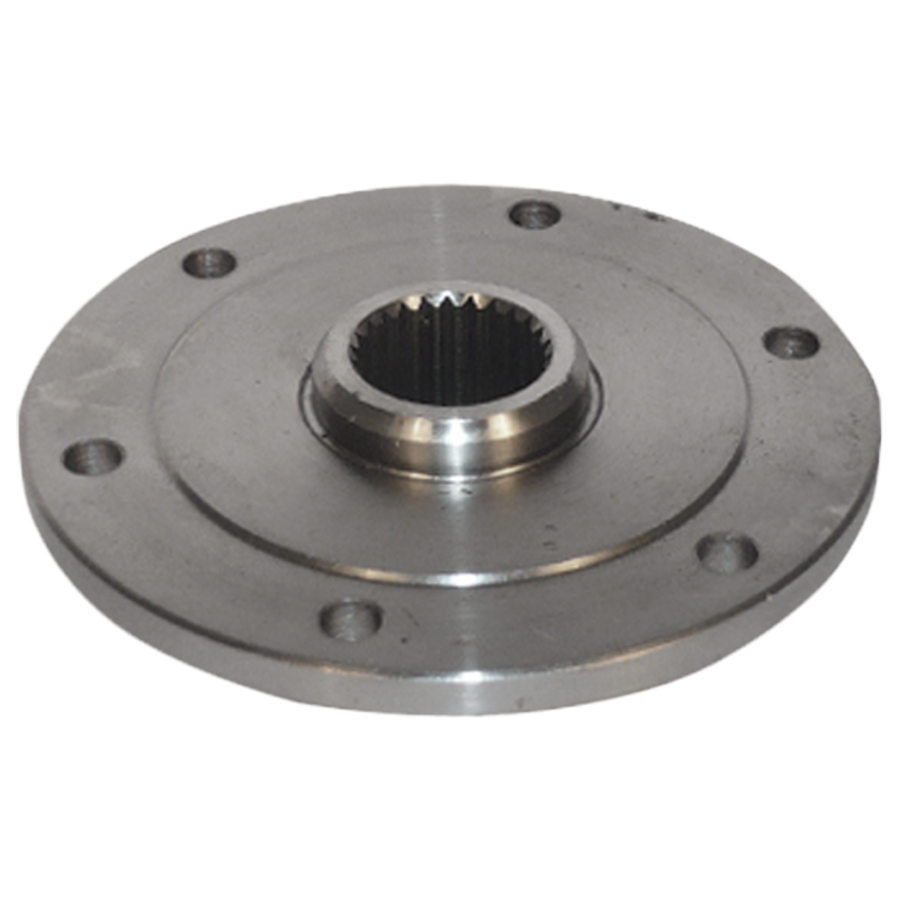

16	Turbine Hub		Internal Teeth: 26	YX-13-3

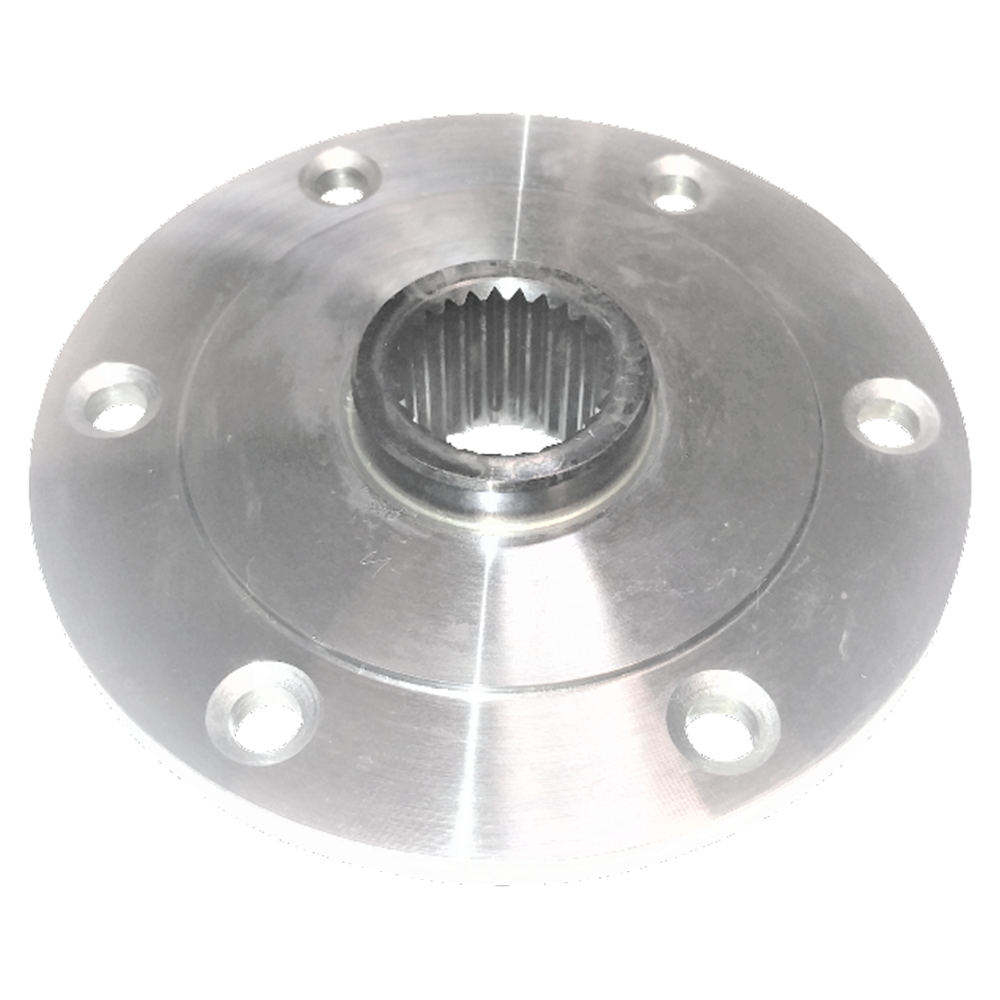

16	Turbine Hub		Height: 0.950" Internal Teeth: 26 Hardness: Heat-Treated (hardened) Outside Dia: 3.70"	YX-13-3HT
16	Insert	Non-Lockup (Also B.W.)	Height: 0.880 Internal Teeth: 26 Outside Dia: 1.13"	WX-13-26

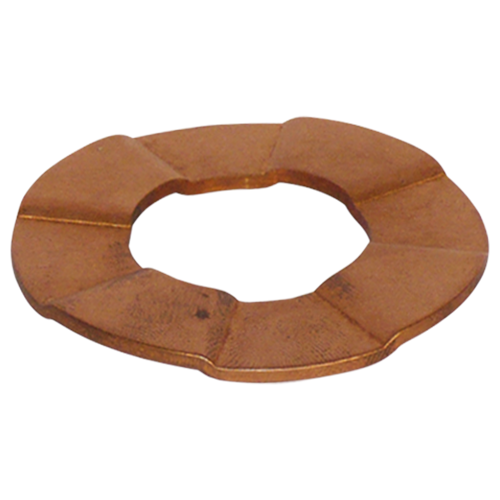

17	Turbine Washer		Thickness: .137" Material: Bronze Outside Dia: 2.36" Inside Dia: 1.19"	YW-9-2
17	Turbine Washer		Thickness: 0.118" Outside Dia: 2.36" Inside Dia: 1.19"	YW-9-2B
17	Turbine Washer		Thickness: .08" Material: Bronze Outside Dia: 2.56" Inside Dia: 1.24"	YW-9-3
18	Front Cover			NPN-12-10-18

Showing 1 to 28 of 28 entries
