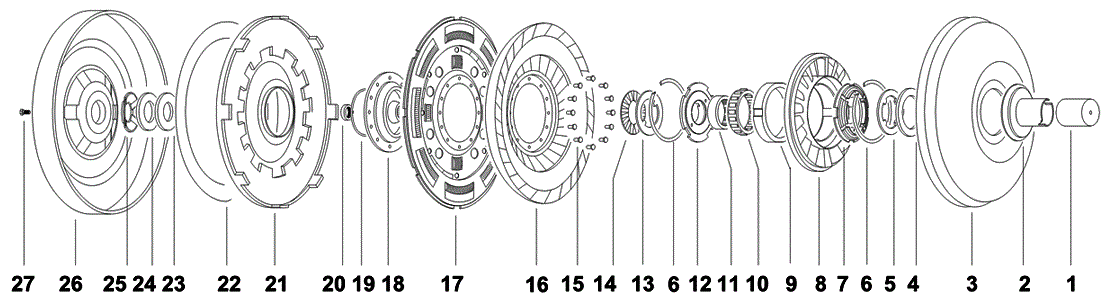

Torque Converter | Toyota | A-340H | J30

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Impeller Hub Flanged
  • Journal Dia: 1.499"
  • Installed Height: 1.875"
  • Height: 2.060"
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
 YH-1-26FLG
0 Metal Clad Seal Hi Temperature
  • housing bore dia: 0.929
  • housing bore dia metric: 23.6
  • Shaft Dia metric: 15.49
  • Shaft Dia: 0.61
 YO-25-11
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.060"
  • Hub Mount: Flanged
  • Pump Drive Type: slots
  • Flange Dia: 3.440"
  • Hardness: Rc 32-36
 YH-1-13FLG
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Hub Mount: Flanged
  • Pump Drive Type: slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-55FLG
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: slots
 YH-1-3G
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
 YH-1-3GRC
3 Impeller NPN-12-18-3
4 Bearing
  • Outer Dia: 2.677
  • Inner Dia: 1.732
  • Thickness: 0.148
  • Outer Dia Metric: 68
  • Inner Dia metric: 43.99
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Race: YW-2-8,YW-2-5
 YW-2-7
4 Bearing
  • Outer Dia: 2.677
  • Inner Dia: 1.89
  • Thickness: 0.148
  • Outer Dia Metric: 68
  • Inner Dia metric: 48.01
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Race: YW-2-8, YW-2-5
 YW-2-10
4 Bearing Enclosed Alternate, Use with Selective Shim TW-2-110/120/130. (Machine Hub to Accept Bearing TW-2-4)
  • Outer Dia: 2.82
  • Inner Dia: 1.898
  • Thickness: 0.181
  • Outer Dia Metric: 71.63
  • Inner Dia metric: 48.21
  • Thickness metric: 4.6
  • Bearing type: Enclosed
 TW-2-4
4 Bearing Alternate, Use with Selective Shim TW-2-110/120/130. (Machine Hub to Accept Bearing TW-2-4)
  • Outer Dia: 2.82"
  • Inner Dia: 1.9"
  • Thickness: 0.181"
  • Bearing type: Enclosed
 TW-2-4NA
5 Bearing Race
  • Outer Dia: 2.56"
  • Inner Dia: 1.84"
  • Thickness: 0.08"
  • 4 Lugs
 YW-2-8
5 Bearing Race
  • Outer Dia: 2.56"
  • Inner Dia: 1.84"
  • Thickness: 0.08"
  • 1 Lug
 YW-2-5
6 Snap Ring NPN-12-18-6
7 Stator Cap NPN-12-18-7

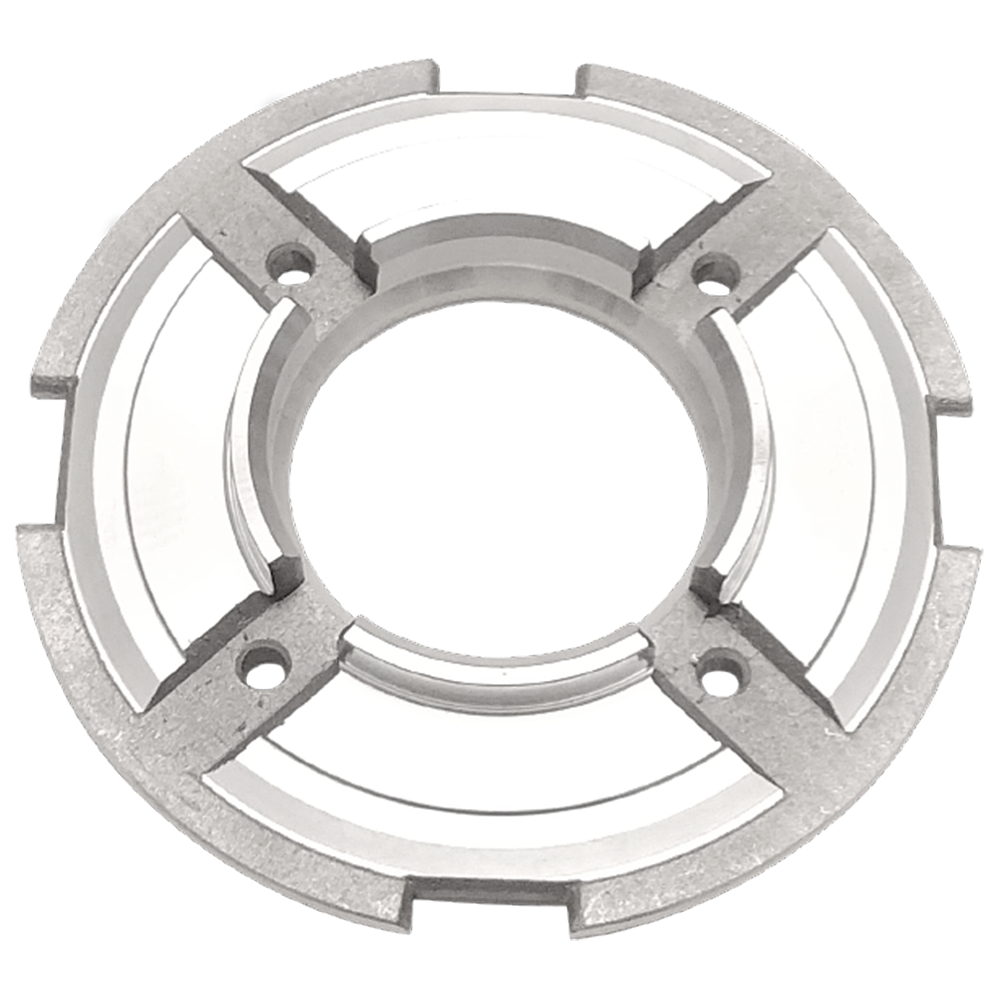

7 Stator Cap
  • Outer Dia: 3.337"
  • Inner Dia: 1.466"
  • Thickness: 0.425"
  • Material: Aluminum
 YW-4-11
7 Stator Cap Use with TW-2-4 or JW-2-20
  • Outer Dia: 3.337"
  • Inner Dia: 1.466"
  • Thickness: 0.291"
  • Material: Aluminum
  • Functional Thickness: 0.206"
 YW-4-14
8 Stator NPN-12-18-8
9 Cam NPN-12-18-9
10 Sprag NPN-12-18-10
11 Inner Race NPN-12-18-11

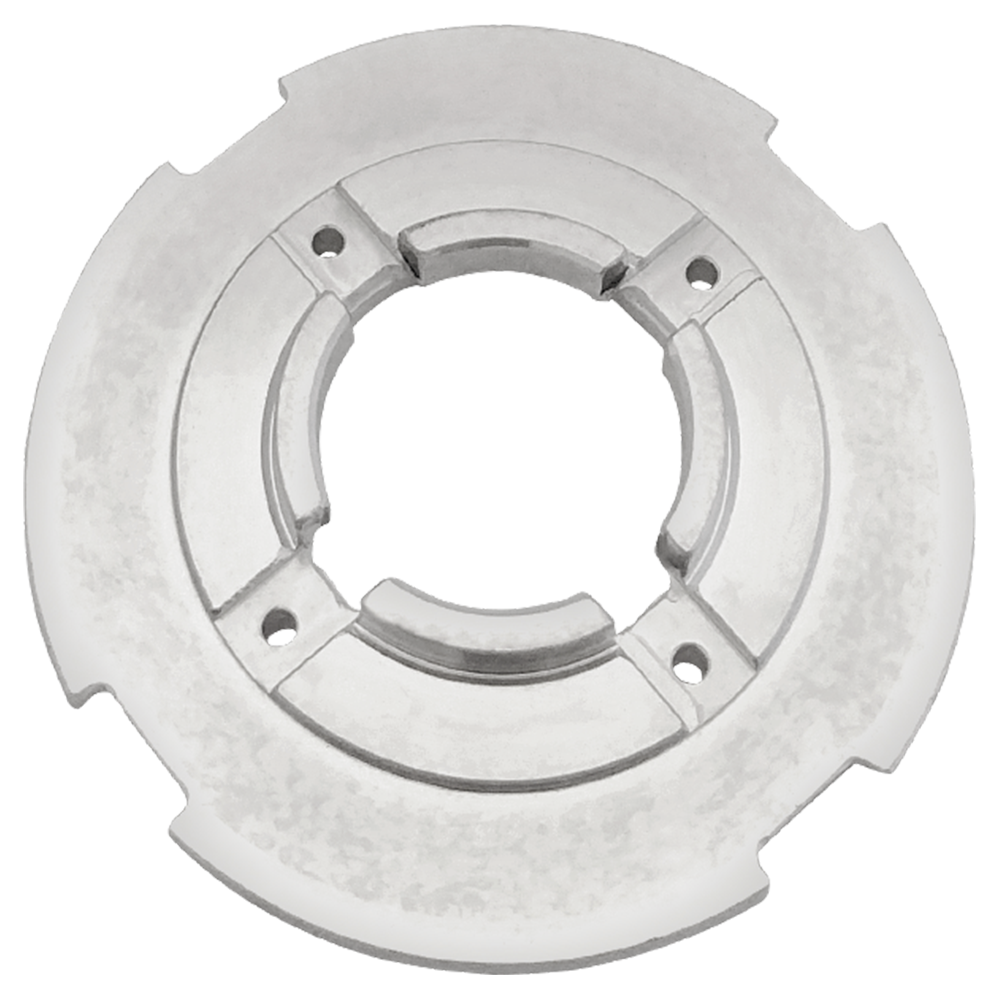

12 Stator Cap
  • Outer Dia: 3.34"
  • Inner Dia: 1.28"
  • Material: Aluminum
 YW-4-7
13 Bearing Race
  • Outer Dia: 2.3"
  • Inner Dia: 1.58"
  • Thickness: .08"
  • Material: Steel
  • Universal, 1 Tang, Replaces 4 Tangs
 YW-2
14 Bearing
  • Outer Dia: 2.441"
  • Inner Dia: 1.654"
  • Thickness: 0.15"
  • Outer Dia Metric: 62mm
  • Inner Dia metric: 42mm
  • Thickness metric: 3.8mm
  • Bearing type: Semi- Enclosed
  • Race: YW-2
 YW-2-9
15 Rivet 12 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.245"
 YX-12
16 Turbine 254mm NPN-12-18-16
17 Damper NPN-12-18-17
18 Turbine Hub
  • Internal Teeth: 26
 YX-13-7
18 Turbine Hub
  • Internal Teeth: 26
  • Hardness: Heat Treated
 YX-13-7HT
19 Seal Ring Scarf Cut
  • Height: 0.106"
  • Outer Dia: 2.683"
  • Width: 0.090"
  • Outer Dia Metric: 68.2498
  • Material: PTFE
  • Height Metric: 2.8194
 YO-25-1
20 Metal Clad Seal
  • housing bore dia: 0.929
  • housing bore dia metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
 YO-25-12
20 Metal Clad Seal Spring Loaded
  • housing bore dia: 0.929
  • housing bore dia metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
 YO-25-2
21 Lockup Clutch YX-23-13
22 Lining (Friction Ring,Wafer) Cover AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 10.125"
  • Inner Dia: 8.25"
  • Thickness: 0.045"
  • Material: Red
 YX-23-8
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 10"
  • Inner Dia: 8.25"
  • Thickness: 0.045"
  • Material: Red
  • (Front Cover)
 YX-23-1
23 Bearing Race For Bearing & Race Kit YW-9-4K NPN-12-18-23
23 Bearing Race
  • Outer Dia: 2.126"
  • Dimensions: 54.00mm O.D., 32.00mm I.D., 1.90mm Thick
  • Inner Dia: 1.260"
  • Thickness: 0.075"
 YW-9-7
24 Bearing
  • Alternate: Phenolic Washer YW-9-4B
 NPN-12-18-24
24 Bearing
  • Outer Dia: 2.047
  • Inner Dia: 1.112
  • Thickness: 0.11
  • Outer Dia Metric: 52
  • Inner Dia metric: 28.24
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Replaces Bearing & Race.
 YW-9-6
25 Retainer Race Alternate: YW-9-6 Bearing & YW-9-7 Race, See Pages 11-20, 11-21 NPN-12-18-25
26 Front Cover NPN-12-18-26
27 Bolt Hex Head 4 Pieces Required.
  • Dimensions: M9 x 1.25mm
 YX-10-2
27 Bolt Hex Head
  • Dimensions: M8-1.25 X 12mm
 YX-10-1
