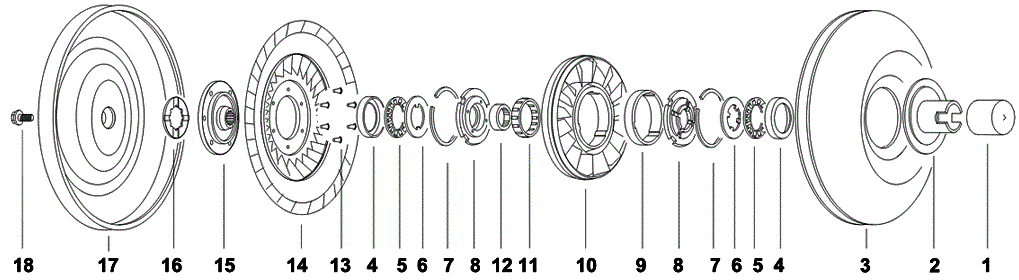

Torque Converter | Toyota | A-130 Non-Lockup, MX-17 | TO30

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.690"
  • Height: 1.880"
  • Hub Mount: Flanged
  • Pump Drive Type: slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-44FLG
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: slots
 YH-1-5G
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
 YH-1-5GRC
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Hub Mount: Flanged
  • Pump Drive Type: slots
  • Flange Dia: 2.44"
  • Hardness: Rc 32-36
 YH-1-66FLG
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: slots
 YH-1-3G
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
 YH-1-3GRC
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Hub Mount: Flanged
  • Pump Drive Type: slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-55FLG
3 Impeller NPN-12-2-3
4 Bearing Race Cupped 2 Pieces Required.
  • Outer Dia: 2.440"
  • Inner Dia: 1.664"
  • Thickness: 0.030"
 YW-2-4
4 Bearing & Race Kit
  • Outer Dia: 2.440"
  • Inner Dia: 1.664"
 YW-2-4K
5 Bearing
  • Outer Dia: 2.43
  • Inner Dia: 1.31
  • Thickness: 0.15
  • Outer Dia Metric: 61.72
  • Inner Dia metric: 33.27
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Race: PW-2-13
 PW-2-12
5 Bearing
  • Outer Dia: 2.436
  • Inner Dia: 1.496
  • Thickness: 0.15
  • Outer Dia Metric: 61.87
  • Inner Dia metric: 38
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Race: YW-2
 YW-2-16
5 Bearing & Race Kit
  • Outer Dia: 2.43"
  • Inner Dia: 1.31"
 YW-2-16K
5 Bearing 2 Pieces Required.
  • Outer Dia: 2.36
  • Inner Dia: 1.57
  • Thickness: 0.125
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
5 Bearing 2 Pieces Required.
  • Outer Dia: 2.362
  • Inner Dia: 1.574
  • Thickness: 0.118
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3
  • Bearing type: Exposed
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
5_N.I. Bearing & Race Kit Alt# TB010012 YW-2-4KD
5_N.I. Bearing & Race Kit
  • Contains YW-2-4 , JW-2ND, YW-2
 YW-2BK
6 Bearing Race 2 Pieces Required.
  • Outer Dia: 2.3"
  • Inner Dia: 1.58"
  • Thickness: .08"
  • Material: Steel
  • Universal, 1 Tang, Replaces 4 Tangs
 YW-2
7 Snap Ring NPN-12-2-7
8 Stator Cap Bulletproof™ 2 Pieces Required.
  • Outer Dia: 3.09"
  • Inner Dia: 1.28"
  • Thickness: .41"
  • Material: Aluminum
 YW-4-5
9 Cam NPN-12-2-9
10 Stator NPN-12-2-10
11 Sprag
  • Outer Dia: 2.281"
  • Inner Dia: 1.625"
  • Thickness: 0.530"
  • 14 Cams(part-ID F-315), 2 Inside Strips
 BC-6
11 Sprag
  • Outer Dia: 2.406"
  • Inner Dia: 1.750"
  • Width: 0.875"
  • Cam Count: 20 Clip Count: 5; Drag Strip Count: 3
 BC-6HD
11 Sprag
  • Outer Dia: 2.406"
  • Inner Dia: 1.750"
 BC-6HDA
12 Inner Race Stator
  • Height: 0.828"
  • Outer Dia: 1.625"
  • Inner Dia: 1.170"
  • Internal Teeth: 38 (12 Removed)
 YX-14-3
13 Rivet 6 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.245"
 YX-12
14 Turbine 254mm NPN-12-2-14
15 Turbine Hub
  • Internal Teeth: 26
 YX-13-3
15 Turbine Hub
  • Height: 0.950"
  • Outer Dia: 3.70"
  • Internal Teeth: 26
  • Hardness: Heat Treated
 YX-13-3HT
15_N.I. Insert Fixes All Toyota Lockups
  • Height: 1.100
  • Outer Dia: 1.25"
  • Internal Teeth: 26
 YX-13-26
16 Turbine Washer
  • Outer Dia: 2.36"
  • Inner Dia: 1.19"
  • Thickness: .137"
  • Material: Bronze
 YW-9-2
16 Turbine Washer
  • Outer Dia: 2.36"
  • Inner Dia: 1.19"
  • Thickness: 0.118"
 YW-9-2B
17 Front Cover NPN-12-2-17
18 Bolt Hex Head 6 Pieces Required.
  • Dimensions: M8-1.25 X 12mm
 YX-10-1
